Reinforcement Detailing of Beams from ETABS output

Aim:-

• Reinforcement Detailing of Beams from ETABS output.

Procedure:-

Step:-1

• First we have to open the challange 7 page and download the challenge.

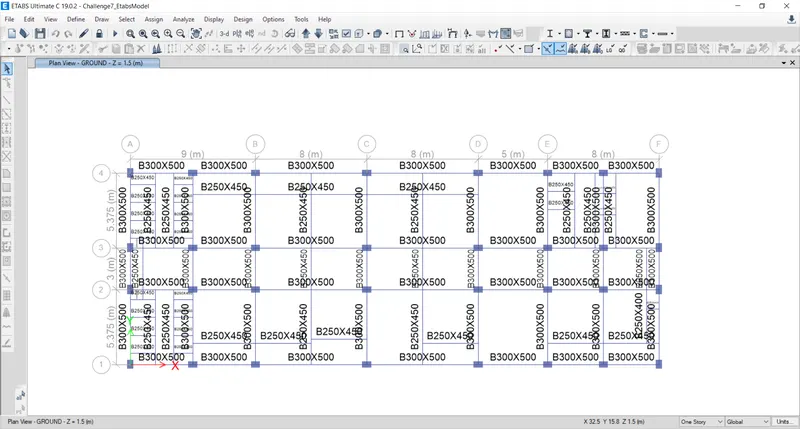

• After downloading the Challenge open it in the etabs 2018, as shown below.

Step:-2

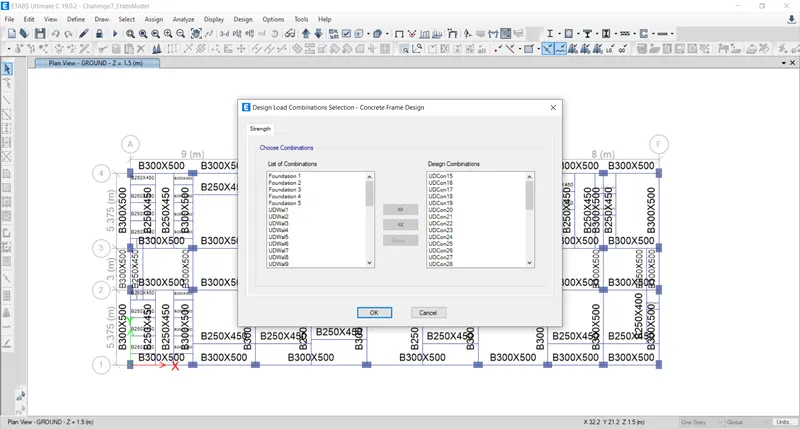

• Next we have to check the load combinations, as shown below.

Step:-3

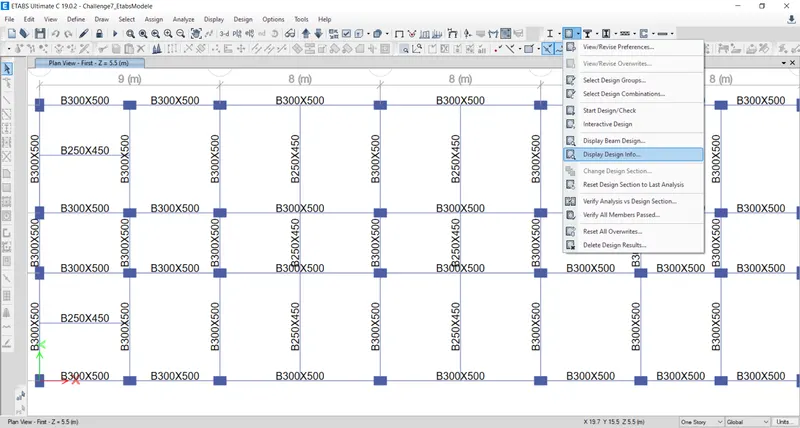

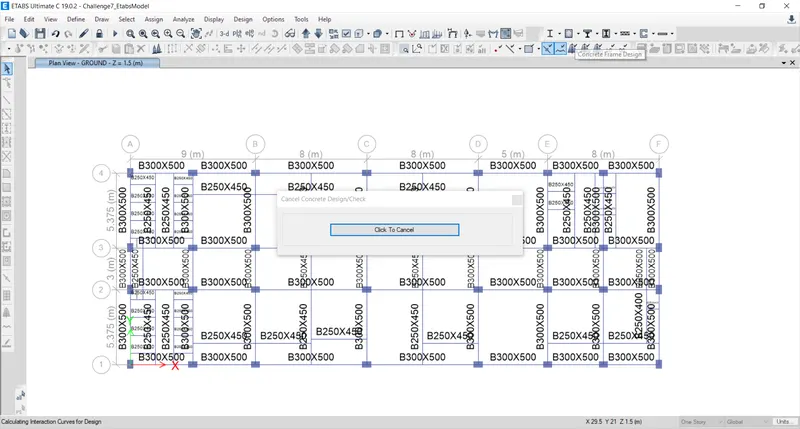

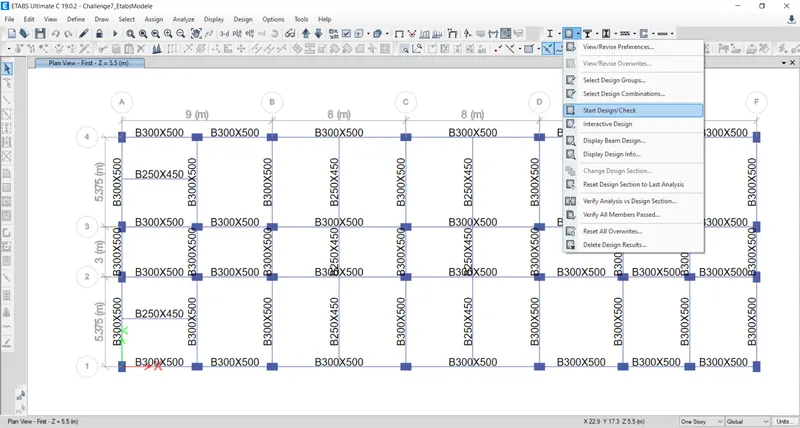

• Next we have to start the beam design by selecting the 'Start Design/Check' option, as shown below.

Step:-4

• After the completion of the beam design, we need to select the 'Display Design Info' option, as shown below.

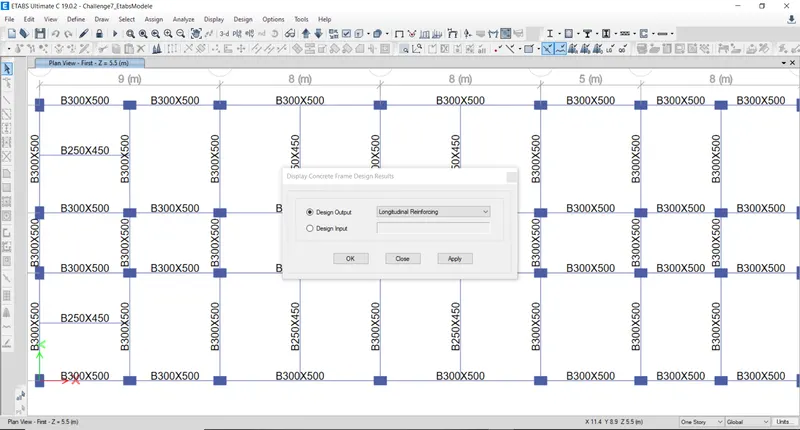

• After selecting the 'Display Design Info' option the new tab appears, In that we select the Longitudinal Reinforcing in the Design Output and click on the OK button, as shown below.

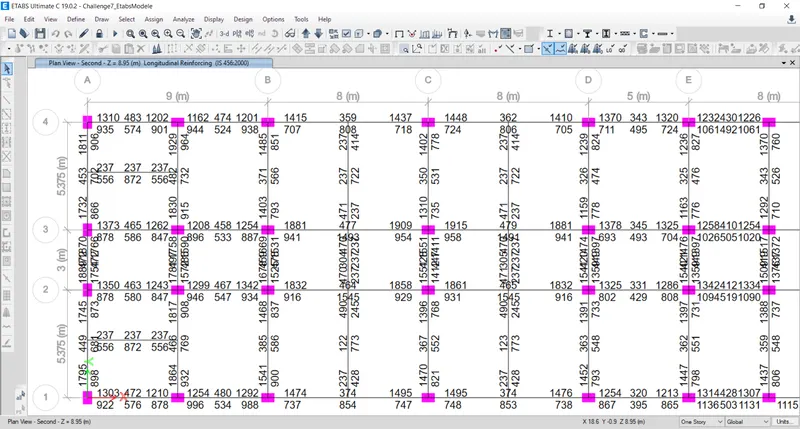

• Next the longitudinal reinforcement details will appear, as shown below.

Step:-5

• Next we need to draw the Reinforcement diagram of 3 span continous beam along Grid-A, and also need to provide the reinforcement details.
• The maximum Ast for the bottom support is 1766mm2��2 and bottom middle is 702 mm2��2
• The maximum Ast for the top support is 1889mm2��2 and top middle is 453 mm2��2

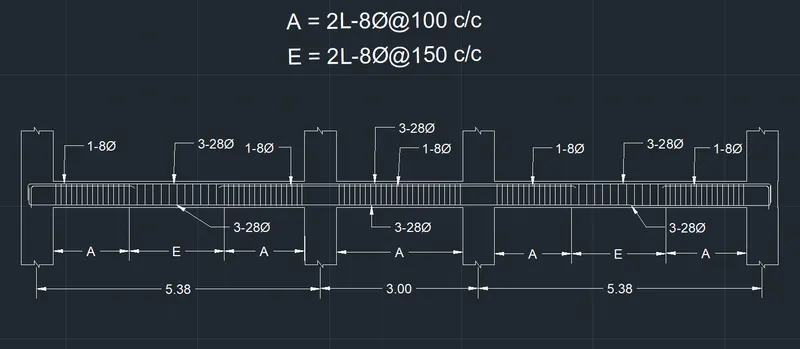

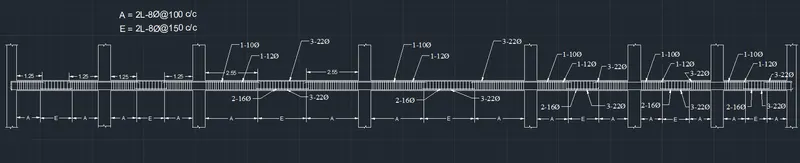

• Now we provide 3-28ΦΦ at the top and bottom, as shown in the below figure.
• Next we provide 1-8ΦΦ at the top supports for the continuous beam, as shown below.

Step:-6

• Next we need to draw the Reinforcement diagram of 7 span continous beam along Grid-3, and also need to provide the reinforcement details.
• The maximum Ast for the bottom support is 1061mm2��2 and bottom middle is 1493 mm2��2
• The maximum Ast for the top support is 1915mm2��2 and top middle is 479 mm2��2

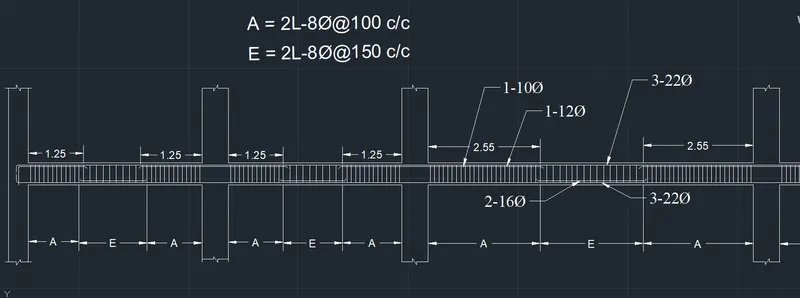

• Now we provide 3-22ΦΦ at the top and bottom, as shown in the below figure.
• Next we provide 1-10ΦΦ and 1-12ΦΦat the top supports and we provide 2-16ΦΦ at the bottom middle for the continuous beam, as shown below

Step:-7

• After providing the beam reinforcement details, we select the beam and right click on the beam then the new tab appears, as shown below.

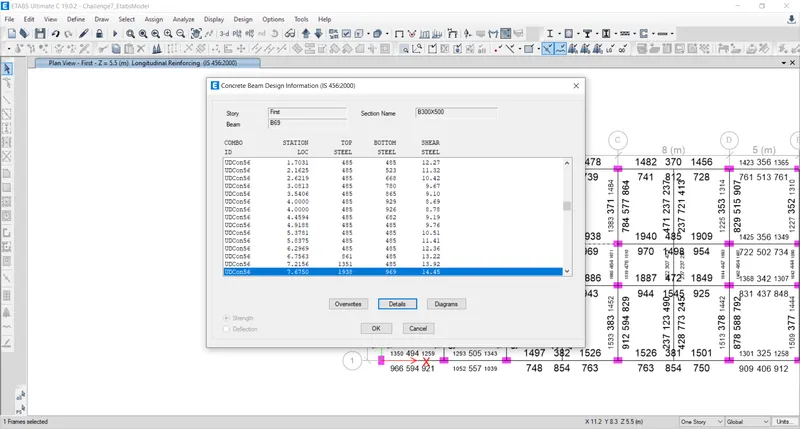

• Next we need to click on the Details option in Concrete beam design tab, as shown below.

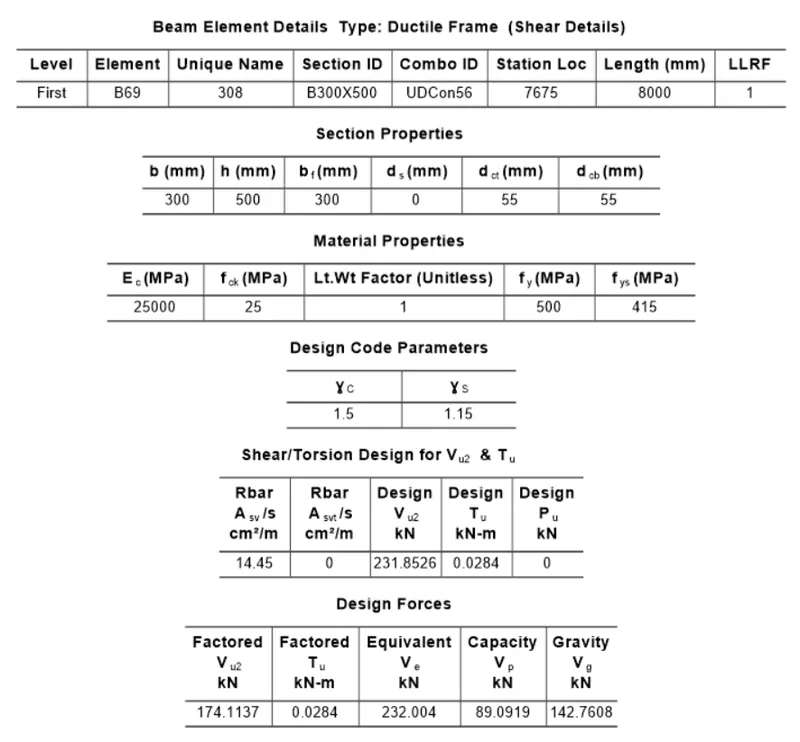

• Next the Shear details will be visible, as shown below.
• As per the clause 6.3.3 the design force is 232 kN.
• We got, Maximum Shear force = 174.11 kN.

RESULT:-

• The beams are designed successfully in detail from the Etabs software.
• Provided the details of longitudinal and shear reinforcement for the two continuous beams.
• And also calculated the value of maximum shear force in the continuous beams using the Etabs software.
