Radar Mast & Final Assembly of Yacht

SShubham Nashirkar11 Apr 2022

REPORT ON MODELLING ASSEMBLY OF YACHT

DESIGN OF YACHT USING A SOLIDWORKS

OBJECTIVE :

To make a model of yacht using solid works and rendering features.

INTRODUCTION :

A YACHT is a motor boat usde of pleasure,competition.The model have a cabin, in which all the controls available to control the ship. Motor yachts range in length from 33–130 feet (10–40 m) before they are considered super-yachts or mega-yachts, which are 130 feet (40 m) and longer. They also vary by use, by style, and by hull type.

Yacht model is made is using solid works in parts (Named as HULL, SUPER STUCTURE, PROPELLER, REDAR,REDAR MAST, SEATS - FRONT SEAT, MIDDLE SEAT, REAR SEAT)

Categories
Small yachts are typically shorter than 33 feet (10 m) length overall.
Tailer Sailers that are readily towed by a car are generally shorter than 25 feet (7.6 m) length overall
Near-shore yachts typically range in size from 33–45 feet (10–14 m) length overall.
Offshore yachts typically exceed 45 feet (14 m) length overall.
Design
Design considerations for a cruising yacht include seaworthiness, performance, sea kindliness, and cost of construction, as follows:
Seaworthiness addresses the integrity of the vessel and its ability to stay afloat and shelter its crew in the conditions encountered.
Performance hinges on a number of factors, including the waterline length (longer means faster), drag in the water (narrower hull with smooth appendages), hull shape, and sail shape and area.
Sea kindliness is an indicator of steering ease, directional stability and quelling of motion induced by wind and waves.

METHODOLOGY :

Divide the yacht into parts which can help in making the sturcture easy.

firslt, we make a blueprint ,it help us to make parts shape easy
make the parts one by one according to dimension.
give a proper desing, colour,appearence , clear sharop edges.

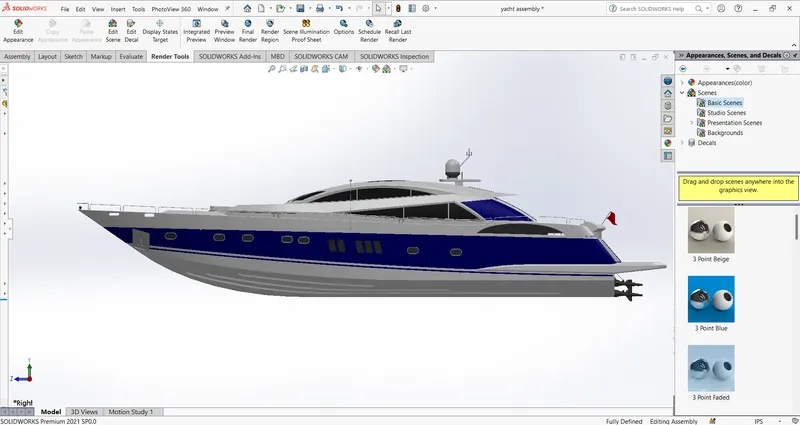

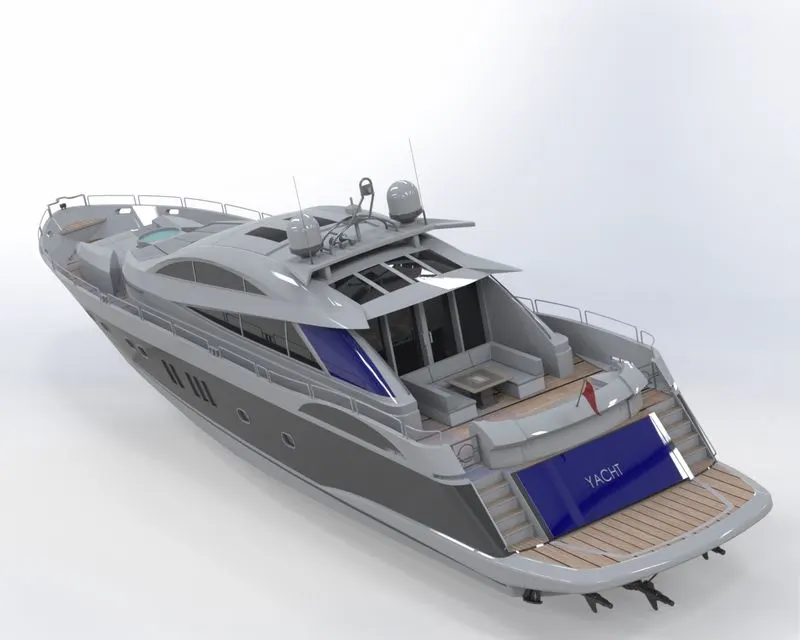

combine all the parts with definate mates.

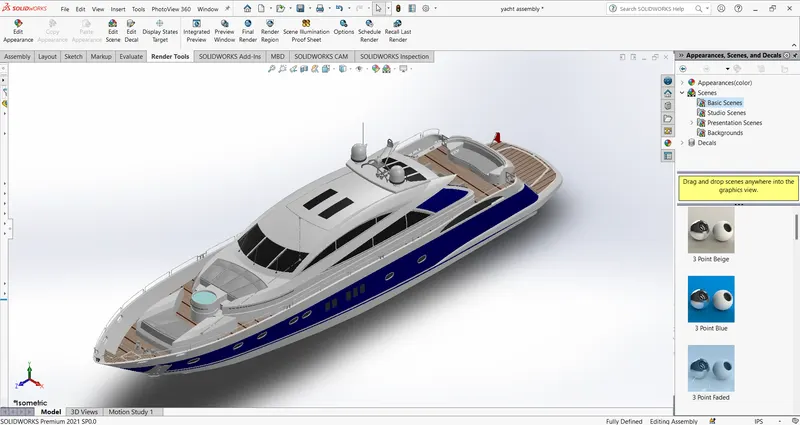

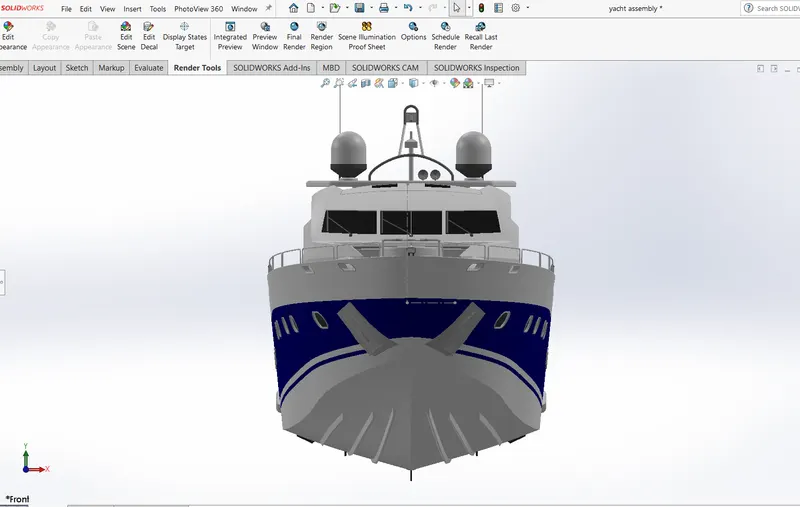

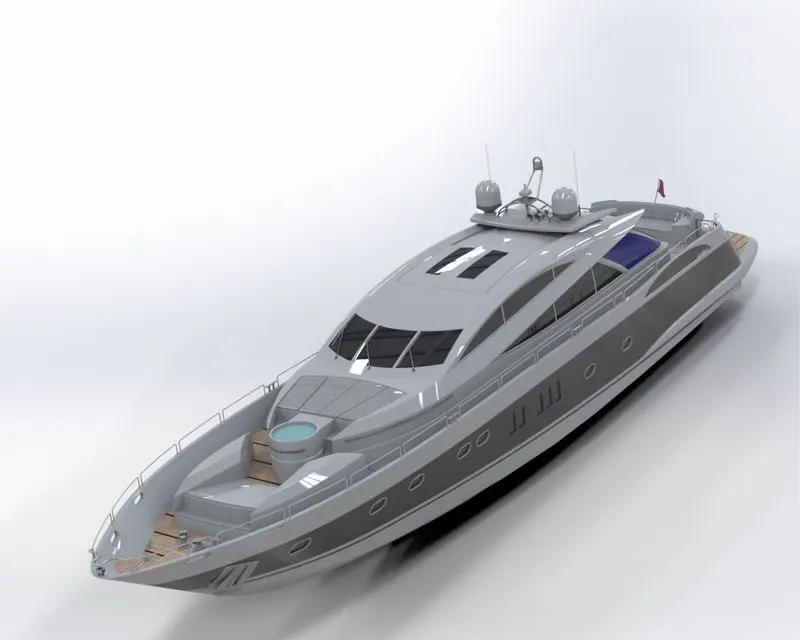

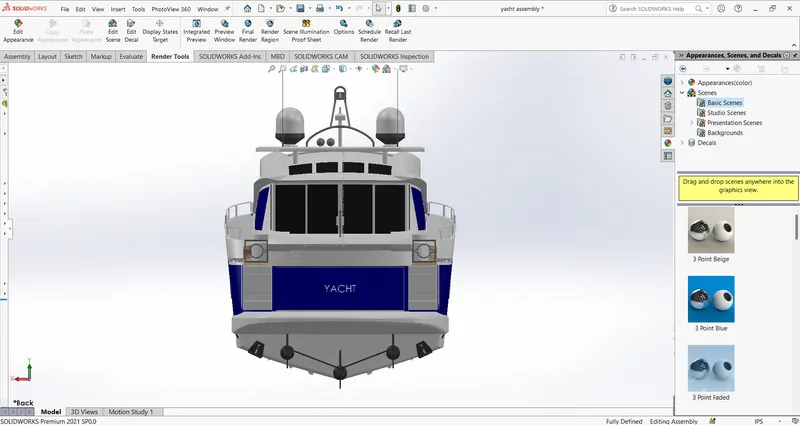

give realistic views.

S.NO PARTS NAME SOFTWARE USE
1. PROPELLER SOLIDWORKS
2. REDAR SOLIDWORKS
3. FRONT SEAT SOLIDWORKS
4. MIDDLE SEAT SOLIDWORKS
5. REAR SEAT SOLIDWORKS
6. HULL SOLIDWORKS

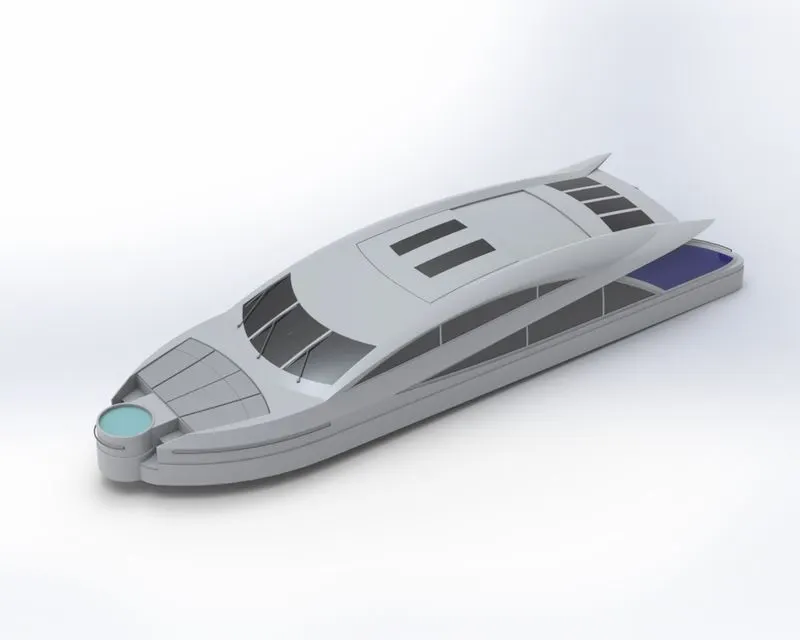

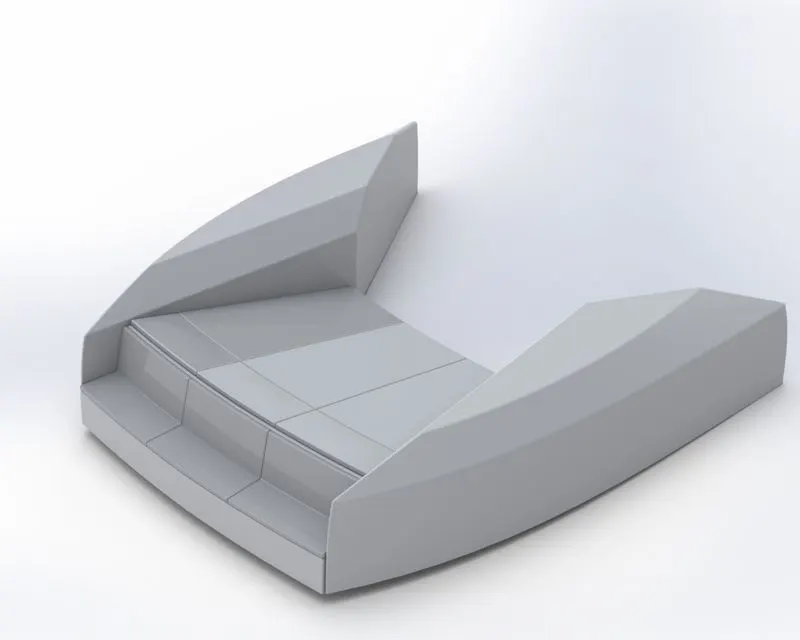

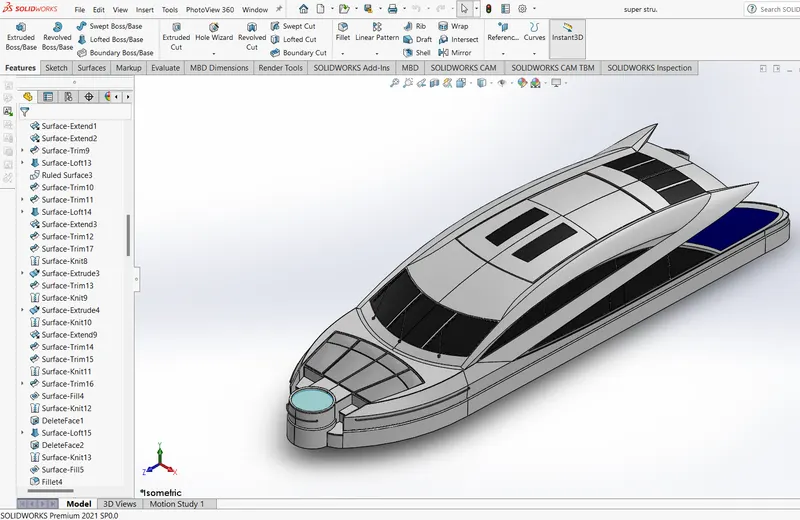

7. SURER STRUCTURE SOLIDWORKS

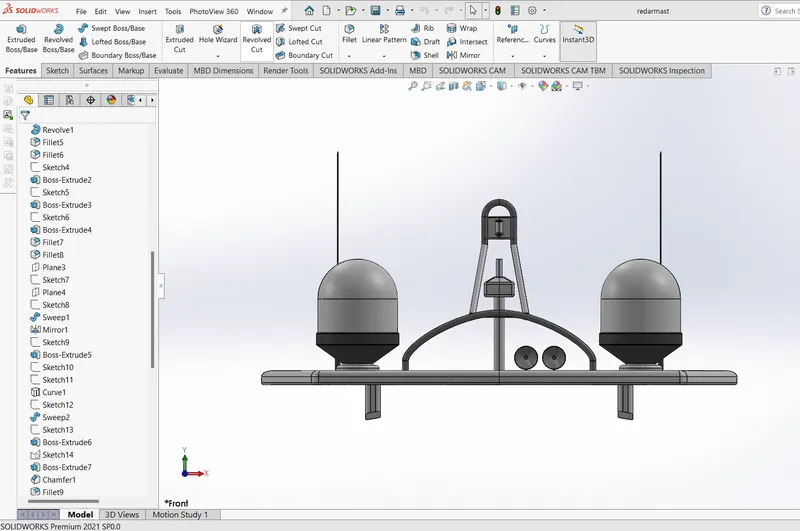

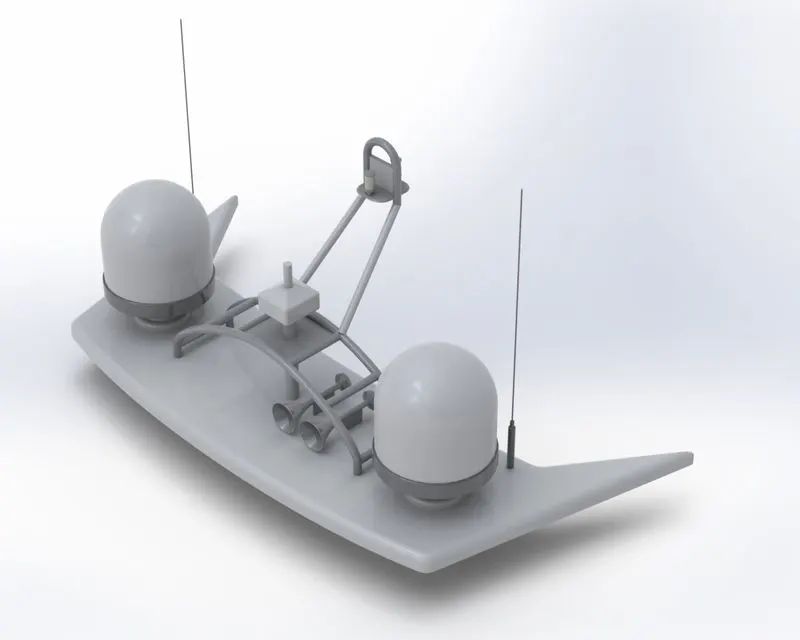

8. REDAR MAST SOLIDWORKS

DESCRIPTION :

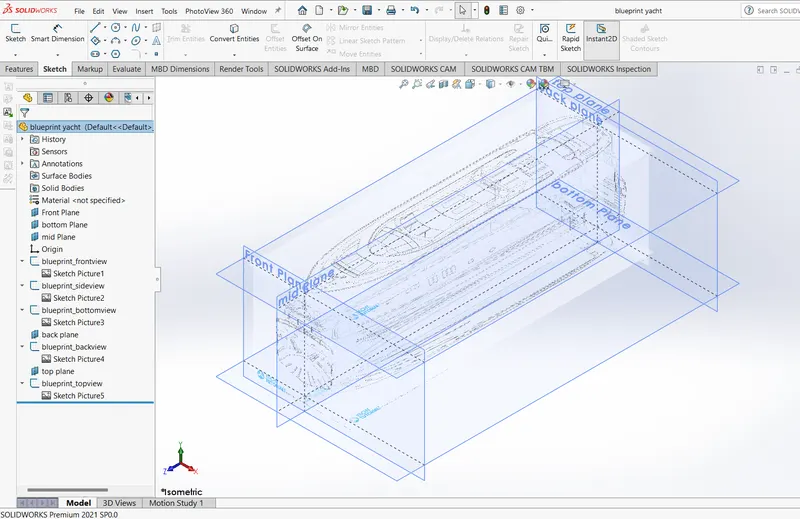

1.ADDING OF BLUEPRINT

Add Blue print is first step to make other parts with a proper shape.

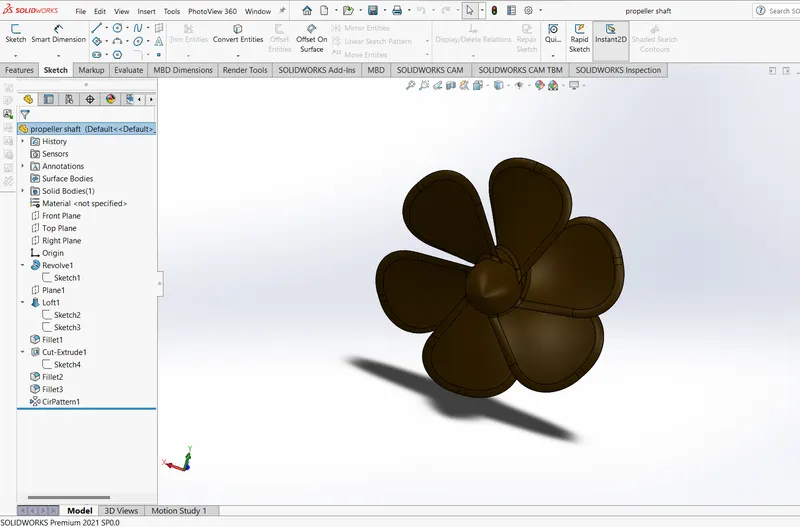

2.PROPELLER MODELLING :

A propeller is device with a rotating hub and a radiating blades that are setup at a helical spiral.

it is used for exert linear thrust upon a working fluid such as air or water.

FEATURES USED :

2D sketching
revolve boss
reference plane
loft boss
chamfer and fillets
circular pattren
appearence

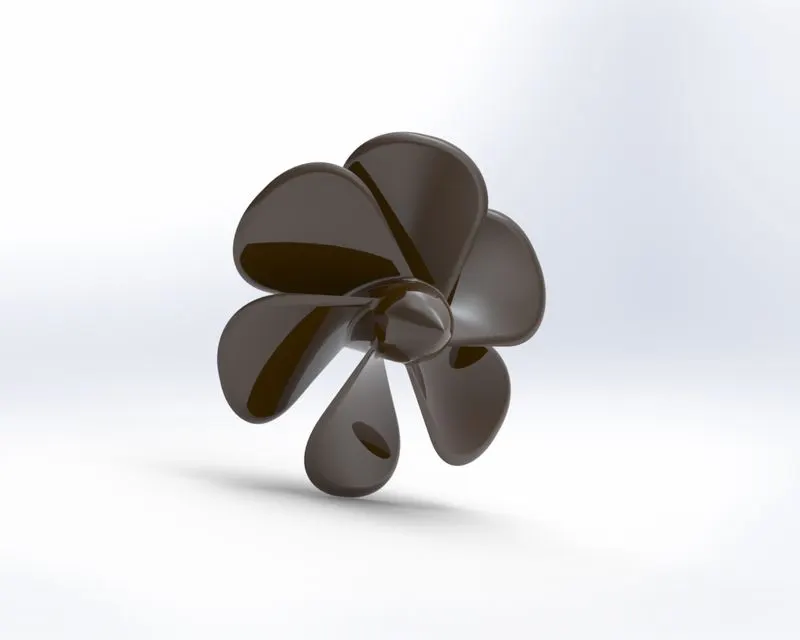

RENDERING OF PROPELLER SHAFT :

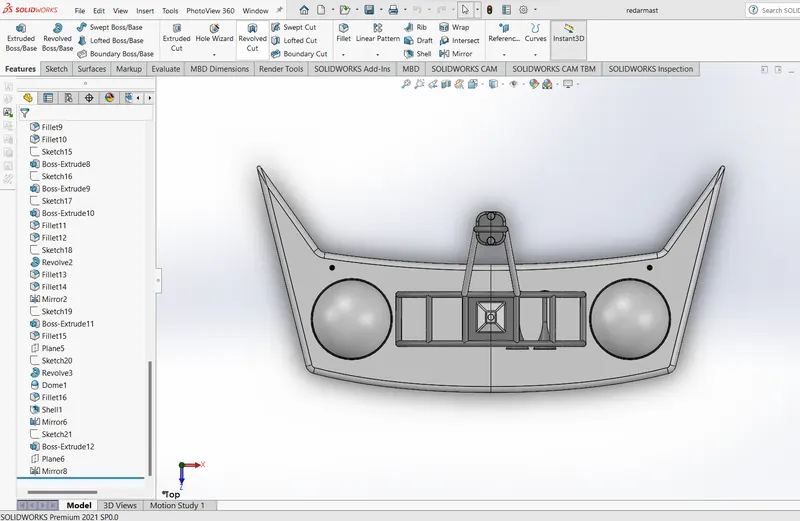

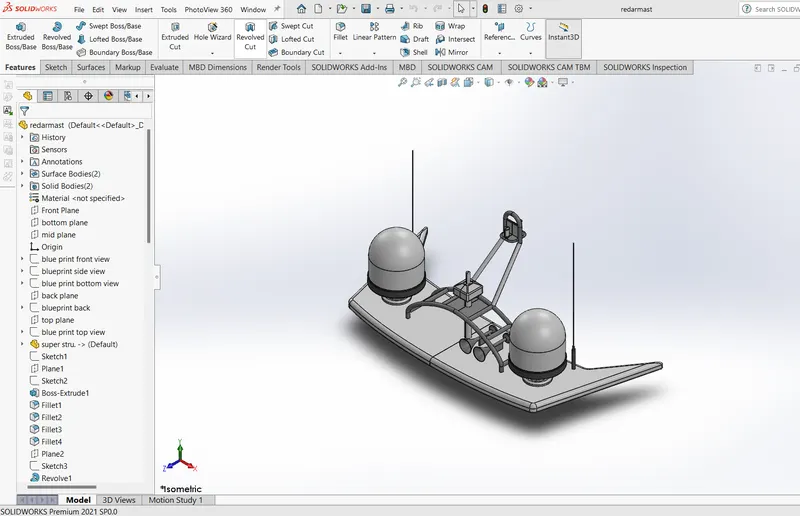

3.REDAR MODELING

Redar is a detecting device whi ch is used for detecting range, distance, angle ,velocity of objects.

FEATURES USED :

2D sketching
extude boss
extrude cut
mirror

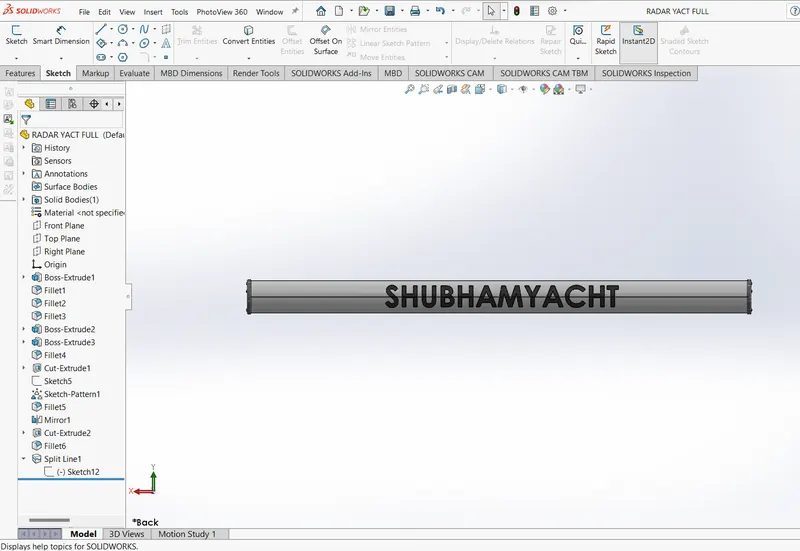

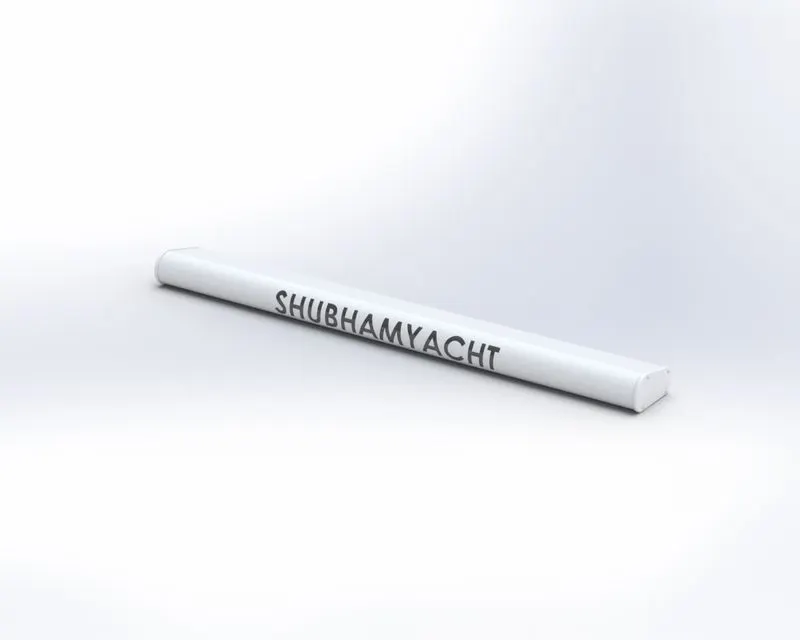

split line (fot text writing)
chamfer and fillet
appearence

RENDERING OF RADAR :

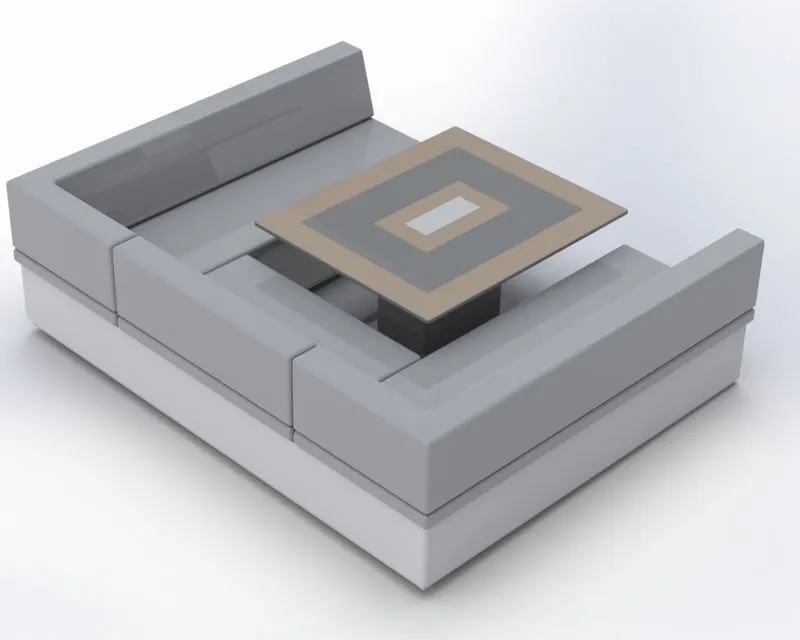

4.SEATS

FRONT SEAT,MIDDLE SEAT,REAR SEAT

FEATURES USED :

Surface tool
surface knit
surface trim
extrude boss
extrude cut
chamfer and fillets
appearence

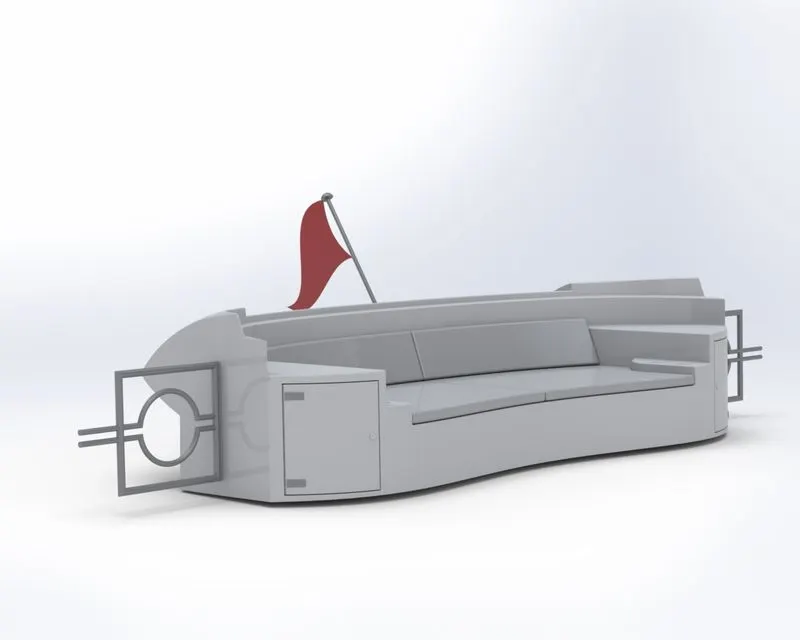

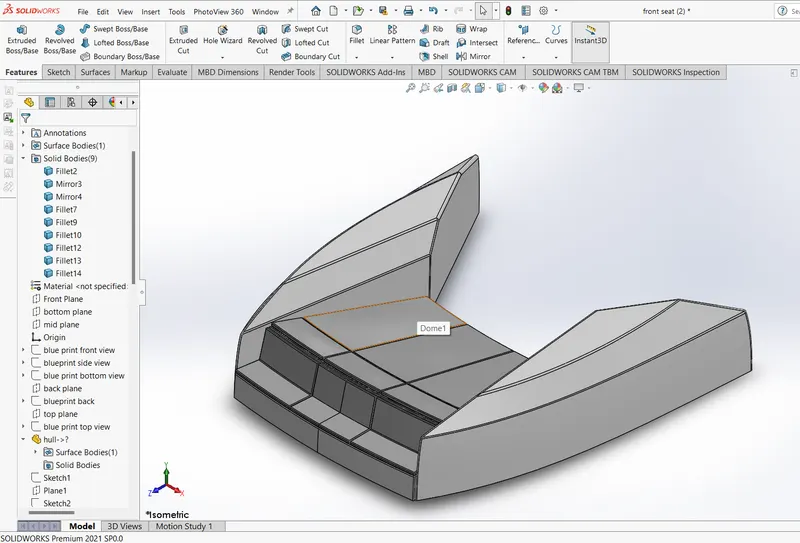

FRONT SEAT :

RENDERING FRONT SEAT :

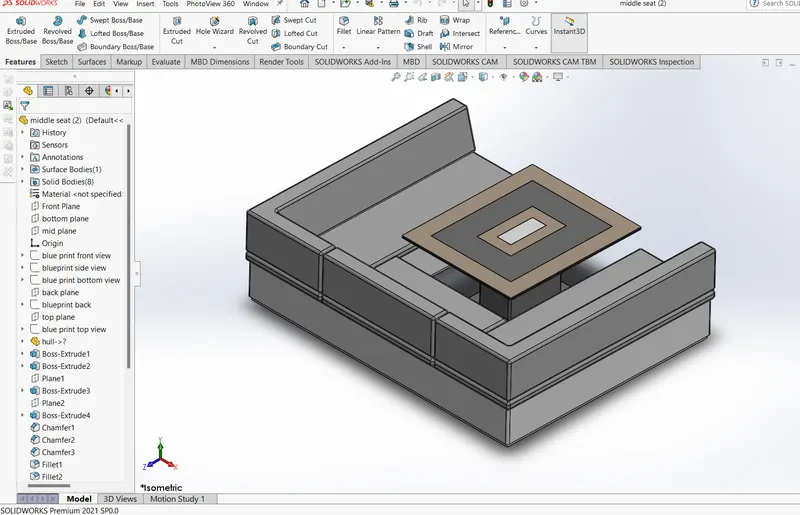

MIDDEL SEAT :

RENDERING OF MIDDEL SEAT :

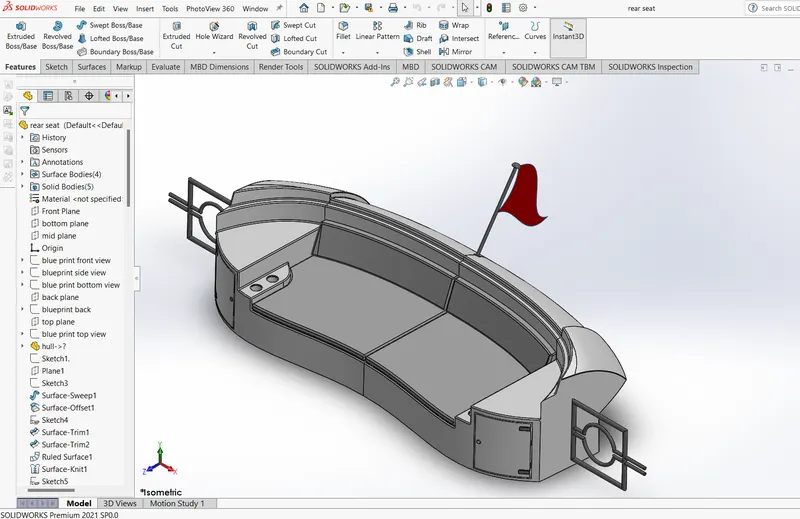

REAR SEAT :

RENDERING OF REAR SEAT :

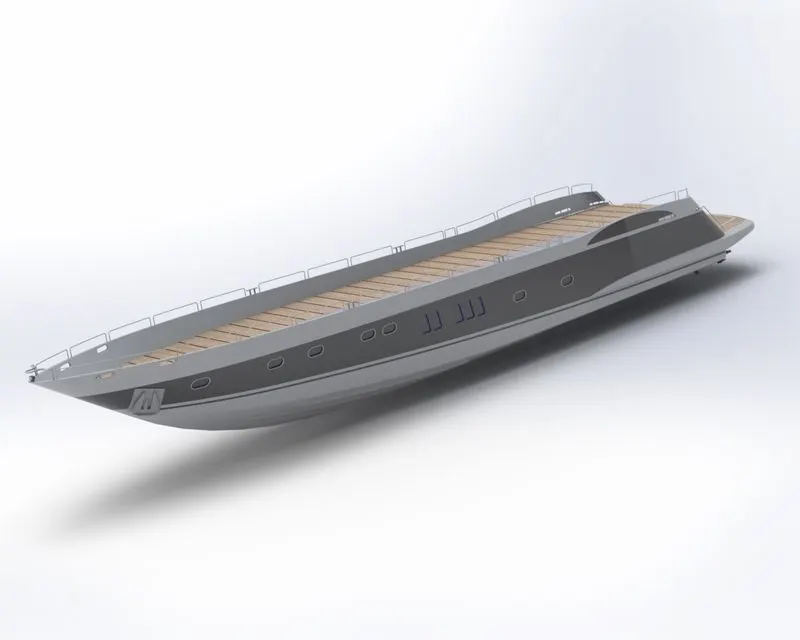

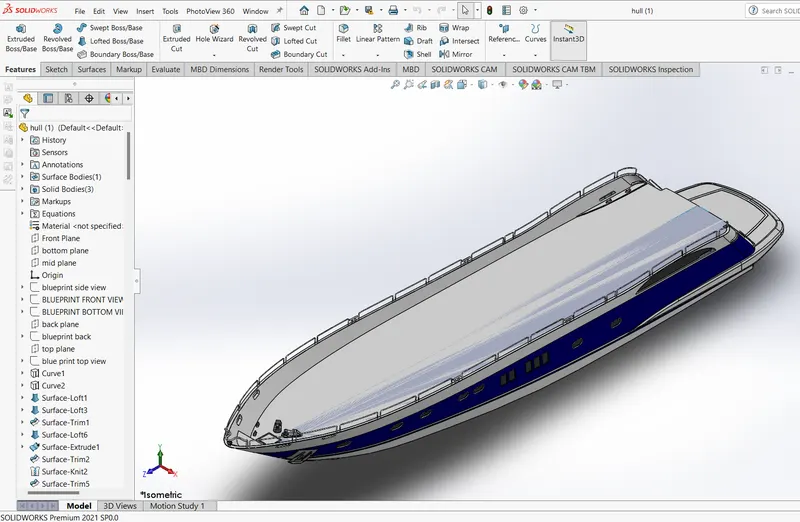

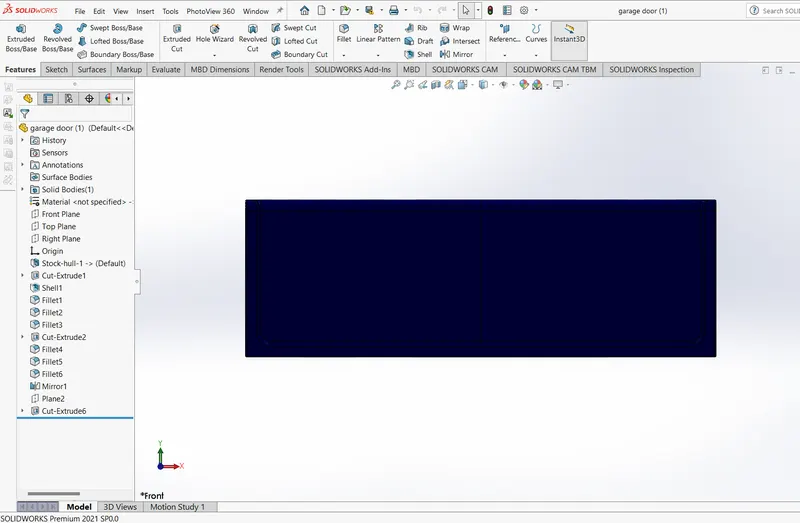

5.HULL MODELLING :

A hull is a watert tight body of a ship or boat which preventing sinking of boat. It is a complex model, with a garage and open from top and partially cover with desk surface.

Features used :

2D sketching
projective curve
surface sweep
surface loft
surface extrude
surface trim
delet face
mirror
chamfer and fillet
appearence
