REPORT ON ASSEMBLY OF CHOPPER MODEL
DESIGN OF AMECIRAN CHOPPER USING SOLIDWORKS
OBJECTIVE :
The objective of the project is to model an AMERICAN CHOPPER using the SOLIDWORKS software and to render it with SOLIDWORKS visualize to create a photorealistic view of it.
INTRODUCTION :
This project explains the designing of American chopper using the SOLIDWORKS from sketych parts and modelling them to final rendering of the assembly to give a photo realistic view.
METHODOLOGY :
1. Part modelling
2. Assembly
3. Rendering

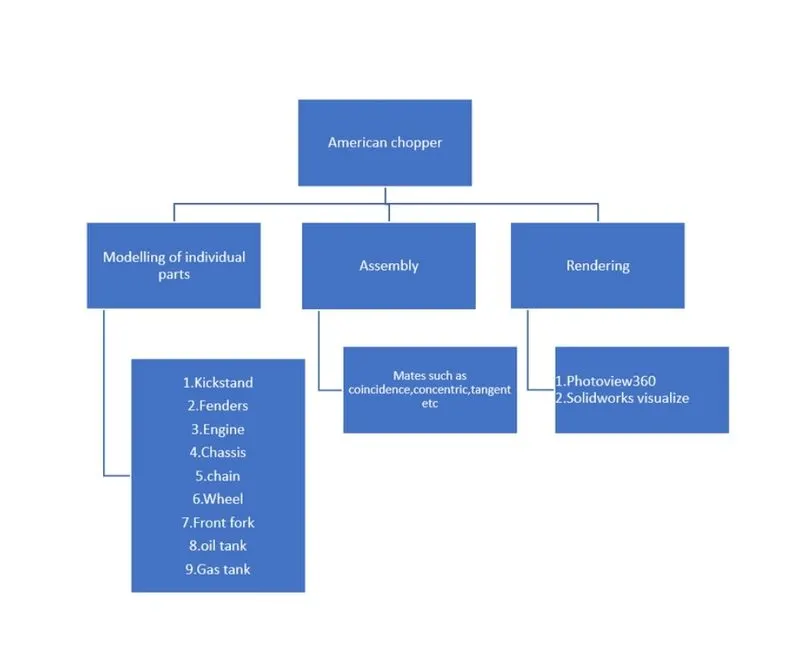

FLOW CHART :
PART MODELLING:
In part modelling,first the 2D sketch of the part is sketched using the tool in sketch tab and them the 2D sketch is converted into a 3D part using feature in the feature tree tool.
FEATURES USED :
BOSS EXTRUDE : This tool is udes to expande the object in 3D according to sketch palne.
EXTRUDE CUT : Extrude cut tool used to cut/remove the 3D Object in the linear path according to sketch.
FILLET : Fillet feature used to makeing round internal and external edges and make it them smooth.
DOME : Dome feature used to make a dome shaped extrude.
LOFTED Boss/Base : Lofted boss base is used to using the complex shapes, It does this by interpolating surfaces betwwen various cross-sections of a model.These cross-section can be sketch,faces,or edges.
COMBINE : Combine tool is used to make a integration of solid bodies which is intersect each other as a same solid part..
LINEAR PATTERN : The linear pattern feature is used make a different number of instances required to make a pattern linearly.
CHAMFER : Chamfer is used to make a sharp edges to a tapered rather than being a perfect square.
SHELL : Shell feature is used to make a hollow space into a solid parts.
CURVE DRIVE PATTERN : This feature is used to make a followed by curve is sketched before.
CRICULAR PATTERN : This feature is used to make a 3D sketch into a cricular pattern according to number of insistences.
REVOLVE Boss/Base : This feature is used to make cylinderical cricular 3D extruded along with a given references axis as per sketch.
REVOLVE CUT : This feature is used to cut or reduce the extrude of cylindrical round shapes.
MIRROR : Mirror is used to copy the 3D body to one place to anothe place.
SWEEP : This feature is used to make a swwep of any kind of fully defined sketch along with th path.
SWEPT CUT : Which makes a cut along with the sweep path.
SWEPT SURFACE : It is used to make a surface along with a path the curve is driven.
BOUNDARY SURFACE : This feature is used to make a surface in between two finished surfaces.
LOFT SURFACE : Loft surface is used to make loft betwee the two profiles along with the guide path.
SURFACE TRIM : This used to cut away material from a surface, and provides two modes, standard and mutual.
PROJECTION CURVE : Projection curve is a 3D curve which is basis of two different 2D curves in two different planes.
TRIM ENTITIES : It is used to make unwanted lines or extended enities in the sketch.
APPEARANCES : Apperances defines visual properties of the model including colour and texture.
ASSEMBLY :
Assembly is modt often referred to putting components together in an assembly line, but more specifically, it refers to creating a complete prodduct that performs an intended function. Changes in the component are automatically reflected in the assembly.
RENDERING :
Rendering or image synthesis is the automatic process of generating a photorealistic or non photorealistic image from a 2D or 3D model using a computer program.Theresulting image is referred to as the render.
MAJOR CATEGORIES IN RENDERING :
1. Real - Time Rendering
2. Pre - Rendering
SOFTWARE USED :
1. Photo view 360
2. Solidworks Visualize
COMPONENTS OF DESIGNED :
1. Transmission Belt
2. Kickstand
3. Front fender
4. Rear fender
5. Rear wheel
6. Front wheel
7 Oil tank
8. Chassis
9. Pedal
10. Chain
11. Front frok
12. Engine
13. Gas tank
RENDER PARTS DISCRIPTION

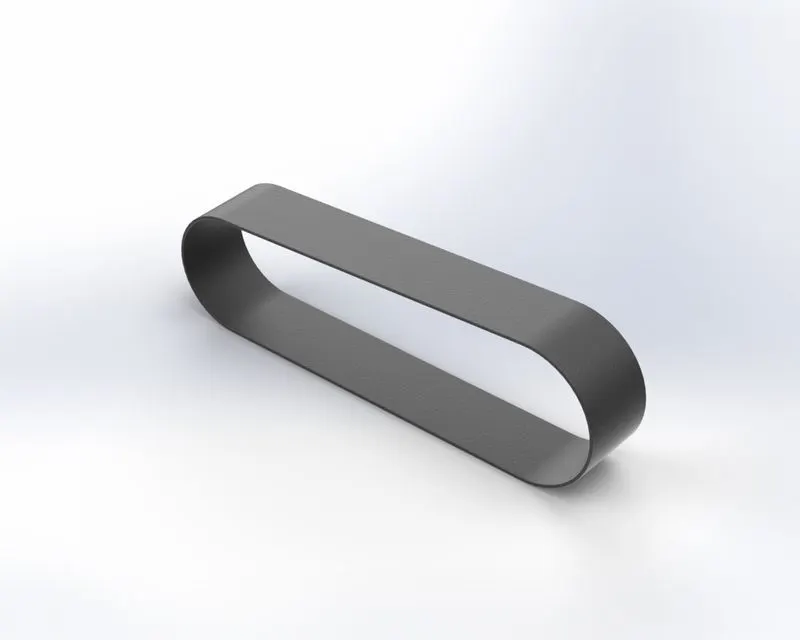

TRANSMISSION BELT :
FEATURE USED :
1. Offset entities
2. Extruded boss
3. Fillet
4. Appearances
This transmission belt is designed to adopt to the two pulleys created on one side of the engine block.

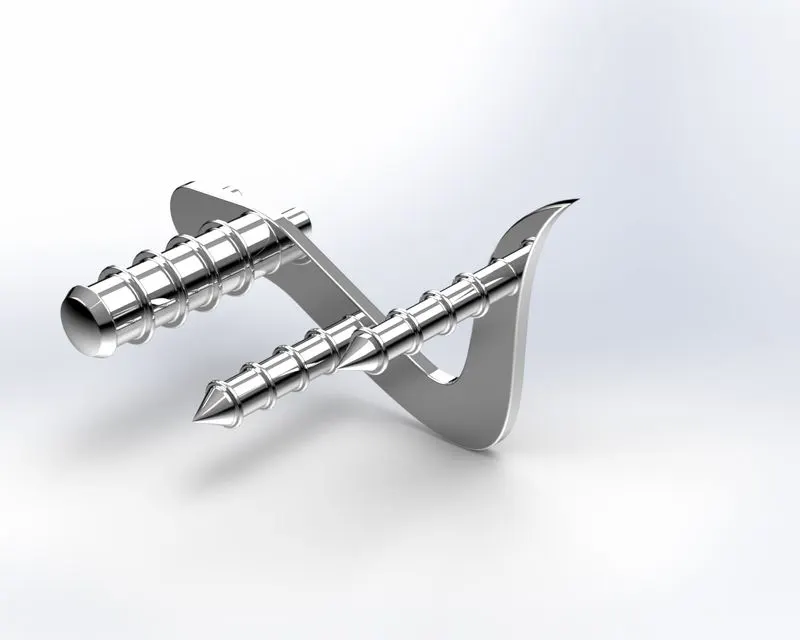

KICK- STAND :
FEATURE USED :
1. Loft boss
2. Extruded boss
3. Extruded cut
4. Dome
5. Split
6. Fillets
7. Appearances
Kickstand for this bikes is of a very made by the application of sweep features. An opening is kept for it to tyhe chassis and the dome is applied at the kickstand.

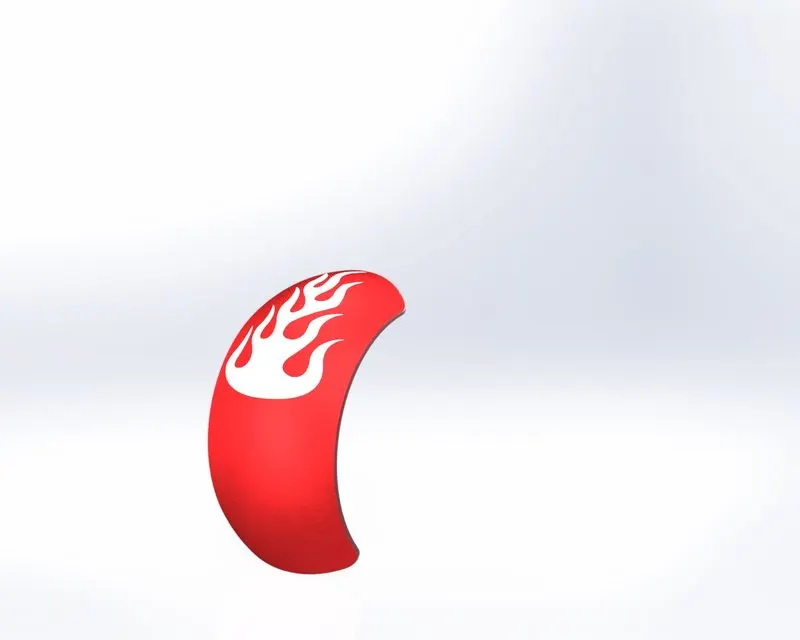

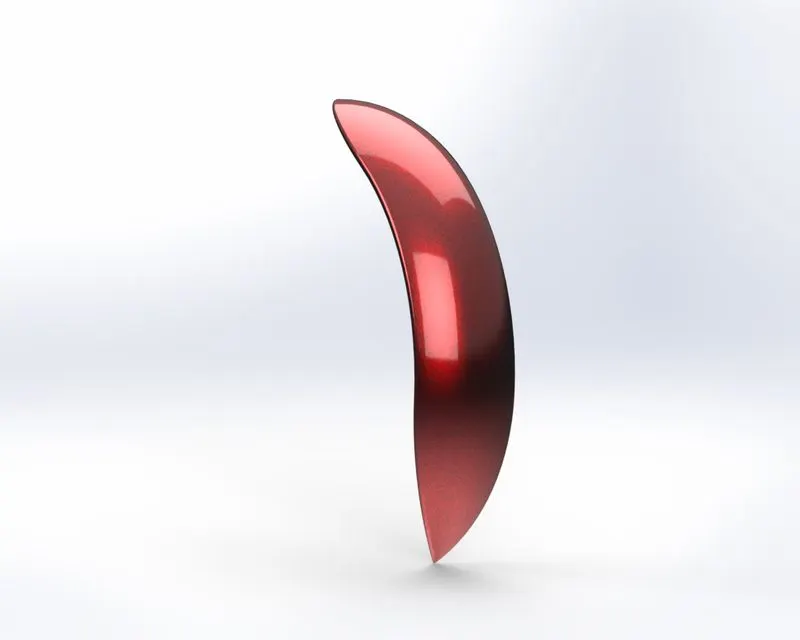

FRONT FENDR :
FEATURES USED :
1. Offset entities
2. Trim entities
3. Revolve boss
4. Dynamic Mirror
5. Split
6. Appearances
The front fender of bike is designed simply by revloving the cross- section and cutting away material at the end to make it pointed.

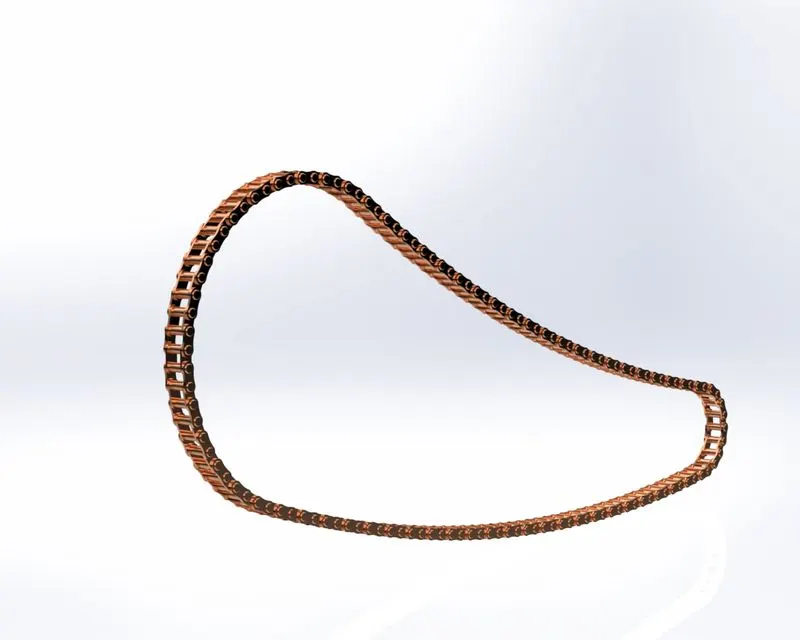

CHAIN :
FEATURES USED :
1. Trim entities
2. Fillet
3. Blocks
4. Extruded boss
5. Linear pattern
6. Appearances
OIL TANK :
FEATURES USED :
1.Boss extruded
2. Combine
3. Fillet
4. Shell
5.Appearances
The oil tank is placed above the engine block which is also made hollow inside.Extrude and shell are the major feature used in this part.

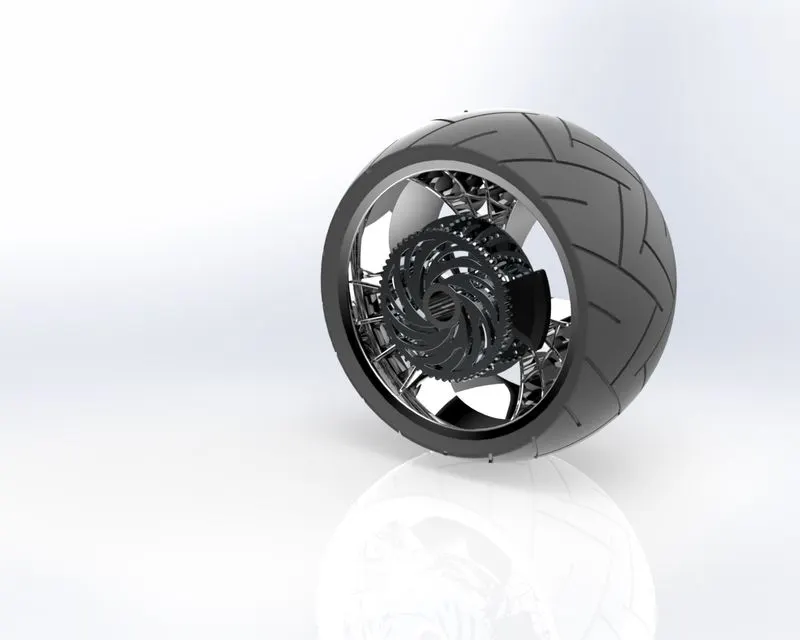

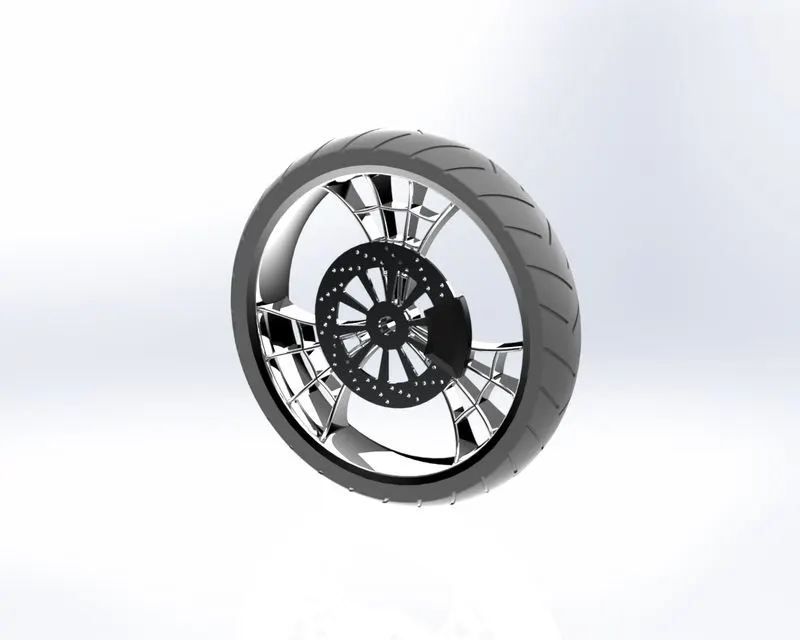

FRONT WHEEL :
FEATURE USED :
1.Revolve boss
2. Trim entities
3. Sketch fillet
4. Boss extrude
5. Revolve cut
6. Linear pattern
7. Chamfer
8. Cut extrude
9. Cricluar pattern
10. Appearances
The front wheel is thinner than the rear wheel. it ia designed to be a multi-body part consisting of the rotor, sprocket,rim,tire,and the calipewr all are made by the singke bodies.

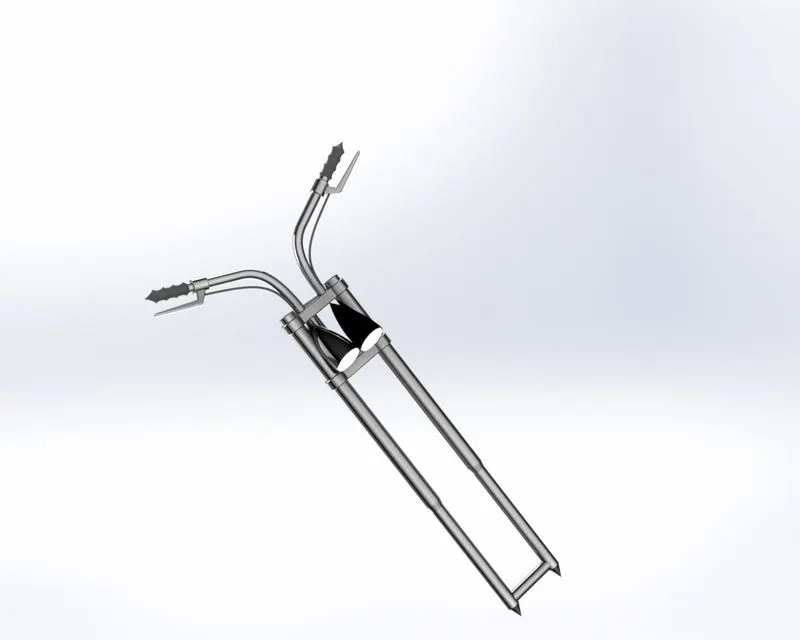

FRONT FROK :
FEATURE USED :
1.Extruded bosss
2. Trim entities
3. Revolve boss
4. Split
5. Dome
6. Mirror
7. Combine
8. Projected curve
9. Sweep boss
10. Appearances
This is the most unique part of an american chopper bike. It is longer than usual bikes and the angel are extremly low with respect to tthe horizontal.The handels are shorter and are customized according to their comfort.

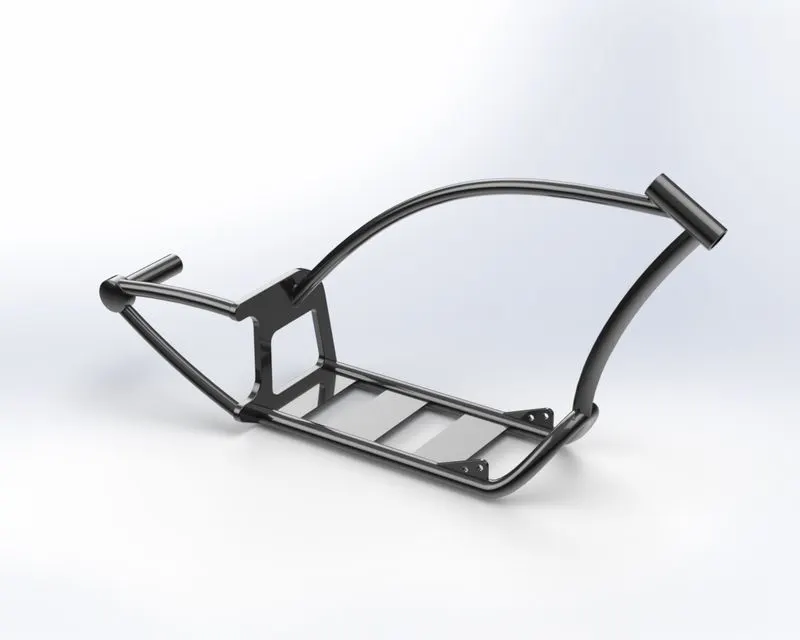

CHASSIS :
FEATURE USED :
1.offset entities
2.Convert entities
3. Project curve
4. Trim entities
5. Sweep boss
6. Split
7. Revolve cut
8. Extrude boss
9. Fillets
10. Combine
11. Appearances
The chassis is the frame that bears most of the load on the bikes.

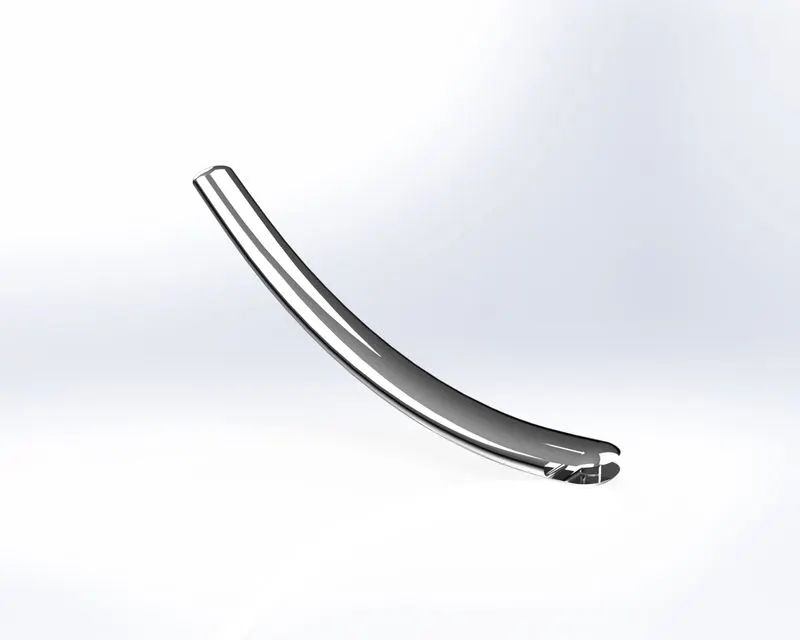

PEDAL :
FEATURE USED :
1. Extrude boss
2. Fillet
3. Linear pattern
4. Chamfer
5. Dome
6. Appearances
There are the teo pedals , left and right. They are provided at the bottom of the chassis on the both sides.
REAR WHEEL :
FEATURE USED :
1. Offset entities
2. Trim entities
3. Fillet
4. Extrude boss
5. Planes
6. Revolve cut
7. Linear pattern
8. Chamfer
9. Fillet feature
10. Extruded cut
11. Cricular pattern
12. Appearances
The rear wheel is much thicker then the front wheel. Just like the front wheel, It is also designed to be a multi-bodies part consisting the rim, sprocket, tire, rotor,and the caliper all in a single part.

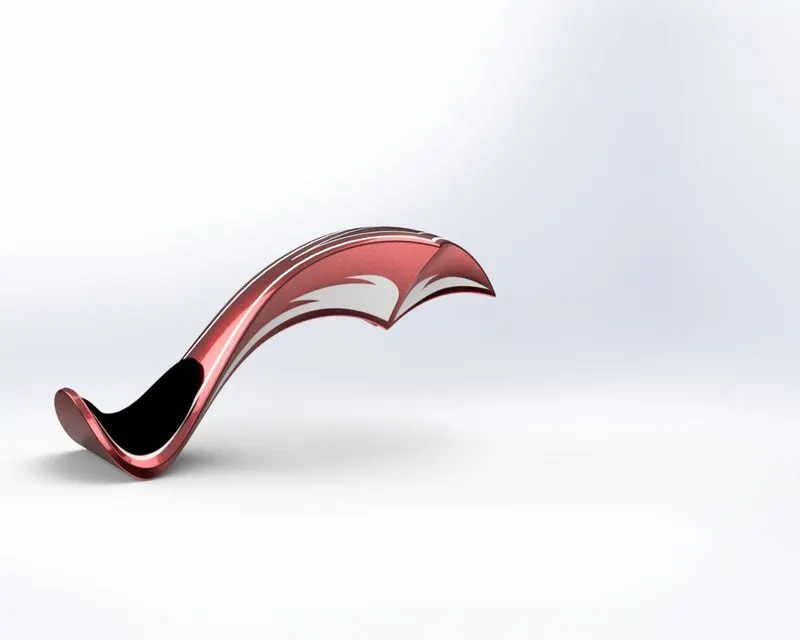

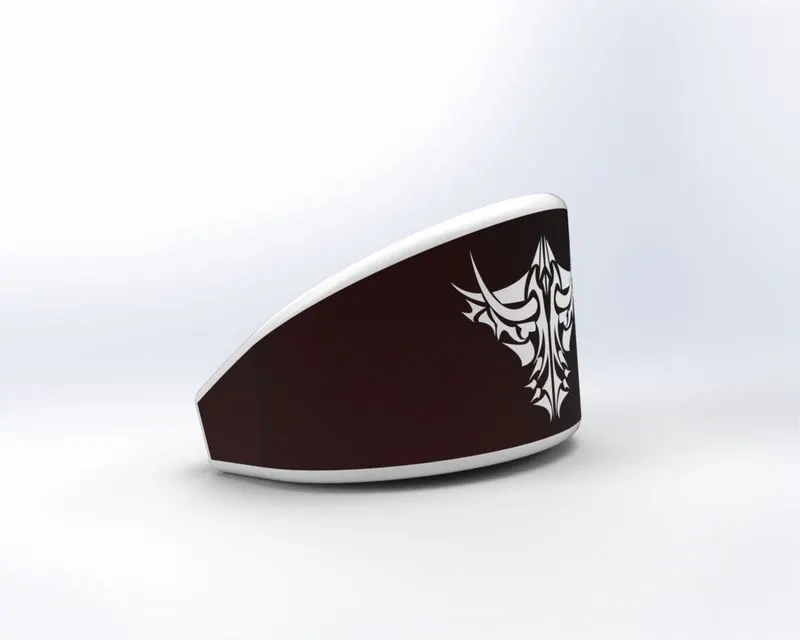

REAR FENDER :
FEATURE USED :
1. Offset entities
2. Trim entities
3. Revolve boss
4. Appearances.
GAS TANK :
FEATURE USED :
1.Projected curve
2. Trim entities
3. Sweep boss
4. Loft surface
5. Knit surface
6. Sweep cut
7. Fillet
8. Appearances
Fuel tank for this american chopper is desgined as per the info sketch.it is hollowed out to make a tank for the fuel inside.

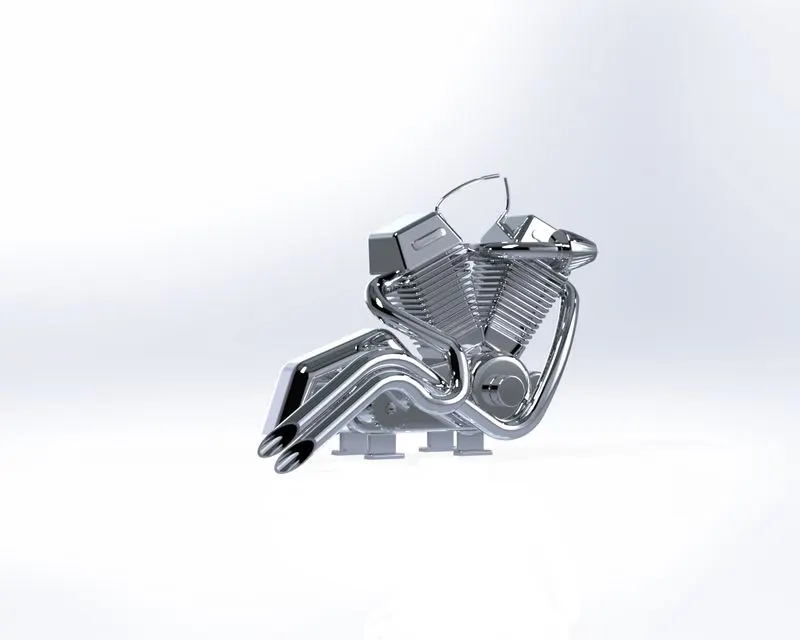

ENGINE :
FEATURE USED :
1. Trim entities
2. Revolve boss
3. Extrude cut
4. Offset entities
5. Fillet
6. Dome
7. Projected curve
8. Composite curve
9. Sweep boss
10. Mirror
11. Cricular pattern
12. Split
13. Appearances
The engine used in this bikes is a V engine with the two exhaust pipes. Altough it is the solid modelling of the engine block, it covers most of the aspects of the engine block.

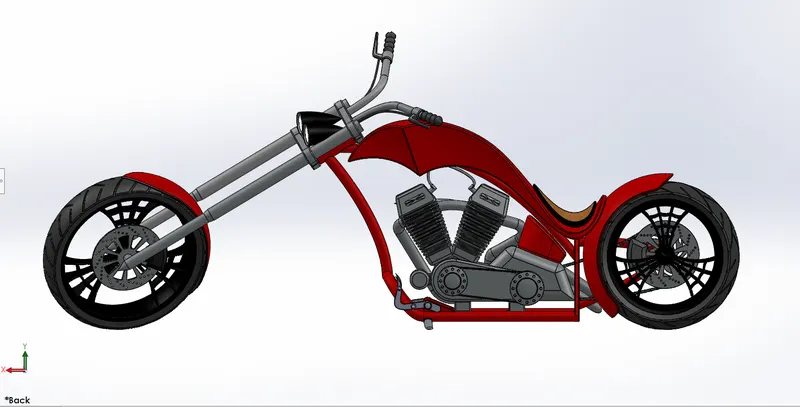

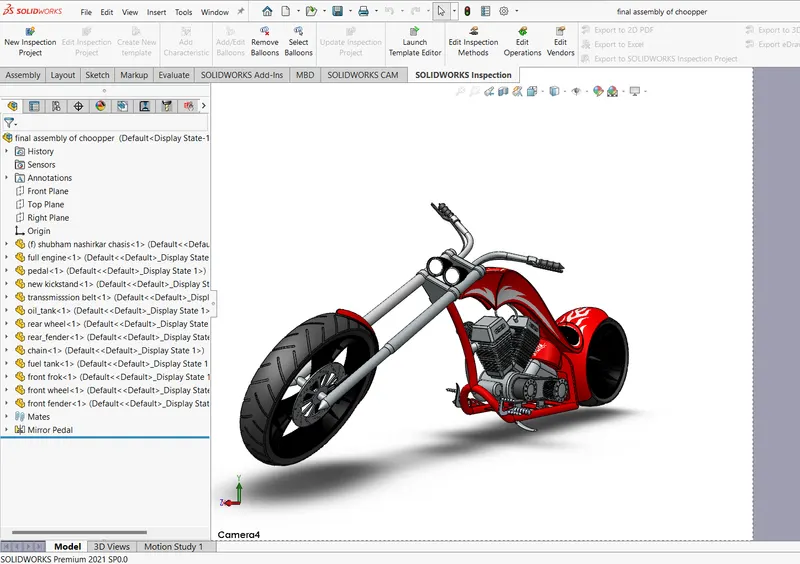

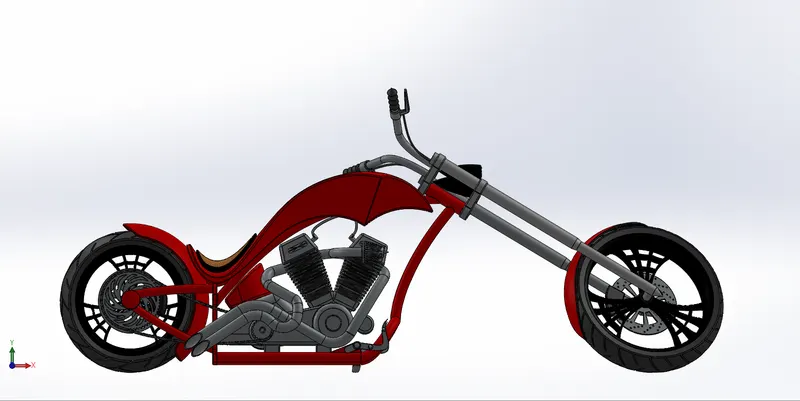

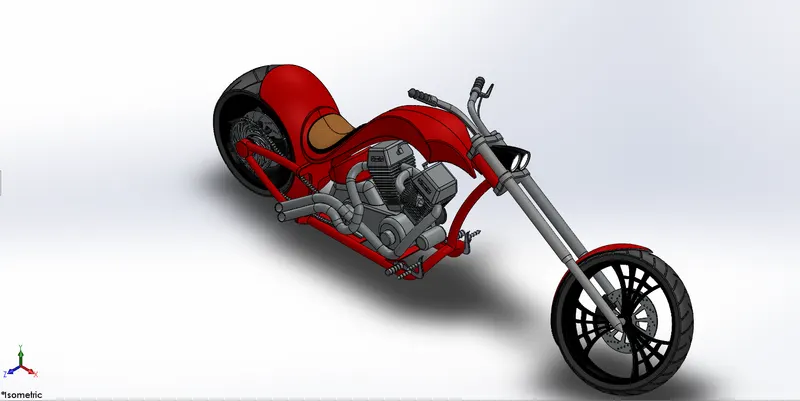

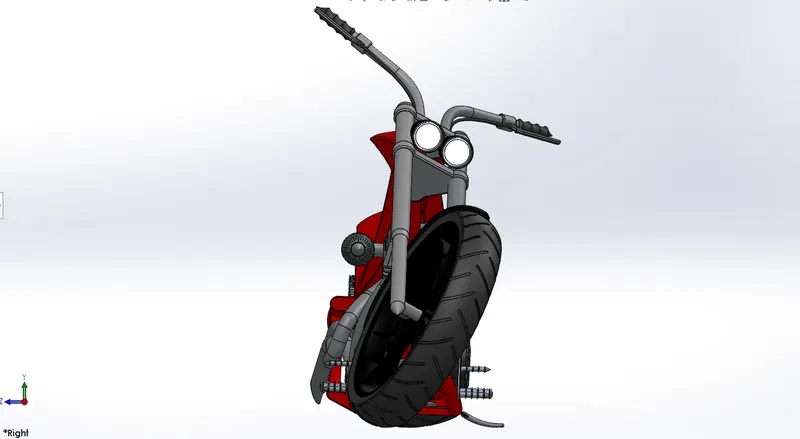

ASSEMBLED AMERICAN CHOPPER :
Assebly is most often referred to puttying componrnts together in sn assembly line, but more specifically , it refers to creating a complete product that performs an intended functilon.changes in the component are automatiocally reflected in the assembly.

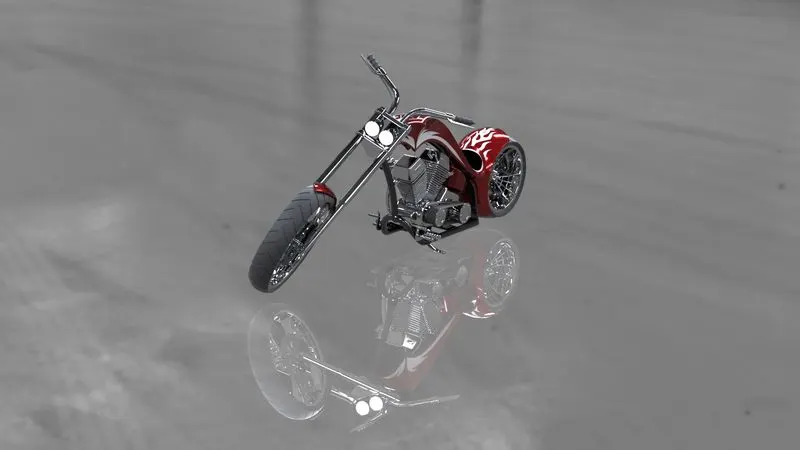

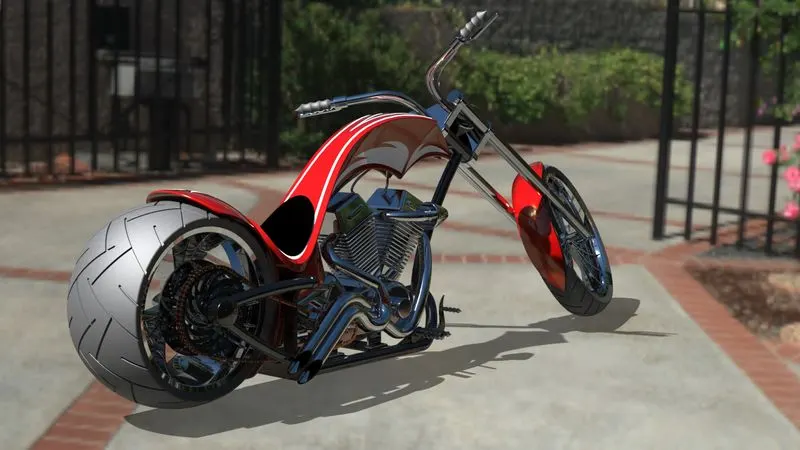

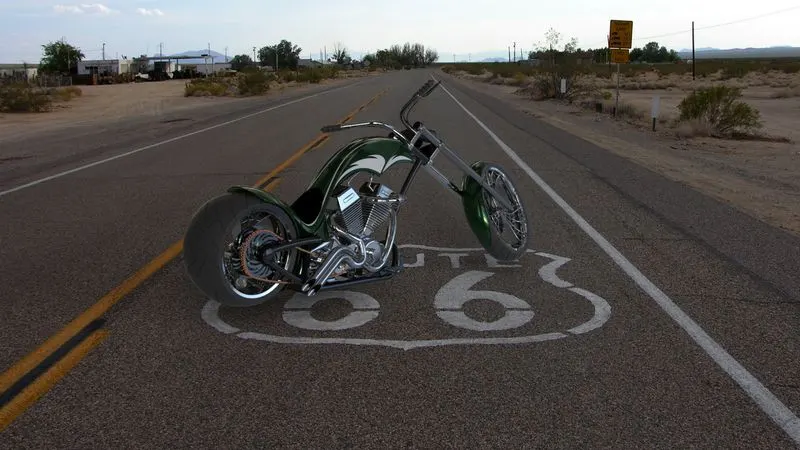

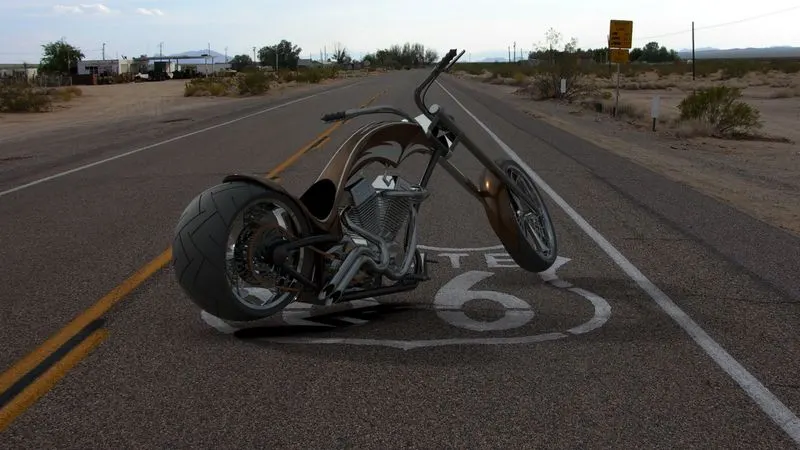

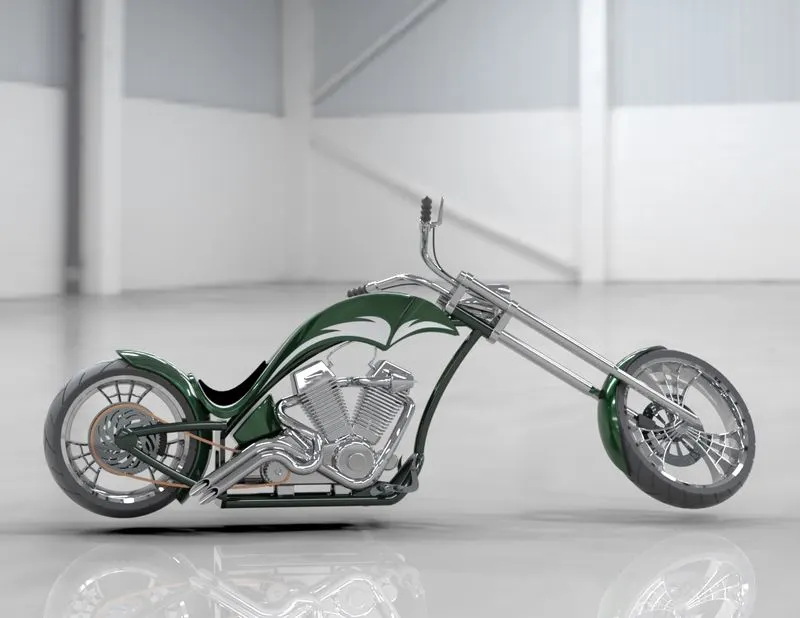

FINAL RENDERS OF AMERICAN CHOPPER :
CONCLUSION :
Thus, the parts of the amecian chopper are designed ans assembled using the SOLIDWPRKS and are rendered to photorealistic images using PHOTOVIEW 360 and SOLIDWORKS VISUALIZE.
