Project - Speed Control of a Direct Current (DC) motor

Objective

Use the Proportional, Integral, and Derivative (PID) control design knowledge gained in the training to design, develop and test a controller to maintain a desired speed for the motor.

Report

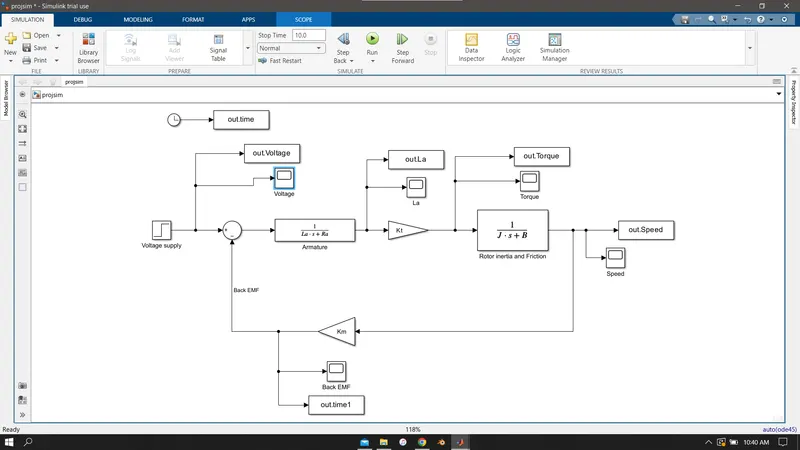

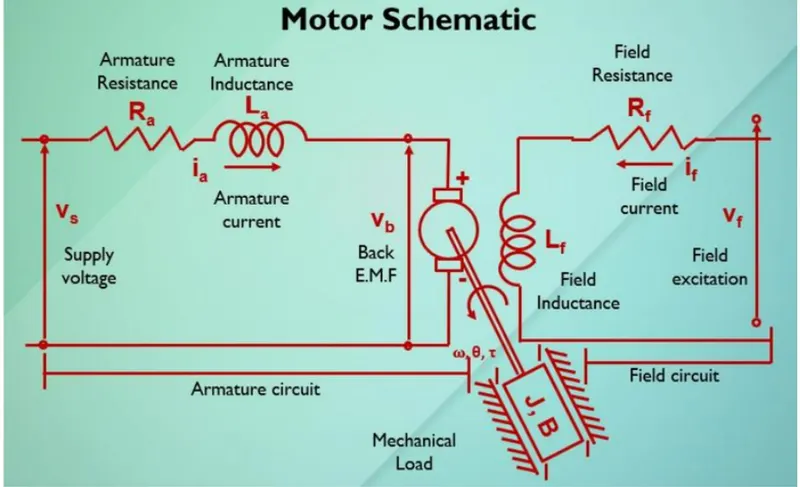

Initially,A Simulink model of Dc Motor is constructed

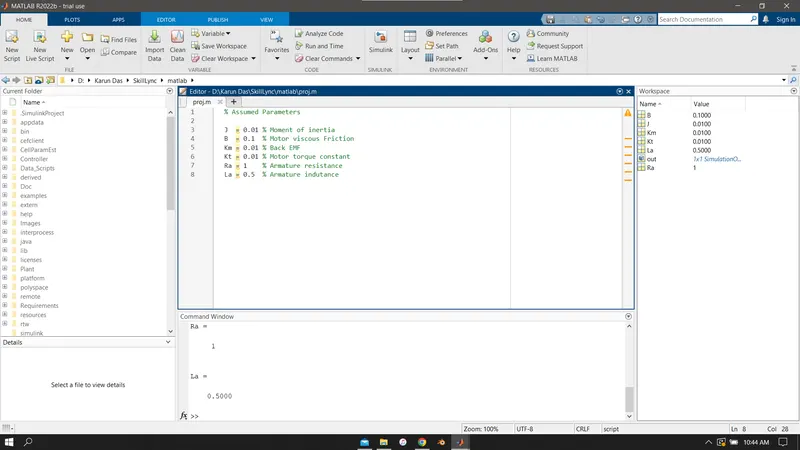

Matlab parameters

% Assumed Parameters

J  = 0.01 % Moment of inertia
B  = 0.1  % Motor viscous Friction
Km = 0.01 % Back EMF
Kt = 0.01 % Motor torque constant
Ra = 1    % Armature resistance
La = 0.5  % Armature indutance

Initial DC motor behaviour without any controller

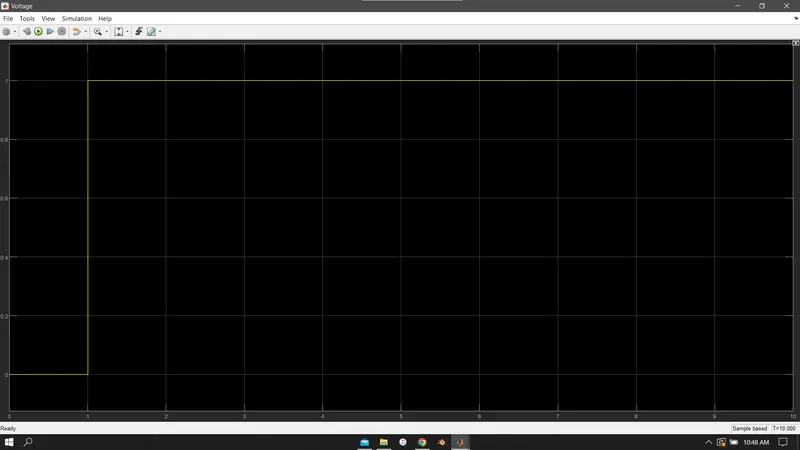

Voltage

LA

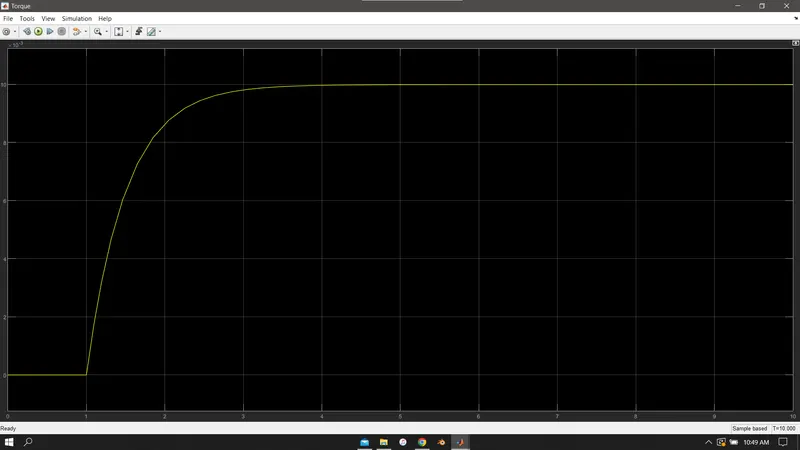

Torque

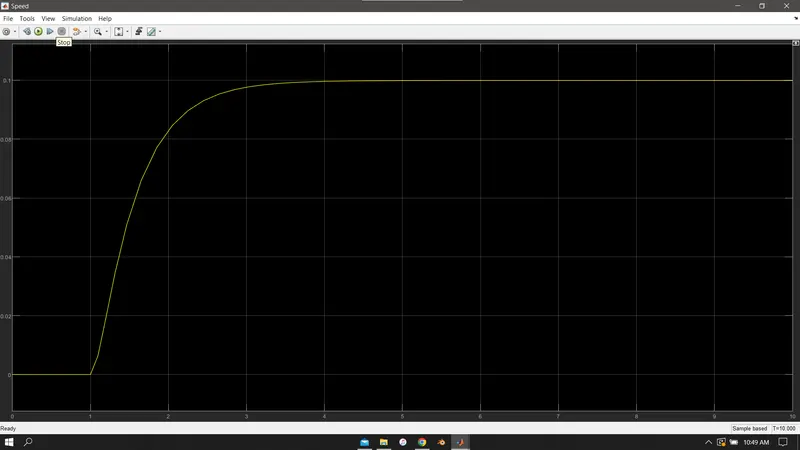

Speed

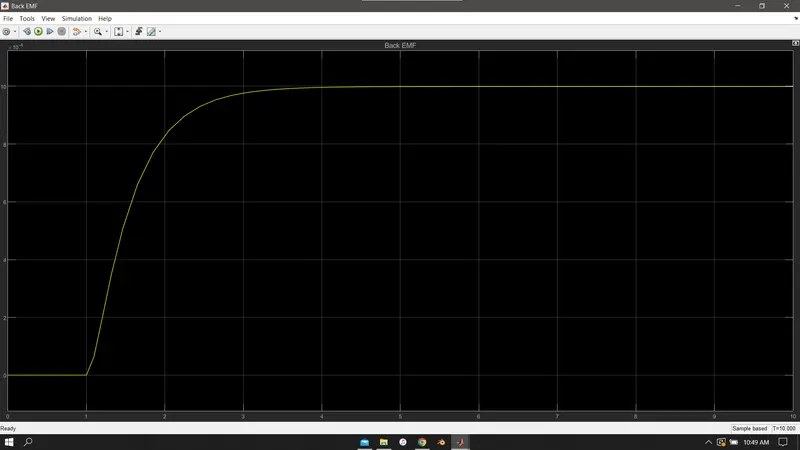

Back EMF

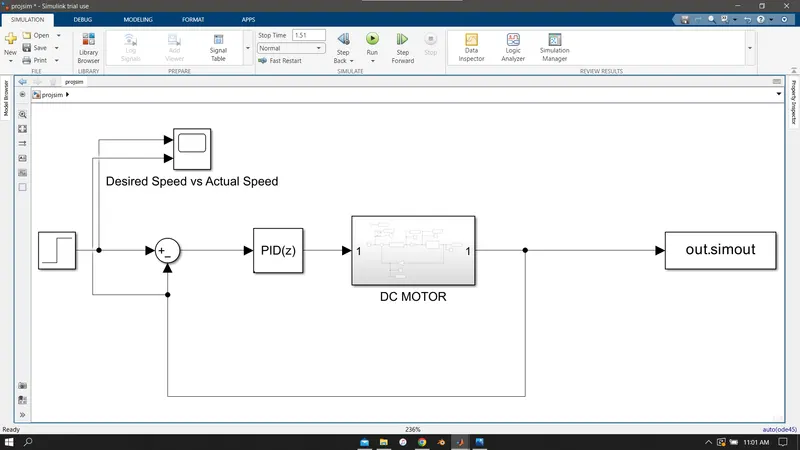

Then,we make the DC motor as a subsystem and PID Controller is used to control desired speed.

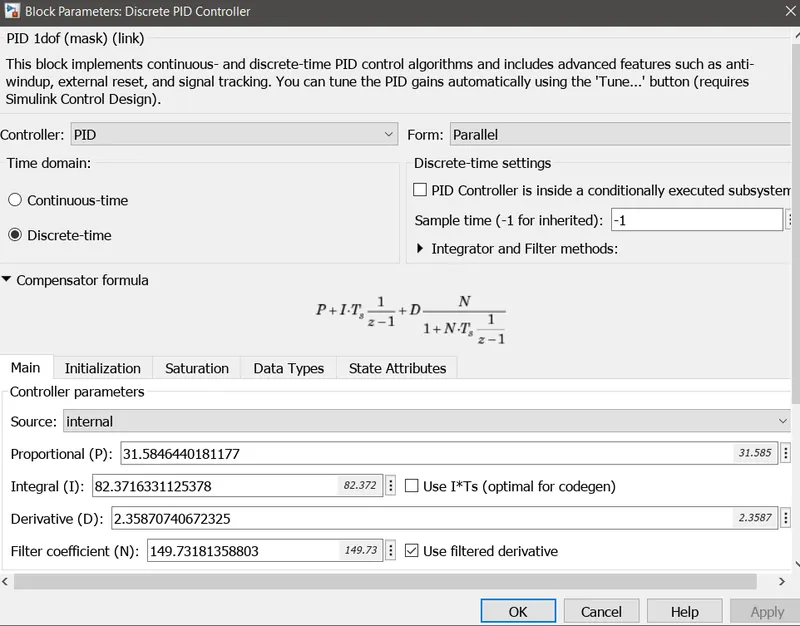

PID Control System

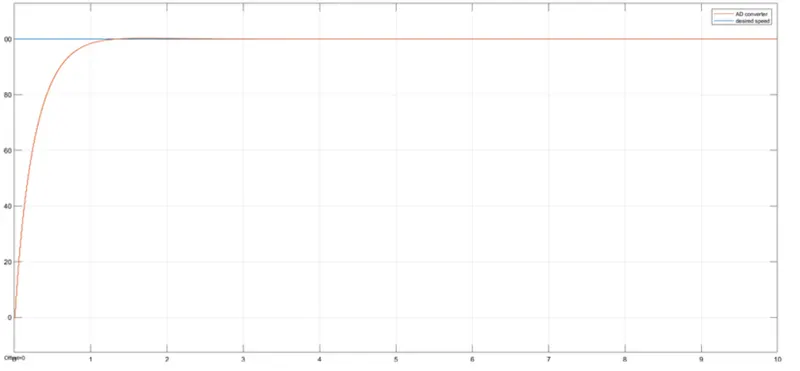

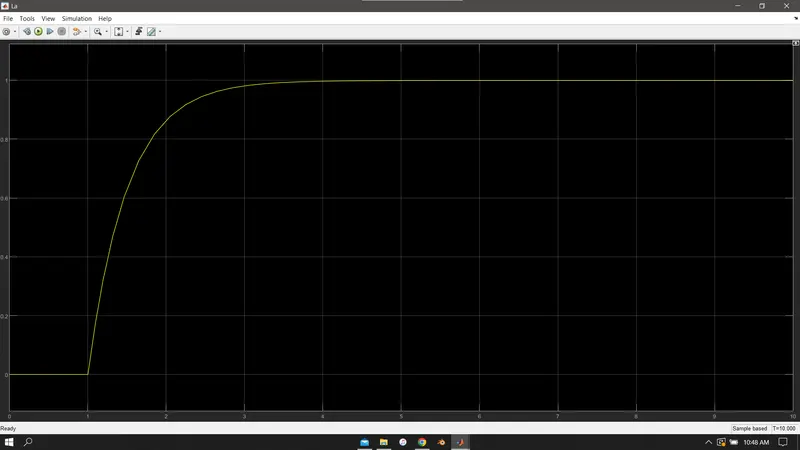

While Maintaining a desired speed of motor at 100

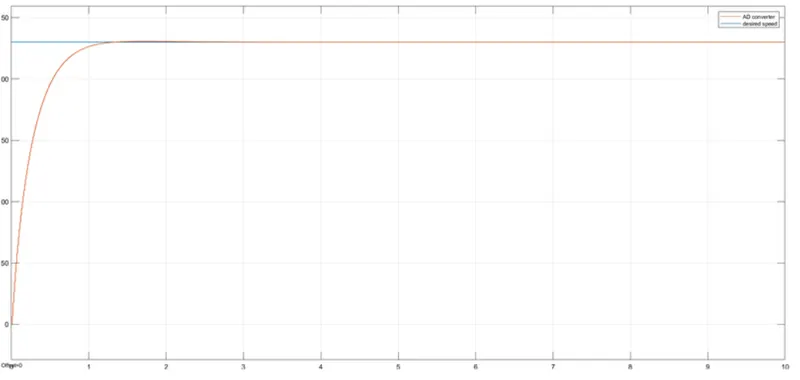

While maintaing a desired speed of motor at 230v

Both the conditions resulted in the same plot, indicating maintaining desired speed
