Project - Data Handling and Interpolation

%To read the Excel File xlsread is used here

A=xlsread("VI.xlsx");

%To take first coloumn input from Excel file A(:,1) is used here

Volt=A(:,1);

%To take second coloumn input from Excel file A(:,2) is used here

Current=A(:,2);

%New_Range variable is used to set interpolation data limit given in question

New_Range=[-17.3:0.1:0.9];

%interp1() function is used to get the more current point for a given limit

B=interp1(Volt,Current,New_Range);

%plot is used to plot the graph with excel sheet value

%hold on used to hold the graph sheet and draw another graph

plot(Volt,Current,'b-');hold on;grid;

%plot is used here to plot the graph with New_Range and Interpolation point

plot(New_Range,B,'o');

%xlabel() function is used to view the "Voltage(V)" text in x-axis

xlabel("Voltage(V)");

%ylabel() function is used to view the "Current(mA)" text in y-axis

ylabel("Current(mA)");

%title() function is used to veiw the "Current vs Voltage" text in title place

title("Current vs Voltage");

%legend() function is used differentate the two graph point

legend("Before Interpolation","After Interpolation",Location="south");

%Here I used nested-for-loop for take the missing point between before interpolation point and after interpolation point

for i=1:length(B)%to take all value in 'B'

for j=1:length(Current)%to take all value in 'Current'

if(Current(j)==B(i))%Compare 'B' and 'Current' point if it present set as zero

B(i)=0;%To set the available plot to zero

end

end

end

%To open the text file 'Missing_plot.txt' fopen is used and 'w' to write the txt file

d=fopen("Missing_Plot.txt",'w');

%To print the line in text file fprintf() is used

fprintf(d,"Current(mA)\n");

%I convert all the available point to zero,if i remove all zero and not an

%number then i get missing point,so i used for loop to perform that

for i=1:length(B)

if~(B(i)==0 || isnan(B(i)))

fprintf(d,"%s\n",num2str(B(i)));%To save the point in text file

%for clear point value i used num2str function

end

end

fclose(d);%After edit I closed the file here

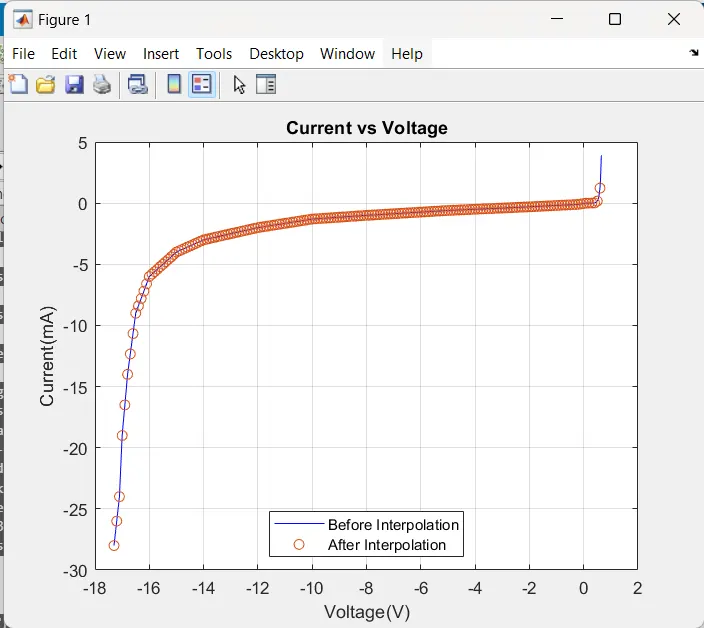

Output:
