Project - Data Handling and Interpolation

Q . Using MATLAB/simulink and  the drive cycle from the attached excel sheet, find- The max heat generation of the battery  There are two types heat sources for battery generation  i. Joules heat ii. Entropy heat Heat genrated = Joules Heat + Entropy Heat  Joules Heat = i^2Rt get form Ohm Law V= IR…

  Q.01)  Design a battery pack for a car roughly 150 Kw with 120 V. Use 3500 mAh 3.6V nominal NMC chemistry cell. Design the battery pack configuration.  Draw the BMS topology for this battery pack.   Aim: To design the battery pack with the capacity 150Kw 120V by using 3500mAh 3.6V. And BMS topology…

Aim: To Create a detailed MATLAB model of an Electric Rickshaw (three wheel passenger vehicle). Software used: MATLAB R2022a Objectives: Rear wheels driven by PM brushed type motor Assume efficiency points of motor controller and motor Make an excel sheet of all input and assumed data  Results: For any three standard…

Aim : Create a MATLAB model of electric car which uses lithium ion battery and suitable motor. Choose suitable blocks from Simscape or Powertrain block set. Implement the vehicle speed control using PI controller and generate brake and accelerator commands. Avoid using readymade driver block for speed control. Prepare…

For any 3 electric vehicles compare the battery pack and charging system requirements. Level of charging  Level 1 EV charging The rate of EV charging is 120 volts in Level 1. Most electric vehicles come with a cord and a control box attached to them for Level 1 charging. One can plug in the cord to a three-pin wall…

Discuss two new trends in battery system field. Battery Swapping  Battery Swapping Technology is new swanky EV and cruising down the highway when suddenly, you get an alert saying that your battery capacity is rapidly reaching zero. You search for a plug-in charging station and thankfully, you find one just…

  AC to DC Convertor :  Traction Invertor: Traction invertor is use to convert DC to 3-Phase Ac supply for Traction motor.   DC to DC Convertor : Buck Converter:           The buck converter is a step-down converter and produces a lower average output voltage than the dc input…

Types of Motor Use in EV :   Permanent Magnet Synchronous Motor(PMSM) Brushless DC Motor(BLDCM) AC Induction Motor(ACIM) Permanent Magnet Switched Reluctance Motor(PMSRM) Interior Permanent Magnet Motor(IPMM)   Brushless DC Motor(BLDCM) Advantage It gives the maximum torque at low speed. Disadvantages Bulky structure…

Create a MATLAB model of electric car which uses a battery and a DC motor. Choose suitable blocks from Powertrain block set. Prepare a report about your model including following Objectives:  System level configurations Model parameters Results Conclusion   AIM: To create a MATLAB model of an electric car with…

  Q. Obtain the transfer function of a mass spring damper system and use it in the model. Add a PID controller to adjust the force on mass so that its position follows a reference signal. Take m = 3.6; %kg  k = 400; %N/m c = 100; %Ns/m  AIM :    We Create a model of mass spring damper system using…

Q01. Search and list out the total weight of various types of aircrafts.      Aircraft Gross Weight: The aircraft gross weight (also known as the all-up weight and abbreviated AUW) is the total aircraft weight at any moment during the flight or ground operation. An aircraft's gross weight…

Q01.  For a defined driving cycle, calculate the energy required for braking. Solution: Under the condition of braking, some amount of energy is required to do the same as that of energy required for accelerating the vehicle. Hence to calculate energy, we use the acceleration energy equarion, Calculating the…

Q01.        A. Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge’.                B. Comment on the armature current shoot-up from the scope results.                C. Refer to…

 Q01.  Which types of power converter circuits are employed in electric and hybrid electric vehicle?   Ans :-  Power Electronic Converters: In EV’s and HEV’s, the power electronic converters are considered as the key elements that interface their power sources to the drivetrain of EVs. In…

Q1.What is the difference between mapped and dynamic model of engine, motor and generator? How can you change model type?  Ans: Powertrain blockset provides two types of combustion engine models:mapped and dynamic.  Mapped Engine :  1.Mapped engines represent macro engine behaviour as a set of lookup tables(brake…

ADVISOR TOOL SIMULATION :- Q01.  For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations. AIM:-  To simulate the gradeability and drive cycle using ADVISOR TOOL in MATLAB.   Condition :- …

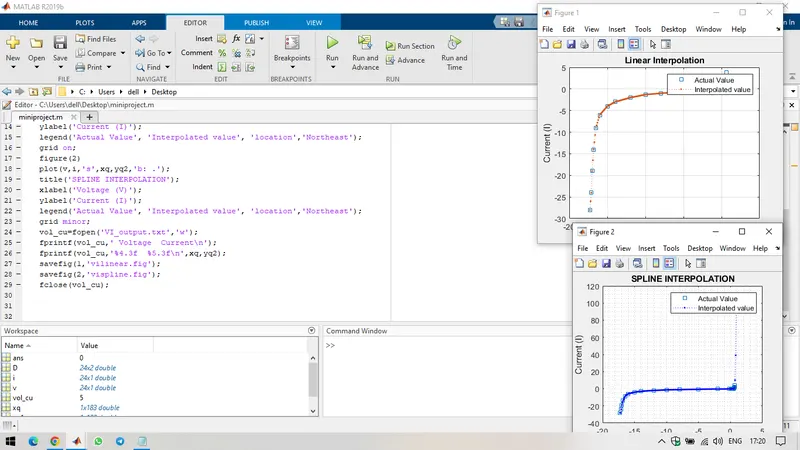

AIM: In this project, we are reading the excel file into the MATLAB program.perform the interpolation in the range of -17.3:0.1:0.9  Matlab Code :  close allclear;clc;D=xlsread('VI'); % VI Data in Excelv=D(:,1);i=D(:,2);xq=[-17.3:0.1:0.9];yq1=interp1(v,i,xq);yq2=interp1(v,i,xq,'spline');figure(1) % Seprate image Spline…
