Project - Analysis of a practical automotive wiring circuit

1.Generator, Battery, Distributor, Stator, Current and Voltage Regulator, Ignition Coil, Ammeter, Fuse, Breaker, Ignition Switch, Foot Selector Switch, and Junction Block.

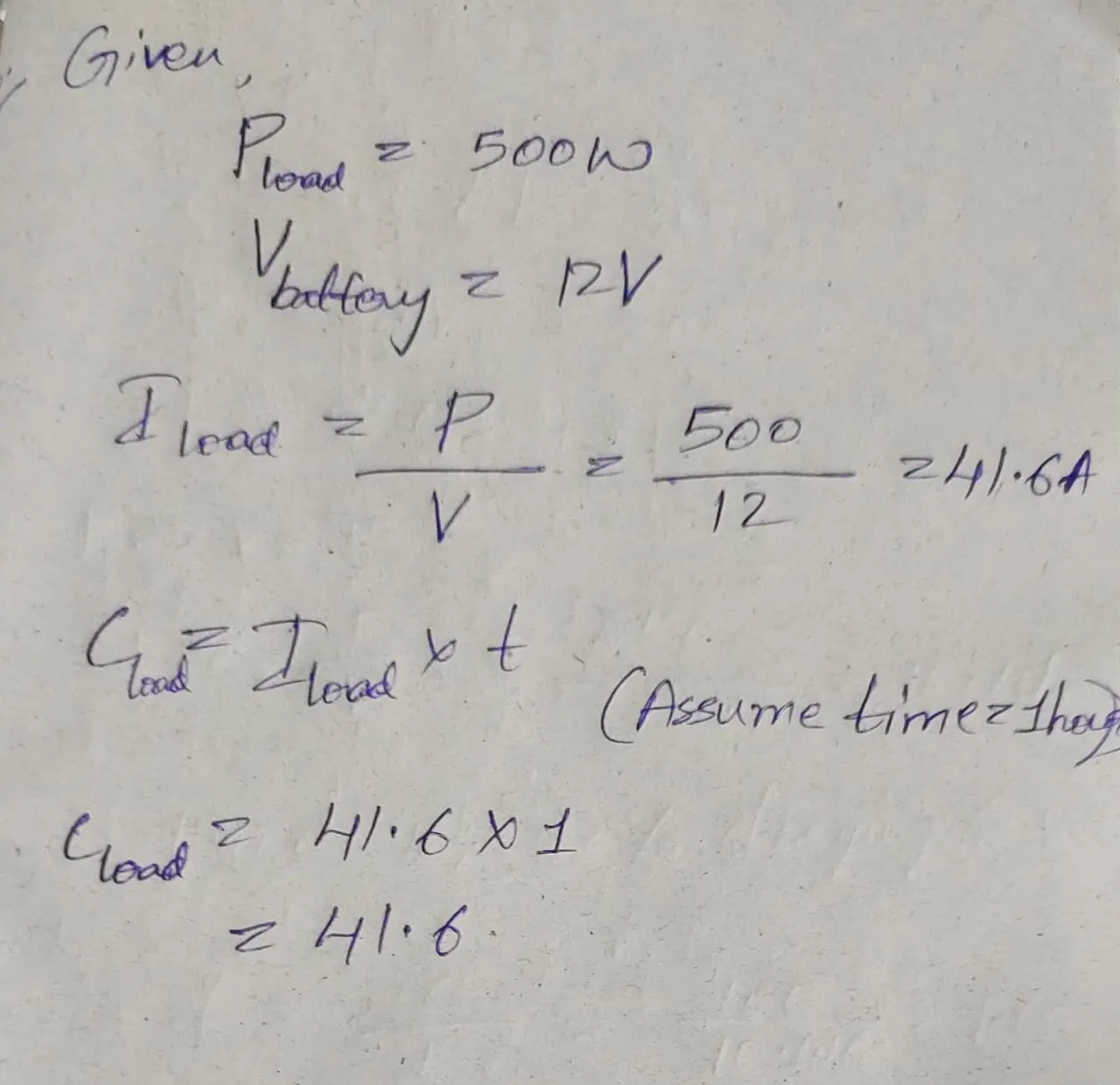

2.

Generator:

Purpose of a Generator

• The primary purpose of a generator is to convert mechanical energy into electrical energy. Generators are commonly used in situations where electrical power is needed but is not available from the power grid, such as in remote locations, during power outages, or in portable applications.

Working of a Generator

• The basic working principle of a generator is based on electromagnetic induction, which was discovered by Michael Faraday. Faraday's Law states that a voltage is induced in a conductor when it is exposed to a changing magnetic field. Here's a step-by-step explanation of how a generator works:

Mechanical Energy Input: Generators require a mechanical energy source to rotate their components. This energy can come from various sources such as internal combustion engines (using gasoline, diesel, or natural gas), turbines (driven by steam, water, or wind), or other mechanical means.

Rotor and Stator: A generator consists of two main parts: the rotor (rotating part) and the stator (stationary part). The rotor is typically a magnet or an electromagnet, and the stator contains coils of wire.

Rotation of Rotor: The mechanical energy input is used to rotate the rotor. As the rotor spins, it creates a moving magnetic field around the stator.

Electromagnetic Induction: According to Faraday's Law, the moving magnetic field induces a voltage in the coils of wire in the stator. This induced voltage causes a current to flow if the circuit is closed, thus generating electricity.

Output of Electrical Energy: The electrical energy generated in the stator is then directed to an external circuit where it can be used to power electrical devices, charge batteries, or supply power to a grid.

Battery:

Purpose of a Battery

• The primary purpose of a battery is to store energy in a chemical form and convert it into electrical energy when needed. Batteries provide a portable and convenient power source for a wide range of applications, from small electronic devices like smartphones and laptops to large-scale energy storage systems for renewable energy grids.

Working of a Battery

• A battery consists of one or more electrochemical cells. Each cell contains two electrodes (anode and cathode) and an electrolyte. The chemical reactions between the electrodes and the electrolyte result in the flow of electrons, generating an electric current. Here's a detailed explanation of how a battery works:

Electrochemical Cells: Each cell in a battery has two electrodes:

Anode (Negative Electrode): The electrode where oxidation occurs, releasing electrons.

Cathode (Positive Electrode): The electrode where reduction occurs, gaining electrons.

Electrolyte: A medium that allows ions to move between the electrodes but prevents the flow of electrons. The electrolyte can be a liquid, gel, or solid.

Chemical Reactions: When the battery is connected to a load (an external circuit), a chemical reaction occurs between the anode and the electrolyte, releasing electrons at the anode. These electrons flow through the external circuit to the cathode, where they are accepted in a reduction reaction with the cathode and the electrolyte.

Flow of Electrons: The movement of electrons from the anode to the cathode through the external circuit generates an electric current, which can be used to power electronic devices.

Distributor:

Purpose of a Distributor

• The primary purpose of a distributor in an internal combustion engine is to route high voltage from the ignition coil to the spark plugs in the correct firing order and at the right time. This ensures that the engine's air-fuel mixture ignites in the cylinders at the optimal moment for efficient combustion.

Working of a Distributor

• The distributor is a key component in traditional ignition systems, primarily found in older vehicles with carburated engines. Here's how it works:

Ignition Coil: The distributor receives high voltage from the ignition coil. The coil generates this high voltage by converting the 12-volt battery power into the high voltage needed to create a spark at the spark plugs.

Distributor Cap and Rotor:

Rotor: Inside the distributor, there is a rotor that spins in sync with the engine's camshaft.

Distributor Cap: The rotor is housed under the distributor cap, which has contacts (one for each spark plug wire) arranged around its perimeter.

Spark Distribution: As the rotor spins, it passes close to these contacts. When the rotor aligns with a contact, the high voltage from the ignition coil is transferred through the rotor to the contact and then to the spark plug wire connected to that contact.

Spark Plug Wires: The high voltage travels through the spark plug wires to the spark plugs, where it jumps the gap at the spark plug tip, creating a spark that ignites the air-fuel mixture in the cylinder.

Timing: The distributor is designed to ensure that the spark is delivered to each spark plug at the correct time in the engine's cycle. This timing is critical for engine performance and efficiency. The distributor often includes a mechanical or vacuum advance mechanism to adjust the timing based on engine speed and load conditions.

3.

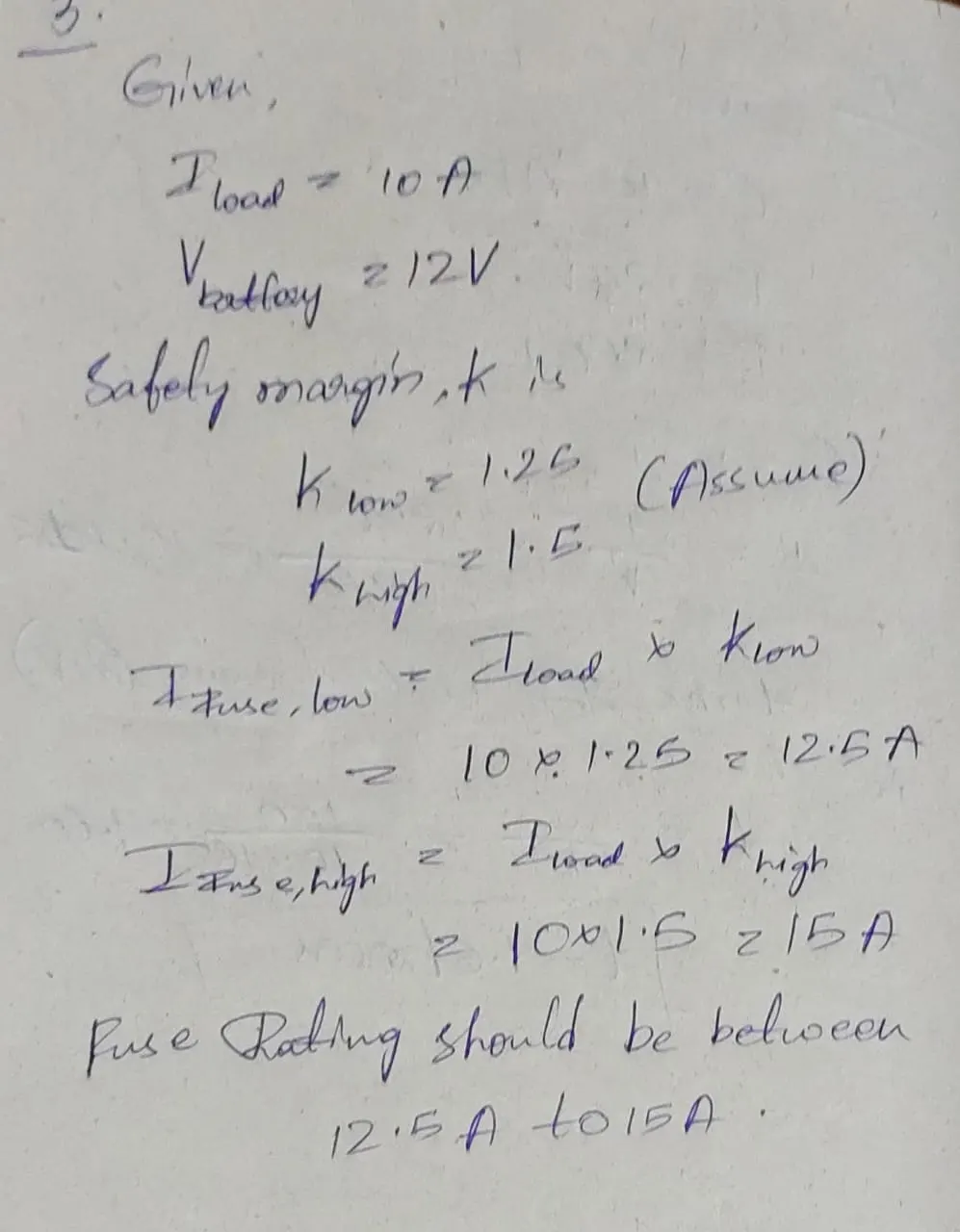

4.

5.In automotive wiring circuits, Instrument lights are connected in parallel rather than in series for:

• Consistent Voltage Supply
• Independent Operation
• Current Distribution
• Simplified Troubleshooting and Maintenance
• Flexibility in Adding or Removing Components

6.In automotive ignition systems, the ignition coil and distributor are connected in series for electrical efficiency and spark timing:

• Voltage Control: The ignition coil transforms the low voltage (typically 12 volts) from the battery into a much higher voltage (thousands of volts) needed to create a spark at the spark plugs. By connecting the ignition coil and distributor in series, the system ensures that the high voltage output from the coil is properly distributed to each spark plug in sequence.
• Sequential Firing: The distributor is responsible for routing the high voltage pulses from the ignition coil to each spark plug in the correct firing order. By being connected in series, the coil can feed its high voltage output directly into the distributor, which then routes this voltage to the appropriate spark plug via the rotor and distributor cap.
