Project
soluction:
RPM:Display measurements for engine revolutions per minute (RPM) in percentage of RPM.
The RPM Indicator block displays measurements for engine revolutions per minute in percentage of RPM.
The range of values for RPM goes from 0 to 110 %. Minor ticks represent increments of 5 % RPM and major ticks represent increments of 10 % RPM.
BREAK INPUT:Suppose you need to get the value of the signal on your input port to use in your S-function. You should write your code so that the pointer to the input value is properly typed, so that the values read from the input port are interpreted correctly.
THROTTLE INPUT:This example shows how to control throttle input to a Simscape™ Driveline™ vehicle model using a Powertrain Blockset™ Longitudinal Driver block. You add the driver to an open-loop model that uses a Signal Builder block for feedforward control. Adding the driver allows you to model closed-loop control by supplying a reference velocity and a feedback loop.
VELOCITY:
The Velocity Conversion block computes the conversion factor from specified input velocity units to specified output velocity units and applies the conversion factor to the input signal.
The Velocity Conversion block port labels change based on the input and output units selected from the Initial unit and the Final unit lists.
ENGINE SENSOR:Develop, test, and visualize the performance of driving algorithms in a simulated environment using the Unreal Engine.
VEHICAL BODY:This example shows how to use the vehicle dynamics constant radius reference application to analyze the impact of speed on the vehicle lateral dynamics. Specifically, you can examine the lateral acceleration when you run the maneuver with different speeds.
PLOTS:These examples show how to create line plots, scatter plots, and histograms in polar coordinall.

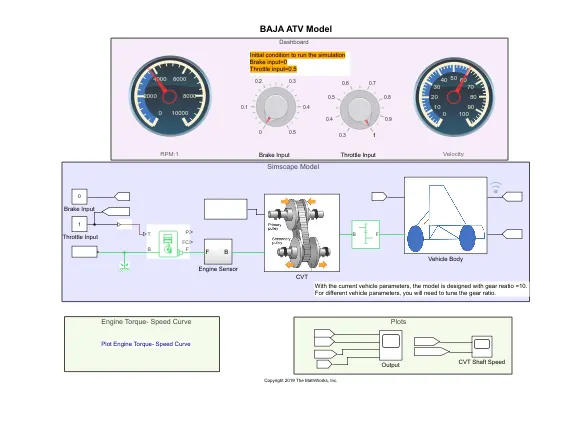

all the blocks are connected in diagram.

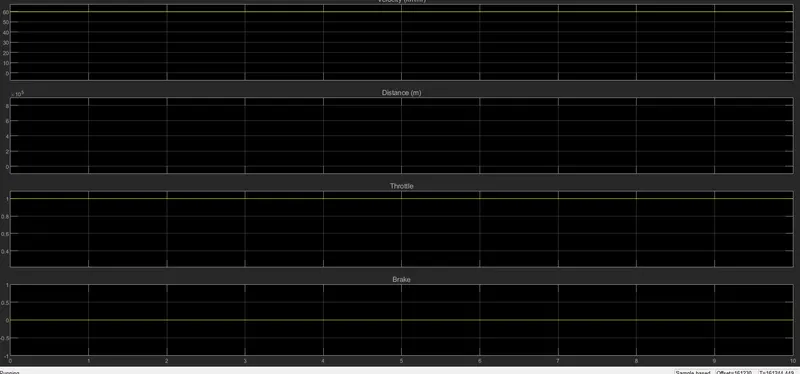

the out plots are show in the graph.
