Project - 2 - Meshing on the suspension Assembly

Aim- Meshing of the given suspension assembly according to given quality criteria and then giving connections accordingly.

Procedure-

1. First we create different pids for all the components and then move them into it.

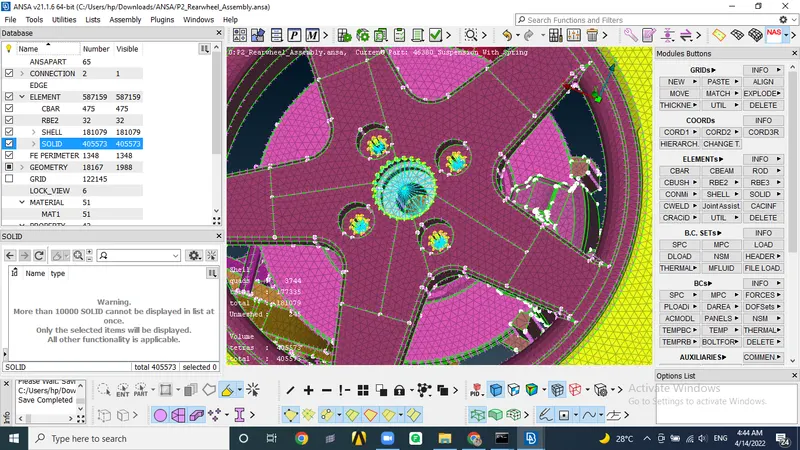

2. Then we start meshing all the compononents one by one. With given mesh parameters and and tet collapse quality. flat surfaces with tria and curved surfaces with ortho tria will be meshed.

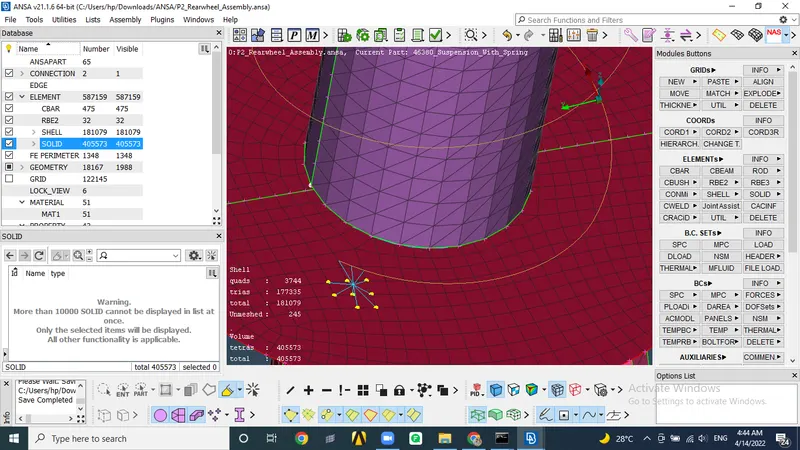

3. we create volume and remesh for tetras from list option and clear tet collapse quality from fix quality option.

4. then we create midsurface for those components which have uniform thickness and crear quality for them.

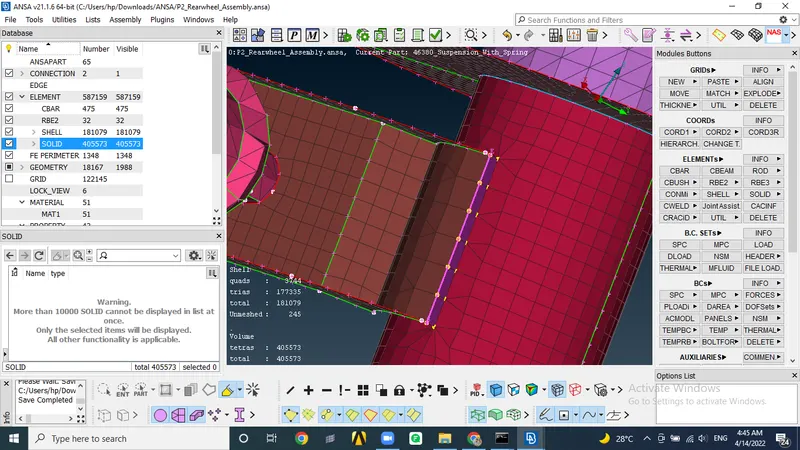

5. Now we have to create c bar element for the spring component from nastran deck. Forthat, curves are created using middle option for spring elements and converted to c bar elements. Now we start giving rbe2 connection wherever required and also do seam weld connection wherever required.

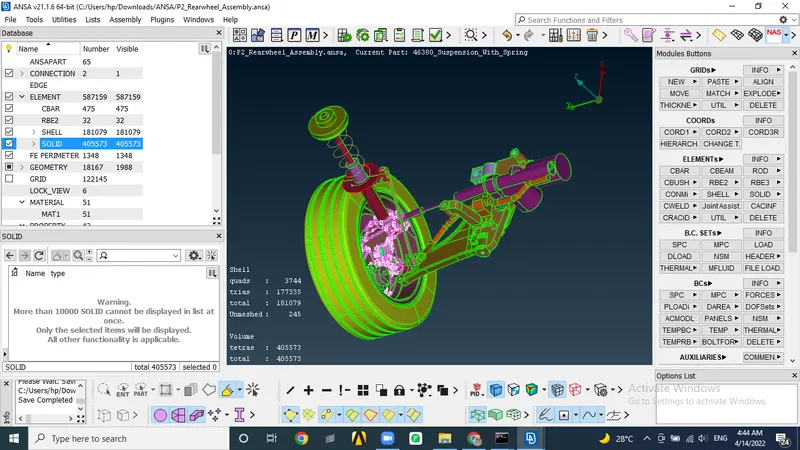

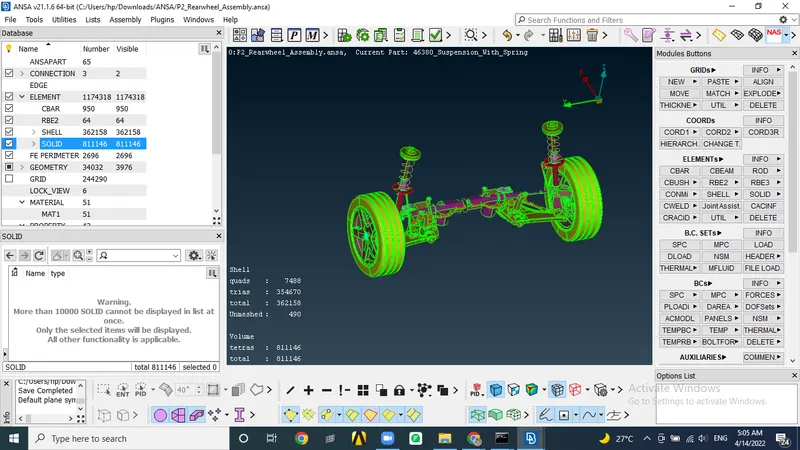

6. Atlast we have to give symmetry to all the elements to represent full suspension assembly
