Project-2-Meshing of Door Inner Panel Challenge

AIm:

The objective of the project is to execute meshed side door component with proper mesh flow, following the quality criteria and finally assigning the thickness.

Procedure:

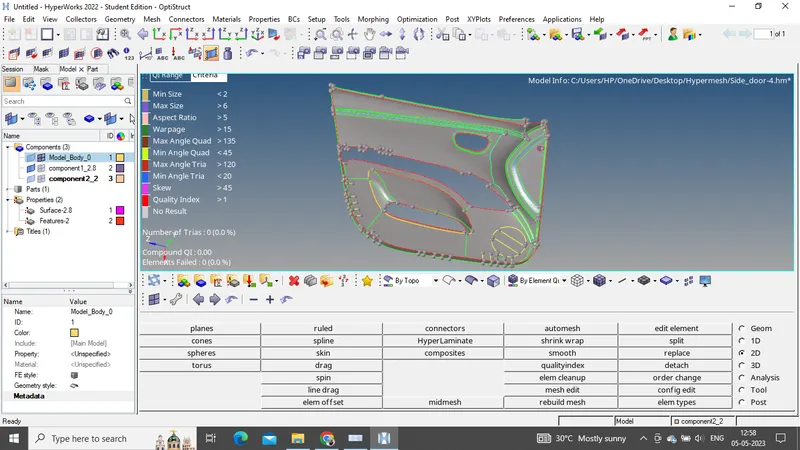

1)The given geometry model is as follows:

2) Generating a midsurface using automidsurface option cant be proper, because it has many features. So manually midsurface has to be extracted.

3)A proper surface has to be selected to offset. After offseting operation be get a proper base surface on which the features can be added.

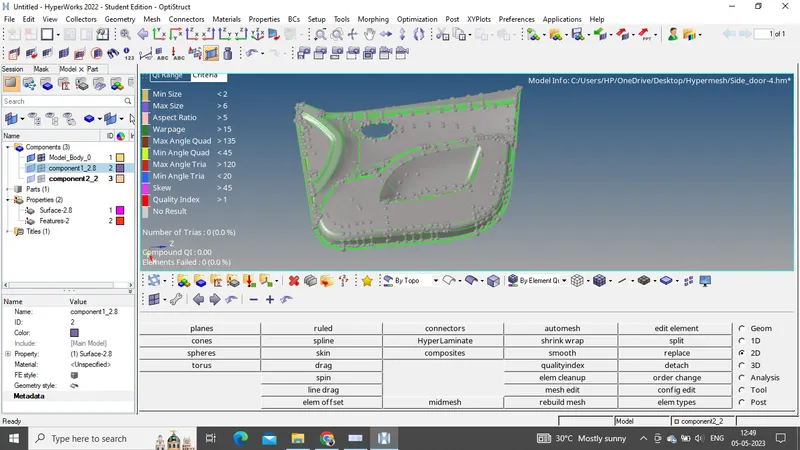

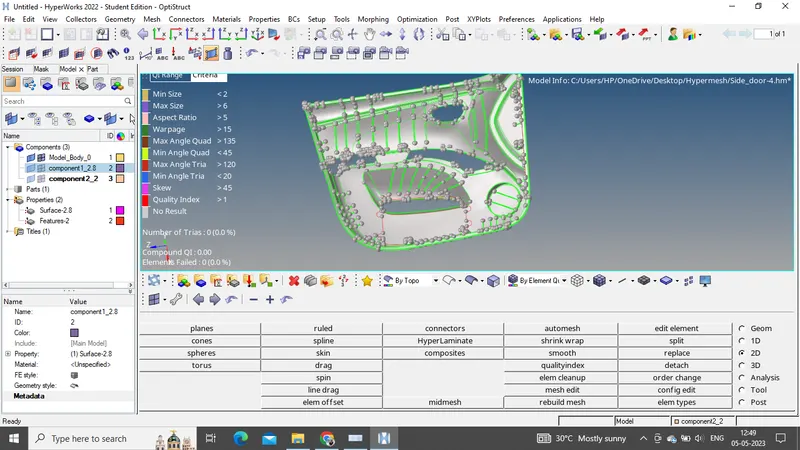

4)Midsurface has been generated using, offset command in surface edit group. While performing this operation, make sure that the duplicated surface is assigned with current component option.

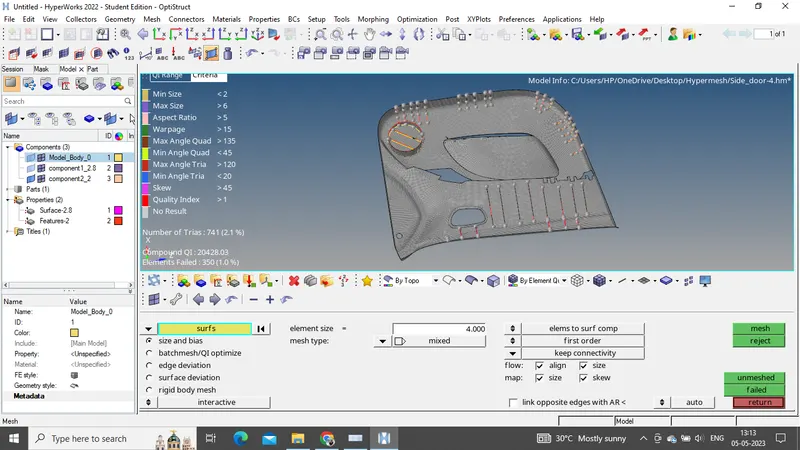

5)Now, as the midsurface is generated, we can go for meshing, assign the quality parameters and perform the meshing.

6)1st, meshing has to be done on the critical part, so that the nodes adjustment can be done and the mesh flow is proper.

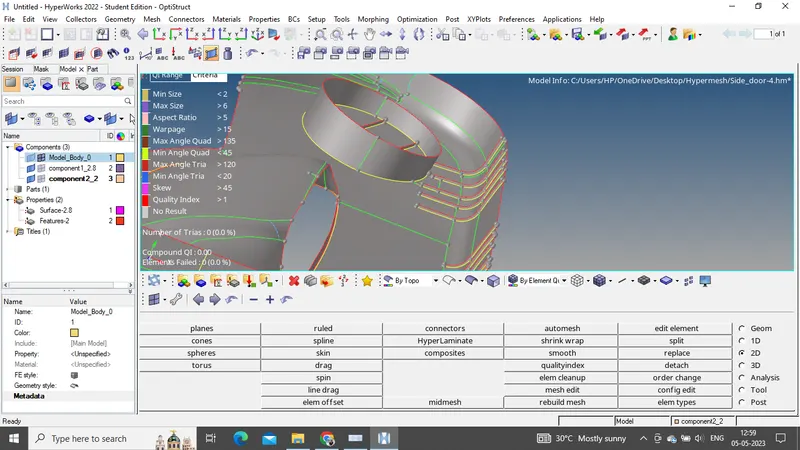

7)Here, from the inner circle mesh generation is performed, so that if trias are present, it can be brought outside .

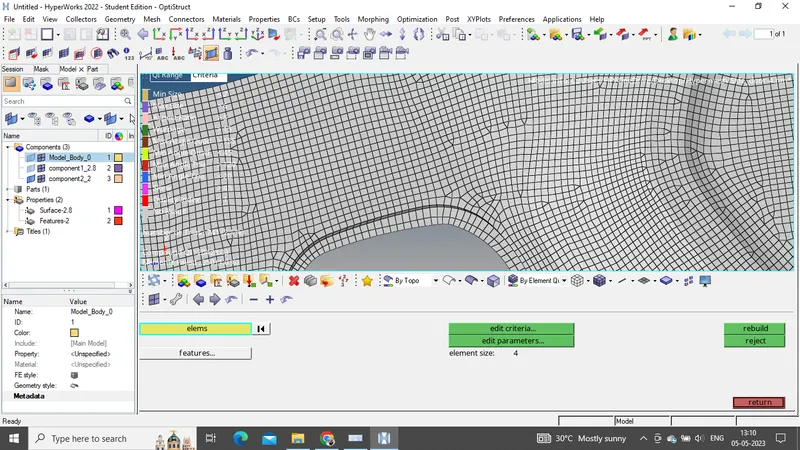

8)Step by step the component is meshed.

Conclusion:

The side door componet is meshed with proper mesh flow and following the quality criteria.
