Project 2 - Measuring the distance of an object using ultrasonic sensor and also smoothen the sensor data using moving average filter

AIM:

To implement of code for “Measuring distance of an object using ultrasonic distance sensor (28015 Ping) and also smoothen the sensor data using moving average filter”.

Goals:

• Measuring the distance in terms of inches of an object using Ultrasonic Distance Sensor (28015 Ping).
• The sensor data is smoothened by using Moving average filter technique to eliminate the high frequency variations from the sensor data.

Key Highlights of the Project:

• Measuring the distance travelled by the wave to the object and gets bounced back from the object to sensor.
• Smoothening the sensor data by moving average filter technique, the filter has a window of certain size. That window determines that how many data the filter can take.

Deliverables of this project:

• The distance travelled by a wave to the object for which we want to measure the distance using Ultrasonic Distance Sensor (28015 Ping).
• Eliminate the high frequency jitters from the sensor data by Moving Average filter to smoothen the sensor data.

Expected Outcomes:

The students will get the Knowledge on Ultrasonic sensor (28015 Ping) to measure the distance travelled by wave to the object, the hardware connection of 2 Arduino’s connected to the sensor and smoothening the sensor data by removing high frequency variations using Moving Average Filter Technique.

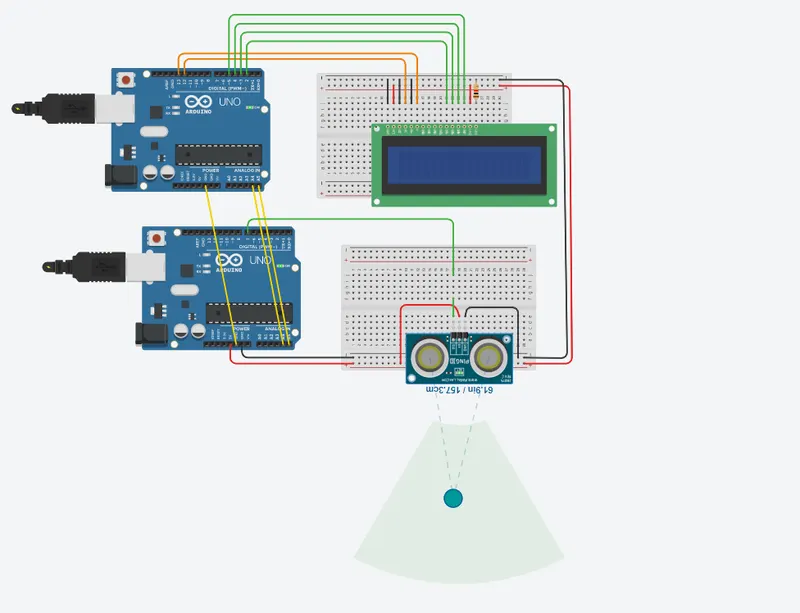

Screenshot of Tinkercad Simulation:

• Here interfaced the two arduino with I2C communication protocol.
• Used sensor 28015 Ping ultrasonics range finder for finding object distance.
• Intefaced the LCD screen with slave srduino.
• And also implemented sensor smoothened by using Moving average filter technique.

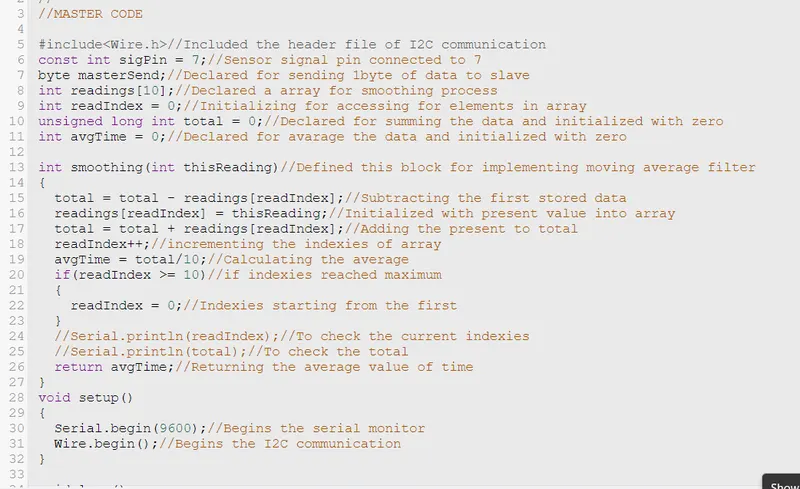

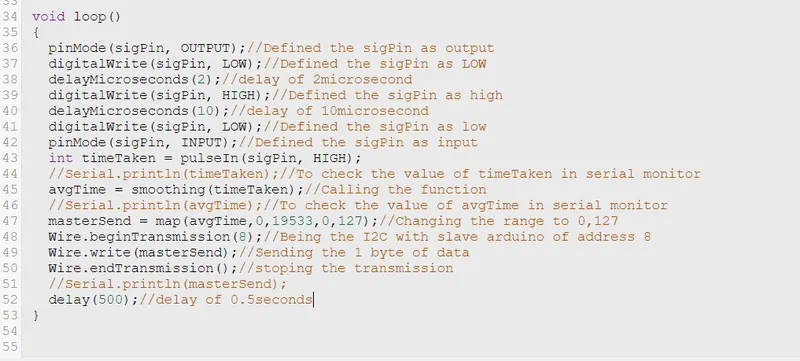

Screenshot of Mastercode:

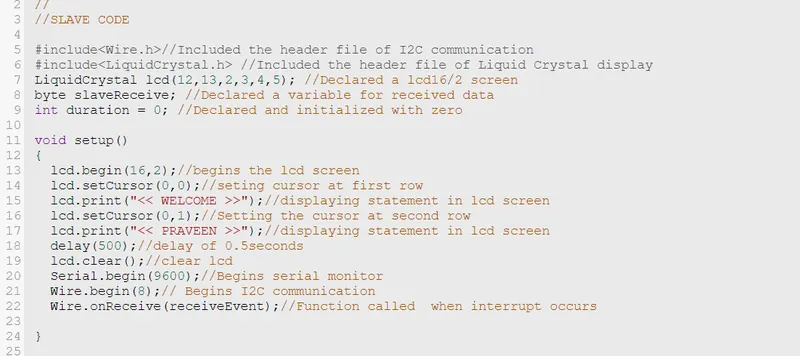

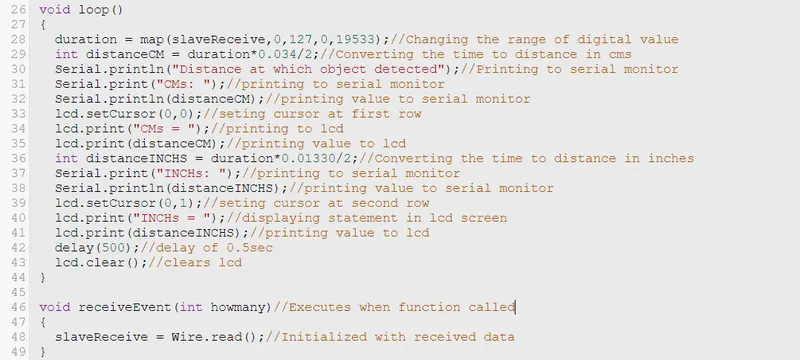

Screenshot of slavecode:

Thinkercad Project link:

https://www.tinkercad.com/things/lec2If4jPS9-measuring-distance-using-ultrasonic-sensor/editel?sharecode=ejDmiMbUI63QaxHe7SYU3zAB-2E-LRjeqK15ndOdD4Q

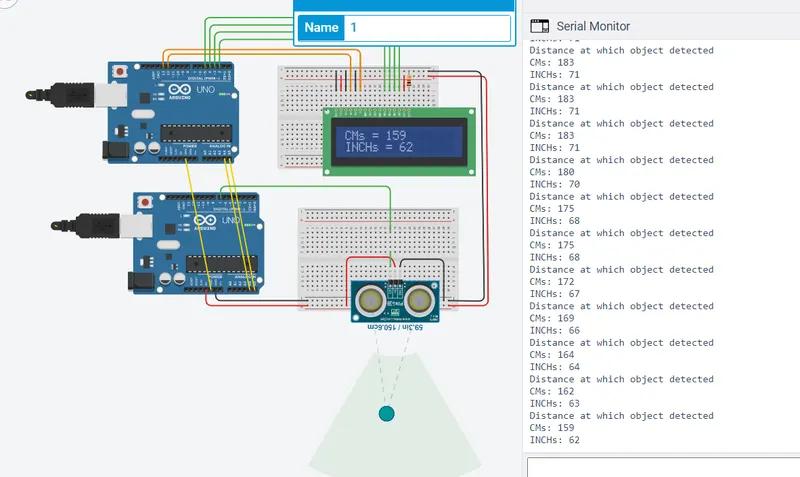

Serial monitor of slave:

Conclusion:

Hence implement of code for “Measuring distance of an object using ultrasonic distance sensor (28015 Ping) and also smoothen the sensor data using moving average filter”. Also provided the screenshots code & simulation and project links.
