Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

1.Q

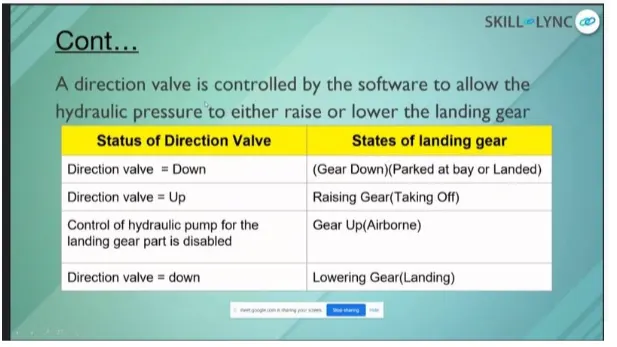

A direction valve is controlled by the software to allow the hydraulic pressure to either raise or lower the landing gear.

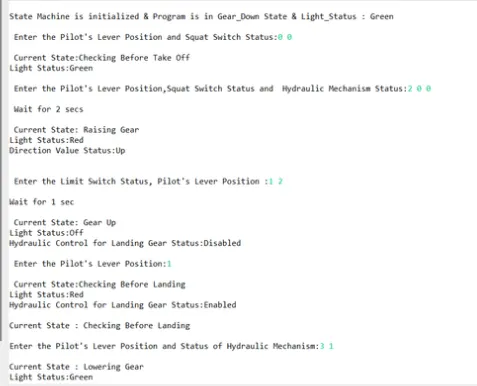

out put:

project overview:

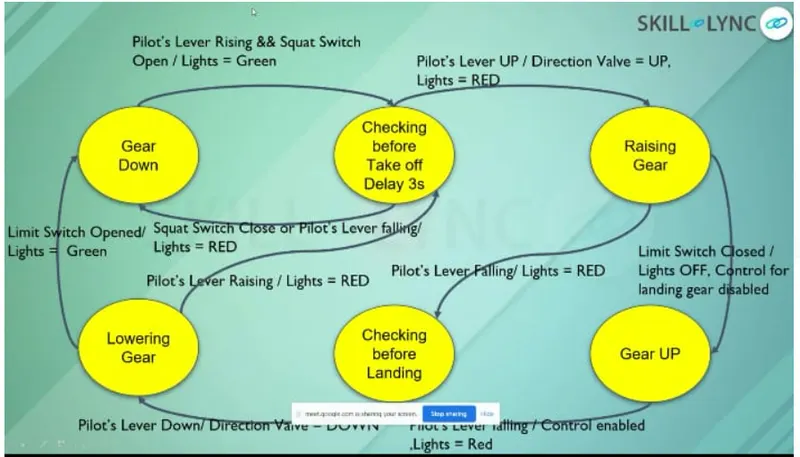

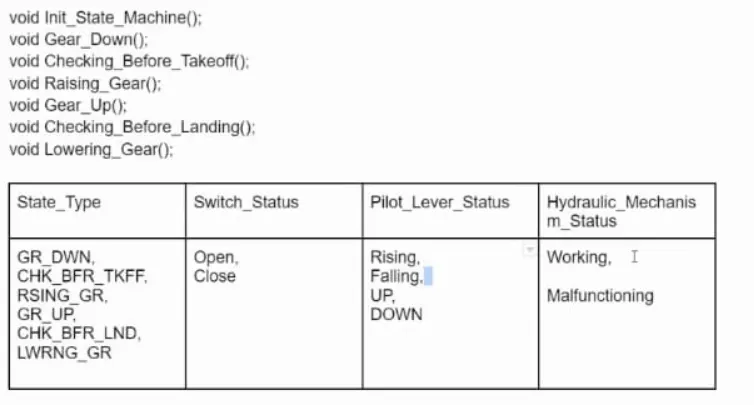

following are the conditions for the code and from the state machine flow chart that we need to implement.

2 Q.

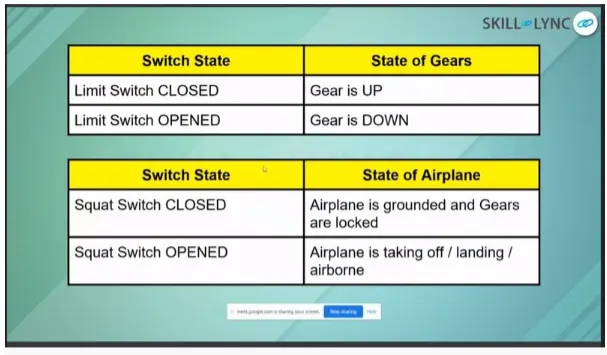

Implementing the control for the retraction and extension of Airplane’s landing gear using the Finite state machine with the knowledge of various states of switch and gear.

3.Q

The student will be getting the Knowledge of Finite State Machine algorithm which is used to achieve the control over the retraction and extension of Airplane’s landing gear using the switch and gear states of Airplane.

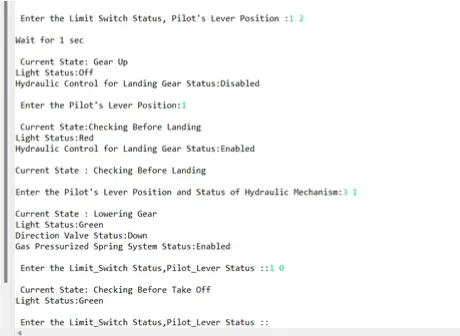

output:

                                                                   THE---END
