Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

Answer-

AIM-

• To calculate necessary data from the given architectural and site information and some data assumed.
• To model analysis & design the frame structure uding ETABS Softwere.
• To model analyse & design the foundation using safe softwere.
• To produce structural Typical floor plan & Typical rebar drawing.
• Calculation of all data as per indian standard.

Data Required for ETABS Analysis-

Pinned supoort, Base +5 storey+Mumty

Assumed- Column size- 650X650mm, Beam Size- 450X500 mm , Slab-150thk,Soil Type- 3,Floor Live Load-2 KN/Sqm

Terrace Live Load- 1 KN/Sqm, Floor Finish+ Ceiling - 1 Kn/Sqm, Partion Wall Load= 3.5 KN/m,

Seismic Zone-V As per IS 1893

Procedeure-

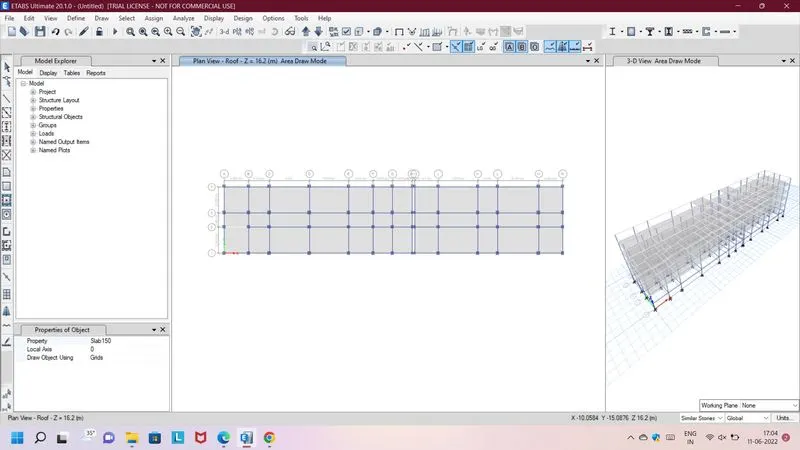

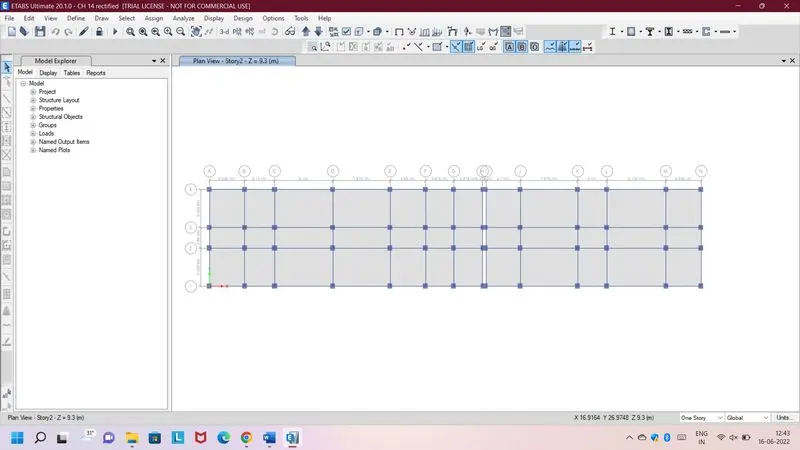

• Draw grid line as per drawing
• Define material, Load , load case and combination, subgrade of soil

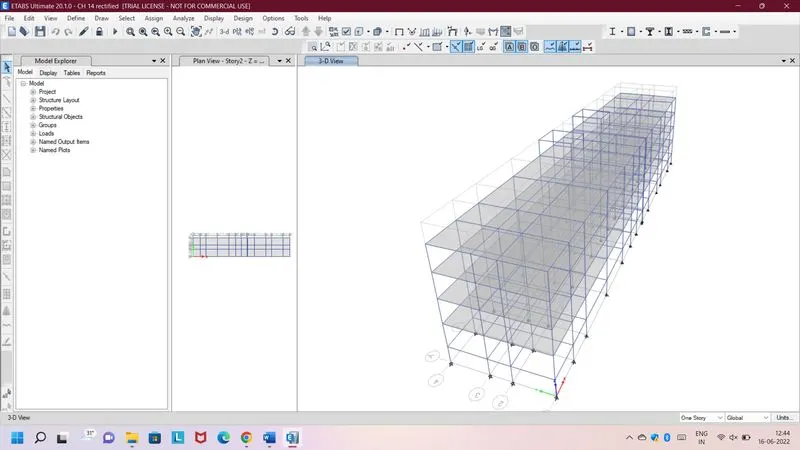

• Draw column , beam & slab section

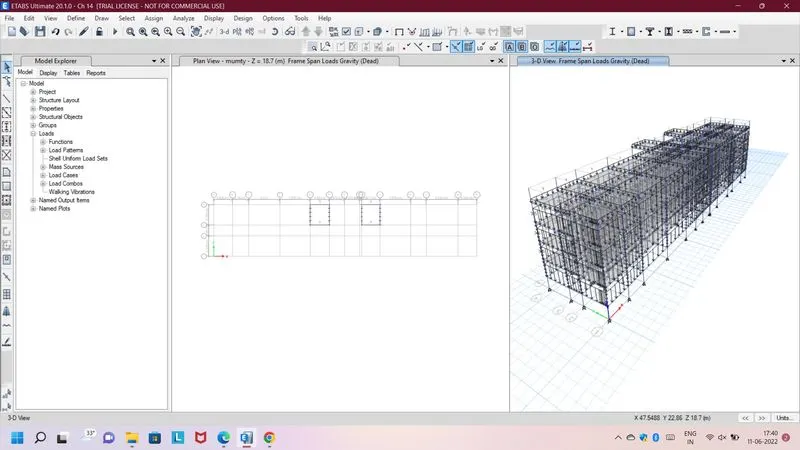

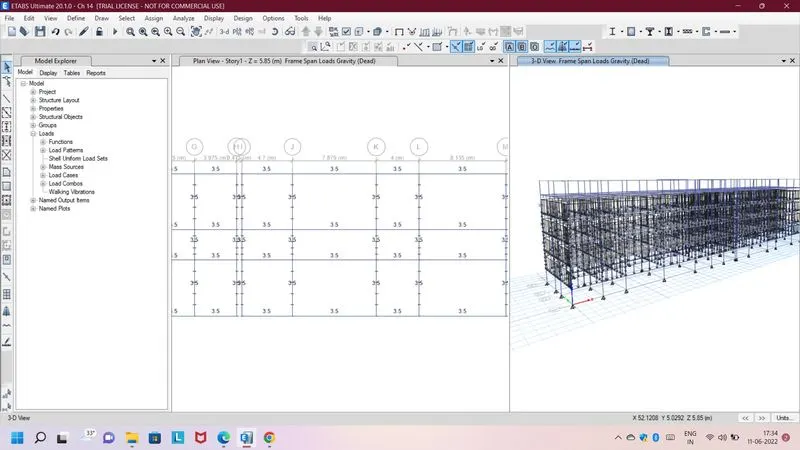

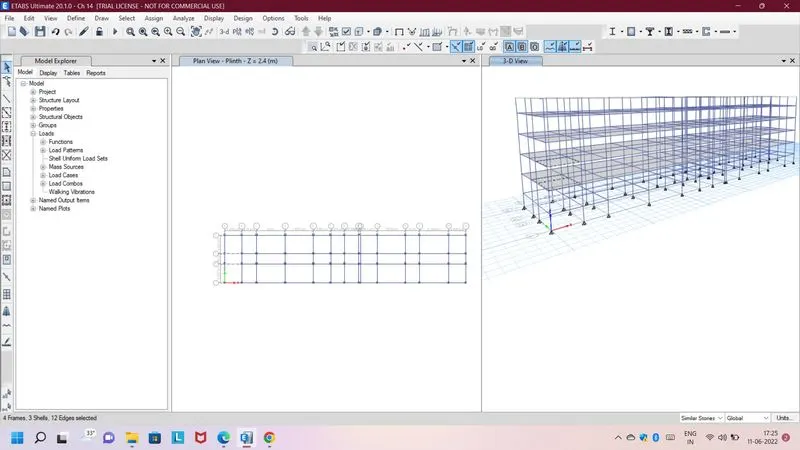

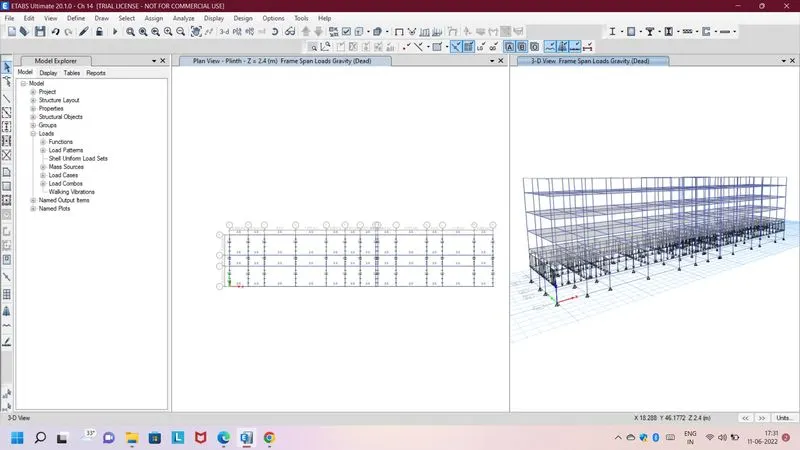

• Asign property and load of all section.

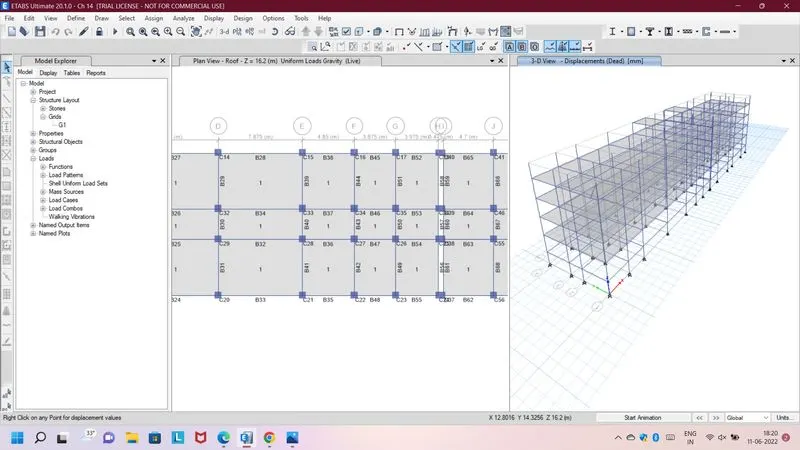

• Run Analysis
• Design Section

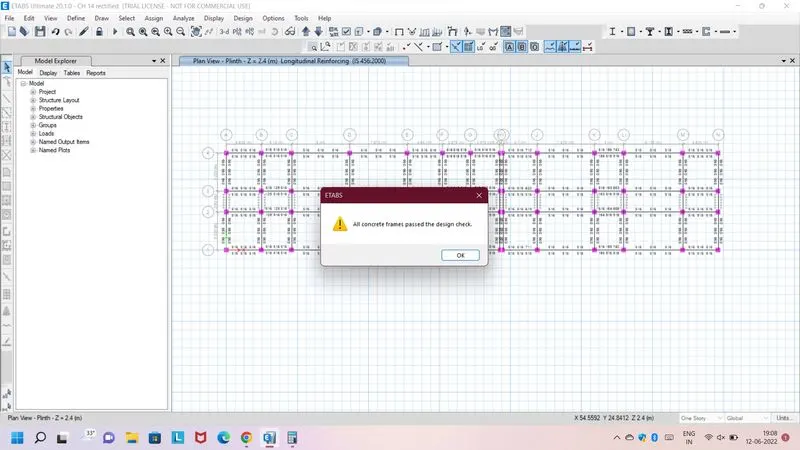

• check how much member passed .

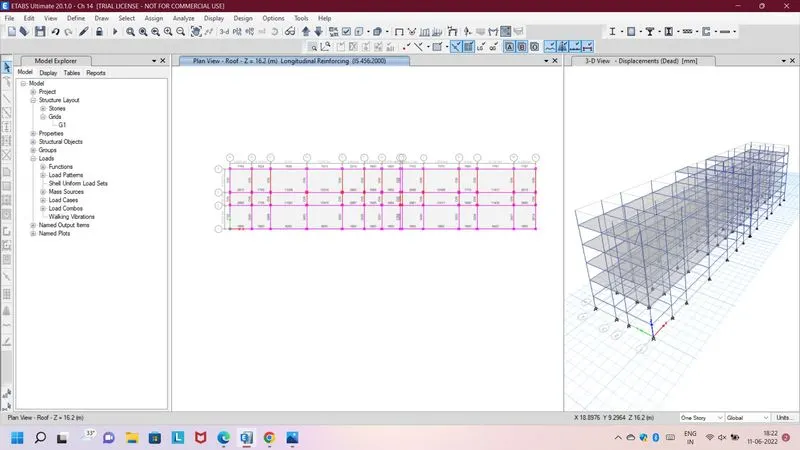

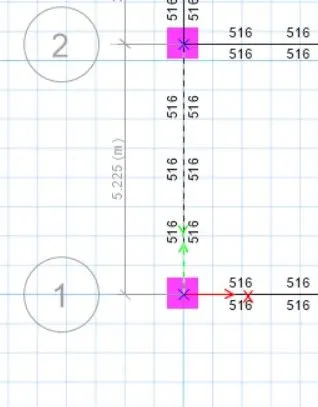

• Check Rebar design.

Safe Design Analysis of Foundation-

Pile dia-500 mm, Pale capacity-28 Kn,

Pile Length-10 m,

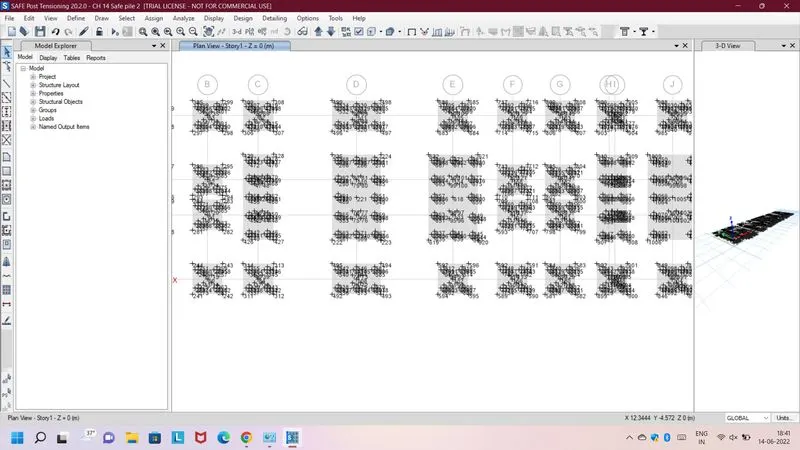

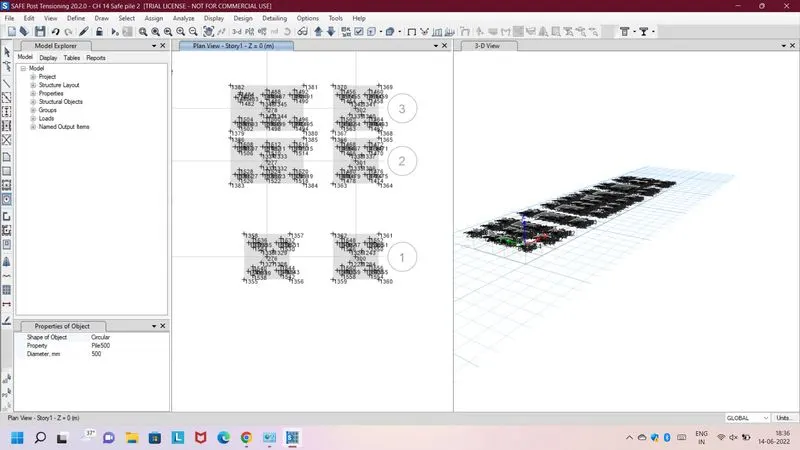

Procedure of Safe Design-

• Export from base reaction point to safe file
• In safe software import safe file and check load
• Define material and section,

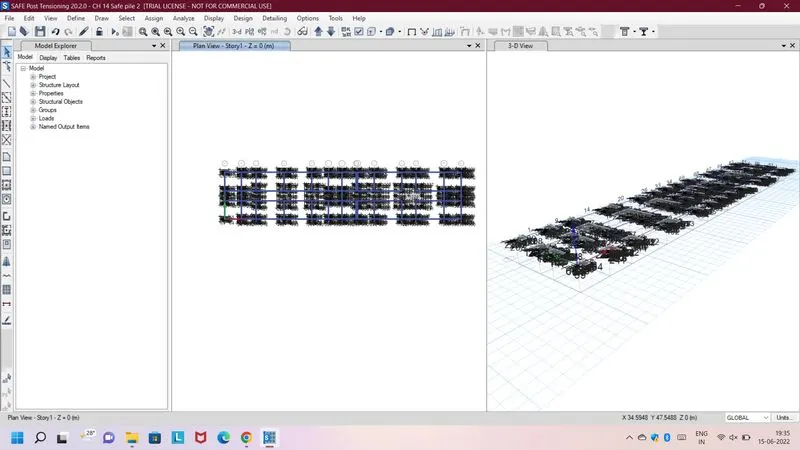

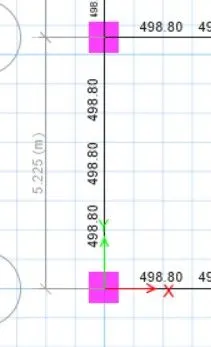

• Draw pile cap , column , Pile & Connecting beam
• Asign all properties .

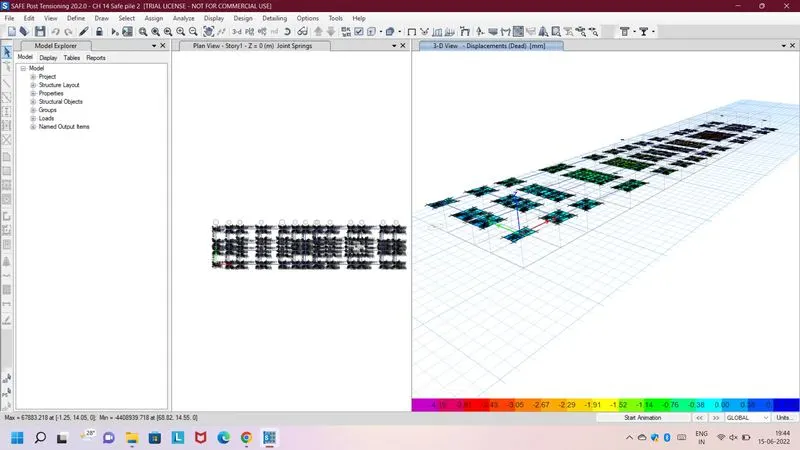

• Run analysis.

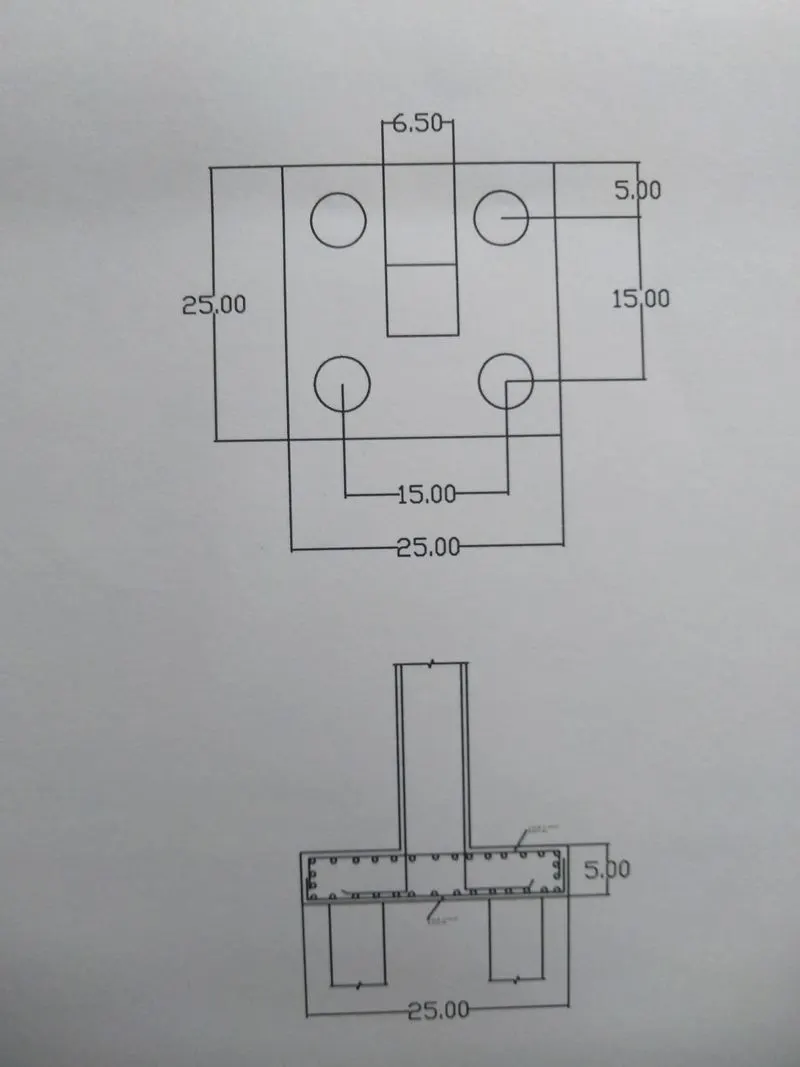

Sketch of Pile cap Reinforcement-

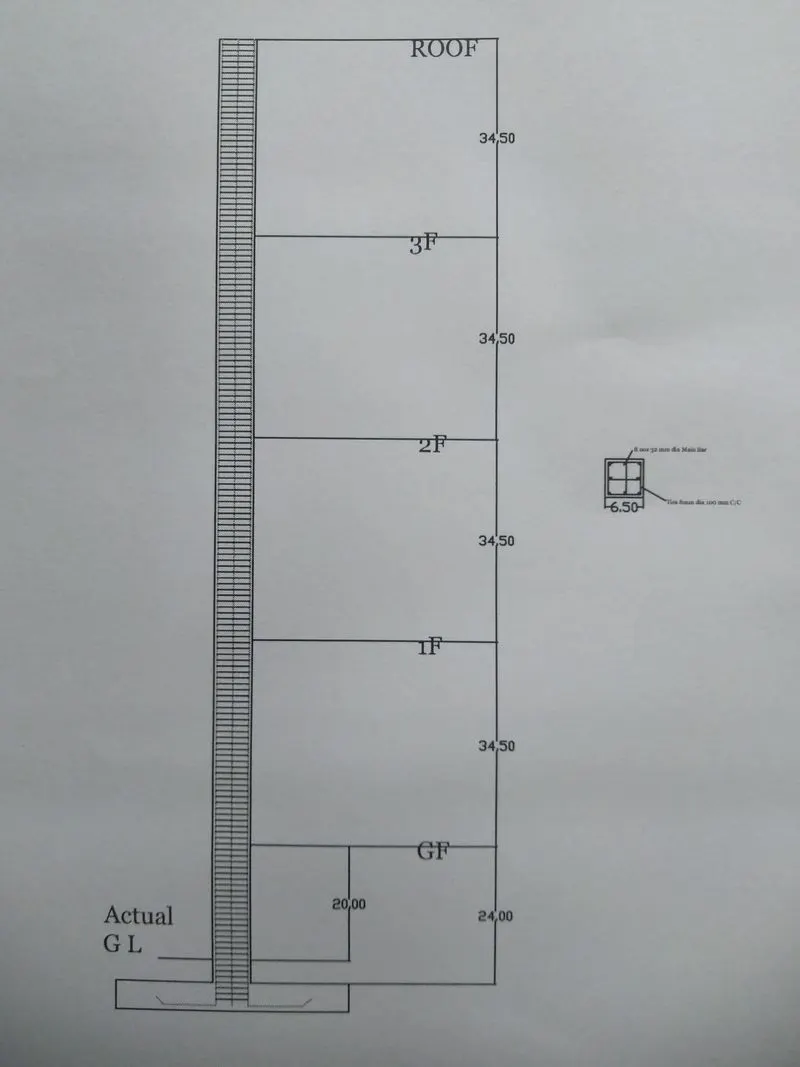

Sketch of Column Reinfocement detail-

Framing plan for typical floor -

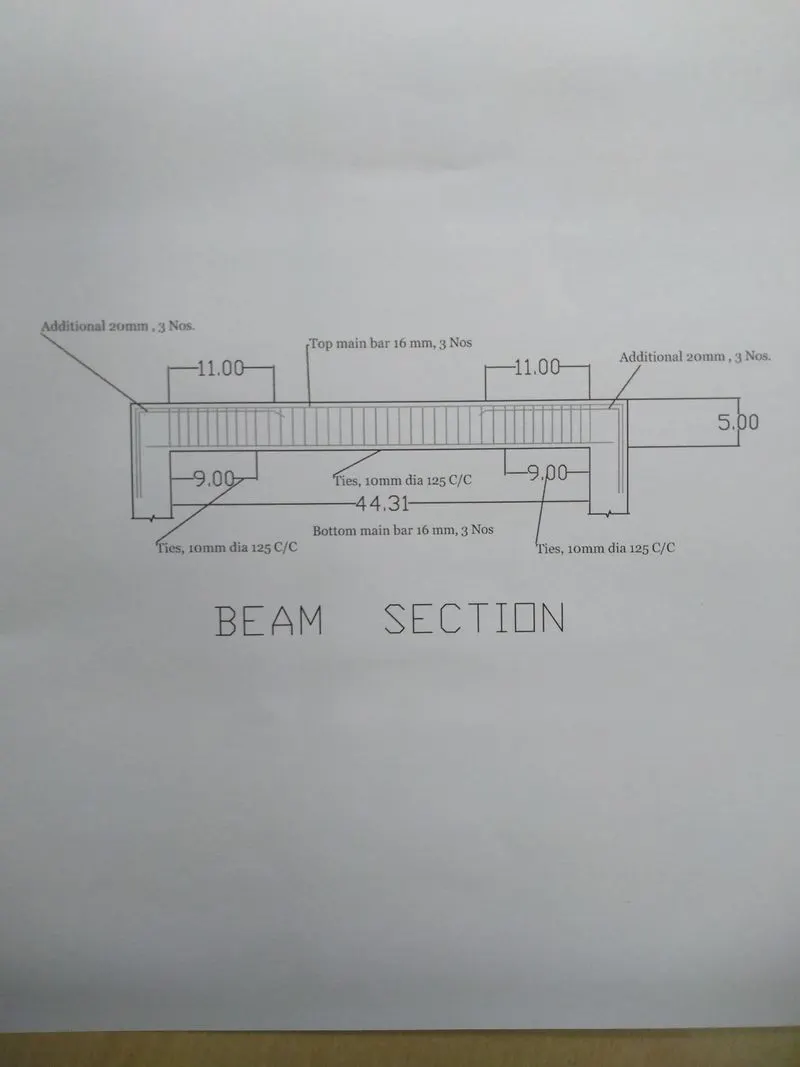

Sketch of Beam reinforcements for ground floor-
