Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

Aim – To model and analyse a G+3 building in seismic zone and given data Etabs and its piles foundation in SAFE.

Procedure-

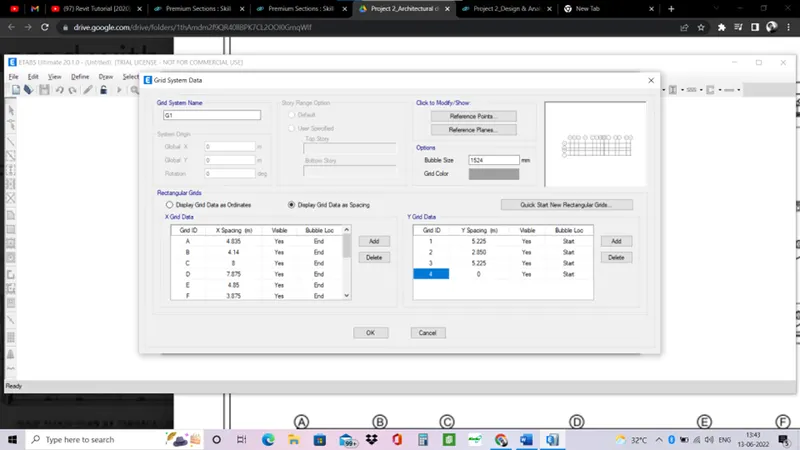

• Open Etabs 2020 and enter the grid data and story data for modelling.
•

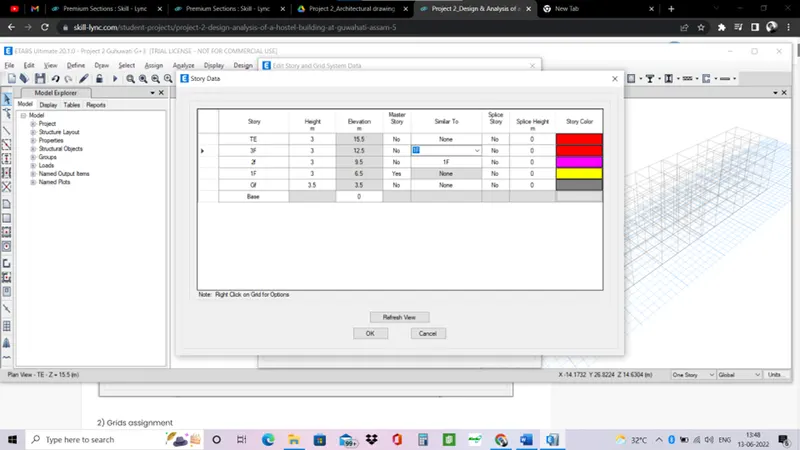

• Enter story data.
•

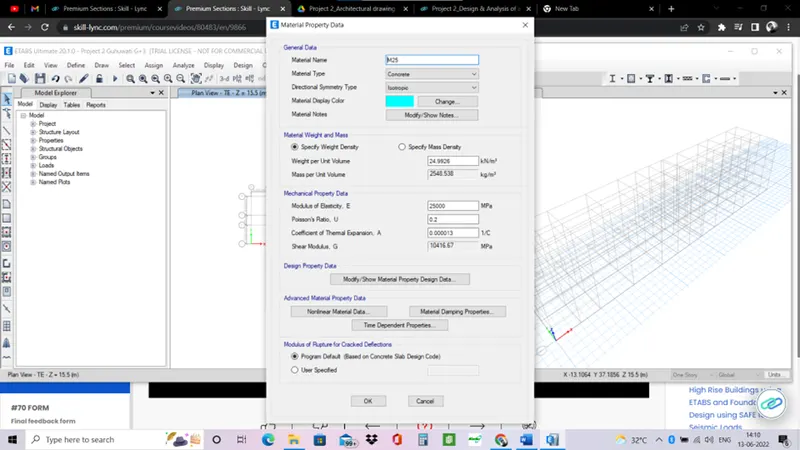

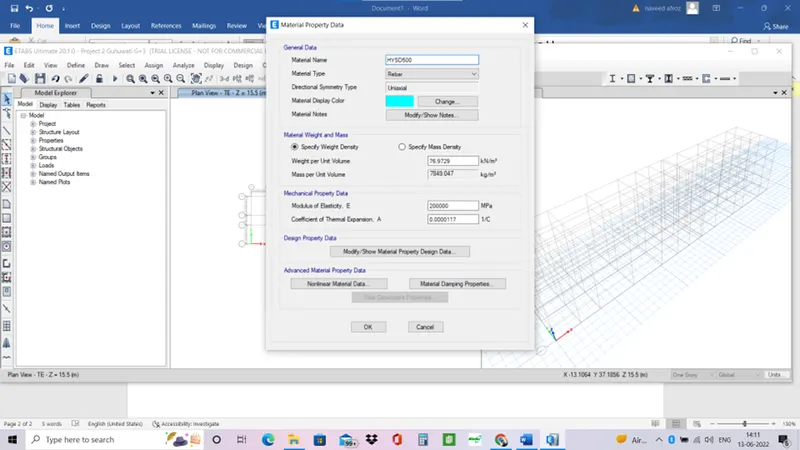

• Define materials.
•
•

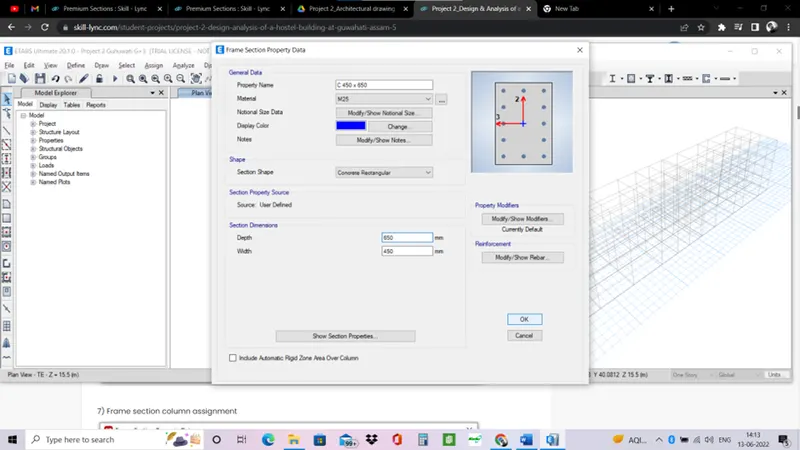

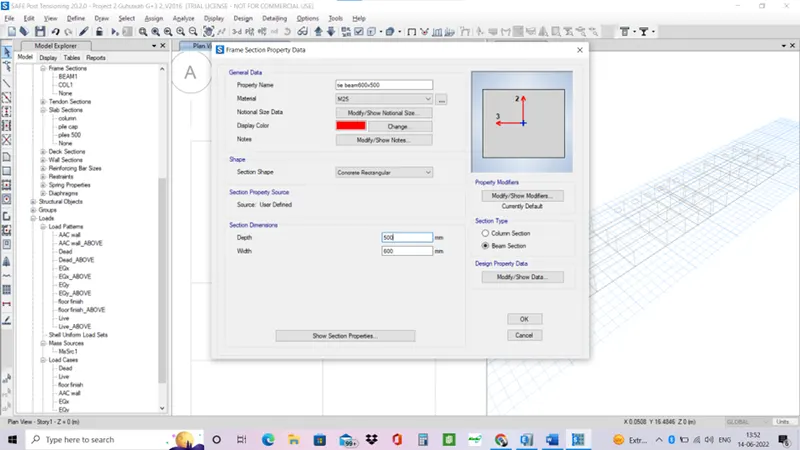

• Define frame section for columns and beams.
•

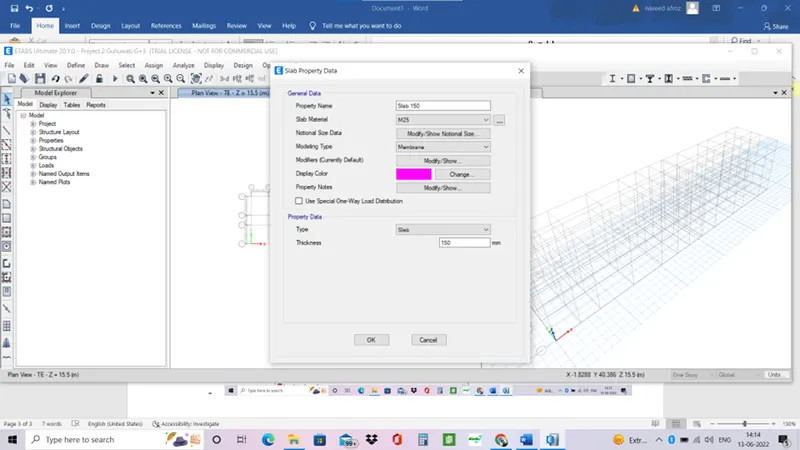

• Define slab property.
•

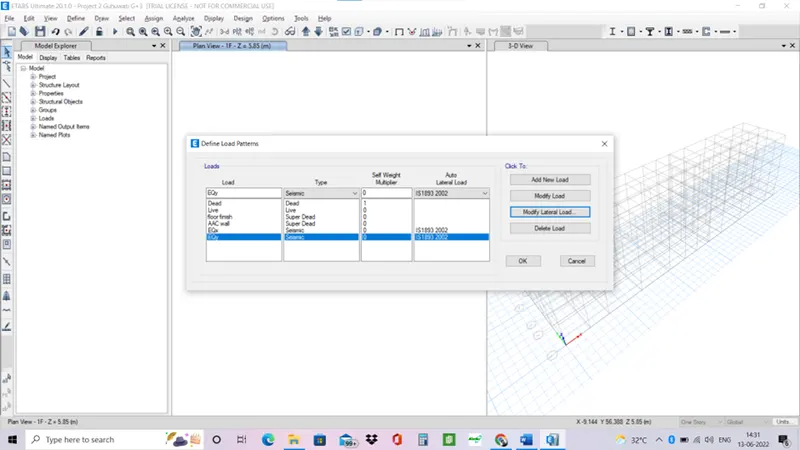

• Add load patterns in etabs.
• AAC wall will be 3.5 kN/m.
• Live load will be 2 kN/m2
• Floor finish load will be 1.5 kN/m2
•

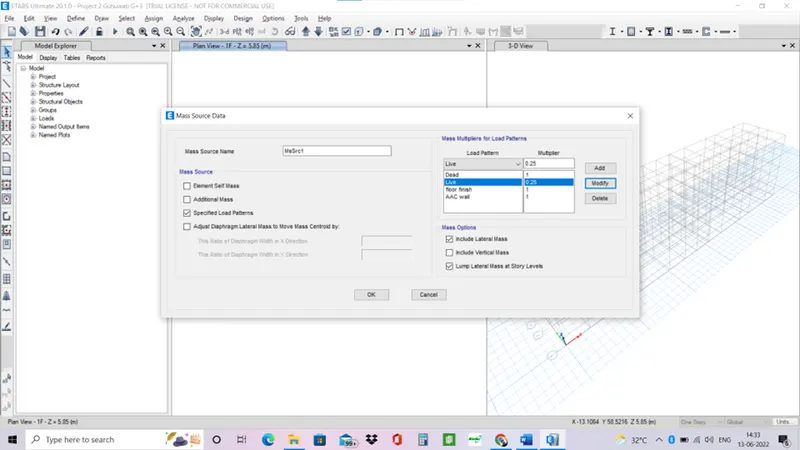

• Define mass source for the structure.
•

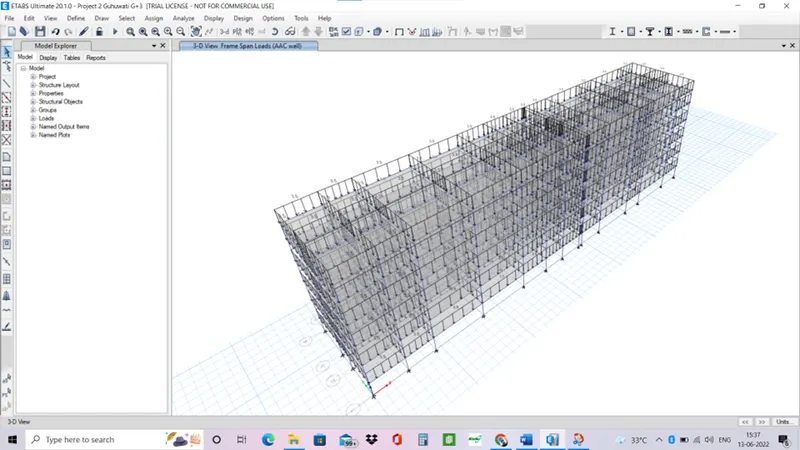

• Draw the model by adding column, beams and slabs in Etabs.

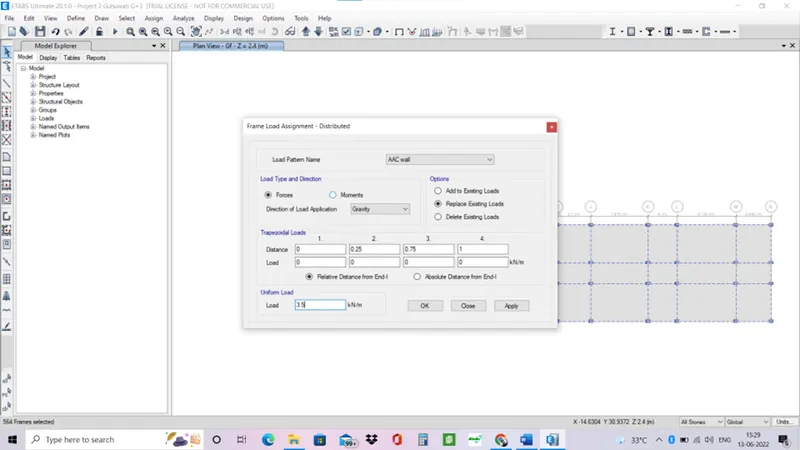

• Carefully assign loads to the structure.
• Terrace and mumty level will have less live loads compared to other floors.
• Brickwall loads on beams.
•

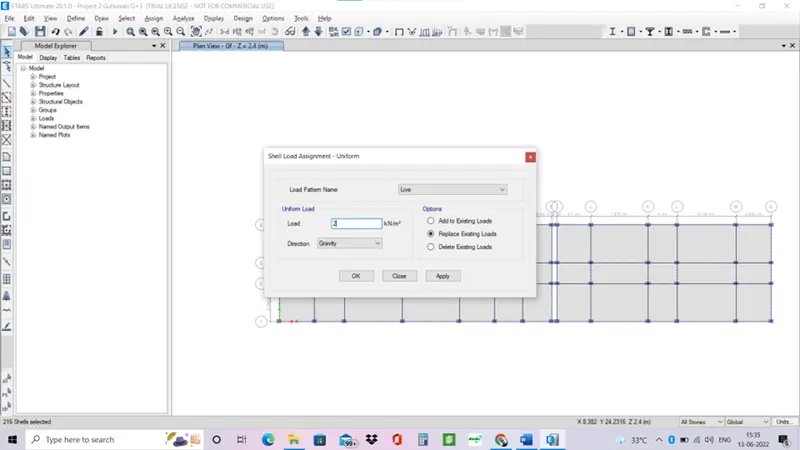

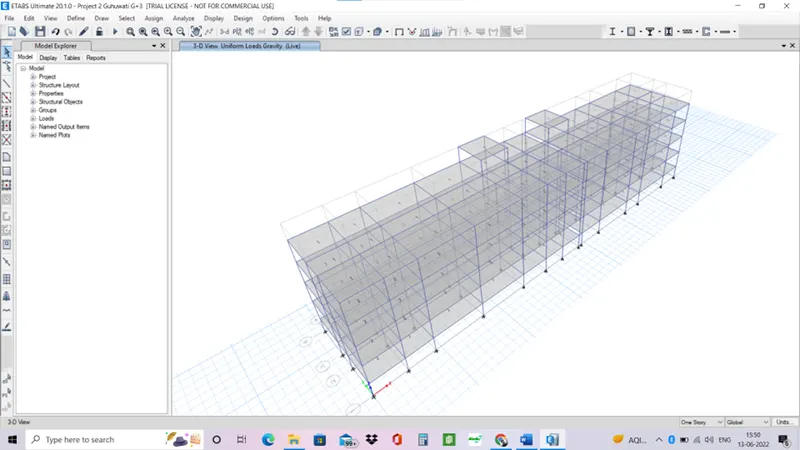

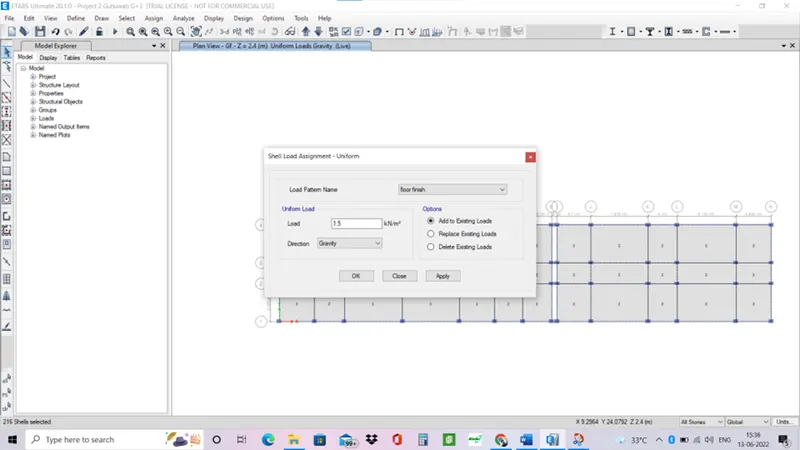

• Live loads and floor finish loads on slabs.
•
•
•
•

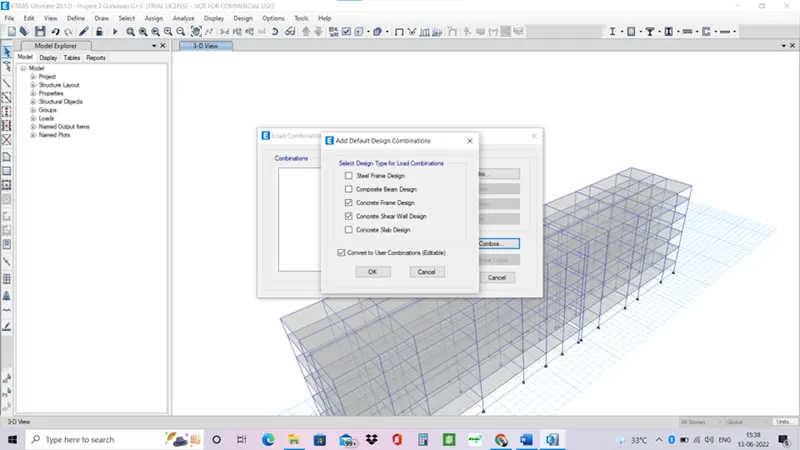

• Define load combinations in the structure.
•

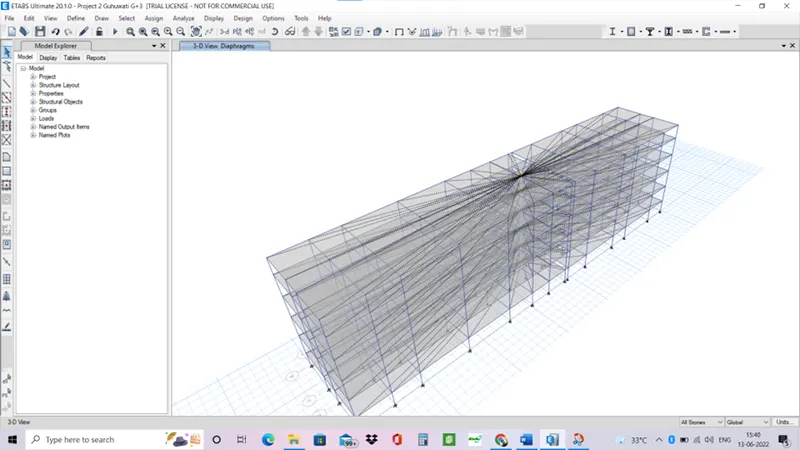

• Add diaphgram on the model.
•

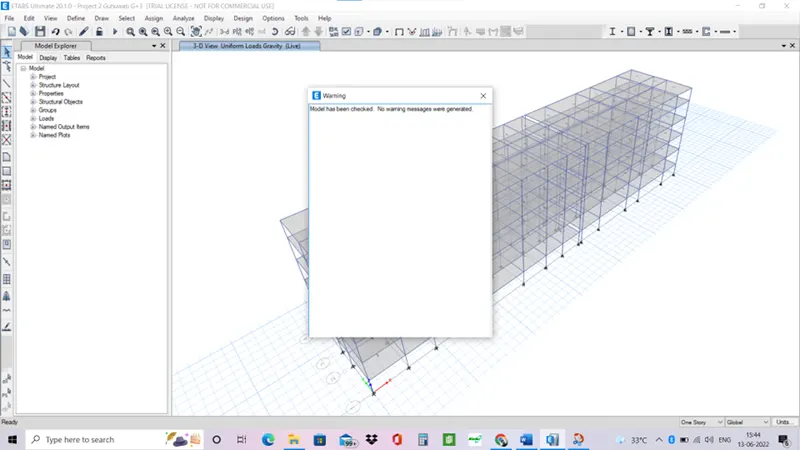

• Check the model for any errors.
•
• Run analysis on the model.
•

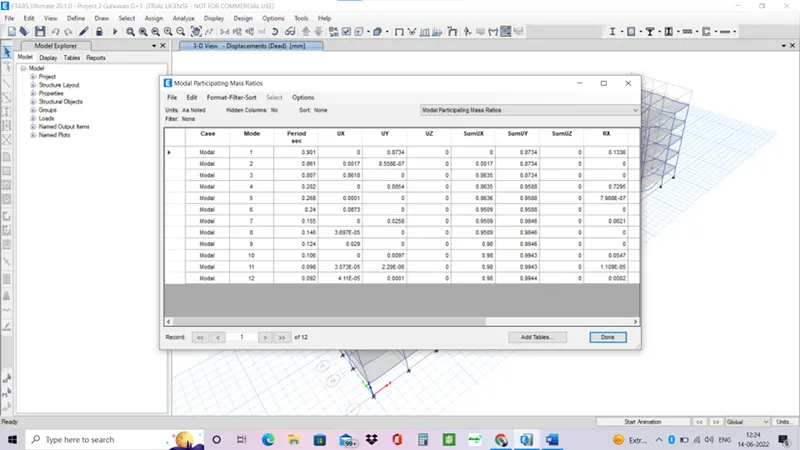

• Display tables> Modal participating ratios.
• Check for mode 1 and mode 2 10% difference.
• Check if first three modes make up 65%.
• Check that third mode is less than mode 1 and mode 2.
• All checks are done hence safe.
•

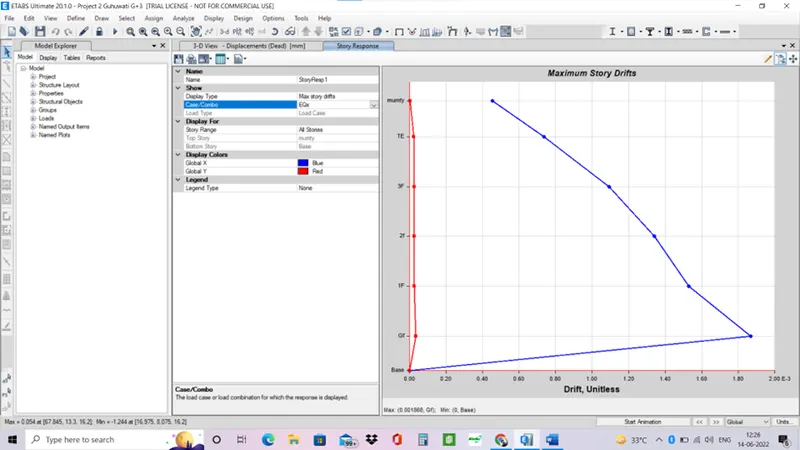

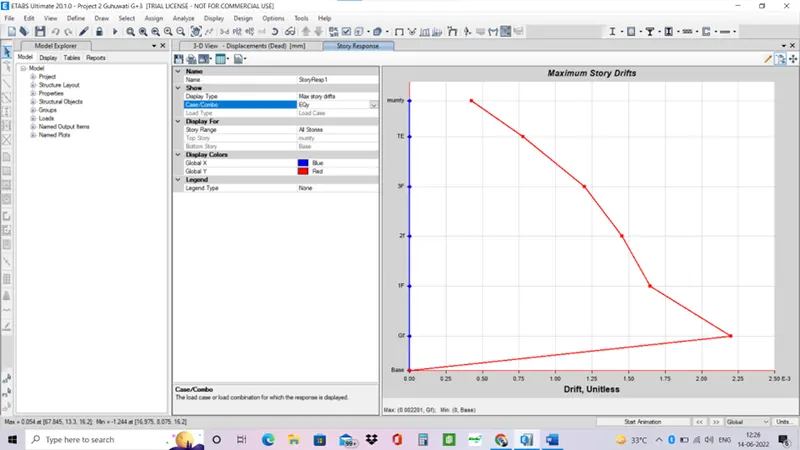

• Check story response for max story drifts for seismic forces in x and y direction.
• Both are less than 4% hence safe.
•
•
• Check for concrete frame design.

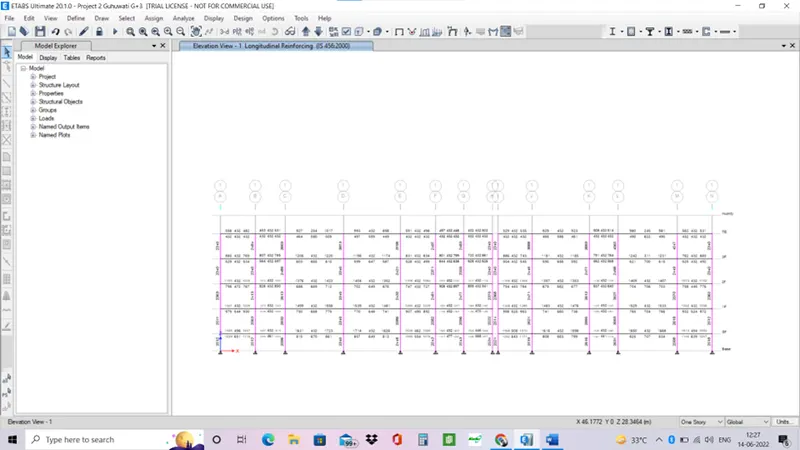

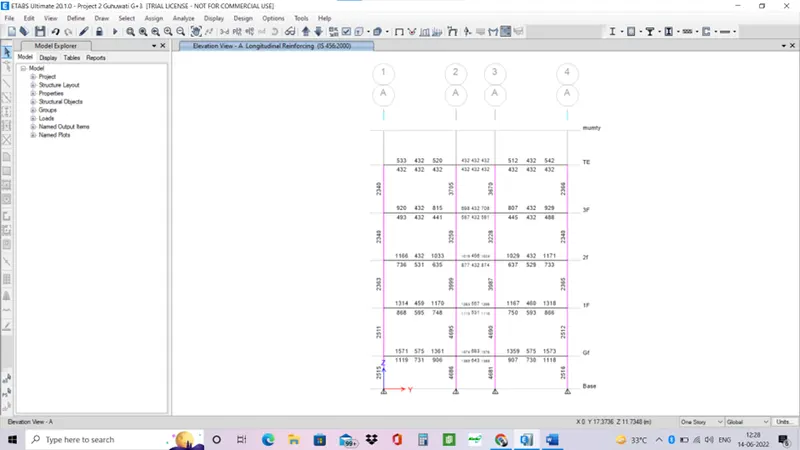

• Longitudinal reinforcing.
•
•

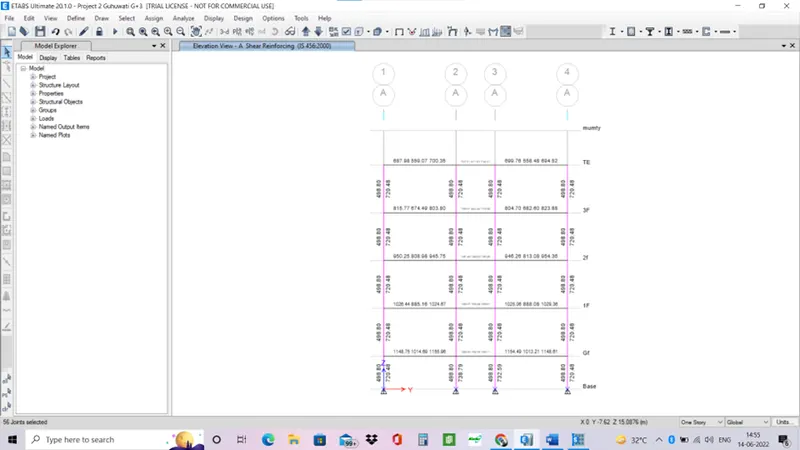

• Shear reinforcing.
•
• Check if any frame sections are over stressed in the model.
• If they are then increase the depth or width of the section.
• Our model is safe and does not have any over stressed sections.
• Design the columns and beams according to area of steel required and area of steel provided.

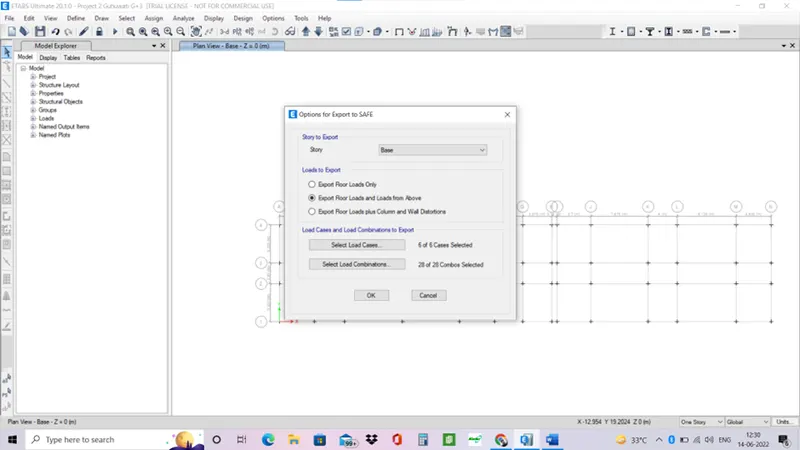

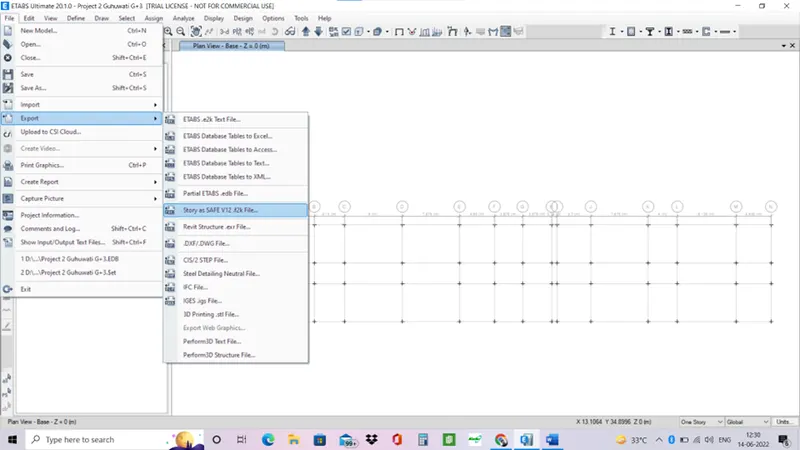

• Now export the model .f2k file for safe modelling.
•
• Select all the above loads and all loads.
•

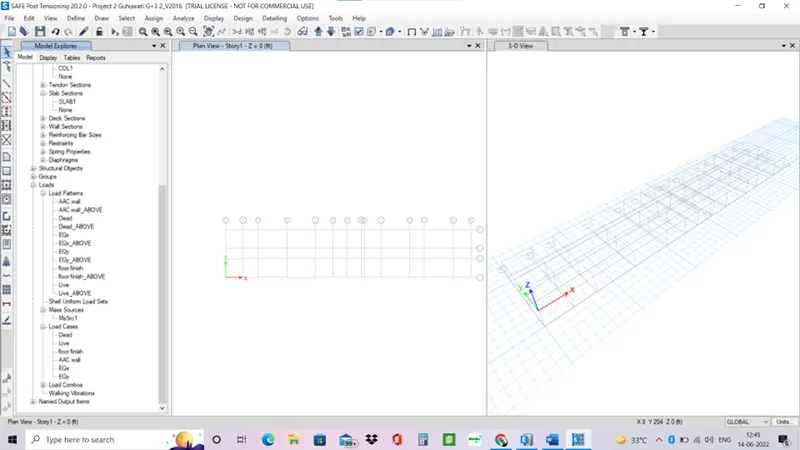

• Open safe software and import that .f2k file in safe.
•

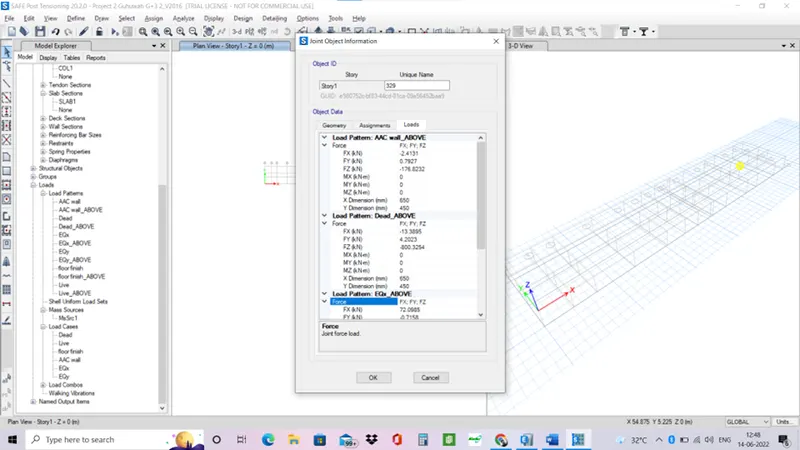

• Check if all the loads are applied in the points.
•

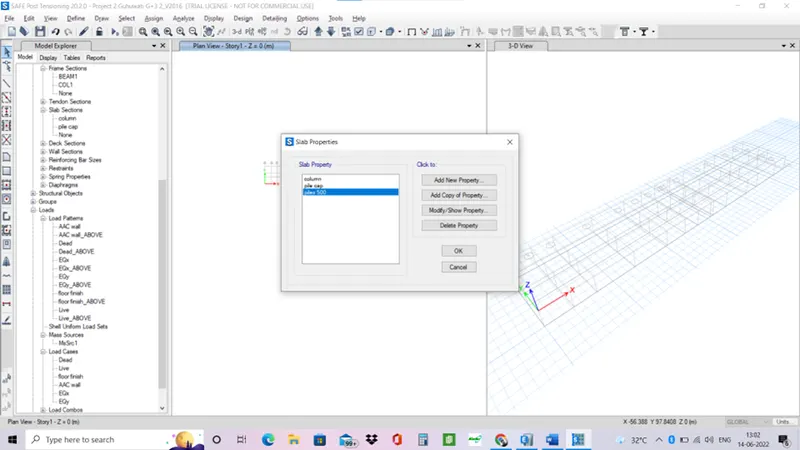

• Now define material and slab properties in the safe.
• Add column, pile caps and piles with a depth of 800mm.
•
• Define frame section for tie beam for the pile caps.
•

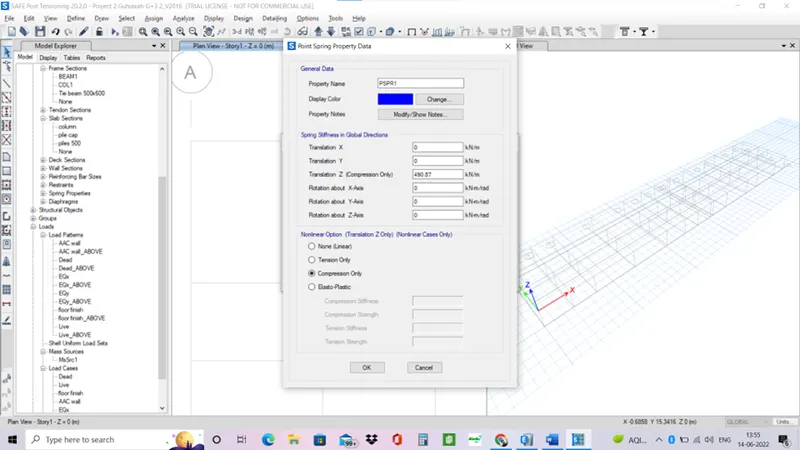

• Define point spring property data that is to be applied on the pile.
• Spring constant= EA/L = 490.87 kN/m
•

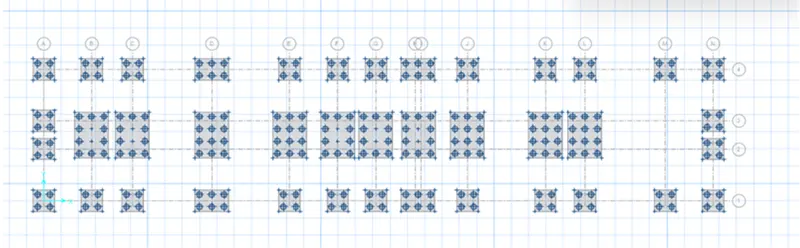

• Now draw the pile caps, piles and columns in the safe model.
•
• Assign point spring loads on the piles and point loads on the columns.
• Run analysis of the model.

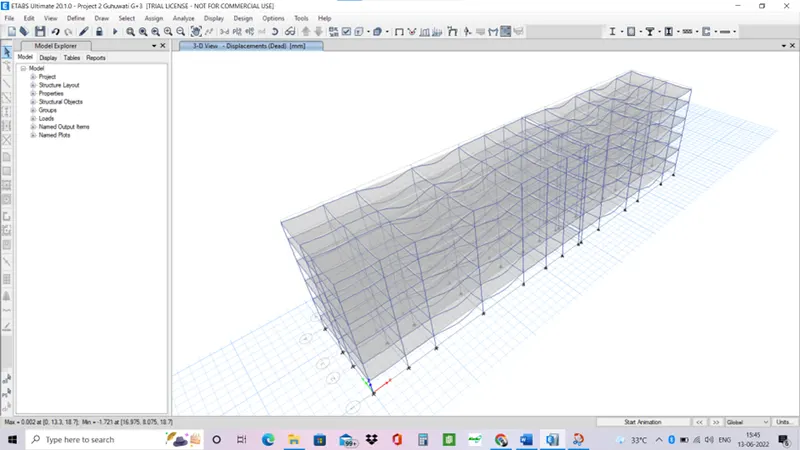

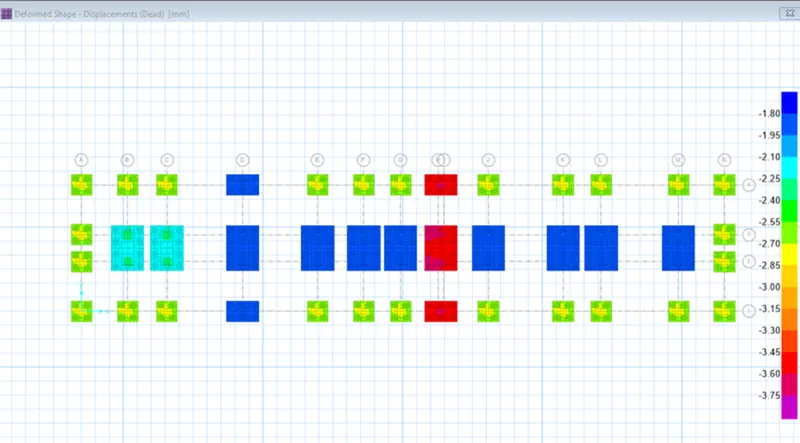

• displacements.
•

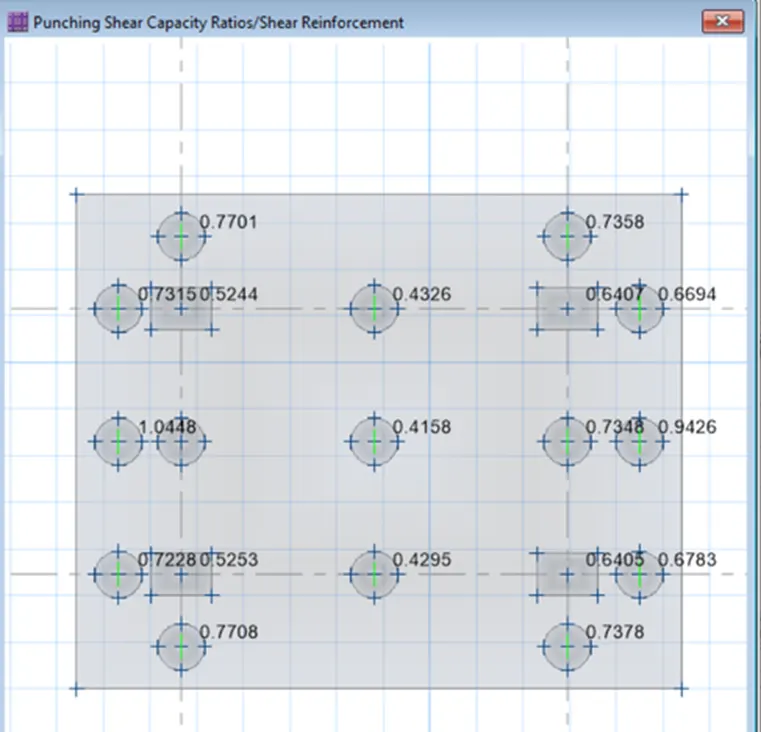

• Check for punching shear.
•
• All punching shear value are less than 1 hence safe.
• If greater than 1 then increase the depth of the footing.
• Design strips for the model .

Results-

• The model of g+3 hostel building which is seismic zone 5 having soil type 3 which requires a pile foundation was designed in Etabs and safe. Reinforcements required for the frame sections was acquired. And designed accordingly.
