Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

Project 2

Aim: To analysis and design of hostel building using ETAB and SAFE.

Software that i used----ETAB ,SAFE.

Project details

• Location – Guwahati, Assam
• Function – Hostel block in an academic institute
• soil type-3
• zone -V
• concrete grade -M25
• Rebars-Fe500,415.

Code i reffered

IS 456:2000

IS13920 :2016

IS1893:2016

IS875:1987 PART 1,2.

SP 34 FOR DETAILING

Step by step procedure

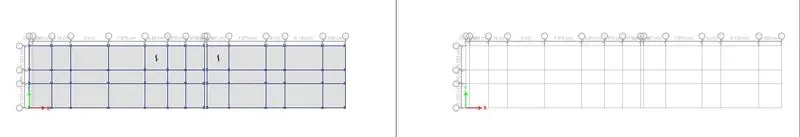

Prepared a structural frame plan.

open Etab software.

Setup the intilization settings like this

region-India

region for material -Indian

concrete design-Is 456-2000

Steel design Is 800-2007

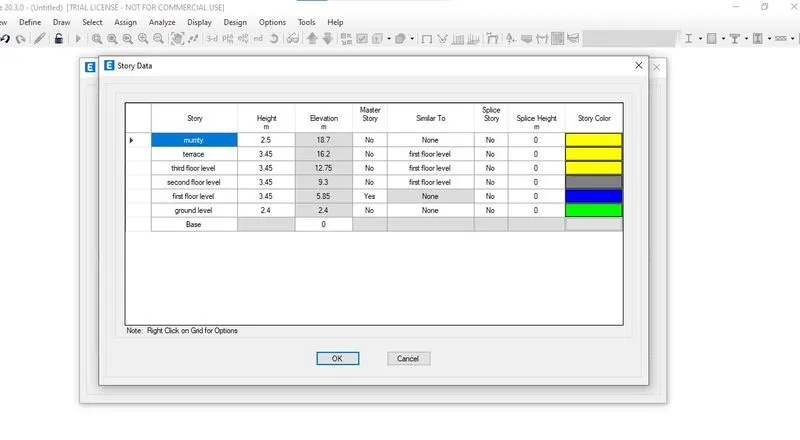

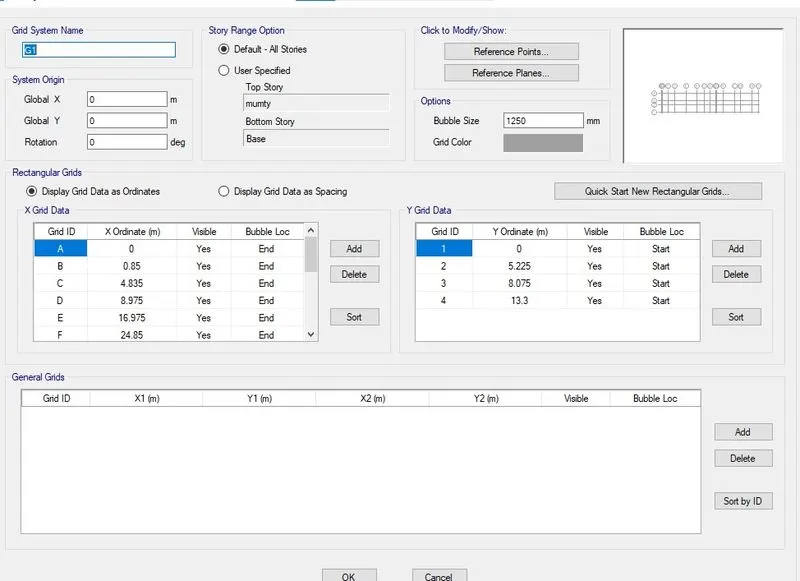

set the grid data and stories data.

go to define tab

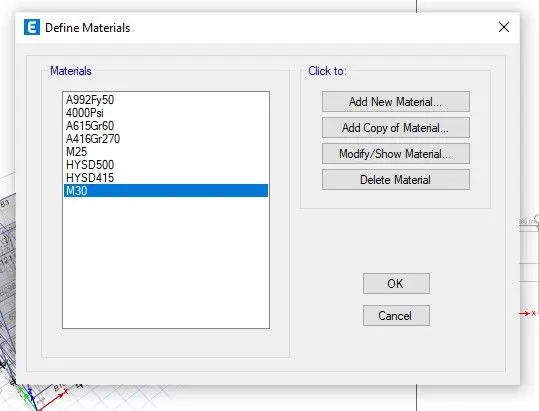

Define the material properties .

concrete -M25

rebar-Fe500.

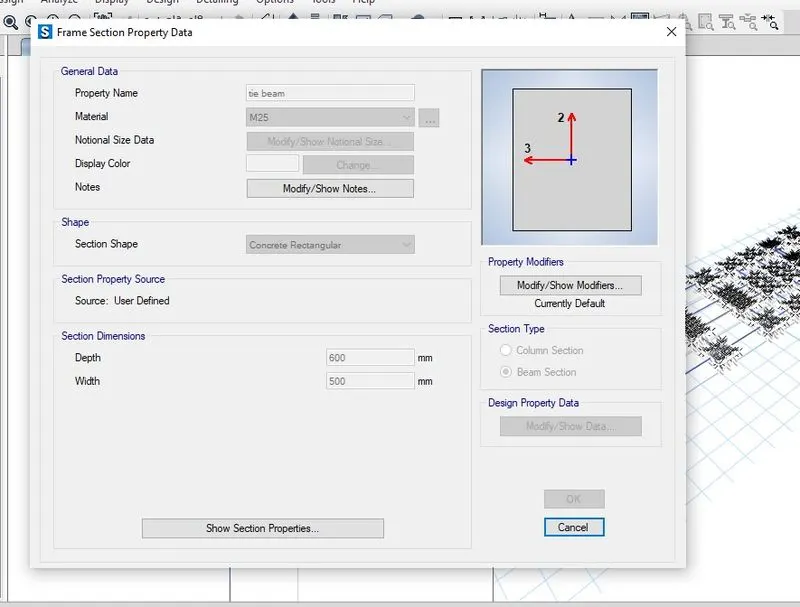

go to define ----section properties---add new property.

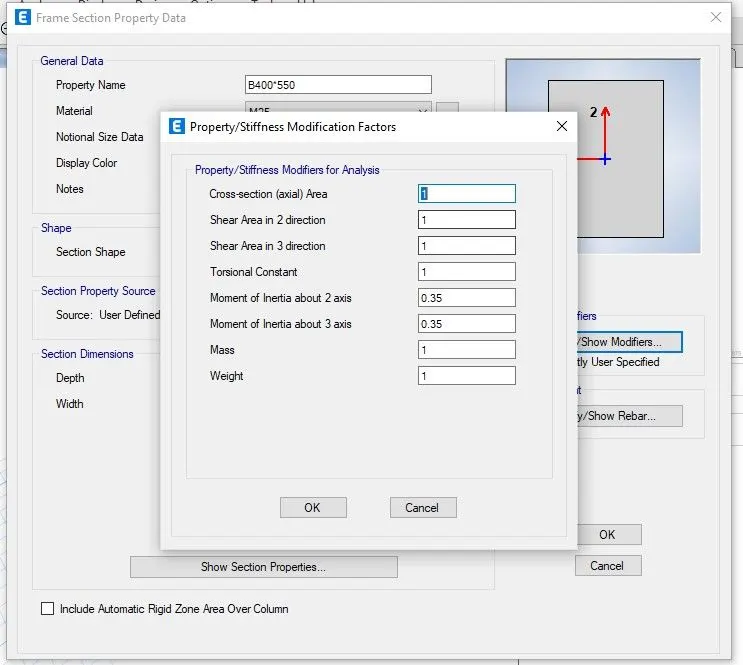

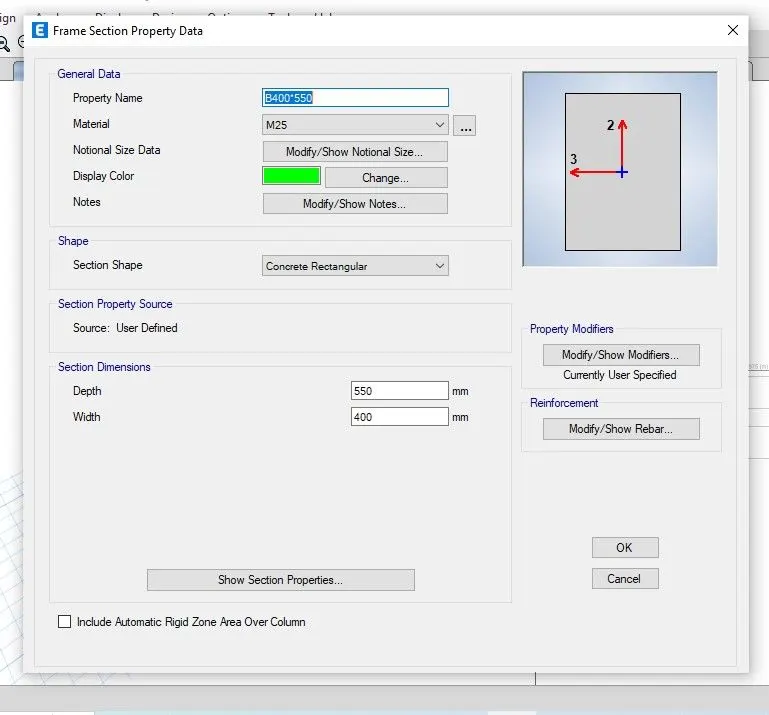

B400x550⇒400 width,550 depth.

for gravity design take MOI-1

for earthquake design take MOI-0.35

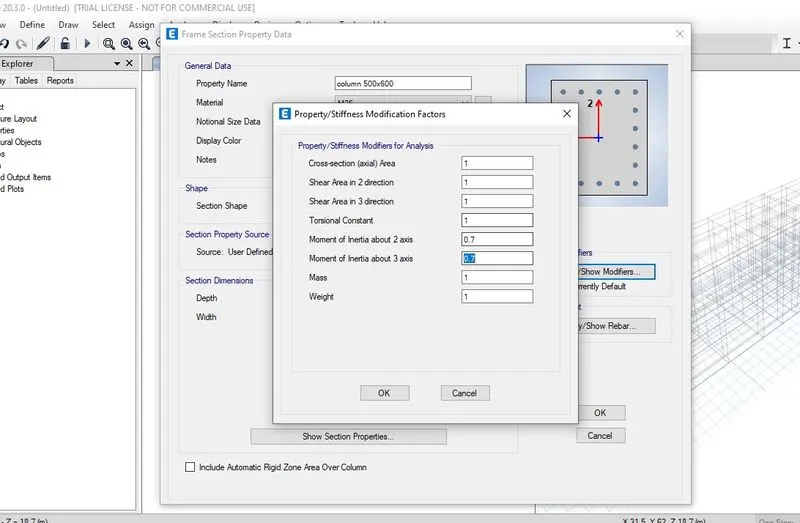

C500x600 ⇒500width,600 depth.

for gravity design take MOI-1

for earthquake design take MOI-0.7

I am designing for both.

save as option helpful to make it.

go to slab section

add property

Slab 150

thickness 150.

add another property for staircase,

one way load distribution.

thickness -175.

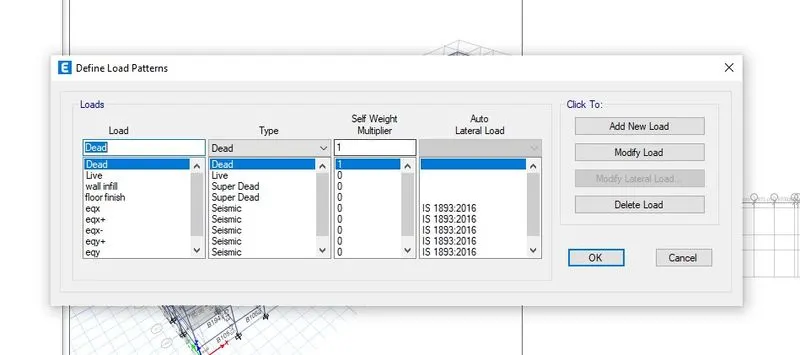

Go to define-load pattern

dead load-1

live load-0

super dead load(wall)-0

super dead load(finish floor) -0

seismic load eqx-0 (Is 1893-2016)

eqx+-seismic load (Is 1893-2016)

eqx- seismic load (Is 1893-2016)

eqy seismic load (Is 1893-2016)

eqy+ seismic load (Is 1893-2016)

eqy- seismic load (Is 1893-2016)

modify lateral load specify like this

zone V

soil type-3

importance factor-1.2

time period-0.46s

reduction factor-5(moment resisting frame).

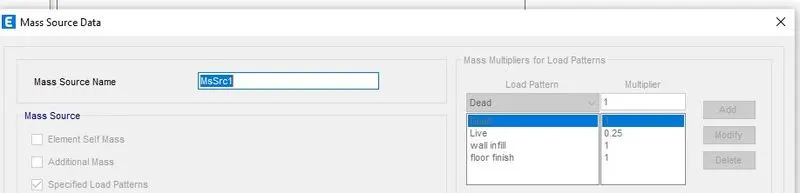

go to define -mass source-modify

set the load pattern like this

dead load-1

live load -0.25

wall infill-1

floor finish-1

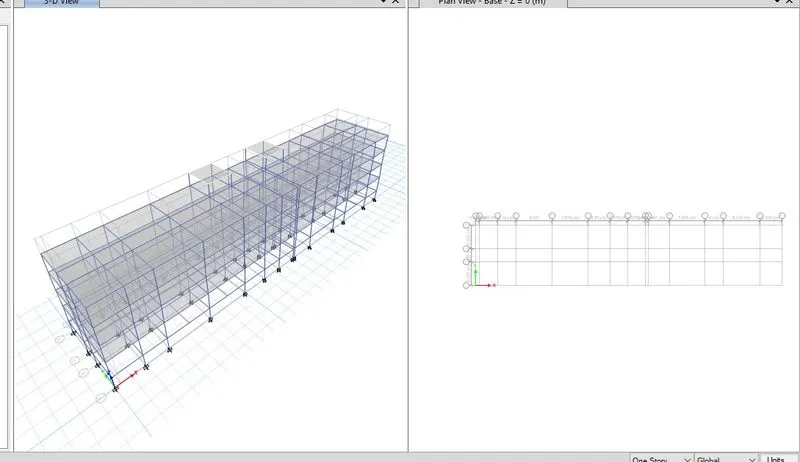

Its time for modelling

Take tools like

draw quick beams---- all stories except mumty level(few places include)

draw quick columns----all stories except mumty level(few places include)

draw quick slab.-------all stories except ground level

mumty level(few places include).

select all frames except terrace.

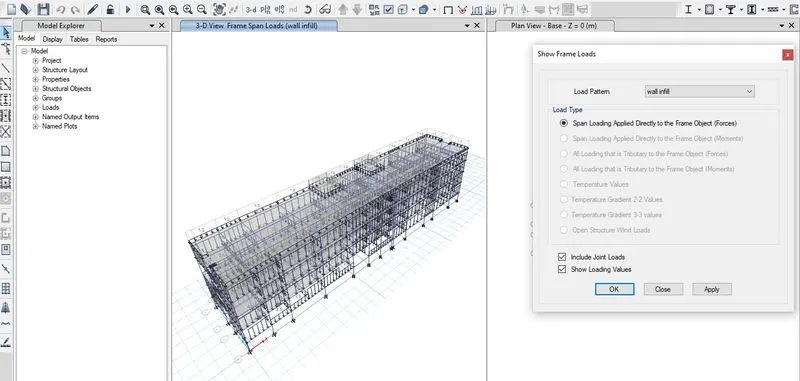

assign 4.5 kn/m.

for terrace-1.2 kn/m

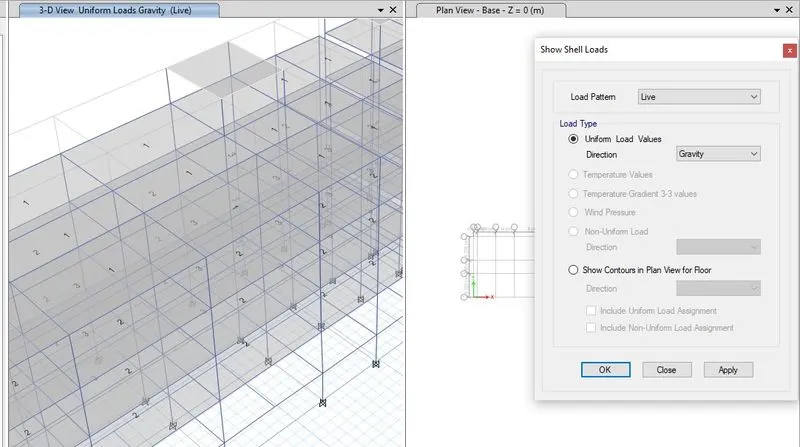

select all shell .

assign live load-2 kn/m2

for habitual rooms-2kn/m2

for cooridor ,staircase-3kn/m2.

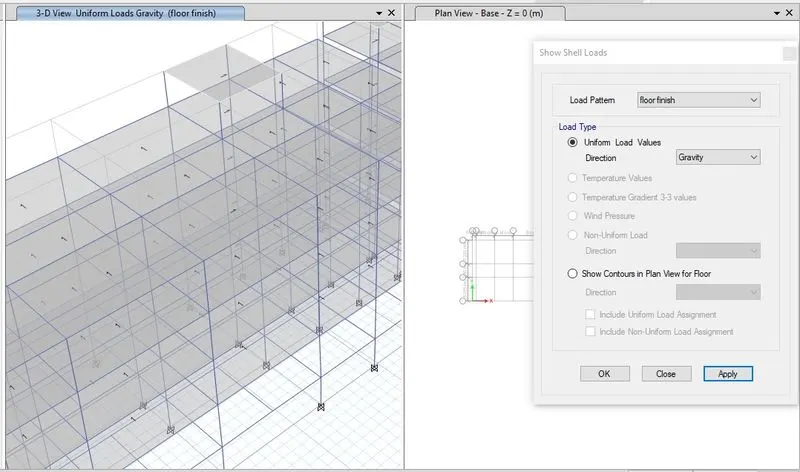

assign floor finish to all shells.

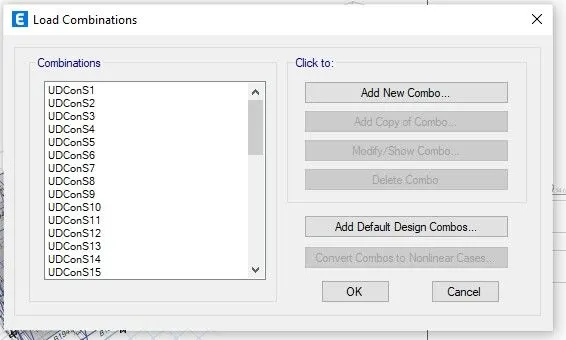

Go to define ----load combination --add default design combo

click on the design concrete frame design.

run analysis

checked this aspects

• inter storey drifts

• displacement
• reactions

take the analysis result like

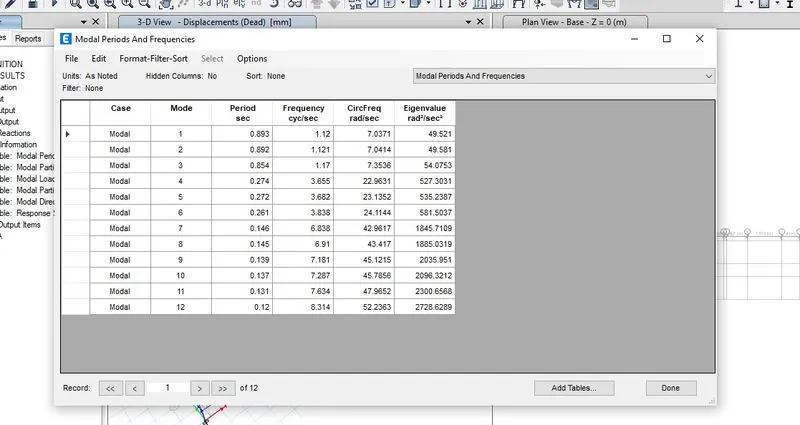

• time period and frequencies

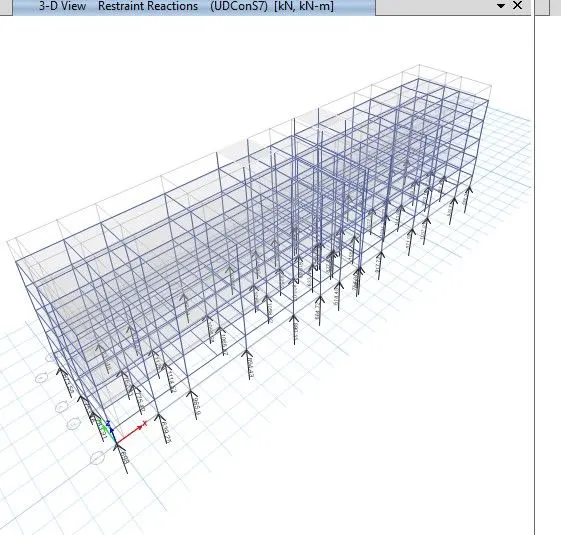

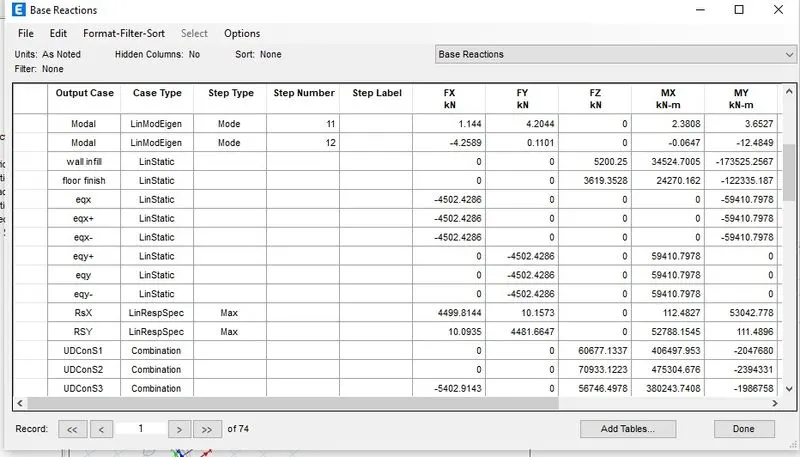

• base reaction

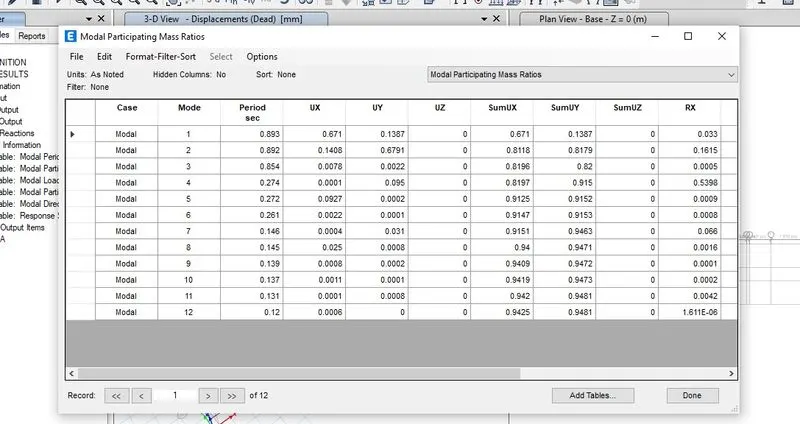

• mass participation ratio.

if any errors came check the configuration again.

The analysis is done by equivalent lateral force method.

This site is situated in Zone 5 so do the model response spectrum method.

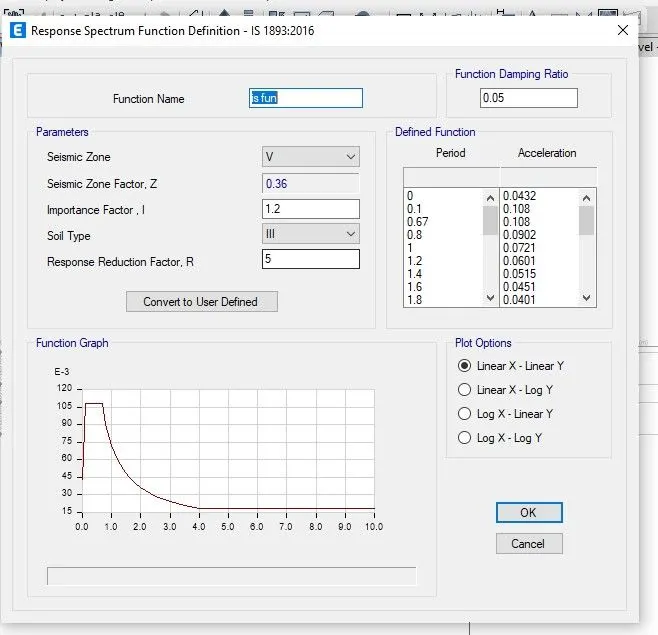

go to define---function--add new function

named it as Is fun

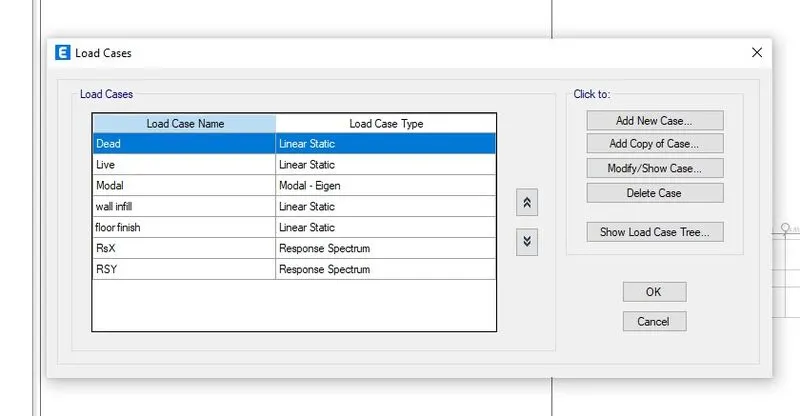

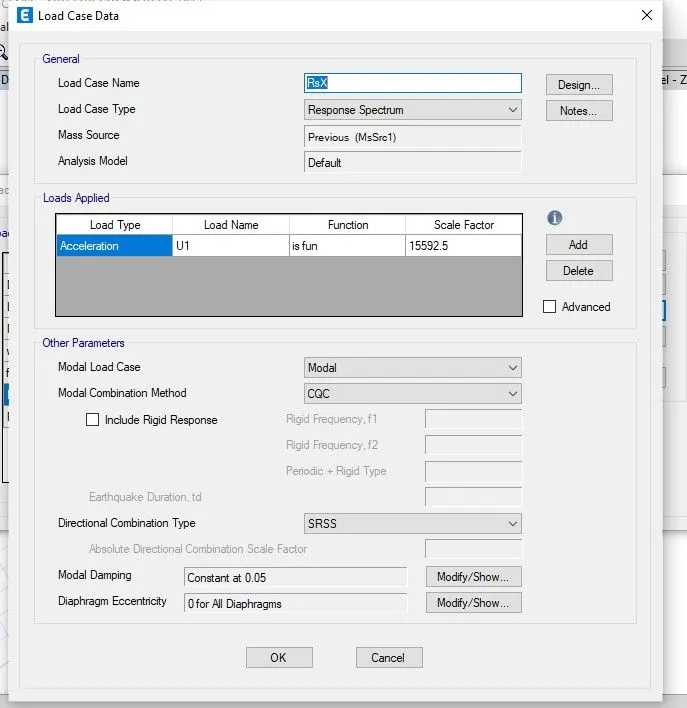

go to define ---load cases--add new case

Rsx-type modal response spectrum(ux)

rsy-type modal response spectrum (uy).

delete previous combo .

generate new combo.

run analysis.

compare both eqx,eqy with Rsx,Rsy if it is not same then increase factor again run analysis.

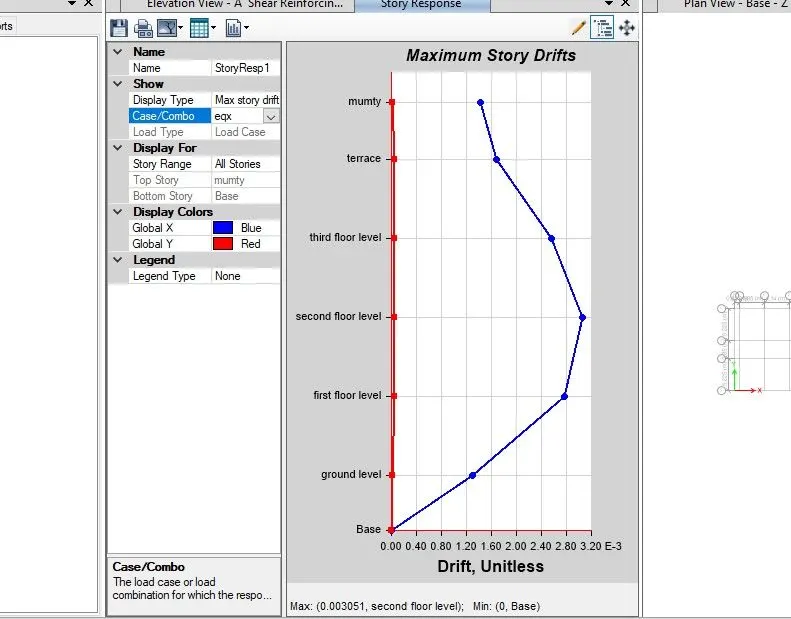

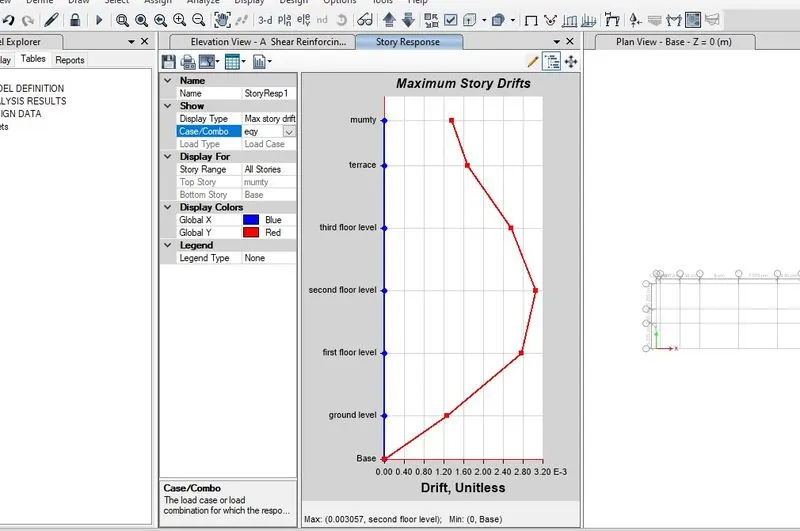

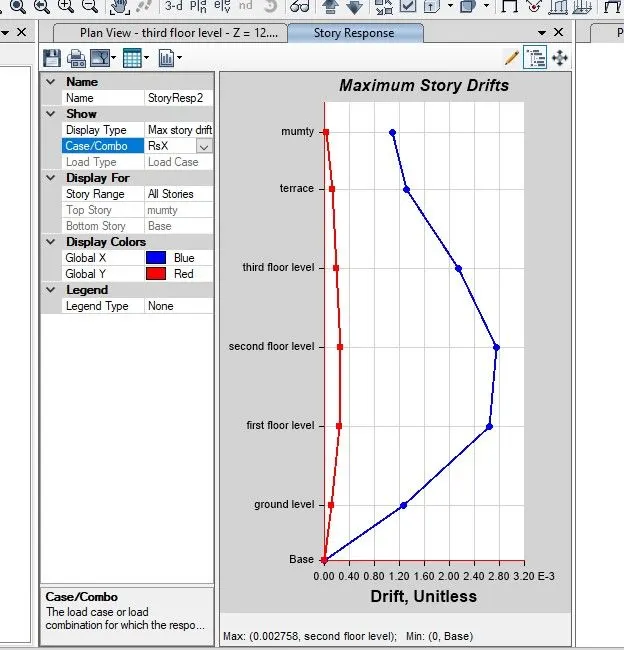

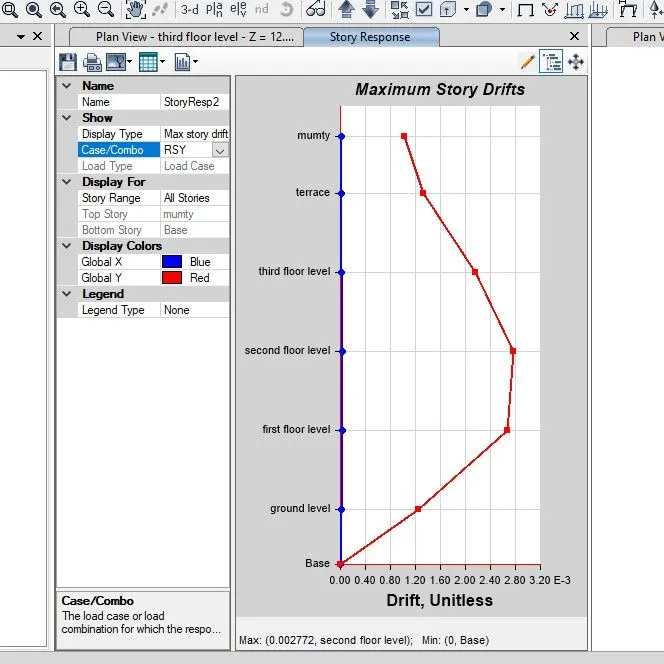

check the storey drift response.(<0.004)

stress ratio of column should be 0.4 fck

i checked it is less than that.

no tension reaction take place at base.

after analysis completion move to design part.

click the design frame concrete icon on the ribbon.

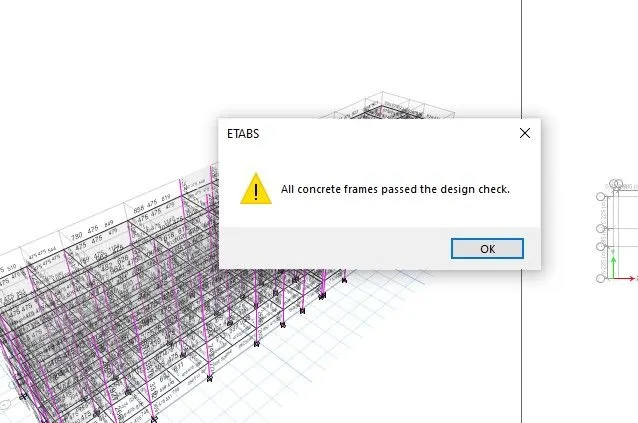

check all members are passed (or) not.

if not check the configuration.

do the changes in model do analysis and design again.

click on the display design info .

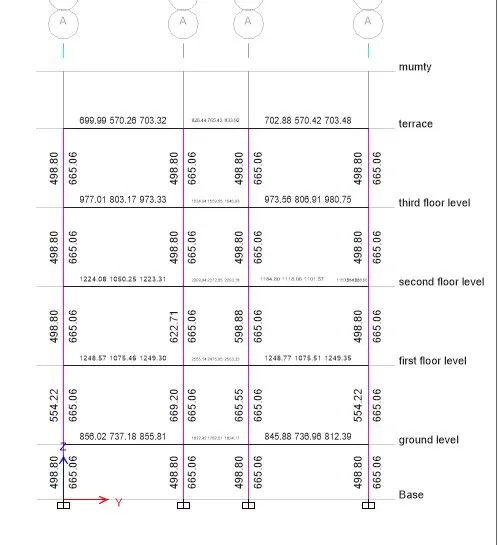

set the longitudinal reinforcement.

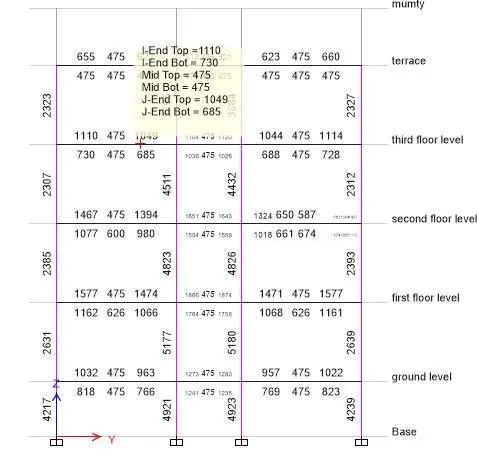

check all reinforcement details right (or) not by manual calculation.

take all information start the detailed design sketch by using the Autocad software.

i choose these two for detailing

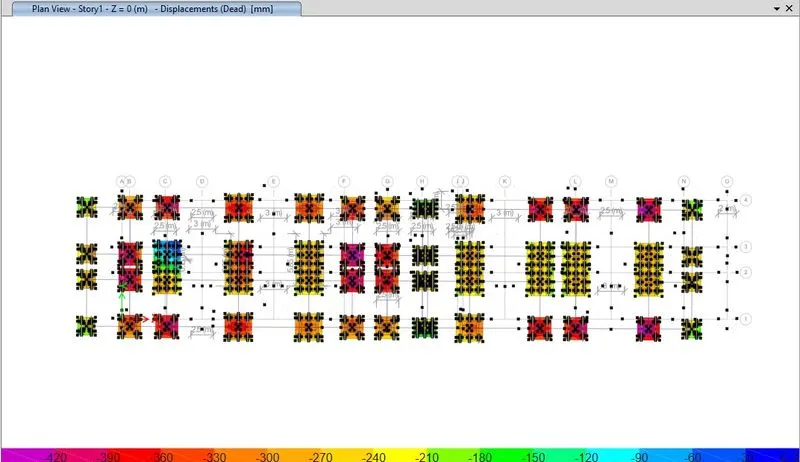

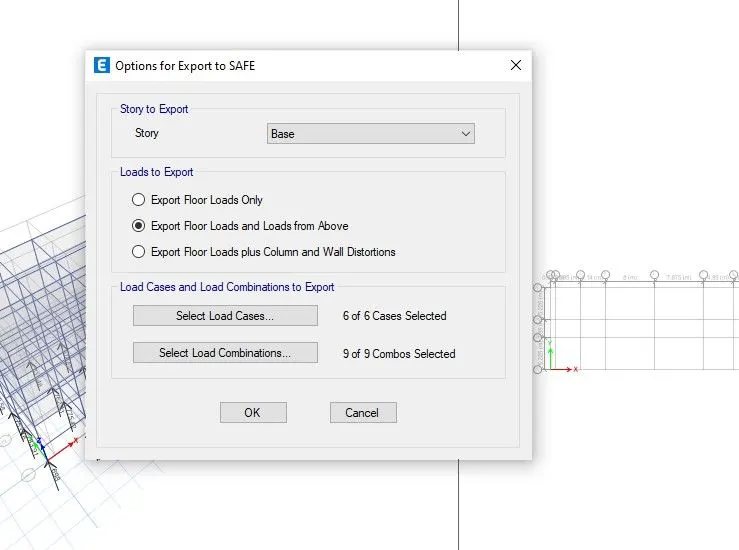

Export the base model to the Safe software.

it display the grid on the working space.

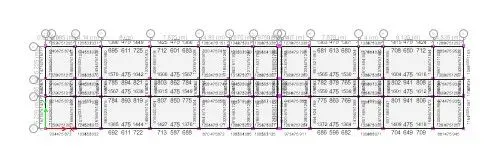

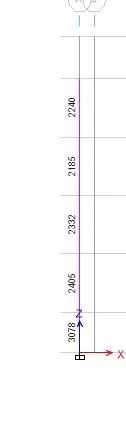

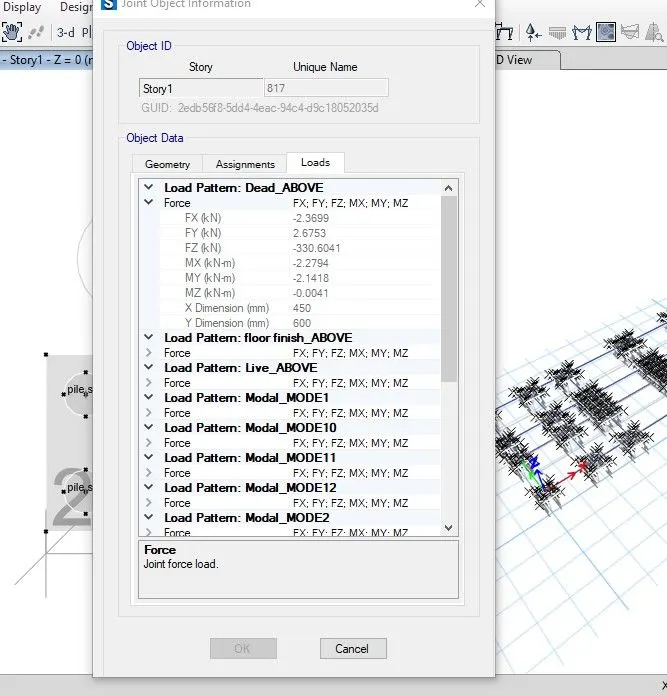

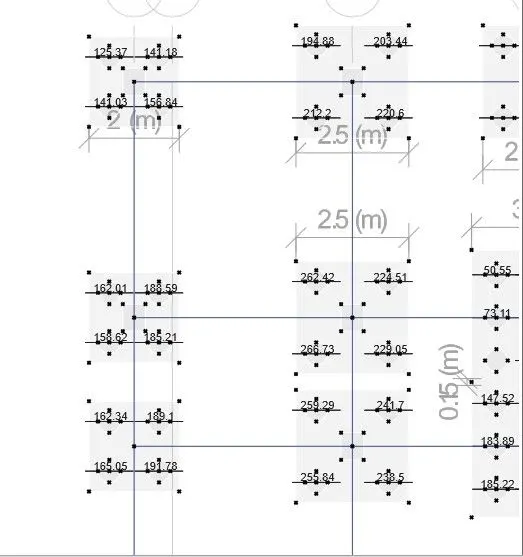

right click on the point it will display the load information.

done the calculation part for determining the area of footing ,no of piles.

go to define .

add new material property

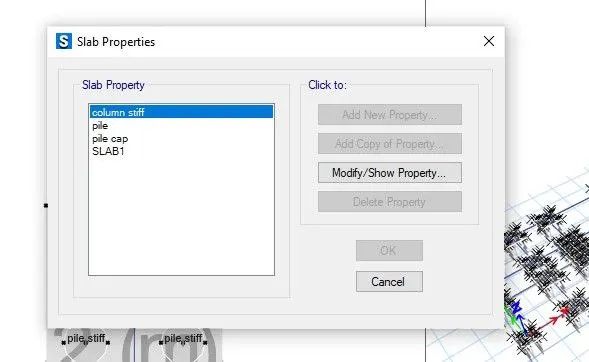

add slab section properties

• Footing slab-600mm thickness-mat type
• column ----600mm thickness-stiff type.
• piles ----600mm thickness-mat type.

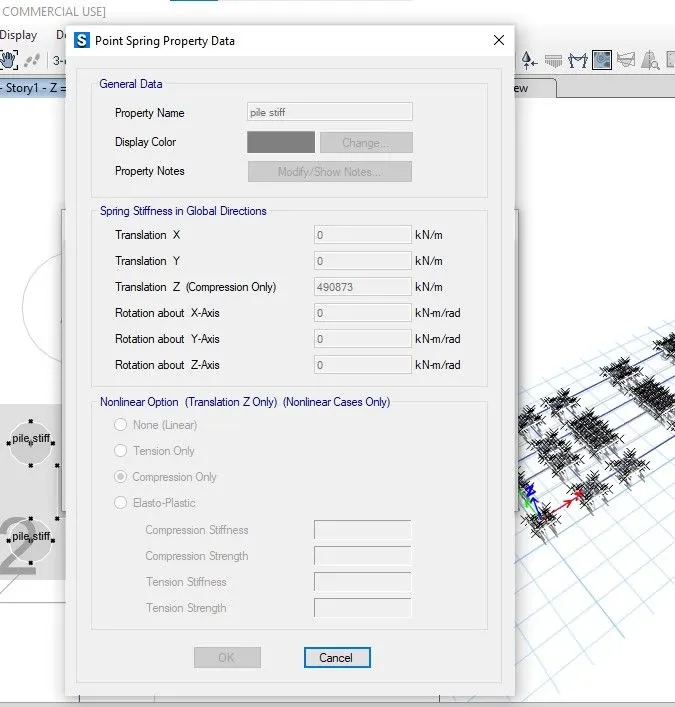

add point spring-named it as stiff

z-direction---490873 kn/m.

add combo -slc(dl1,ll1,wl1,ff1)

go to draw tab.

add points

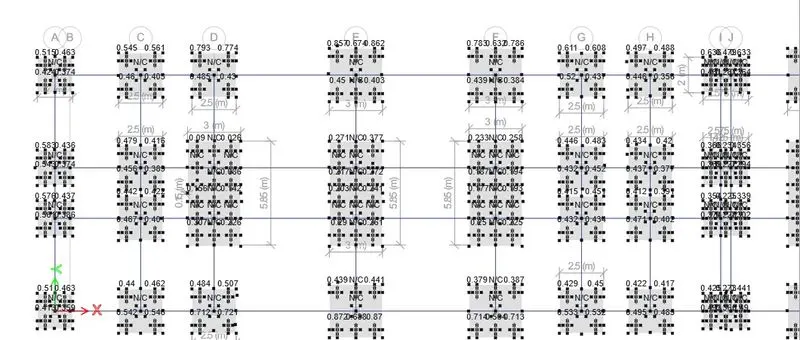

specify it as per the calculation.

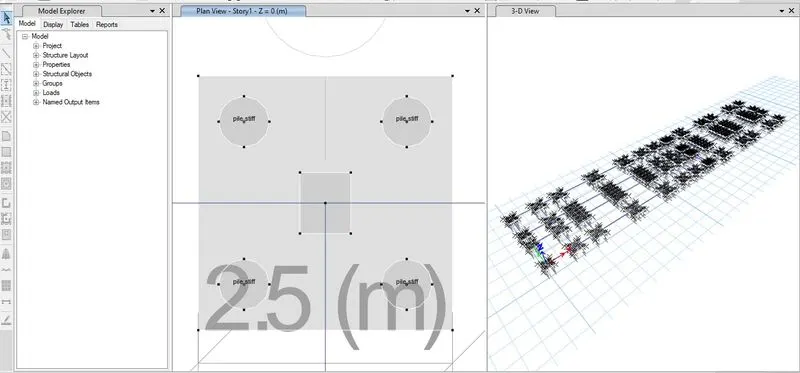

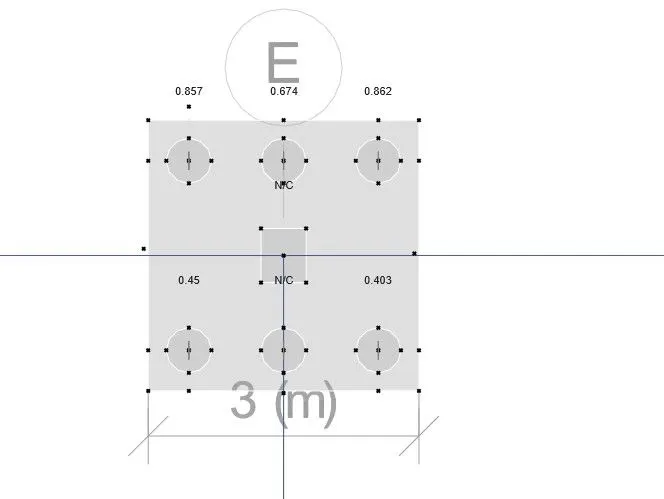

take draw area around point

draw the footing slab,column,piles by it.

for column x-500,y-600

for pile -dia 500mm

for slab it will varies

assign the point spring to the piles.

go to design tab.

check the design info.

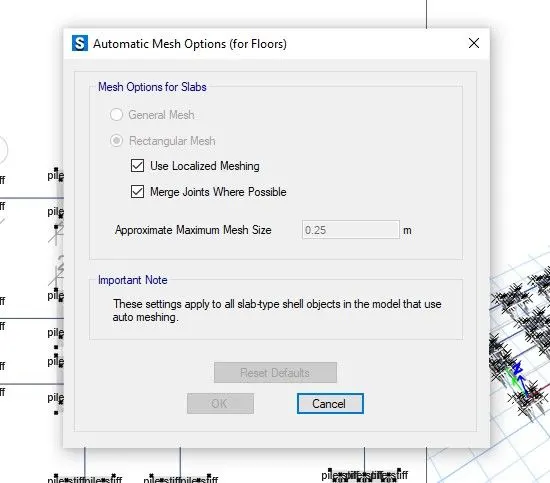

run analysis

check the aspects

• punching shear
• reactions
• settlement.

each pile load doesnot exceed 280 kn.(satisfied)

shear ratio--less than 1(statisfied).

settlement (satisfied)

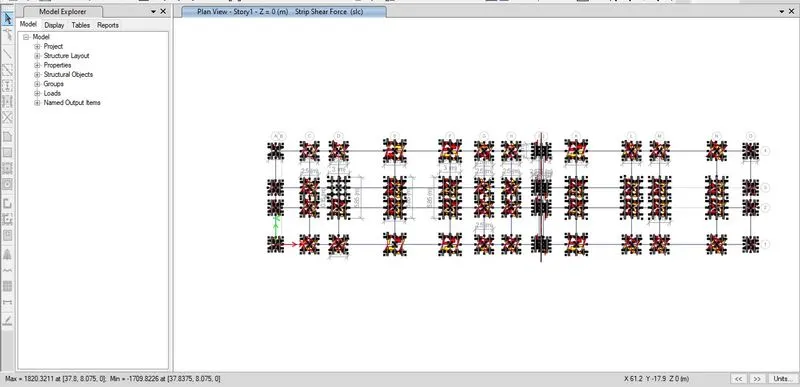

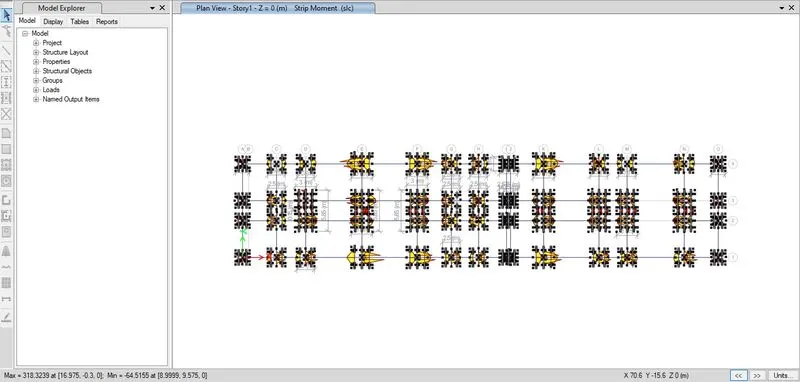

add design strips.

draw the strips for design slab in layer A and layer B.

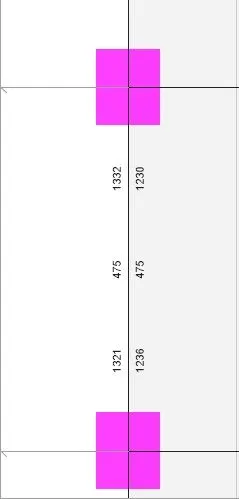

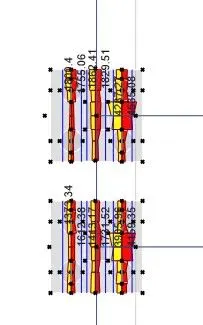

check BM and SF

take the reinforcement details.

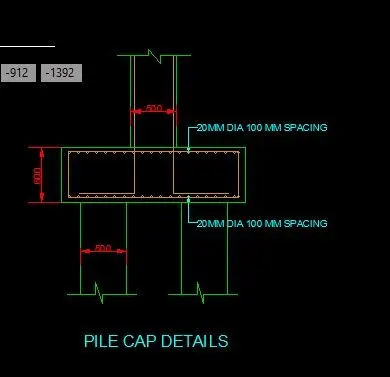

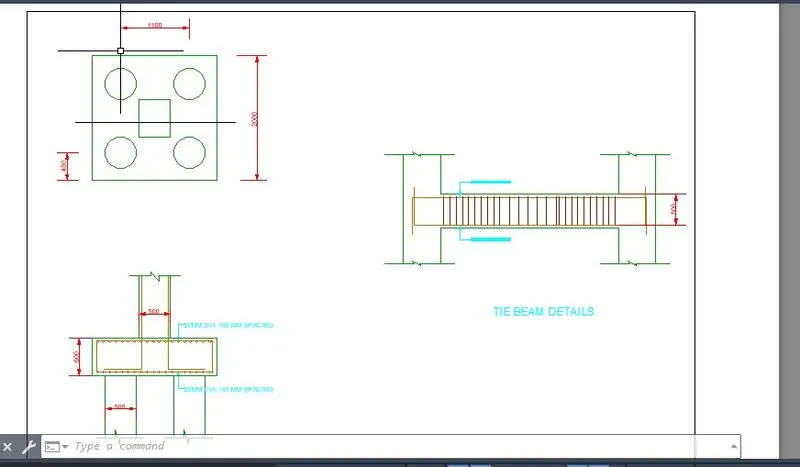

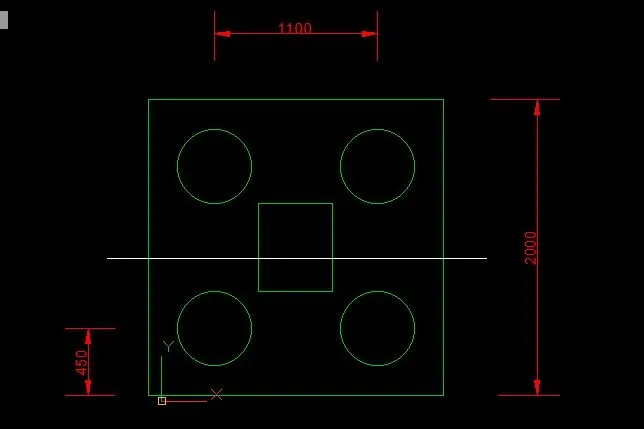

start the detailed design sketch for pile footing using autocad.

BY using Autocad i drafted

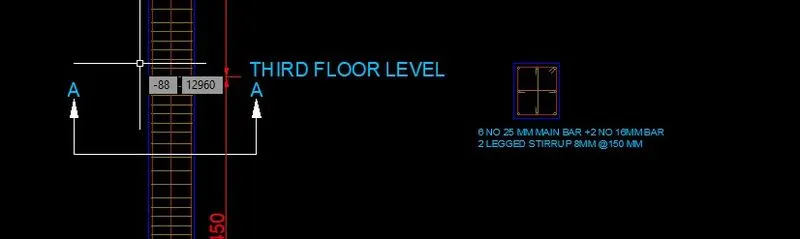

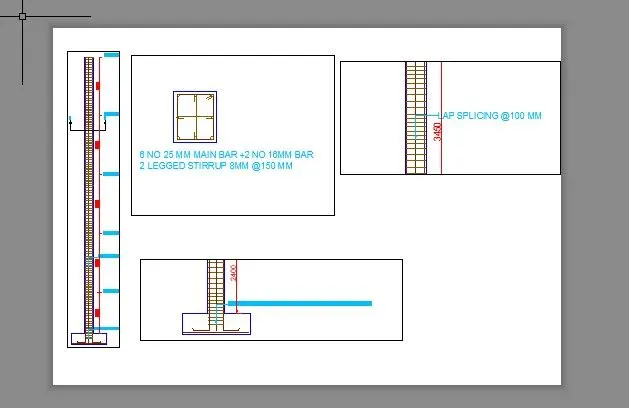

column reinforcement details

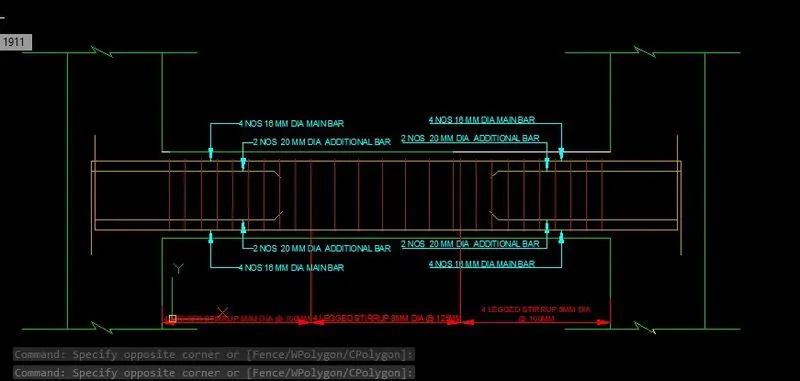

beam reinforcement details

footing reinforcement details

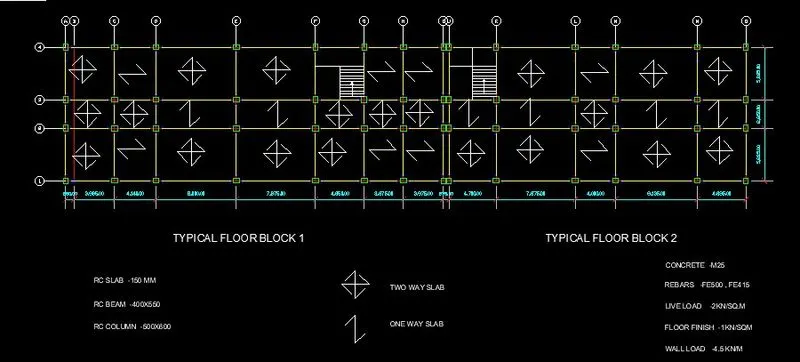

typical floor plan.

Result: I have done analysis and design of hostel building using ETAB and SAFE.
