Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

 Aim:

 To carryout modelling, analysis, design and preparation of construction drawings of a G+3 RCC hostel building situated in Guwahati Assam.

 Procedure:

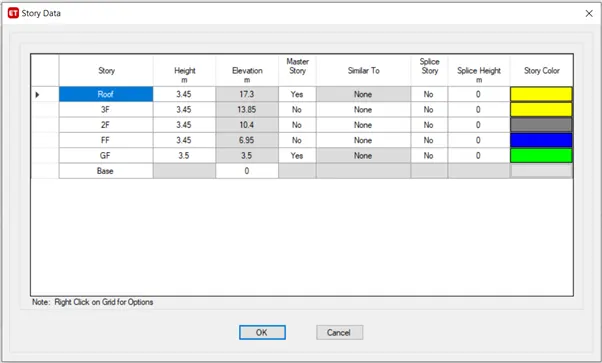

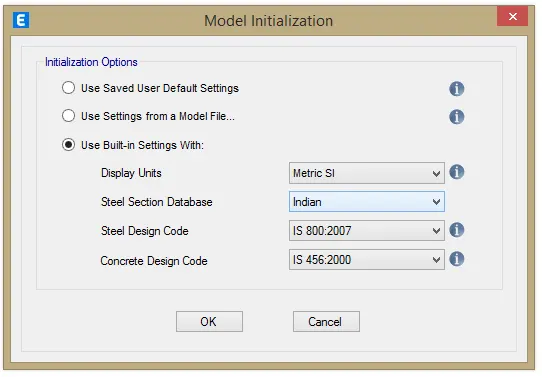

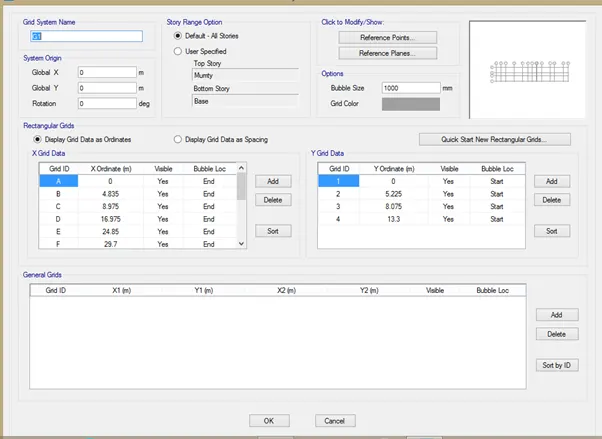

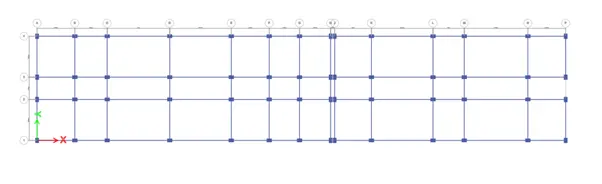

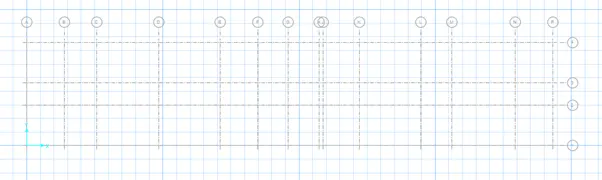

• Open the ETABS software and then provide the required information to create grids and stories as shown below.

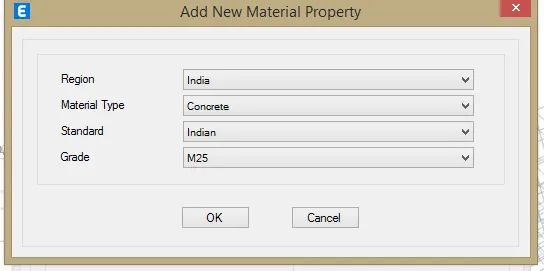

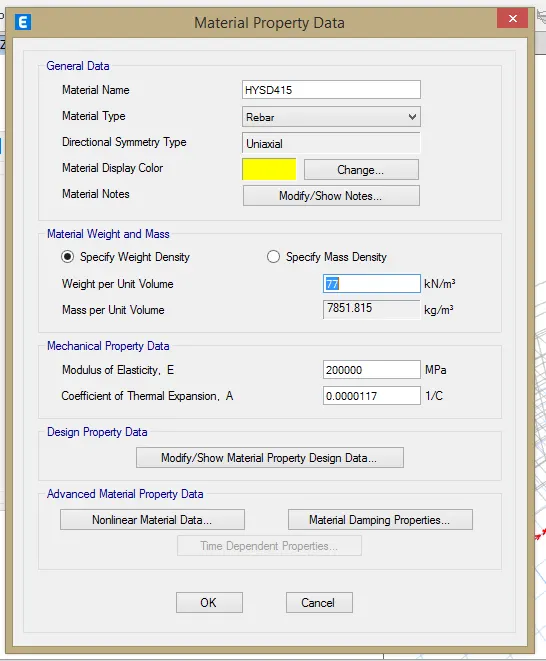

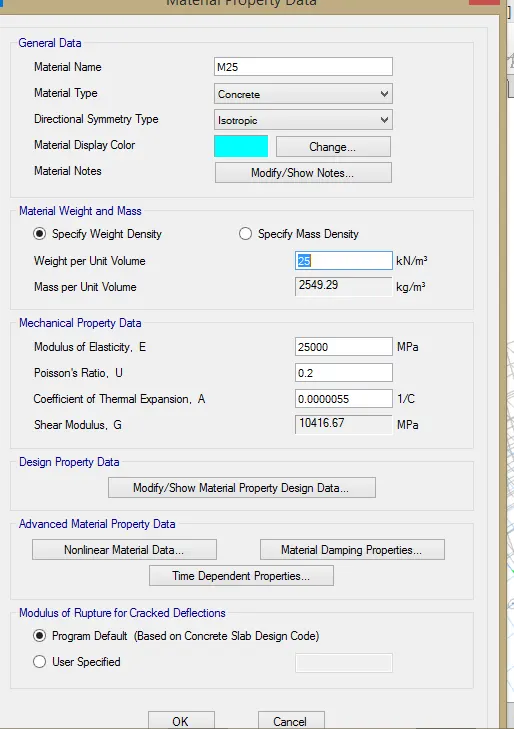

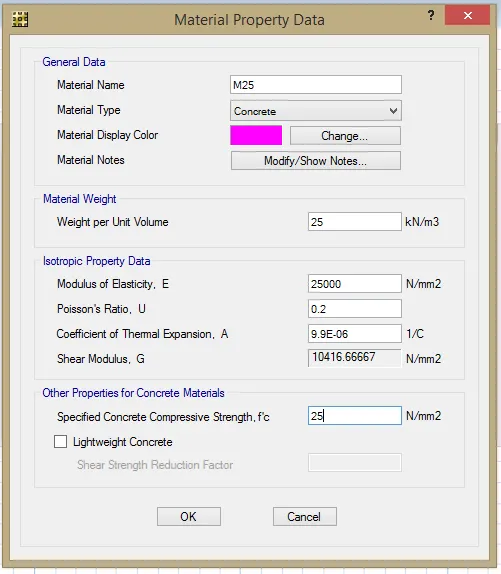

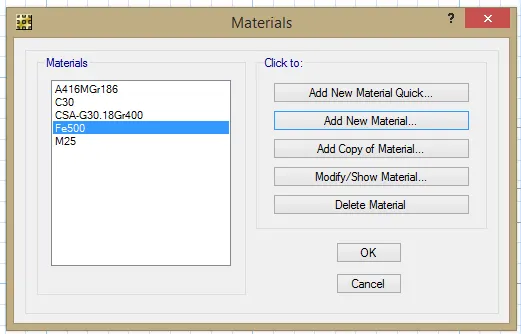

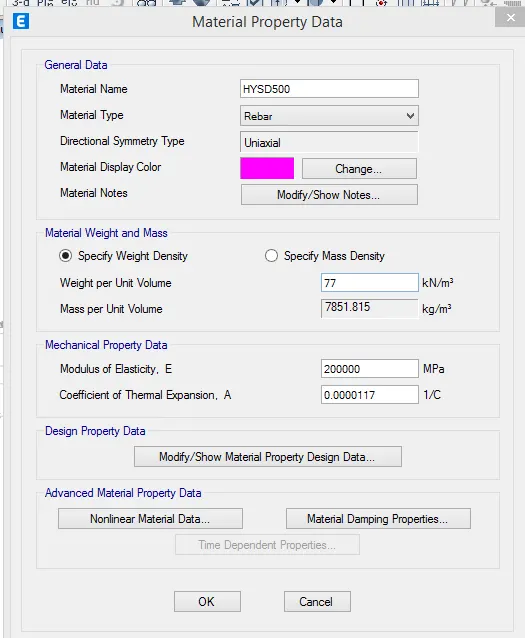

• Next define the material property i.e., concrete as (M25) and rebar as (Fe415 and Fe500).

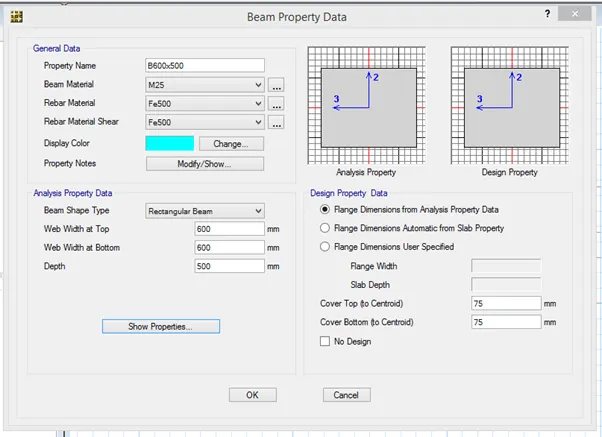

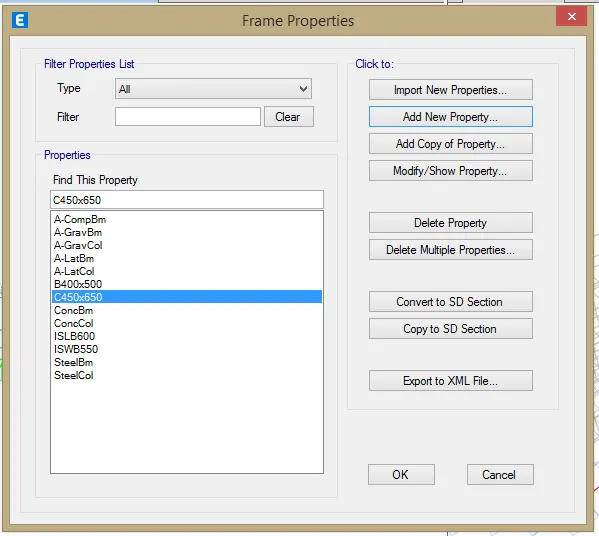

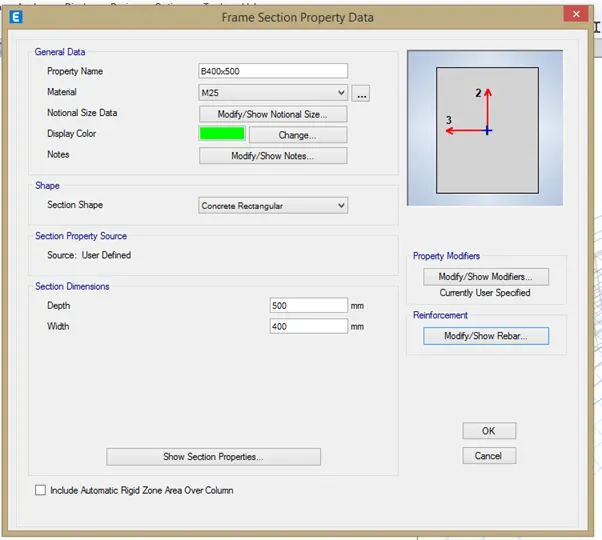

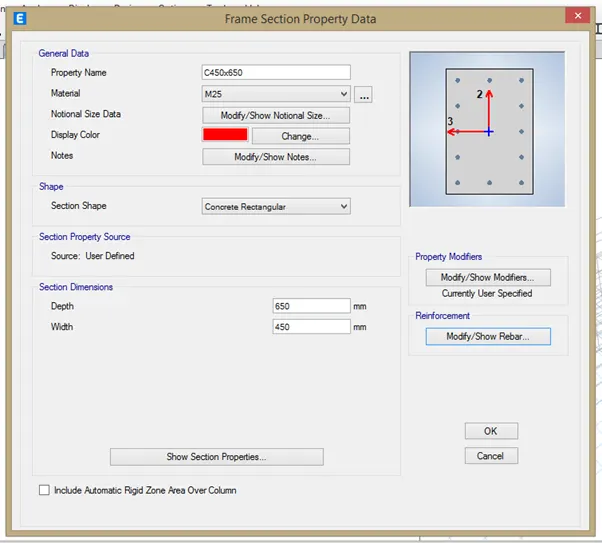

• Now, define section properties. i.e size of beams as (400x500), size of columns as (450x650) and thickness of slabs as (150mm) etc.

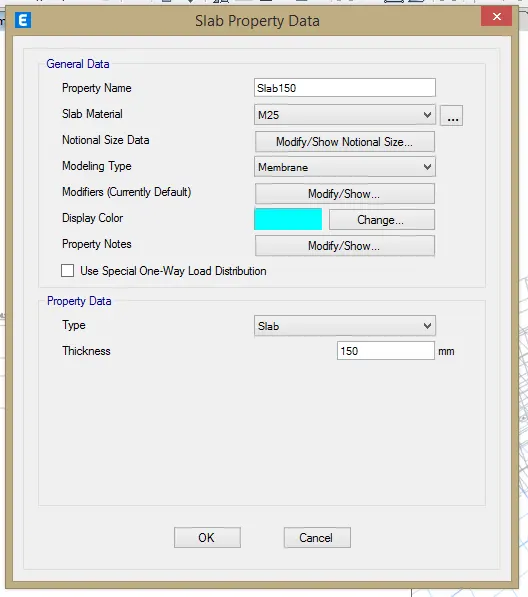

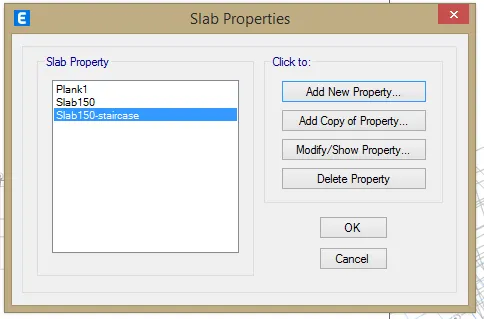

• Go to Define and then choose section properties then select Slab properties.

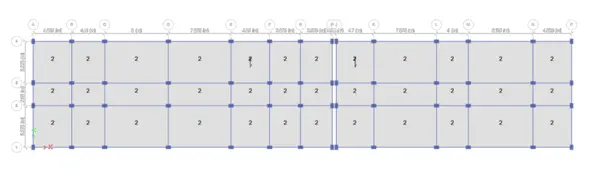

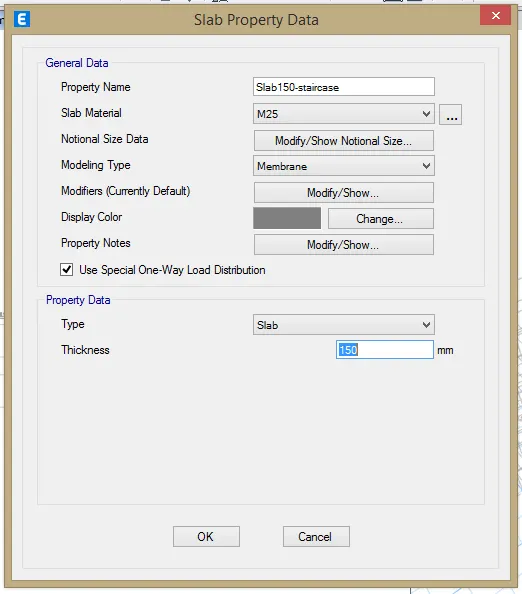

• Also, define a slab for staircase as one way slab.

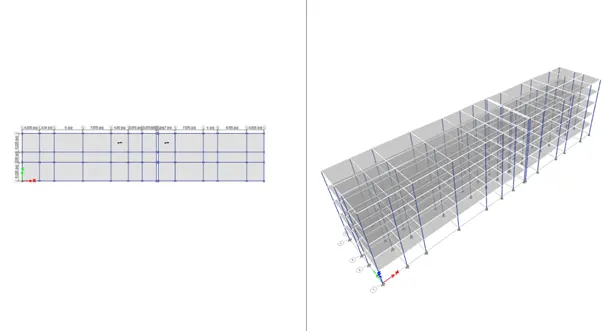

• After defining the materials, place the components.



• First place the frame elements and then slab elements.



• Now define the load cases.

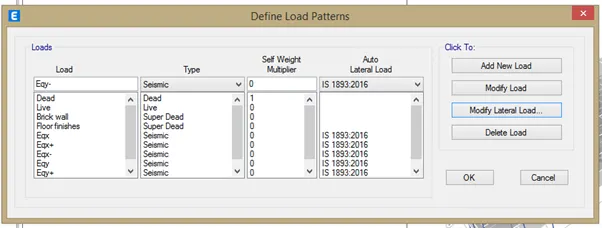

• Go to Define then select load cases and then Provide DL, LL, Eqx, Eqx+, Eqx-, Eqy, Eqy+, Eqy- as loads.



• Assign the following loads:
  • For live load take the value as 2 `(kN)/m^2` with reference to IS 875:part 2.

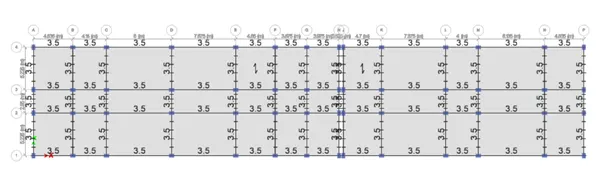

  • Brickwall load as 3.5kN/m
  • Floor finishes as 1.5`(kN)/(m^2)`





• • Next assign the joints in their respective positions

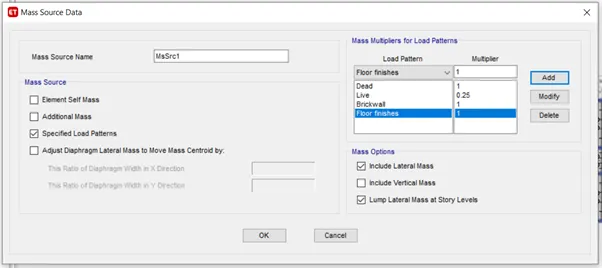

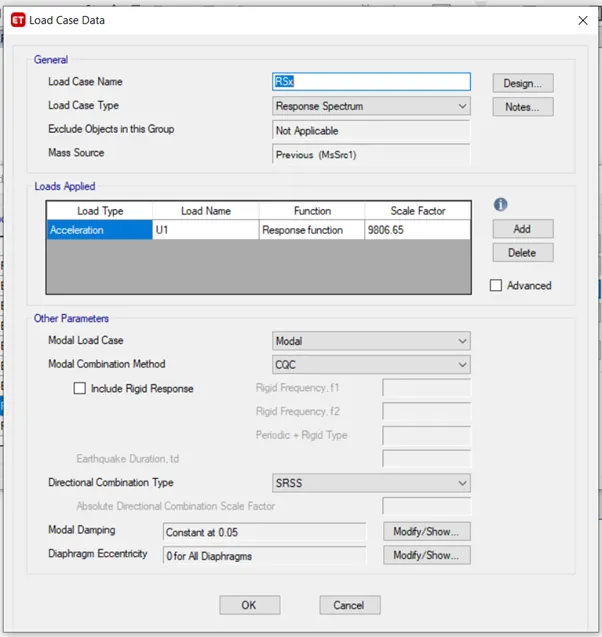

  • Then define the mass source and response spectrum function for the building modelled till now.

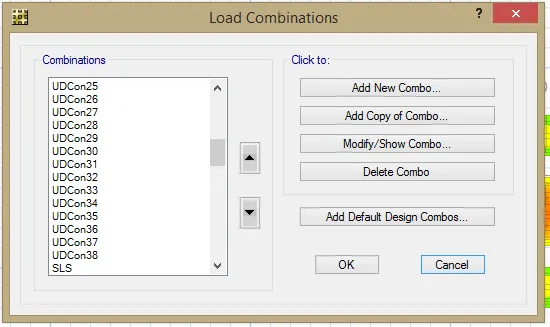

• Now, define the load combinations.

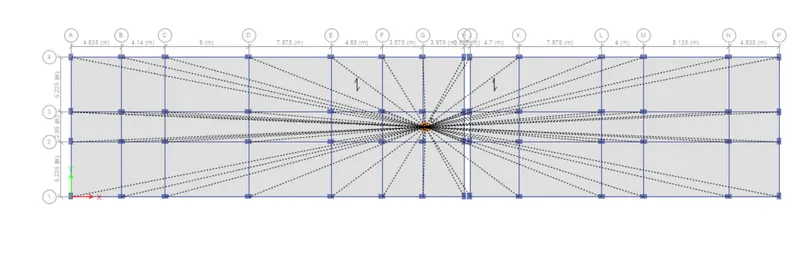

• After that assign diaphragm to the shell.

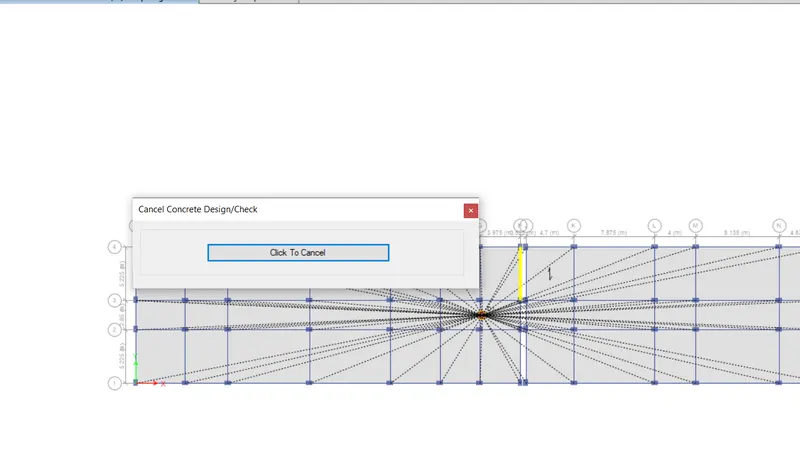

•  After that, we have to carry out the analysis and design.

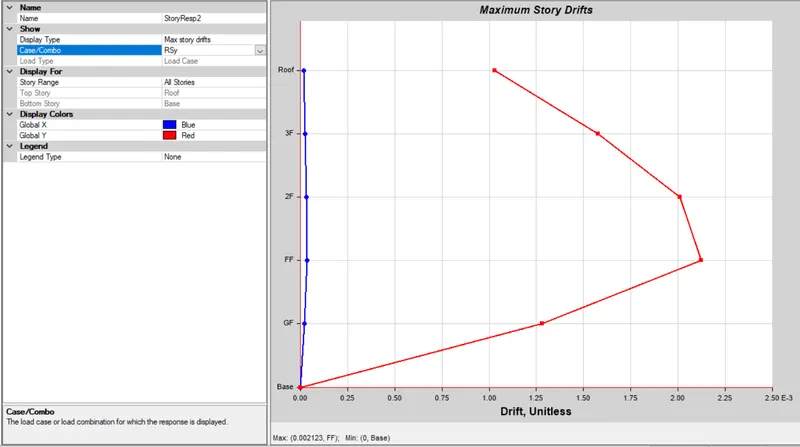

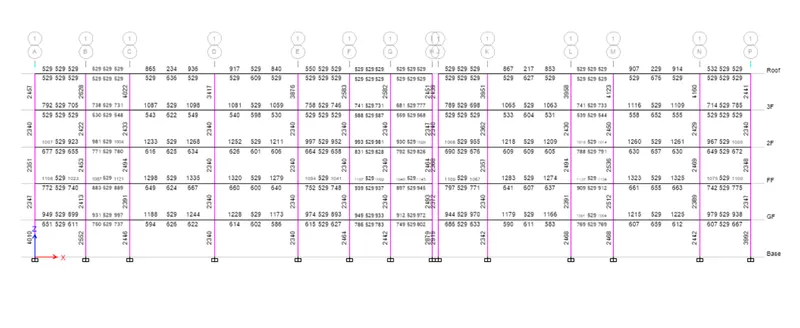

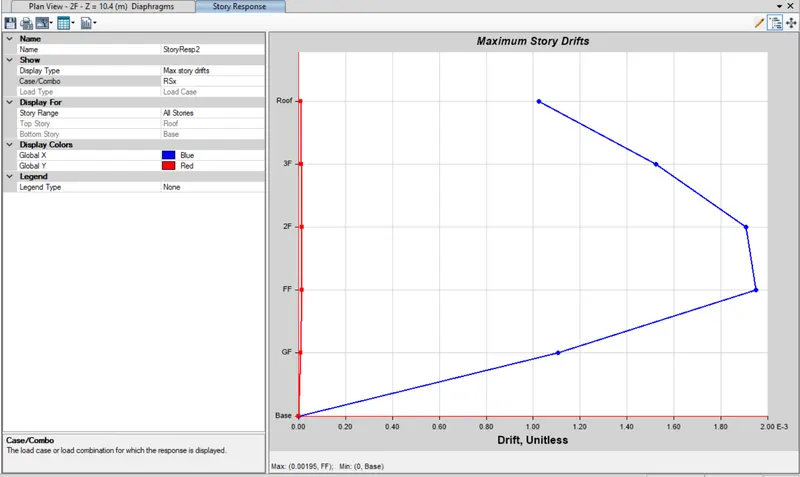

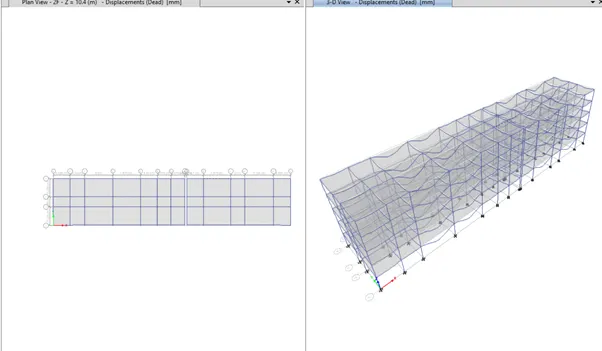

• Also check for story drifts for RSx and RSy.





• Here, both the story drifts are within the limits provided by codal provisions.

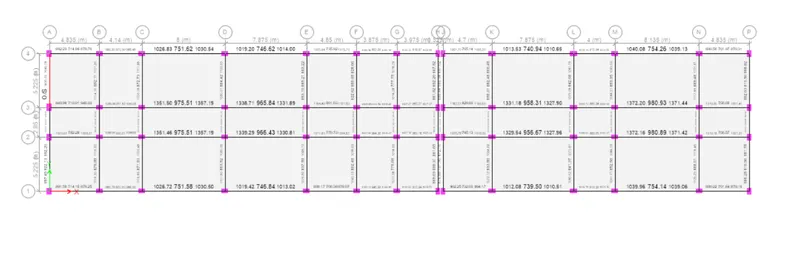

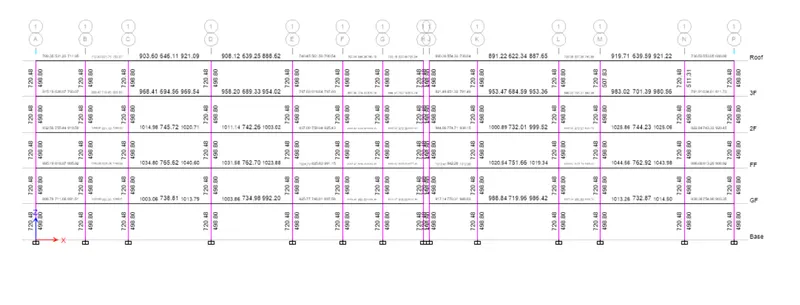

• Next, we have to carry out the concrete frame design and then extract the design results for beams and columns ( for both flexural and shear rebar).



• Beam- longitudinal reinforcement



• Beam-Shear reinforcement



• Here, the design result shows that 3 beams are failing in shear.
• Hence inorder make them safe, we need to increase the size of the beam.
• So, for 2 beams size have been changed to 450x650mm and for other beams size is remained as it is i.e., 450x750mm.
• Beam - Longitudinal reinforcement



• Beam - shear reinforcement



• Column - Longitudinal reinforcement



• Column - Shear reinforcement



• Now, the design part is completed.

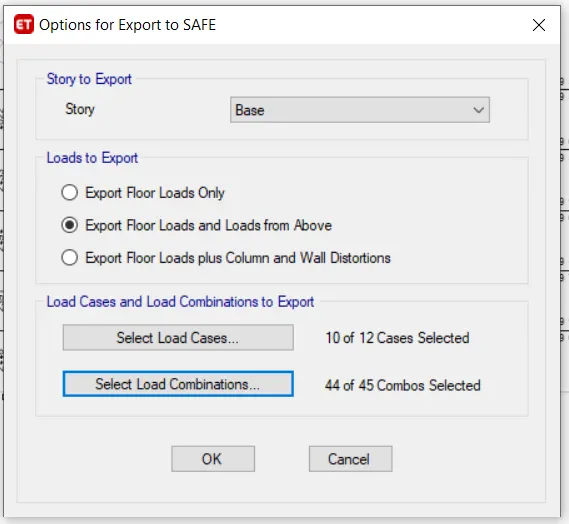

• Now, we need to export the Base reactions and load conditions in f2k format for footing design using SAFE software.



• Now, import the f2k file into the SAFE software.

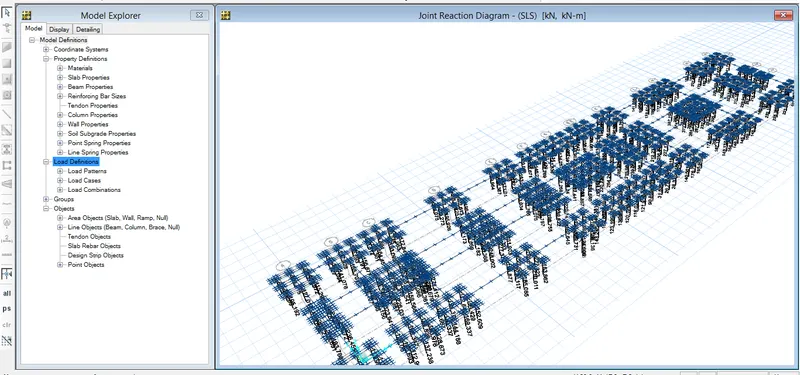

• All the reactions and loads have been imported to the software.

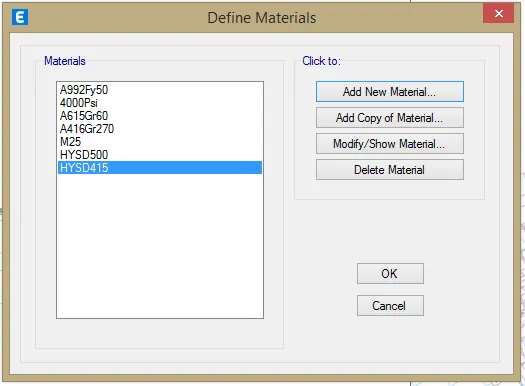

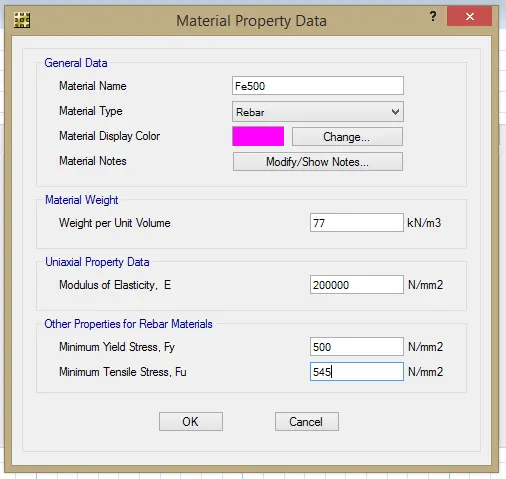

• Define the materials for concrete and rebar as shown below.

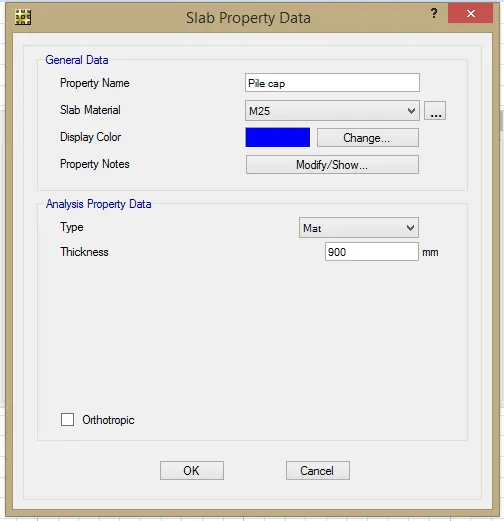

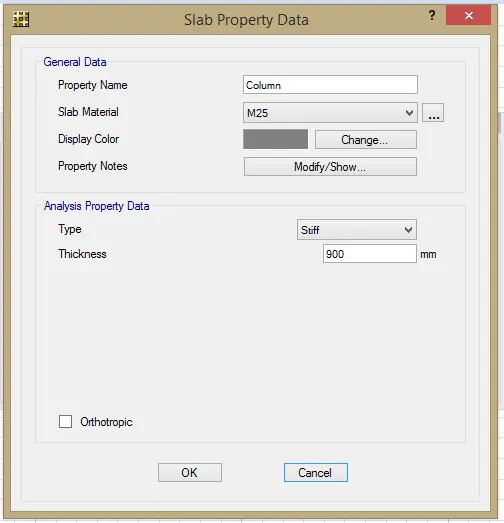

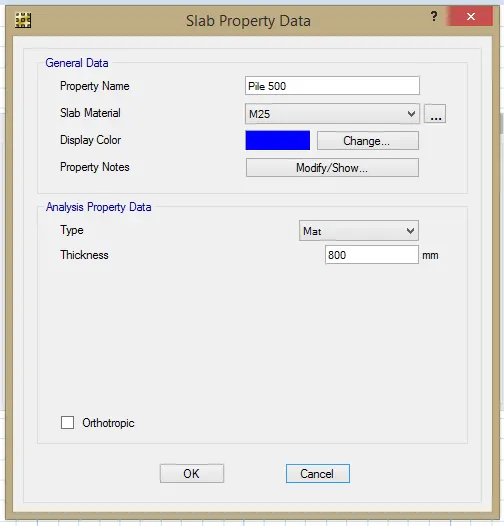

• Define slab properties.

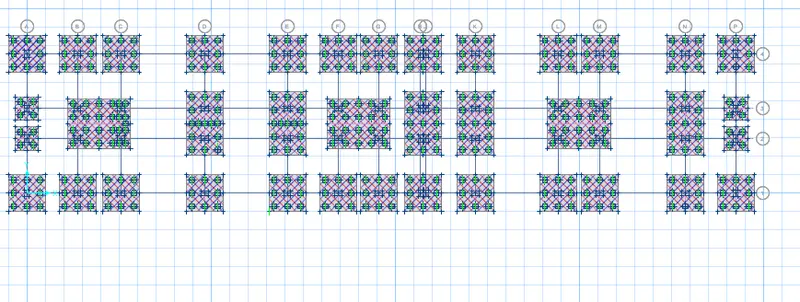

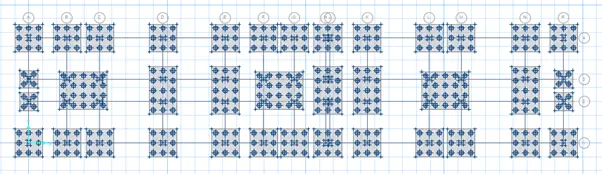

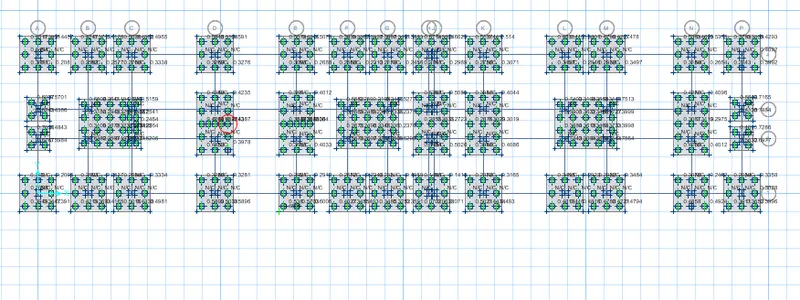

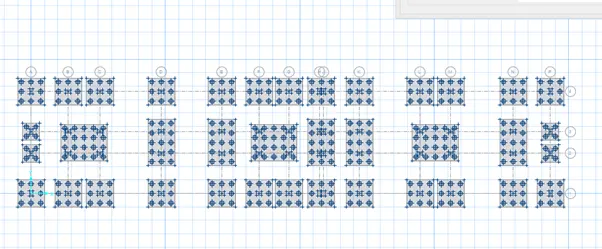

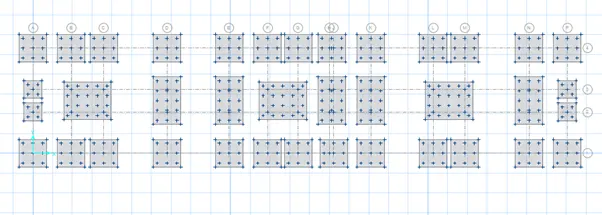

• Now using draw point option, draw the points for footing for each column.

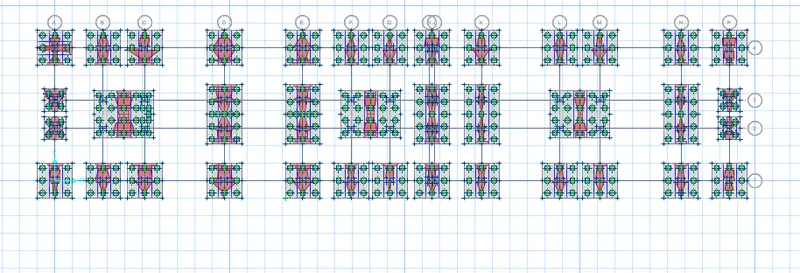

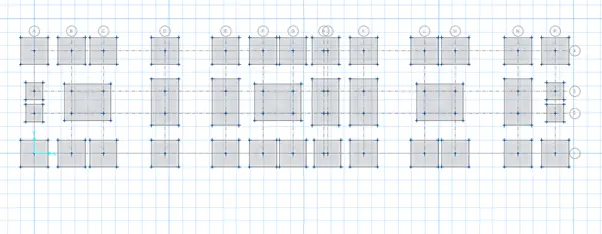

• Now, go to draw option and draft points on footing for the piles to be projected.

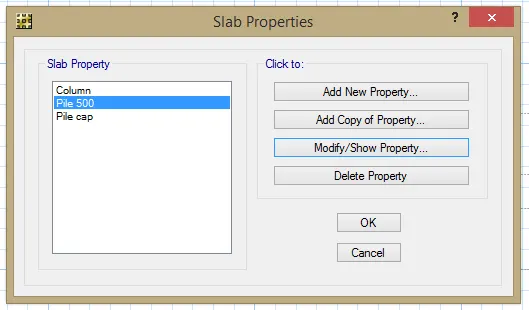

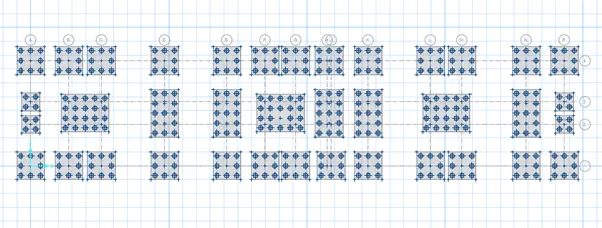

• Next, provide pile, using the above process and also mention material property as pile500.



• Then place the columns along the grid intersections.



• Define beam for tie beams.

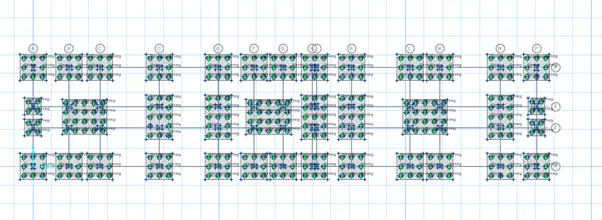

• Now, assign springs at the locations, where piles are placed.
• For this, we need to calculate the spring constant:
  • Spring constant= AE/L=490873 N/mm.
  • Then assign this spring constant.

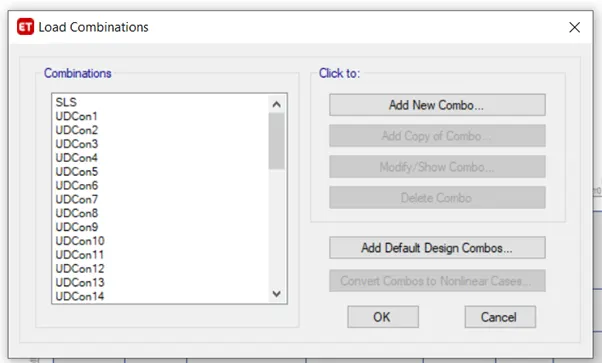

• Now, define the load combination for serviceability limit and ultimate limits.

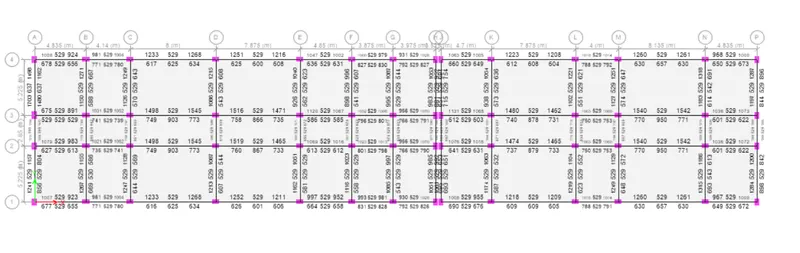

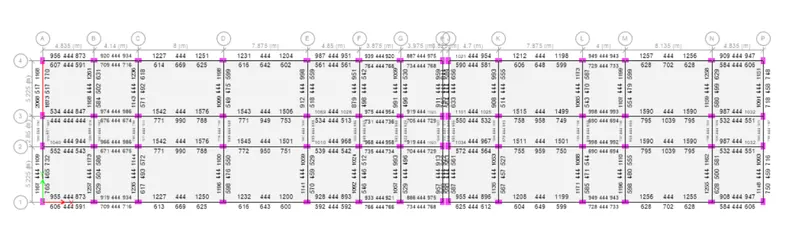

• Next, check the design results:

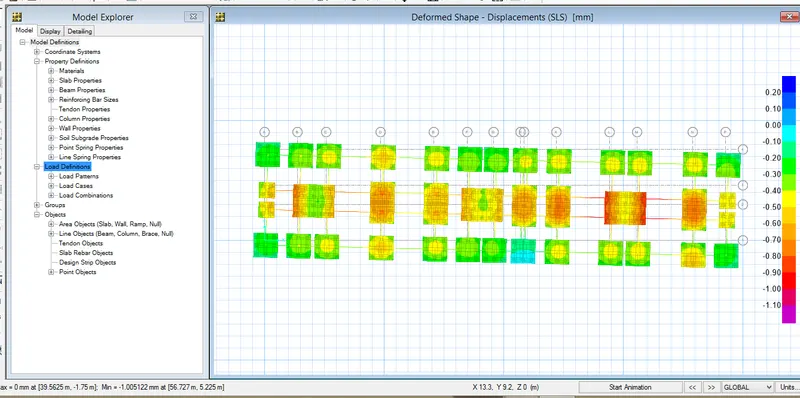

  • Displacement values are within the permissible limits, hence  it is safe.

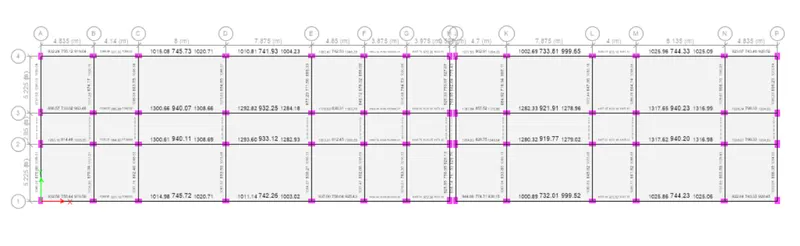

• • Reaction check :



• Punching shear values are also within the range.



• Design the strip.

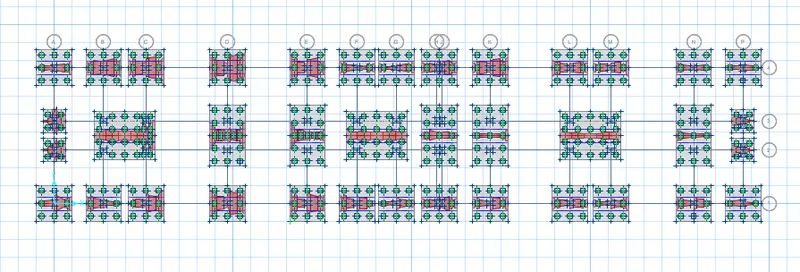

• Now, carryout the design again:
  • For strip layer A
•
  • For strip layer B



• Hence, the design of required footing is completed.
