Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

1) AIM: Create a 3 dimensional model of the residential building with a rendered view.

INTRODUCTION: Using AUTOCAD, create 3d model of the plan with proper front elevation.

PROCEDURE:

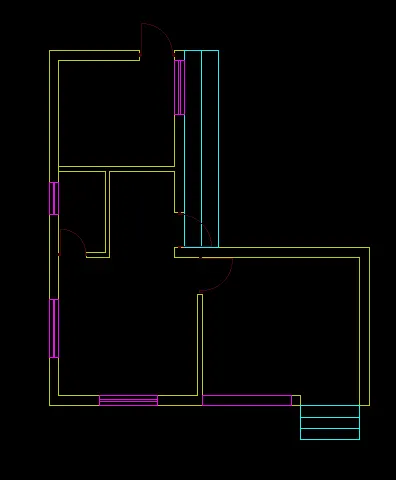

• First create 2D plan of building in autocad.

• now change setting>drafting to 3D modeling.
• now command " BOUNDARY" and choose wall to make it region before extrude.

• now make the region of window area upto 3' from bottom.

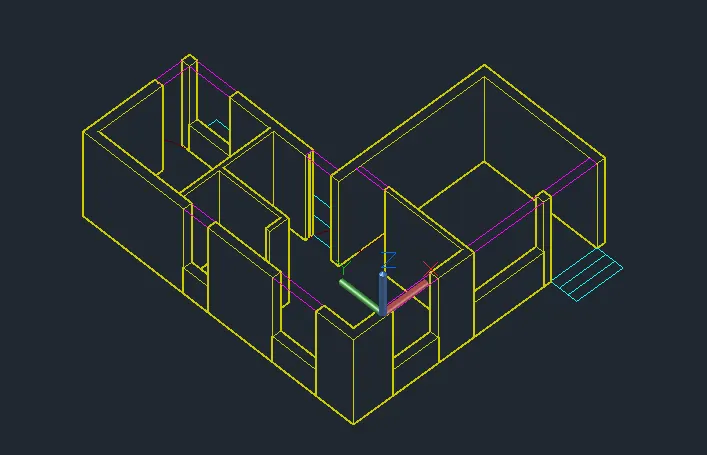

• now change the wcs to ucs on top of wall to create wall so that create opening for windows and doors.

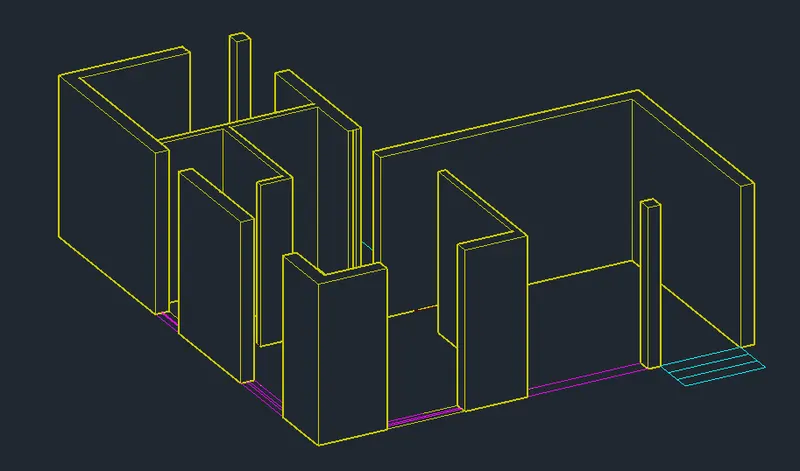

• now extrude this region down to 3'.and after that type "UNI" to combine two object as one.

• Now create window on wall opening.

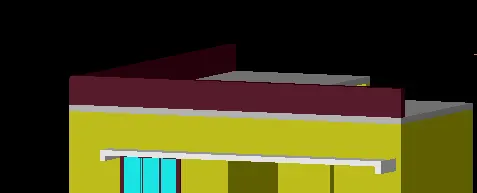

• now create parapet wall and chhaja at 7' from base.

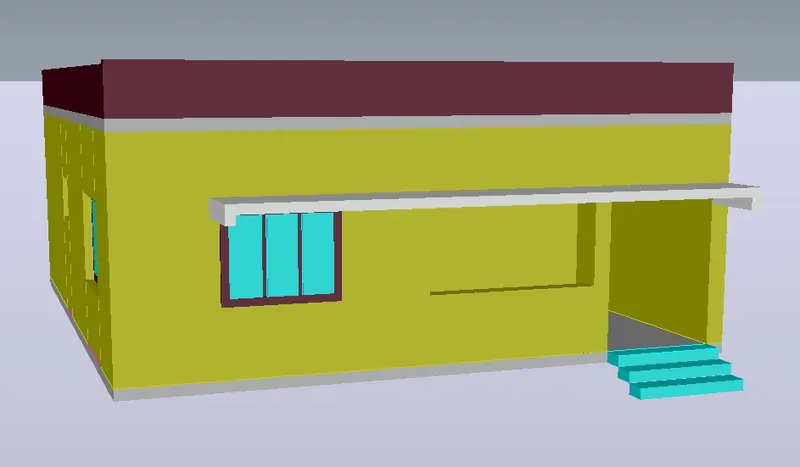

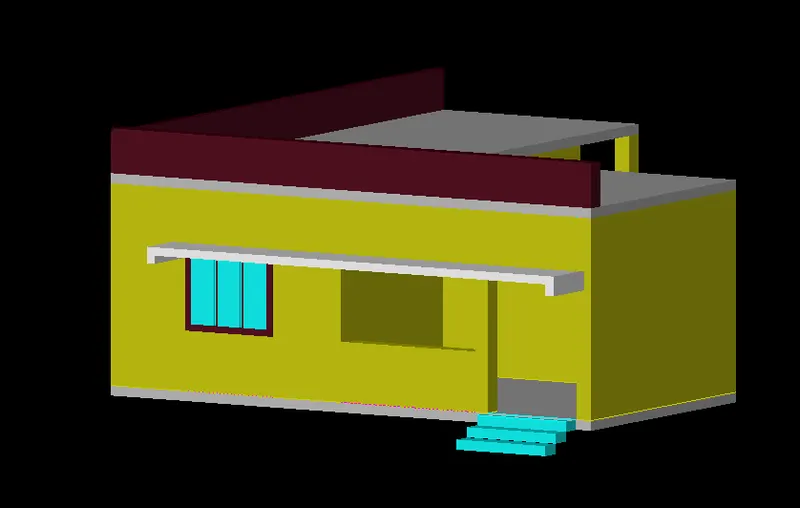

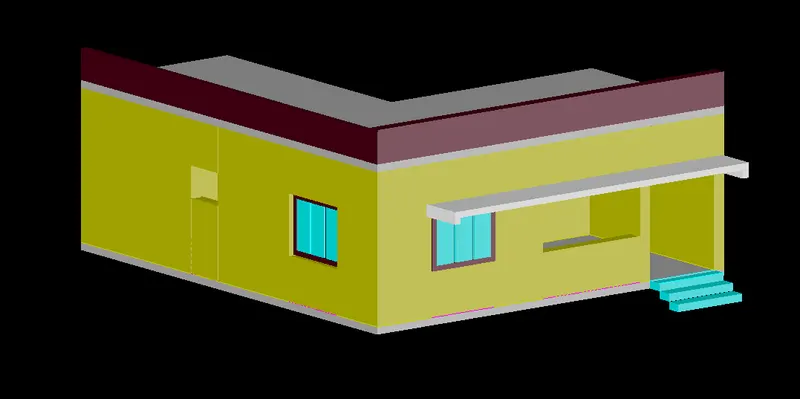

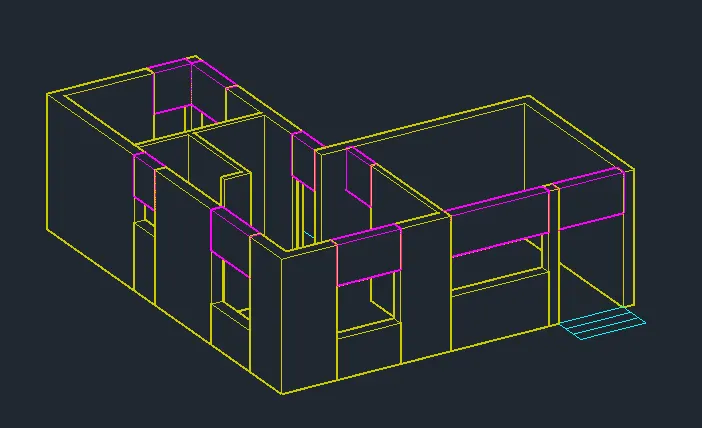

• final 3D model without adding material in shaded view.

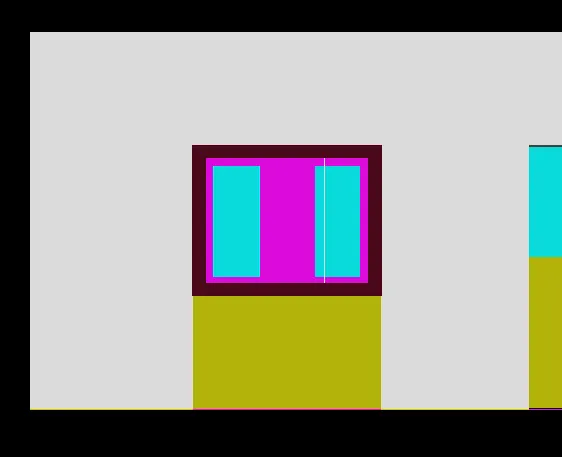

• now assign material property in wall, window and parapet

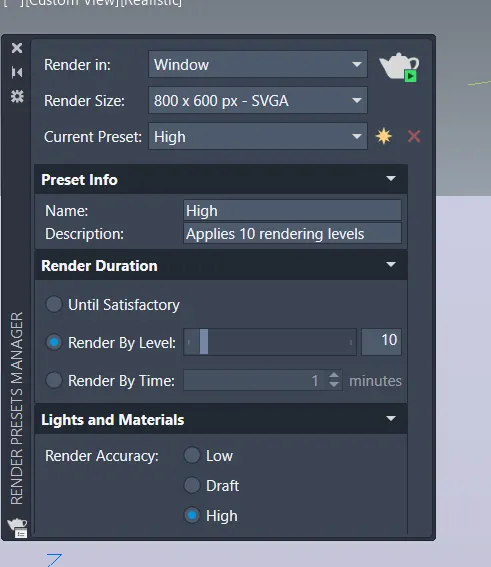

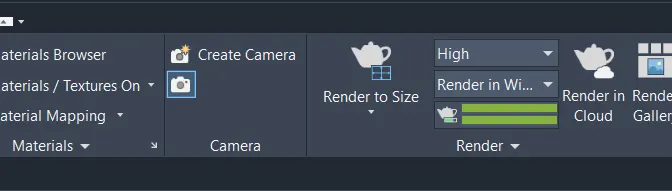

• now go to visualize>render

• now go to camera and create camera view.

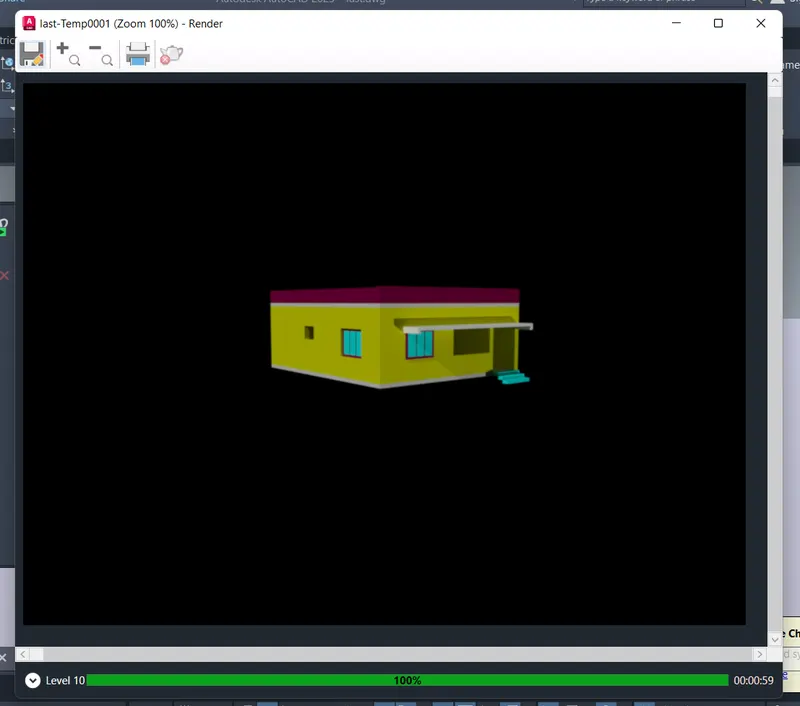

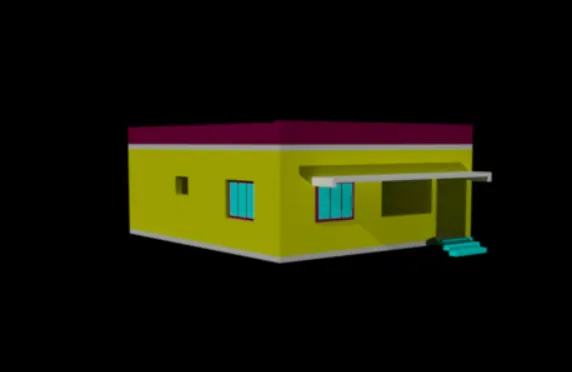

• and now render this camera view.

RESULT:
