Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Aim-To create a 3D of resedential building with a rendered view.

Introduction-This plan is G+1 resedential building.

-All dimension are in mm.

-Thickness of outer wall is 230mm and inner wall is 150mm taken.

-Size of door for hall and bedroom is 1000x2100mm and for bathroom 900x2100 taken

-Size of window is 1200x1200

-Size of window for bathroom 400x400

Procedure-

-Set unit in decimal

-Set limit min and max both

-Set dimension style by creating new Time CV and select it for every text font

-Set layer for each

-Start draw plan in 2D first

-Take XL enter create a corner and start taking offset for plan

-After creting plan then draw window in it and make space for door

-Provide dimension and text

-Give each their respective layer

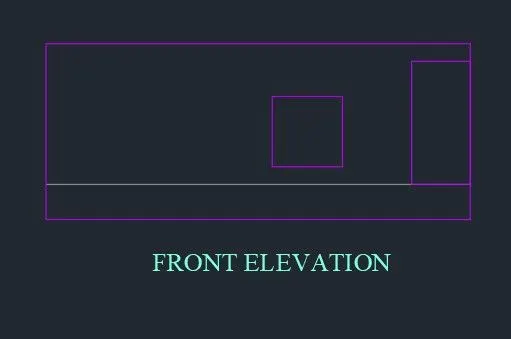

-To create front elevation take a projrction from plan

-After taking projection trim extended lines

-Draw window at sill level

-Draw door at plinth level

-Provide text

-Now switch workspace to 3D modelling

-Copy plan and create a boundary region for wall

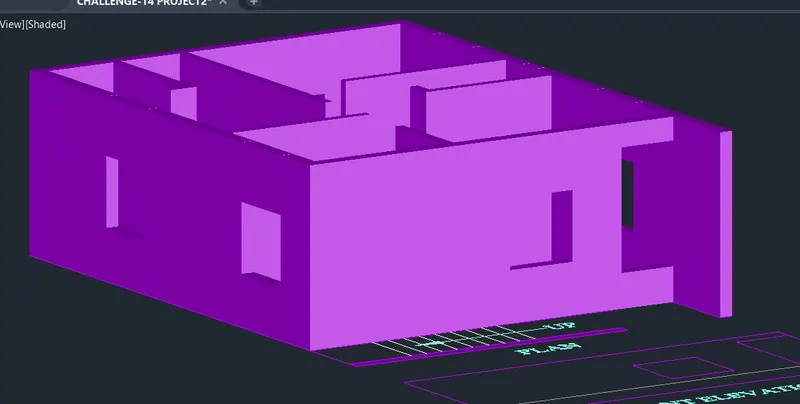

-First create boundary region for walls only and extrude it upto 3100mm height

-Then for window and door portion wall extrude according to thier levels respectively

-Then UNION command for merge it single.

-Create a floor in top view and extrude it -50mm

-To create a door and window take front elevation and rotate it in 3D

-To create window, take window from particular elevation then set UCS and rotate it

-Now make boundary first, subtract each layer properly

-According given layer extrude it 75mm inside for window frame,50 for window mullions and 20 for glass

-Move mullion 20 inside and 30 glass move inside also

-Now make whole window into group

-Put window at place and move it inside approx 75

-Same for other window also

-To make door, take offset inside as a frame of door make boundary and subtract region and etrude it

-Place a door and move inside 125mm

-Now to create slab take 3p polyline and extrude it 100mm and give serprate layer to it

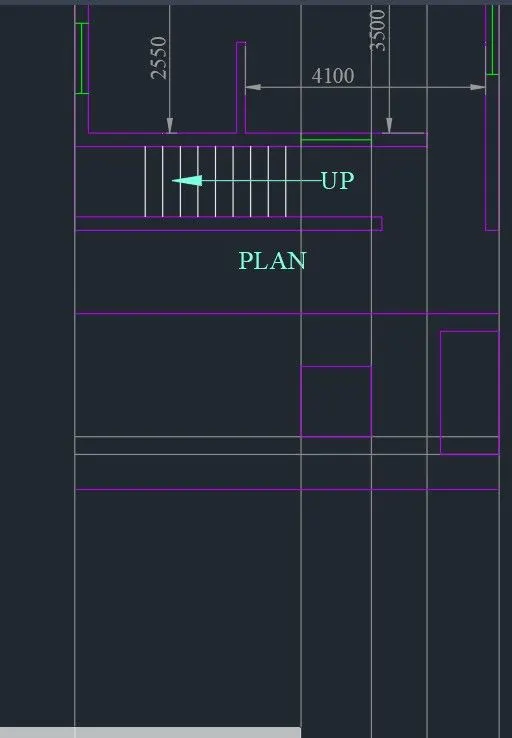

-For stairs set ucs and start drawing for steps as riser 150 and tread 300 and landing is 3000 and width is 1500 for step

-After creating steps exrtude it also

-For first floor plan copy this plan and make space for stairs according to situation

-create a slab same as per ground floor

-For parapet wall take thickness 100 and height 900

-For tower take 2000 as height and apply 100 thickness slab to it

-MAT for material to apply the plan

-The open space for the gate

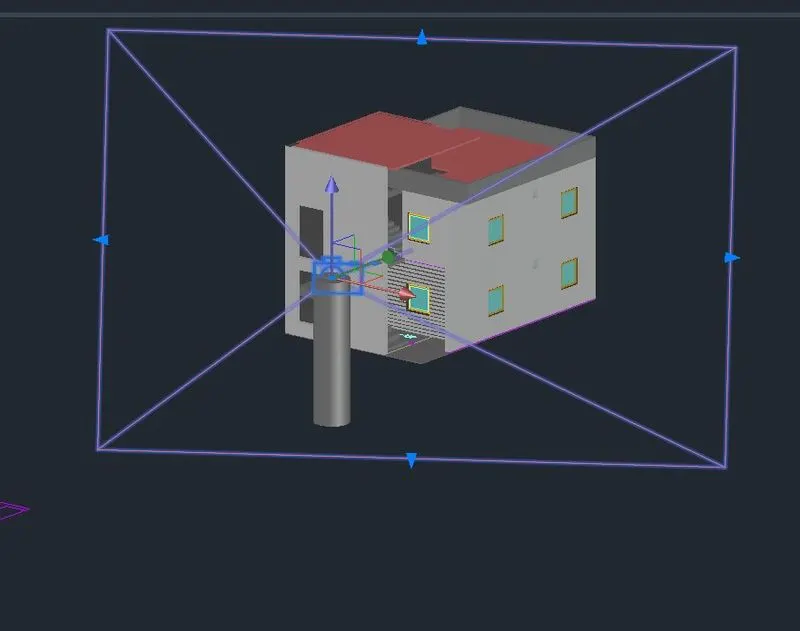

-Now make a circle and extrude it and put camera on it

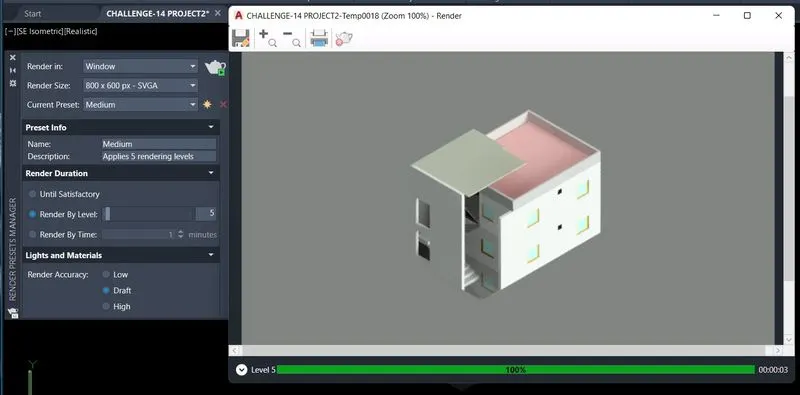

-Now rendered it with appropriate setting

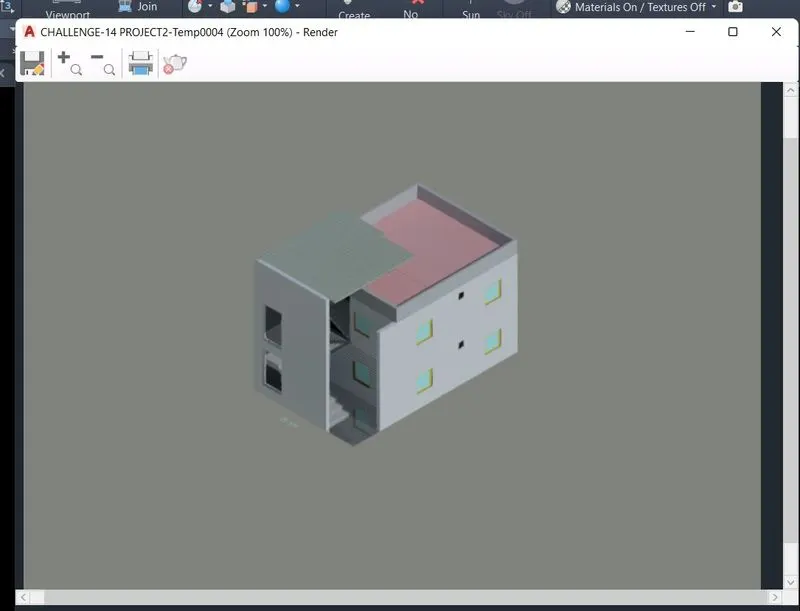

1ST RENDER

2ND RENDER

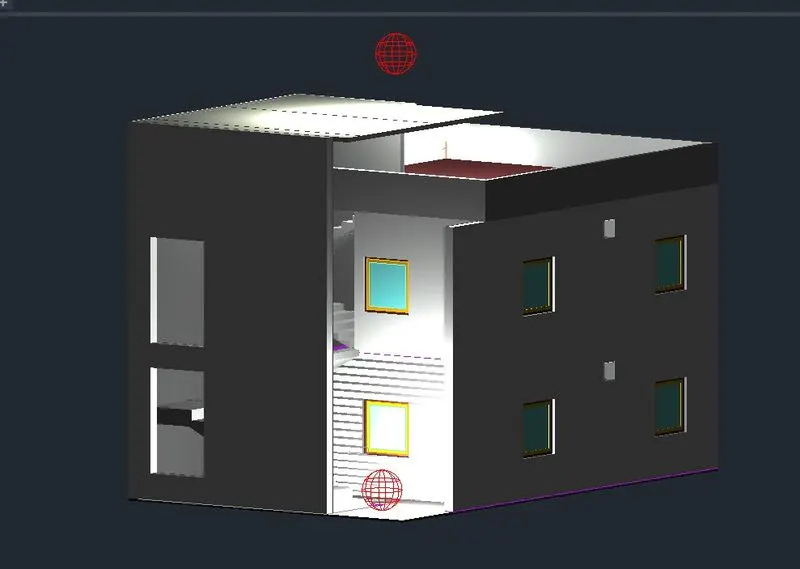

-We can apply light also, here used WEB light

Result-

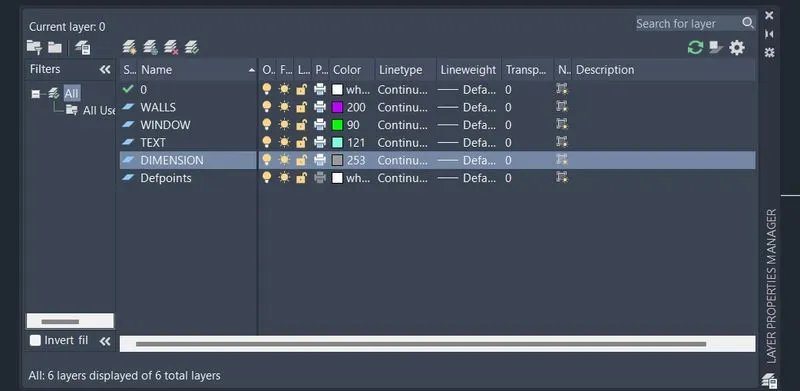

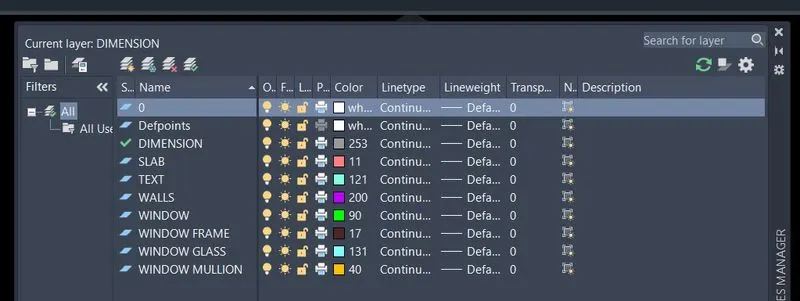

LAYER

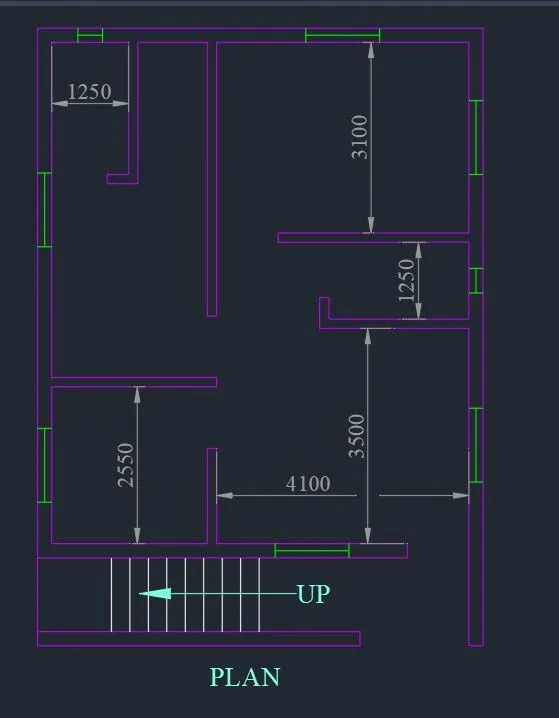

PLAN

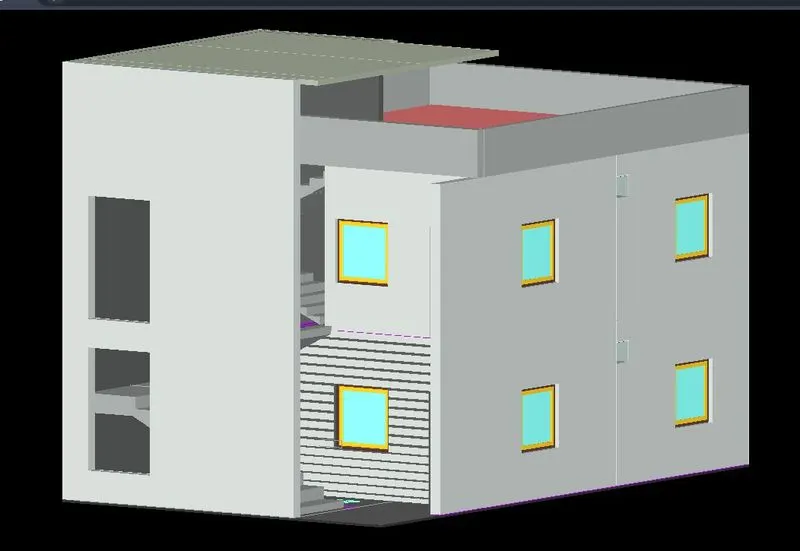

3D MODEL

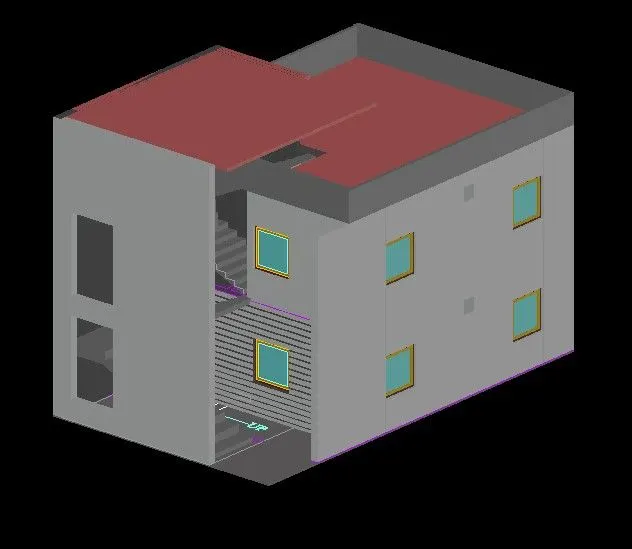

RENDER VIEW
