Project 2_Creating a 3D rendered model for a Residential Building in AutoCad
AIM:Create a 3 dimensional model of the residential building with a rendered view.

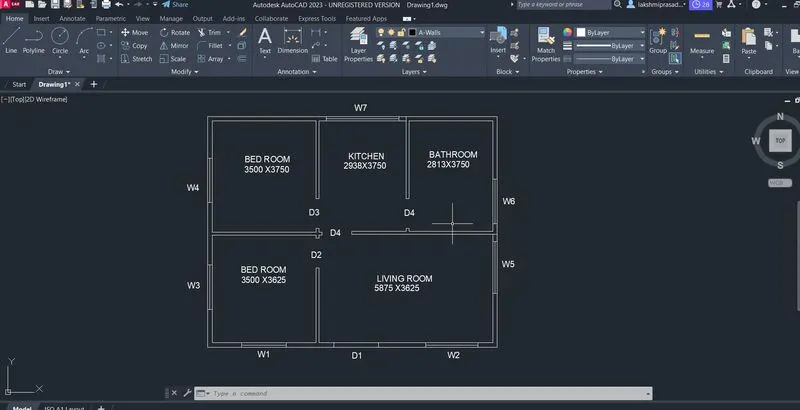

PROCEDURE: To create a 3d dimensional mode of the residential building i have drawn a randon plan size 10000x8000 sqm which have required rooms the plan and elevation details are below

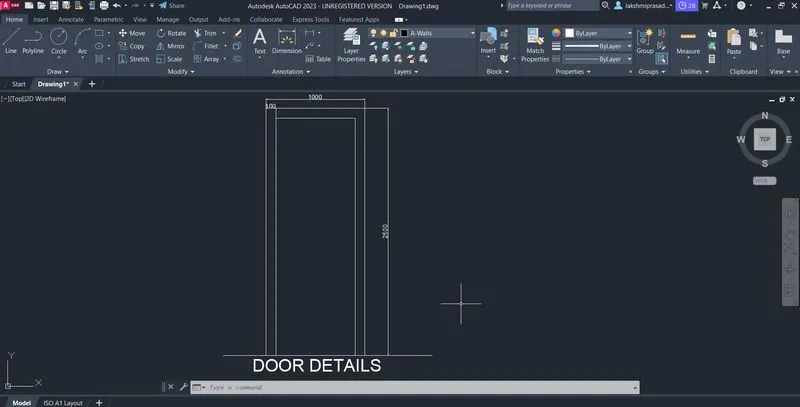

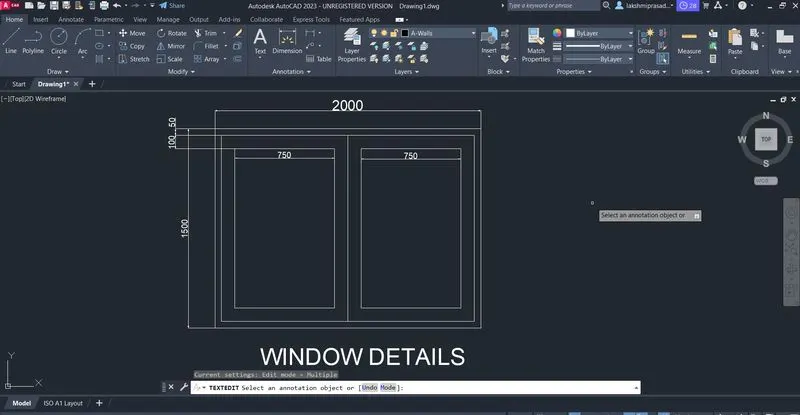

To create a 3d dimensional window and door the window are drawn with appropriate size the details are
open Auto cad
select imperial system.
command UN (units) and selecting engineering with precesion of 0.
Command limits and having limits of 0,0 in lower left corner and 10000,10000 in upper right corner.
command zoom and selecting all.
command used:
LINE,OFFSET,PLINE,TRIM & RECTANGLE.
These commands are used to draw the plan and windows with its dimensions region.
Region is used to create the region of the plan walls.
region is used to create the region of the floors.
Boundary: it is used to create the boundary odf the region by picking the points.

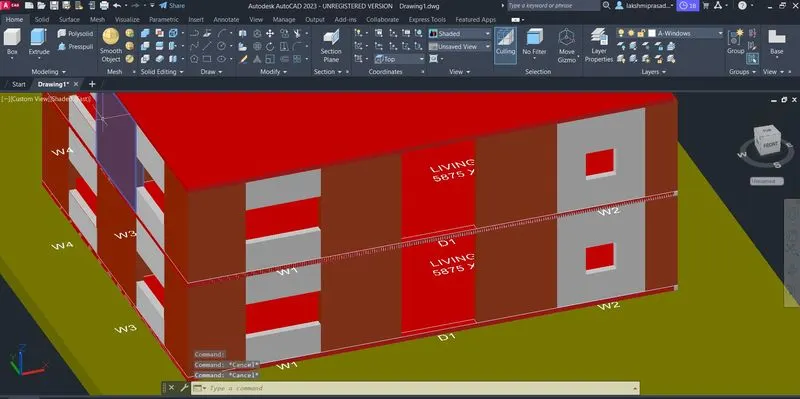

extrude is used to extrude the walls to create as boundary to height of 3500.

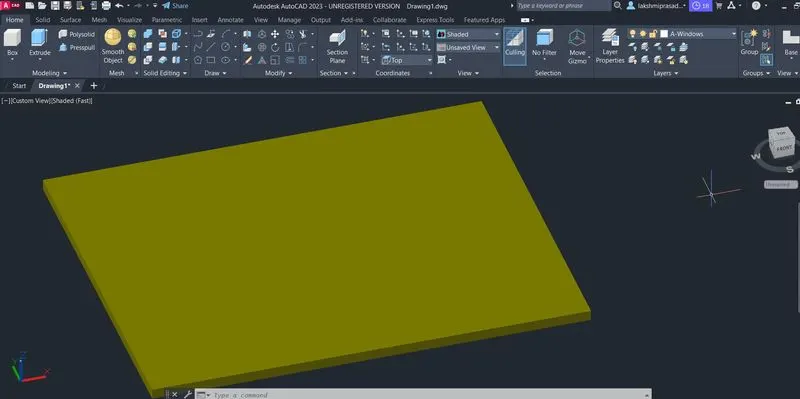

extrude the floor create as boundary to hight of 150..
extrude is used to extrude the ceiling create as a boundary to height of 150.
layer is used to the create the layer of different ompounds like 3d wall, 3d window, 3d window mullion, 3d glass.

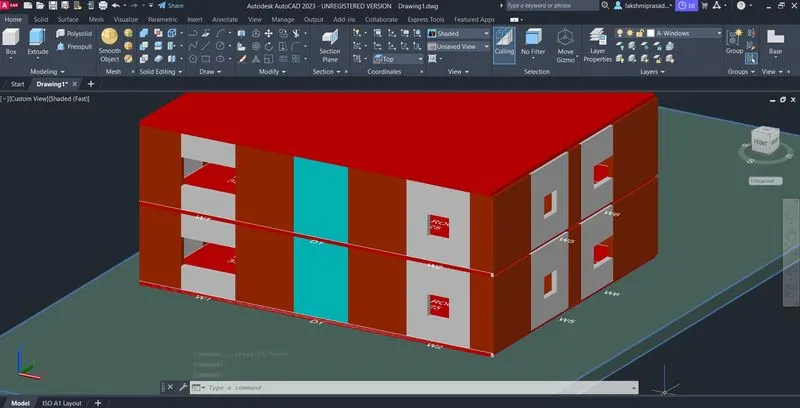

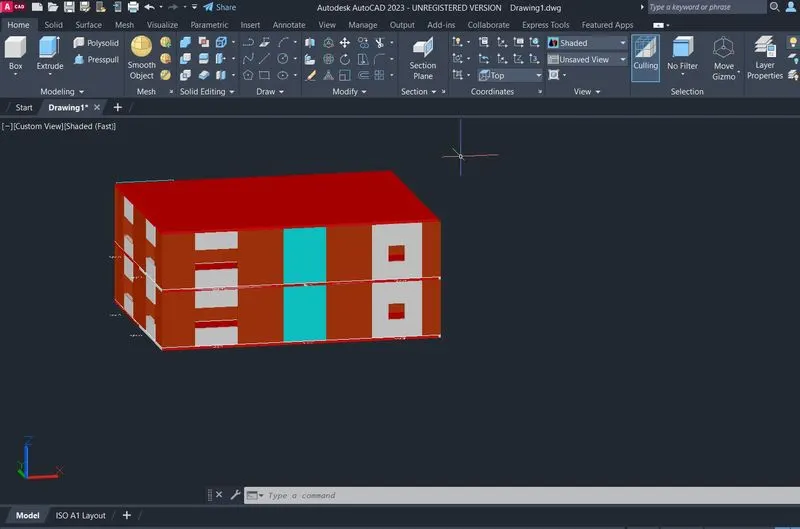

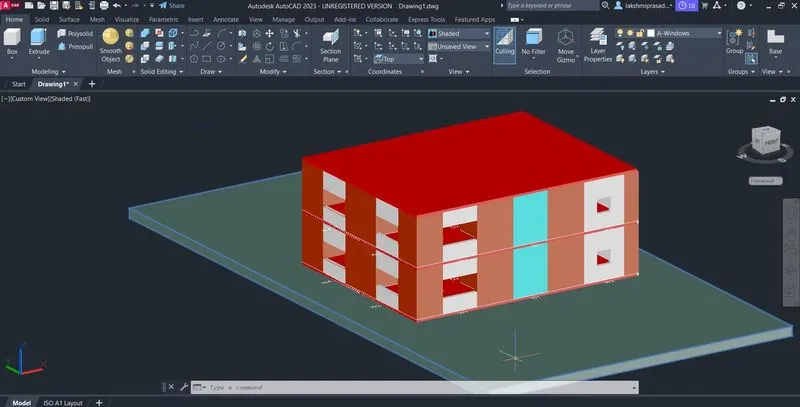

3d orbit is used to see the 3d pan in the desired direction.

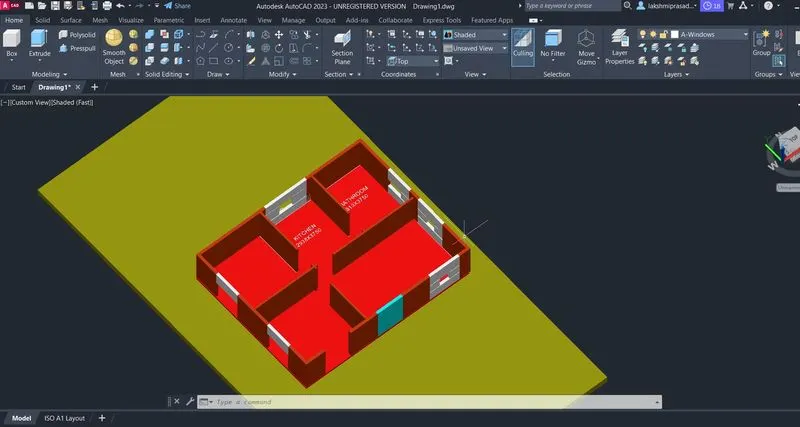

slice is used to cut the model usng the 3d points with desired axis.
3d rotate is used to rotate the window created in the xz-plane xy-plane.
extrude is used to extrude the window create as a boundary height to 250.
extrude is used to the window glasses create as a boundary to height of 200.
layer is used to assign the different layer create to the different componenets with different distiungish.
material browser is ussed to browse the appropriate materials to different componentsand assign it to create a rendering view.
render to size is used to select the quantity of the rendenring view and selecting full hd resolution 1920 x1080 pixel.

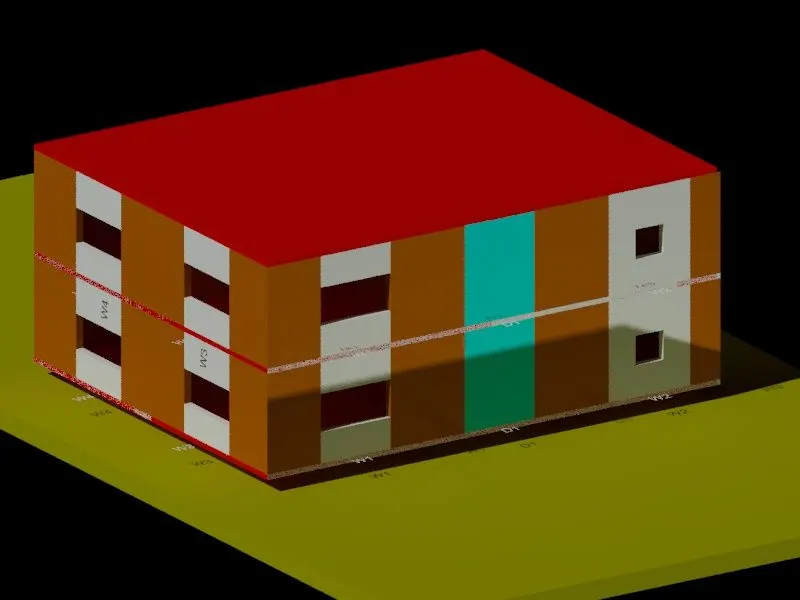

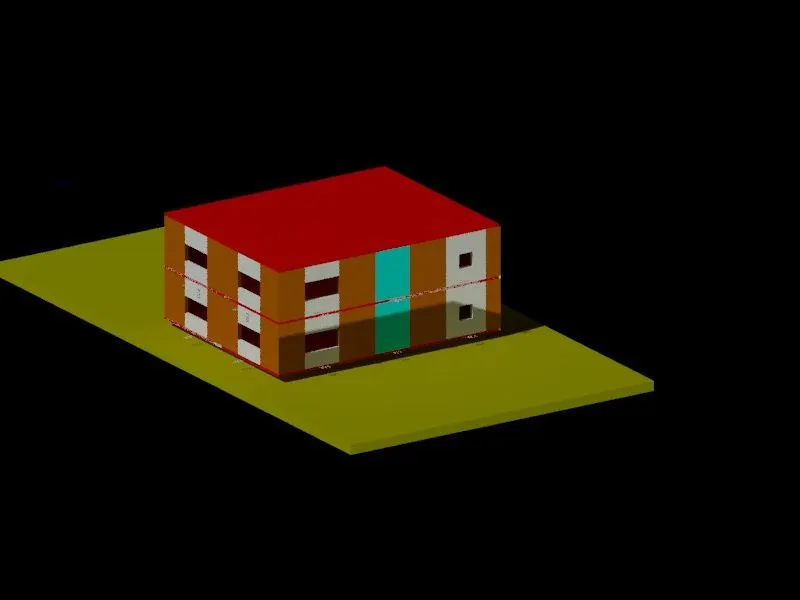

render is used to render the view .
step by step procedure by pic.
