Challenge

Drafting of various geometries using Chamfer, Fillet tool in AutoCad

Aim : To Draft various Geomentries using Chamfer,Fillet tool by using Autocadd.

Procedure : In auto cadd we use chamfer ,fiileet for different purposes based on the usage inn the autocadd.

So Now i will show you some of the examples how to use chamfer and fillet commnads in auto cadd.

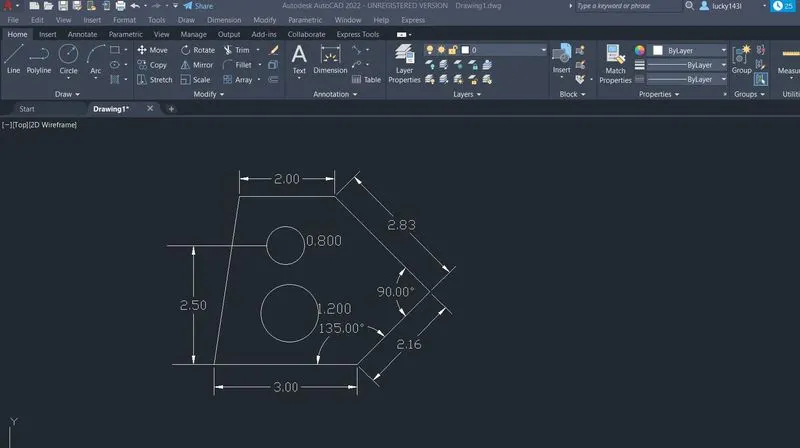

Drawing 1:

Open new autocadd file and set decimal and precesion to 0.00
Zoom all
select line tool from ribbon,then selct random point draw a line of 3 units.specify next point @2.12<45
specify nect point @2.38<135 and thenn draw 2 units and selecct close tool.
Give Circle command and then draw first circle at X=1.50, Y=1.00 of diameter 1.20.
similarly draw another circleat X=1.50 ,Y=2.50 Of diameter 0.80 Units.
Erase the remaing lines by offset commands.

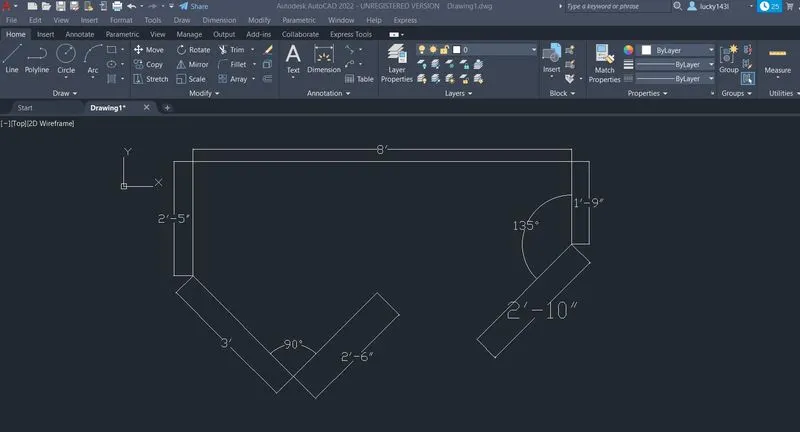

2. OpenNew file < units-architectural < precesion- 0'0" feet ok
Dimensions of sheets -12'9'
zoom all.
select line tool from ribbon and draw lengthstarting from top line segement of 8".
Now give line commandpositioning at the cursor at 270 degress with ortho on 1'9" enter.
give line command positioning at the cursor at 270degree at first endand draw 2'5" enter.
Draw the line at 315 degres at 3' at 90degres 2'6"
now draw line at 2'10"at 225 degrees and join the line
annotate and give dimensions to all the line segments.

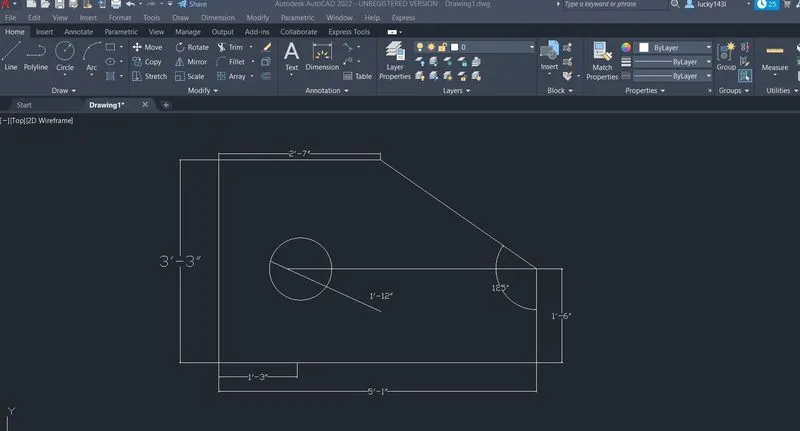

OpenNew file < units-architectural < precesion- 0'0" feet ok
Dimensions of sheets -12'9'
zoom all.
select line tool and ddraw length starting from top line segments 2'6"
Now give line command positioning the cursor downwards and draw lines of3'3",5'0"1'6" with ortho on and close.
annotate all the dimensions to all the line segements and circles.

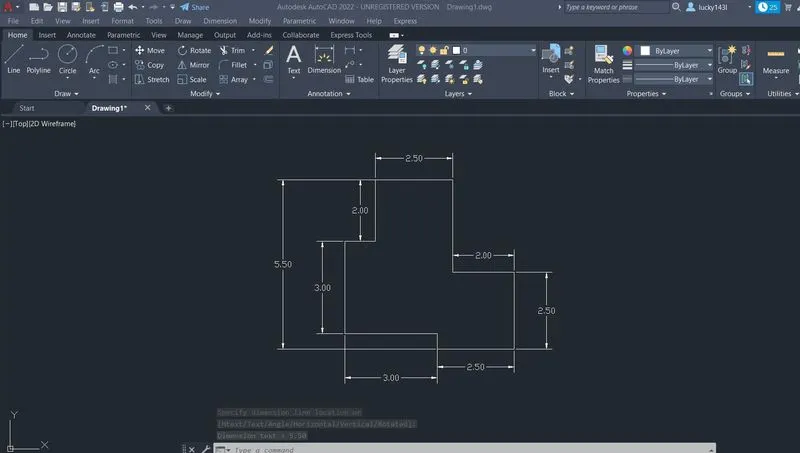

OpenNew file < units-decimal < precesion- 0.00 ok
Dimensions of sheets -12,9.
zoom all.
select line tool and draw the line starting from base of 2.50 units.
now give line command @2<270, @0.5<180,@ 3<270, @3<0, @0.5<270, @2.5<0, @2.5<90 ,@2<180 and close
annotate all the dimensions to all the line segements

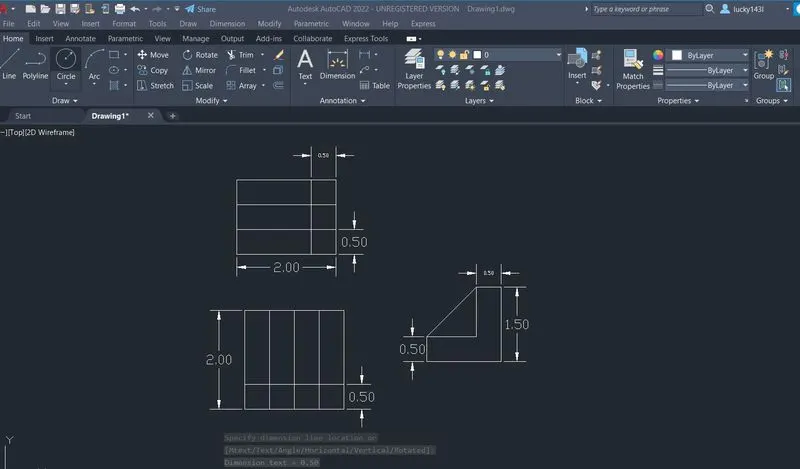

OpenNew file < units-decimal < precesion- 0.0000 ok
Dimensions of sheets -12,9.
zoom all
Select line tool and draw leength starting from the base 1.50 units.
Draw offset at 0.50 units then taking total length1.5 outer boundary and take off offset of 0.50 for vertical segement.
follow the stepsto draw to 2units geomentry and rotates towards left.
using the line command and draw the shape L geomentryand connect to make the triangualr position.
abnnotate and give dimensions to all the line segments.

OpenNew file < units-architectural < precesion- 0'0" feet ok
Dimensions of sheets -12'9'
zoom all.

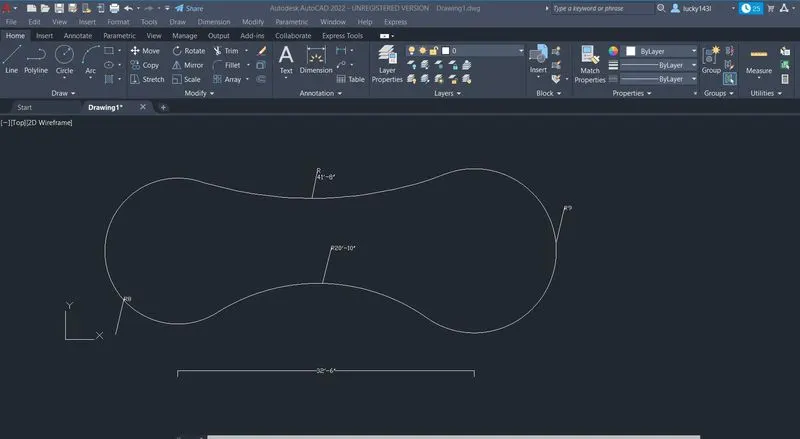

Select circle tool and draw circle of radius 8' & 9" at a centre of distance 32'6".
using fillet optionconnect the circles with radius 41'-8" and 20'10".
annotate and give dimension to all circles and close.

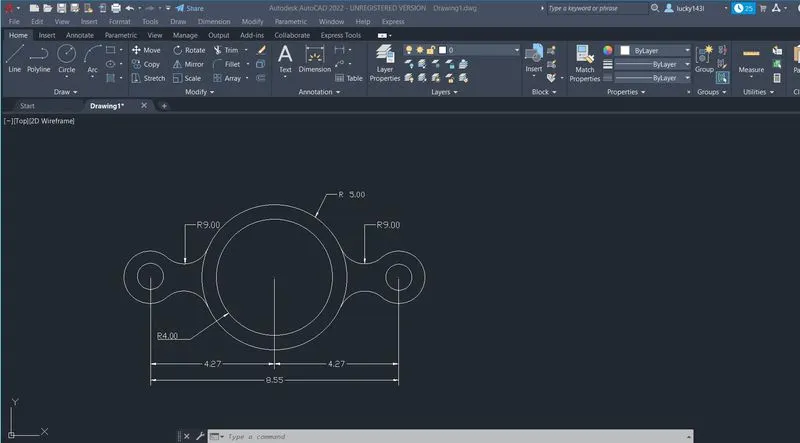

OpenNew file < units-decimal < precesion- 0.0000 ok
Dimensions of sheets -12,9.
zoom all
Draw concentric circles with diameter 4 and 5 units. draw one circle at 4.27 distance from centre.
draw parallel line and draw fillet of radius 0.9 and extend the line to draw tangent of bigger circle.
mirror the same towards right and trim the extras in the geomentry.
annotate and give the dimensions to all the line segments and circles.

Results: All the above geomentries are draqn by using chamfer ,fillet ,trim ,circles and line command tools.
