Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER

que 1

Aim-to develop model as per the given plan and analyse and design the structure

tools used-

• paint
• manage property set
• construction level
• grid
• columns
• beams
• reports
• model report
• show report
• interactive design
• slab on beam
• frames
• roof a panel
• wall panel
• load cases
• seismic wizard

Procedure -

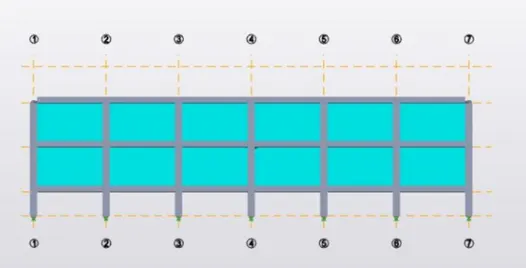

• take the screenshot of the plan and open them in a paint
• Draw the position of column and beam in a paint

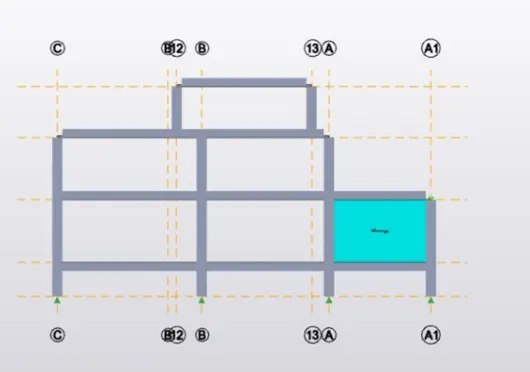

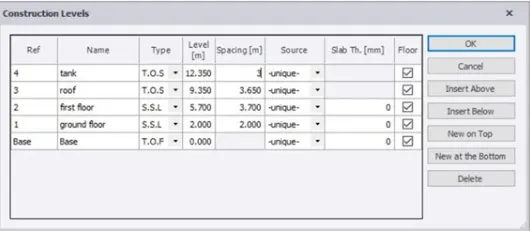

• Open tekla file and create the construction level for the structure according to the plan

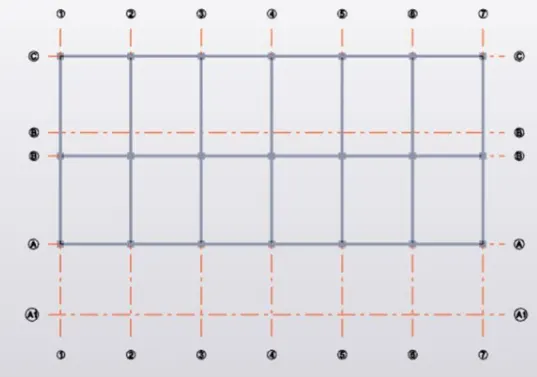

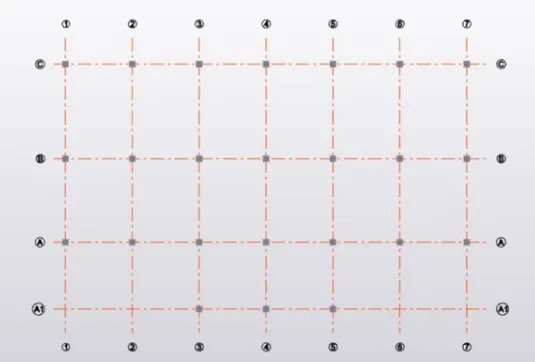

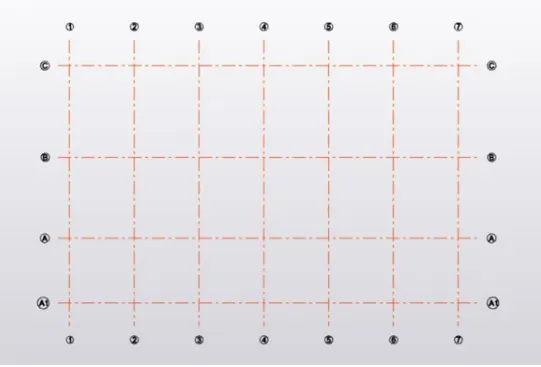

Construct a horizontal and vertical grid lines

SelecT size of the concrete column section used in the construction as per requirement

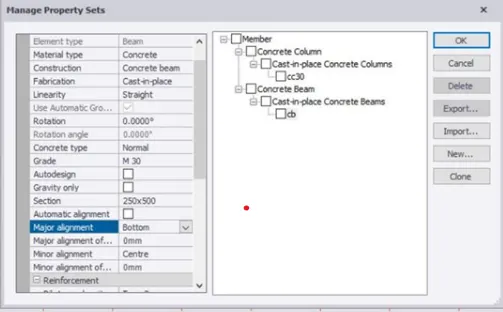

Go to manage property set and create member using the modelling

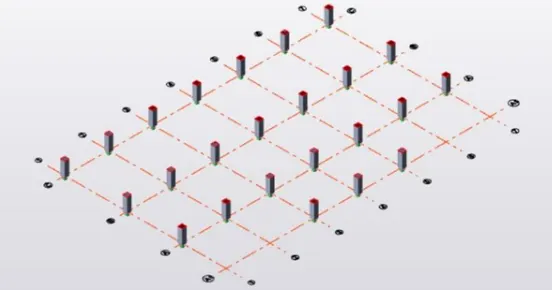

Go to the model tab and insert a concrete column in the structure

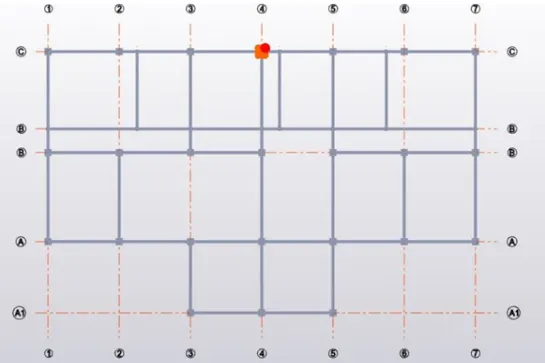

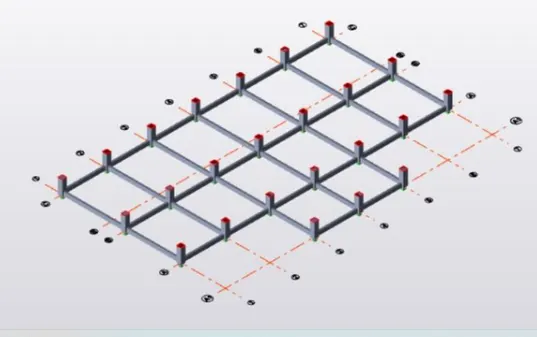

Go to the model tab and select the beam tool and draw the beam as per the plan

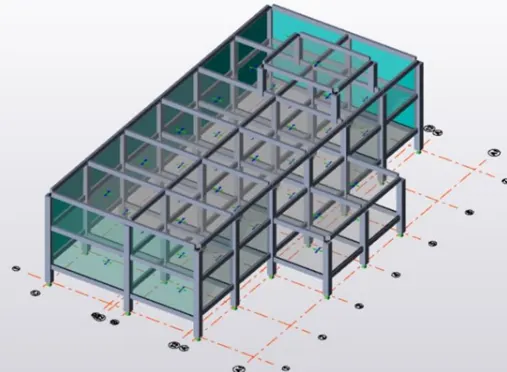

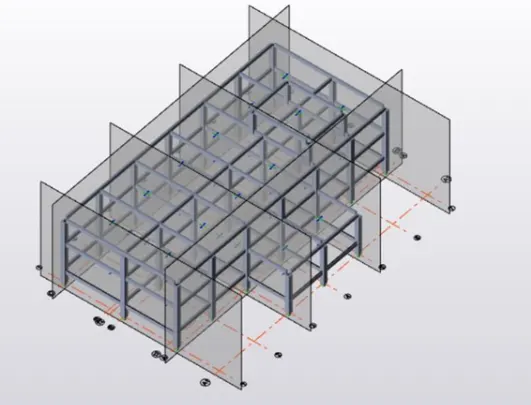

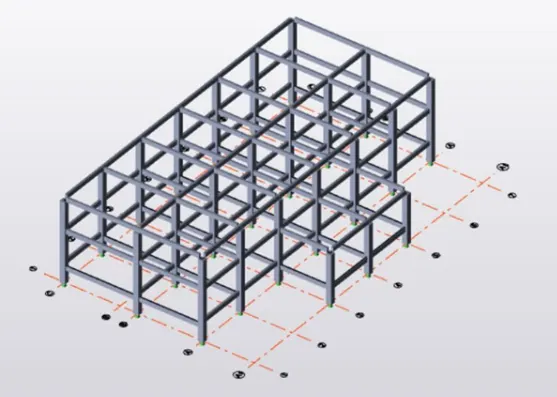

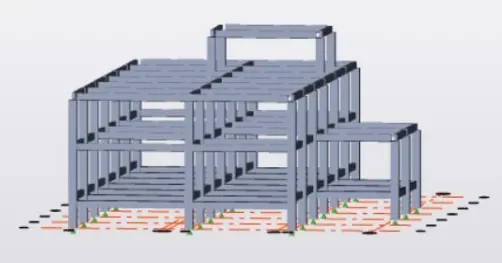

We can check the structure in a 3D for a neat view

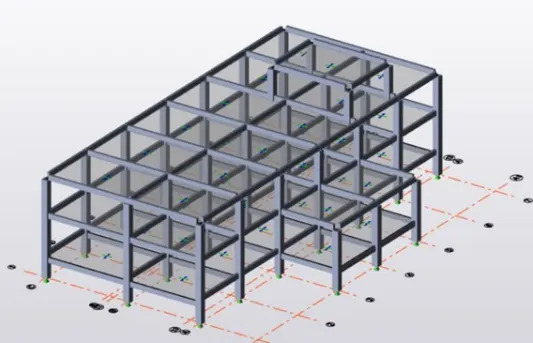

RePEAT the same process for the level as per the plan

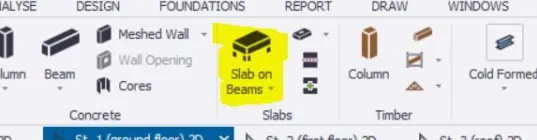

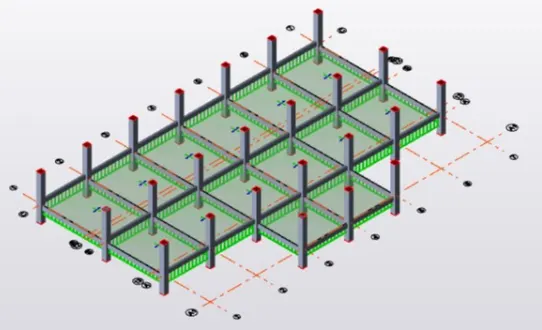

Select slab on beam and insert a slap for all floors where ever required

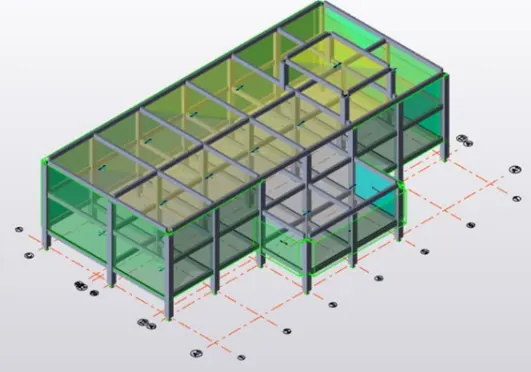

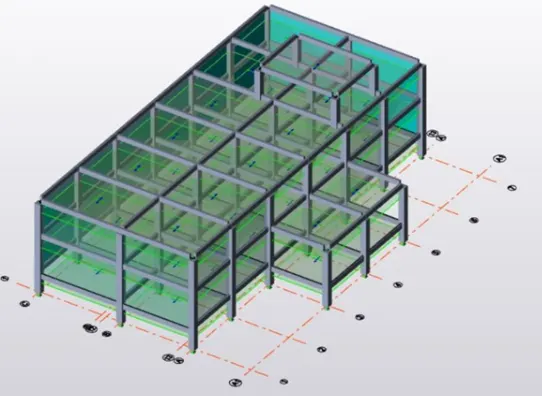

Go to 3D view to get a Clear View of the slab inserted

Insert a frame which will be helpful while applying loan on structure

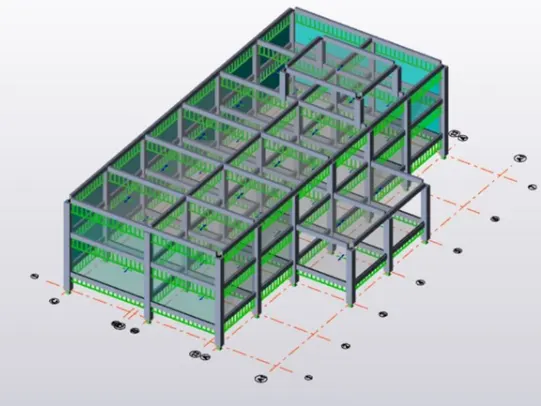

Add wall panel to the structure

Repeat the same step for all the walls

Go to the loads and create new load cases

ADD the dead load On The Beam

Repeat the same step for all the floors

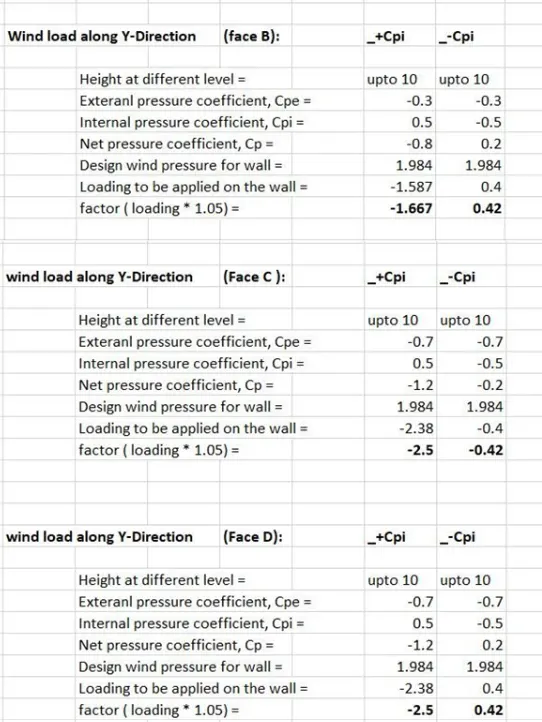

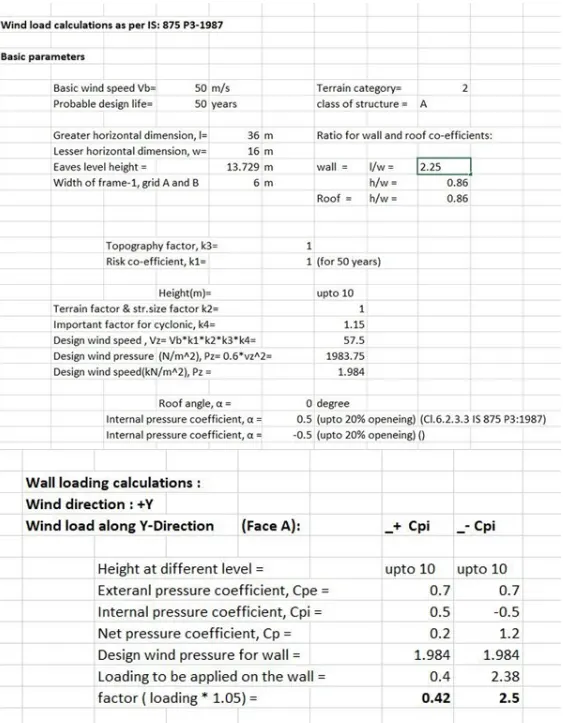

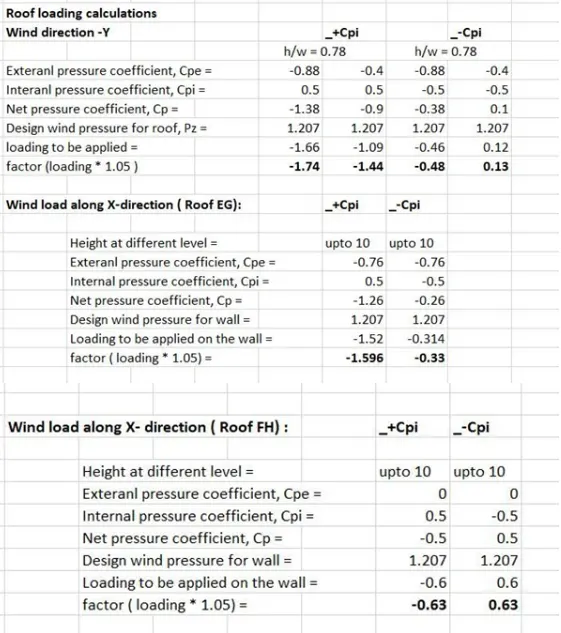

Do the wind load calculation for all the side for both X and Y

Start applying the wind load on the structure

Repeat the same process for all the sides
Add roof panel to the structure and also add roof load

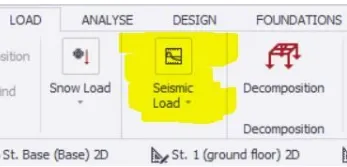

Applies SEISMIC LOAD on the structure by selecting seismic wizard

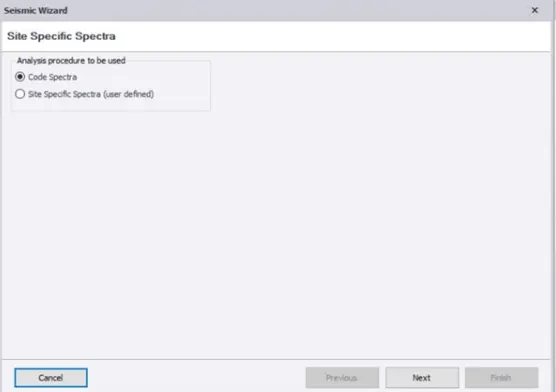

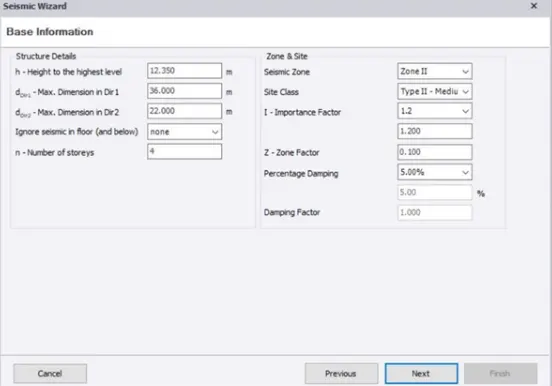

seismic Wizard dialogue box appears

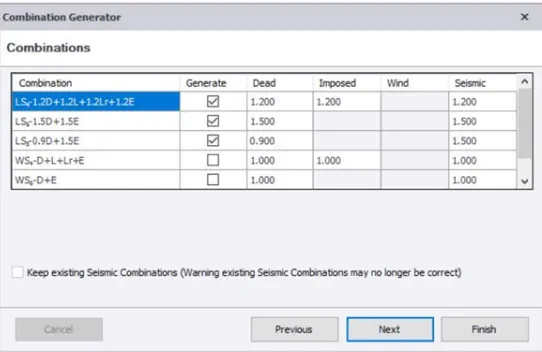

Add a loads which will be applied are visible now

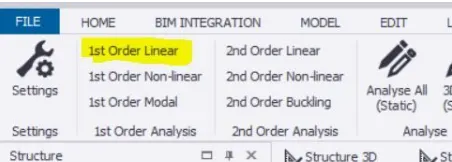

Analyse structure by selecting the first order linear option

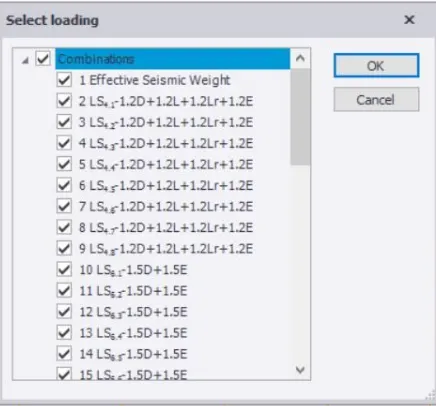

Select all the loadings required for analysis

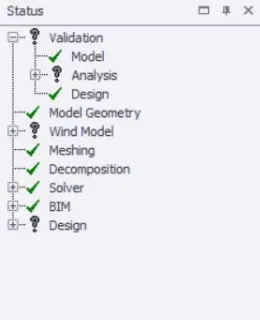

Validate the model to check that there are no errors

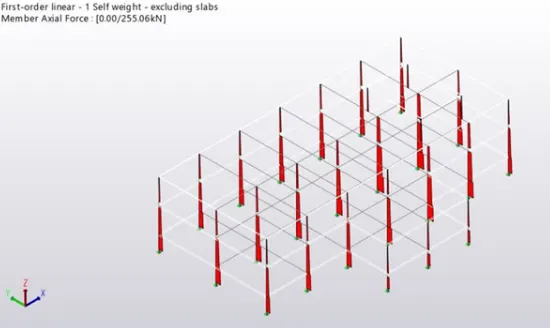

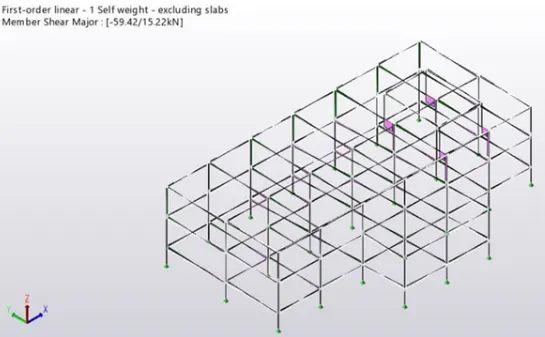

Check the axial load diagram

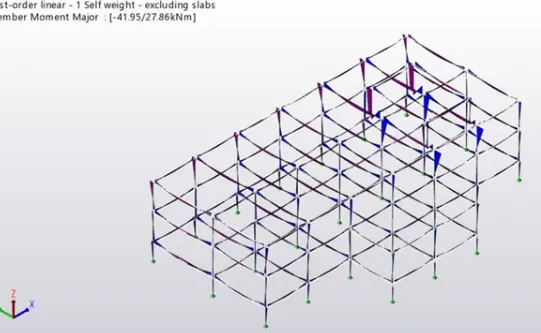

Check the shear force bending moment diagram

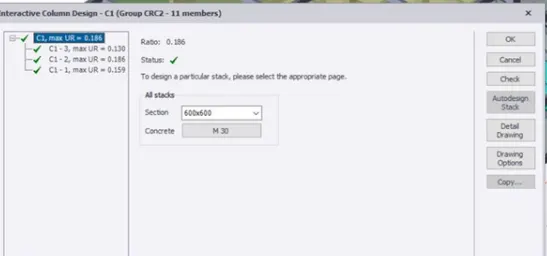

Check each and every column and perform interactive design

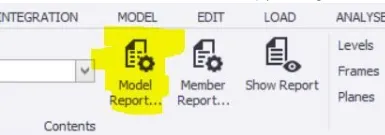

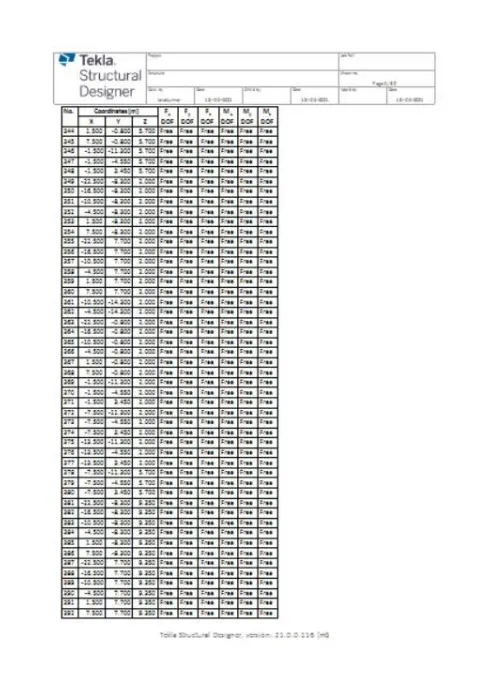

Now we can model the structure by pressing on the model reporter to obtain the reports

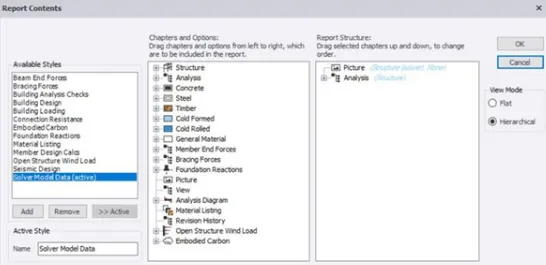

Select all reports we need

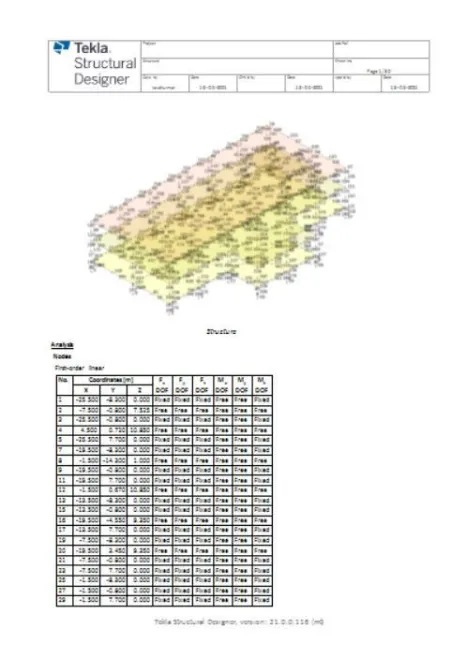

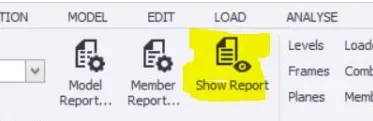

Now for seeing the report we have to press on the show reports option

Result -with above steps we can design and model the structure as per the given plan we can add a loads to the structure and analyse the structure
