Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER

AIM : TO Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER.

PROCEDURE :

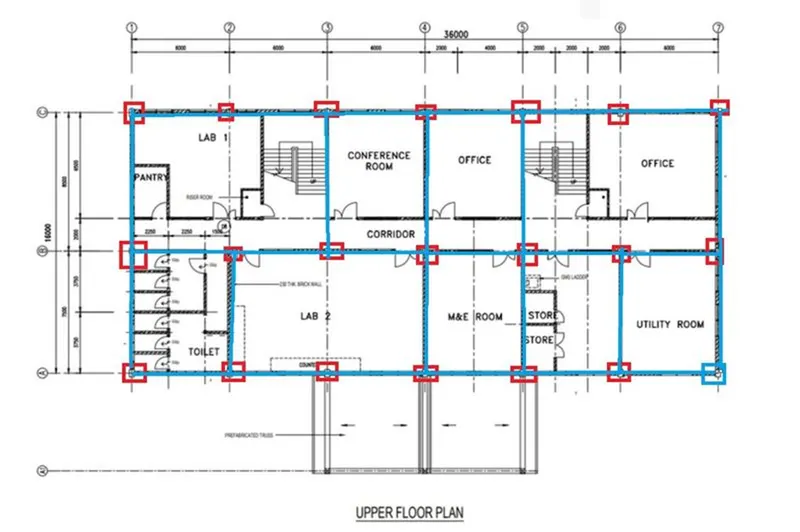

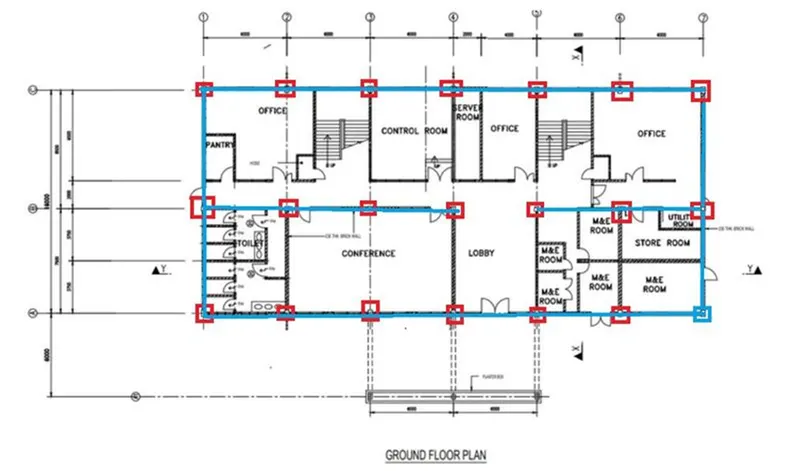

• First we have to mark the column and beam positions in tthe given plan.

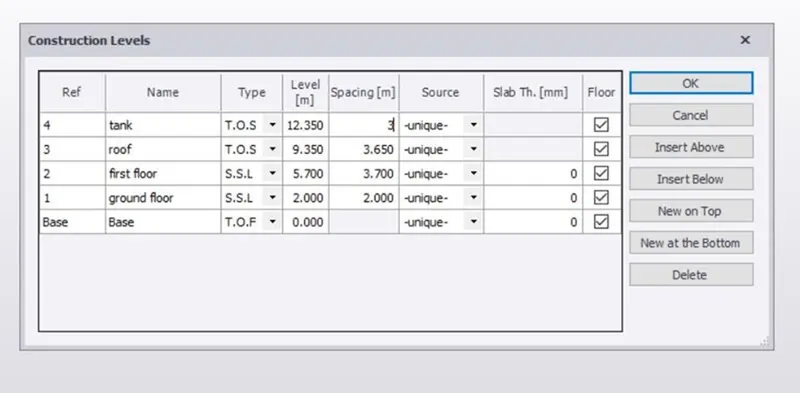

• Open tekla softwre and create the construction levels with the given data of elevations.

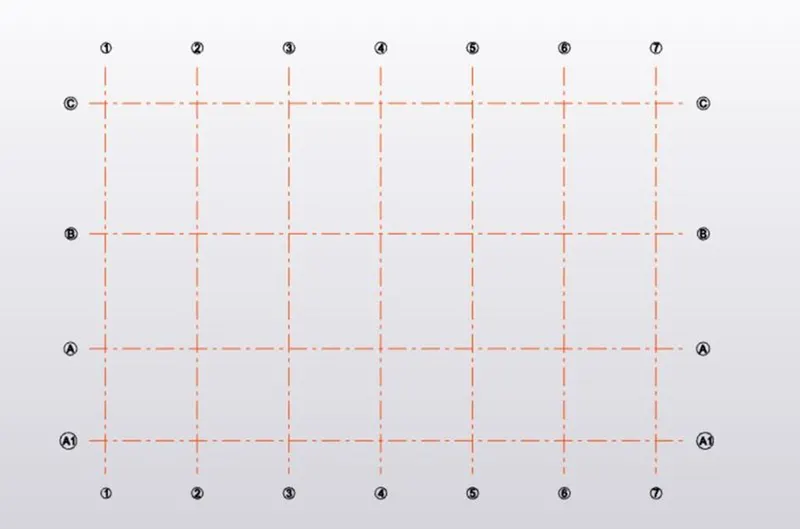

• then create grids for the model based on the data from the plan

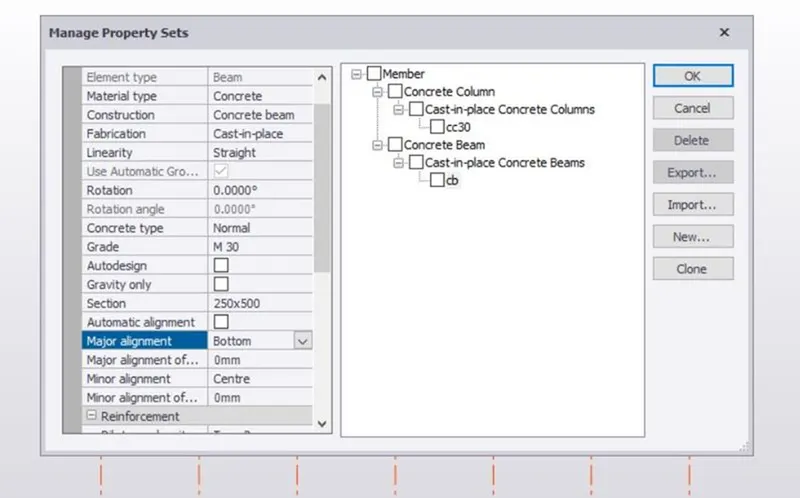

• define the members in the manage property sets tab.column and beam foting and slabs.. ..

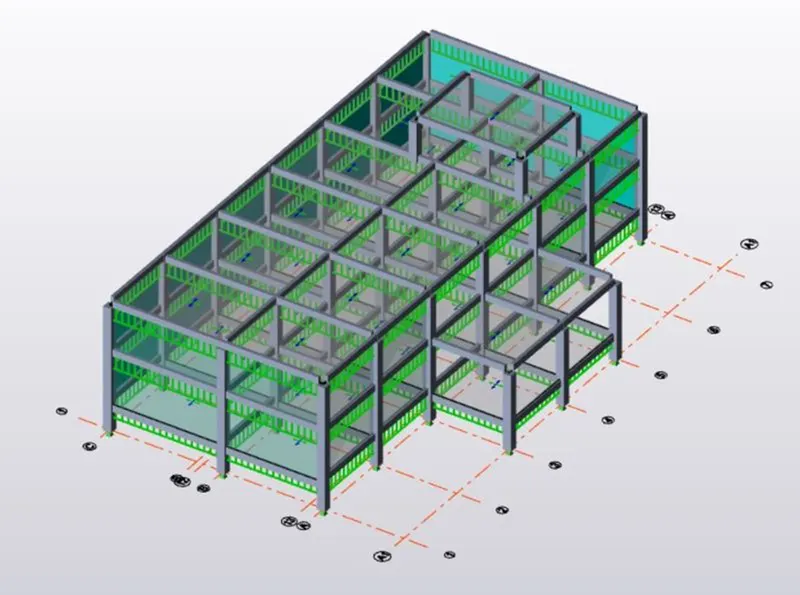

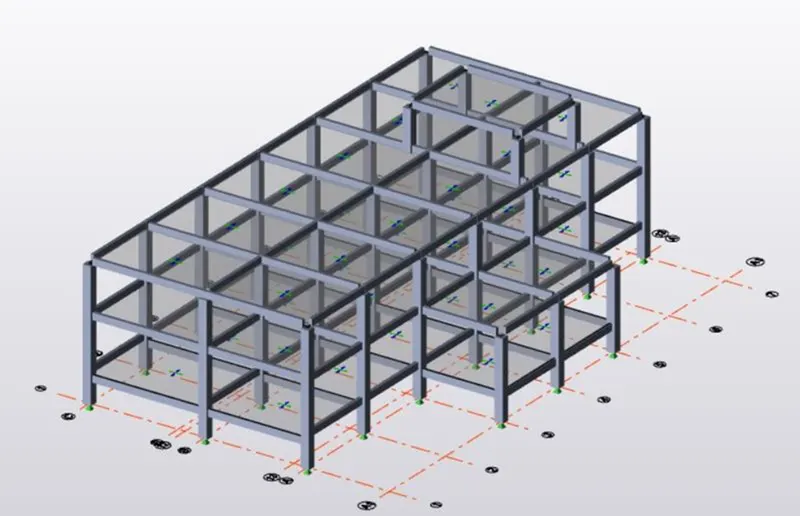

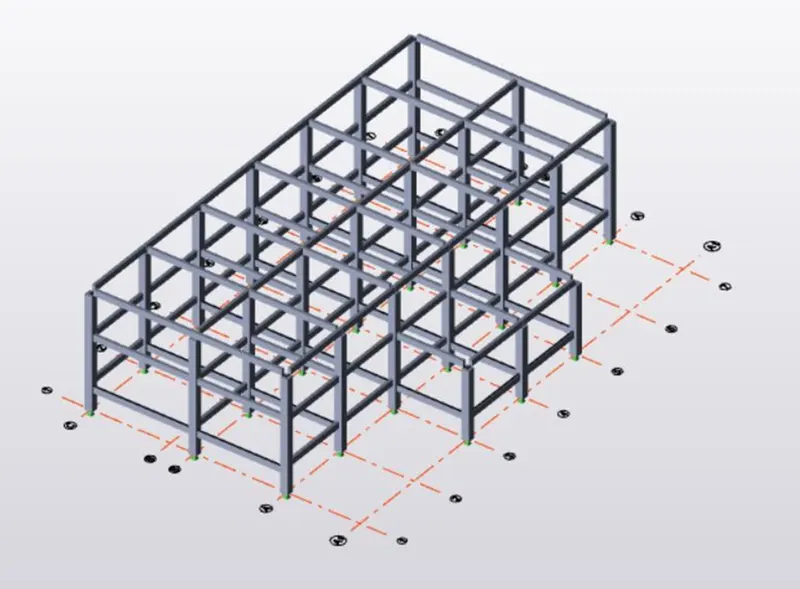

• after that go to model and draw the columns and beams with the help of grid line in the model choose from the model tab.
• follow the procedure for the typical floors .

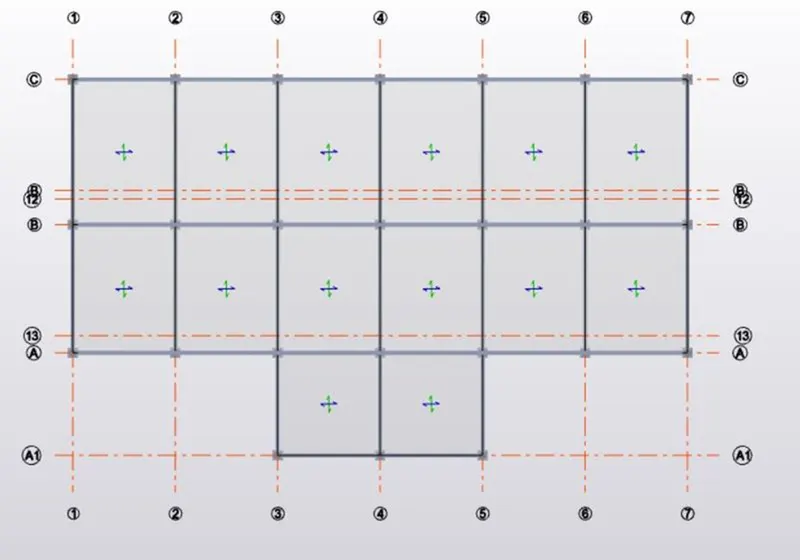

• draw the slabs up on the columns @ the levels.

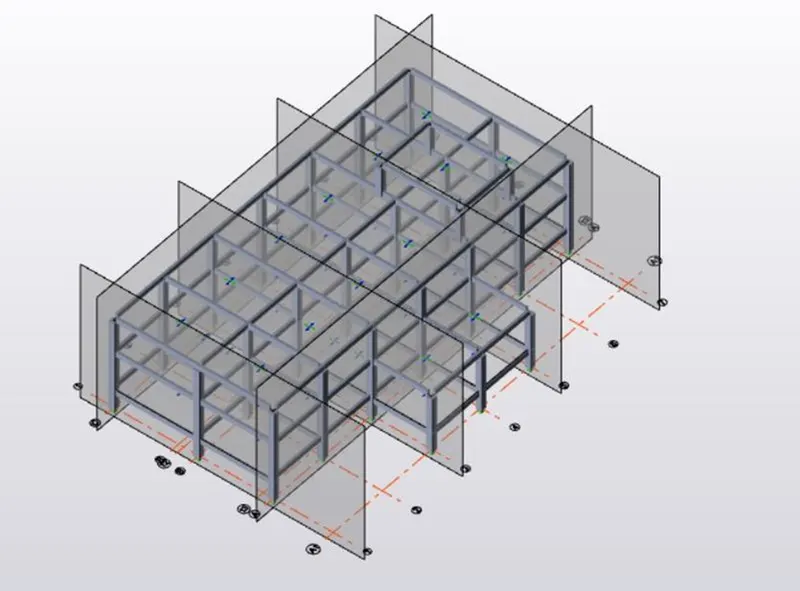

• draw the frames under the model tab to apply the loads on the model ...from the different directions.

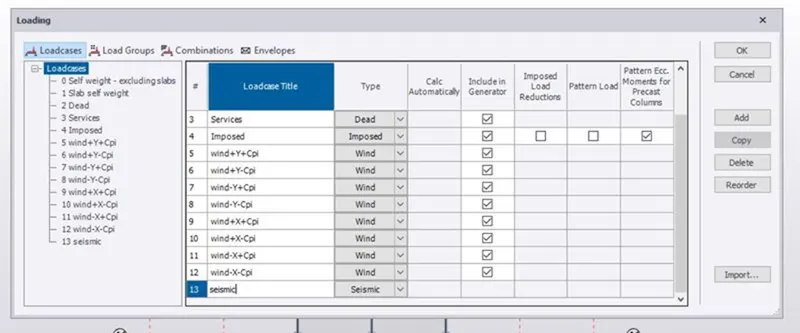

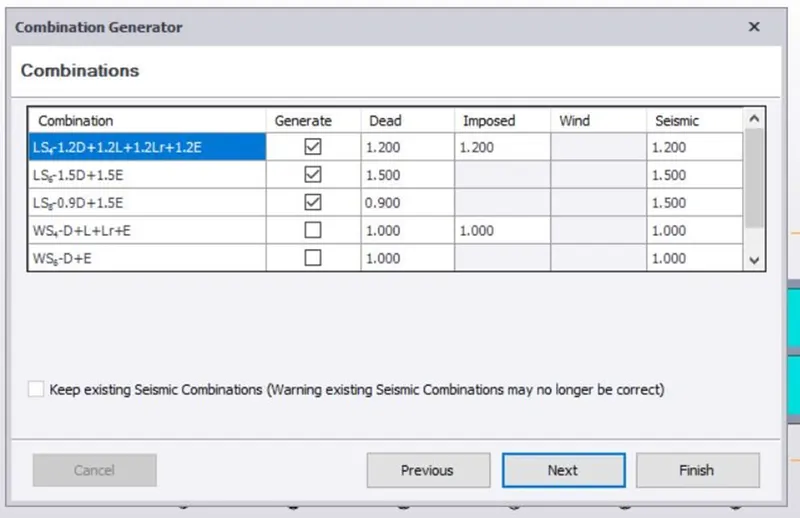

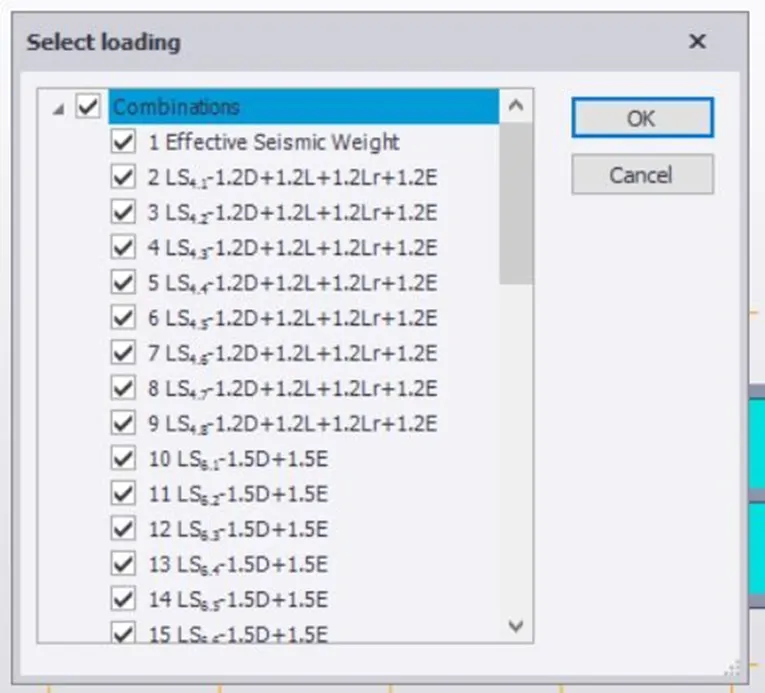

• now goto the loads tab and create the the loads and load combinations .
• then apply the loads on the model structure.

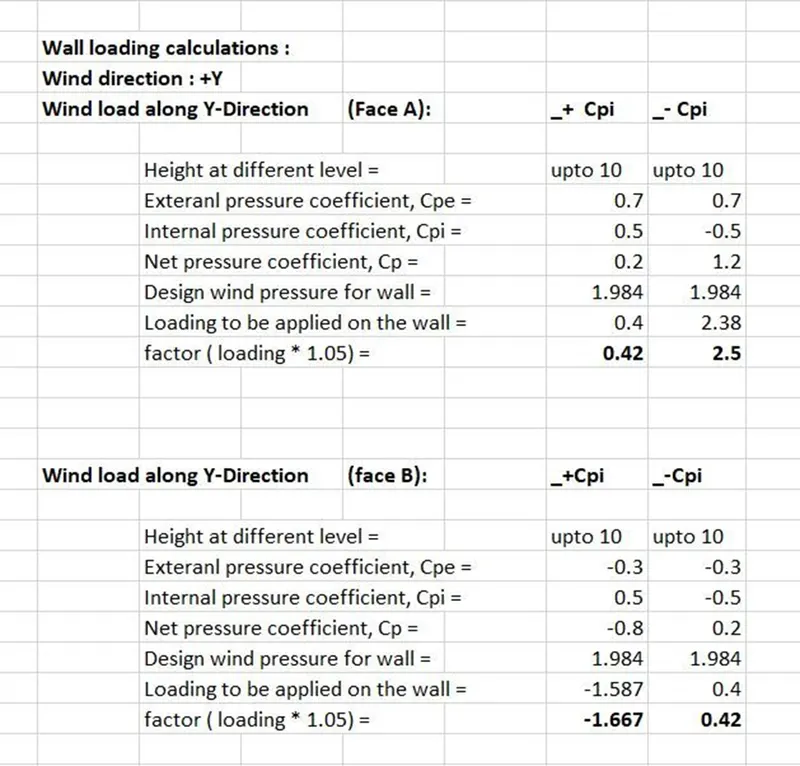

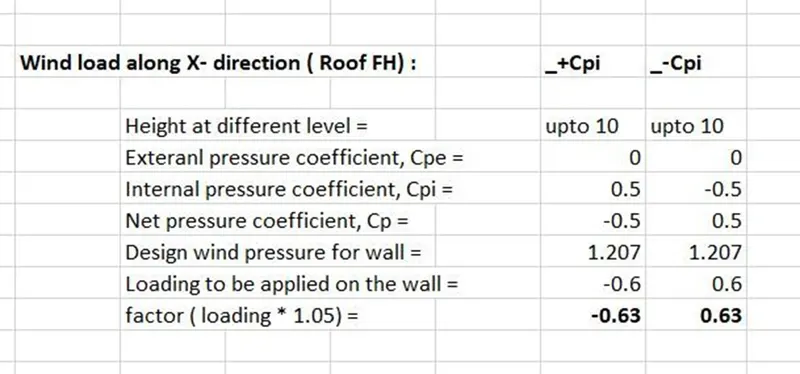

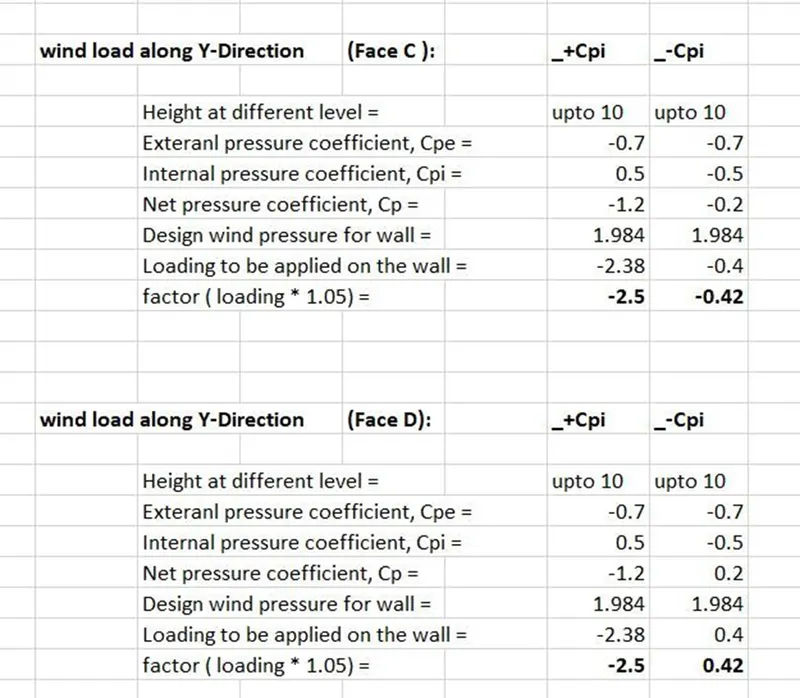

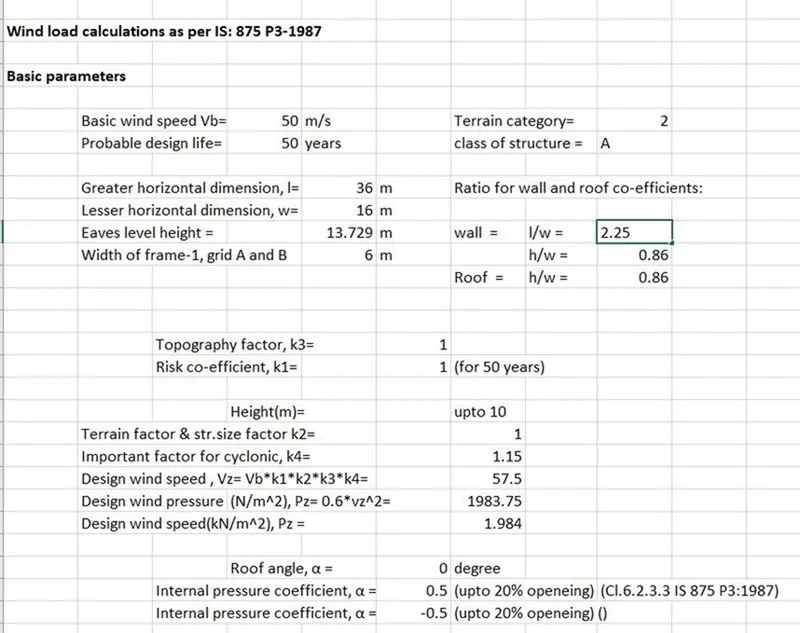

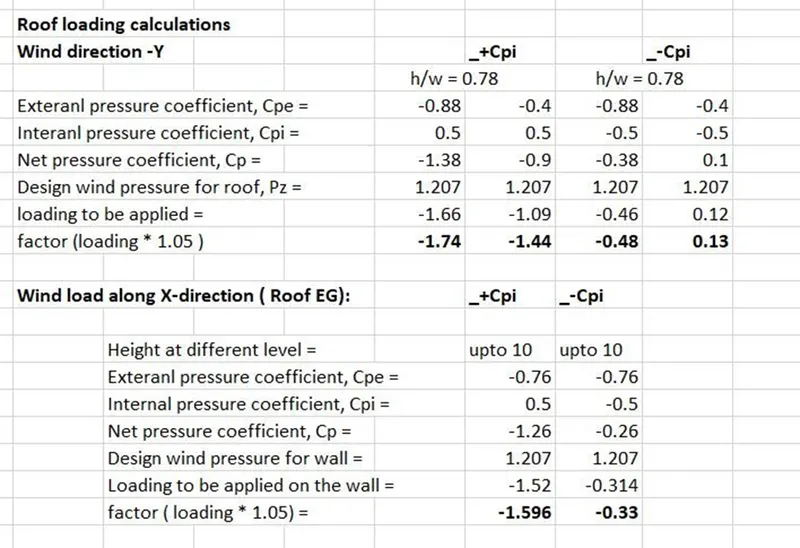

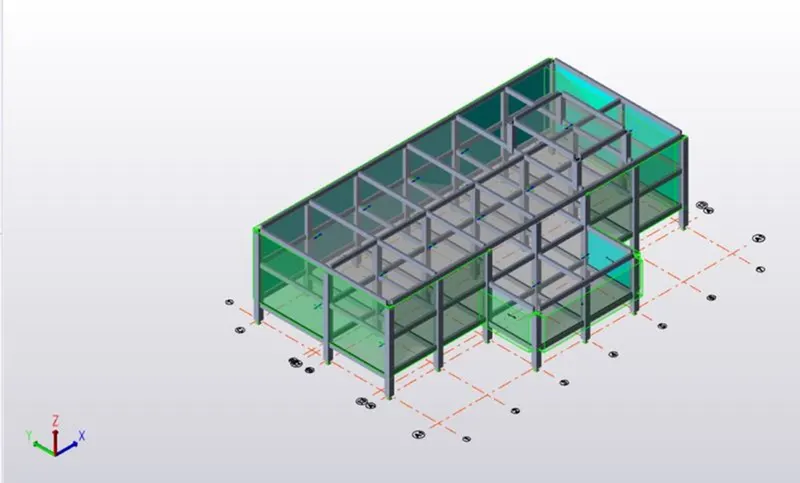

• next calculate the wind loads and add the load cases then apply thwm to the model structure.
• wind or sesismic case one of the case is enough. but we are checking both in this model.

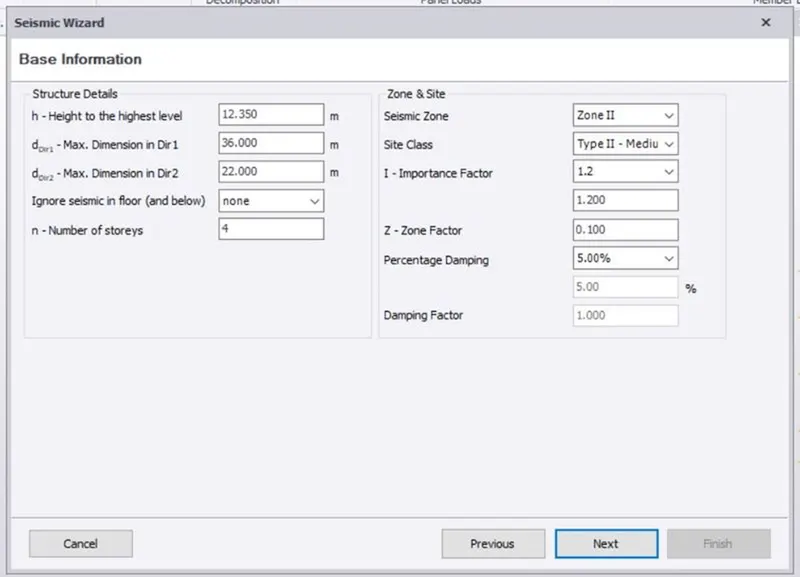

• so goto sesmic wizard option in the load tab.and add the data in th dialogue boxe.

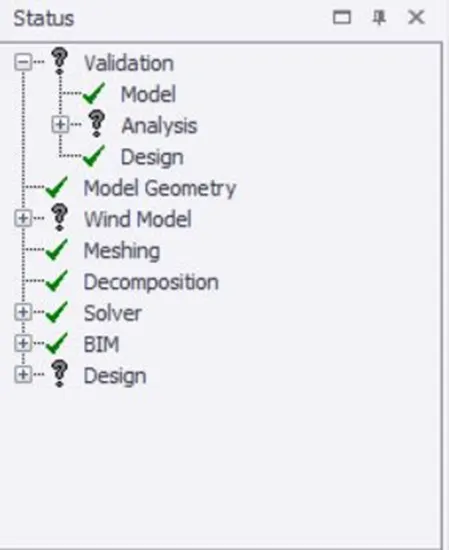

• finally check the errors in the model via validation option.

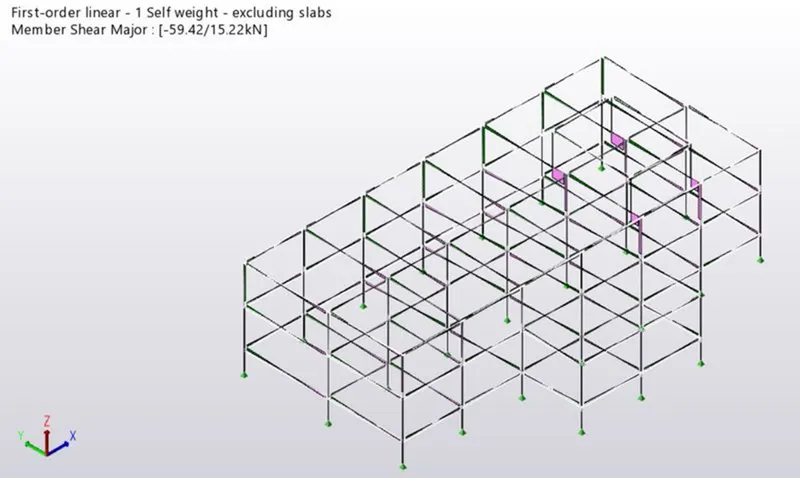

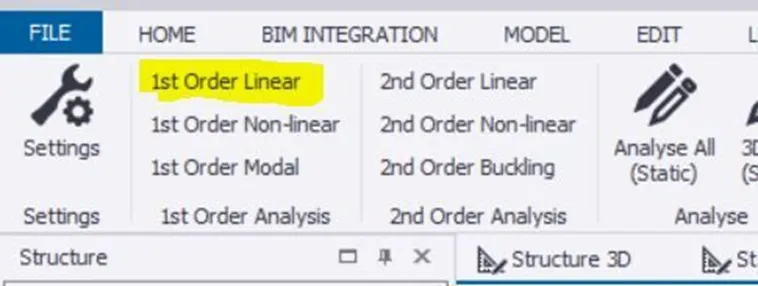

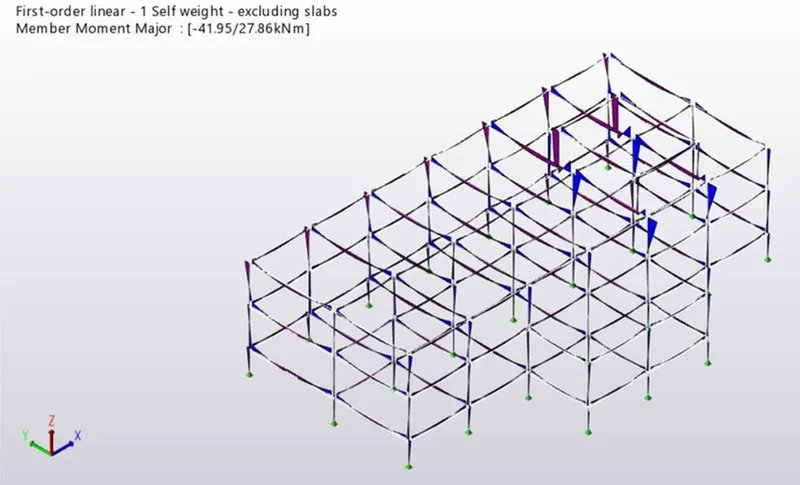

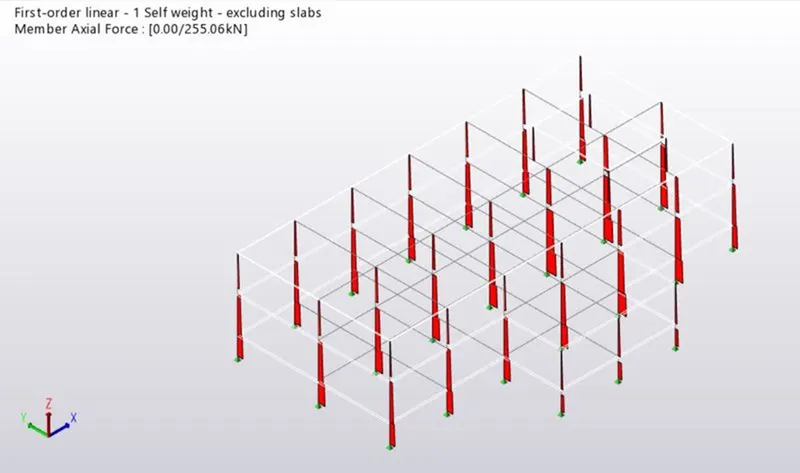

• after all that analyze the model structure by selecting the 1'st order linear option.

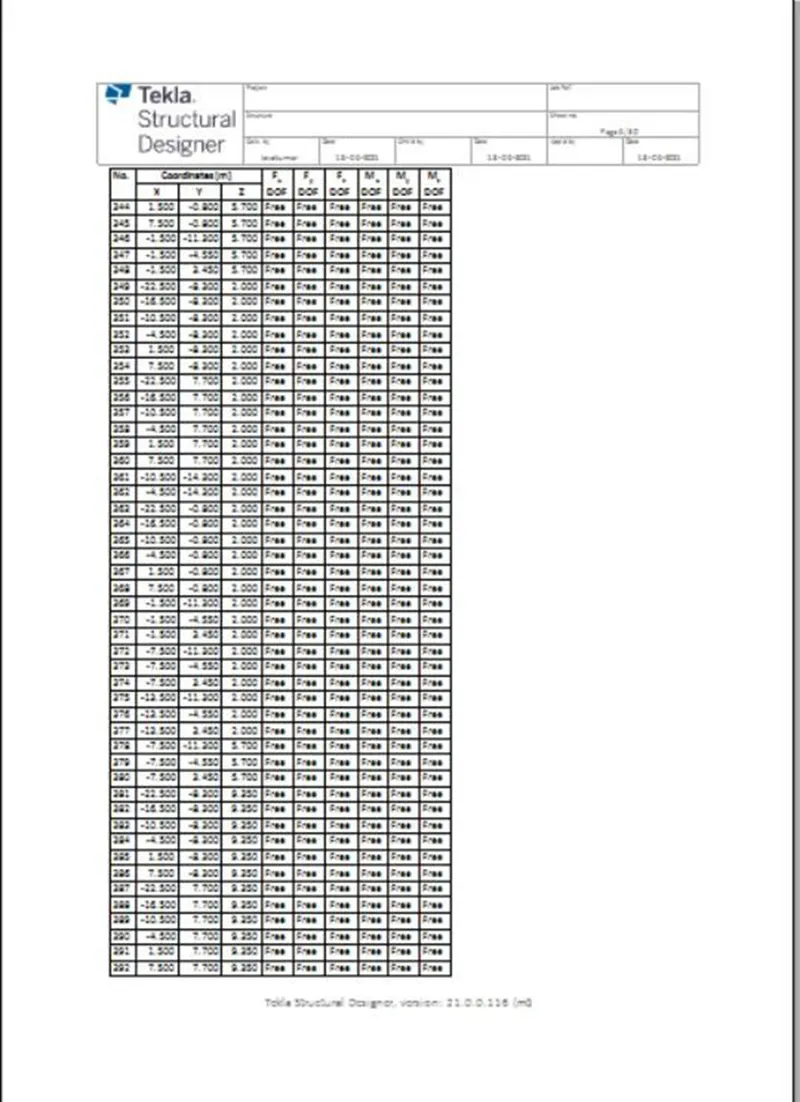

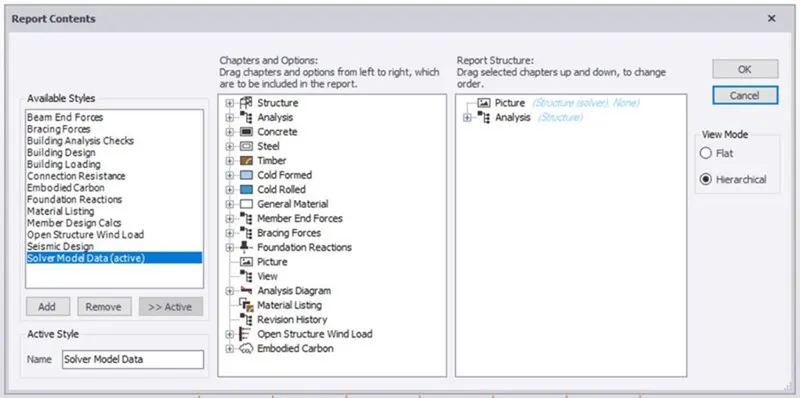

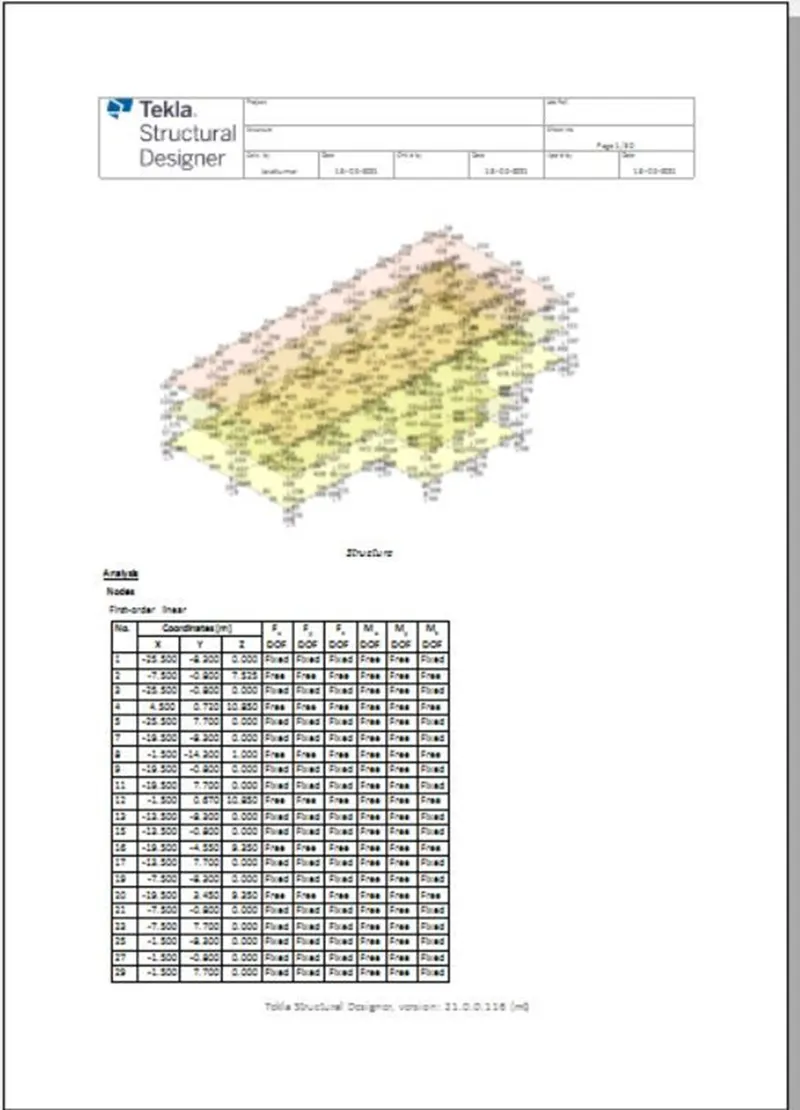

• we can see the results in the reports.

RESULTS :

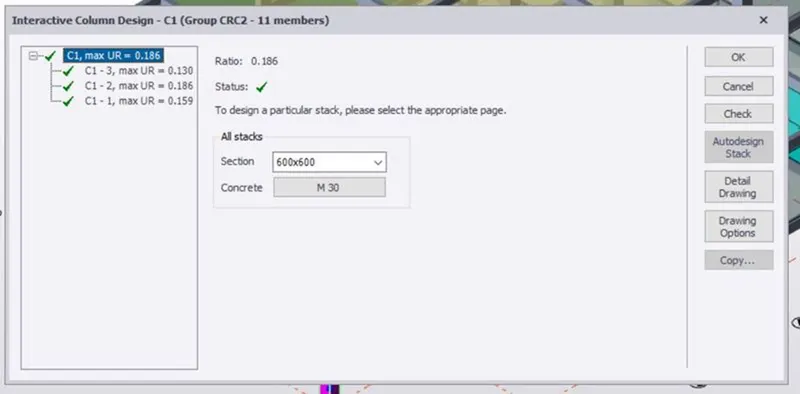

• We Analyzed and Designed the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER software .

• The results that we got uploaded above.
