Project 2 Adaptive Cruise Control
Aim : To Develop a Model for Adaptive Cruise Control.
Description :
I have developed this Model for Adaptive_Cruise_Control & this is the feature of Advanced Driver Assistance system in the vehicle. In this model 3 requirements or subsystem as we call are given in the as a question, In the 1st subsystem 2 i/p are there (CameraInput_LeadVehicle & RadarInput_LeadVehicle) and o/p is LeadVehicle_speed, In the 2nd subsystem 3 i/p are exist ( CameraInput_DriveVehicle & RadarInput_DriveVehicle & Acceleration_Mode) and 2 o/p ( DriveVehicle_Speed & LeadVehicle_Detected ) and LeadVehicle_Speed is renamed of RadarInput_DriveVehicle, In the 3rd requirement 8 i/p are exist ( Time_Gap, Set_Speed, Set_Gap, CruiseSwitch, SetSwitch, CameraInput_LeadVehicle, RadarInput_LeadVehicle, CameraInput_DriveVehicle, RadarInput_DriveVehicle ) and o/p is Acceleration_Mode. Output of 3rd subsystem is input of 2nd subsystem. In 3rd subsystem 3 Modes are there Viz, 1. OFF_Mode 2.STANDBY_Mode 3.ON_Mode in this modes OFF_Mode is the default states in the ON_Mode 6 different states are exist.
1] What is Adaptive_Cruise_Control ?
Ans = Adaptive cruise control (ACC) is a system comes under ADAS and it is designed to help the vehicles to maintain a safe distance and stay within the speed limit as well as detect the vehicle which running infront of drive vehicle. This system adjusts a car's speed automatically so drivers don't have to do anything after giving the proper signals or setting parameters.
2] Why we should have to do Model_Advisory checks for every MODEL ?
Ans = The Model Advisor checks can help to verify the compliances with industry standards and guidelines as well as MAAB guidelines. It is the nothing but cross-verification of everything which we included in the particular Model. In the model advisory checks warnings should be less than 20 so, our model is acceptable.

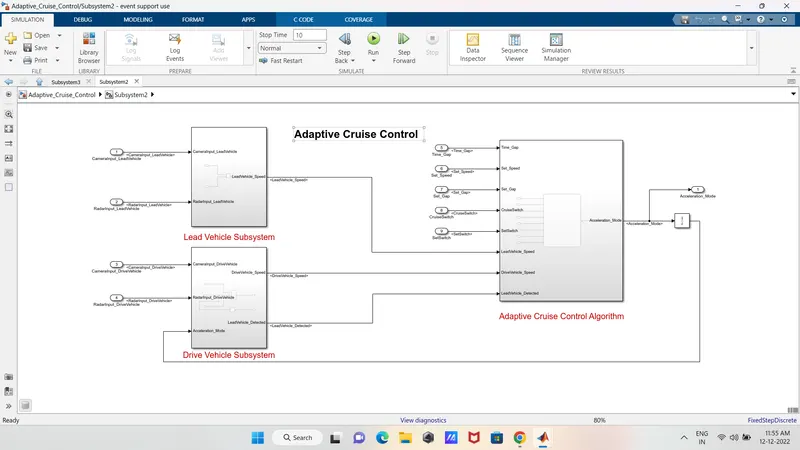

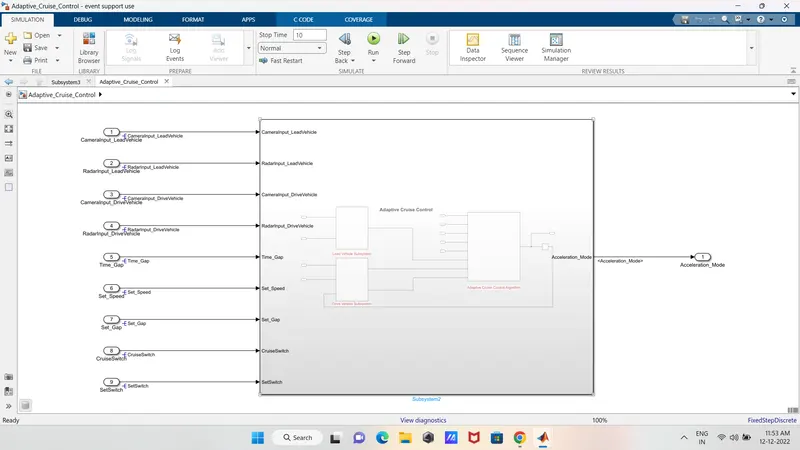

( Main model )

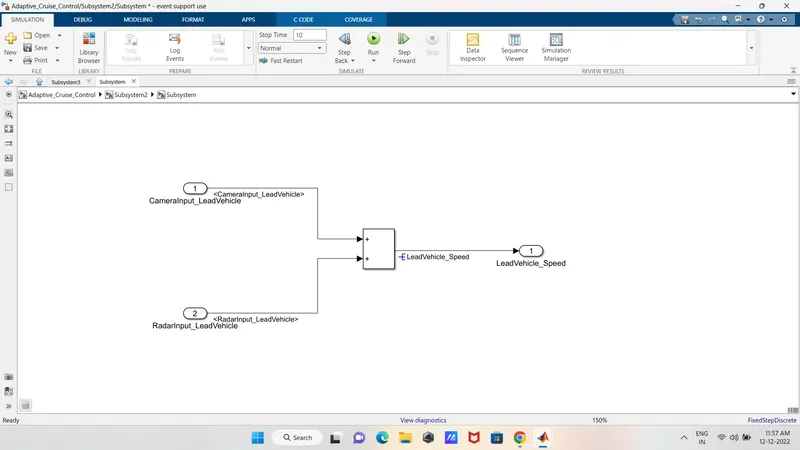

( Requirement 1)

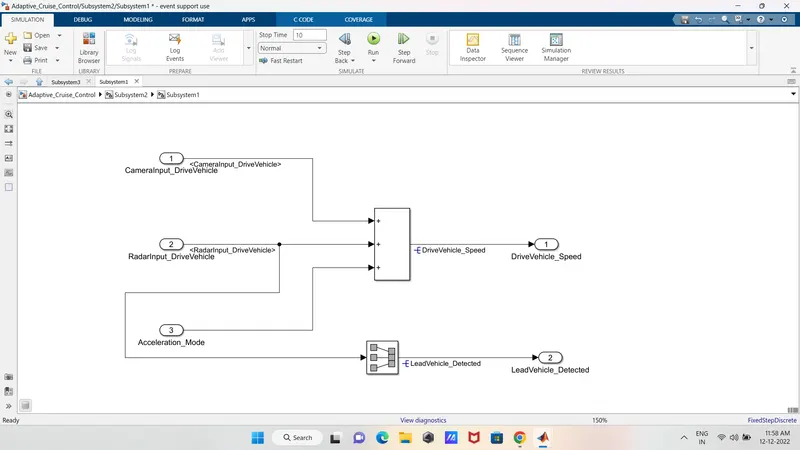

( Requirement 2)

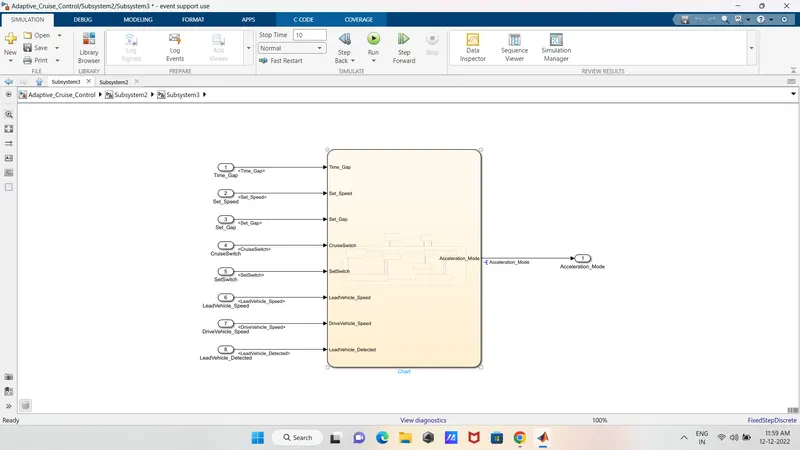

( Requirement 3)

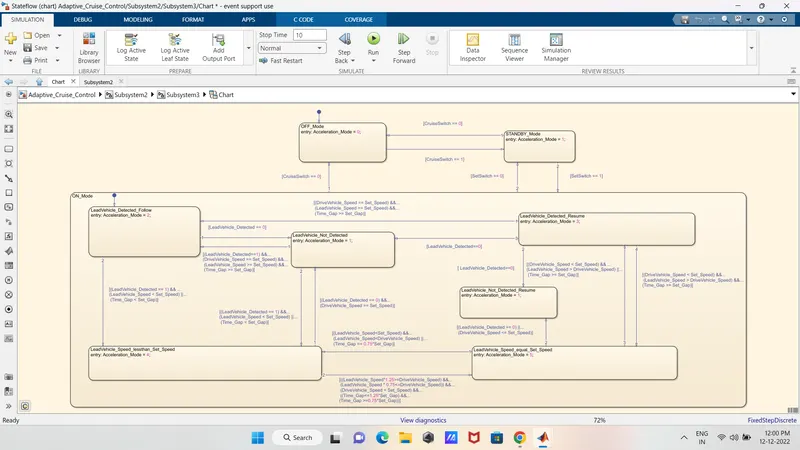

( Sub- Subsystem in requirement 3)

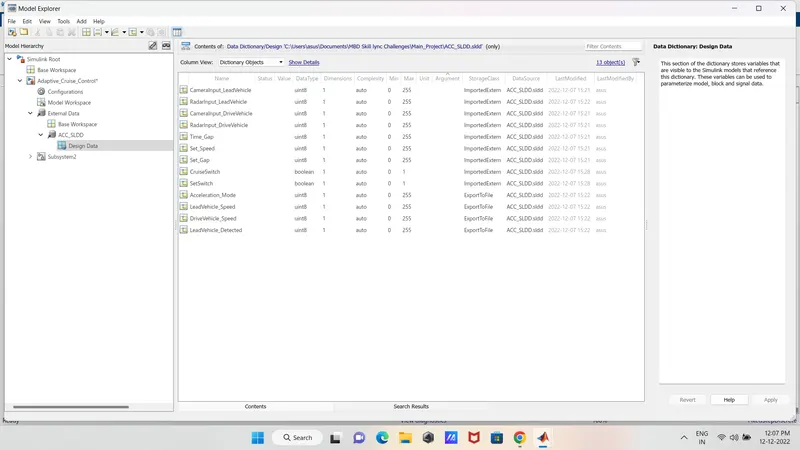

( Simulink Data Dictionary )

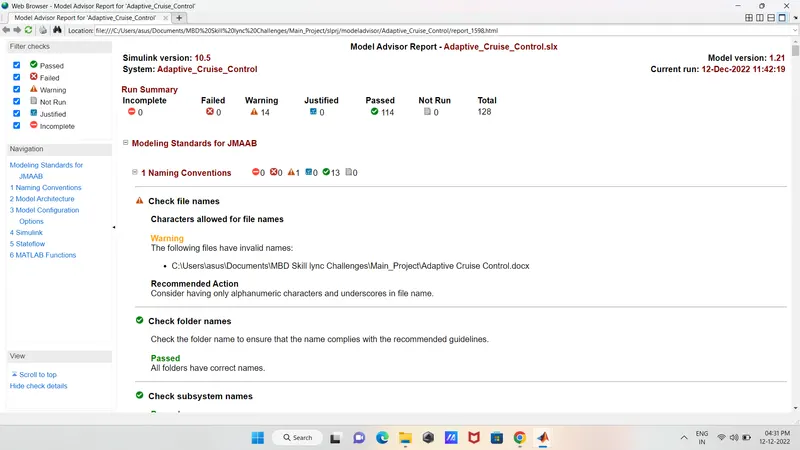

( Model Advisory Report )

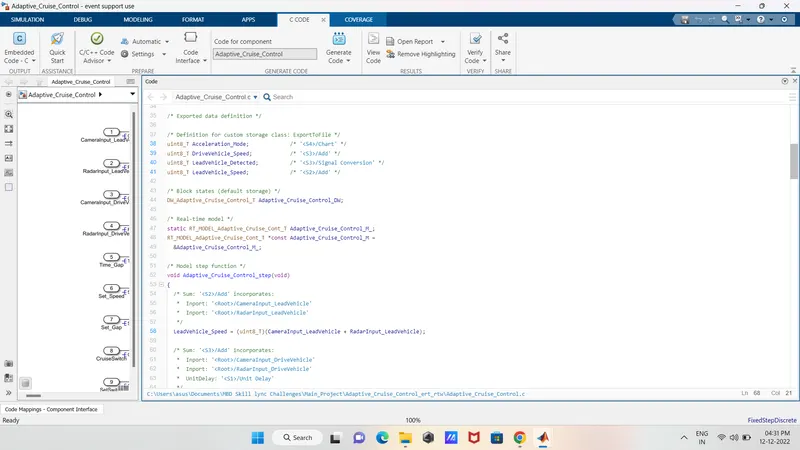

(C-Code of the Model )
