Project 2 Adaptive Cruise Control
Objective- To design the model of Adaptive Cruise Control (ACC) using Simulink.
Theory-
Adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic. Driving in heavy traffic or keeping a safe distance to the preceding vehicle calls for a high level of concentration. The Adaptive Cruise Control feature can reduce the stress on the driver by automatically controlling the vehicle speed & maintaining a predefined minimum distance to the preceding vehicle. As a consequence, the driver enjoys more comfort & can concentrate on the road little better.
A radar sensor is usually at the core of the Adaptive Cruise Control. Installed at the front of the vehicle, the system permanently monitors the road ahead. As long as the road ahead is clear, cruise control feature maintains the speed set by the driver. If the system spots a slower vehicle within its detection range, it gently reduces speed by releasing the accelerator or actively engaging the brake control system. If the vehicle ahead speeds up or changes lanes, the cruise control automatically accelerates to the driver’s desired speed.
Standard Adaptive Cruise Control can be activated from speeds of around 30 km/h (20 mph) upwards and supports the driver, primarily on cross-country journeys or on freeways. The cruise control stop & go variant is also active at speeds below 30 km/h (20 mph). It can maintain the set distance to the preceding vehicle even at very low speeds and can decelerate to a complete standstill. When the vehicle remains stopped longer, the driver needs only to reactivate the system, for example by briefly stepping on the gas pedal to return to cruise control mode. In this way, cruise control stop & go supports the driver even in heavy traffic and traffic jams.
Since Adaptive Cruise Control is a comfort and convenience system, brake interventions and vehicle acceleration only take place within defined limits. Even with Adaptive Cruise Control switched on, it remains the driver’s responsibility to monitor the speed and distance from the vehicle in front.
Project objective-
- Developing Adaptive Cruise Control feature as per the Requirement Document using MATLAB Simulink.
- Follow all the MBD related processes: Requirement Tagging & Traceability, SLDD creation, Configuration Parameter changes, Model Advisor check & Code Generation.
- In Configuration Parameters: enable “Support Floating Numbers” under Code Generation settings.
- Use Embedded Coder to generate the code.
- If choosing code generation, Storage class for Input signals: ImportedExtern; Storage class for Output signal: Export to File; Storage class for local signals: localizable; Storage class for calibration signals: Const.
- Choose sample time for all signals as 0.01s
Requirements-
Requirement 1– Lead Vehicle:
- Lead Vehicle is a vehicle which is driving in the road ahead of our drive vehicle. Two input signals (Signal Name: CameraInput_LeadVehicle & RadarInput_LeadVehicle).
- Ideally sensor fusion techniques will be deployed to process & analyze data from camera & radar. For complexity reasons, let’s not adapt to any such algorithms.
- We can simply add both the radar & camera inputs & the corresponding output is read as Speed profile output (Signal Name: LeadVehicle_Speed).
- Speed data of the lead vehicle is critical in implementing the Adaptive Cruise Control algorithm.
Requirement 2 – Drive Vehicle:
- Drive Vehicle is the vehicle driven by the user & this is the vehicle which has ACC algorithm in it.
- Like the Lead Vehicle, Drive Vehicle algorithm also has 2 input signals (Signal Name: CameraInput_DriveVehicle, RadarInput_DriveVehicle) & one signal coming as an Input to this subsystem (Signal Name: Acceleration_Mode) – three inputs into this requirement in total.
- Like the above requirement, sensor fusion techniques will also be deployed here, for complexity reasons we are ignoring them.
- Two output signals come from this subsystem (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected).
- Signal DriveVehicle_Speed is summation of three input signals mentioned above & LeadVehicle_Detected is renamed from Input Signal RadarInput_DriveVehicle by mere use of Signal Conversion block.

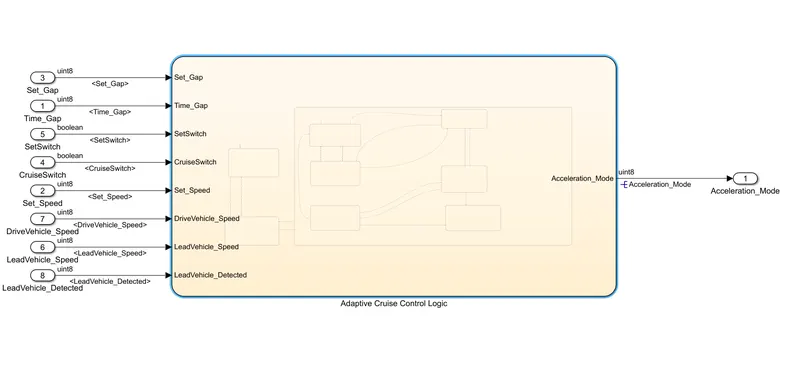

Requirement 3 – Adaptive Cruise Control Algorithm:

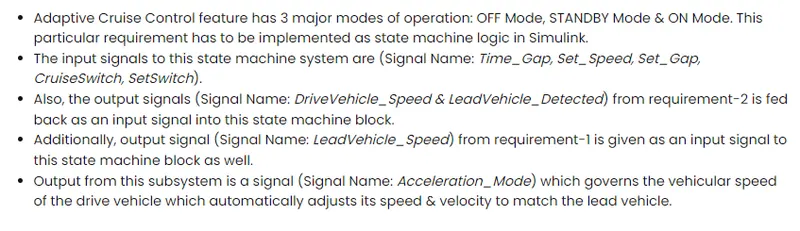

- Adaptive Cruise Control feature has 3 major modes of operation: OFF Mode, STANDBY Mode & ON Mode. This particular requirement has to be implemented as state machine logic in Simulink.
- The input signals to this state machine system are (Signal Name: Time_Gap, Set_Speed, Set_Gap, CruiseSwitch, SetSwitch).
- Also, the output signals (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected) from requirement-2 is fed back as an input signal into this state machine block.
- Additionally, output signal (Signal Name: LeadVehicle_Speed) from requirement-1 is given as an input signal to this state machine block as well.
- Output from this subsystem is a signal (Signal Name: Acceleration_Mode) which governs the vehicular speed of the drive vehicle which automatically adjusts its speed & velocity to match the lead vehicle.
Requirement 3a – ACC OFF MODE state logic:
- This is the default state inside state machine logic. Output signal Acceleration_Mode is at value 0 in this state.
- This state is governed by input signal CruiseSwitch.
- If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
Requirement 3b – ACC STANDBY MODE state logic:
- This is the second activated state inside state machine logic. Output signal Acceleration_Mode is at value 1 in this state.
- This state is governed by both input signals CruiseSwitch & SetSwitch.
- If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
- If SetSwitch is equal to 1, state ACC ON mode will get activated. If SetSwitch is equal to 0, state ACC STANDBY mode will get activated.
Requirement 3c – ACC ON MODE state logic:
This state will be activated when input signal SetSwitch is equal to 1. There are 6 sub states to this state logic: They are:
- LeadVehicle_Detected_Follow (Default)
- LeadVehicle_Not_Detected
- LeadVehicle_Detected_Resume
- LeadVehicle_Not_Detected_Resume
- LeadVehicle_Speed_lessthan_Set_Speed
- LeadVehicle_Speed_equal_Set_Speed
Requirement 3c (i) – LeadVehicle_Detected_Follow (ACC ON MODE):
- This is the default sub state inside ACC ON MODE state. Output signal Acceleration_Mode is equal to 2.
- Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Not_Detected; Input signal condition LeadVehicle_Detected == 0.
- Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Speed_lessthan_Set_Speed; Input Signals condition (LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap).
Requirement 3c (ii) – LeadVehicle_Not_Detected (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 1.
- Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Detected_Follow; Input signals condition [(LeadVehicle_Detected==1) && (DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
- Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Speed_lessthan_Set_Speed; Input signals condition [(LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap)]
Requirement 3c (iii) – LeadVehicle_Detected_Resume (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 3.
- Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Detected_Follow; Input signals condition [(DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
- Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Not_Detected_Resume; Input signal condition LeadVehicle_Detected==0.
- Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Speed_equal_Set_Speed; Input Signal condition [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) && (Time_Gap >= Set_Gap)]
Requirement 3c (iv) - LeadVehicle_Not_Detected_Resume (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 1.
Requirement 3c (v) - LeadVehicle_Speed_lessthan_Set_Speed (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 4.
- Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Not_Detected; Input signal condition [(LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed)]
- Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Speed_equal_Set_Speed; Input signals condition [((LeadVehicle_Speed*1.25>=DriveVehicle_Speed) && (LeadVehicle_Speed * 0.75<=DriveVehicle_Speed)) && (DriveVehicle_Speed < Set_Speed) && ((Time_Gap<=1.25*Set_Gap) && (Time_Gap >=0.75*Set_Gap))]
Requirement 3c (vi) - LeadVehicle_Speed_equal_Set_Speed (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 5.
- Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Not_Detected_Resume; Input signal conditions is [(LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed)]
- Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Detected_Resume; Input signal conditions [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) || (Time_Gap >= Set_Gap)]
- Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Speed_lessthan_Set_Speed; Input signals conditions [(LeadVehicle_Speed<Set_Speed) && (LeadVehicle_Speed<DriveVehicle_Speed) || (Time_Gap == 0.75*Set_Gap)]
SLDD Requirements-
|
Signal / Calibration Name |
Signal Type |
Data Type |
Dimension |
Min |
Max |
Initial Value |
Units |
|
CameraInput_LeadVehicle |
Input |
Uint8 |
1 |
0 |
255 |
- |
- |
|
RadarInput_LeadVehicle |
Input |
Uint8 |
1 |
0 |
255 |
- |
- |
|
CameraInput_DriveVehicle |
Input |
Uint8 |
1 |
0 |
255 |
- |
- |
|
RadarInput_DriveVehicle |
Input |
Uint8 |
1 |
0 |
255 |
- |
- |
|
Time_Gap |
Input |
Uint8 |
1 |
0 |
255 |
- |
- |
|
Set_Speed |
Input |
Uint8 |
1 |
0 |
255 |
- |
- |
|
Set_Gap |
Input |
Uint8 |
1 |
0 |
255 |
- |
- |
|
CruiseSwitch |
Input |
Boolean |
1 |
0 |
1 |
- |
- |
|
SetSwitch |
Input |
Boolean |
1 |
0 |
1 |
- |
- |
|
Acceleration_Mode |
Output |
Uint8 |
1 |
0 |
255 |
- |
- |
|
LeadVehicle_Speed |
Output |
Uint8 |
1 |
0 |
255 |
- |
- |
|
DriveVehicle_Speed |
Output |
Uint8 |
1 |
0 |
255 |
- |
- |
|
LeadVehicle_Detected |
Output |
Uint8 |
1 |
0 |
255 |
- |
- |

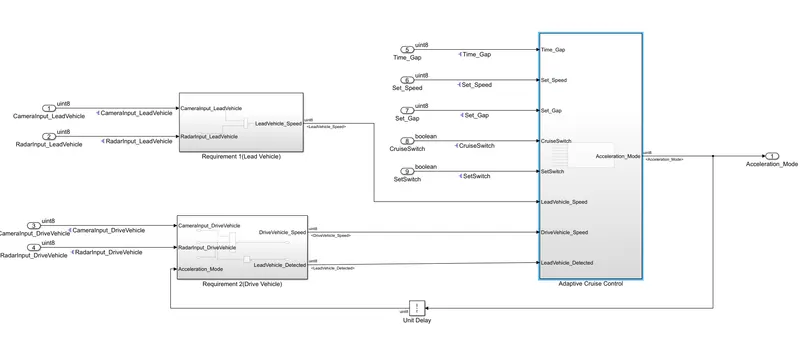

Simulink Model- As per requirement we had created a simulink model for Adaptive cruise control.
Requirement 1-

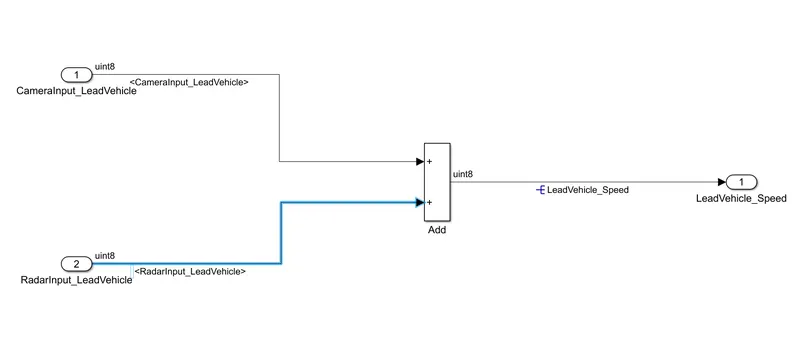

To detect lead vehicle speed simply added both radar and camera inputs and the corresponding output is read as speed profile output.
Requirement 2-

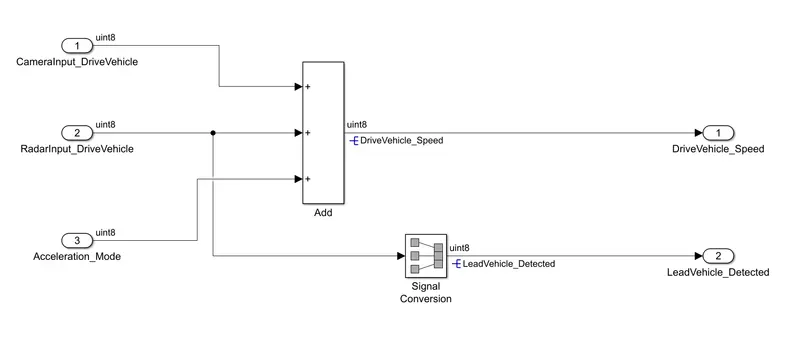

To regulate drive vehicle speed as per the document requirement added CameraInput_DriveVehicle, RadarInput_DriveVehicle and Acceleration_Mode from ACC algorithm.To detect the lead vehicle RadarInput_DriveVehicle is converted into 'Signal Conversion Block.'
Requirement 3-

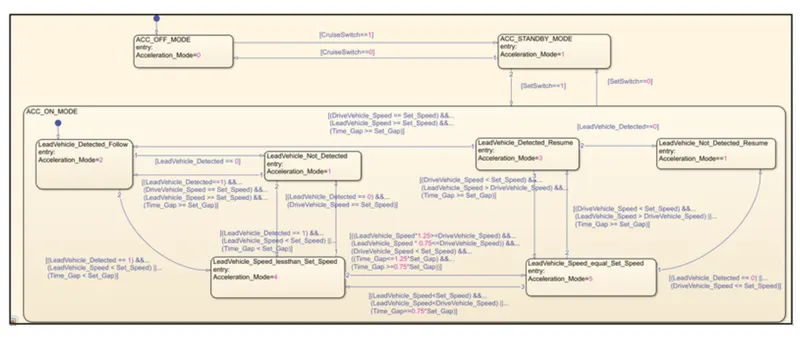

Stateflow Logic-

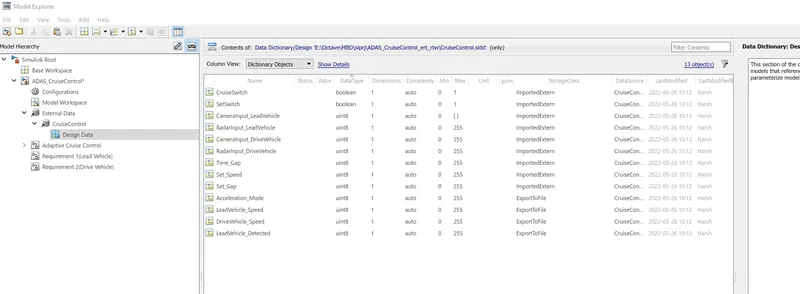

SLDD file creation-

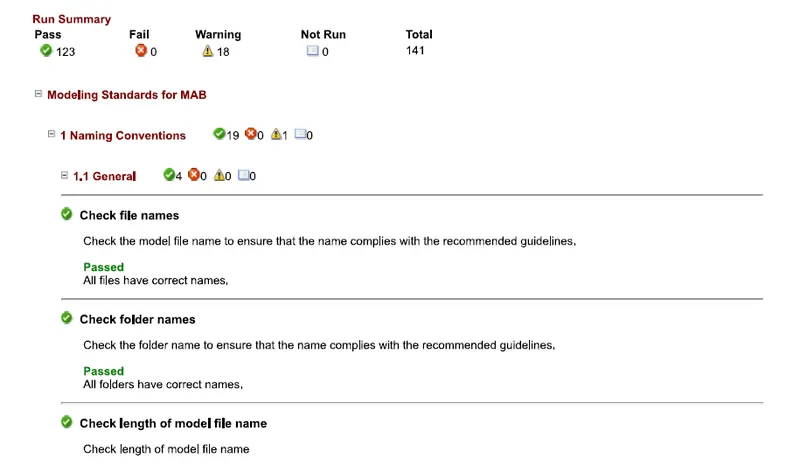

Model Advisor Check-
No fails with 18 warning.
Code Generation-
/*
* File: ADAS_CruiseControl.c
*
* Code generated for Simulink model 'ADAS_CruiseControl'.
*
* Model version : 1.80
* Simulink Coder version : 9.4 (R2020b) 29-Jul-2020
* C/C++ source code generated on : Fri May 27 09:29:13 2022
*
* Target selection: ert.tlc
* Embedded hardware selection: Intel->x86-64 (Windows64)
* Code generation objectives: Unspecified
* Validation result: Not run
*/
#include "ADAS_CruiseControl.h"
#include "ADAS_CruiseControl_private.h"
/* Named constants for Chart: '<S1>/CharAdaptive Cruise Control Logic' */
#define ADAS_CruiseC_IN_NO_ACTIVE_CHILD ((uint8_T)0U)
#define ADAS_CruiseContr_IN_ACC_STANDBY ((uint8_T)3U)
#define ADAS_CruiseControl_IN_ACC_OFF ((uint8_T)1U)
#define ADAS_CruiseControl_IN_ACC_ON ((uint8_T)2U)
#define ADA_IN_LeadVehicle_Not_Detected ((uint8_T)3U)
#define IN_LeadVehicle_Detected_Follow ((uint8_T)1U)
#define IN_LeadVehicle_Detected_Resume ((uint8_T)2U)
#define IN_LeadVehicle_Not_Detected_Res ((uint8_T)4U)
#define IN_LeadVehicle_Speed_Lessthan_S ((uint8_T)5U)
#define IN_LeadVehicle_Speed_equal_Set_ ((uint8_T)6U)
/* Exported data definition */
/* Definition for custom storage class: ExportToFile */
uint8_T Acceleration_Mode; /* '<S1>/CharAdaptive Cruise Control Logic' */
uint8_T DriveVehicle_Speed; /* '<S3>/Add' */
uint8_T LeadVehicle_Detected; /* '<S3>/Signal Conversion' */
uint8_T LeadVehicle_Speed; /* '<S2>/Add' */
/* Block states (default storage) */
DW_ADAS_CruiseControl_T ADAS_CruiseControl_DW;
/* Real-time model */
static RT_MODEL_ADAS_CruiseControl_T ADAS_CruiseControl_M_;
RT_MODEL_ADAS_CruiseControl_T *const ADAS_CruiseControl_M =
&ADAS_CruiseControl_M_;
real_T rt_roundd_snf(real_T u)
{
real_T y;
if (fabs(u) < 4.503599627370496E+15) {
if (u >= 0.5) {
y = floor(u + 0.5);
} else if (u > -0.5) {
y = u * 0.0;
} else {
y = ceil(u - 0.5);
}
} else {
y = u;
}
return y;
}
/* Model step function */
void ADAS_CruiseControl_step(void)
{
int32_T tmp;
int32_T tmp_0;
uint8_T tmp_1;
uint8_T tmp_2;
/* Sum: '<S3>/Add' incorporates:
* Inport: '<Root>/CameraInput_DriveVehicle'
* Inport: '<Root>/RadarInput_DriveVehicle'
* UnitDelay: '<Root>/Unit Delay'
*/
DriveVehicle_Speed = (uint8_T)((uint32_T)(uint8_T)((uint32_T)
CameraInput_DriveVehicle + RadarInput_DriveVehicle) + Acceleration_Mode);
/* Sum: '<S2>/Add' incorporates:
* Inport: '<Root>/CameraInput_LeadVehicle'
* Inport: '<Root>/RadarInput_LeadVehicle'
*/
LeadVehicle_Speed = (uint8_T)((uint32_T)CameraInput_LeadVehicle +
RadarInput_LeadVehicle);
/* SignalConversion: '<S3>/Signal Conversion' incorporates:
* Inport: '<Root>/RadarInput_DriveVehicle'
*/
LeadVehicle_Detected = RadarInput_DriveVehicle;
/* Chart: '<S1>/CharAdaptive Cruise Control Logic' incorporates:
* Inport: '<Root>/CruiseSwitch'
* Inport: '<Root>/SetSwitch'
* Inport: '<Root>/Set_Gap'
* Inport: '<Root>/Set_Speed'
* Inport: '<Root>/Time_Gap'
*/
if (ADAS_CruiseControl_DW.is_active_c3_ADAS_CruiseControl == 0U) {
ADAS_CruiseControl_DW.is_active_c3_ADAS_CruiseControl = 1U;
ADAS_CruiseControl_DW.is_c3_ADAS_CruiseControl =
ADAS_CruiseControl_IN_ACC_OFF;
} else {
switch (ADAS_CruiseControl_DW.is_c3_ADAS_CruiseControl) {
case ADAS_CruiseControl_IN_ACC_OFF:
if (CruiseSwitch) {
ADAS_CruiseControl_DW.is_c3_ADAS_CruiseControl =
ADAS_CruiseContr_IN_ACC_STANDBY;
}
break;
case ADAS_CruiseControl_IN_ACC_ON:
if (!SetSwitch) {
ADAS_CruiseControl_DW.is_ACC_ON = ADAS_CruiseC_IN_NO_ACTIVE_CHILD;
ADAS_CruiseControl_DW.is_c3_ADAS_CruiseControl =
ADAS_CruiseContr_IN_ACC_STANDBY;
} else {
switch (ADAS_CruiseControl_DW.is_ACC_ON) {
case IN_LeadVehicle_Detected_Follow:
if (LeadVehicle_Detected == 0) {
ADAS_CruiseControl_DW.is_ACC_ON = ADA_IN_LeadVehicle_Not_Detected;
} else {
if (((LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed))
|| (Time_Gap < Set_Gap)) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Speed_Lessthan_S;
Acceleration_Mode = 4U;
}
}
break;
case IN_LeadVehicle_Detected_Resume:
if ((DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >=
Set_Speed) && (Time_Gap >= Set_Gap)) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Detected_Follow;
} else if (LeadVehicle_Detected == 0) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Not_Detected_Res;
} else {
if ((DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed >
DriveVehicle_Speed) && (Time_Gap >= Set_Gap)) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Speed_equal_Set_;
}
}
break;
case ADA_IN_LeadVehicle_Not_Detected:
if ((LeadVehicle_Detected == 1) && (DriveVehicle_Speed == Set_Speed) &&
(LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Detected_Follow;
} else {
if (((LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed))
|| (Time_Gap < Set_Gap)) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Speed_Lessthan_S;
Acceleration_Mode = 4U;
}
}
break;
case IN_LeadVehicle_Not_Detected_Res:
break;
case IN_LeadVehicle_Speed_Lessthan_S:
Acceleration_Mode = 4U;
if ((LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed))
{
ADAS_CruiseControl_DW.is_ACC_ON = ADA_IN_LeadVehicle_Not_Detected;
} else {
tmp = (int32_T)rt_roundd_snf((real_T)LeadVehicle_Speed * 1.25);
tmp_0 = (int32_T)rt_roundd_snf(1.25 * (real_T)Set_Gap);
if (tmp < 256) {
tmp_1 = (uint8_T)tmp;
} else {
tmp_1 = MAX_uint8_T;
}
if (tmp_0 < 256) {
tmp_2 = (uint8_T)tmp_0;
} else {
tmp_2 = MAX_uint8_T;
}
if ((tmp_1 >= DriveVehicle_Speed) && ((int32_T)rt_roundd_snf((real_T)
LeadVehicle_Speed * 0.75) <= DriveVehicle_Speed) &&
(DriveVehicle_Speed < Set_Speed) && (Time_Gap <= tmp_2) &&
(Time_Gap >= (int32_T)rt_roundd_snf(0.75 * (real_T)Set_Gap))) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Speed_equal_Set_;
}
}
break;
default:
/* case IN_LeadVehicle_Speed_equal_Set_Speed: */
if ((LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed))
{
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Not_Detected_Res;
} else if (((DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed >
DriveVehicle_Speed)) || (Time_Gap >= Set_Gap)) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Detected_Resume;
} else {
if (((LeadVehicle_Speed < Set_Speed) && (LeadVehicle_Speed <
DriveVehicle_Speed)) || ((int32_T)rt_roundd_snf(0.75 * (real_T)
Set_Gap) == Time_Gap)) {
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Speed_Lessthan_S;
Acceleration_Mode = 4U;
}
}
break;
}
}
break;
default:
/* case IN_ACC_STANDBY: */
if (!CruiseSwitch) {
ADAS_CruiseControl_DW.is_c3_ADAS_CruiseControl =
ADAS_CruiseControl_IN_ACC_OFF;
} else {
if (SetSwitch) {
ADAS_CruiseControl_DW.is_c3_ADAS_CruiseControl =
ADAS_CruiseControl_IN_ACC_ON;
ADAS_CruiseControl_DW.is_ACC_ON = IN_LeadVehicle_Detected_Follow;
}
}
break;
}
}
/* End of Chart: '<S1>/CharAdaptive Cruise Control Logic' */
}
/* Model initialize function */
void ADAS_CruiseControl_initialize(void)
{
/* (no initialization code required) */
}
/* Model terminate function */
void ADAS_CruiseControl_terminate(void)
{
/* (no terminate code required) */
}
/*
* File trailer for generated code.
*
* [EOF]
*/
After implementing the ACC model run the simulation.If the model is running successfully without error then the Adaptive Cruise Control is works as per the requirements.
The model is running successfully without any error.
Conclusion- As pe objectives we build the model get the advisor report and generated the code and all the generated reports are attached in the zip file and uploaded in the answer box.
