Project 2 Adaptive Cruise Control

CChilka Sudhanshu8 Nov 2021

Aim:- To develop an Adaptive Cruise Control (ACC) using simulink & stateflow.

General Overview:

Adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic. Driving in heavy traffic or keeping a safe distance to the preceding vehicle calls for a high level of concentration. The Adaptive Cruise Control feature can reduce the stress on the driver by automatically controlling the vehicle speed & maintaining a predefined minimum distance to the preceding vehicle. As a consequence, the driver enjoys more comfort & can concentrate on the road little better.

A radar sensor is usually at the core of the Adaptive Cruise Control. Installed at the front of the vehicle, the system permanently monitors the road ahead. As long as the road ahead is clear, cruise control feature maintains the speed set by the driver. If the system spots a slower vehicle within its detection range, it gently reduces speed by releasing the accelerator or actively engaging the brake control system. If the vehicle ahead speeds up or changes lanes, the cruise control automatically accelerates to the driver’s desired speed.

Standard Adaptive Cruise Control can be activated from speeds of around 30 km/h (20 mph) upwards and supports the driver, primarily on cross-country journeys or on freeways. The cruise control stop & go variant is also active at speeds below 30 km/h (20 mph). It can maintain the set distance to the preceding vehicle even at very low speeds and can decelerate to a complete standstill. When the vehicle remains stopped longer, the driver needs only to reactivate the system, for example by briefly stepping on the gas pedal to return to cruise control mode. In this way, cruise control stop & go supports the driver even in heavy traffic and traffic jams.

Since Adaptive Cruise Control is a comfort and convenience system, brake interventions and vehicle acceleration only take place within defined limits. Even with Adaptive Cruise Control switched on, it remains the driver’s responsibility to monitor the speed and distance from the vehicle in front.

Objective of Main Project:

Developing Adaptive Cruise Control feature as per the Requirement Document using MATLAB Simulink.
Follow all the MBD related processes: Requirement Tagging & Traceability, SLDD creation, Configuration Parameter changes, Model Advisor check & Code Generation.
In Configuration Parameters: enable “Support Floating Numbers” under Code Generation settings.
Use Embedded Coder to generate the code.
If choosing code generation, Storage class for Input signals: ImportedExtern; Storage class for Output signal: Export to File; Storage class for local signals: localizable; Storage class for calibration signals: Const.
Choose sample time for all signals as 0.01s

Signals & Calibration Data List:

Signal / Calibration Name	Signal Type	Data Type	Dimension	Min	Max	Initial Value	Units
CameraInput_LeadVehicle	Input	Uint8	1	0	255	-	-
RadarInput_LeadVehicle	Input	Uint8	1	0	255	-	-
CameraInput_DriveVehicle	Input	Uint8	1	0	255	-	-
RadarInput_DriveVehicle	Input	Uint8	1	0	255	-	-
Time_Gap	Input	Uint8	1	0	255	-	-
Set_Speed	Input	Uint8	1	0	255	-	-
Set_Gap	Input	Uint8	1	0	255	-	-
CruiseSwitch	Input	Boolean	1	0	1	-	-
SetSwitch	Input	Boolean	1	0	1	-	-
Acceleration_Mode	Output	Uint8	1	0	255	-	-
LeadVehicle_Speed	Output	Uint8	1	0	255	-	-
DriveVehicle_Speed	Output	Uint8	1	0	255	-	-
LeadVehicle_Detected	Output	Uint8	1	0	255	-	-

Requirement 1– Lead Vehicle:

Lead Vehicle is a vehicle which is driving in the road ahead of our drive vehicle. Two input signals (Signal Name: CameraInput_LeadVehicle & RadarInput_LeadVehicle).
Ideally sensor fusion techniques will be deployed to process & analyze data from camera & radar. For complexity reasons, let’s not adapt to any such algorithms.
We can simply add both the radar & camera inputs & the corresponding output is read as Speed profile output (Signal Name: LeadVehicle_Speed).
Speed data of the lead vehicle is critical in implementing the Adaptive Cruise Control algorithm.

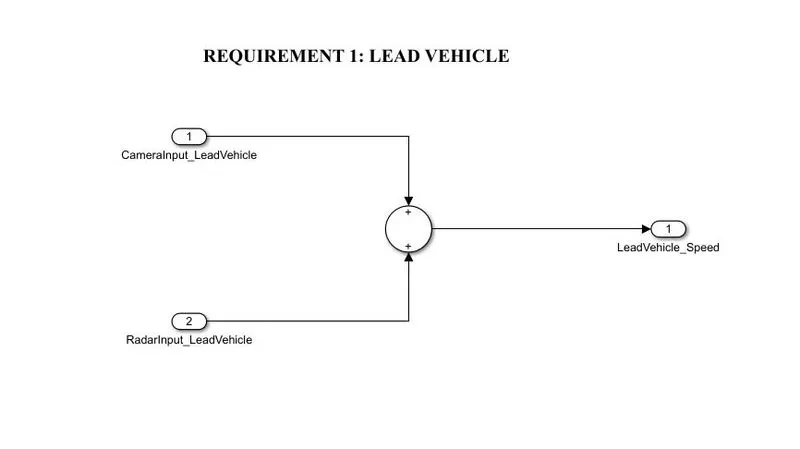

Simulink model:

Requirement 2 – Drive Vehicle:

Drive Vehicle is the vehicle driven by the user & this is the vehicle which has ACC algorithm in it.
Like the Lead Vehicle, Drive Vehicle algorithm also has 2 input signals (Signal Name: CameraInput_DriveVehicle, RadarInput_DriveVehicle) & one signal coming as an Input to this subsystem (Signal Name: Acceleration_Mode) – three inputs into this requirement in total.
Like the above requirement, sensor fusion techniques will also be deployed here, for complexity reasons we are ignoring them.
Two output signals come from this subsystem (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected).
Signal DriveVehicle_Speed is summation of three input signals mentioned above & LeadVehicle_Detected is renamed from Input Signal RadarInput_DriveVehicle by mere use of Signal Conversion block.

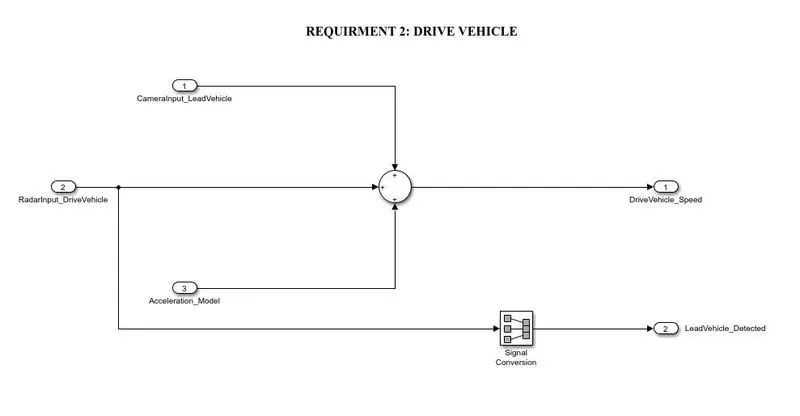

Simulink model:

Requirement 3 – Adaptive Cruise Control Algorithm:

Adaptive Cruise Control feature has 3 major modes of operation: OFF Mode, STANDBY Mode & ON Mode. This particular requirement has to be implemented as state machine logic in Simulink.
The input signals to this state machine system are (Signal Name: Time_Gap, Set_Speed, Set_Gap, CruiseSwitch, SetSwitch).
Also, the output signals (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected) from requirement-2 is fed back as an input signal into this state machine block.
Additionally, output signal (Signal Name: LeadVehicle_Speed) from requirement-1 is given as an input signal to this state machine block as well.
Output from this subsystem is a signal (Signal Name: Acceleration_Mode) which governs the vehicular speed of the drive vehicle which automatically adjusts its speed & velocity to match the lead vehicle.

The states inside the Adaptive cruise control logic are shown below

Requirement 3a – ACC OFF MODE state logic:

This is the default state inside state machine logic. Output signal Acceleration_Mode is at value 0 in this state.
This state is governed by input signal CruiseSwitch.
If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode

Requirement 3b – ACC STANDBY MODE state logic:

This is the second activated state inside state machine logic. Output signal Acceleration_Mode is at value 1 in this state.
This state is governed by both input signals CruiseSwitch & SetSwitch.
If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
If SetSwitch is equal to 1, state ACC ON mode will get activated. If SetSwitch is equal to 0, state ACC STANDBY mode will get activated.

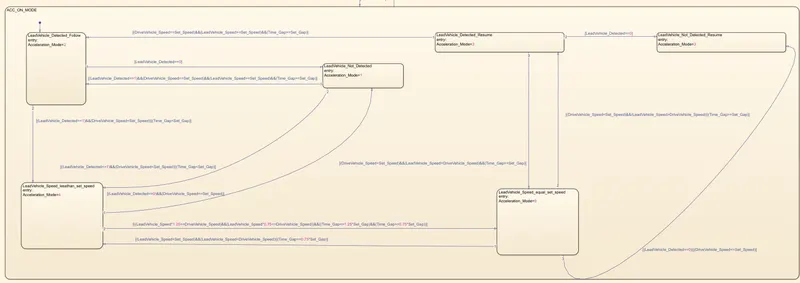

Requirement 3c – ACC ON MODE state logic:

This state will be activated when input signal SetSwitch is equal to 1. There are 6 sub states to this state logic: They are:

LeadVehicle_Detected_Follow (Default)
LeadVehicle_Not_Detected
LeadVehicle_Detected_Resume
LeadVehicle_Not_Detected_Resume
LeadVehicle_Speed_lessthan_Set_Speed

Requirement 3c (i) – LeadVehicle_Detected_Follow (ACC ON MODE):

This is the default sub state inside ACC ON MODE state. Output signal Acceleration_Mode is equal to 2.
Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Not_Detected; Input signal condition LeadVehicle_Detected == 0.
Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Speed_lessthan_Set_Speed; Input Signals condition (LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap).

Requirement 3c (ii) – LeadVehicle_Not_Detected (ACC ON MODE):

Output signal Acceleration_Mode is equal to 1.
Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Detected_Follow; Input signals condition [(LeadVehicle_Detected==1) && (DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Speed_lessthan_Set_Speed; Input signals condition [(LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap)]

Requirement 3c (iii) – LeadVehicle_Detected_Resume (ACC ON MODE):

Output signal Acceleration_Mode is equal to 3.
Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Detected_Follow; Input signals condition [(DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Not_Detected_Resume; Input signal condition LeadVehicle_Detected==0.
Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Speed_equal_Set_Speed; Input Signal condition [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) && (Time_Gap >= Set_Gap)]

Requirement 3c (iv) - LeadVehicle_Not_Detected_Resume (ACC ON MODE):

Output signal Acceleration_Mode is equal to 1.

Requirement 3c (v) - LeadVehicle_Speed_lessthan_Set_Speed (ACC ON MODE):

Output signal Acceleration_Mode is equal to 4.
Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Not_Detected; Input signal condition [(LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed)]
Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Speed_equal_Set_Speed; Input signals condition [((LeadVehicle_Speed*1.25>=DriveVehicle_Speed) && (LeadVehicle_Speed * 0.75<=DriveVehicle_Speed)) && (DriveVehicle_Speed < Set_Speed) && ((Time_Gap<=1.25*Set_Gap) && (Time_Gap >=0.75*Set_Gap))]

Requirement 3c (vi) - LeadVehicle_Speed_equal_Set_Speed (ACC ON MODE):

Output signal Acceleration_Mode is equal to 5.
Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Not_Detected_Resume; Input signal conditions is [(LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed)]
Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Detected_Resume; Input signal conditions [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) || (Time_Gap >= Set_Gap)]
Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Speed_lessthan_Set_Speed; Input signals conditions [(LeadVehicle_Speed<set_speed) &&="" (leadvehicle_speed<drivevehicle_speed)="" ||="" (time_gap="=0.75*Set_Gap)]</em"></set_speed)>

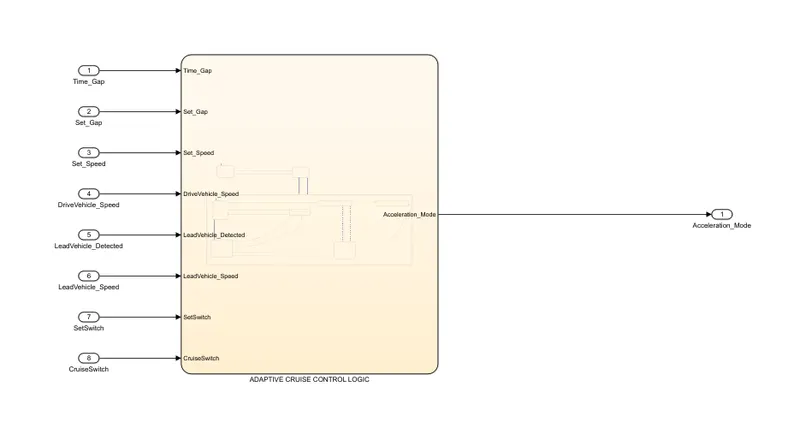

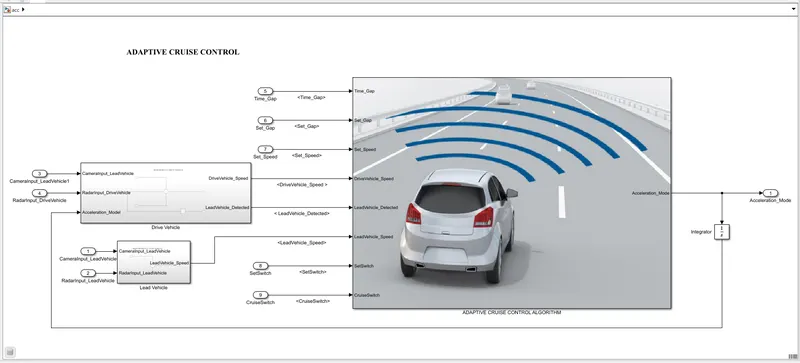

1) ADAPTIVE CRUISE CONTROL (ACC) MODEL:-

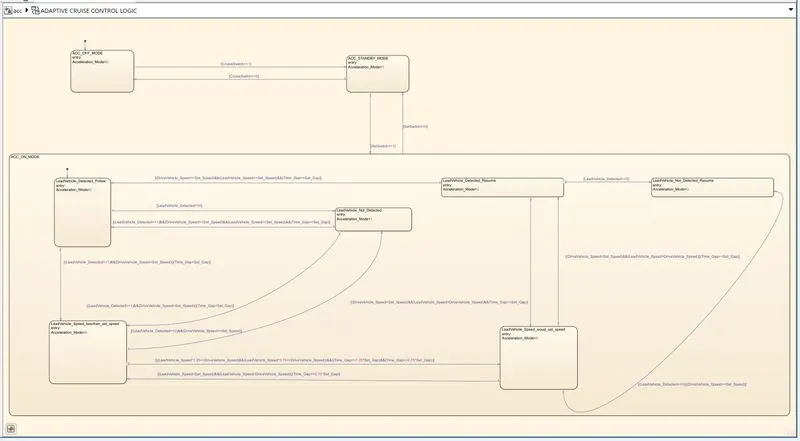

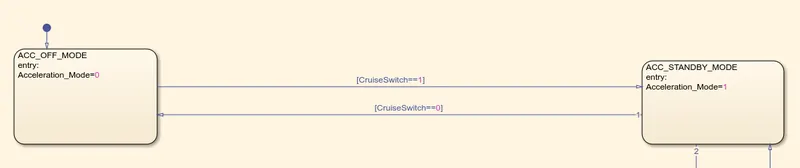

The Chart inside the Adaptive cruise Control Algorithm is shown below.

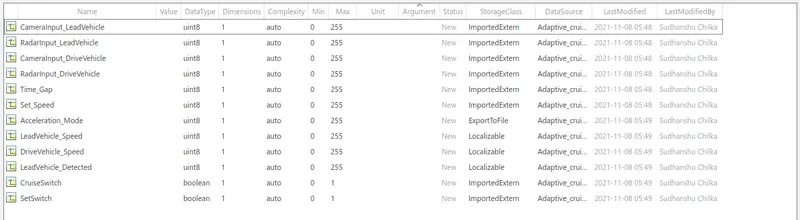

2a) Creating SLDD file:-

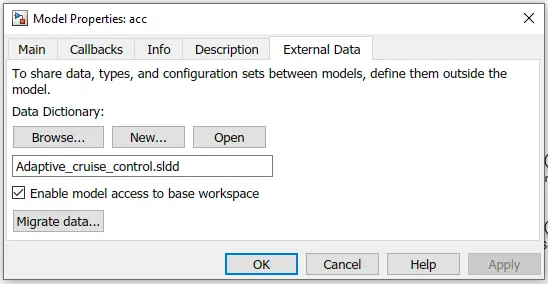

In Simulink we have option modeling in the top of toolbar where we have to select 'link to Data Dictionary' for creating SLDD file.

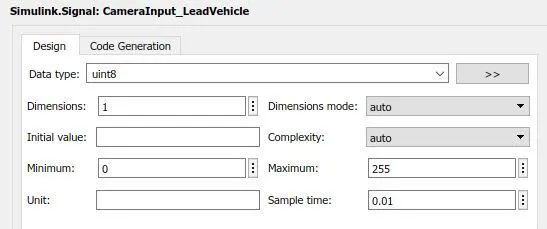

As we are creating a new SLDD, we have to select New and enter the Signals & Calibration Data from the given List as shown below.

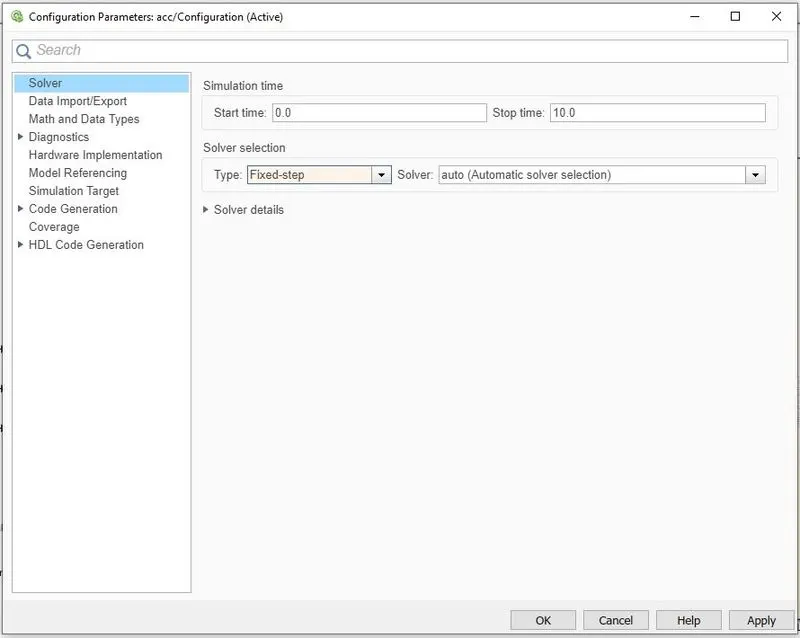

b)Configuration Parameter changes:-

In Model configuration parameters we have to change the solver selection Type from variable to fixed step for constant or static step size.

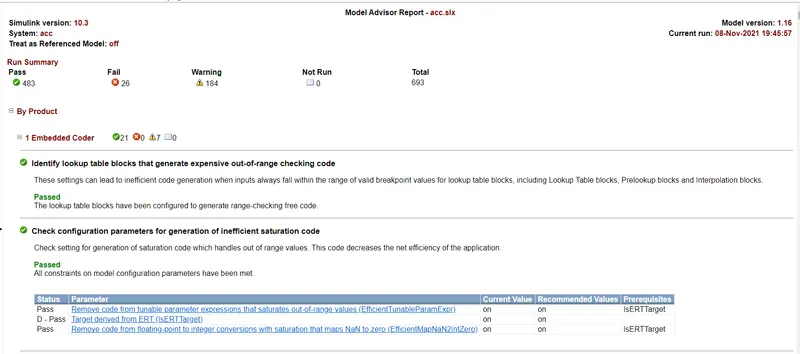

c) Model Advisor Report:-

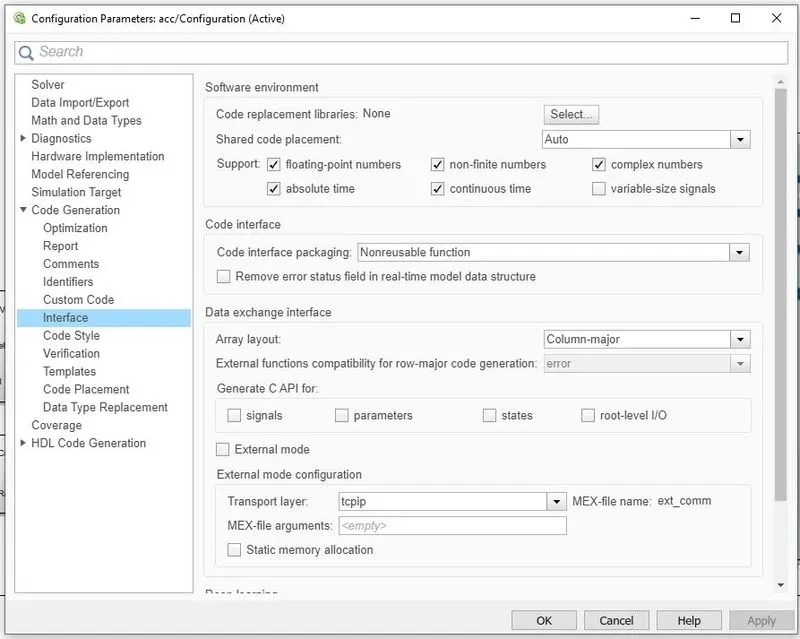

3)In Configuration Parameters: enable “Support Floating Numbers” under Code Generation settings :-

4)Using Embedded Coder for generate the code:-

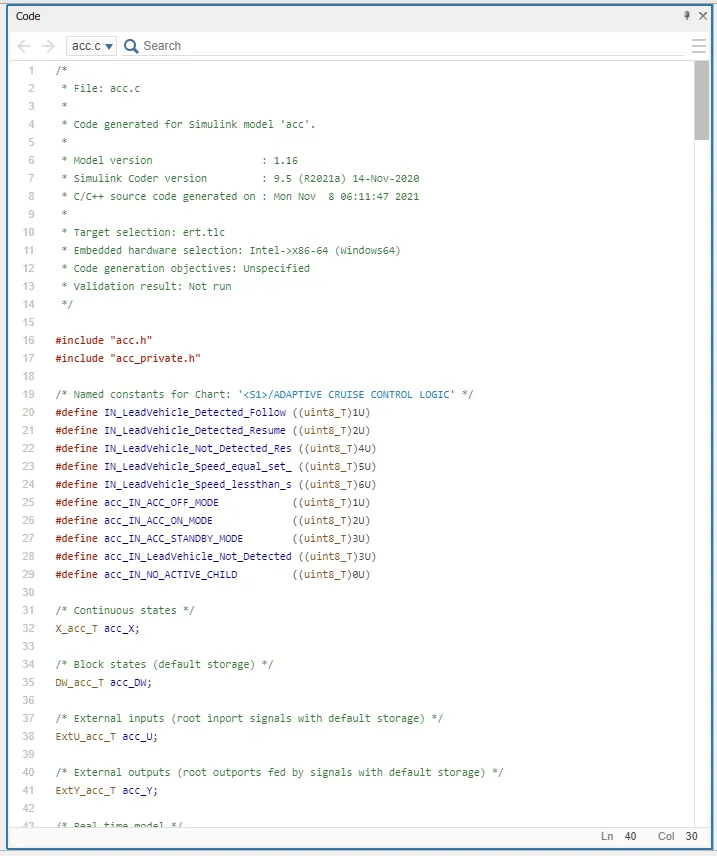

After creating the SLDD file we have to select Embedded C Coder in APPS and Click on 'Generate' for generating the code for Adaptive Cruise control. The below figure shows the generated Code.

* File: acc.c

* Code generated for Simulink model 'acc'.

* Model version : 1.16

* Simulink Coder version : 9.5 (R2021a) 14-Nov-2020

* C/C++ source code generated on : Mon Nov 8 06:11:47 2021

* Target selection: ert.tlc

* Embedded hardware selection: Intel->x86-64 (Windows64)

* Code generation objectives: Unspecified

* Validation result: Not run

#include "acc.h"

#include "acc_private.h"

/* Named constants for Chart: '/ADAPTIVE CRUISE CONTROL LOGIC' */

#define IN_LeadVehicle_Detected_Follow ((uint8_T)1U)

#define IN_LeadVehicle_Detected_Resume ((uint8_T)2U)

#define IN_LeadVehicle_Not_Detected_Res ((uint8_T)4U)

#define IN_LeadVehicle_Speed_equal_set_ ((uint8_T)5U)

#define IN_LeadVehicle_Speed_lessthan_s ((uint8_T)6U)

#define acc_IN_ACC_OFF_MODE ((uint8_T)1U)

#define acc_IN_ACC_ON_MODE ((uint8_T)2U)

#define acc_IN_ACC_STANDBY_MODE ((uint8_T)3U)

#define acc_IN_LeadVehicle_Not_Detected ((uint8_T)3U)

#define acc_IN_NO_ACTIVE_CHILD ((uint8_T)0U)

/* Continuous states */

X_acc_T acc_X;

/* Block states (default storage) */

DW_acc_T acc_DW;

/* External inputs (root inport signals with default storage) */

ExtU_acc_T acc_U;

/* External outputs (root outports fed by signals with default storage) */

ExtY_acc_T acc_Y;

/* Real-time model */

static RT_MODEL_acc_T acc_M_;

RT_MODEL_acc_T *const acc_M = &acc_M_;

* This function updates continuous states using the ODE3 fixed-step

* solver algorithm

static void rt_ertODEUpdateContinuousStates(RTWSolverInfo *si )

{

/* Solver Matrices */

static const real_T rt_ODE3_A[3] = {1.0/2.0, 3.0/4.0, 1.0};

static const real_T rt_ODE3_B[3][3] = {{ 1.0/2.0, 0.0, 0.0 },{ 0.0, 3.0/4.0, 0.0 },{ 2.0/9.0, 1.0/3.0, 4.0/9.0 }};

time_T t = rtsiGetT(si);

time_T tnew = rtsiGetSolverStopTime(si);

time_T h = rtsiGetStepSize(si);

real_T *x = rtsiGetContStates(si);

ODE3_IntgData *id = (ODE3_IntgData *)rtsiGetSolverData(si);

real_T *y = id->y;

real_T *f0 = id->f[0];

real_T *f1 = id->f[1];

real_T *f2 = id->f[2];

real_T hB[3];

int_T i;

int_T nXc = 1;

rtsiSetSimTimeStep(si,MINOR_TIME_STEP);

/* Save the state values at time t in y, we'll use x as ynew. */

(void) memcpy(y, x, (uint_T)nXc*sizeof(real_T));

/* Assumes that rtsiSetT and ModelOutputs are up-to-date */

/* f0 = f(t,y) */

rtsiSetdX(si, f0);

acc_derivatives();

/* f(:,2) = feval(odefile, t + hA(1), y + f*hB(:,1), args(:)(*)); */

hB[0] = h * rt_ODE3_B[0][0];

for (i = 0; i < nXc; i++)

{

x[i] = y[i] + (f0[i]*hB[0]);

}

rtsiSetT(si, t + h*rt_ODE3_A[0]);

rtsiSetdX(si, f1);

acc_step();

acc_derivatives();

/* f(:,3) = feval(odefile, t + hA(2), y + f*hB(:,2), args(:)(*)); */

for (i = 0; i <= 1; i++) {

hB[i] = h * rt_ODE3_B[1][i];

}

for (i = 0; i < nXc; i++)

{

x[i] = y[i] + (f0[i]*hB[0] + f1[i]*hB[1]);

}

rtsiSetT(si, t + h*rt_ODE3_A[1]);

rtsiSetdX(si, f2);

acc_step();

acc_derivatives();

/* tnew = t + hA(3);

ynew = y + f*hB(:,3); */

for (i = 0; i <= 2; i++)

{

hB[i] = h * rt_ODE3_B[2][i];

}

for (i = 0; i < nXc; i++)

{

x[i] = y[i] + (f0[i]*hB[0] + f1[i]*hB[1] + f2[i]*hB[2]);

}

rtsiSetT(si, tnew);

rtsiSetSimTimeStep(si,MAJOR_TIME_STEP);

}

/* Model step function */

void acc_step(void)

{

real_T Add;

real_T rtb_Add;

if (rtmIsMajorTimeStep(acc_M))

{

/* set solver stop time */

rtsiSetSolverStopTime(&acc_M->solverInfo,((acc_M->Timing.clockTick0+1)*

acc_M->Timing.stepSize0));

}

/* end MajorTimeStep */

/* Update absolute time of base rate at minor time step */

if (rtmIsMinorTimeStep(acc_M))

{

acc_M->Timing.t[0] = rtsiGetT(&acc_M->solverInfo);

}

/* Sum: '/Add' incorporates:

* Inport: '/CameraInput_LeadVehicle1'

* Inport: '/RadarInput_DriveVehicle'

* Integrator: '/Integrator'

Add = (acc_U.CameraInput_LeadVehicle1 + acc_U.RadarInput_DriveVehicle) +

acc_X.Integrator_CSTATE;

if (rtmIsMajorTimeStep(acc_M))

{

/* Sum: '/Add' incorporates:

* Inport: '/CameraInput_LeadVehicle'

* Inport: '/RadarInput_LeadVehicle'

rtb_Add = acc_U.CameraInput_LeadVehicle + acc_U.RadarInput_LeadVehicle;

/* Chart: '/ADAPTIVE CRUISE CONTROL LOGIC' incorporates:

* Inport: '/CruiseSwitch'

* Inport: '/RadarInput_DriveVehicle'

* Inport: '/SetSwitch'

* Inport: '/Set_Gap'

* Inport: '/Set_Speed'

* Inport: '/Time_Gap'

if (acc_DW.is_active_c3_acc == 0U) {

acc_DW.is_active_c3_acc = 1U;

acc_DW.is_c3_acc = acc_IN_ACC_OFF_MODE;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 0.0;

} else {

switch (acc_DW.is_c3_acc) {

case acc_IN_ACC_OFF_MODE:

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 0.0;

if (acc_U.CruiseSwitch == 1.0)

{

acc_DW.is_c3_acc = acc_IN_ACC_STANDBY_MODE;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 1.0;

}

break;

case acc_IN_ACC_ON_MODE:

if (acc_U.SetSwitch == 0.0) {

acc_DW.is_ACC_ON_MODE = acc_IN_NO_ACTIVE_CHILD;

acc_DW.is_c3_acc = acc_IN_ACC_STANDBY_MODE;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 1.0;

}

else

{

switch (acc_DW.is_ACC_ON_MODE) {

case IN_LeadVehicle_Detected_Follow:

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 2.0;

if (acc_U.RadarInput_DriveVehicle == 0.0)

{

acc_DW.is_ACC_ON_MODE = acc_IN_LeadVehicle_Not_Detected;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 1.0;

}

else if (((acc_U.RadarInput_DriveVehicle == 1.0) && (Add <acc_U.Set_Speed)) || (acc_U.Time_Gap < acc_U.Set_Gap))

{

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_lessthan_s;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 4.0;

}

break;

case IN_LeadVehicle_Detected_Resume:

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 3.0;

if ((Add == acc_U.Set_Speed) && (rtb_Add >= acc_U.Set_Speed) &&

(acc_U.Time_Gap >= acc_U.Set_Gap))

{

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Detected_Follow;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 2.0;

}

else if (acc_U.RadarInput_DriveVehicle == 0.0)

{

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Not_Detected_Res;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 3.0;

}

else if ((Add < acc_U.Set_Speed) && (rtb_Add > Add) &&(acc_U.Time_Gap >= acc_U.Set_Gap))

{

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_equal_set_;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 5.0;

}

break;

case acc_IN_LeadVehicle_Not_Detected:

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 1.0;

if ((acc_U.RadarInput_DriveVehicle == 1.0) && (Add ==acc_U.Set_Speed) && (rtb_Add >= acc_U.Set_Speed) && (acc_U.Time_Gap >= acc_U.Set_Gap))

{

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Detected_Follow;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 2.0;

} else if (((acc_U.RadarInput_DriveVehicle == 1.0) && (Add <

acc_U.Set_Speed)) || (acc_U.Time_Gap < acc_U.Set_Gap))

{

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_lessthan_s;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 4.0;

}

break;

case IN_LeadVehicle_Not_Detected_Res:

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 3.0;

break;

case IN_LeadVehicle_Speed_equal_set_:

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 5.0;

if (((rtb_Add < acc_U.Set_Speed) && (rtb_Add < Add)) || (0.75 *

acc_U.Set_Gap == acc_U.Time_Gap)) {

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_lessthan_s;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 4.0;

} else if (((Add < acc_U.Set_Speed) && (rtb_Add > Add)) ||

(acc_U.Time_Gap >= acc_U.Set_Gap)) {

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Detected_Resume;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 3.0;

} else if ((acc_U.RadarInput_DriveVehicle == 0.0) || (Add <=

acc_U.Set_Speed)) {

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Not_Detected_Res;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 3.0;

}

break;

default:

/* Outport: '/Acceleration_Mode' */

/* case IN_LeadVehicle_Speed_lessthan_set_speed: */

acc_Y.Acceleration_Mode = 4.0;

if ((acc_U.RadarInput_DriveVehicle == 0.0) && (Add ==

acc_U.Set_Speed)) {

acc_DW.is_ACC_ON_MODE = acc_IN_LeadVehicle_Not_Detected;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 1.0;

} else if ((rtb_Add * 1.25 >= Add) && (rtb_Add * 0.75 <= Add) &&

(acc_U.Time_Gap <= 1.25 * acc_U.Set_Gap) &&

(acc_U.Time_Gap >= 0.75 * acc_U.Set_Gap)) {

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_equal_set_;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 5.0;

}

break;

}

break;

default:

/* Outport: '/Acceleration_Mode' */

/* case IN_ACC_STANDBY_MODE: */

acc_Y.Acceleration_Mode = 1.0;

if (acc_U.CruiseSwitch == 0.0) {

acc_DW.is_c3_acc = acc_IN_ACC_OFF_MODE;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 0.0;

} else if (acc_U.SetSwitch == 1.0)

{

acc_DW.is_c3_acc = acc_IN_ACC_ON_MODE;

acc_DW.is_ACC_ON_MODE = IN_LeadVehicle_Detected_Follow;

/* Outport: '/Acceleration_Mode' */

acc_Y.Acceleration_Mode = 2.0;

}

break;

}

/* End of Chart: '/ADAPTIVE CRUISE CONTROL LOGIC' */

}

if (rtmIsMajorTimeStep(acc_M)) {

rt_ertODEUpdateContinuousStates(&acc_M->solverInfo);

/* Update absolute time for base rate */

/* The "clockTick0" counts the number of times the code of this task has

* been executed. The absolute time is the multiplication of "clockTick0"

* and "Timing.stepSize0". Size of "clockTick0" ensures timer will not

* overflow during the application lifespan selected.

++acc_M->Timing.clockTick0;

acc_M->Timing.t[0] = rtsiGetSolverStopTime(&acc_M->solverInfo);

{

/* Update absolute timer for sample time: [0.2s, 0.0s] */

/* The "clockTick1" counts the number of times the code of this task has

* been executed. The resolution of this integer timer is 0.2, which is the step size

* of the task. Size of "clockTick1" ensures timer will not overflow during the

* application lifespan selected.

acc_M->Timing.clockTick1++;

}

} /* end MajorTimeStep */

}

/* Derivatives for root system: '' */

void acc_derivatives(void)

{

XDot_acc_T *_rtXdot;

_rtXdot = ((XDot_acc_T *) acc_M->derivs);

/* Derivatives for Integrator: '/Integrator' incorporates:

* Outport: '/Acceleration_Mode'

_rtXdot->Integrator_CSTATE = acc_Y.Acceleration_Mode;

}

/* Model initialize function */

void acc_initialize(void)

{

/* Registration code */

{

/* Setup solver object */

rtsiSetSimTimeStepPtr(&acc_M->solverInfo, &acc_M->Timing.simTimeStep);

rtsiSetTPtr(&acc_M->solverInfo, &rtmGetTPtr(acc_M));

rtsiSetStepSizePtr(&acc_M->solverInfo, &acc_M->Timing.stepSize0);

rtsiSetdXPtr(&acc_M->solverInfo, &acc_M->derivs);

rtsiSetContStatesPtr(&acc_M->solverInfo, (real_T **) &acc_M->contStates);

rtsiSetNumContStatesPtr(&acc_M->solverInfo, &acc_M->Sizes.numContStates);

rtsiSetNumPeriodicContStatesPtr(&acc_M->solverInfo,

&acc_M->Sizes.numPeriodicContStates);

rtsiSetPeriodicContStateIndicesPtr(&acc_M->solverInfo,

&acc_M->periodicContStateIndices);

rtsiSetPeriodicContStateRangesPtr(&acc_M->solverInfo,

&acc_M->periodicContStateRanges);

rtsiSetErrorStatusPtr(&acc_M->solverInfo, (&rtmGetErrorStatus(acc_M)));

rtsiSetRTModelPtr(&acc_M->solverInfo, acc_M);

}

rtsiSetSimTimeStep(&acc_M->solverInfo, MAJOR_TIME_STEP);

acc_M->intgData.y = acc_M->odeY;

acc_M->intgData.f[0] = acc_M->odeF[0];

acc_M->intgData.f[1] = acc_M->odeF[1];

acc_M->intgData.f[2] = acc_M->odeF[2];

acc_M->contStates = ((X_acc_T *) &acc_X);

rtsiSetSolverData(&acc_M->solverInfo, (void *)&acc_M->intgData);

rtsiSetSolverName(&acc_M->solverInfo,"ode3");

rtmSetTPtr(acc_M, &acc_M->Timing.tArray[0]);

acc_M->Timing.stepSize0 = 0.2;

/* InitializeConditions for Integrator: '/Integrator' */

acc_X.Integrator_CSTATE = 0.0;

}

/* Model terminate function */

void acc_terminate(void)

{

/* (no terminate code required) */

}

* File trailer for generated code.

* [EOF]

5)Sample time for all signals as 0.01s:-

while creating the Sldd file we have to give sample time for each signal '0.01' as shown in the figure below.

Conclusion:-

MATLAB Simulink model is Developed for Adaptive Cruise Control feature as per the Requirement Document and SLDD file is also created. The model Advisory Report and C-Code is generated as per requirement document.

Project 2 Adaptive Cruise Control

Ship work like this
in your own course.

Talk to a career counsellor

Ship work like thisin your own course.

Talk to a career counsellor

Ship work like this
in your own course.
