Project 2
1. Use existing alignment & profile as proposed conditions.
Aim & Introduction
To use existing alignment & profile as proposed conditions.
Procedure

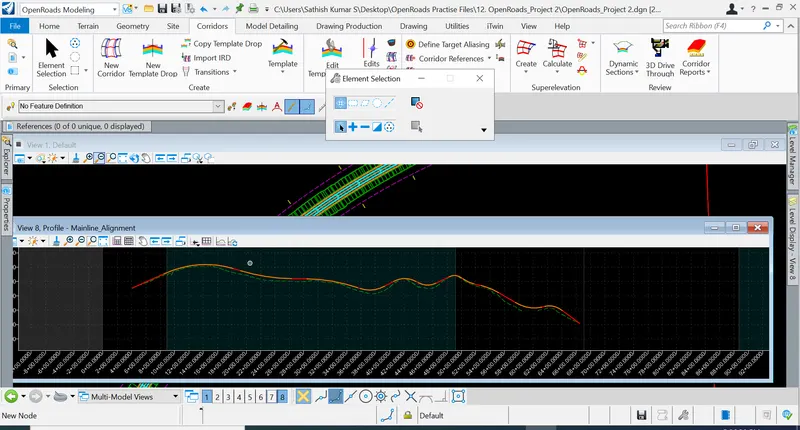

OpenRoads Modeling => Geometry => Vertical => Profile Complex by PI
Results & Conclusion
Thus, the existing alignment & profile has been used as per proposed conditions.
*************************************************************************************************************************************************
2. Design Site layout.
Aim & Introduction
To design the site layout.
Procedure
OpenRoads Modeling => Attach Tools => References => E_Terrain
OpenRoads Modeling => Design Elements => Set Active Terrain Model => Click the Terrain Model
Results & Conclusion
Thus, the design layout has been designed.
*************************************************************************************************************************************************
3. Design template.
Aim & Introduction
To design the template.
Procedure

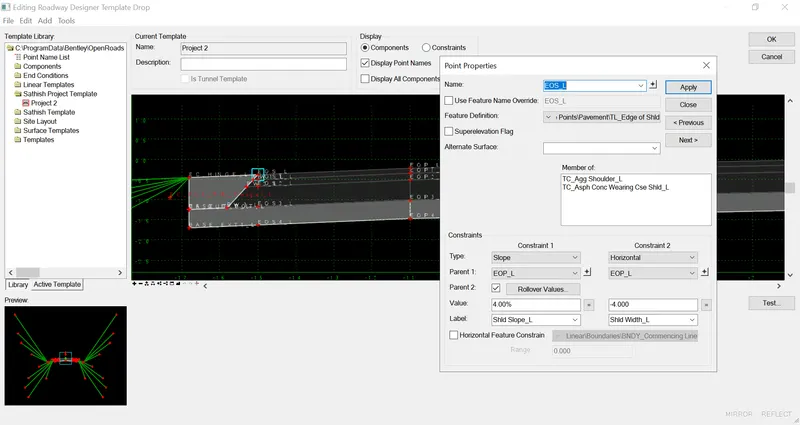

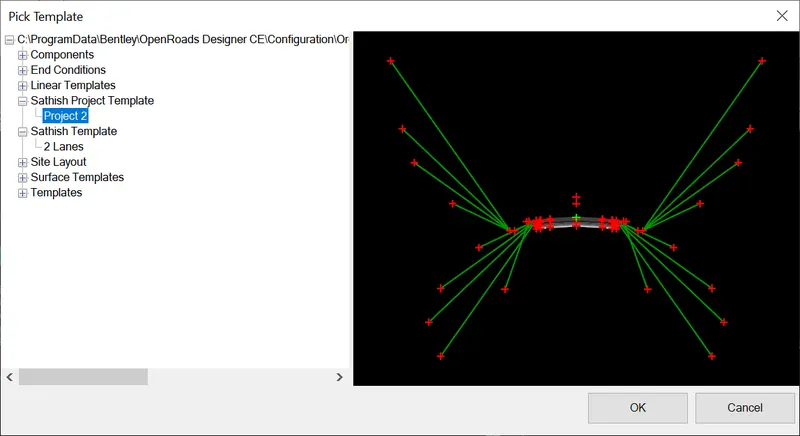

OpenRoads Modeling => Corridors => Create Template Drop
To edit the template drop

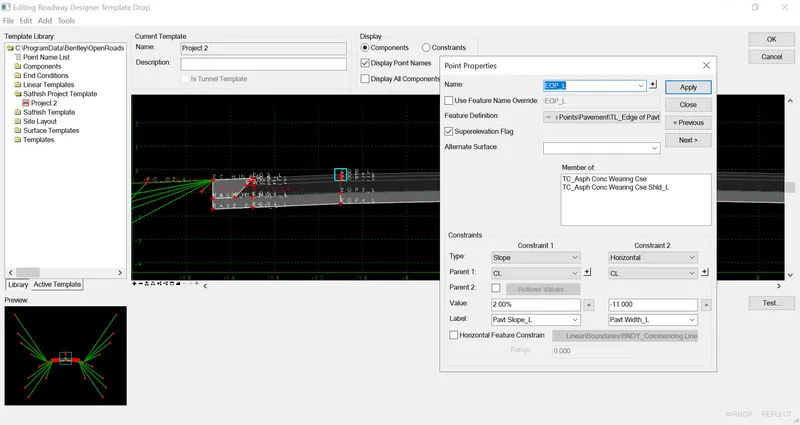

OpenRoads Modeling => Corridors => Edit Template Drop => Select the template
Results & Conclusion
Thus, the template has been designed.
*************************************************************************************************************************************************
4. Develop a corridor model.
Aim & Introduction
To develop a corridor model.
Procedure

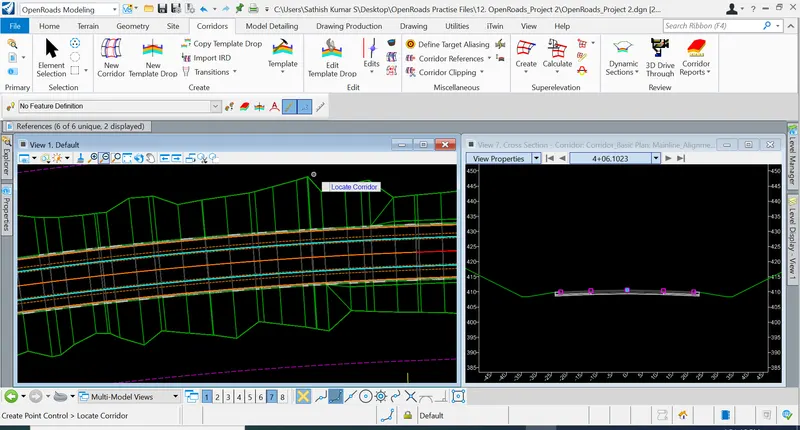

OpenRoads Modeling => Corridors => New Corridors
OpenRoads Modeling => Corridors => New Template Drop
OpenRoads Modeling => Corridors => Edits => Point Control
Results & Conclusion
Thus, the corridor model has been modeled.
*************************************************************************************************************************************************
5. Submit your DGN files – each dgn is separate.
Aim & Introduction
To submit the DGN files.
Procedure
The DGN files are submitted in the attachments.
Results & Conclusion
Thus, the DGN files have been submitted.
*************************************************************************************************************************************************
