Project 2

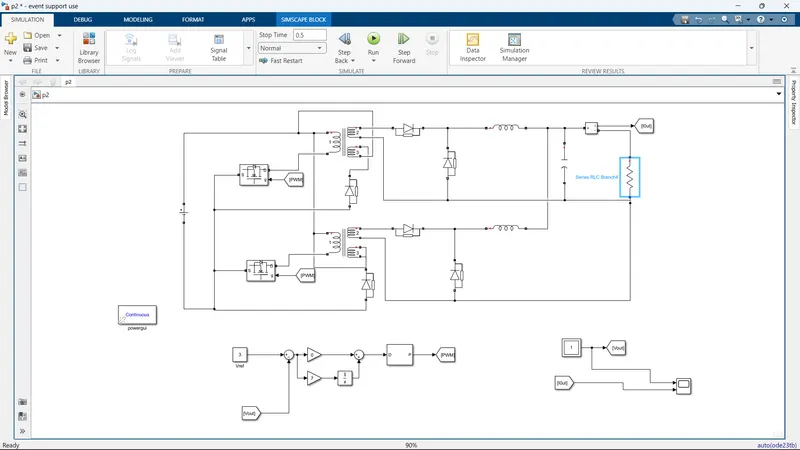

Circuit diagram:

  Input voltage = 60V

  Input current = 5A

  Output Voltage = 3V

  Output Current = 100A

from all the above data, we get the Input power is 300W and output Power is also 300W

so our efficiency is 100% without considering the ripple in voltage and current, if we consider the ripple also we can get the eifficiency more than 90%.
