Project 1

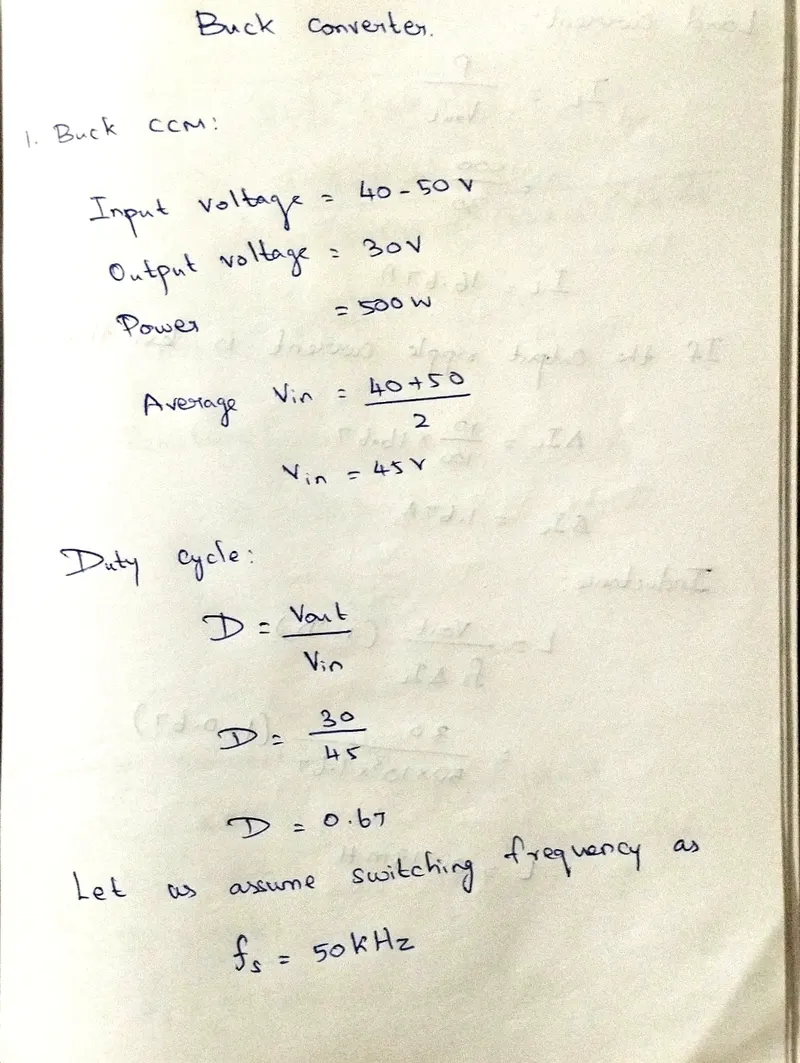

1. Buck ccm:

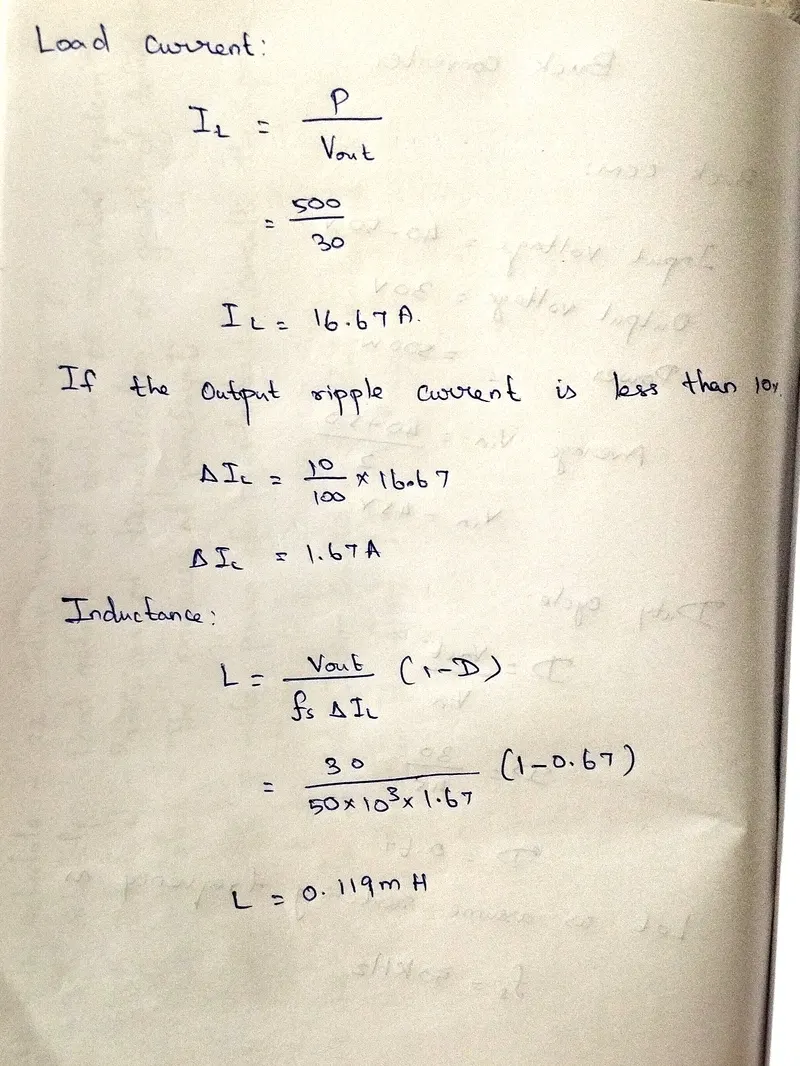

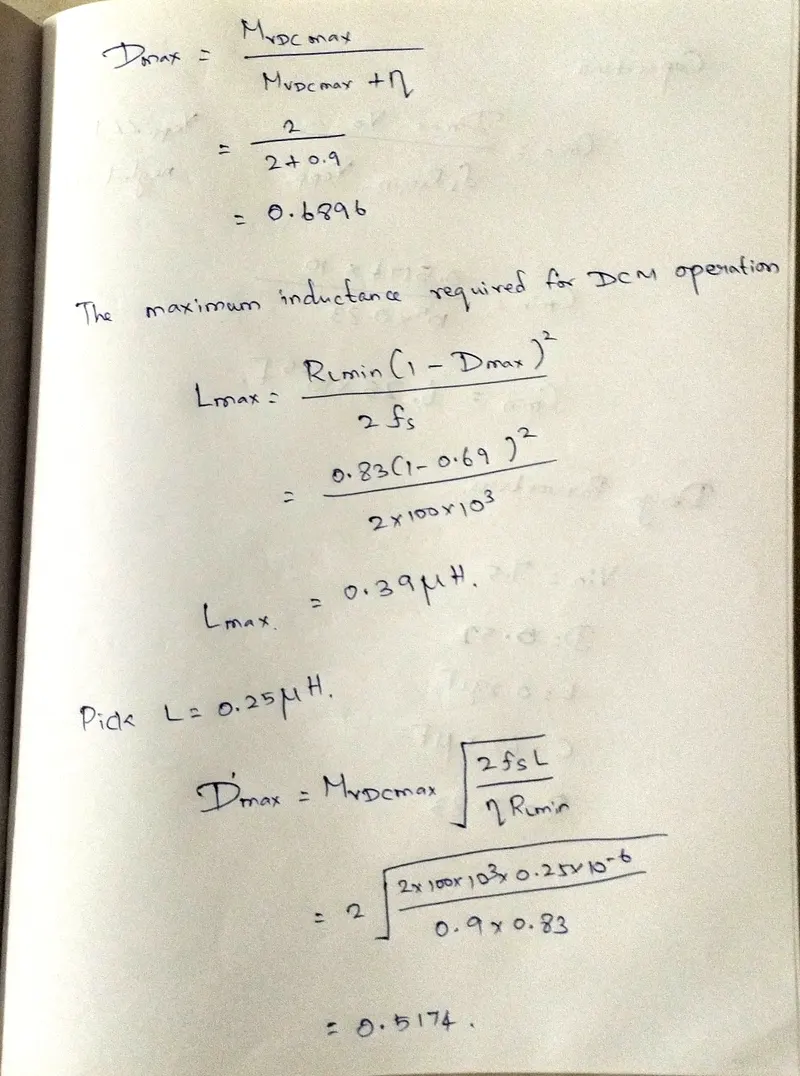

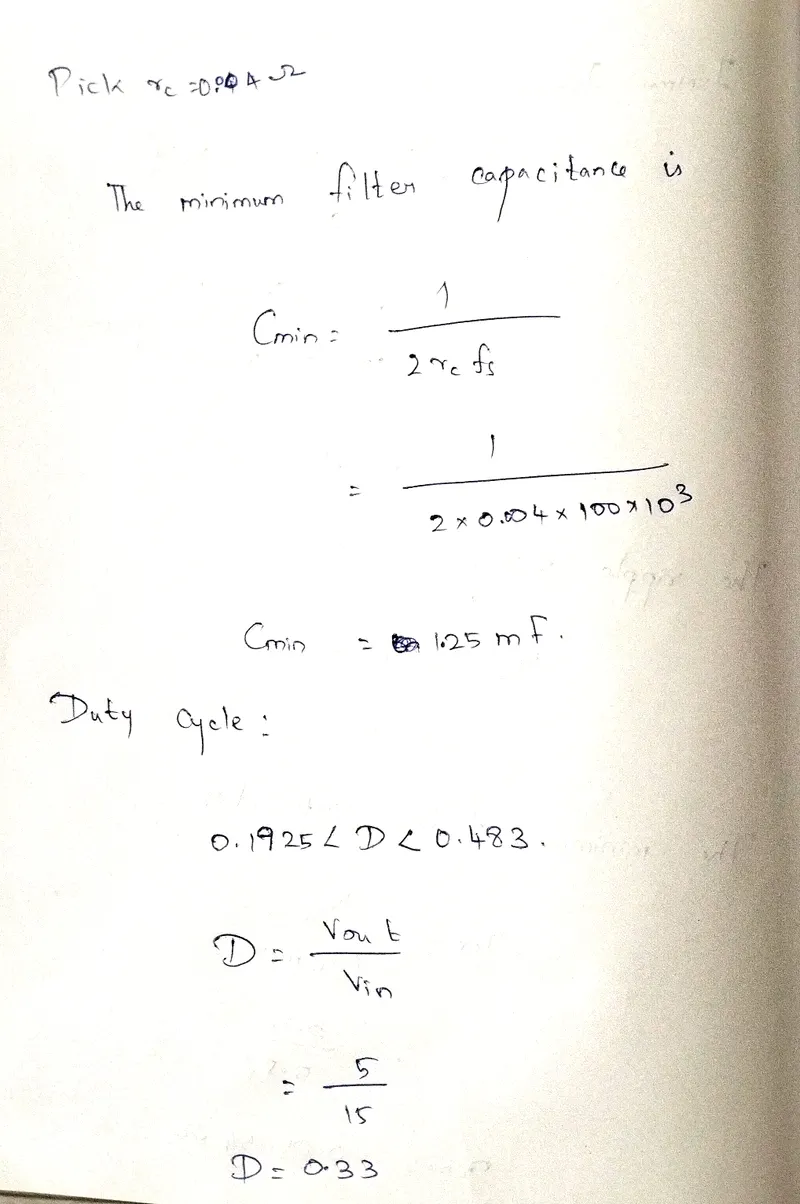

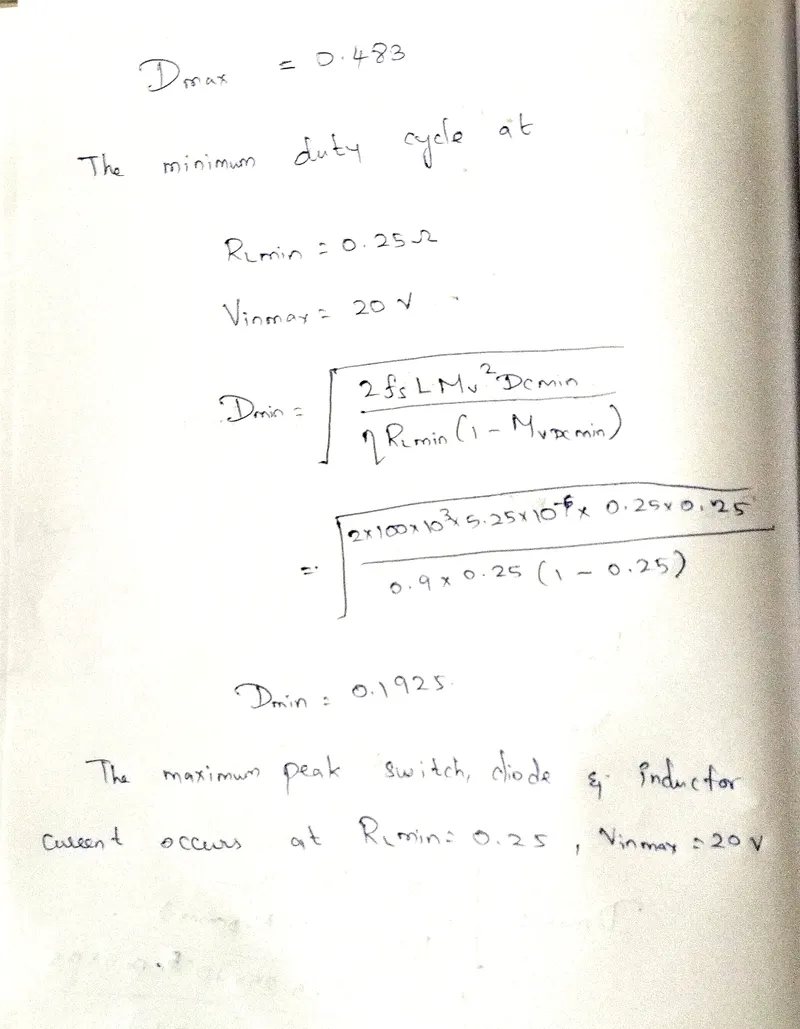

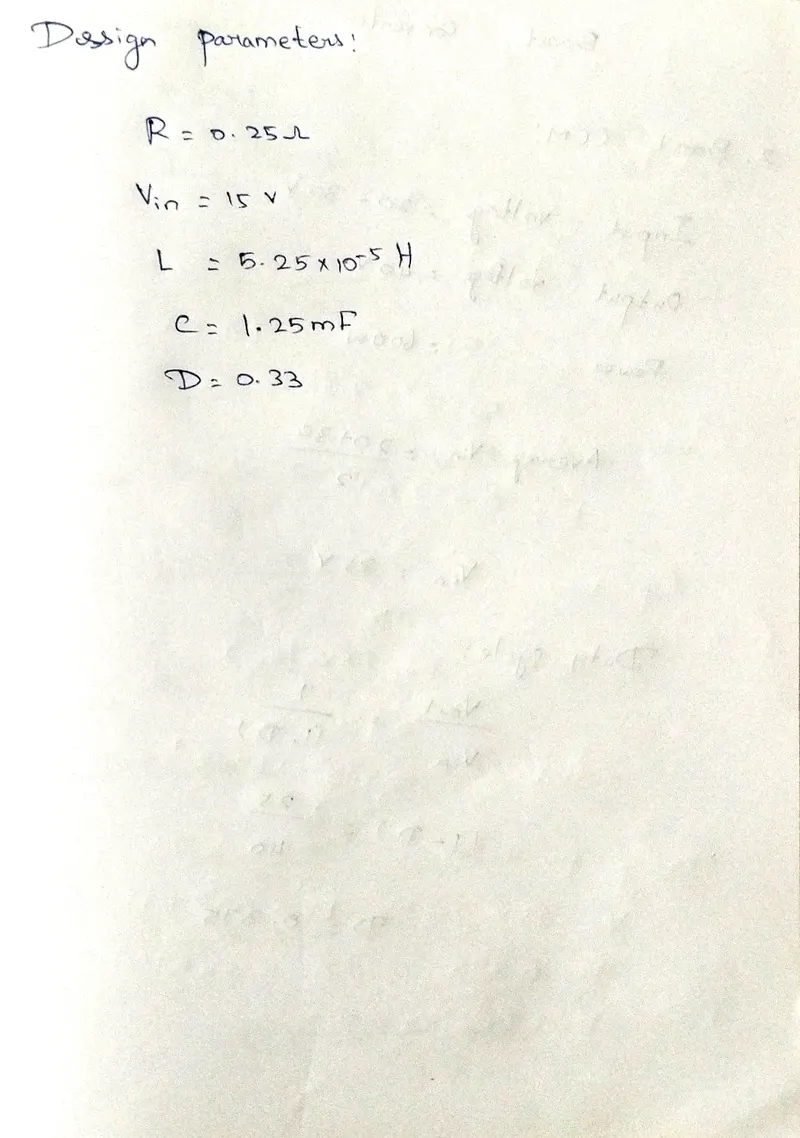

Design parameters:

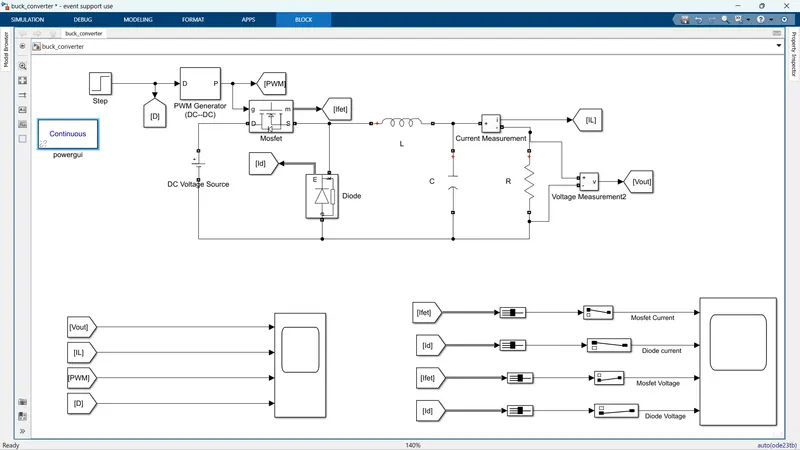

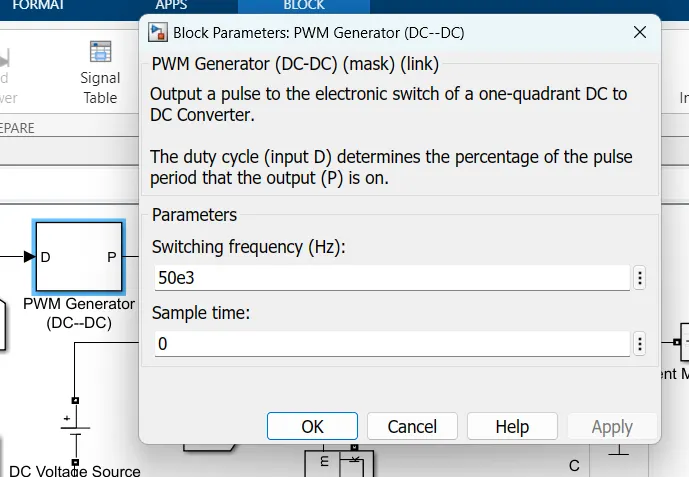

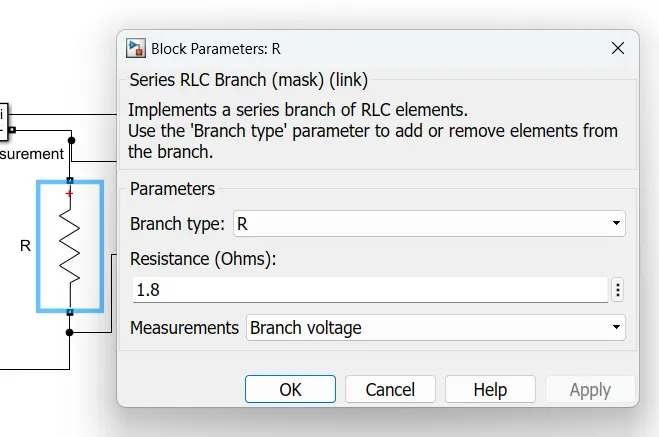

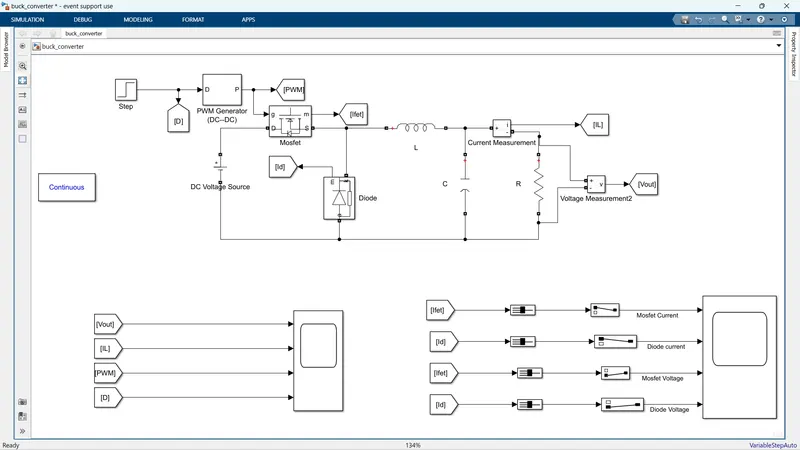

Circuit design:

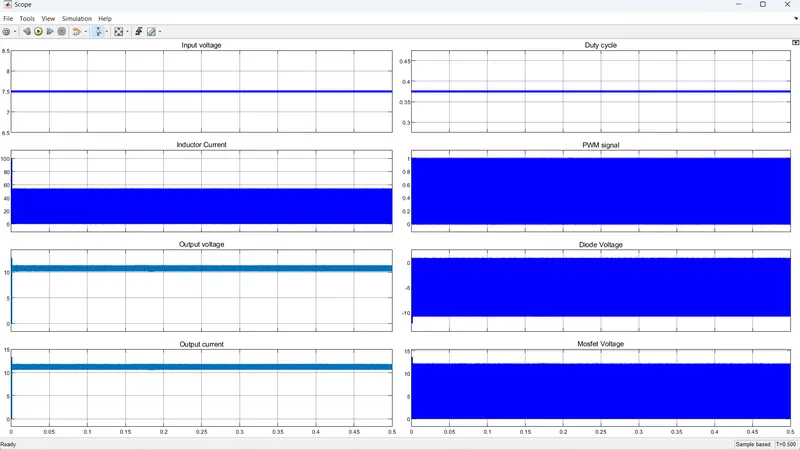

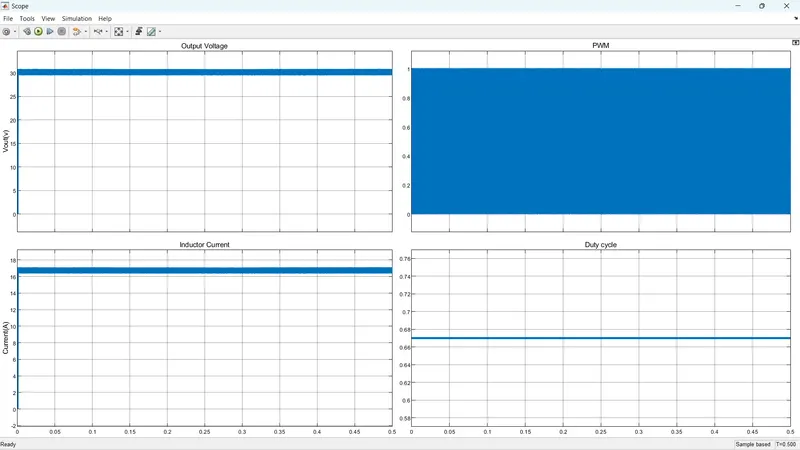

Zoomed out waveform :

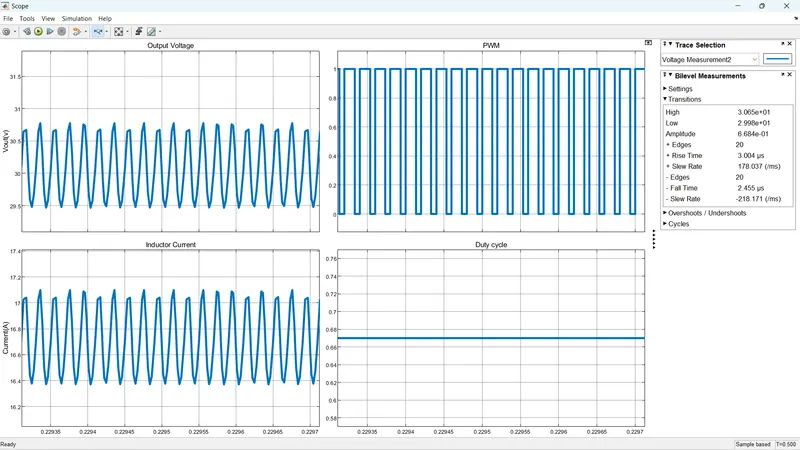

Zoomed out :

Maximum peak value = 30.65v

Minimum peak value = 29.98 v

output ripple = 30.65 - 29.8 = 0.85 v (~3%)

Output voltage =~30v

Inductor current = ~16.5A

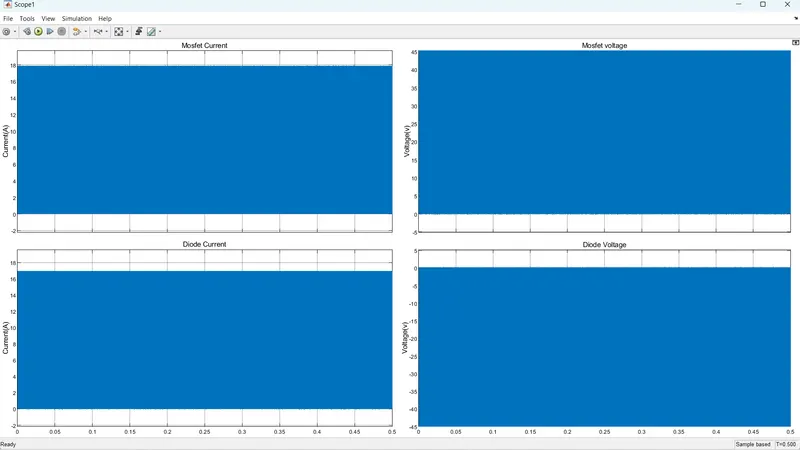

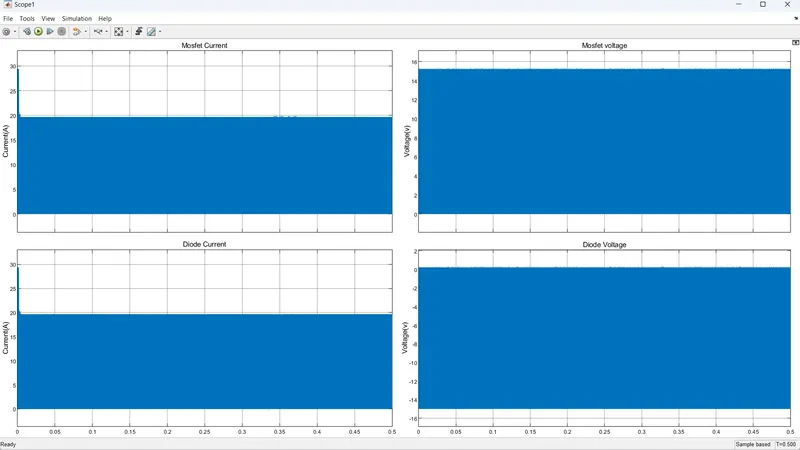

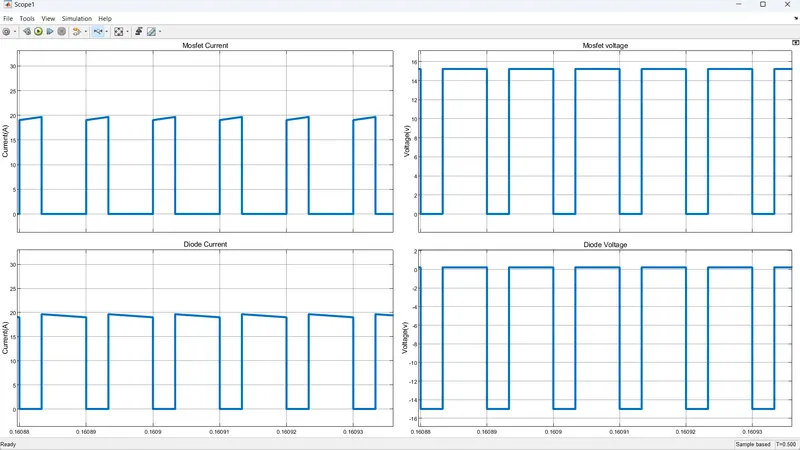

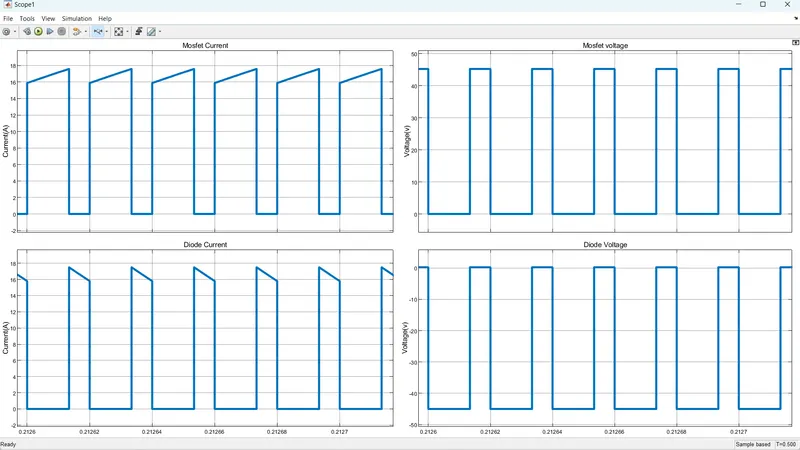

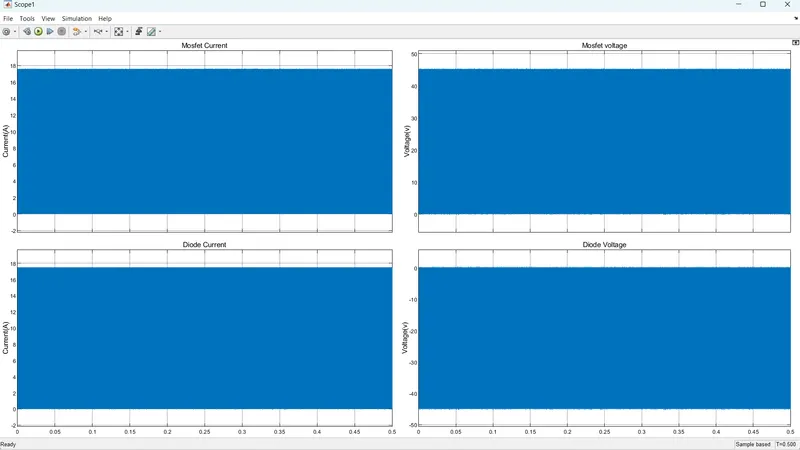

Mosfet and Diode current and voltage waveform:

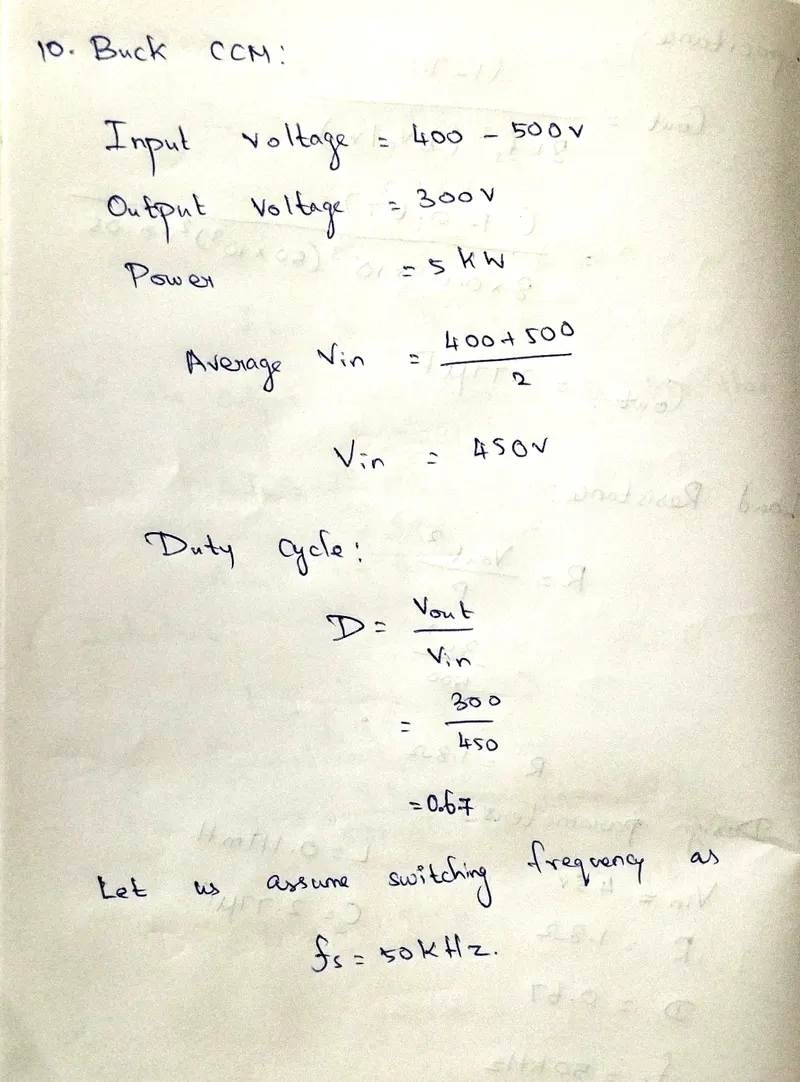

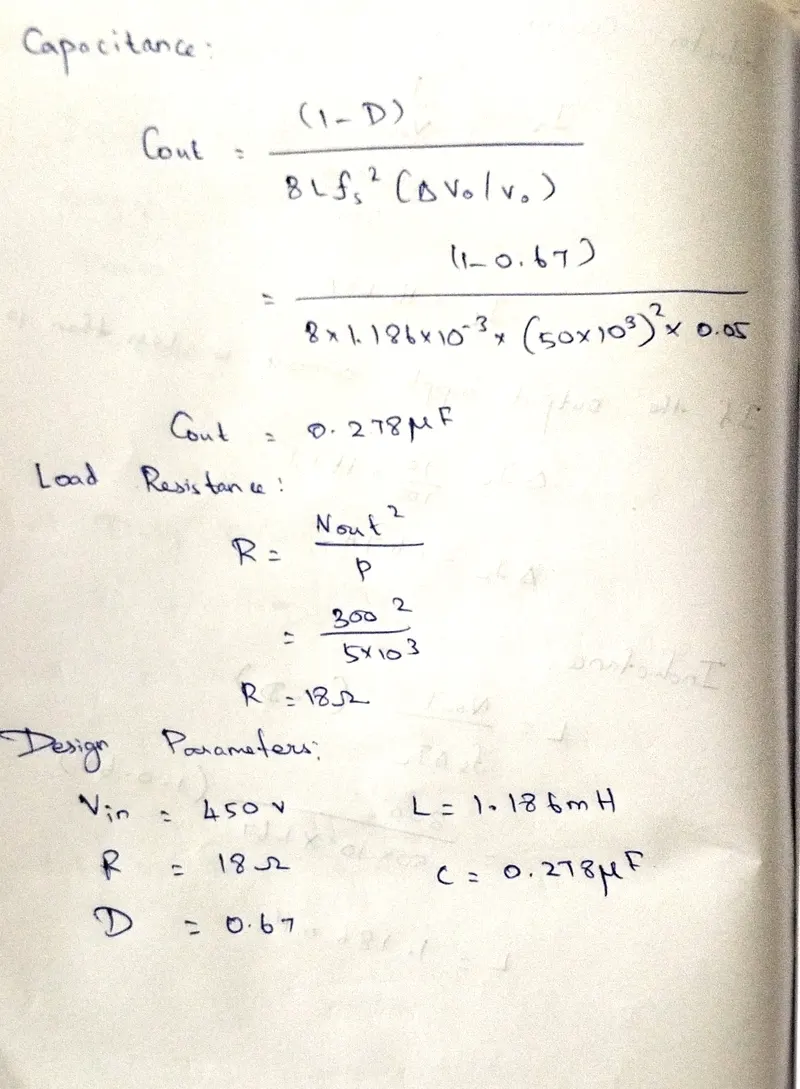

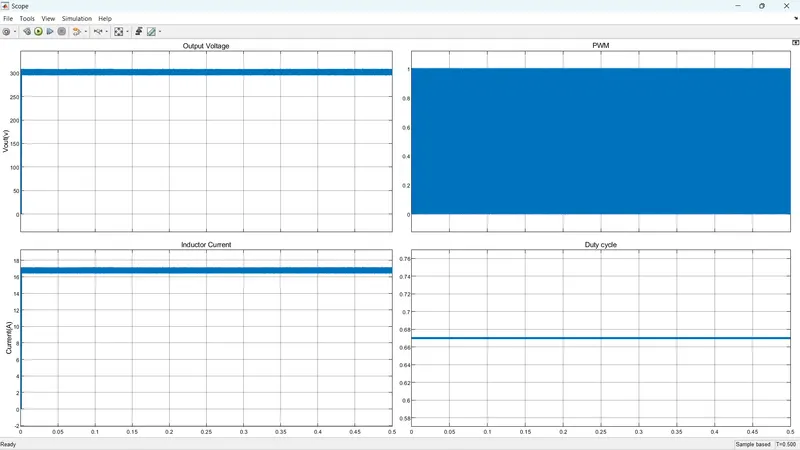

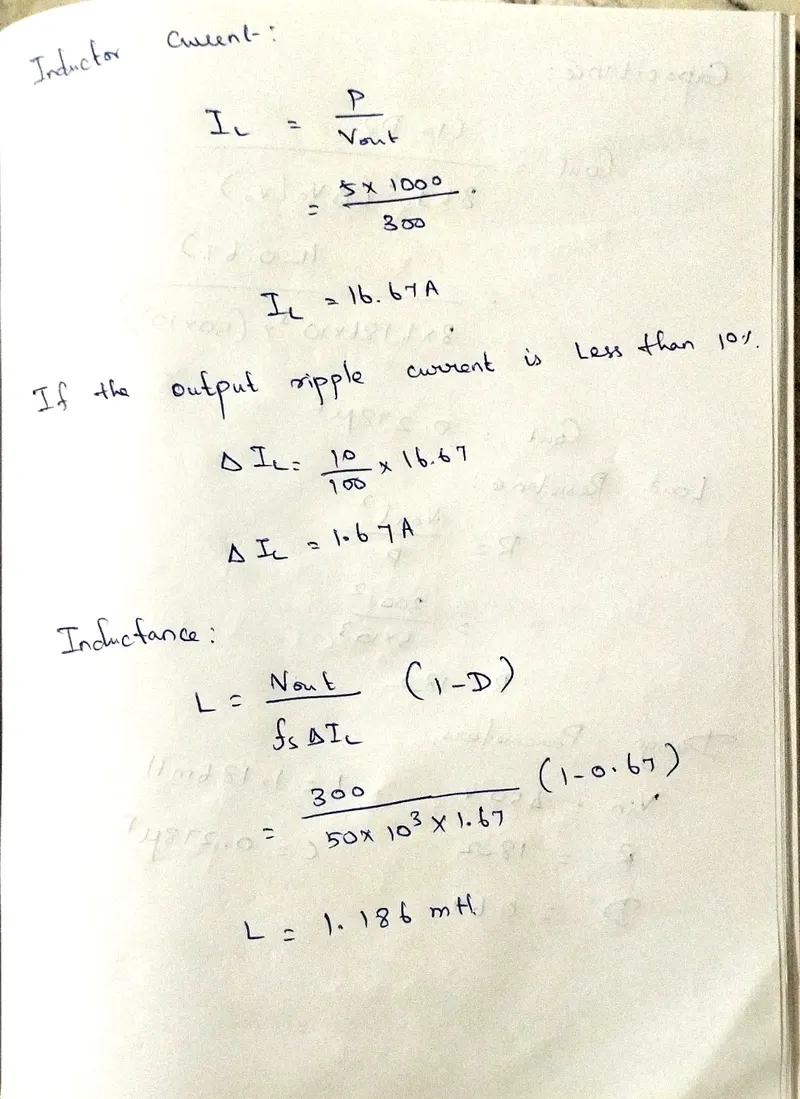

10. buck ccm:

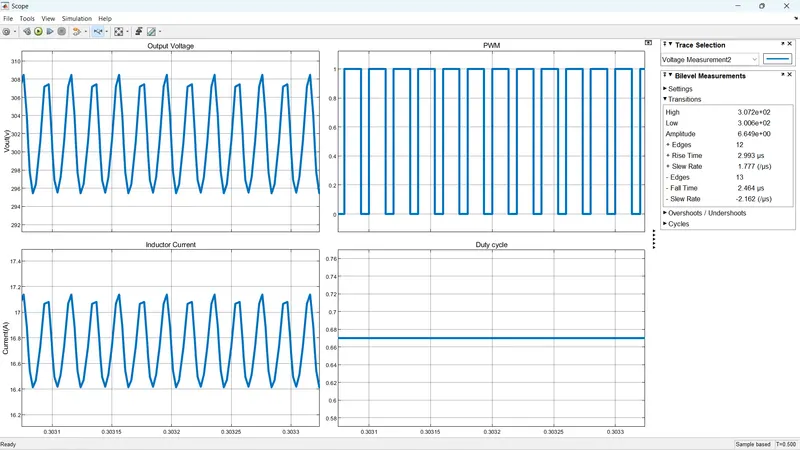

The maximum peak value = 307.2v

The minimum peak value = 300.6v

The ripple voltage = 307.2 - 300.6 =6.4 v

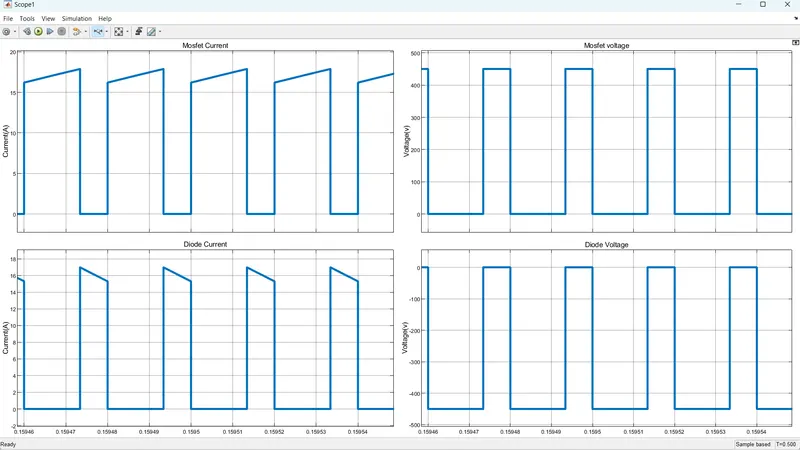

Mosfet, Diode volatge and current waveform:

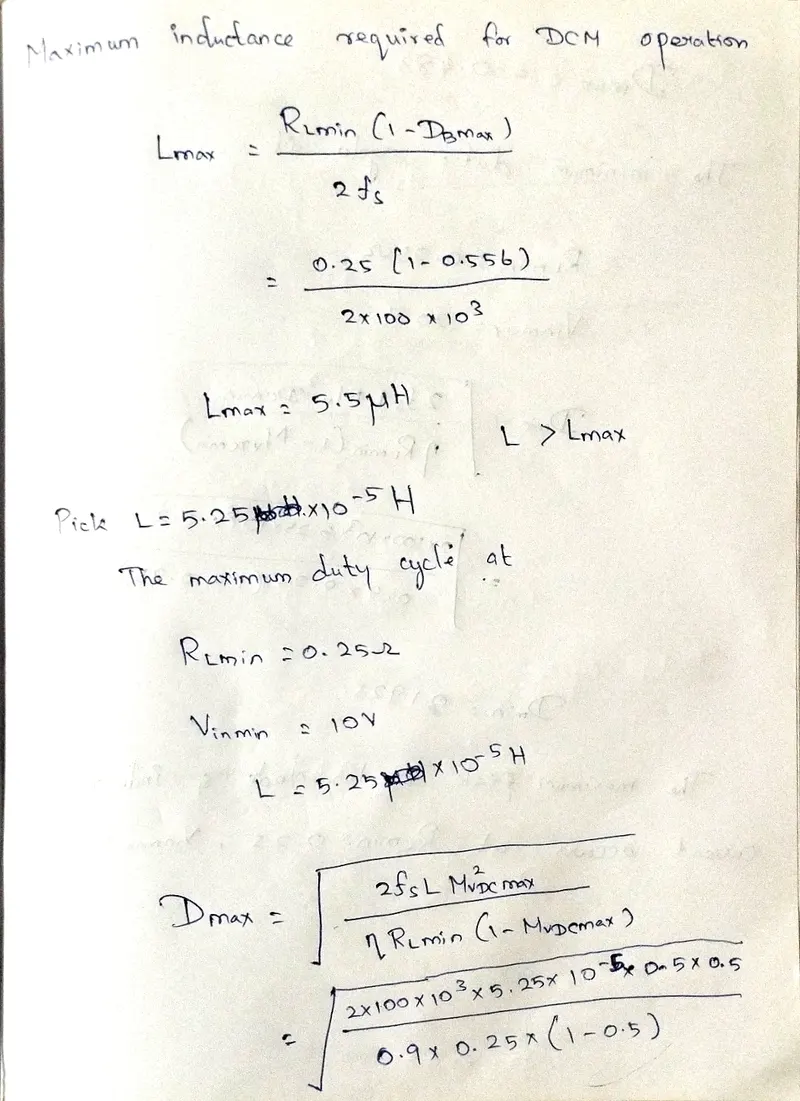

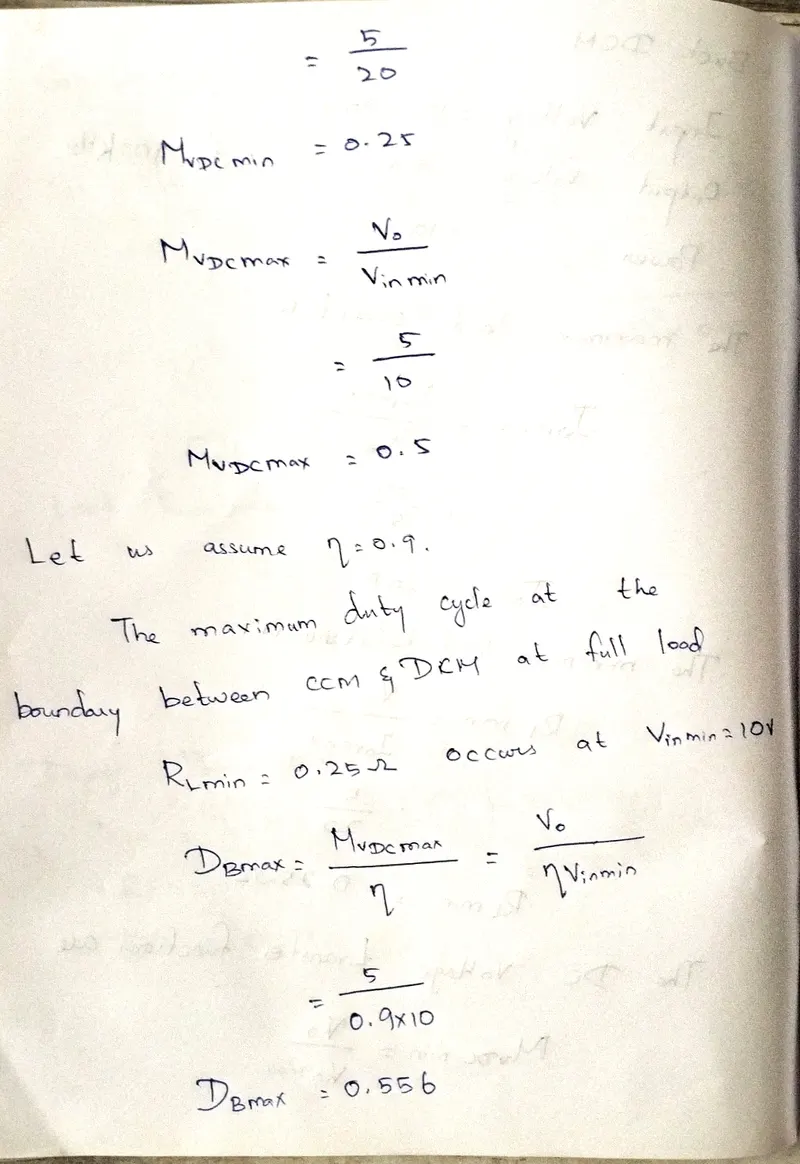

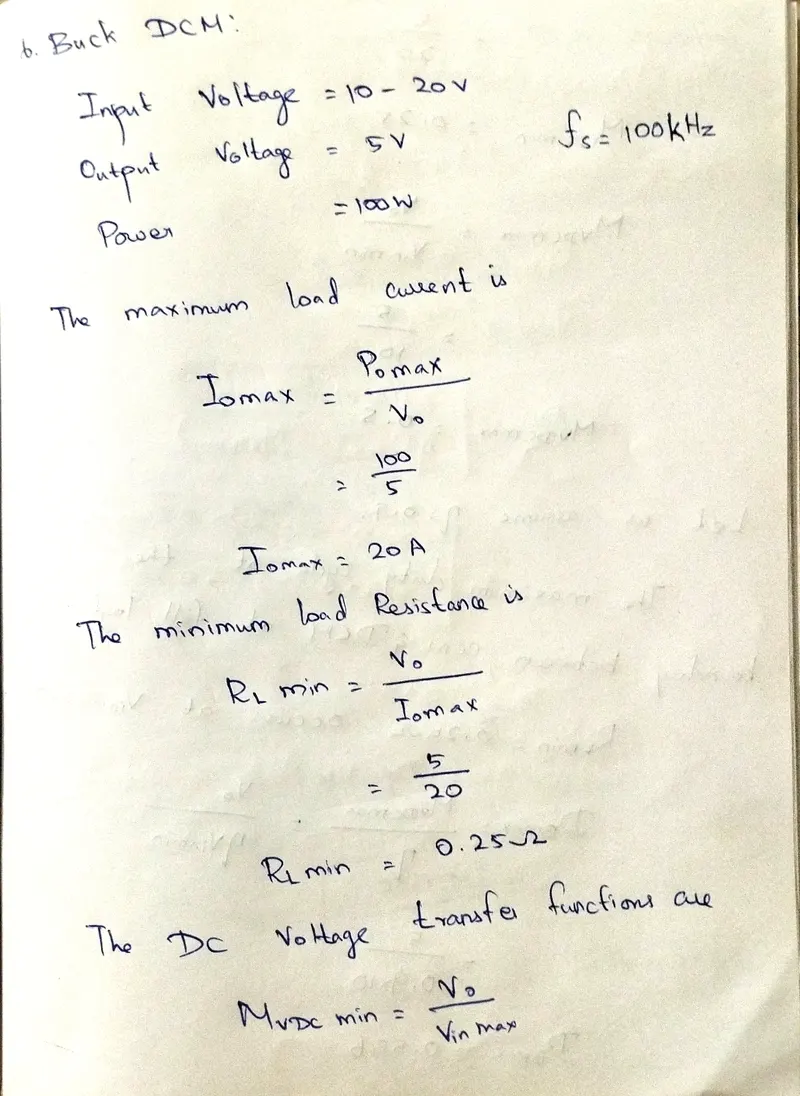

6. Buck Dcm:

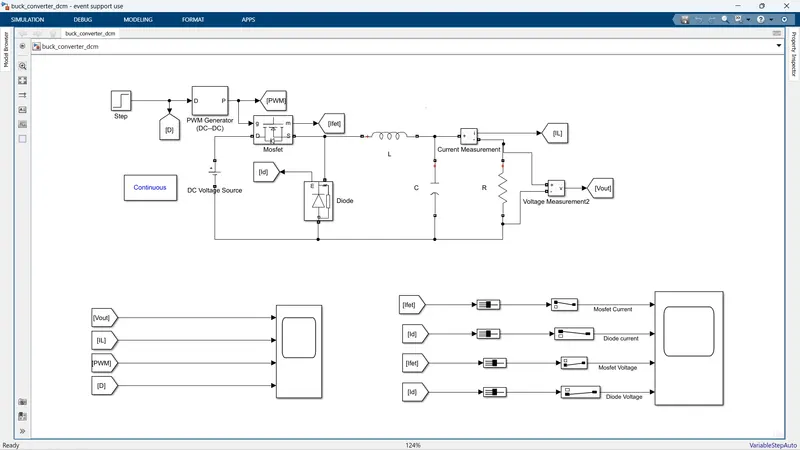

Circuit design:

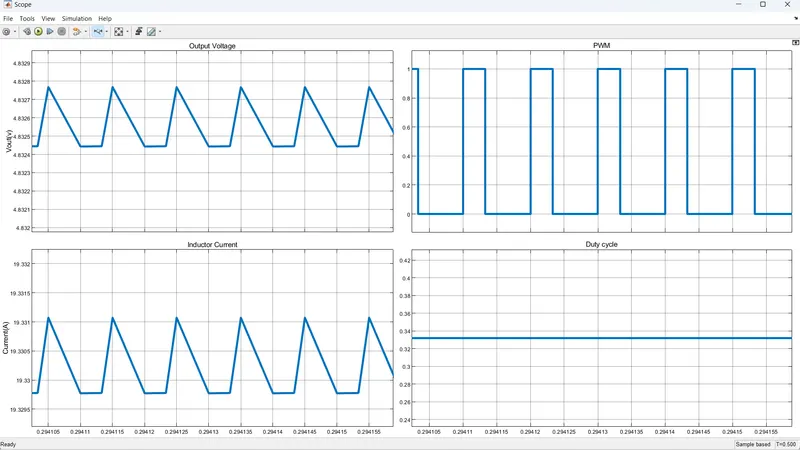

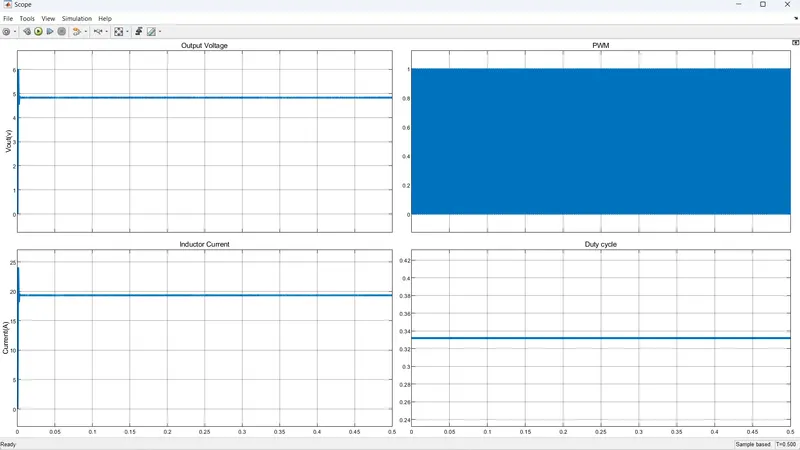

output voltage ~5v

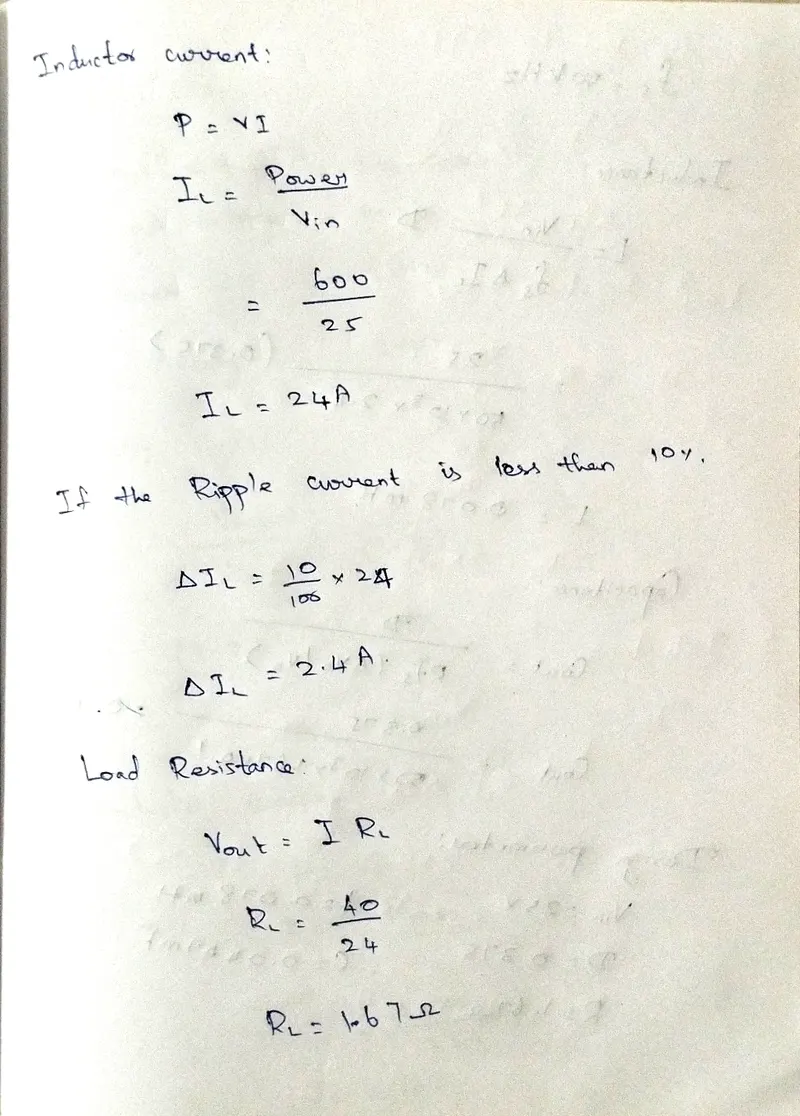

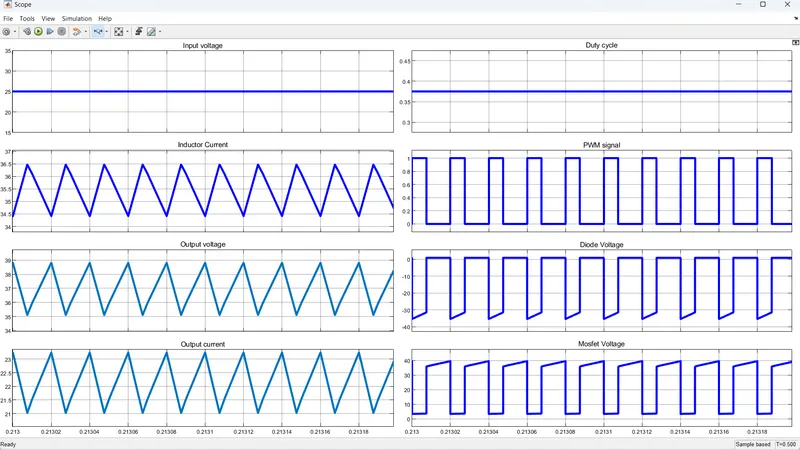

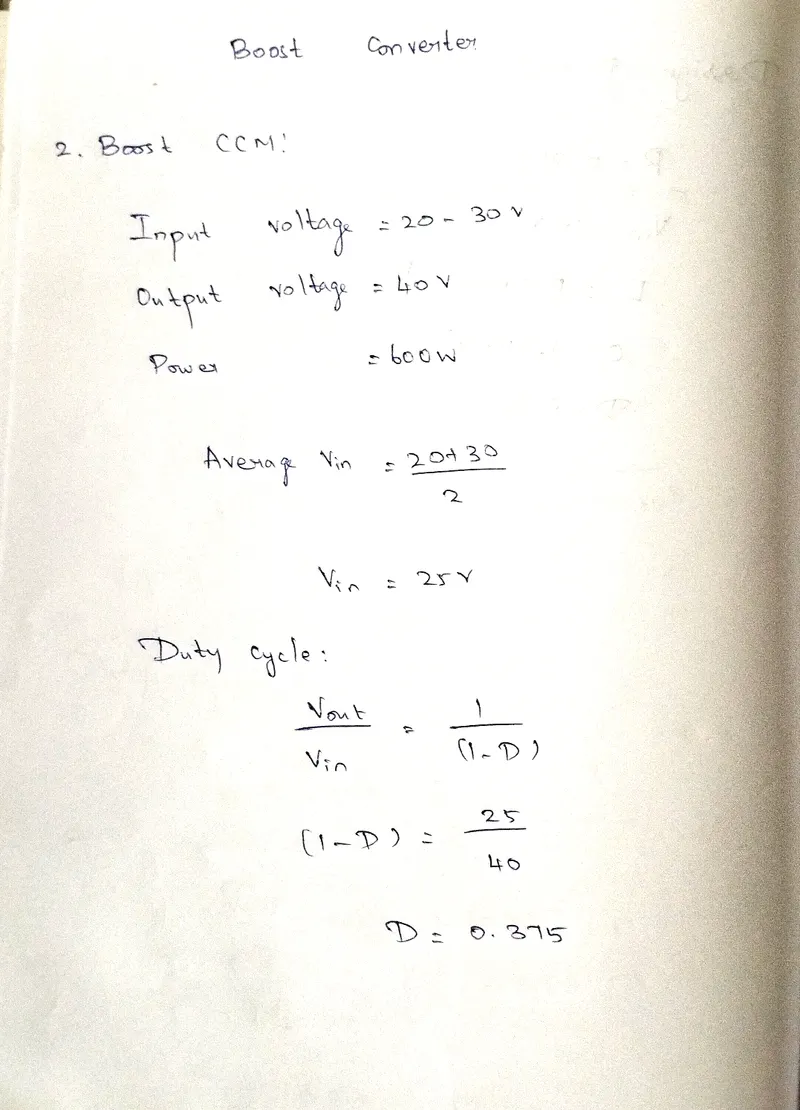

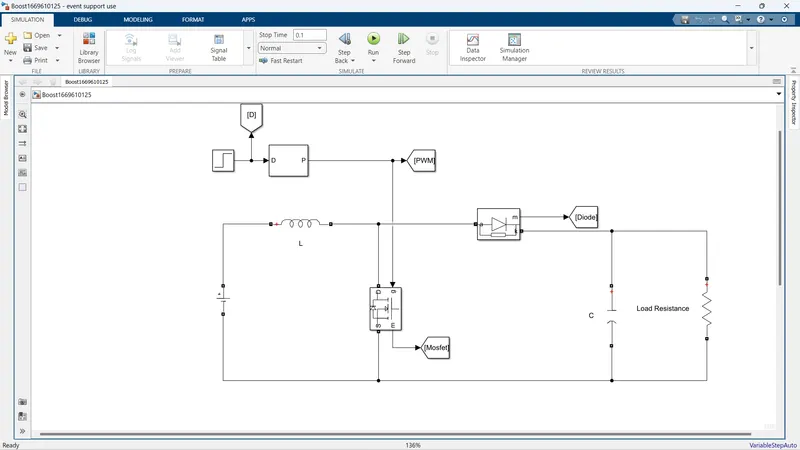

2. Boost ccm:

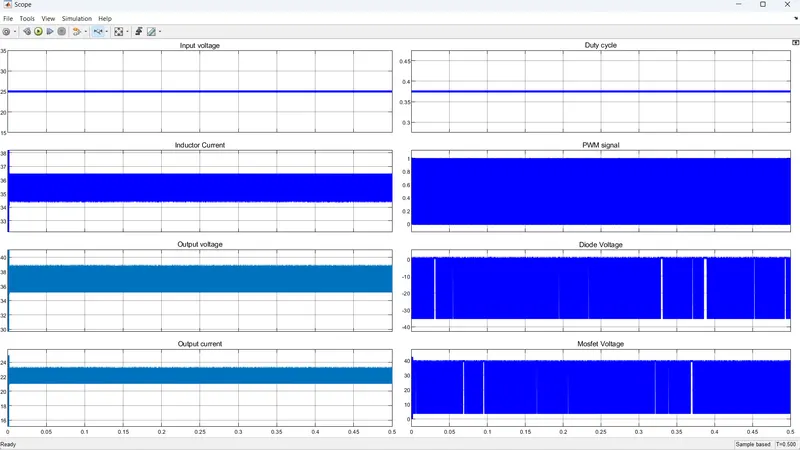

Output voltage ~37v

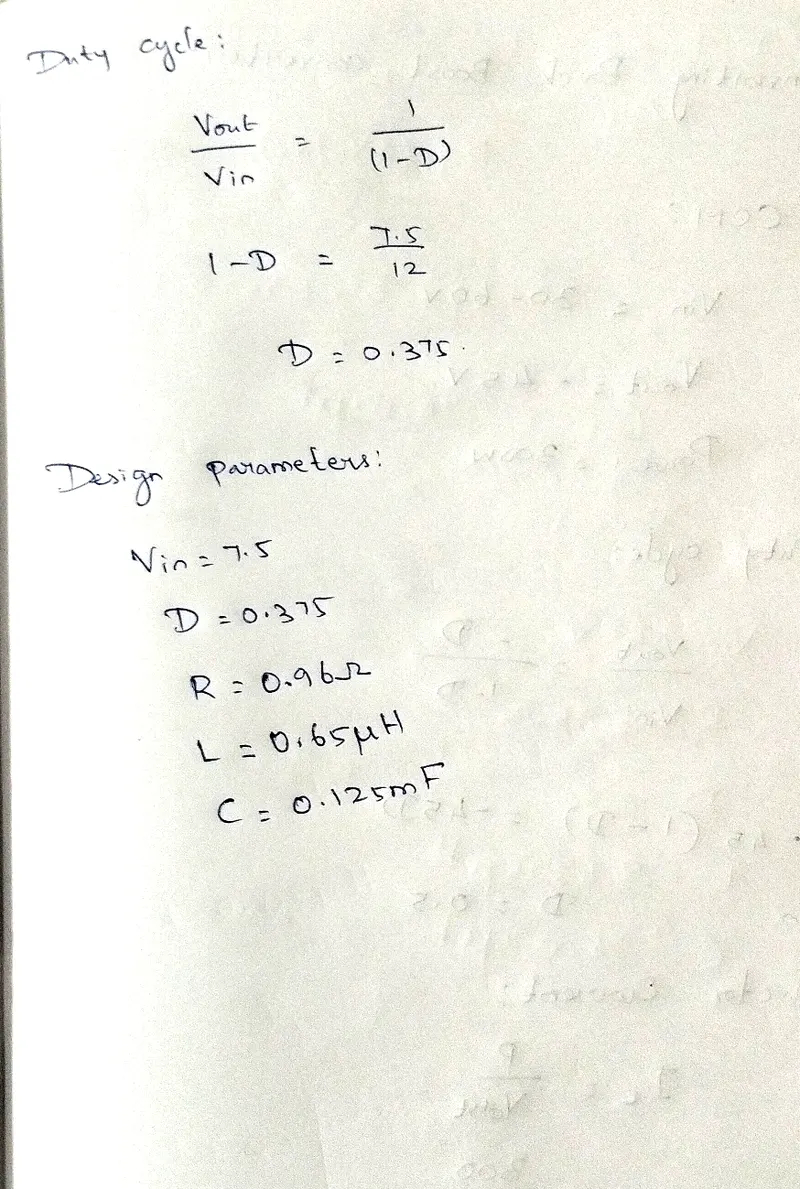

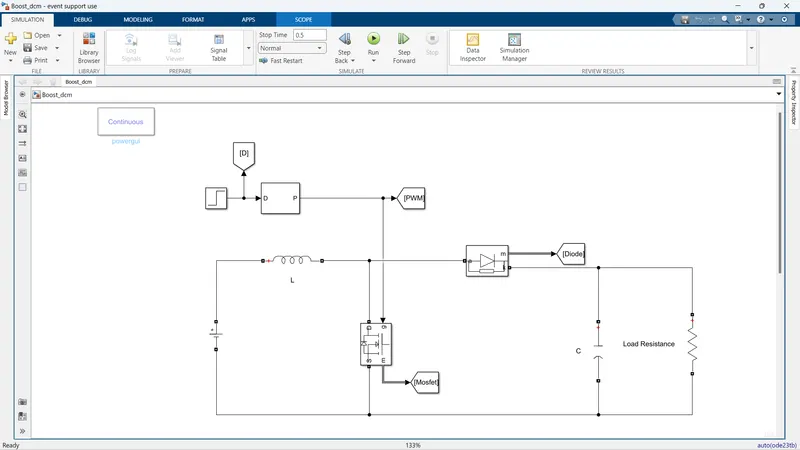

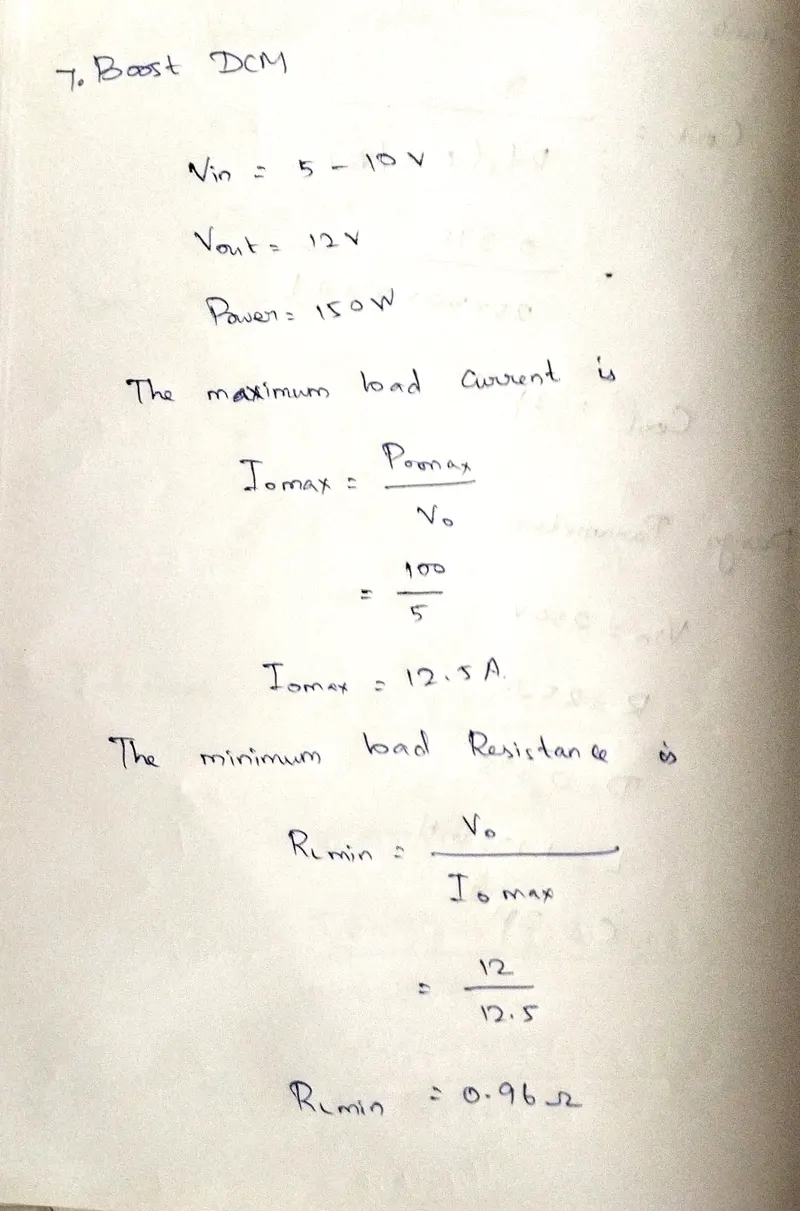

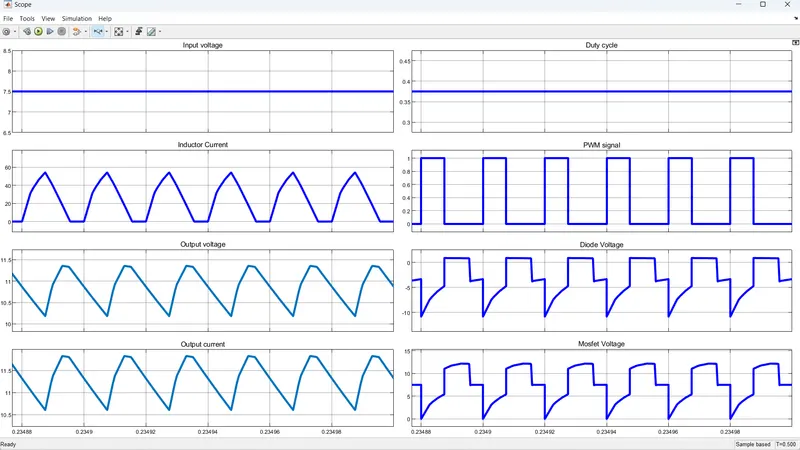

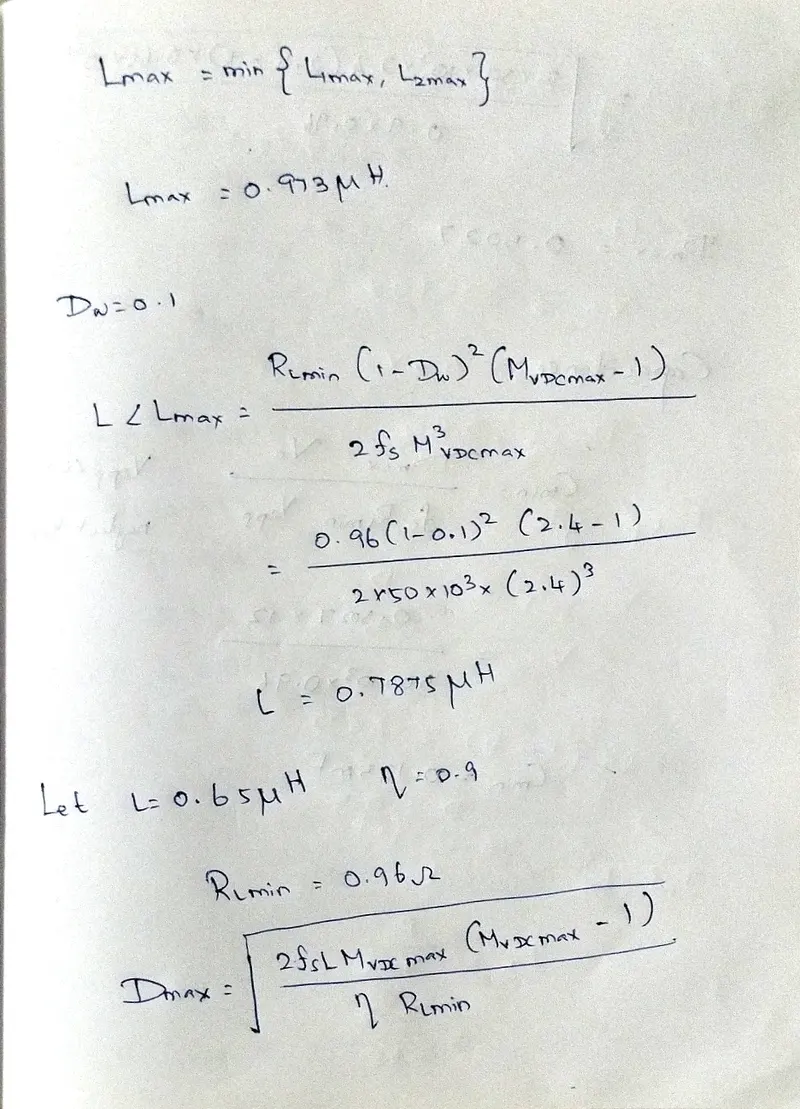

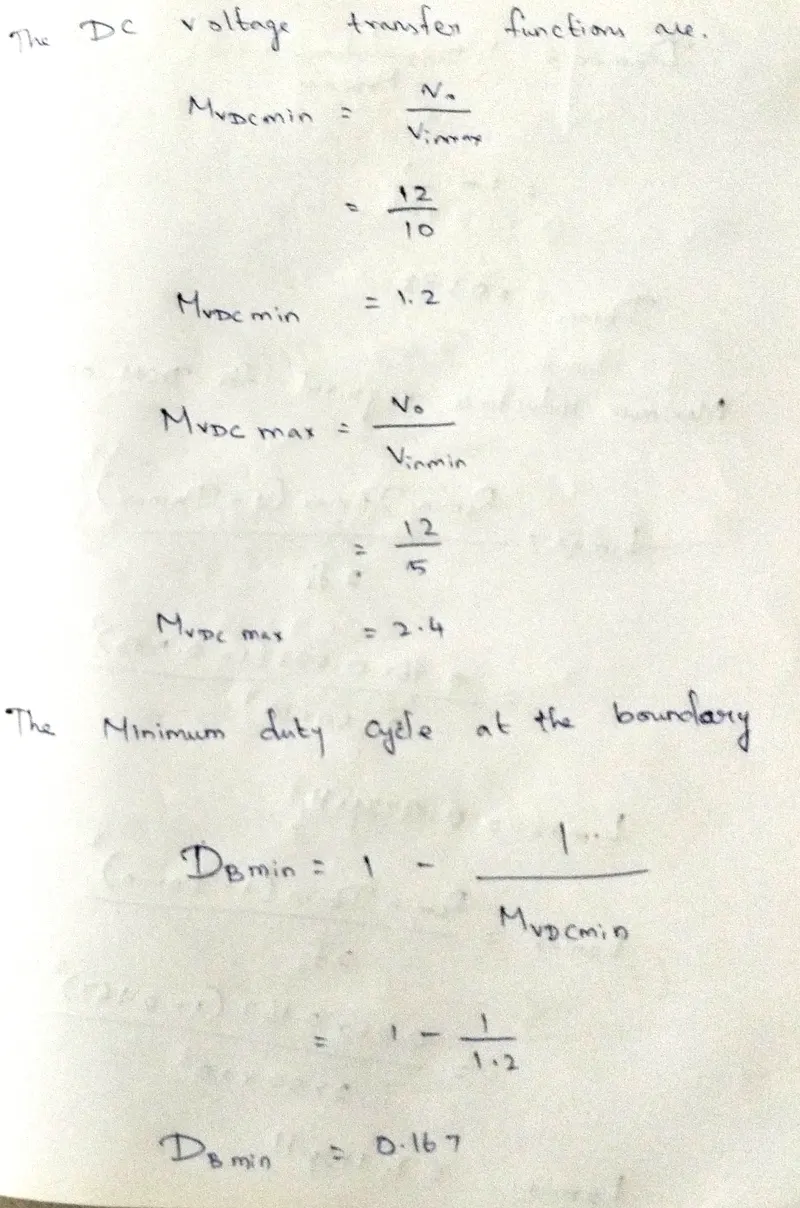

7. Boost DCM:

output voltage = ~12v

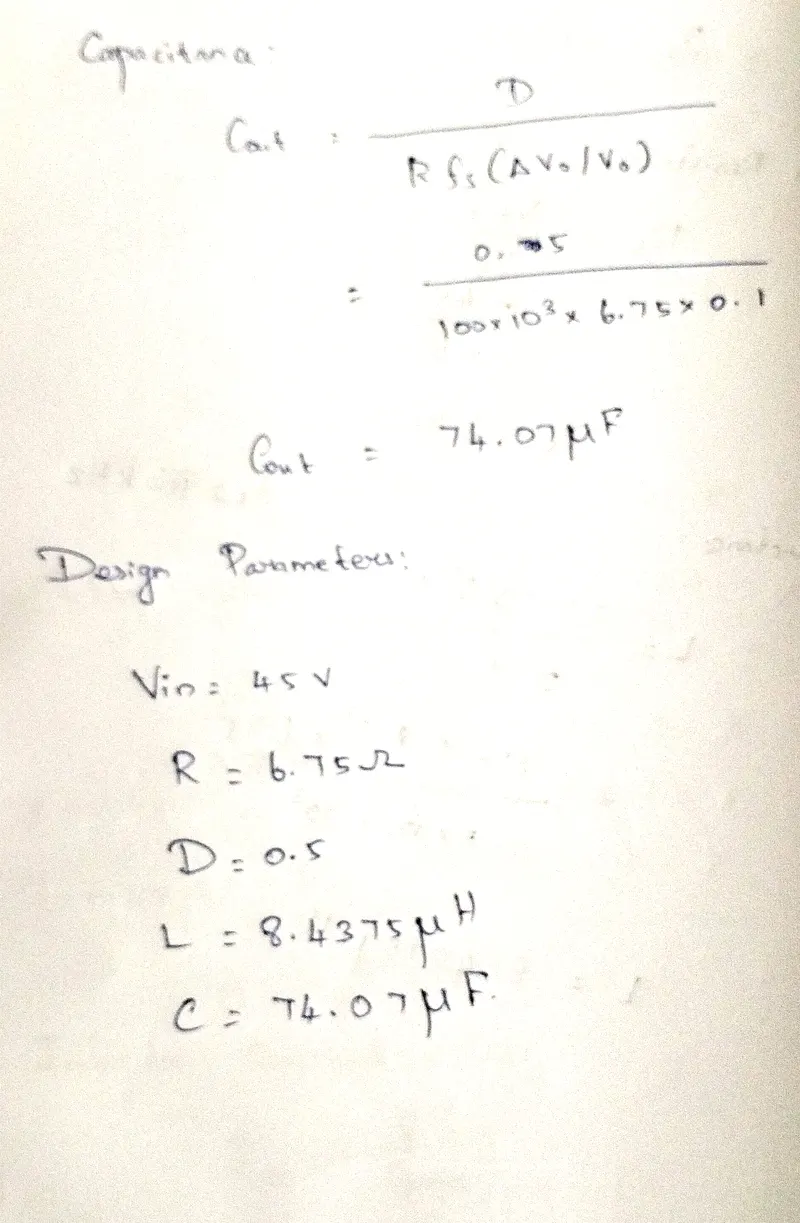

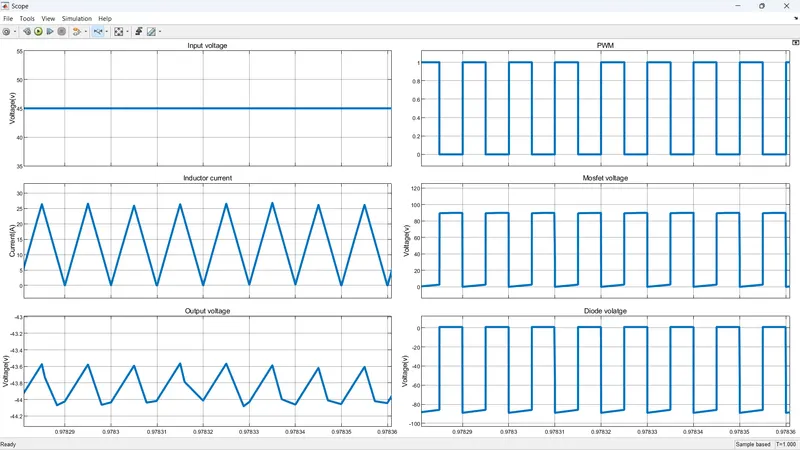

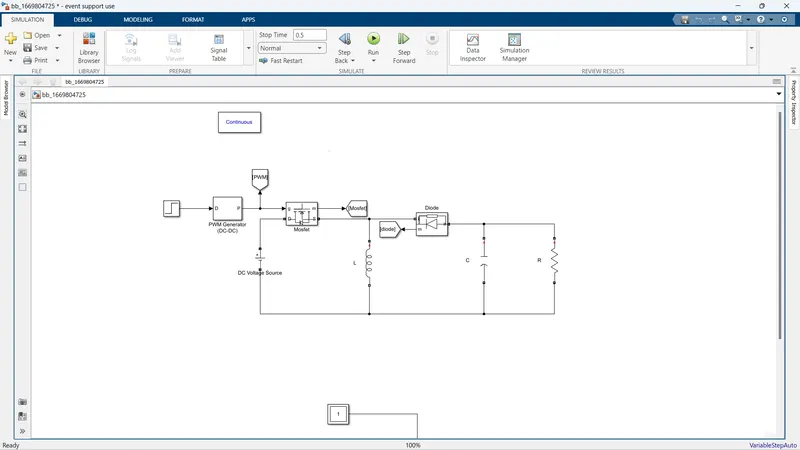

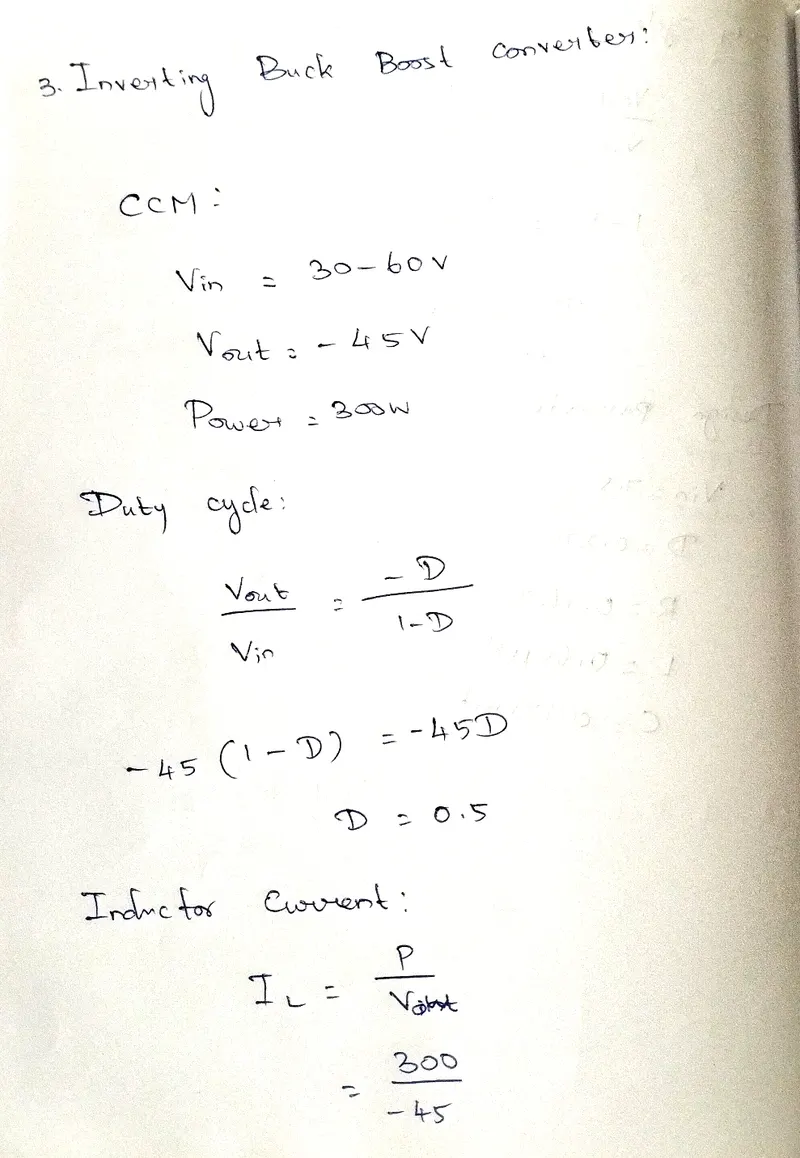

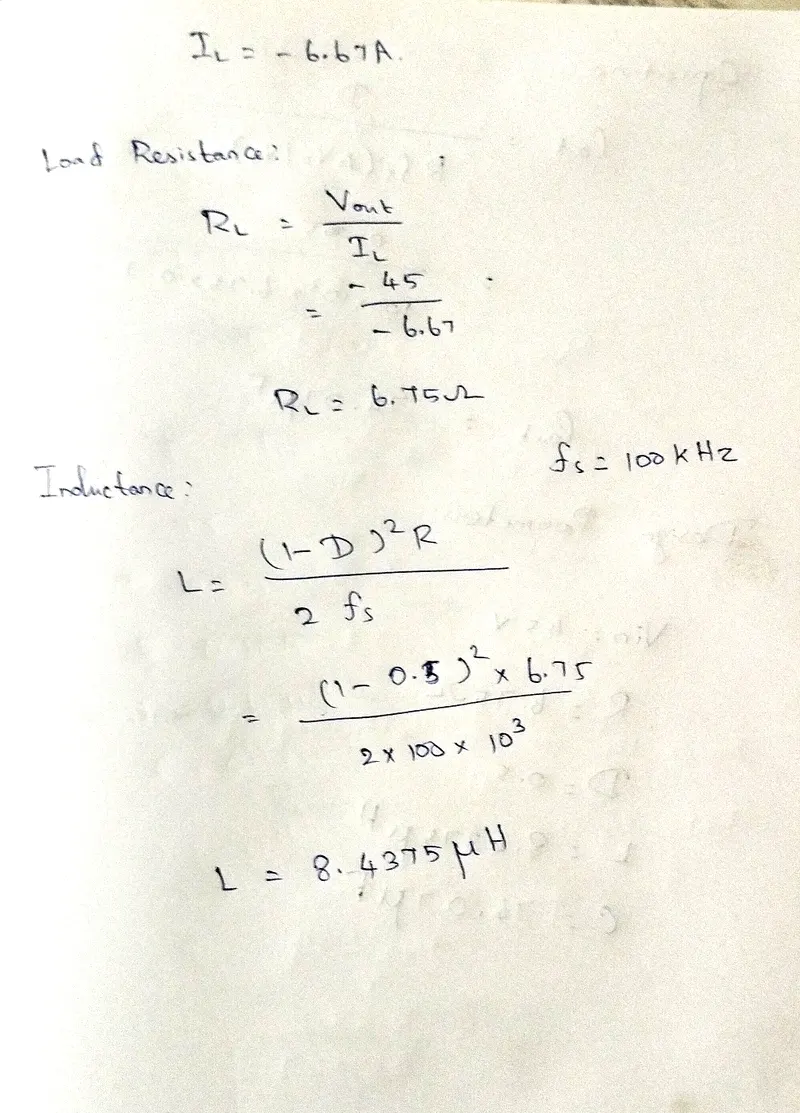

3. Inverting Buck Boost ccm:

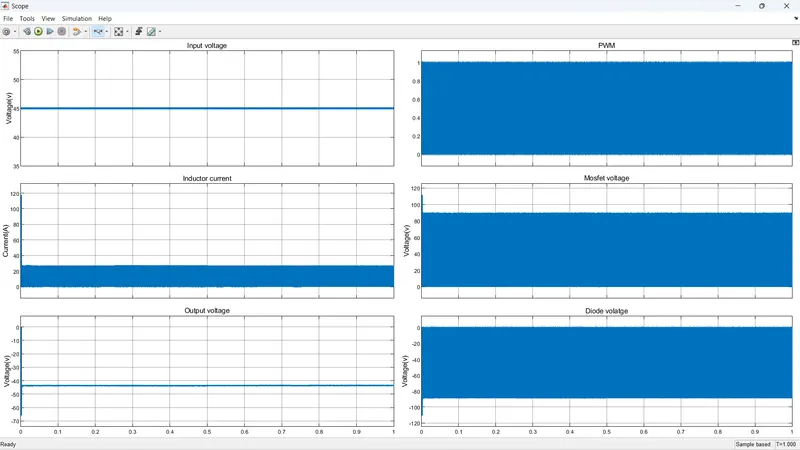

output voltage =~-45v

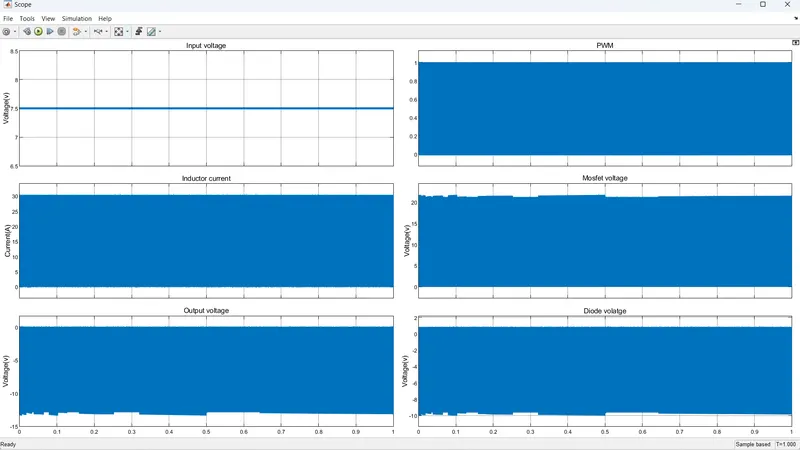

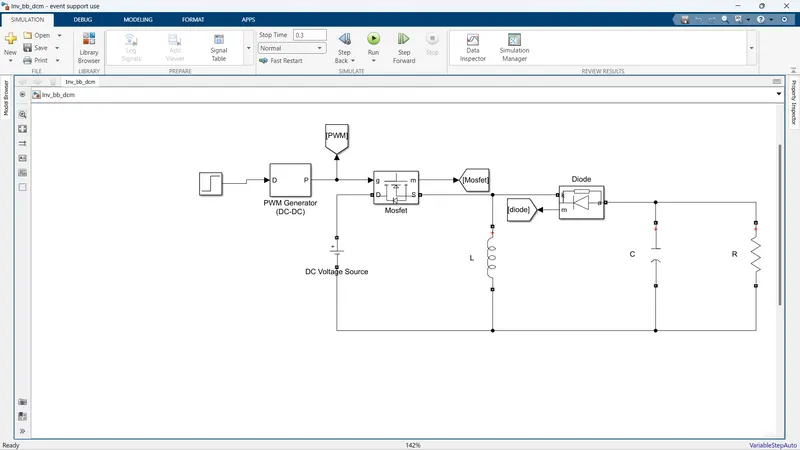

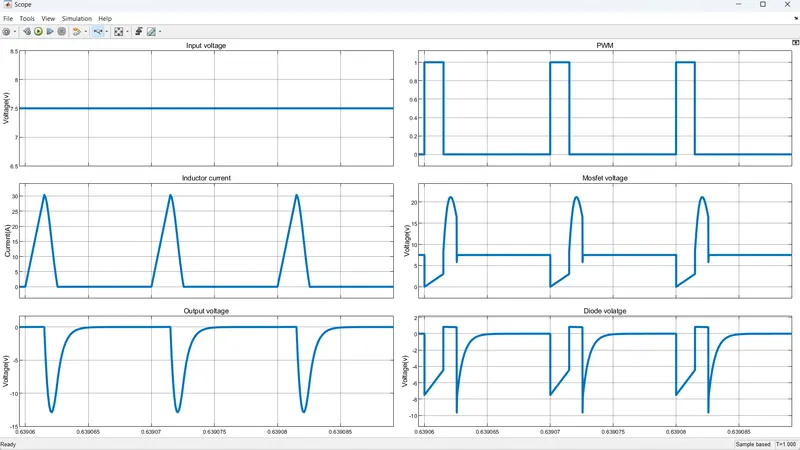

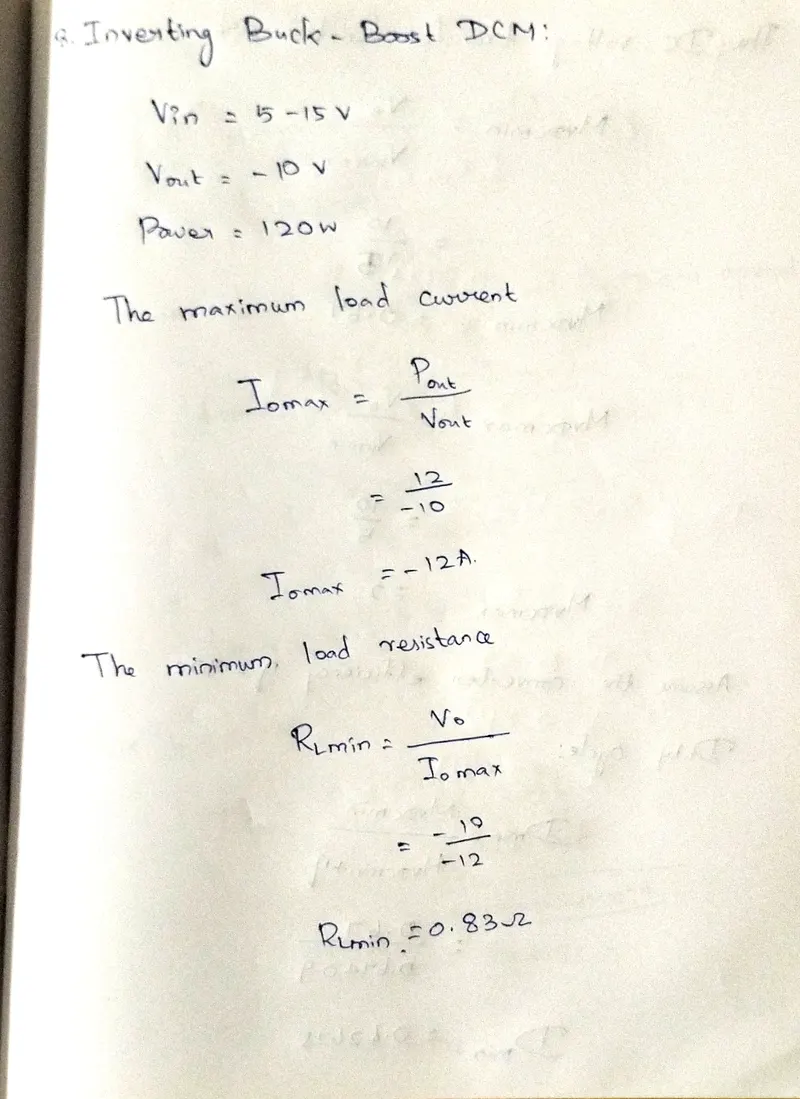

8. Inverting buck boost converter dcm:

output voltage= ~-15v
