Project 2

Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading.

AIM : To develop general arrangement for the RC office building & to analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER & to refer the attached plan and elevation.

TOOLS REQUIRE : Manage property sets, construction levels, grids, columns, beams, reports, model report, show report, interactive design, slabs, frames, bracings, loads, load cases, load combinations, validate, roof panels, wall panels, seismic wizard, etc.

PROCEDURE :

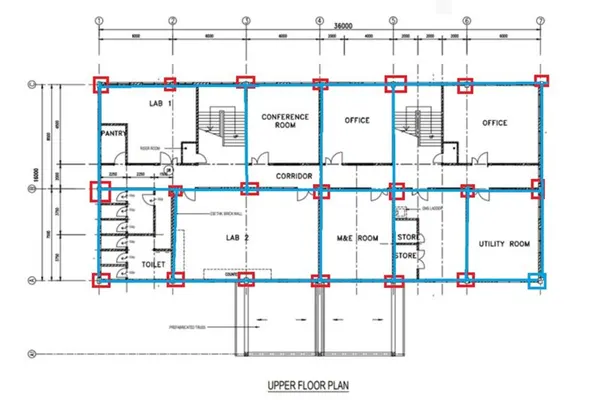

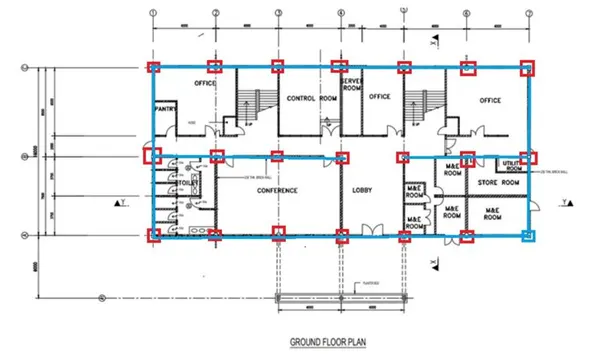

• Firstly take the screenshots of the plan and open them in paint
• Now draw the positions of columns and beams in paint

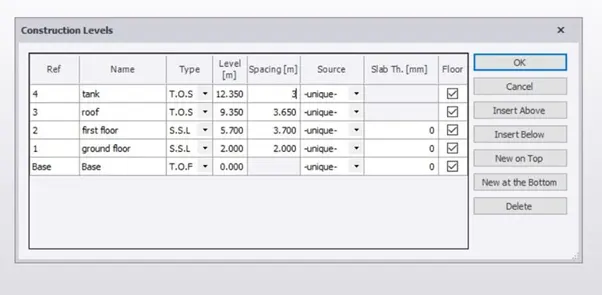

• Now open tekla file and create the construction levels for the structure according to the plan

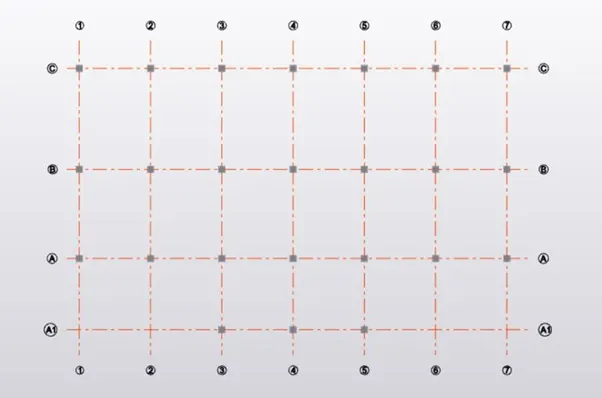

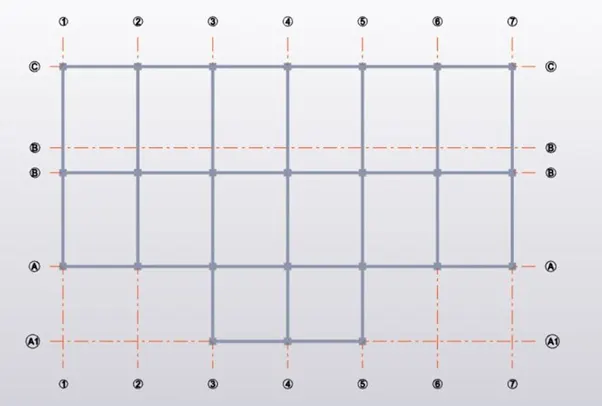

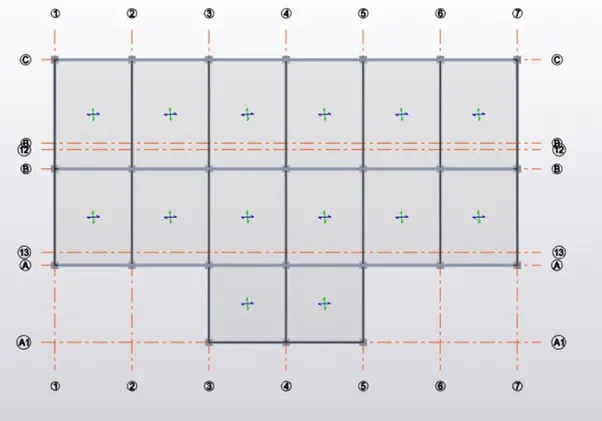

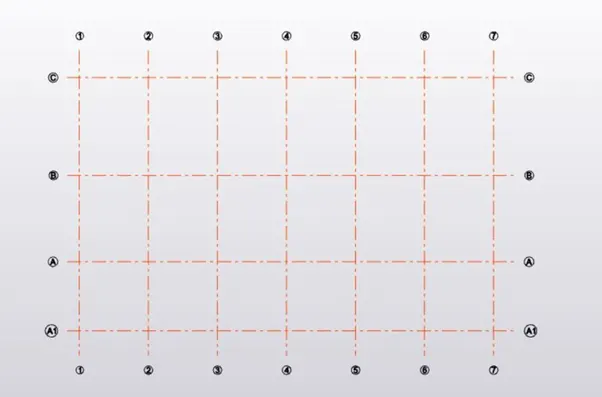

• Now construct horizontal and vertical grid lines

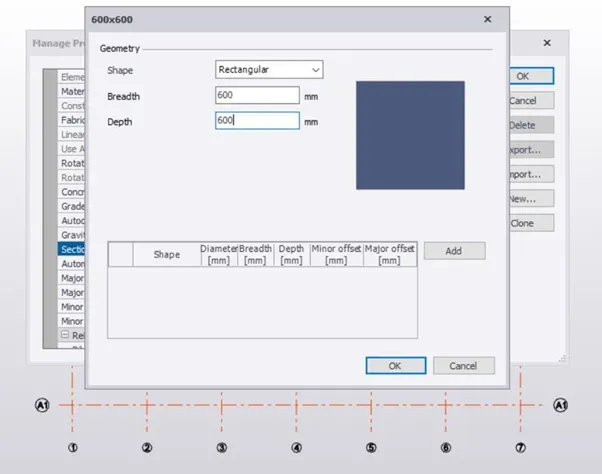

• Now select the size of the concrete column section used in the construction as per the requirement

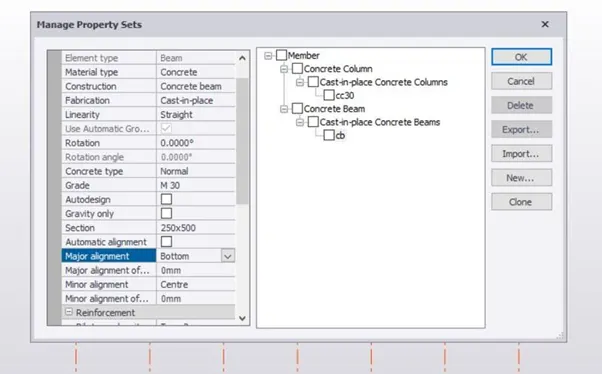

• Now go to manage property sets and create members used for the modeling

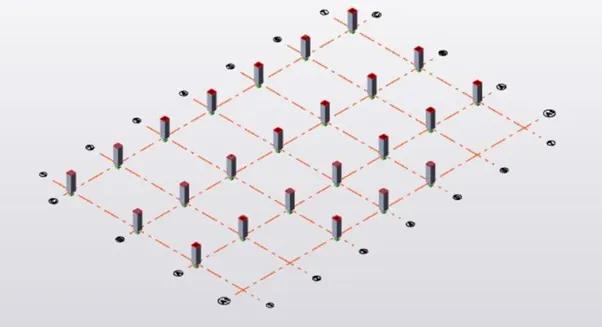

• Now go to model tab and insert concrete columns in the structure

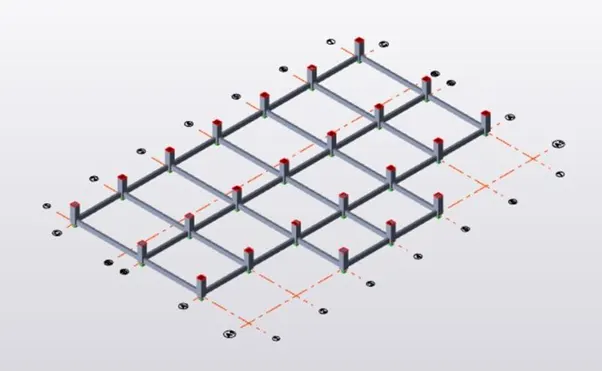

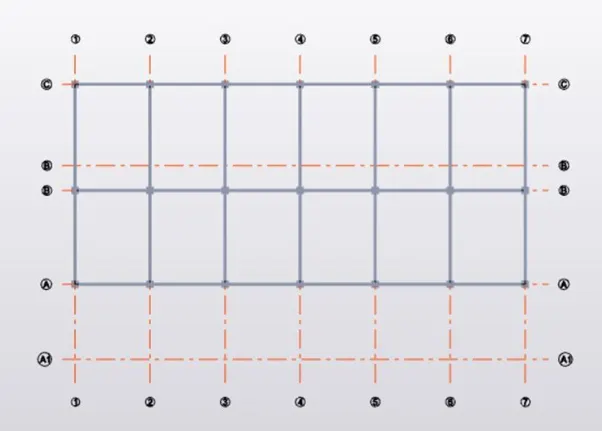

• Now go to model tab and select the beams tool and draw the beams as per the plan

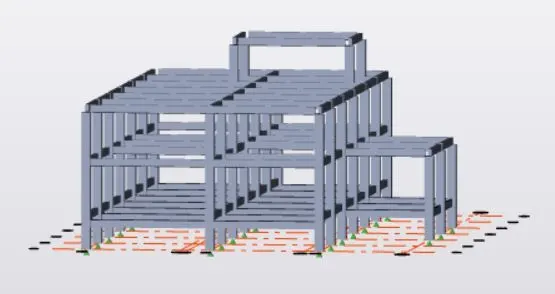

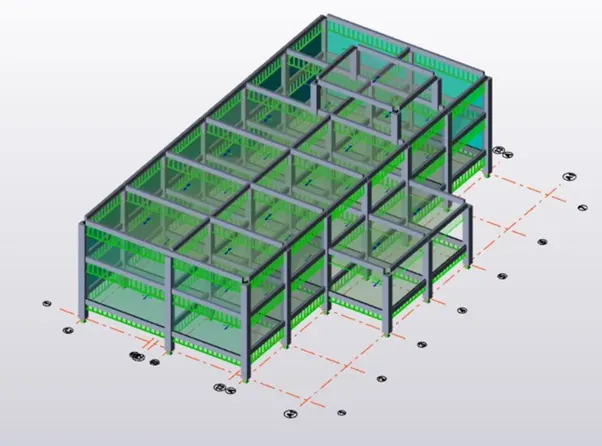

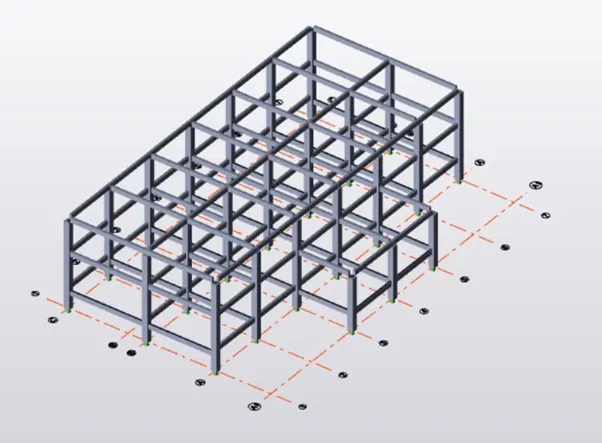

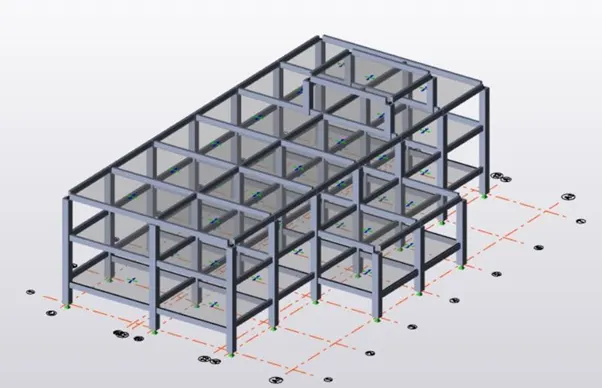

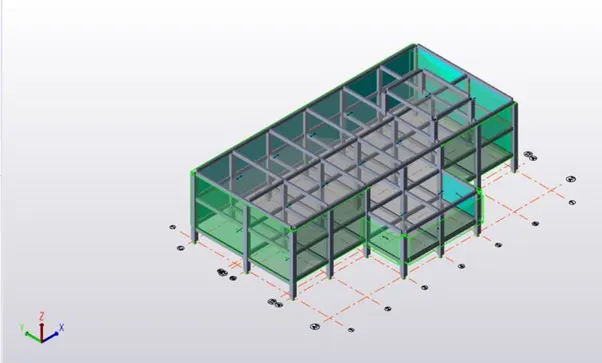

• Now check the structure in 3D for neat view
• Now repeat the same process for the the levels as per the plan

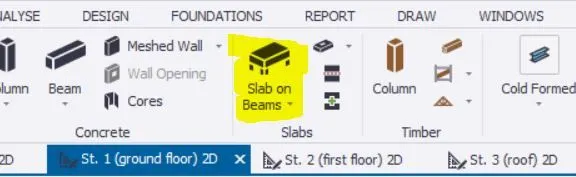

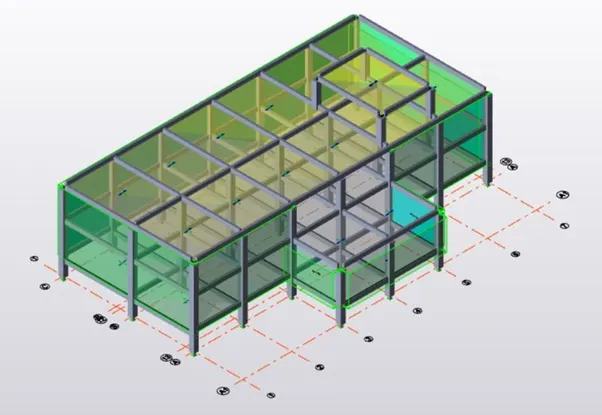

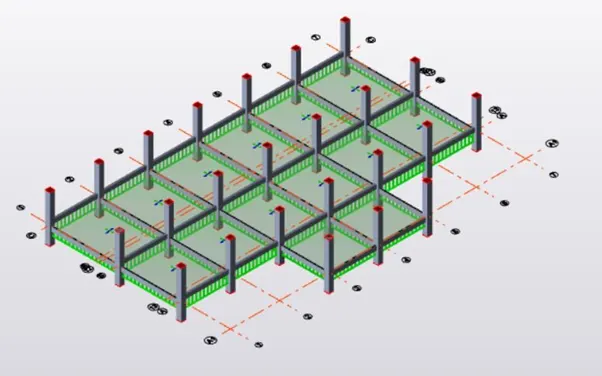

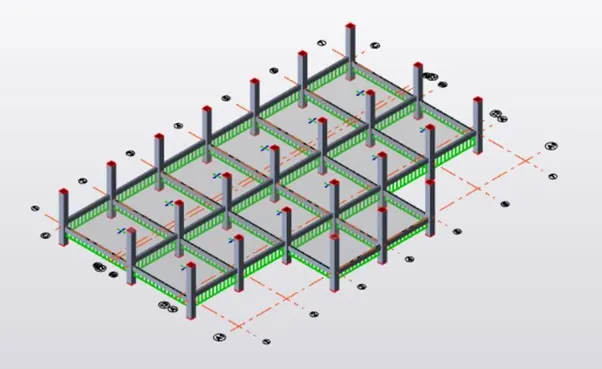

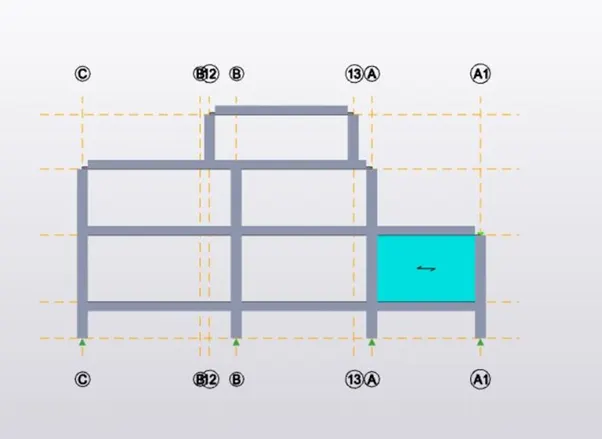

• Now select slabs on beams and insert slabs for all the floors, where ever required

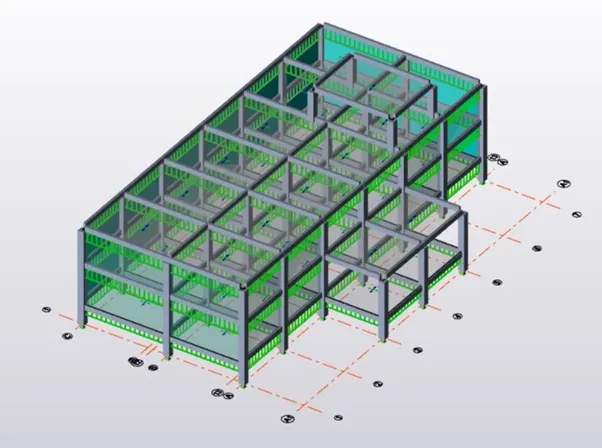

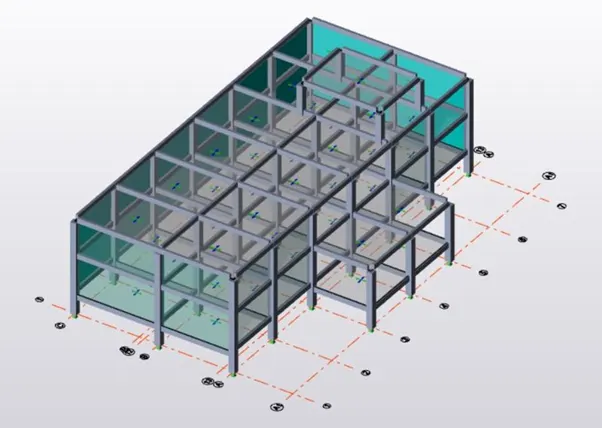

• Now go to 3D view to get a clear view of the slabs inserted
• Now insert frams which will be helpful while applying loads on the structure

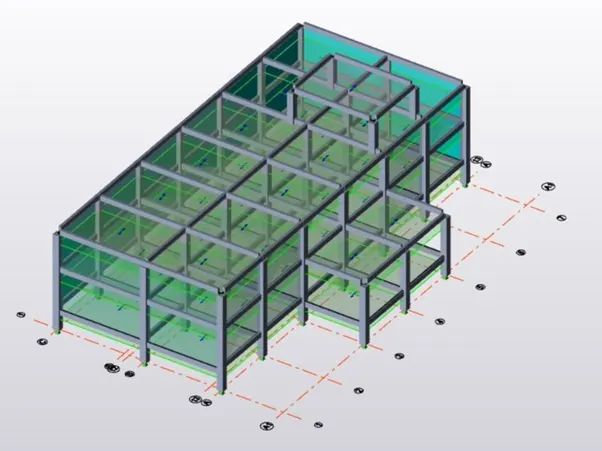

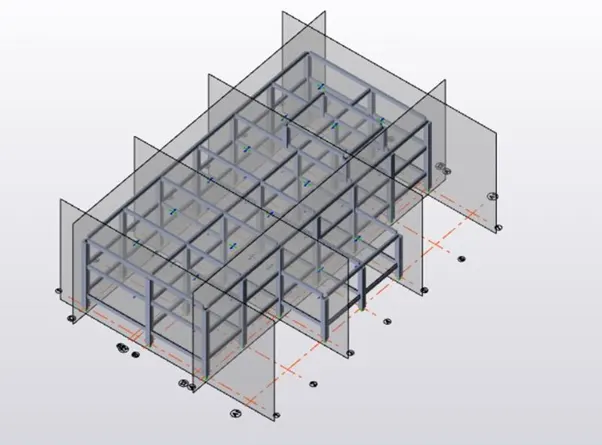

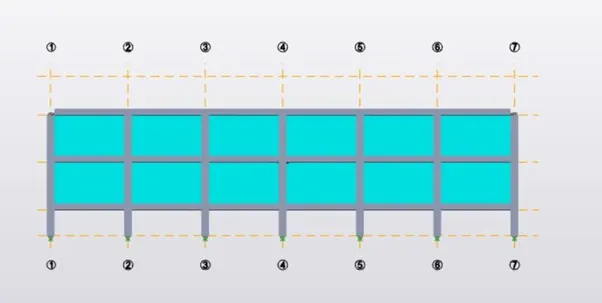

• Now add wall panels to the structure
• Now repeat the same step for all the walls

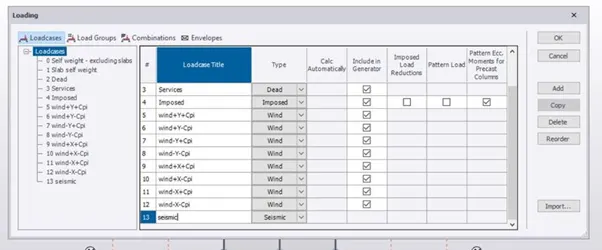

• Now go to loads and create new load cases
• Now add the dead load on the beams
• Now add the dead loads on the slabs
• Now repeat the same step for all the floors
• Now add live load on the structure for all the floors

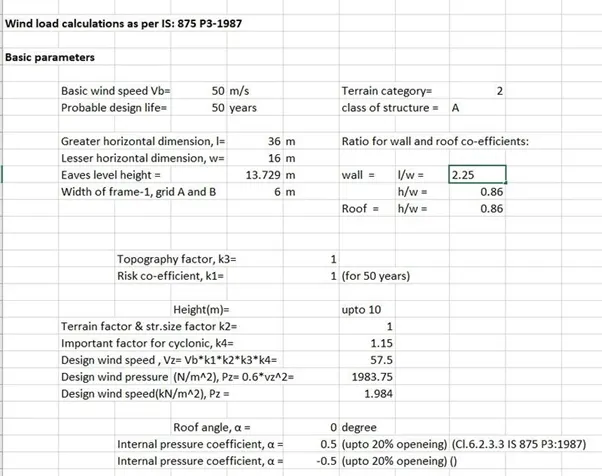

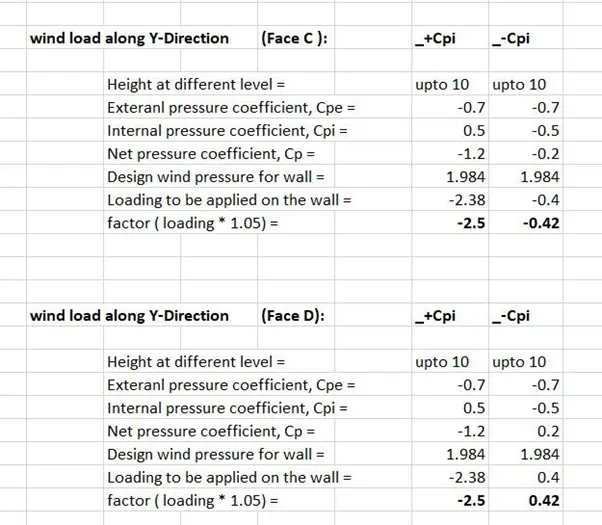

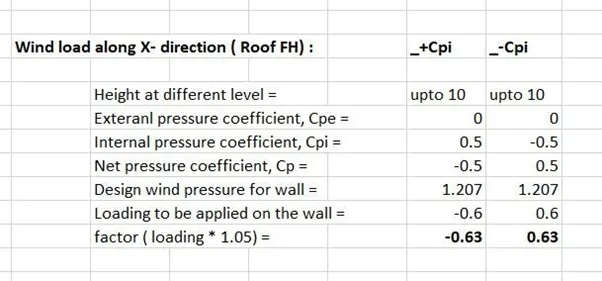

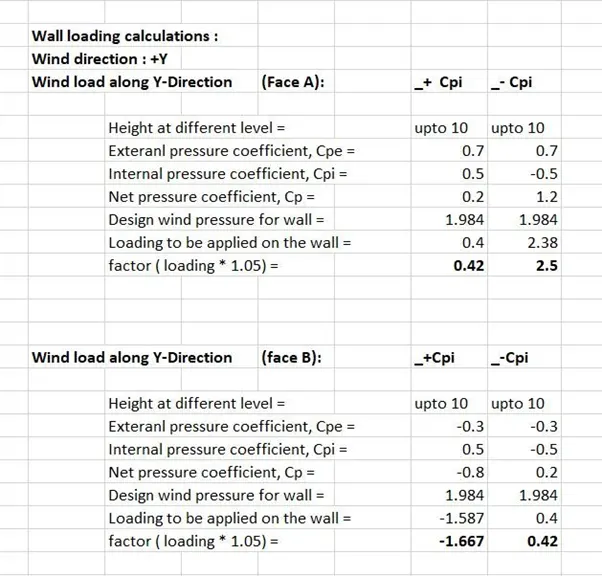

• Now do the wind load calculation for all the sides for both X and Y ( including both +Cpi and -Cpi values)
• Now start applying the wind loads on the structure
• Now repeat the same process for all the sides

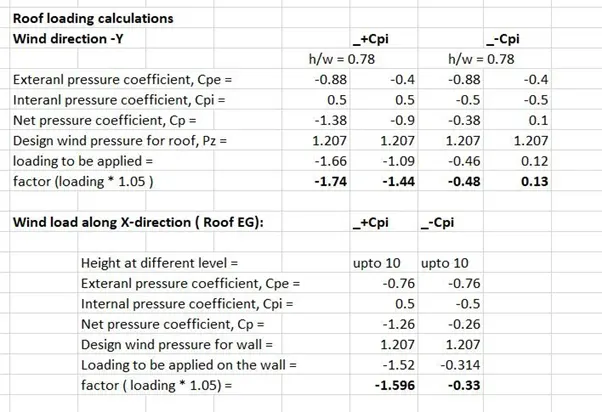

• Now add roof panels to the structure and also add roof load

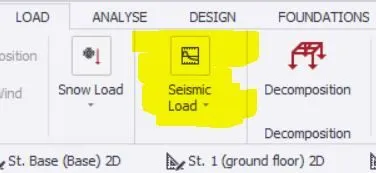

• Now apply seismic load on the structure by selecting seismic wizard

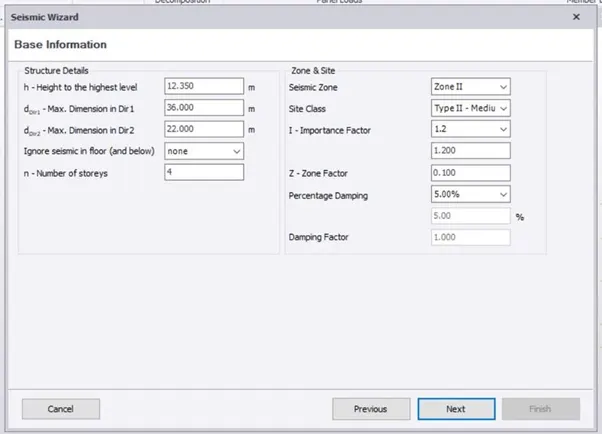

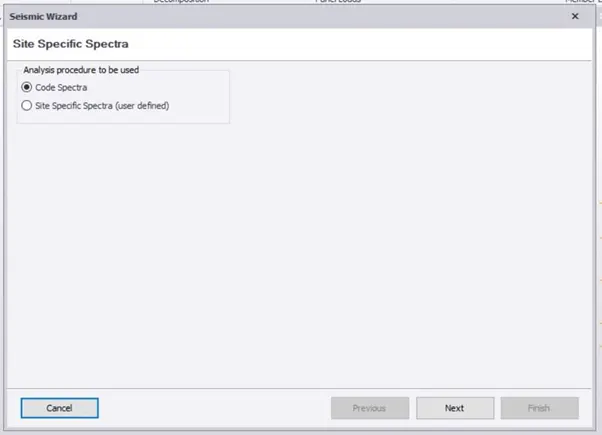

• Now seismic wizard dialog box appears
• Now enter the required values required for seismic load calculation

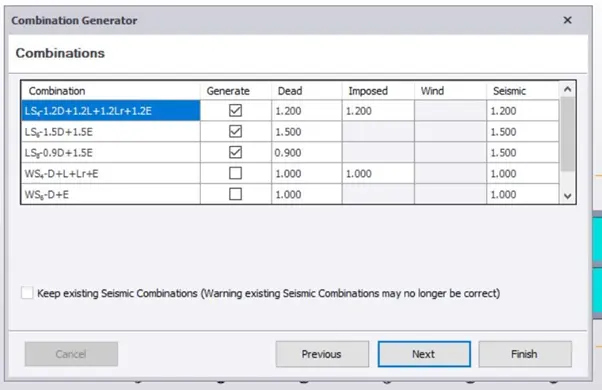

• Now add loads which will be applied are visible now

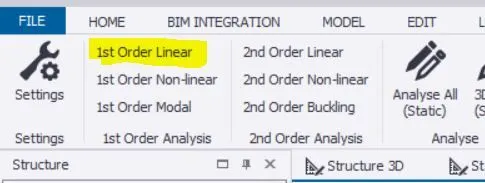

• Now analyze the structure by selecting 1st order Linear option

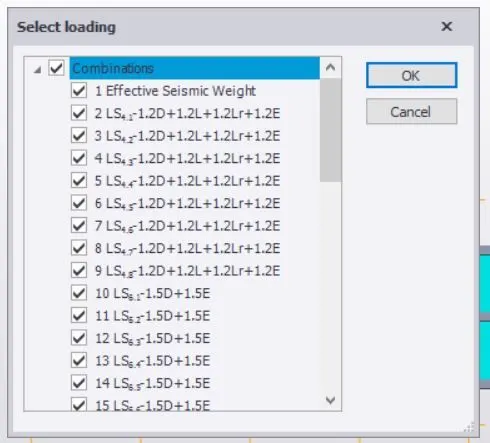

• Now select all the loadings required for the analysis

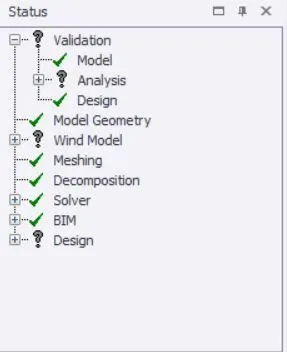

• Now validate the model to check that there are no errors

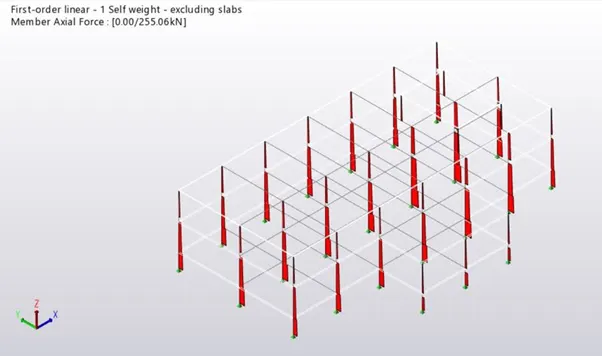

• Now check the axial load diagram

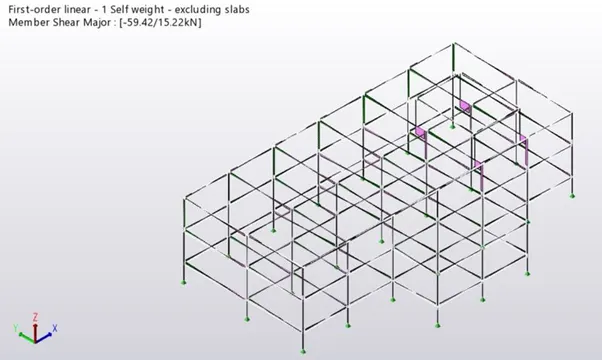

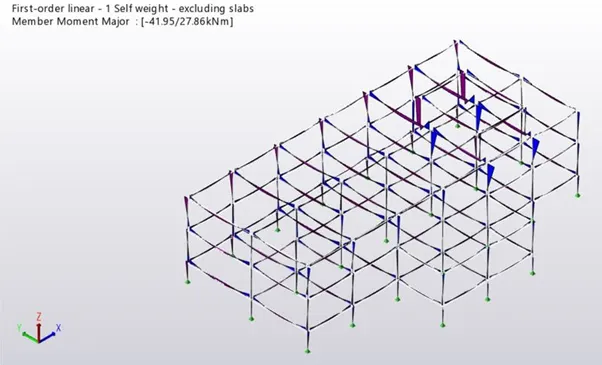

• Now check the shear force and bending moment diagram

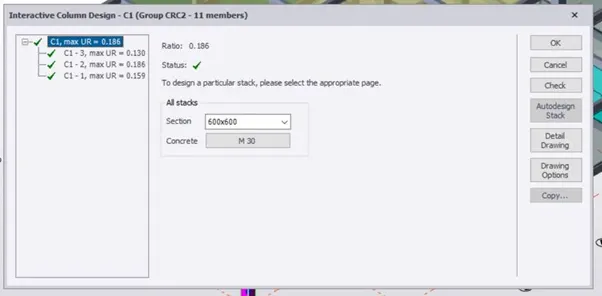

• Now check eachand every coumn and perform interactive design

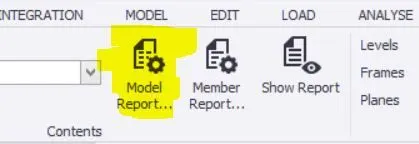

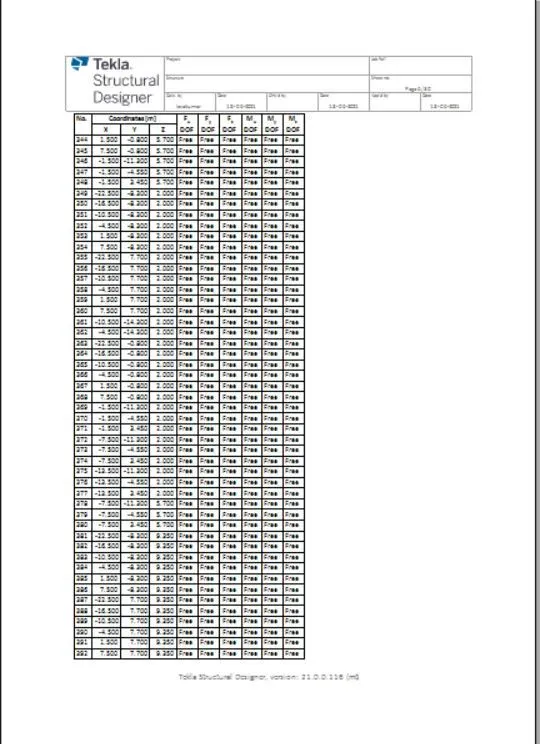

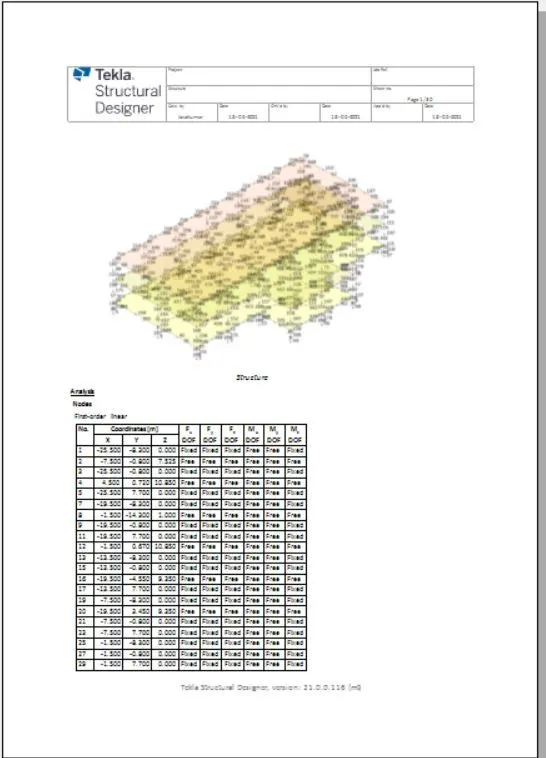

• Now we can model the structure by pressing on model report to obtain the reports

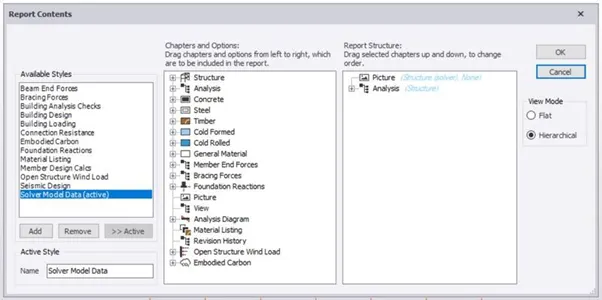

• Now select what all reports we need

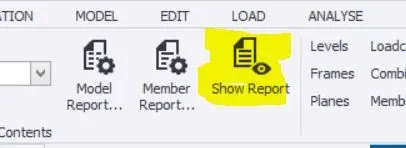

• Now for seeing the reports we have to press on show reports option

RESULT :

Therefore by using above procedure we can design and model the structuer as per the given plan. We can add loads ( dead, live, wind and seismic) on the structure and analyze the structure
