Project 2

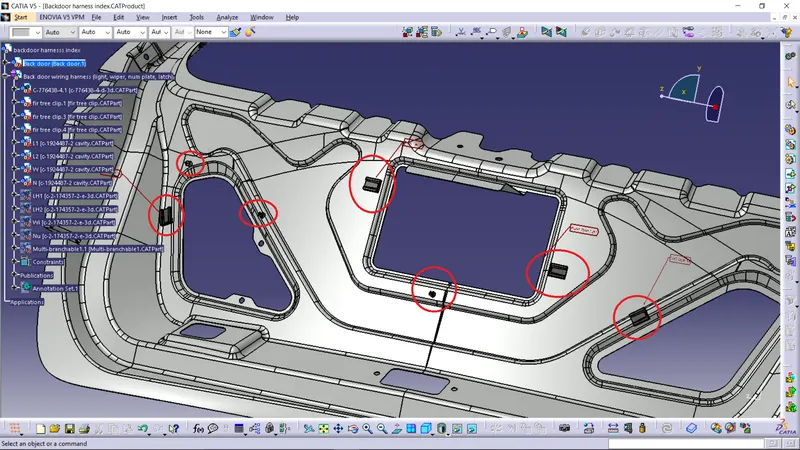

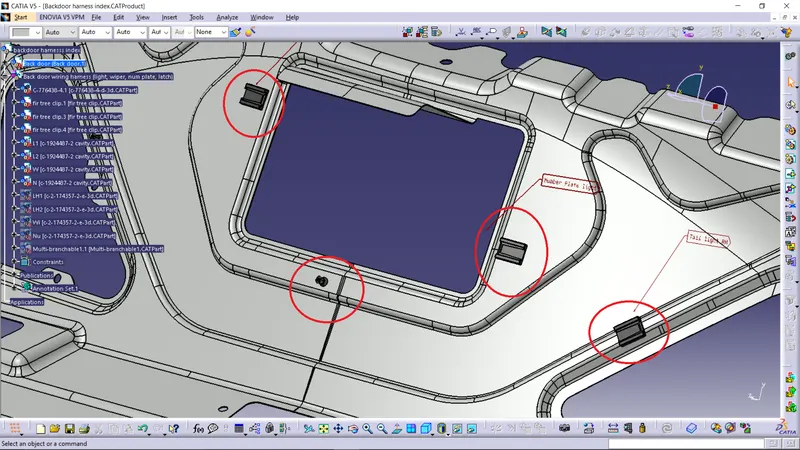

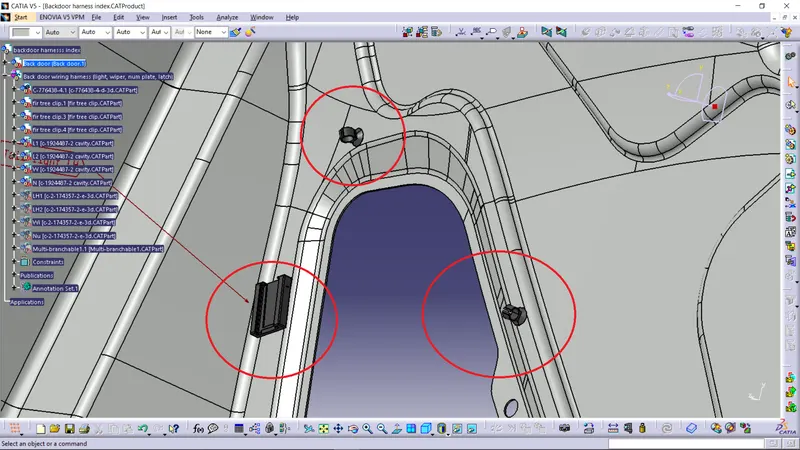

PLACEMENT OF THE CLIPS AND CAVITY:
These areas should be provided with right sized slots for the clips and cavities to be mounted.
The connections are parked in the place where the connectors from the tail light, wiper motor are acessible and attached easily.

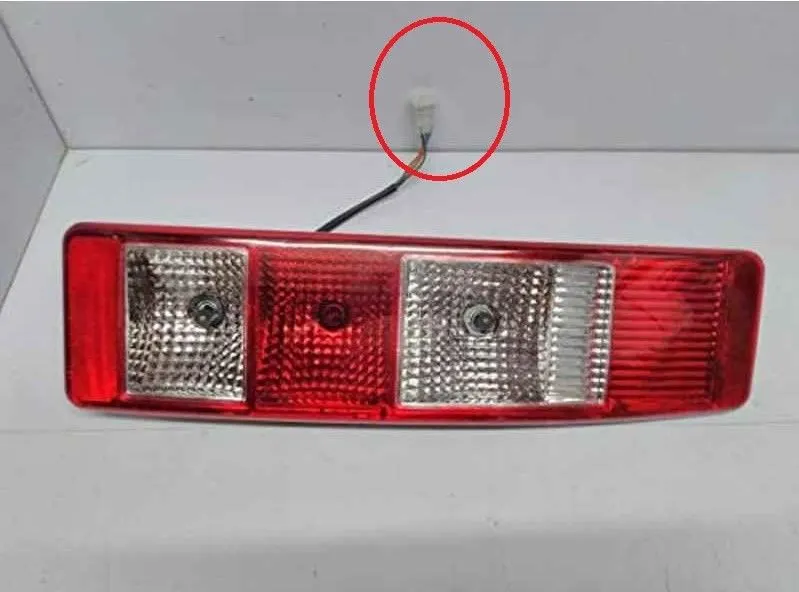

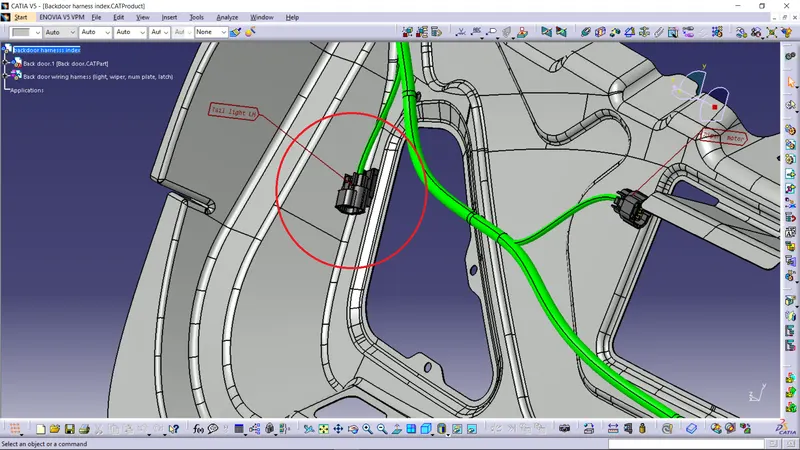

TAIL LIGHT:

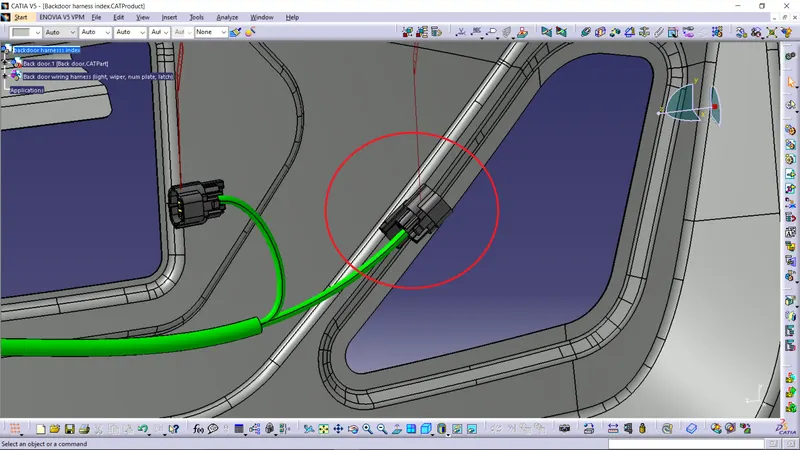

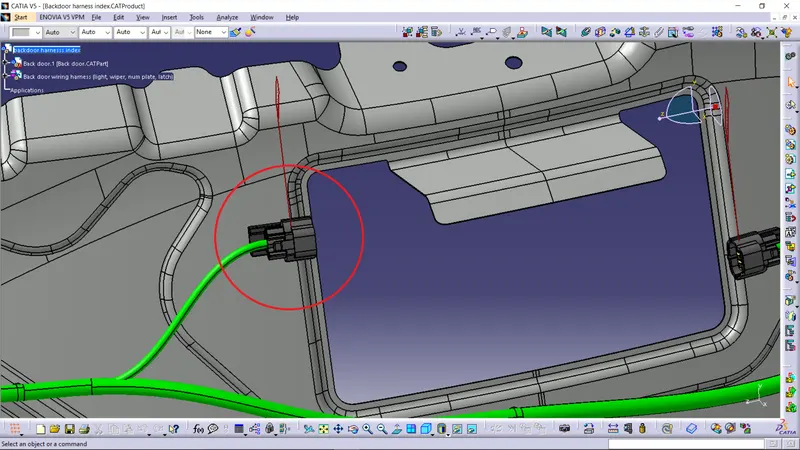

In assembly and the service the connector form the tail light assembly can be easily attacheed or detached with the connector parked near to it.
WIPER MOTOR:

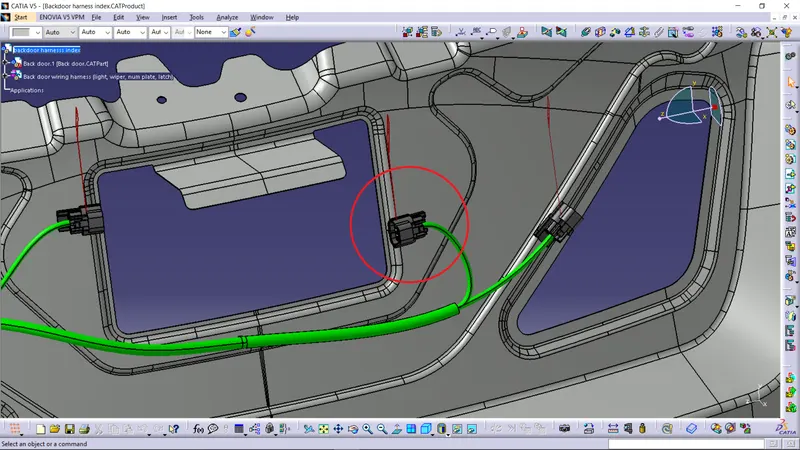

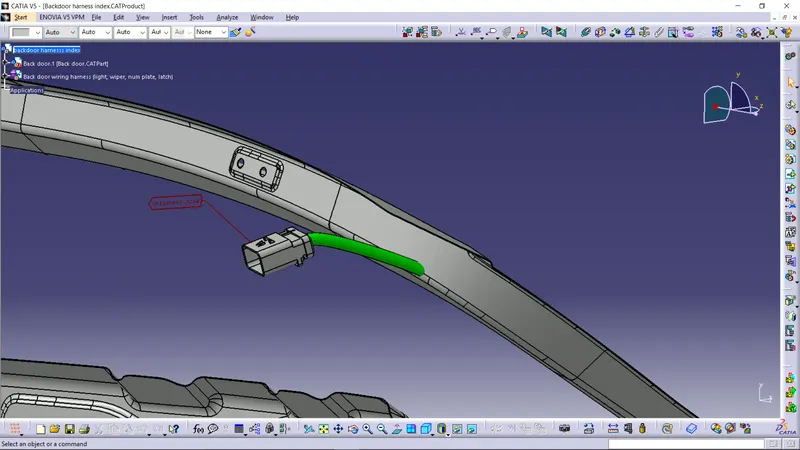

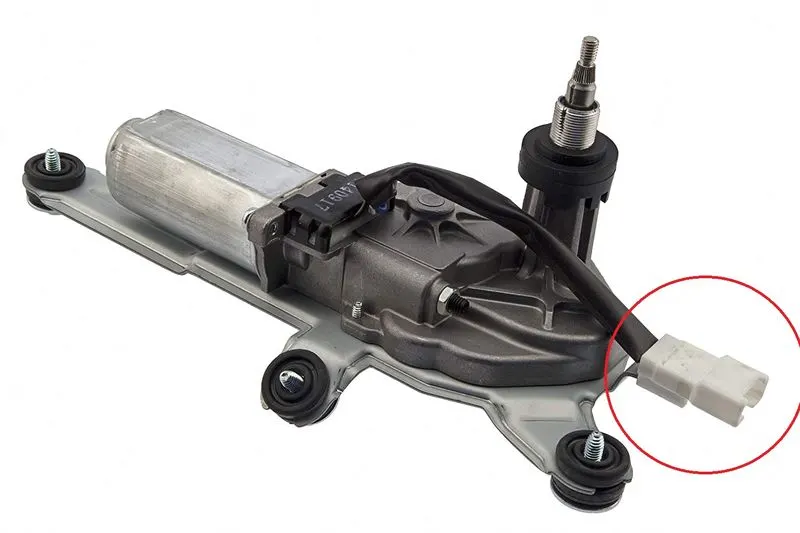

The connector can be park as in the harness assembly if the connector the from the wiper motor are free to the surrounds. If the wiper motor connector is mounted to its same assembly this connector can be set to free with additional slack length for easy attachment and dettachment.
NUMPER PLATE LIGHT:

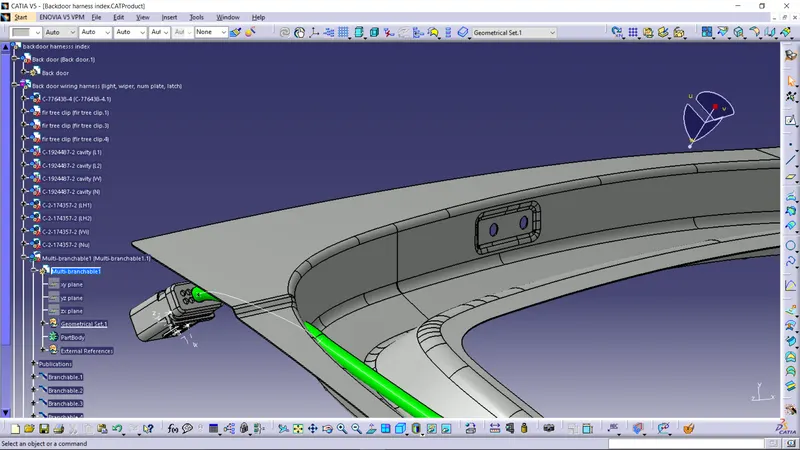

ADDING GROMET TO THE MAIN CONNECTOR:

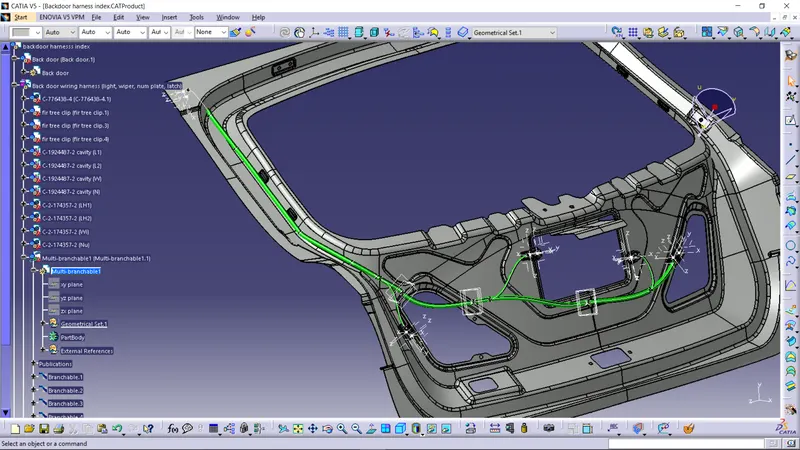

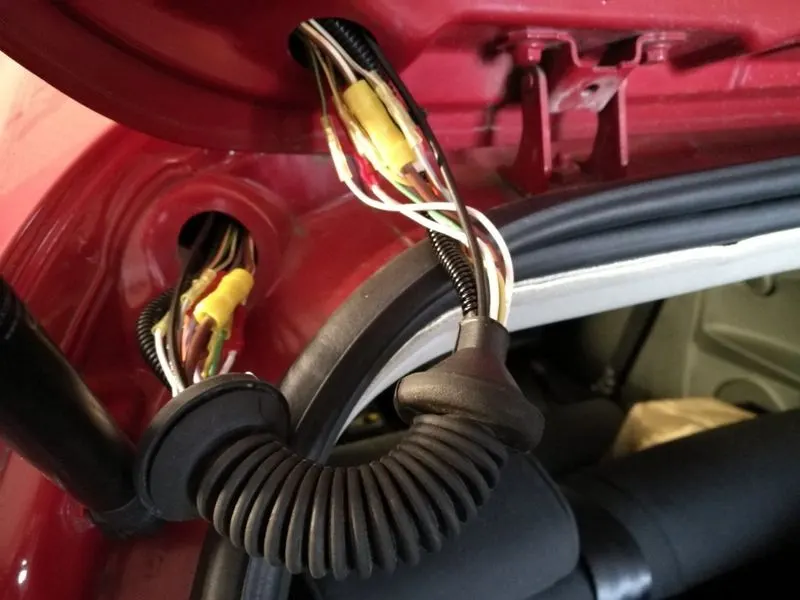

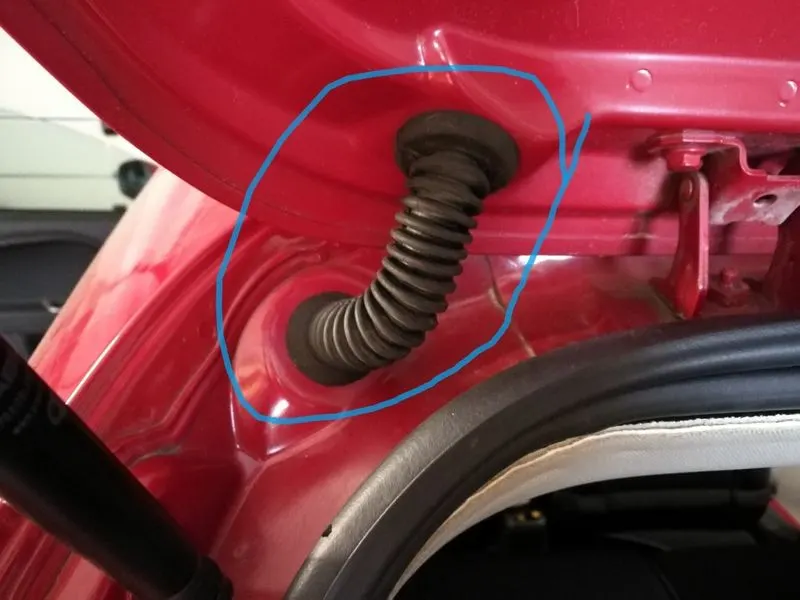

The groments and appropriate slots is essentially need to finish this backdoor wiring harness assembly as given in the below image.

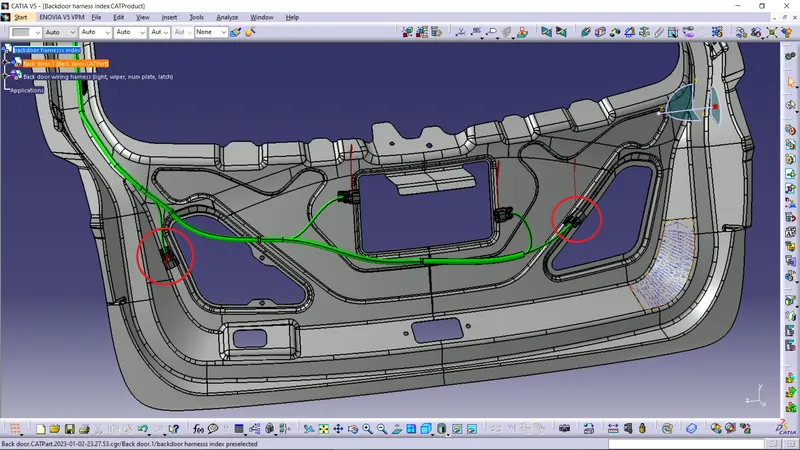

If a little bigger slot is provided in the below mentioned area, fir tree clip can be added to hold the harness frimily in dynamic conditions.

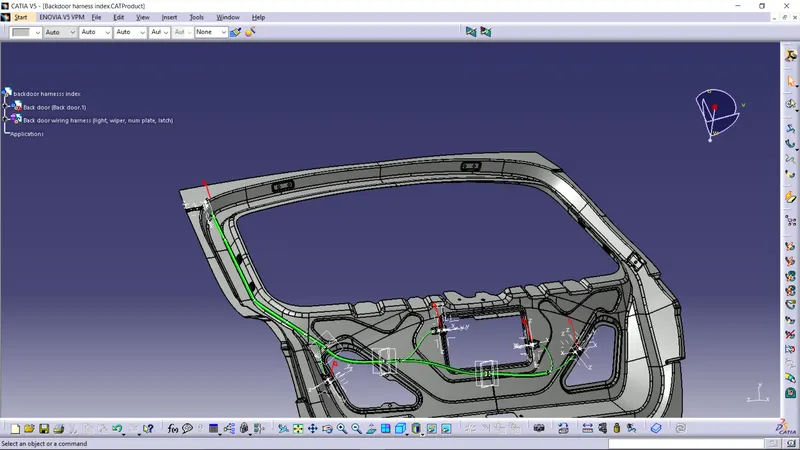

IMAGES:

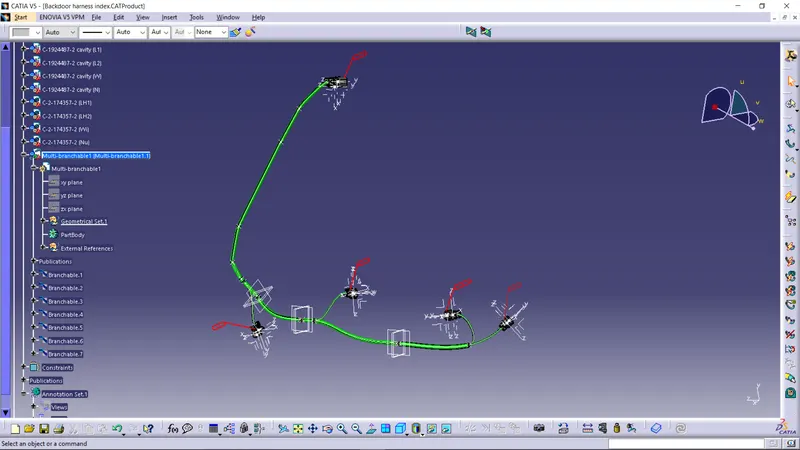

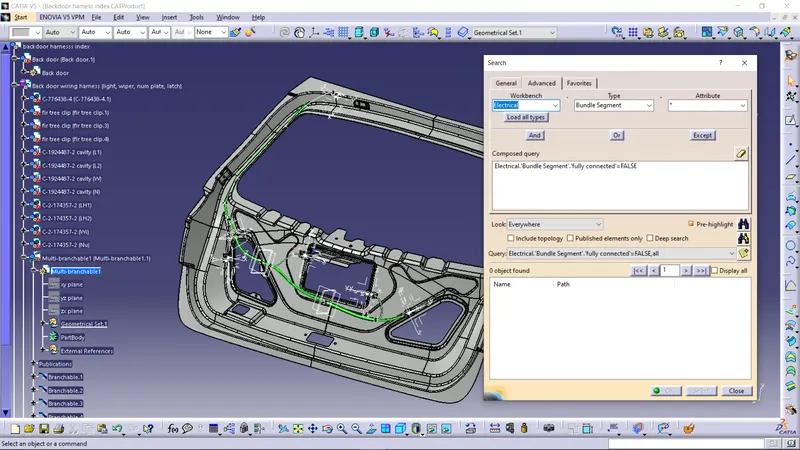

CONTINUIVITY:

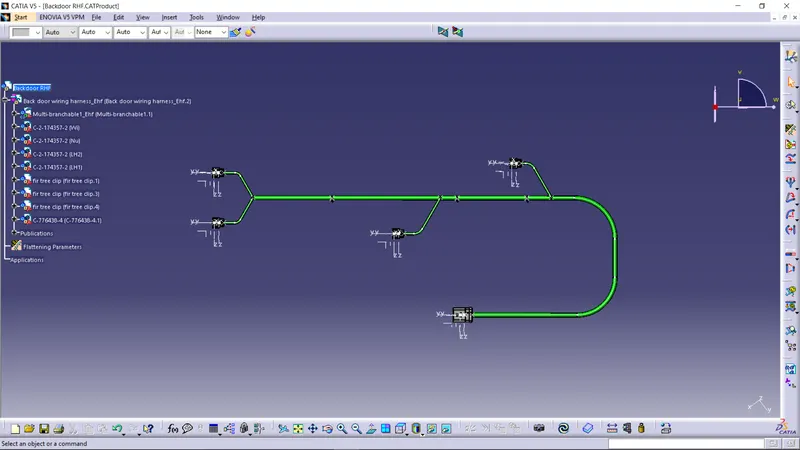

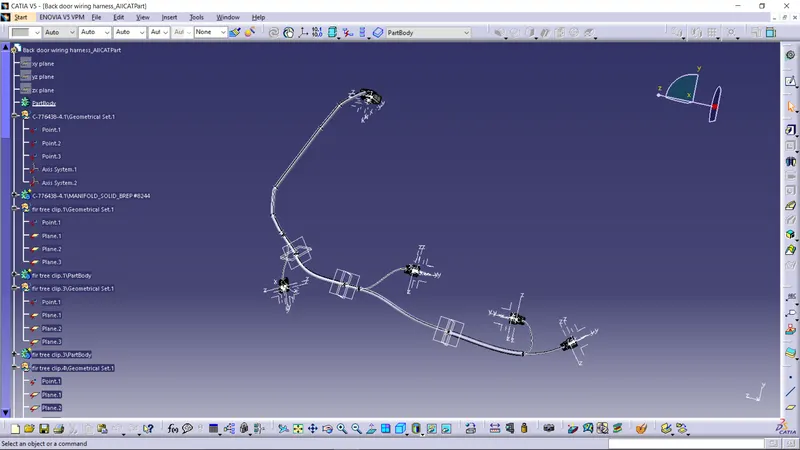

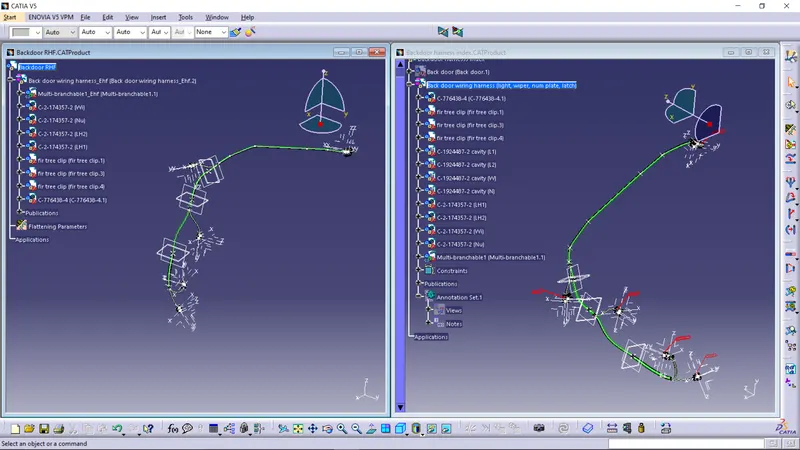

FLATTENING:

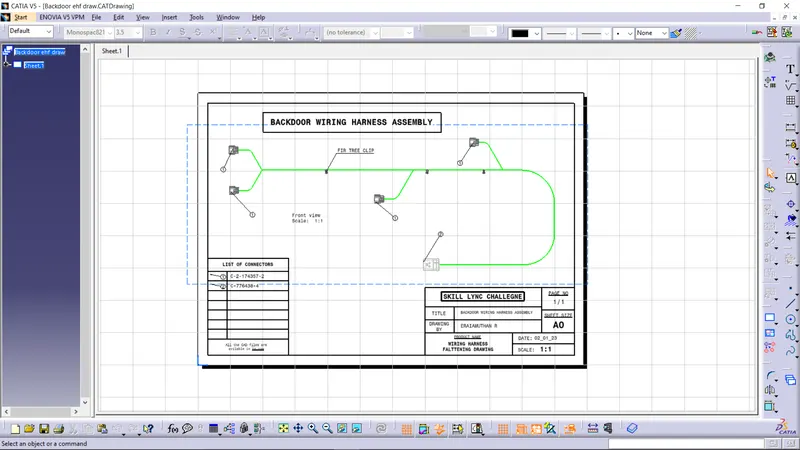

DRAWING
CONVERTION INTO CATPART FILE
