Project 2

OBJECTIVE-TO MESH THE GIVEN COMPONENT AND ASSIGN THICKNESS

STEP 1. IMPORT THE MODEL

a.GO TO OPEN AND CHOOSE THE .HM FILE TO OPEN

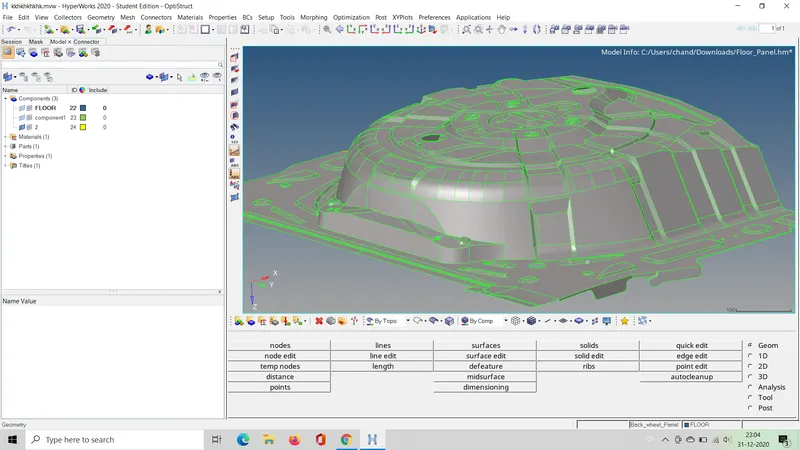

STEP 2. EXTRACTING MID SURFACE

AS THE GIVEN COMPONENT HAS UNIFORM THICKNESS , MOVE THE OUTER SURFACE TO NEW COLLECTOR

STEP 3. DO A MANUAL SURFACE CLEAN UP

GO TO GEOMETRY --> QUICK EDIT--> USING TOGGLE EDGE AND REPLACING POINTS CLEAN UP THE EXTRACTED MID SURFACE

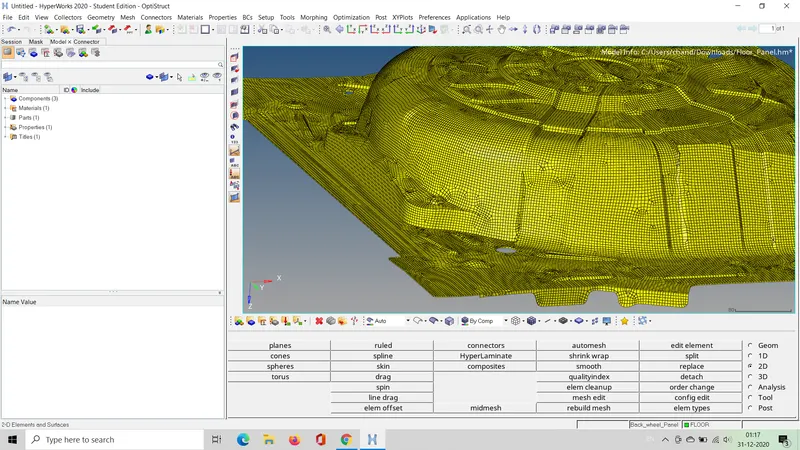

STEP 4. MESHING THE GIVEN COMPONENT

GO TO 2D --> AUTOMESH-->AND GIVE THE ELEMENT SIZE AS 4 AND EDIT THE CRITERIA FILE AS PER REQUIREMENT

STEP 5. ELEMENTAL CLEAN UP

GO TO 2D , AND CHOOSE ELEMENTAL CLEAN UP AND SELECT THE ELEMENTS TO BE CLEANED UP

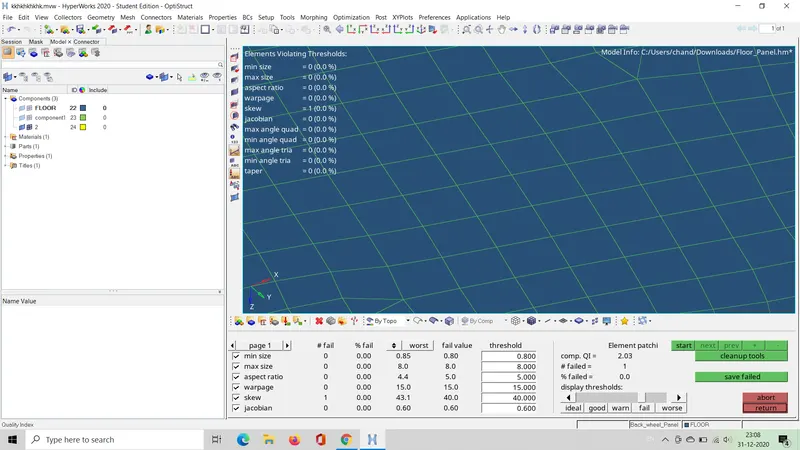

STEP 6 . QUALITY CRITERIA

CHOOSE THE ELEMENTS AND CHECK FOR FAILURE ELEMENTS AND CLEAN UP USING CLEANUP TOOLS

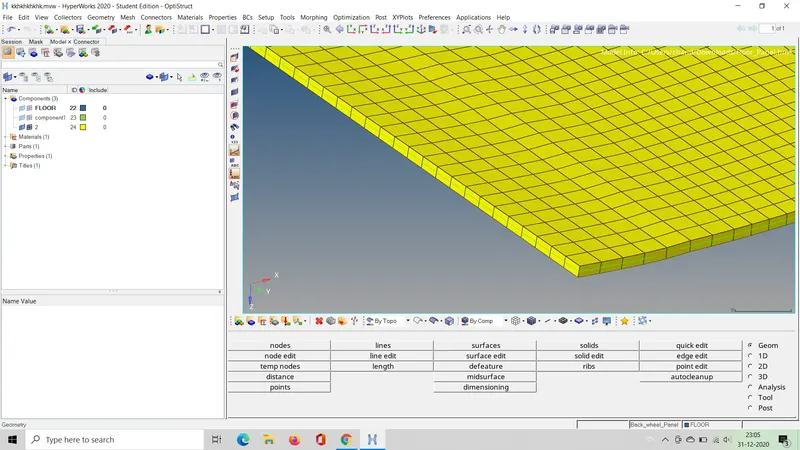

STEP 7. ASSIGN MATERIAL AND PROPERTY

CREATE PROPERTY AND MATERIAL AND GIVE A THICKNESS OF 2MM AND ASSIGN IT TO THE MENTIONED COMPONENT

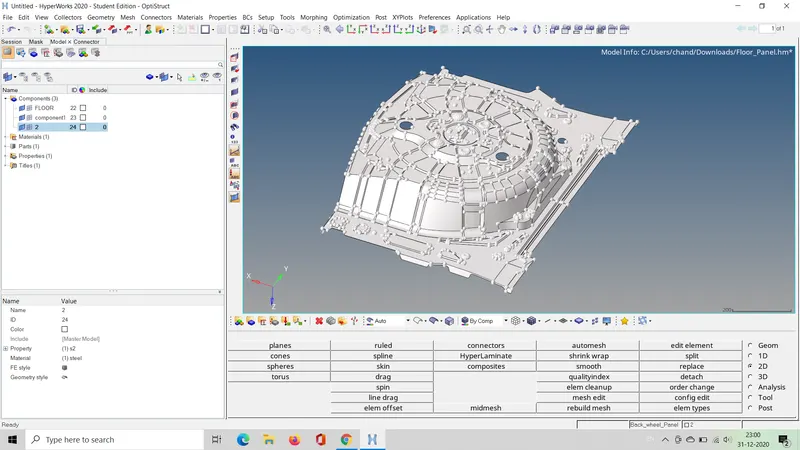

CAD MODEL

RESULT-

THE GIVEN COMPONENT HAS BEEN MESHED AS PER REQUIREMENT AND ASSIGNGNED THICKNESS OF 2MM AND IT SATISFIES ALL THE QUALITY CRETERIA
