Project 2

OBJECTIVE: The objectives of this challenge are as given below,

• To Define the mechanical components electrically and prepare a catalogue for the same.
• To Provide proper routing of bundle without any interference and also provide support parts like clips and clamps.
• To Prepare a report with all the required images required for the challenge.
• To Attach all the file required for the challennge.

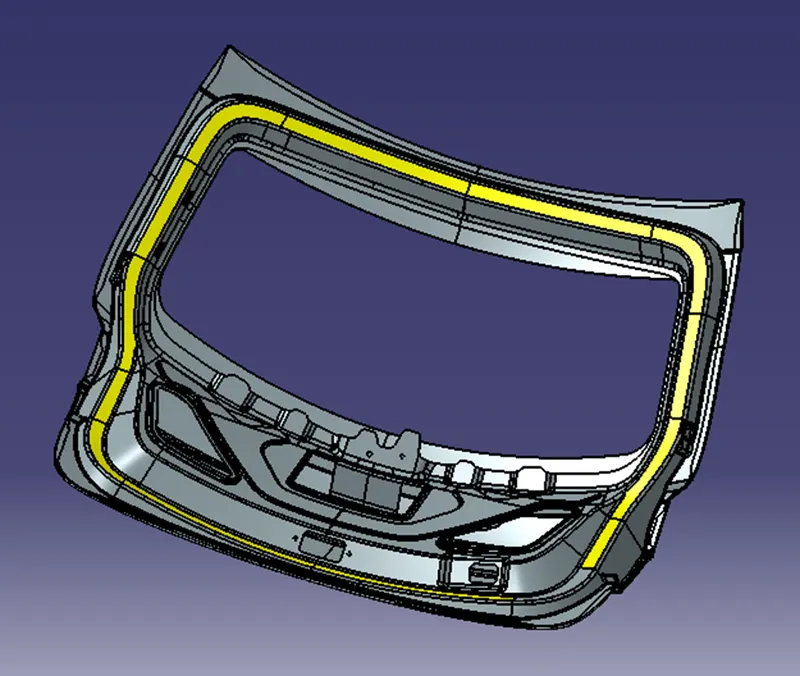

Donloaded data image below

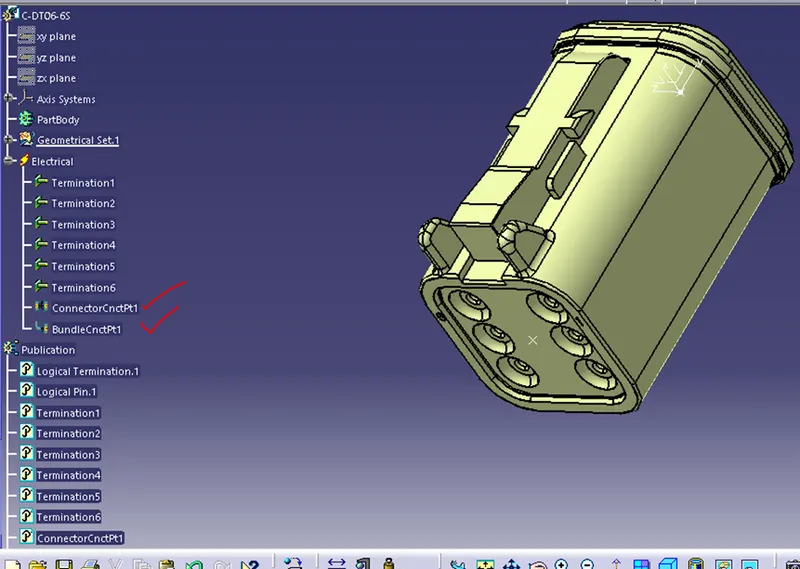

Define connector

Ensure axis systems in such a way that Y direction to be normal to connector side face & x-direction to be in locking side

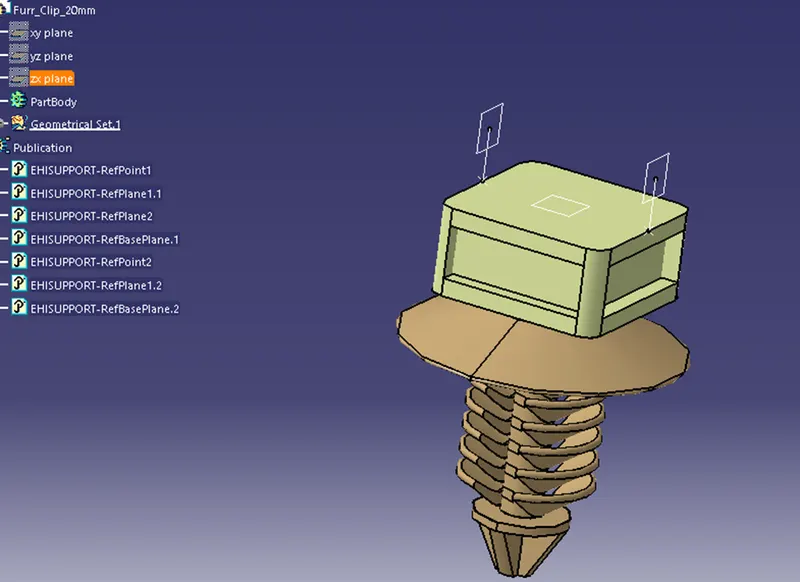

Now, define furr tree clip as support part

Now Open New product File In Catia V5 and name as backdoor context assembly

Copy downloaded Bckdoor data into context assembly

Also add another product file and name it as, Backdoor Harness Geometrical Bundle Assembly

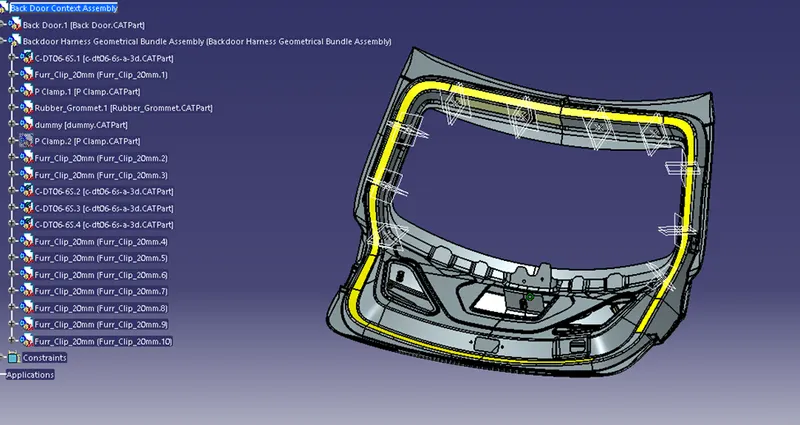

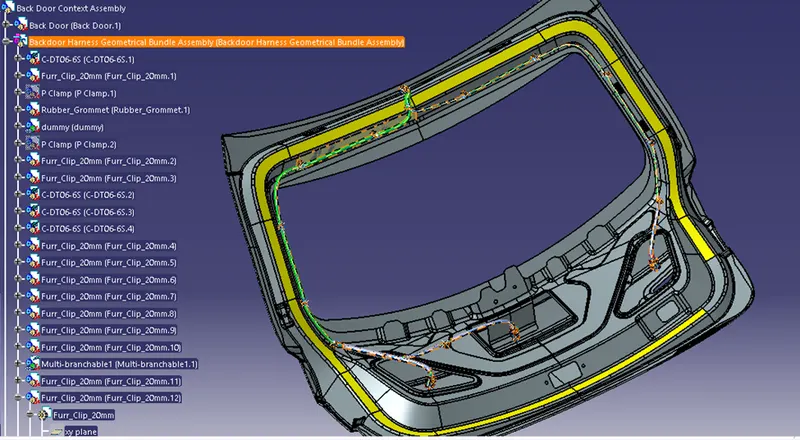

Arrange the connectors and support parts like, furr tree clip as shown in image below

Now, start the routing by converting geometrical assembly into electrical assembly, using geometrical bundle command from electrical assembly workbench

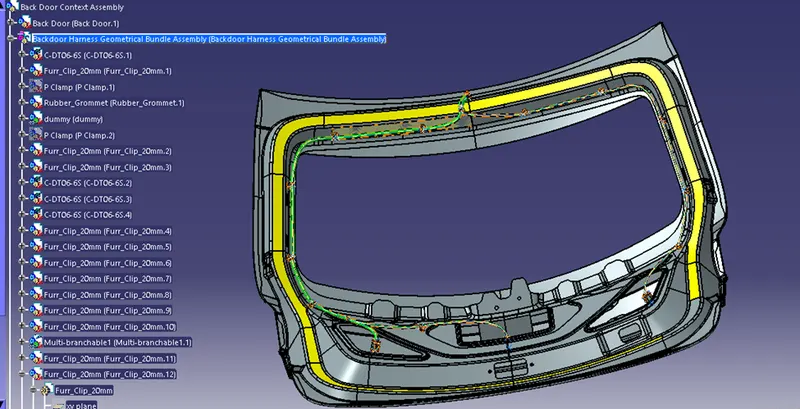

Start Routing

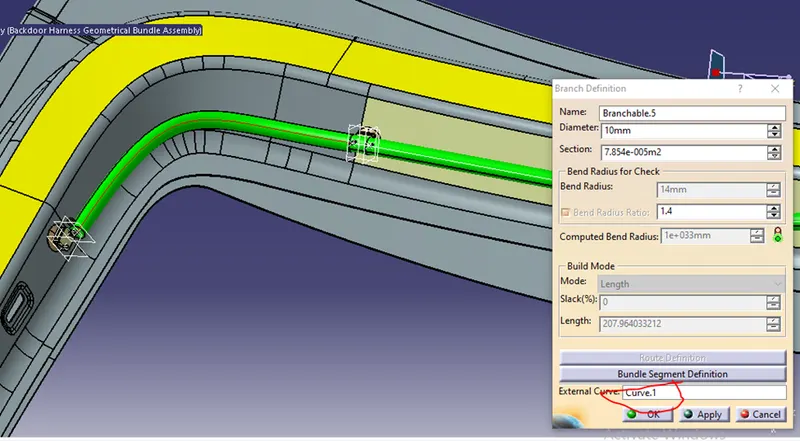

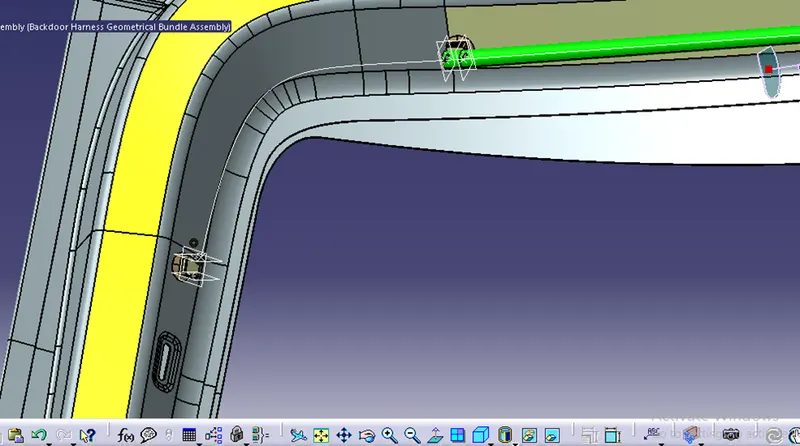

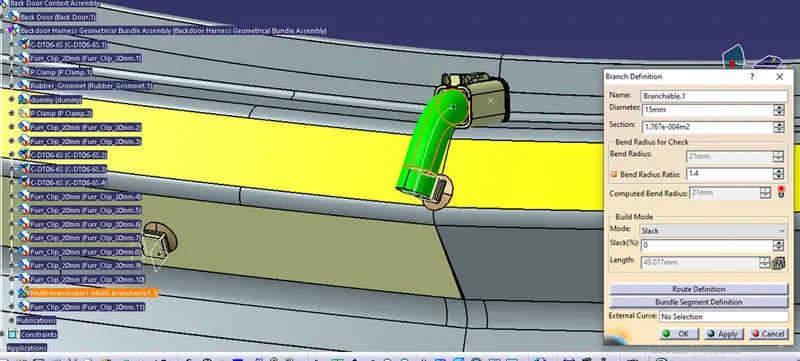

Create External curve for corner routing

Add protective coverings

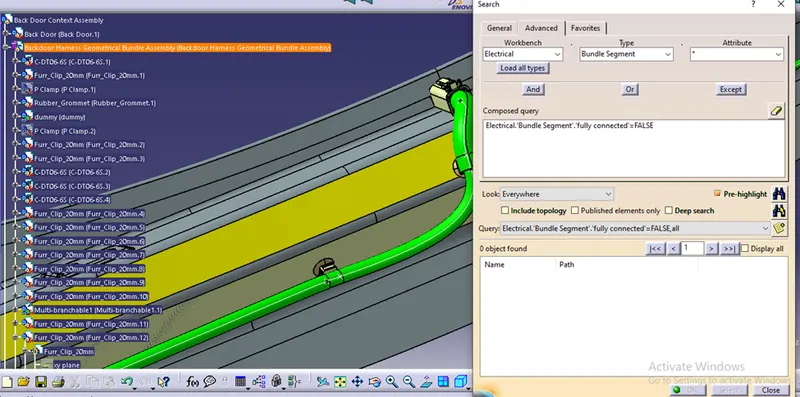

Check bundle connectivity in electrical assembly design workbench

Electrically connectivity is OK

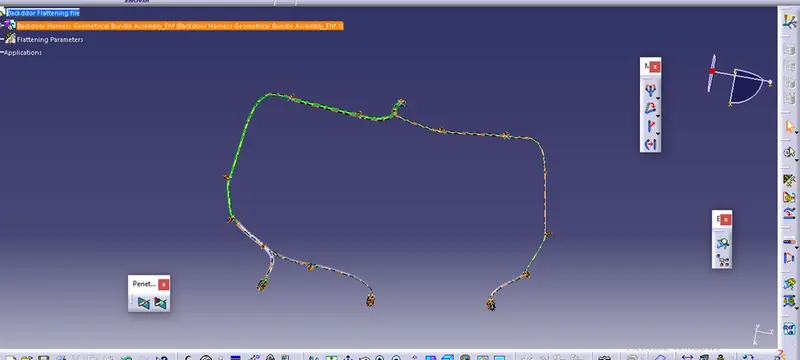

Create Flattening file by extracting bundle geometry into flattening product file in flattening workbench

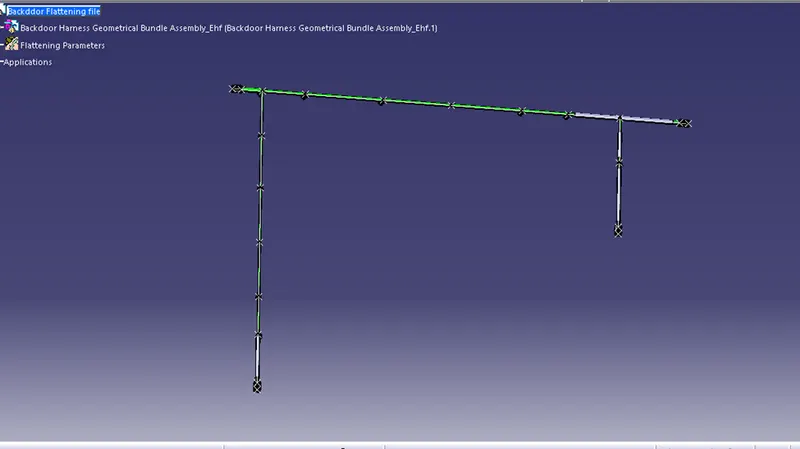

Create flatten view

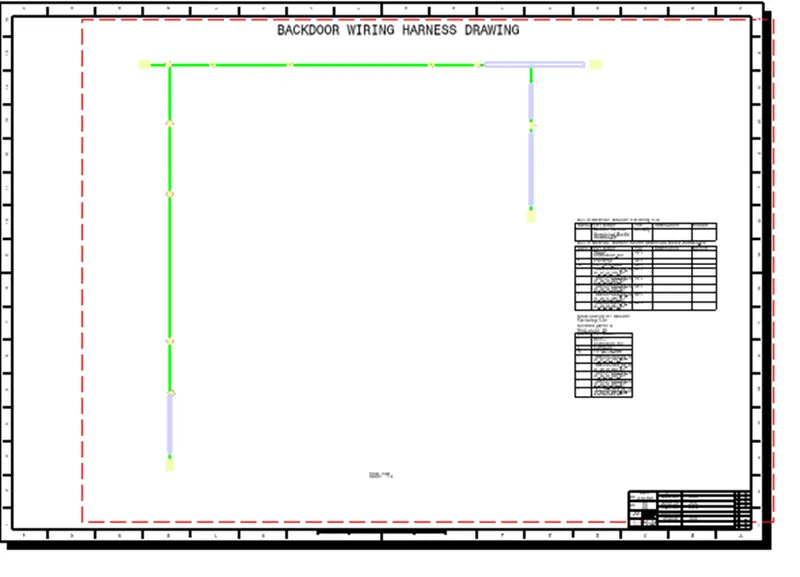

Create 2D drawing
