Project 2 - 2D meshing on the instrumental Panel

Aim:-check for the geometrical errors and mesh with the given element Quality criteria. After meshing the component the thickness has to be assigned.

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

Object:-Write a detailed report on your meshing process and also mention which method you used to extract the mid-surface along with the reason.

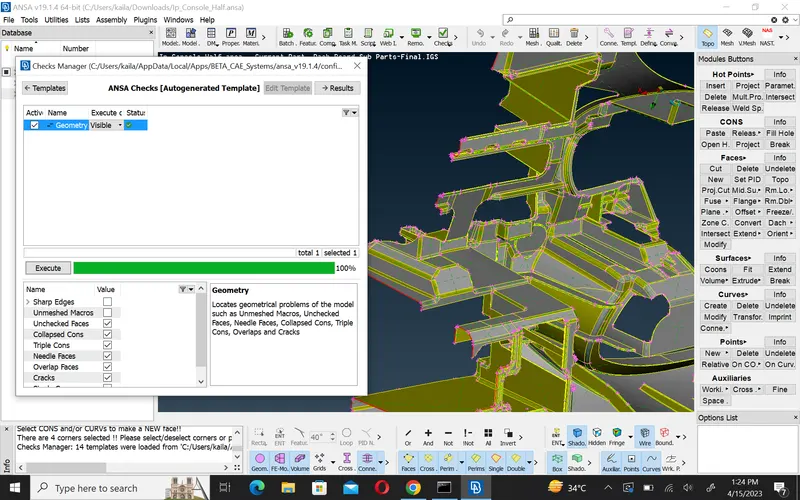

Step1:- upload the model and clean the geometry.

Step2:-Measure thickness then done casting before casting set quality criteria and then create casting.

Step3:-

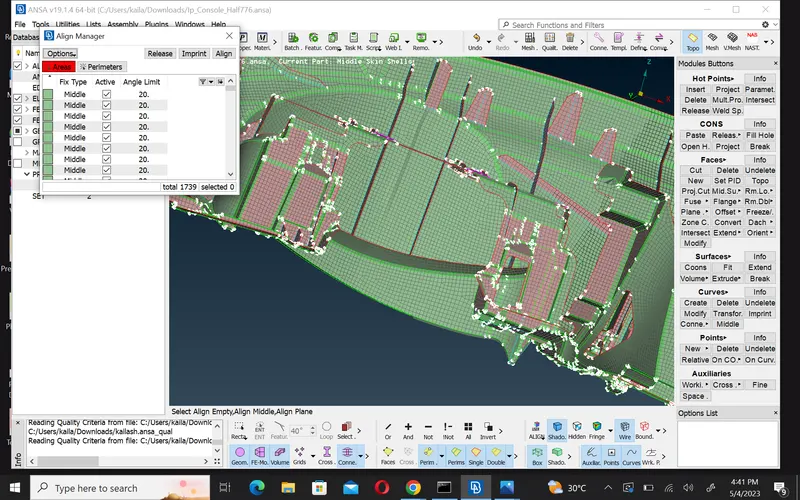

• After that to catch feature and plane definition used align manager.

• To fix problem use align manager tool like aling,fill,area,parameter,reales etc.

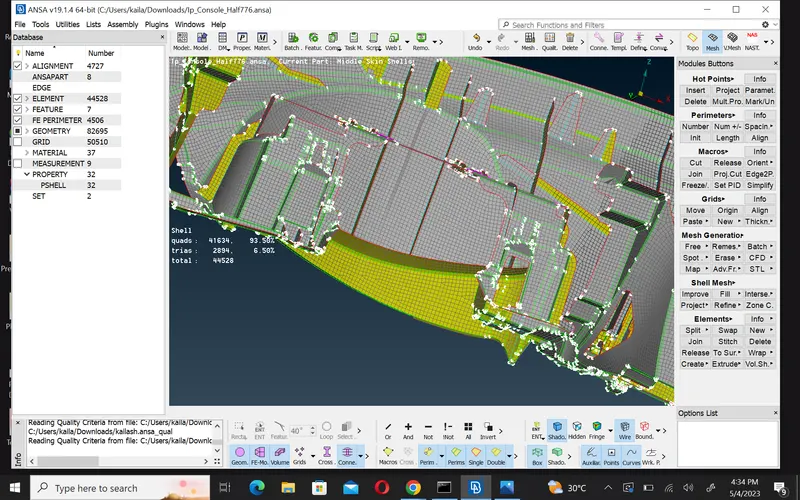

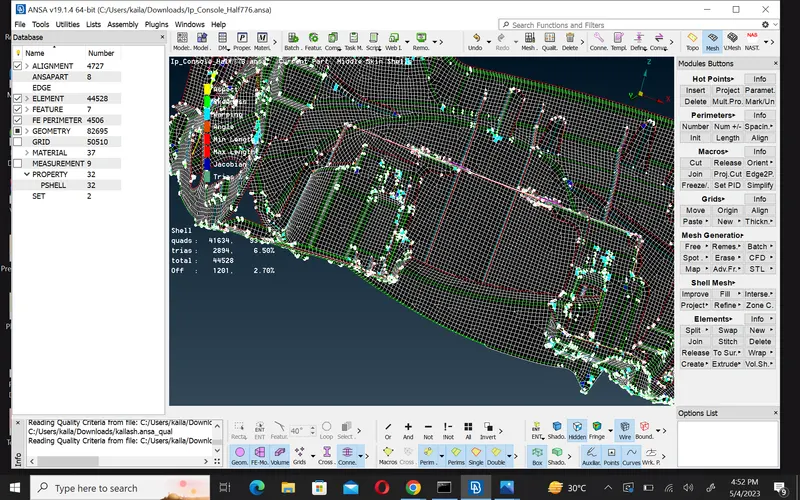

Step4:- Set quality criteria to chack mesh quality and fix it.using split,swap,join etc.

Conclusion:-

1. casting take less time as compare to manual mesh.
2. But aling manager is not easy to use.
3. i try to learn how to use aling manager.
