Week - 5 - 2D meshing for Plastic components

Aim:- For the given Plastic Bottle Cap model, check for the geometrical errors and take the mid surface by suitable mid surfacing techniques. PID and Thickness assignment has to be done for all the mid surfaces. Mesh the same with the given element Quality criteria.

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	3
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

Object:-Clean geometry,Create a mid surface and smooth mesh flow of given project.

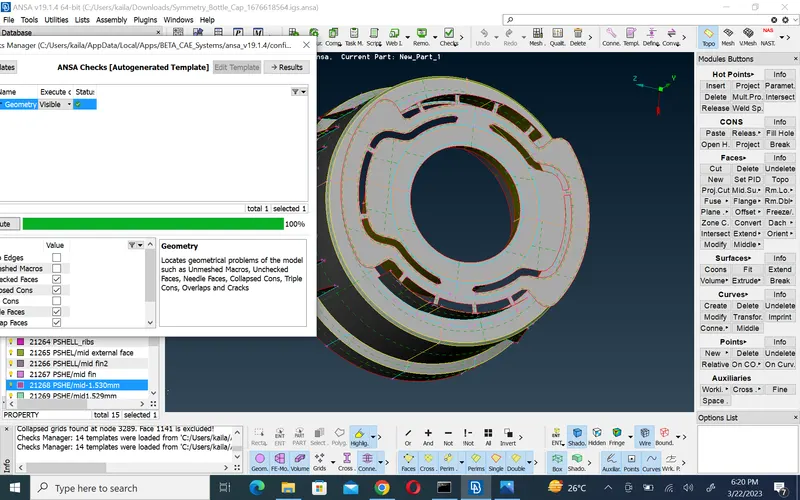

• After topo, clean geometry of part
•
• After geometry cleanup ,ypou able to take mid surface using different tool like-offset,middle,skin etc.
•

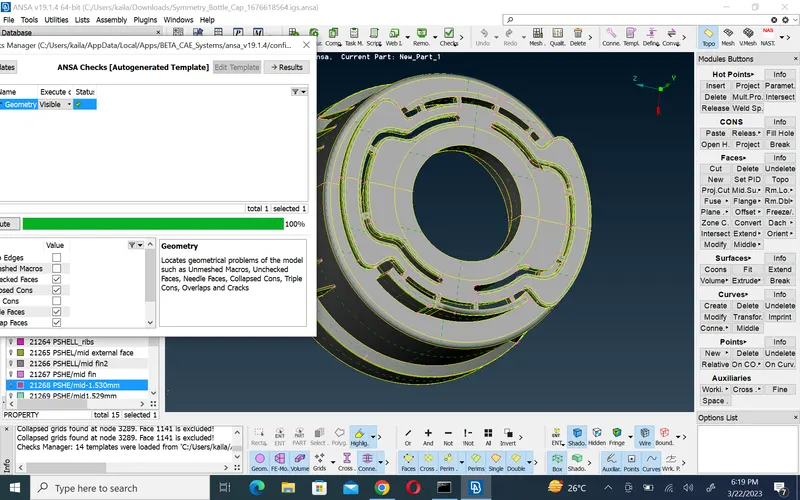

• And chack geometry of mid surface

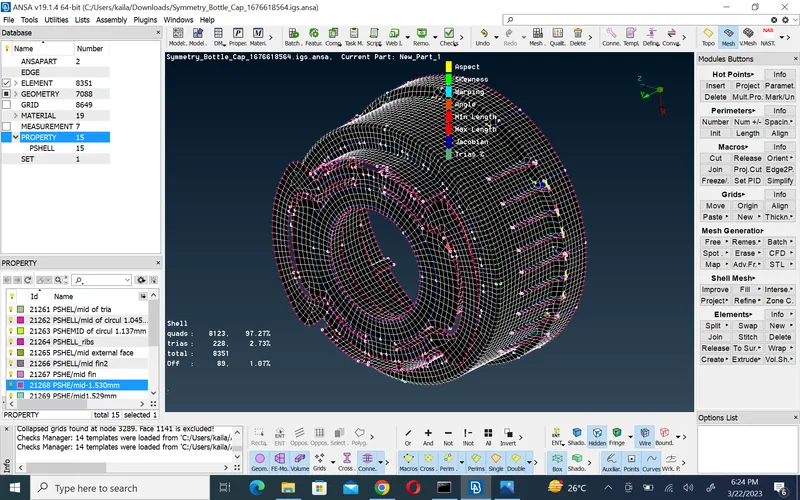

• Then go for meshing using Best,spot etc.
•

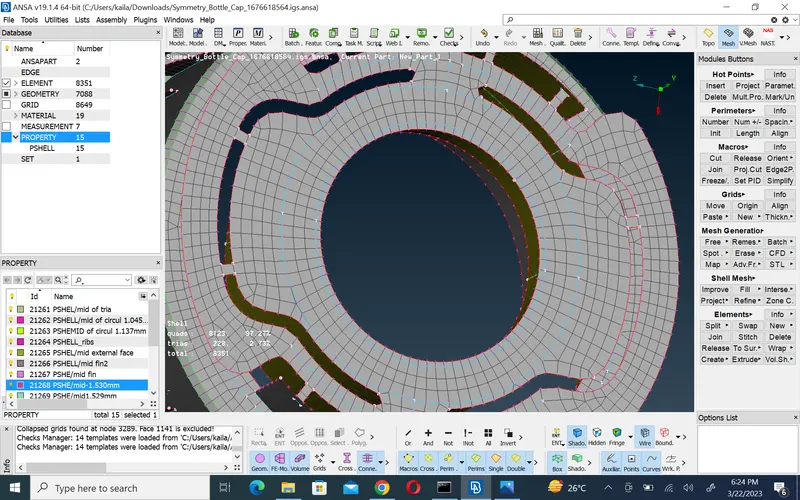

• To make smooth mesh flow use reconstruct,smoot.
•

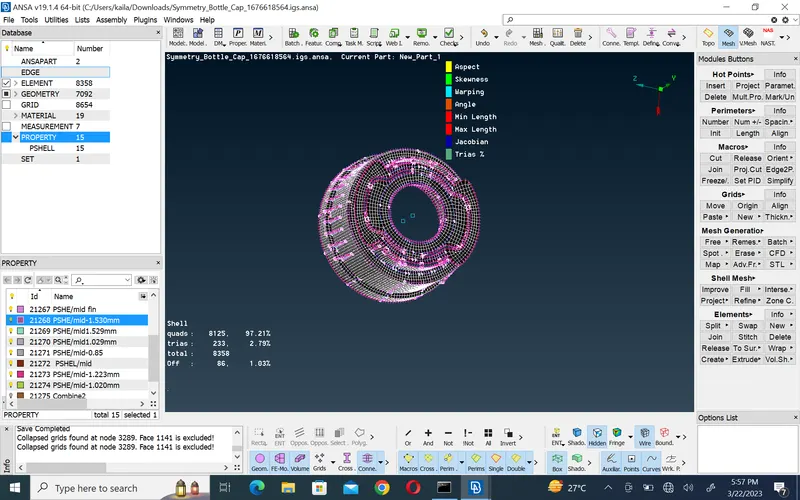

• To redused tria use split,swap,past etc.
•

Conclusion:-I am try to overcome that mistake in this challange. Which i did in the last project.

and i am try to give my beat.
