Week- 8 - Solid meshing

Aim:- Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	2

After tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

S.No	Quality Criteria	Value
1	Tet collapse	0.2

Object:- To chack geometry, create mesh and volume mesh.

Geometry cieanup:-

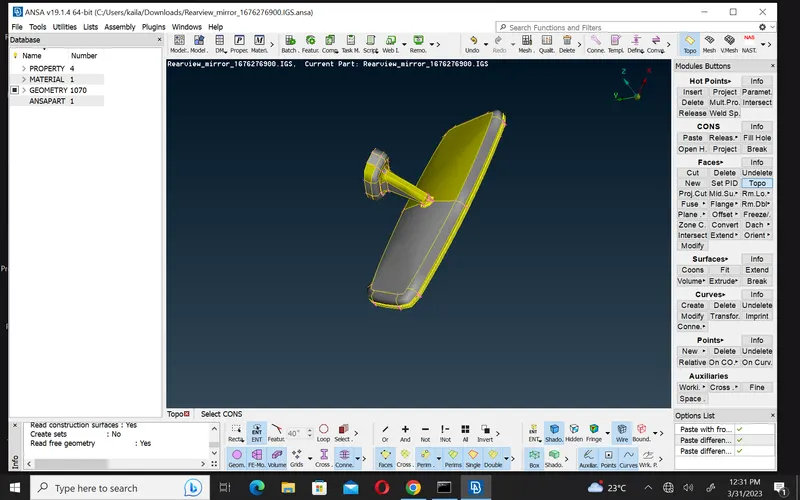

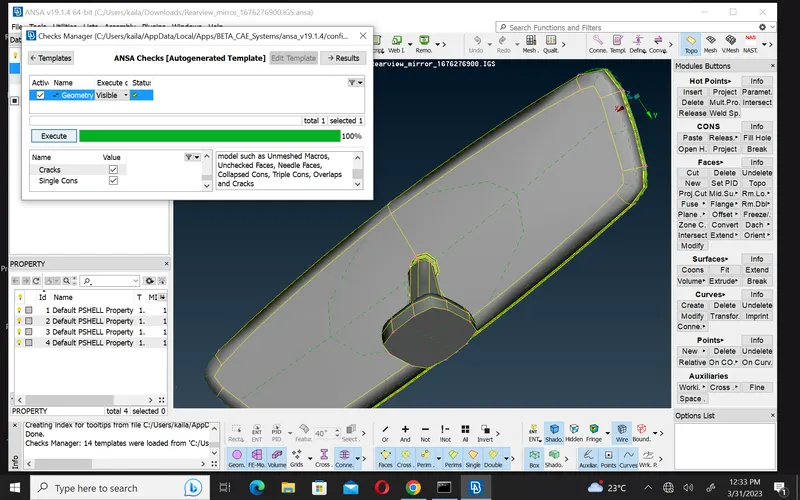

• After upload model in ANSA give topo and clean geometry.

Before	After

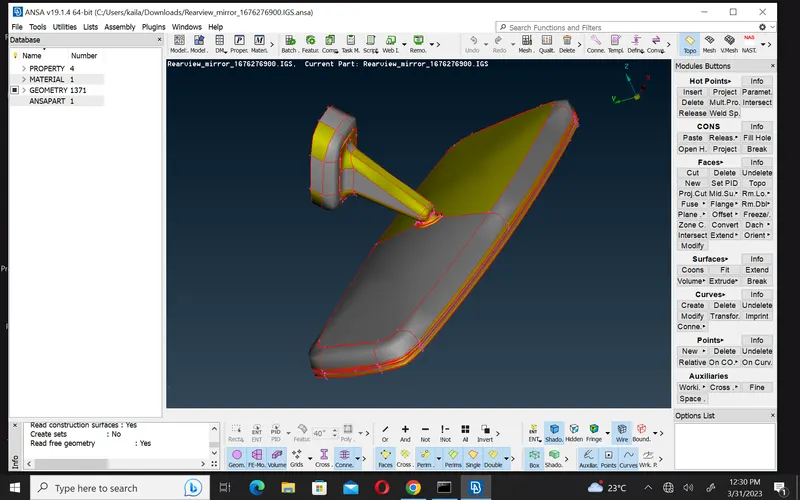

• After cleanup geometry, orient and error fix.

Meshing:-

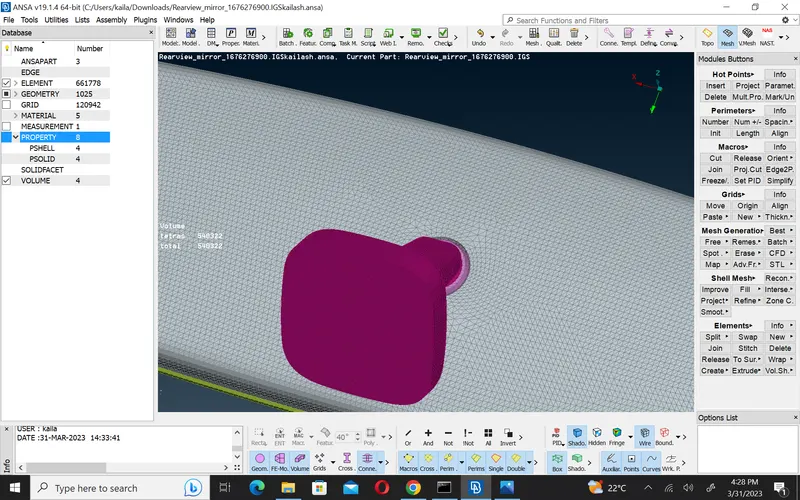

• Now after set quality criteria,we go meshing with ortho or tria.
•
• After compleate mesh we go for volume mesh.

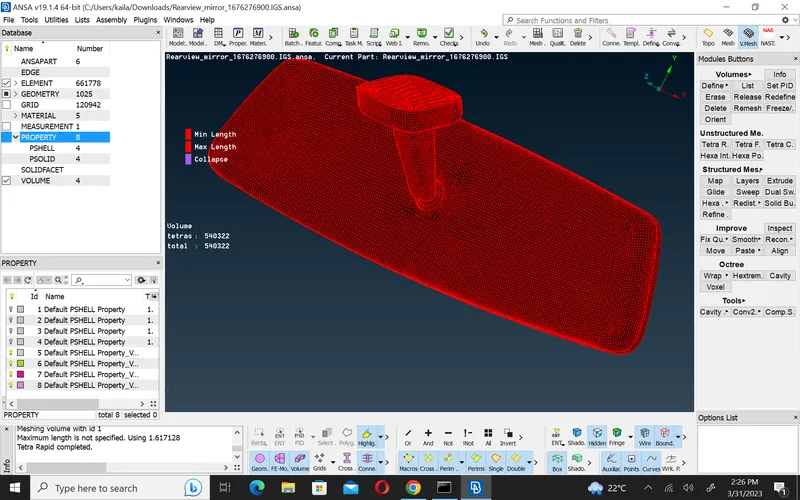

3.Volume mesh:-

• In volume mesh go in define option to create solid PID although it create automatically to go in list option.

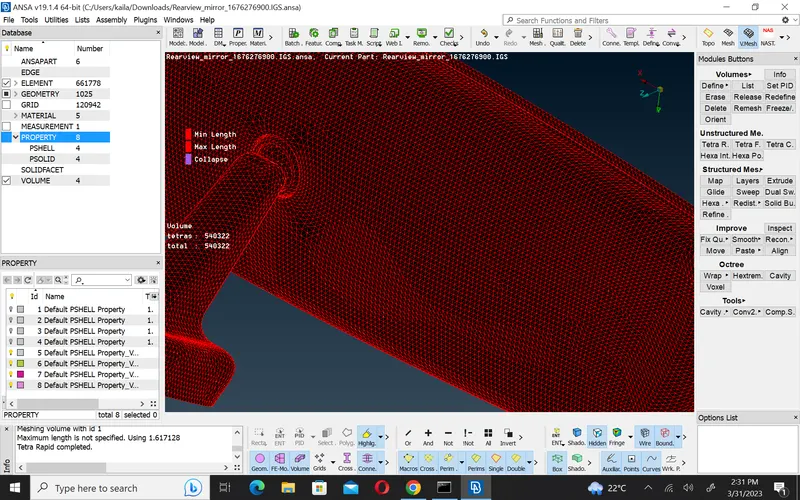

• Then you can go Tetra rapid or tatra FE option, to create volume mesh.
• And chack tat collapes if present in model and solve it.

conclusion:-

• I observe that solid meshing take less time as compear to 2D meshing.
• it's easy.
