Project 2

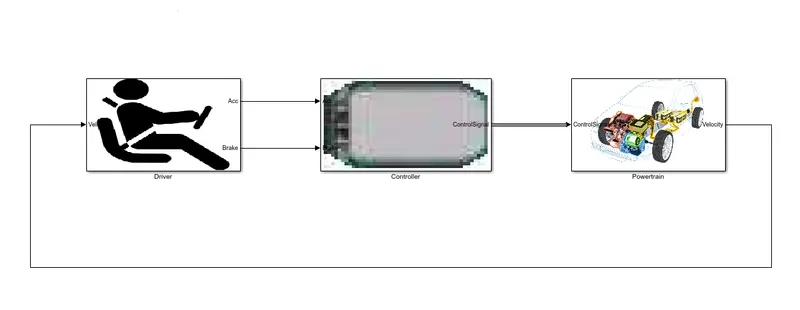

Model
In this model we have to re-design the Controller part and the Powertrain Part.
1) Controller

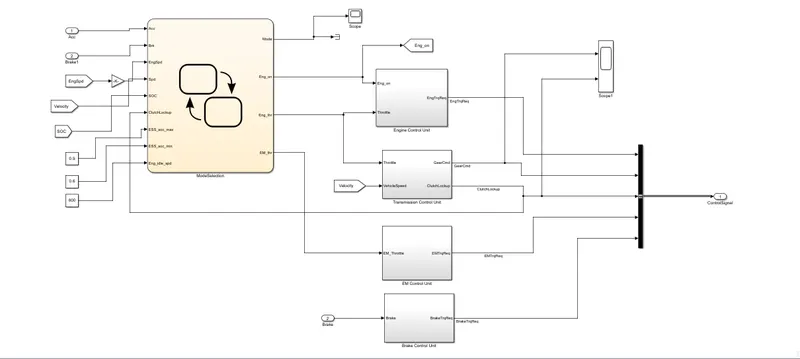

In this we have created Mode Selection and re-designed Engine Controller unit and Transmission Control unit.
Engine Control Unit
Idle Speed Controller
Transmission Control Unit
Mode Selection

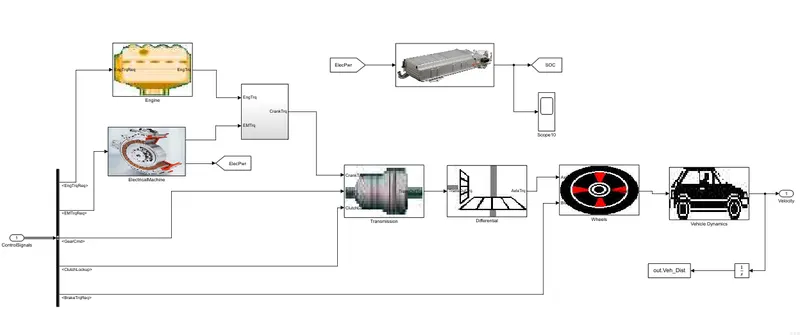

2) Powertrain

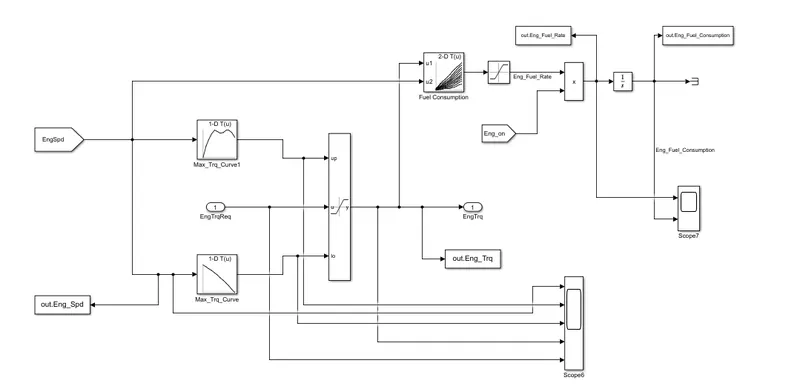

Engine

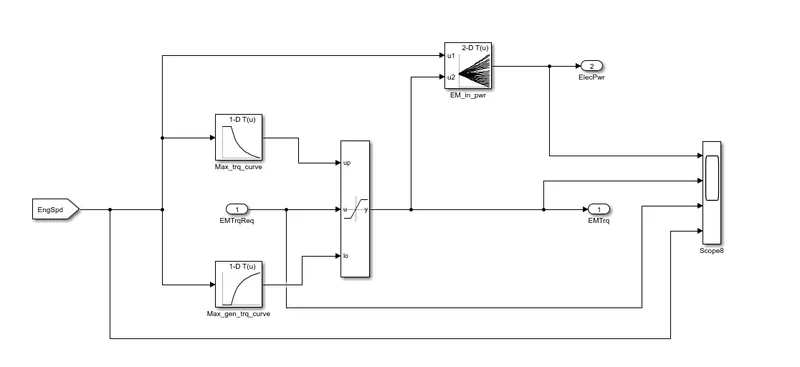

Electrical Machine

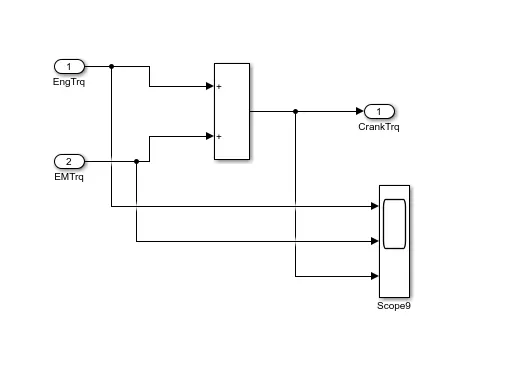

Crank Torque

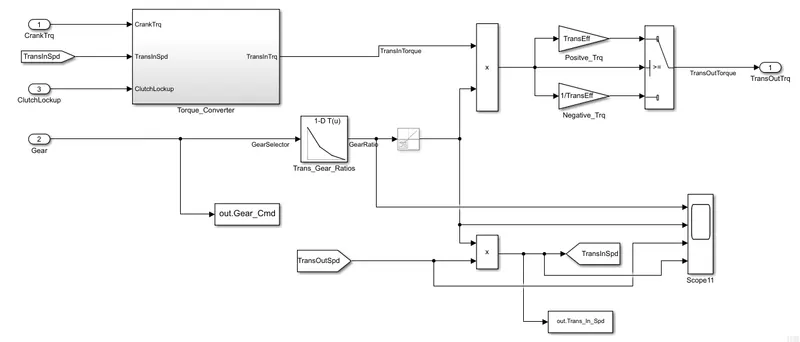

Transmission

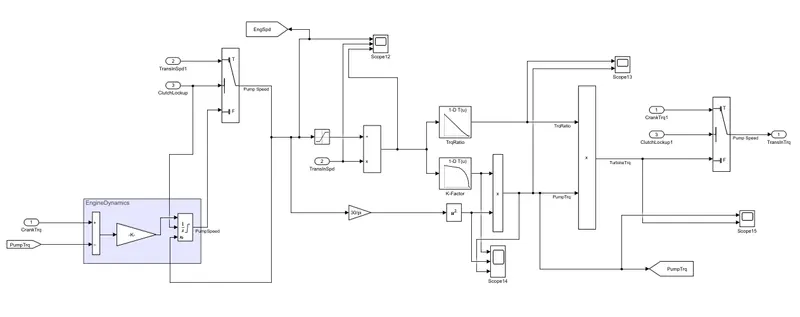

Torque Converter

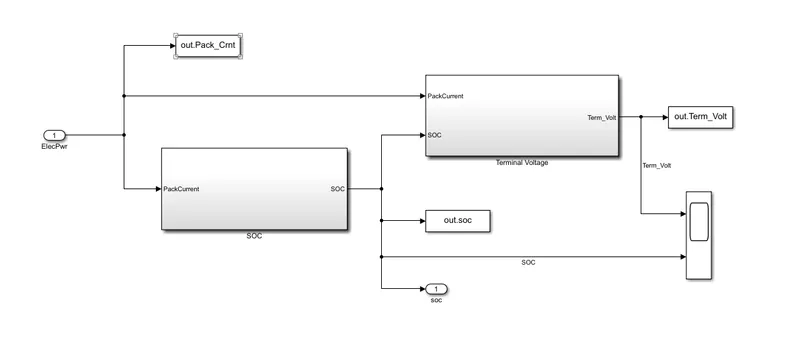

Battery Pack
We have chosen UDDS Drive Cycle first and HWFET Drive Cycle second.
Results
Case 1 - UDDS Drive Cycle
We have simulated the model for 1369 seconds and we get the following results.

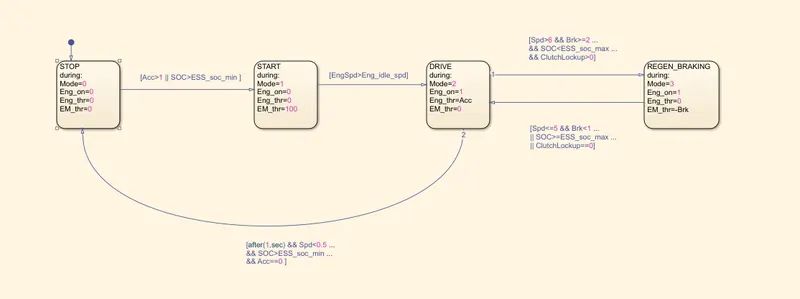

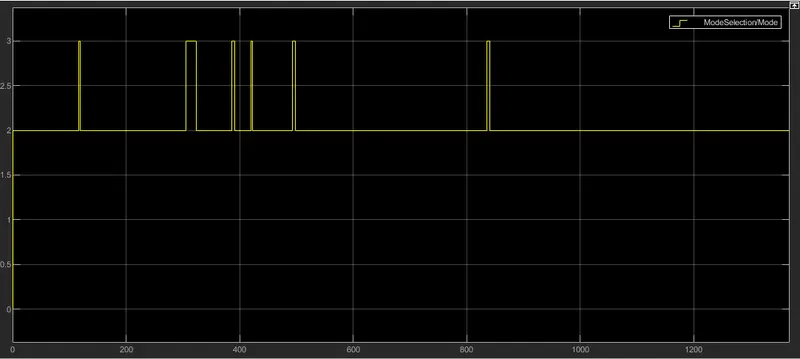

Mode Selection

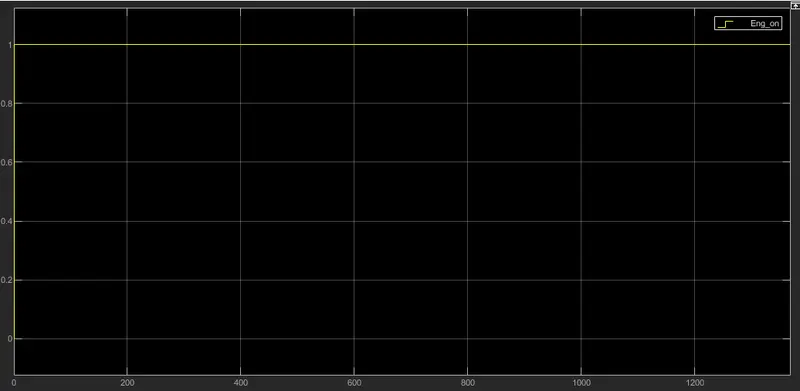

Engine On

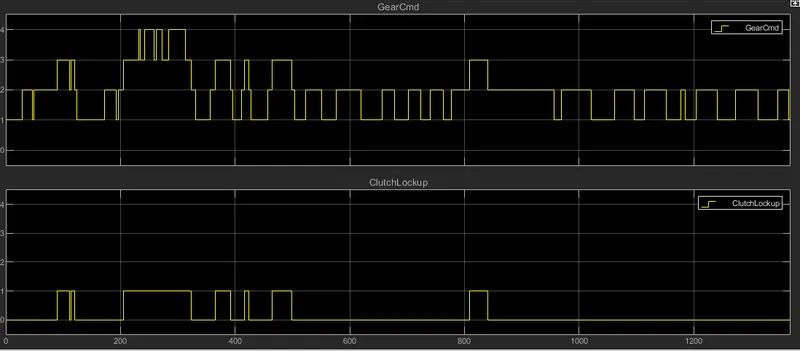

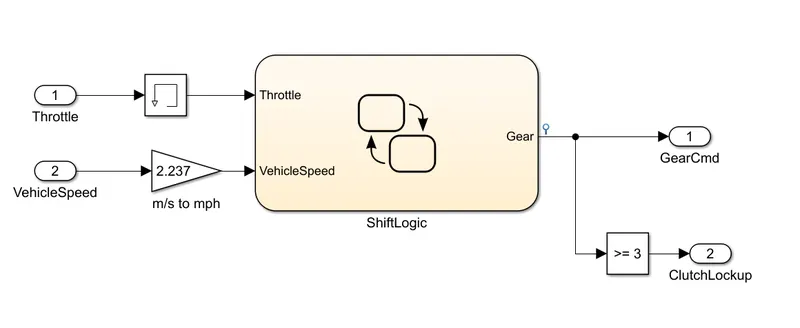

Gear Command and Clutch Lockup

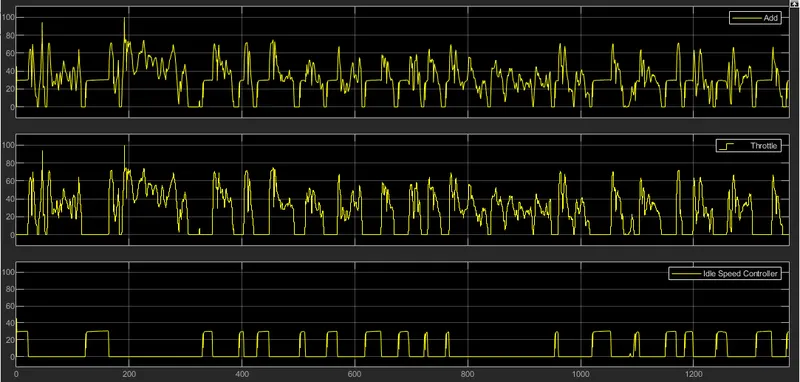

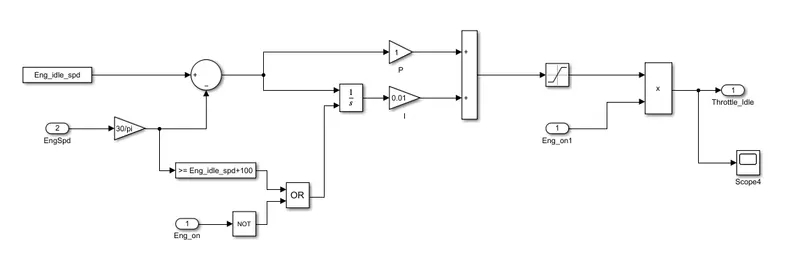

Idle Speed controller

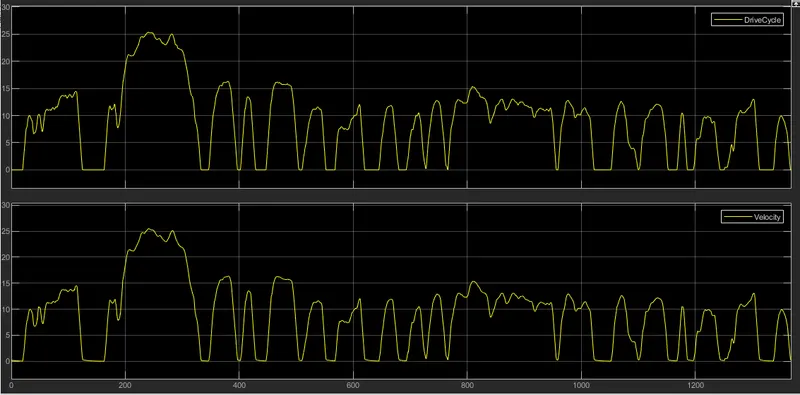

Drive Cycle

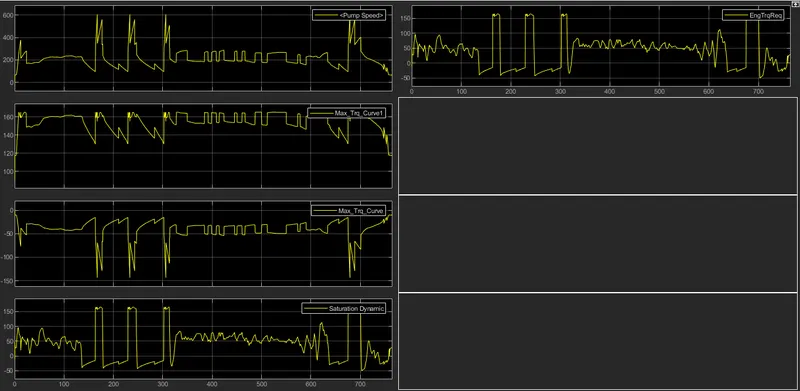

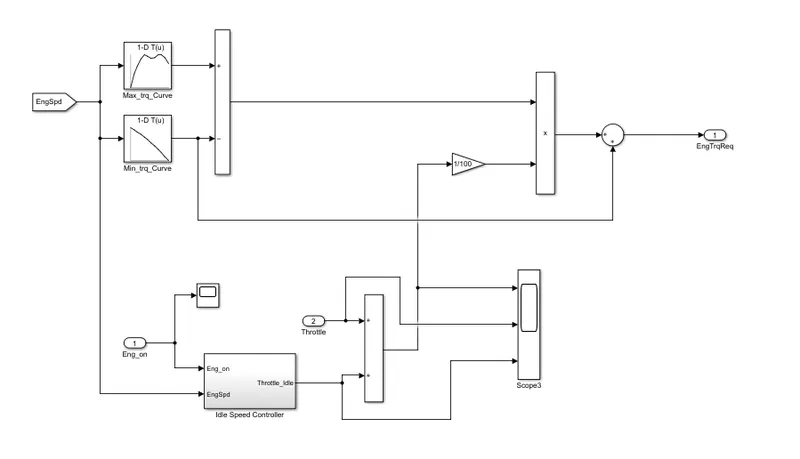

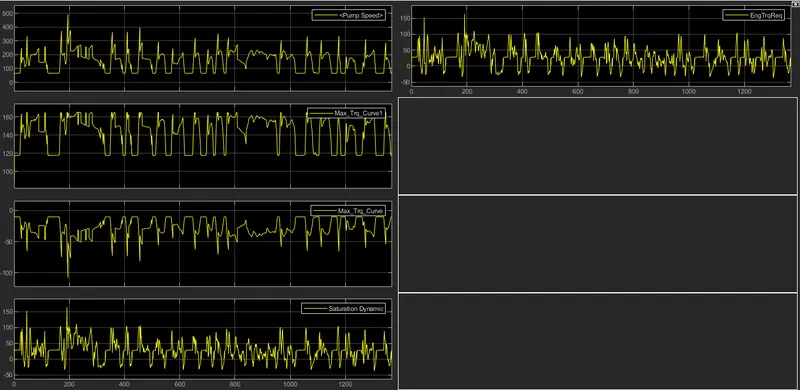

Pump Speed, Maximum and Minimum Torque, Engine Torque required

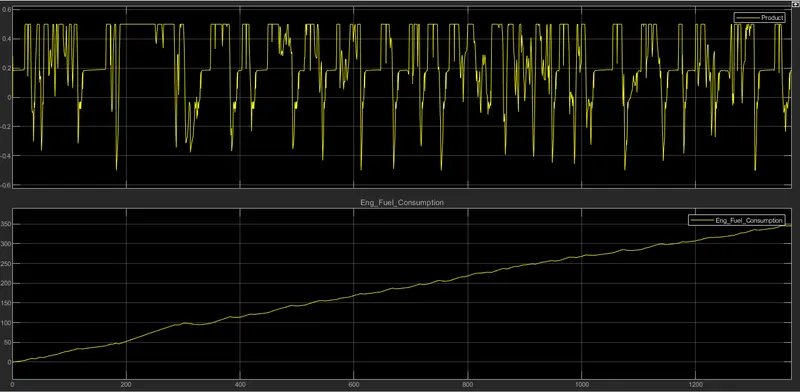

Engine Fuel Consumption

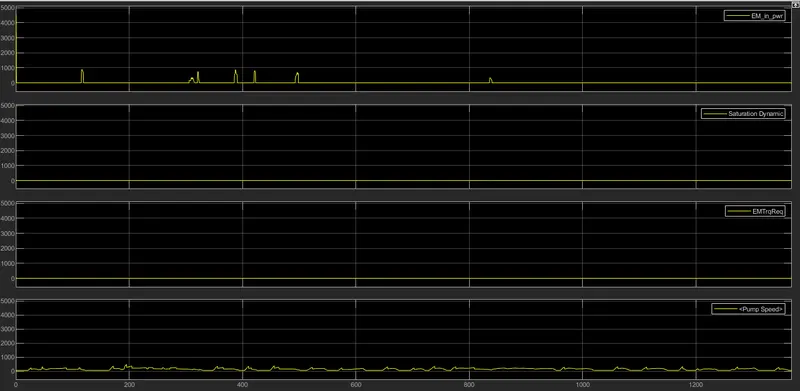

Motor Power and Pump Speed

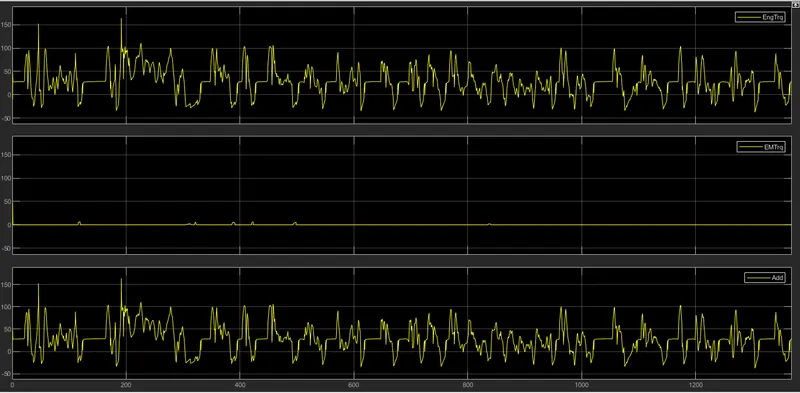

Engine Torque, Motor Torque and Crank Torque

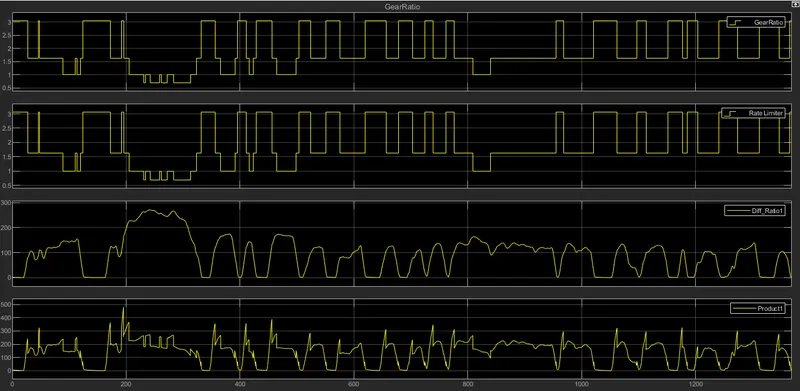

Gear Ratio

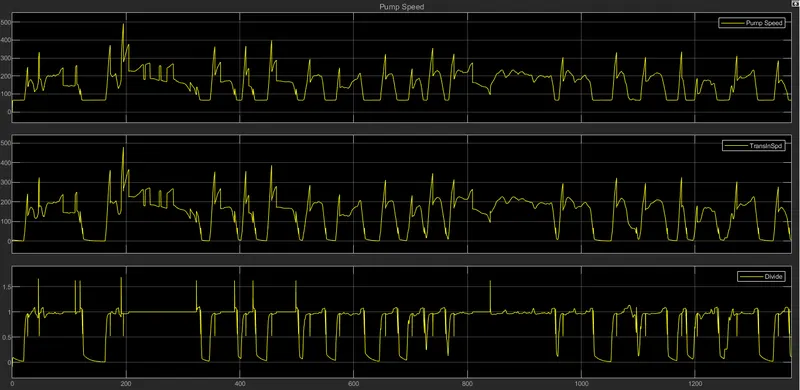

Pump Speed and Turbine Speed

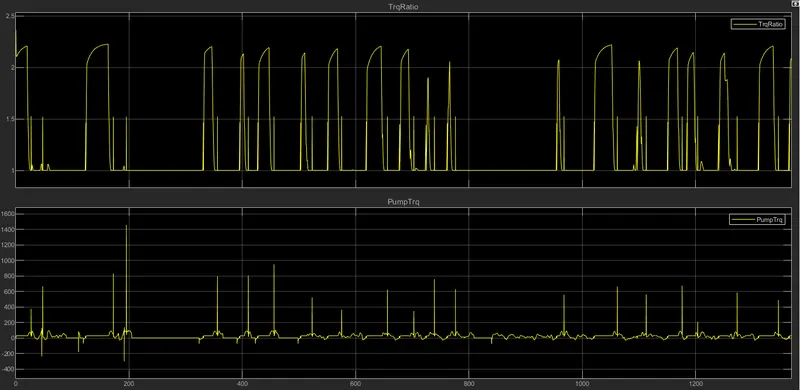

Torque Ratio and Pump Torque

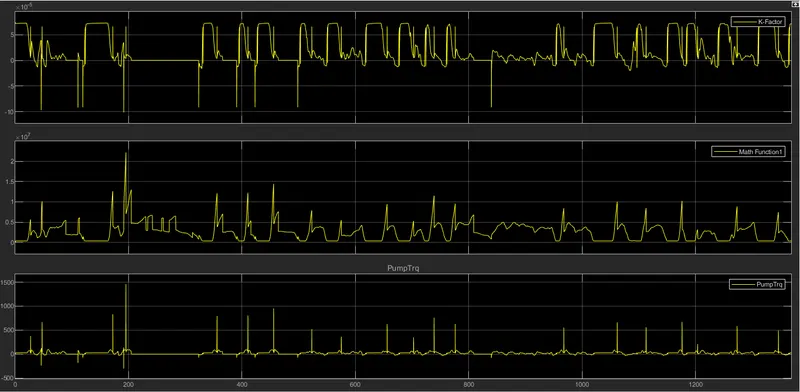

K-factor and Pump Torque

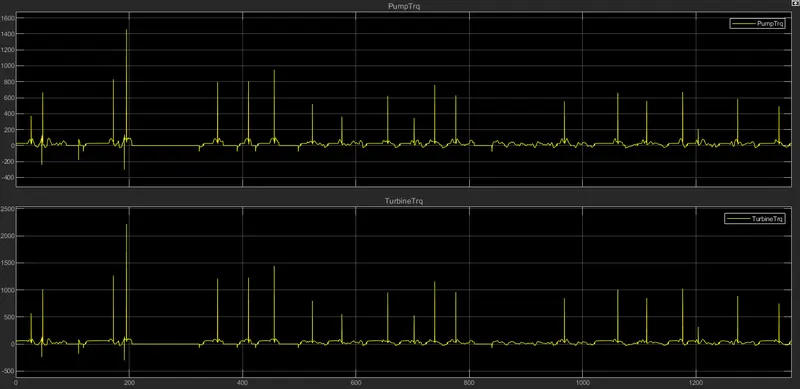

Pump Torque and Turbine Torque

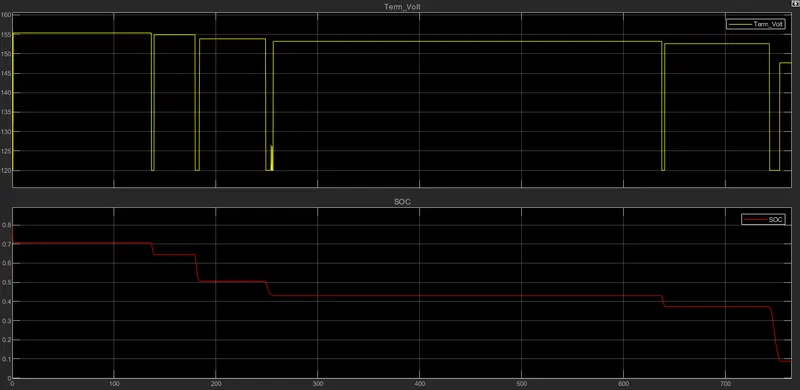

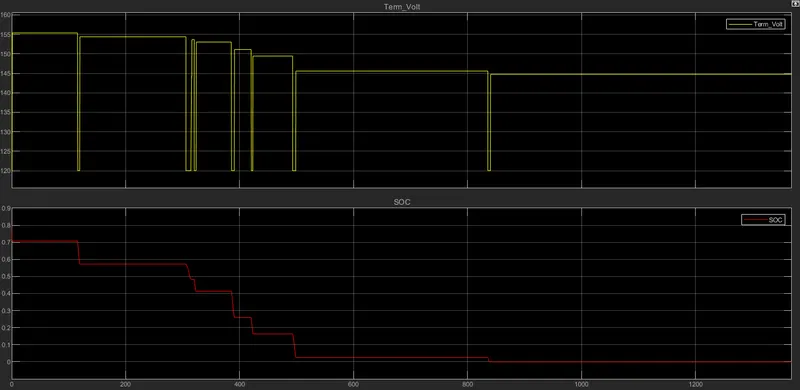

SOC and Terminal Voltage

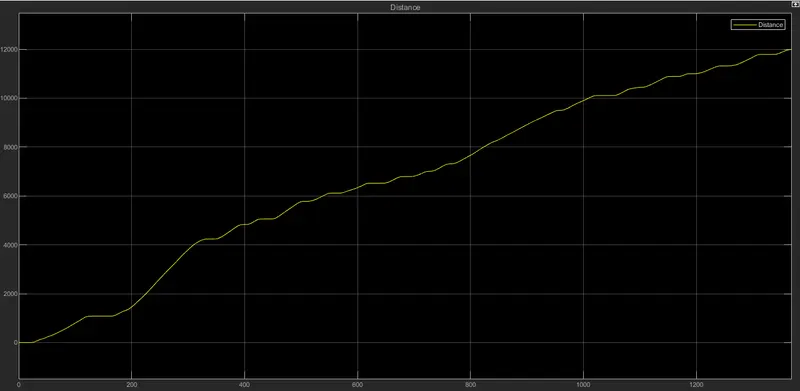

Distance
Case 2 - HWFET Drive Cycle
We have simulated the model for 800 seconds and we got the following results.

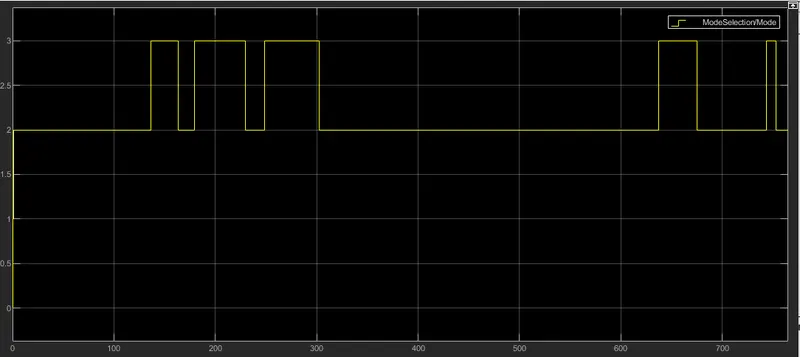

Mode Selection

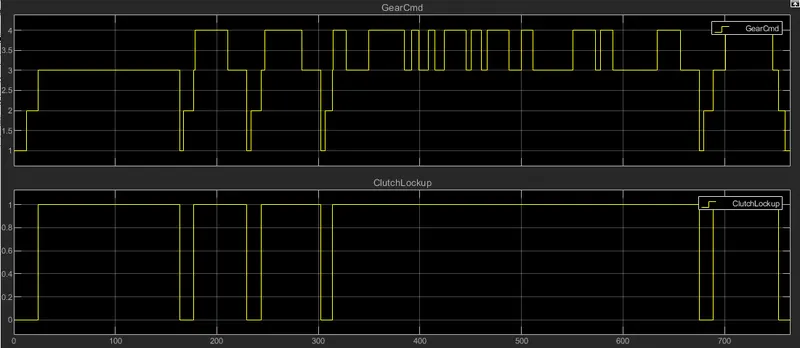

Gear Command and Clutch Lockup

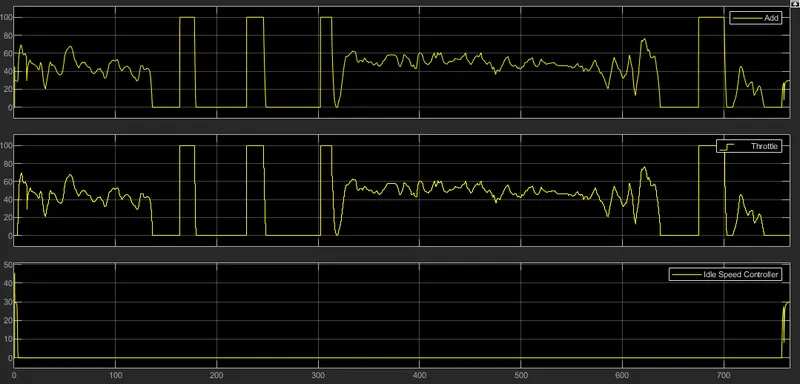

Idle Speed Controller

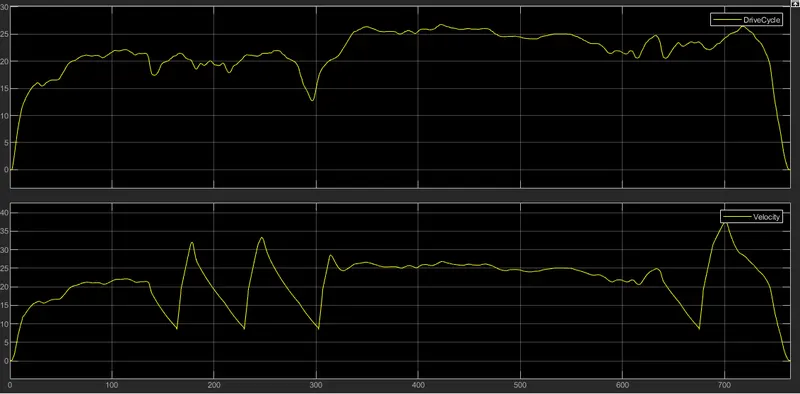

Drive Cycle
Pump Speed, Maximum and Minimum Torque and Engine torque required

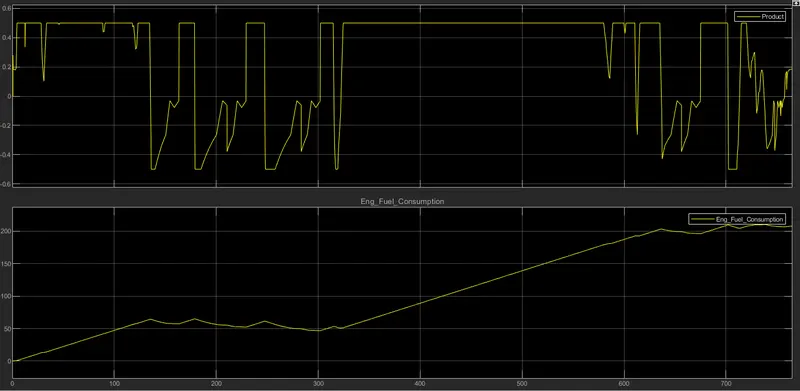

Engine fuel consumption

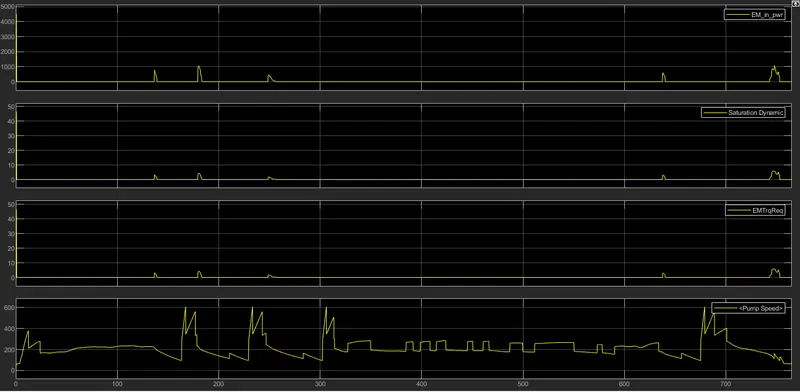

Motor Power and Pump Speed

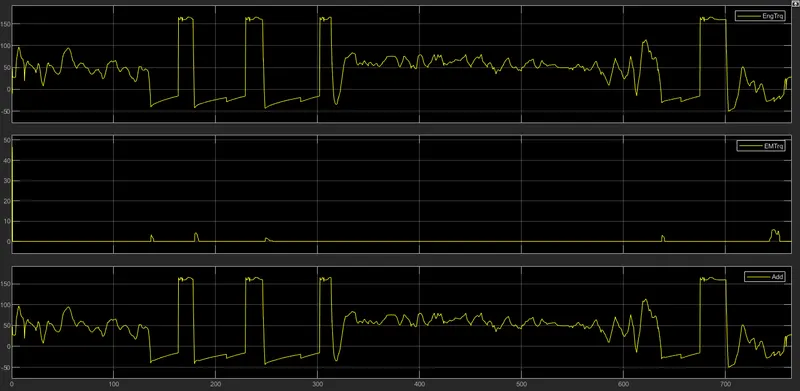

Engine Torque and Motor Torque

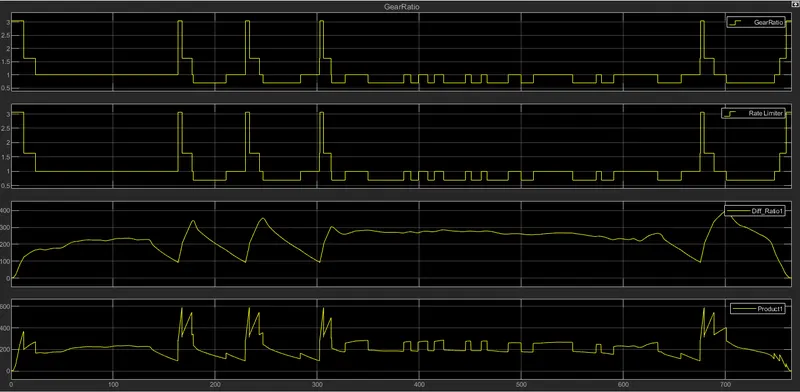

Gear Ratio

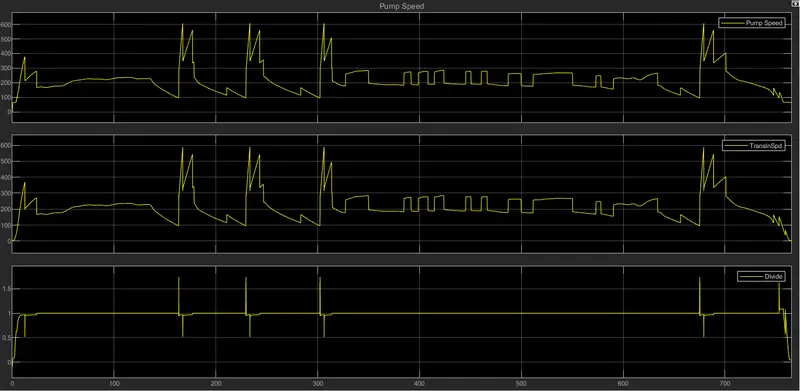

Pump Speed and Turbine Speed

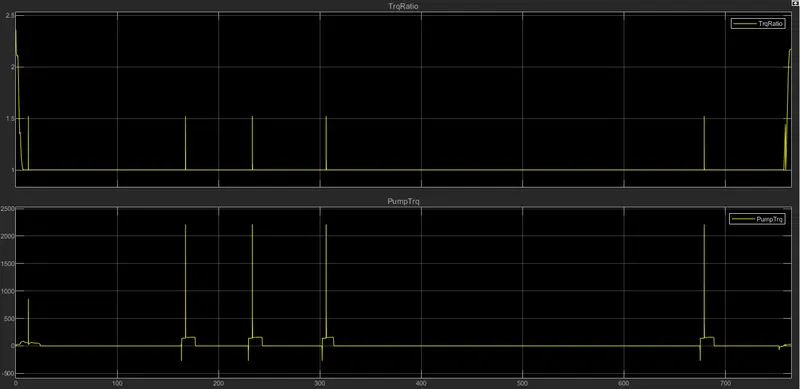

Torque ratio and Pump Torque

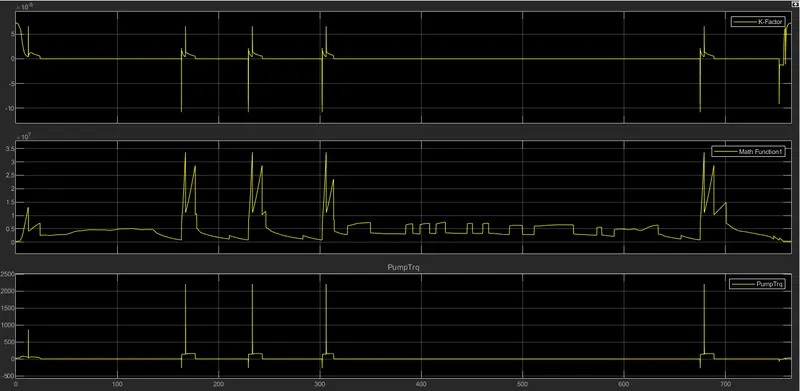

K-factor and Pump Torque

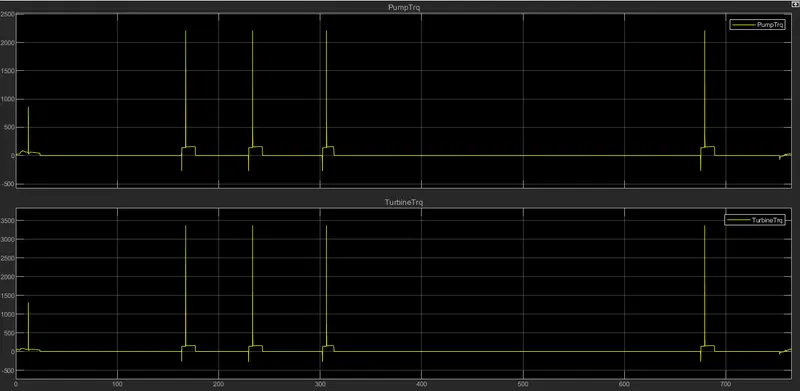

Pump Torque and Turbine Torque

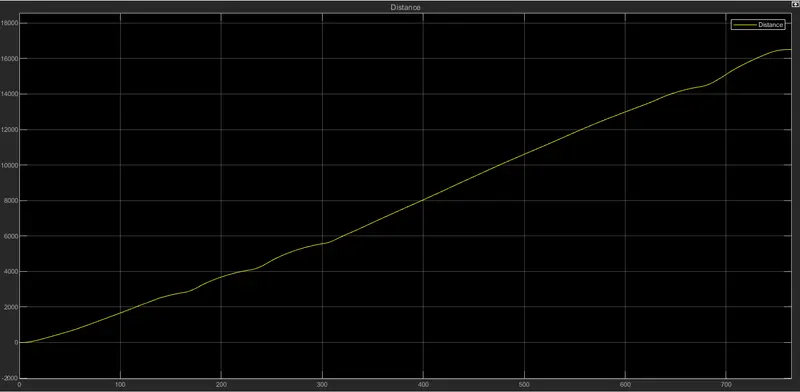

Distance
SOC
