Project 2

AIM: To route the wiring harness on the given tailgate inner panel and prepare the flatten view in Catia V5.

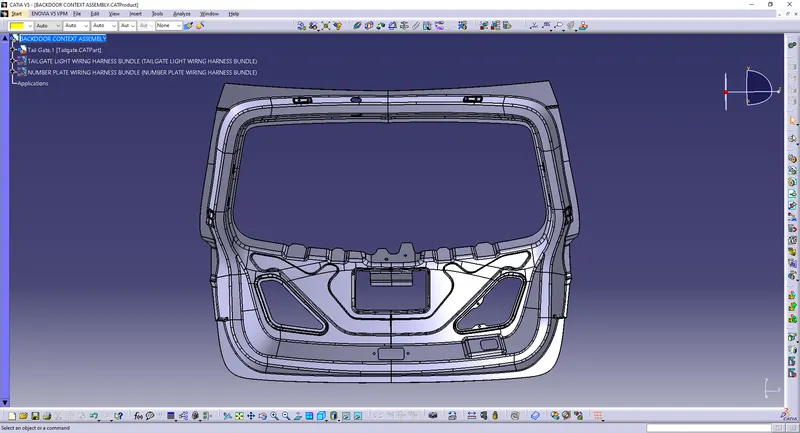

Given: Car Tailgate inner panel

DESIGN CRITERIA AND PACKAGING ASSUMPTIONS:

Wiring harness routing shall provide ease in manufacturing, accessibility, easy removal, and easy maintenance ofattached equipment and wiring harness.
Routing through small structural holes and openings shall be avoided, minimize chaffing and handling of the wiring harness during installation.
Avoid the harness routing and clipping in the Blind zone of the Operator during harness assembly or in service.
Routing shall offer protection against possible damage through common misuses such as being handhold and temporary support for test equipment.
Provide additional slack to the harness according to the surroundings and harness bending requirements.
Ensure the routing meets the clearance requirements with different surrounding parts.
Avoid routing over the bolts, near to the bolted joints. It may damage the harness or puncture the harness. Keep harness away from panel mounting screws.
Avoid harness routing near sharp edges, if not possible provide protection to the harness.
The maximum distance between two clips on a straight branch is 200mm.
Provide Clips and clamps if the harness is going to bend at multiple locations.
The use of too many sheet-metal brackets should be avoided.
The branch length should be more than 50 mm.
Min distance between clip and branching point to be 25 mm.
Min distance between two branch breakouts should be 50 mm.

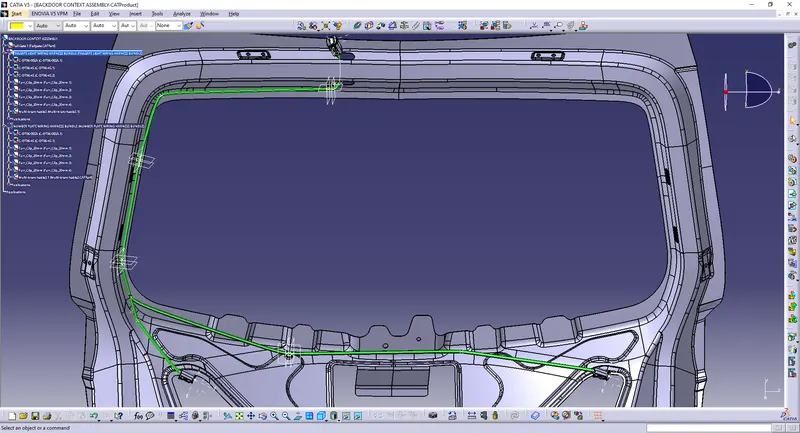

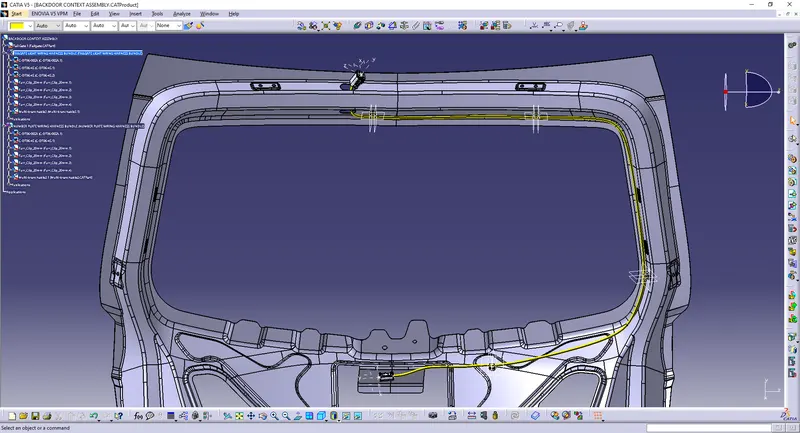

Routing the Wiring Harness:

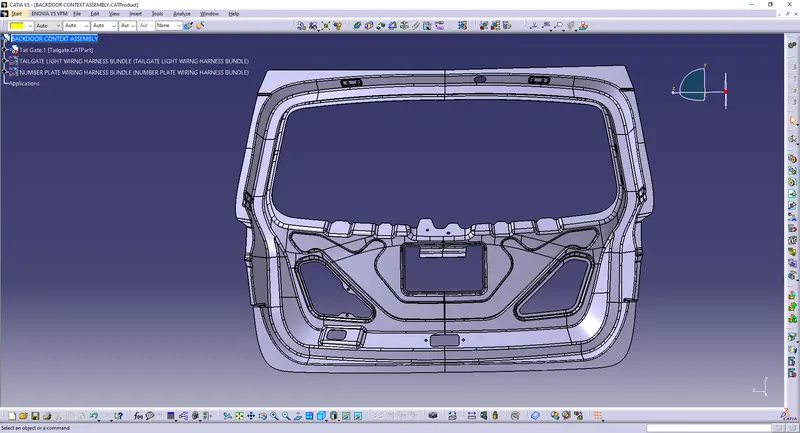

First, we have to consider the components we need for the routing. Here we are only considering the taillights and the number plate lights.
Here we are considering 2 different types of connectors as follows
We electrically define all the connectors and the fir tree clips.

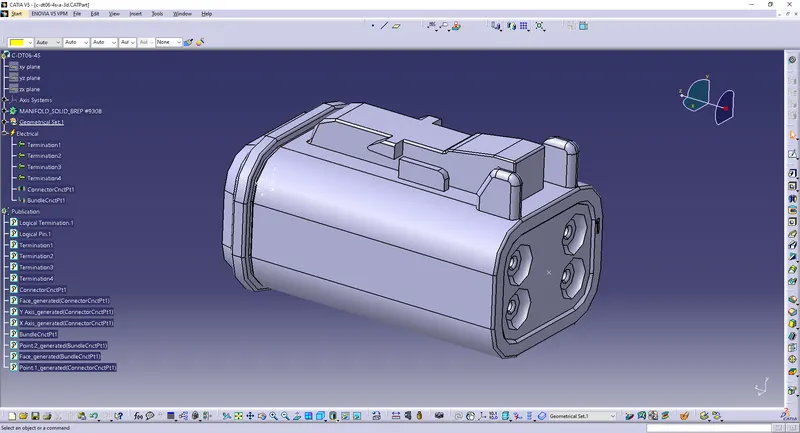

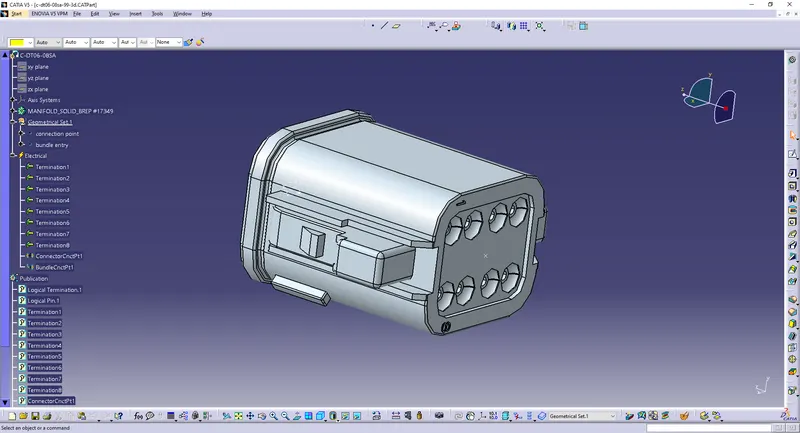

Interconnection connector:

Light connector

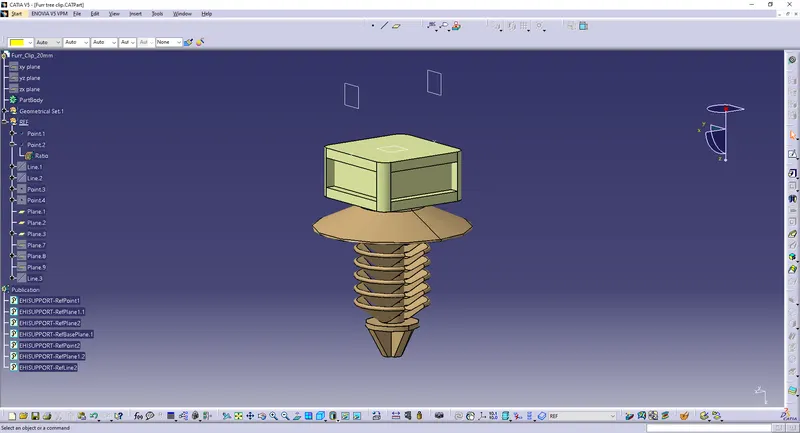

Fir tree clip

Conclusion

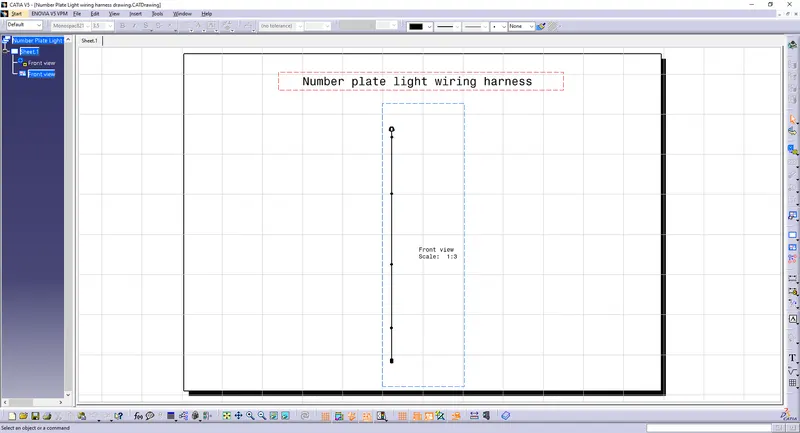

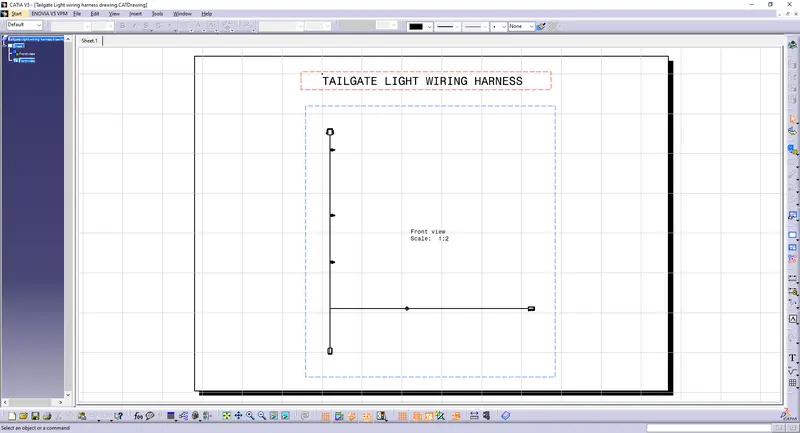

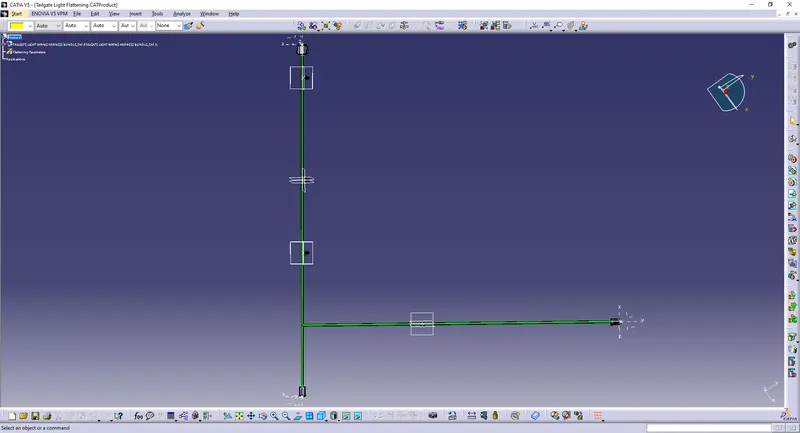

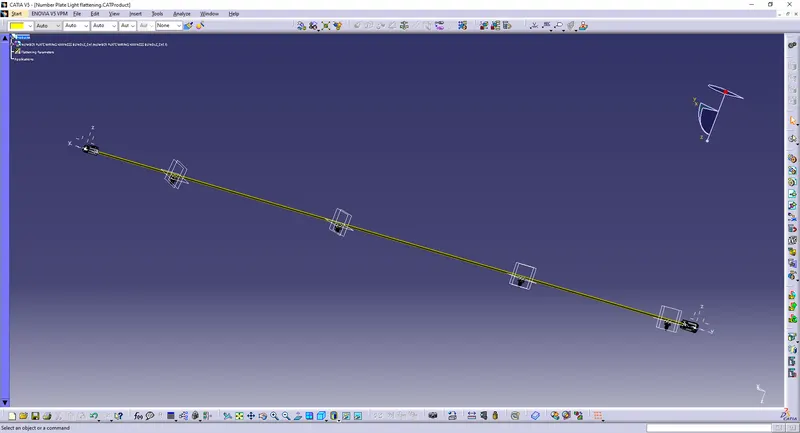

The wiring harness has been designed for the given tailgate assembly and the number plate and the flattened view is drafted.
