WIRING HARNESS PROJECT: AUTOMOTIVE BACKDOOR

Introduction:

An automotive backdoor panel constitutes of many requirements for electrical wirings. Tail lamps, number plate lights and in some cases, also wipers does need proper electrical wiring. In this project, i'll try to develop a harness system for the given automotive backdoor. Harness is fixed on inner panel using clamps.

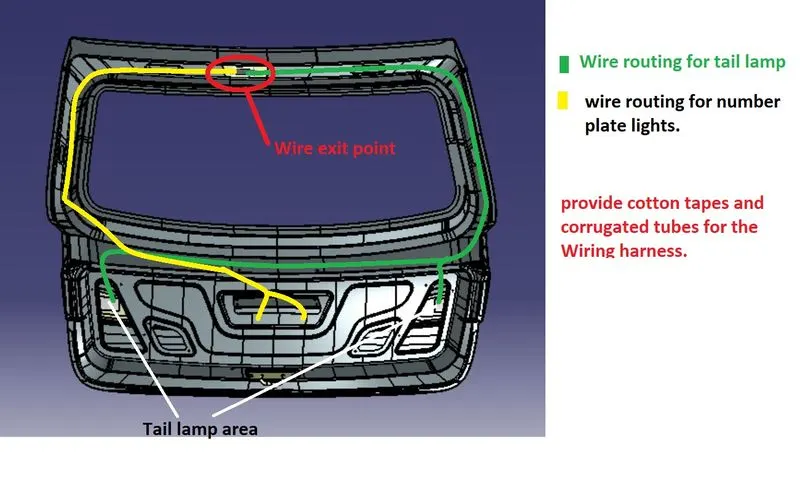

Wiring diagram:

Connectors used:

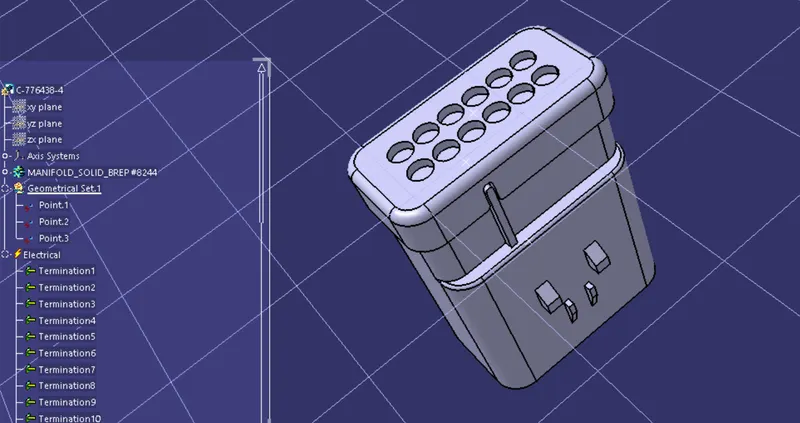

C-776438-4

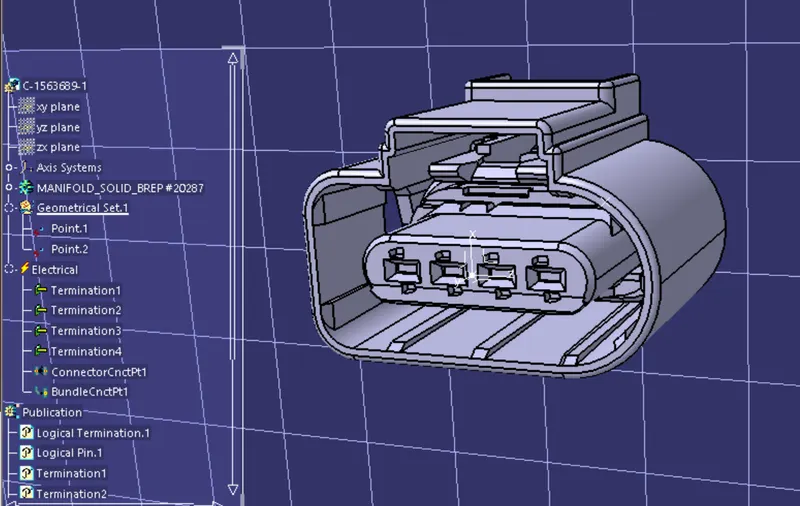

C-1563689

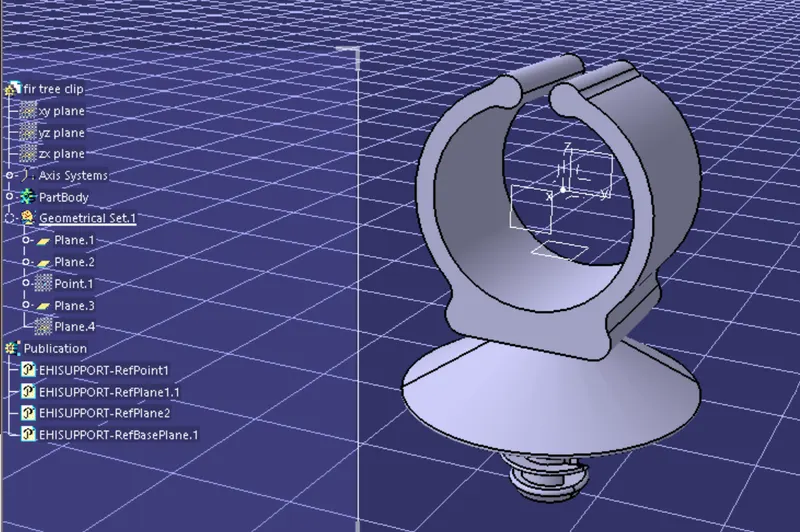

Clamp used:

Wiring procedure:

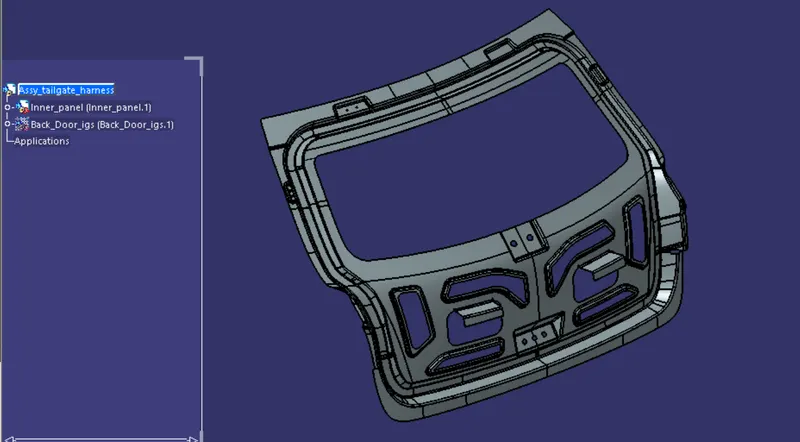

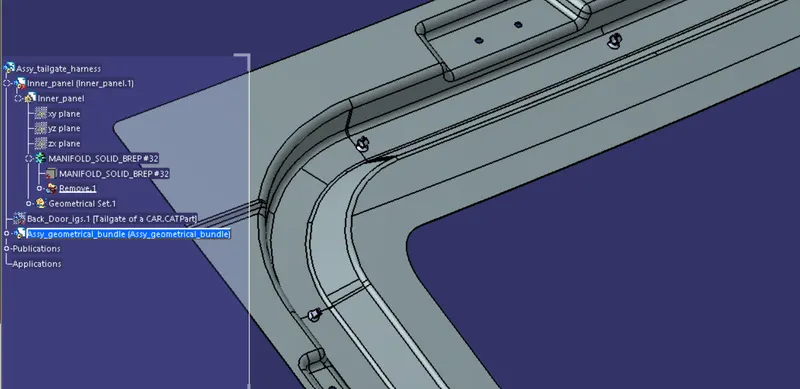

Tailgate inner panel:

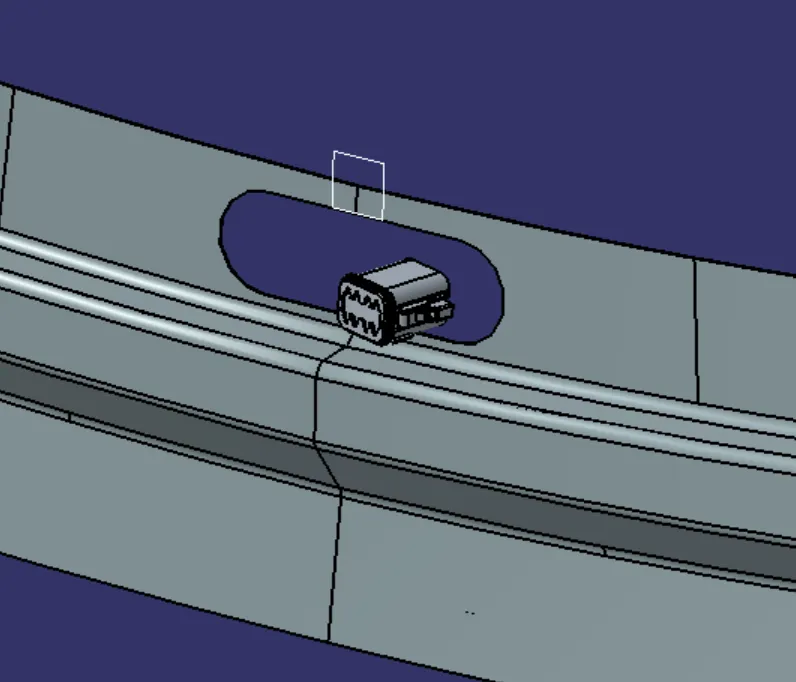

Clamp mounting placement:

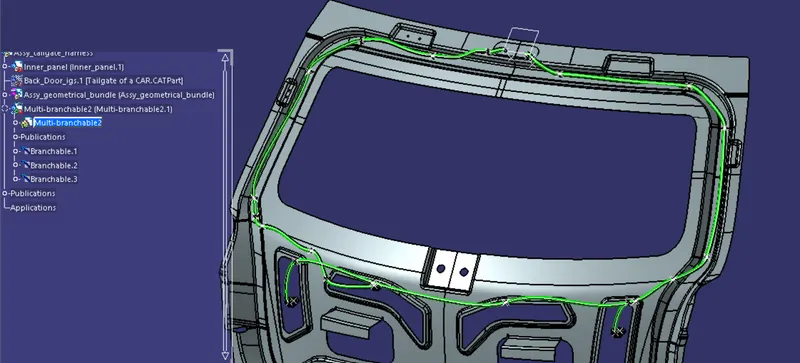

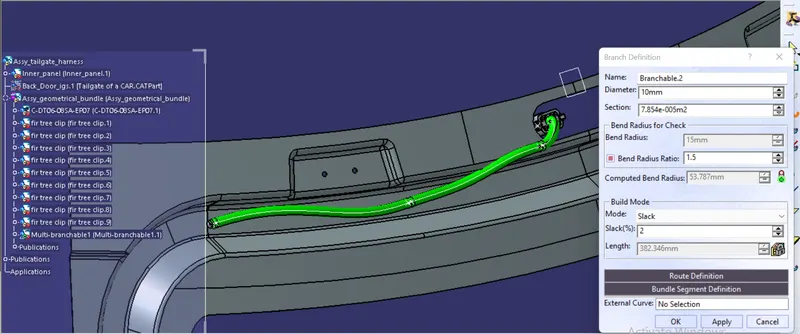

Branch definitions:

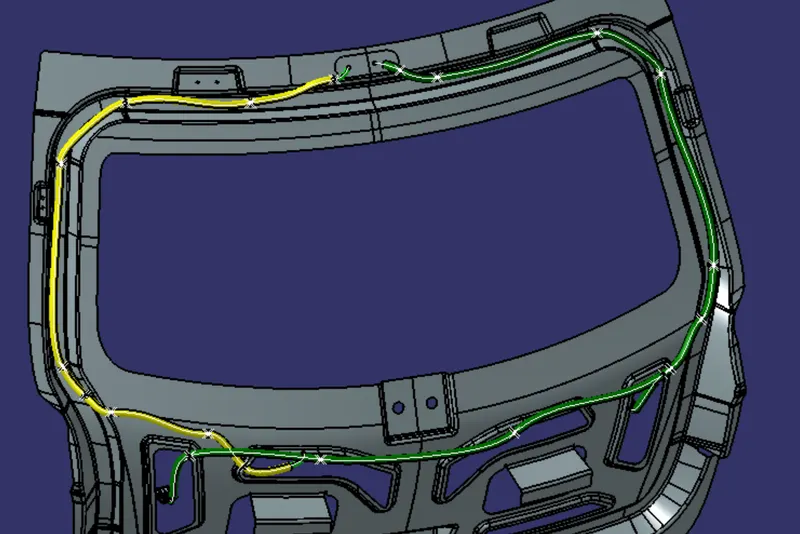

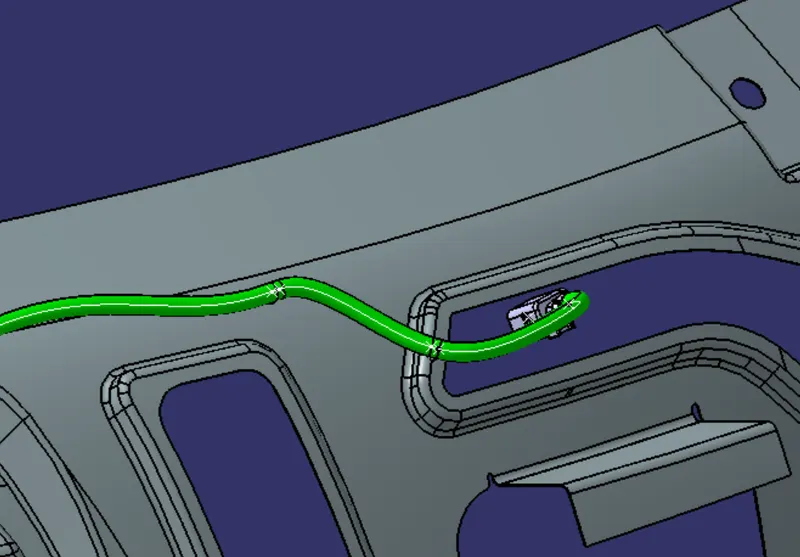

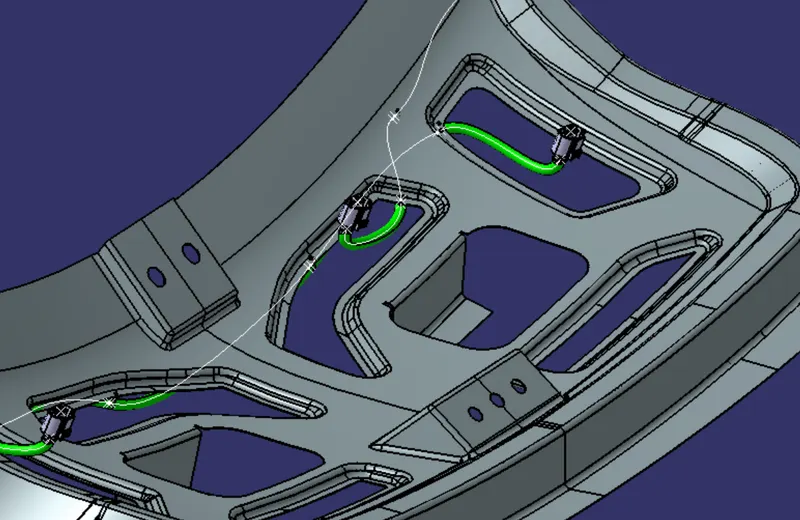

Finished wiring:

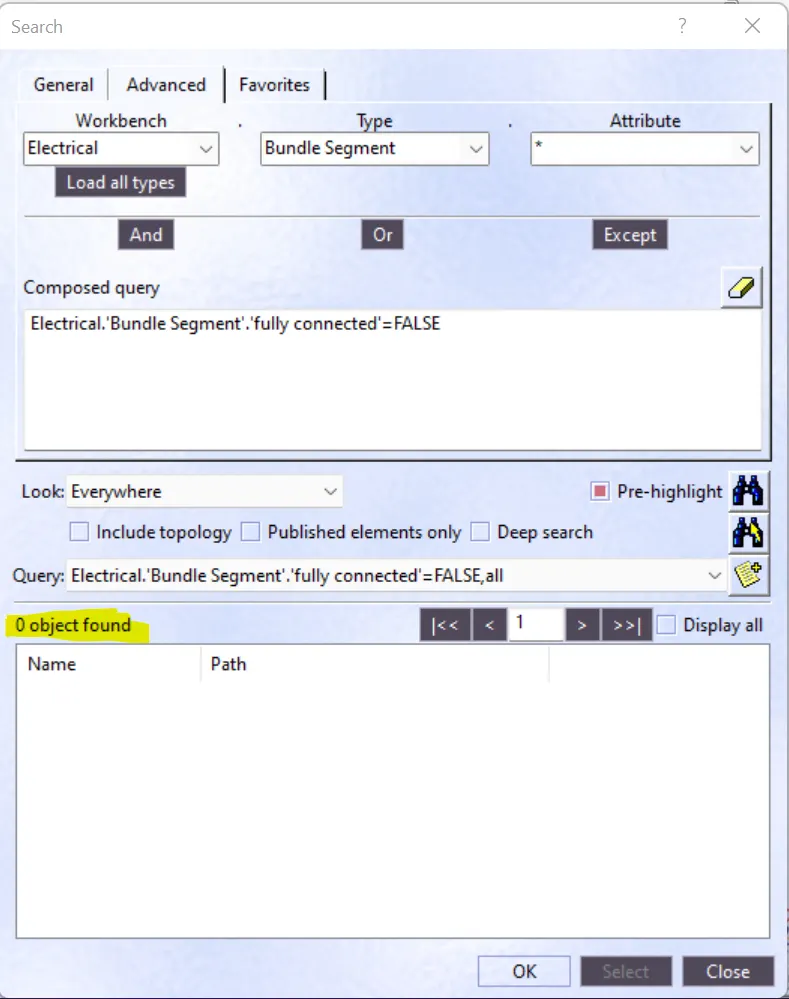

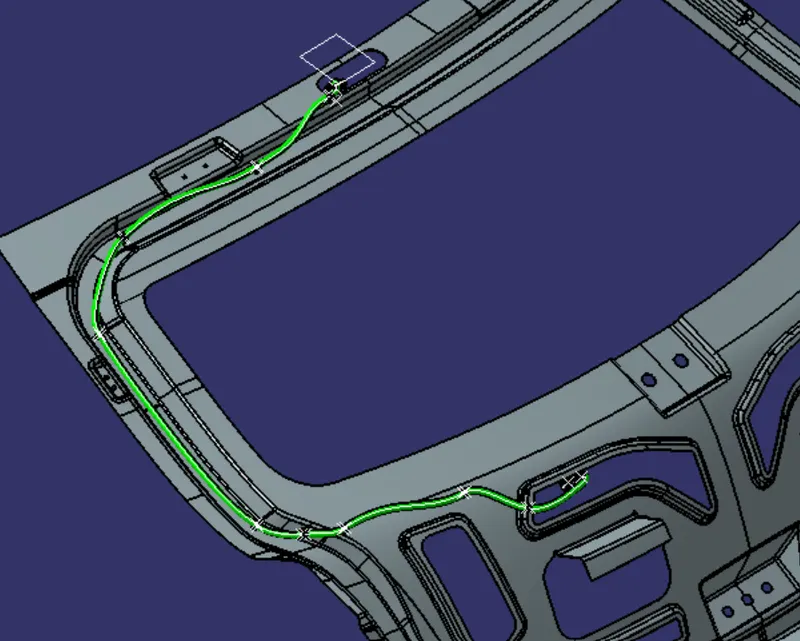

Bundle segment continuity check:

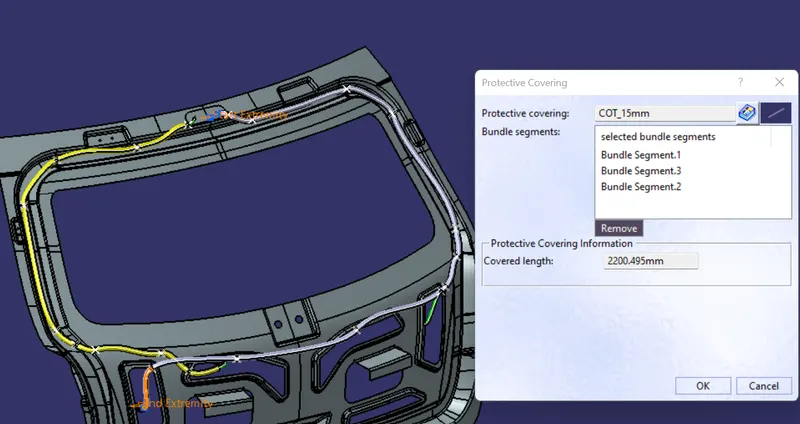

Adding Protective coverings:

Conclusion: Learned to Design and develop wiring harness on automotive backdoor. Studied bundle definitions on complex geometries and succesfully defined wirings.
