Project 2

1. mechanical components are defined electrically and added to the catalogue.

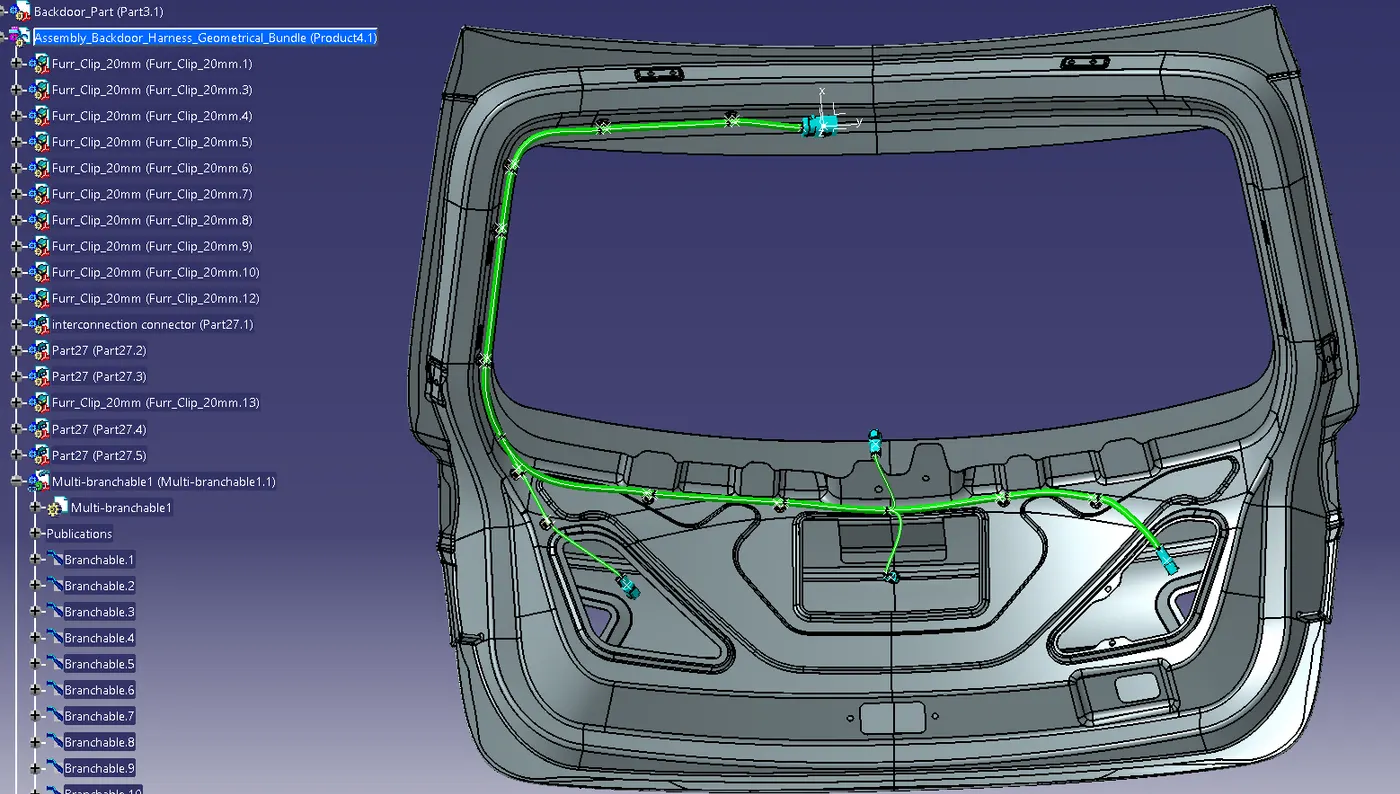

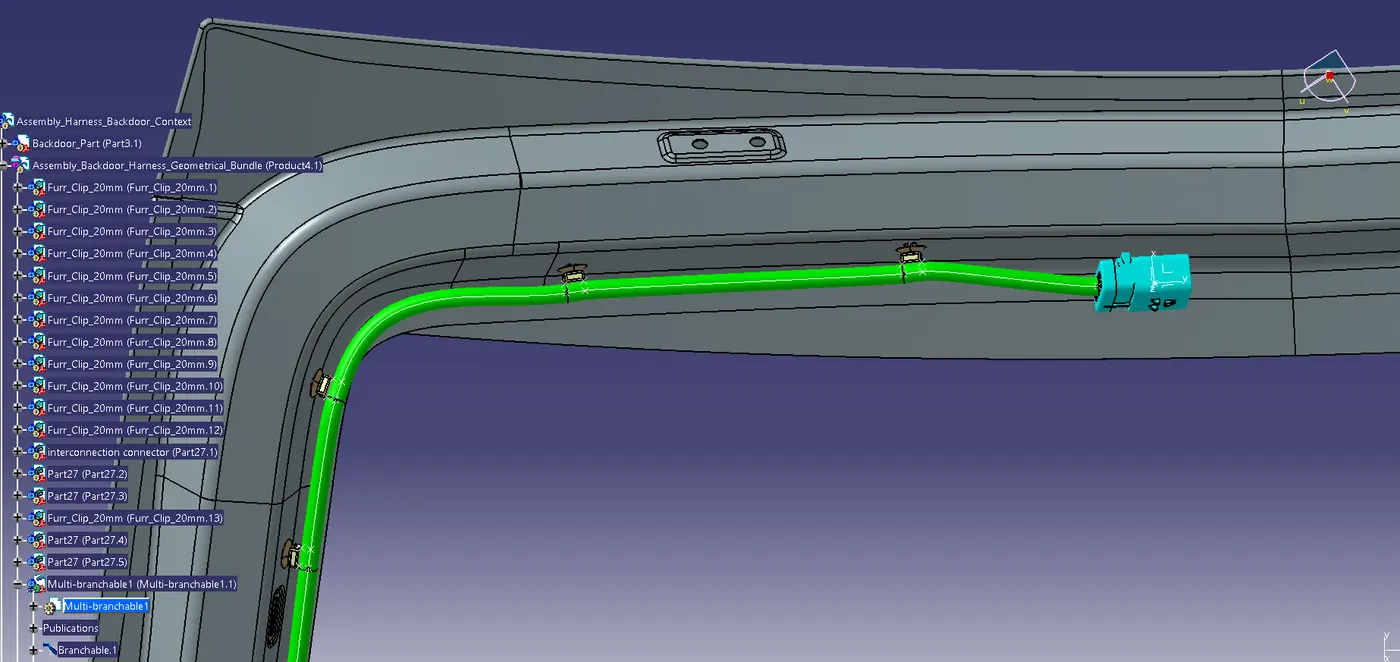

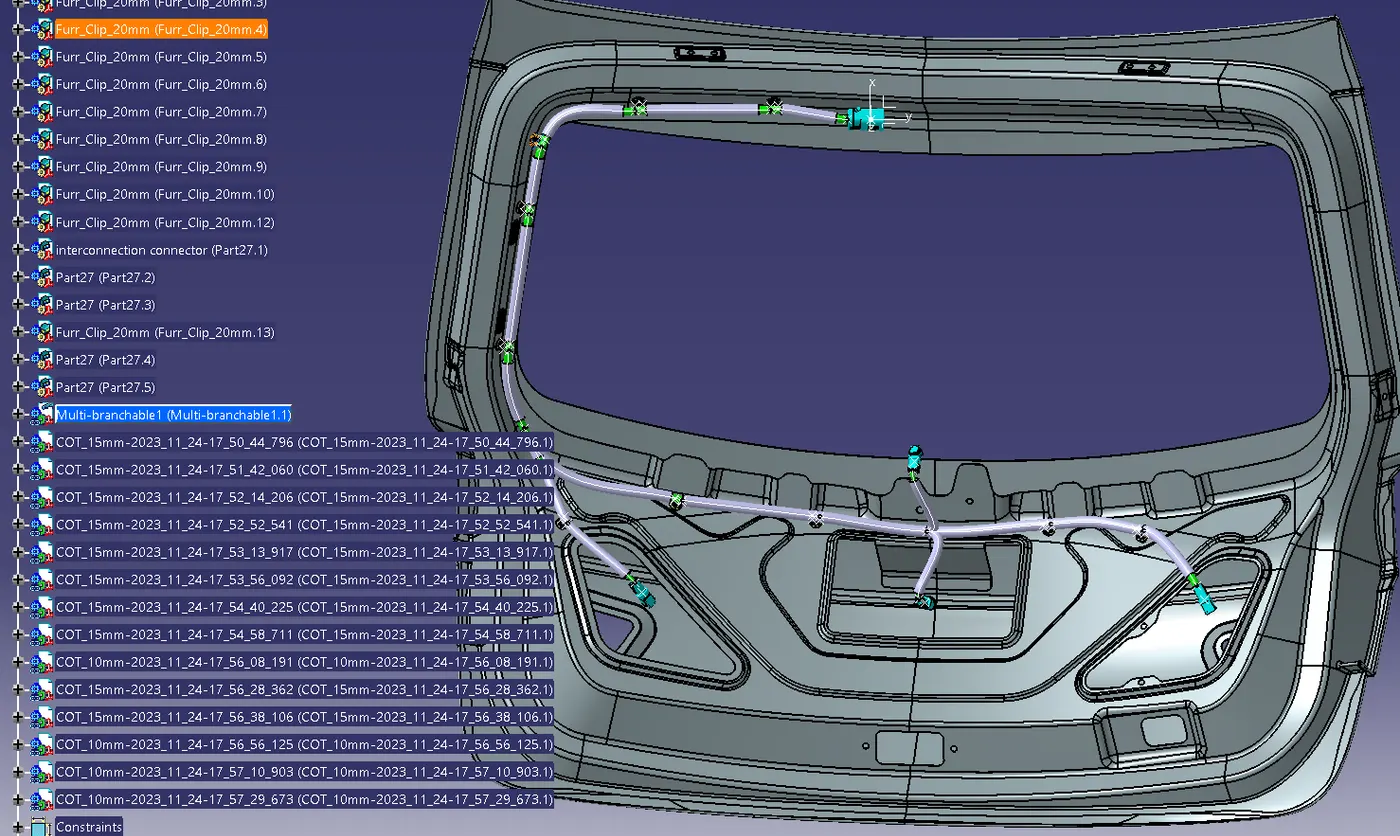

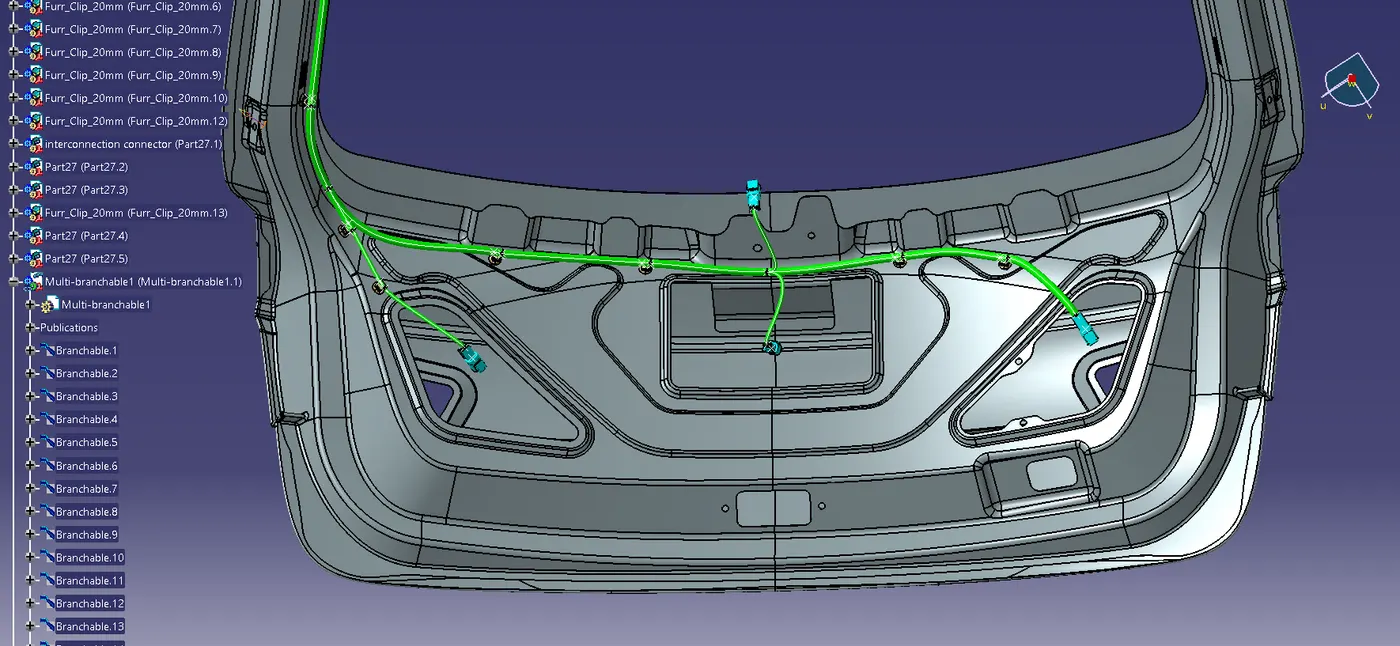

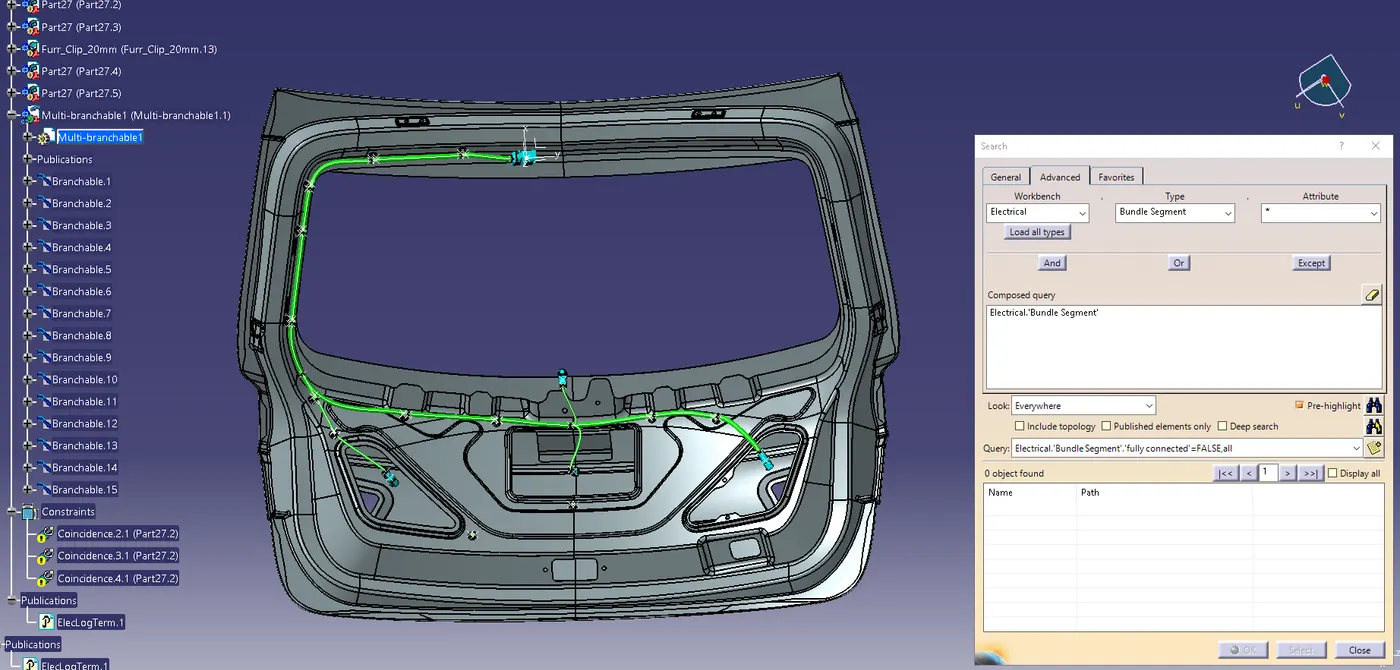

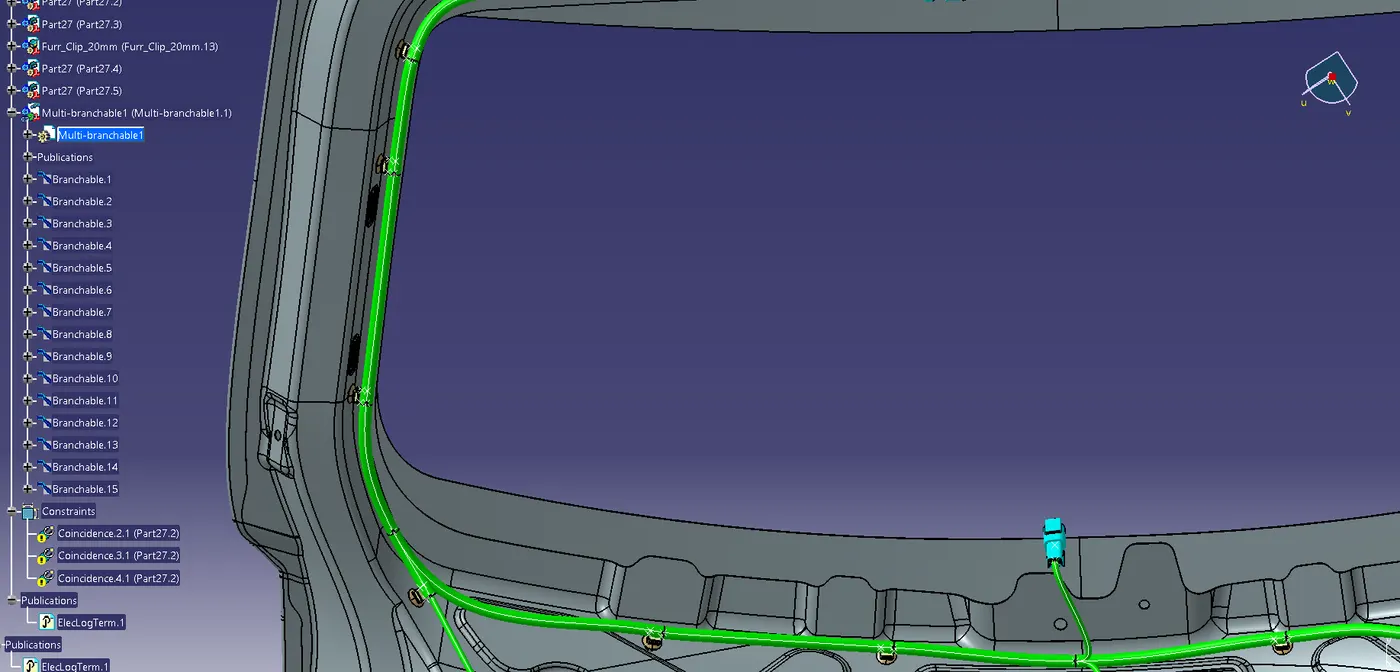

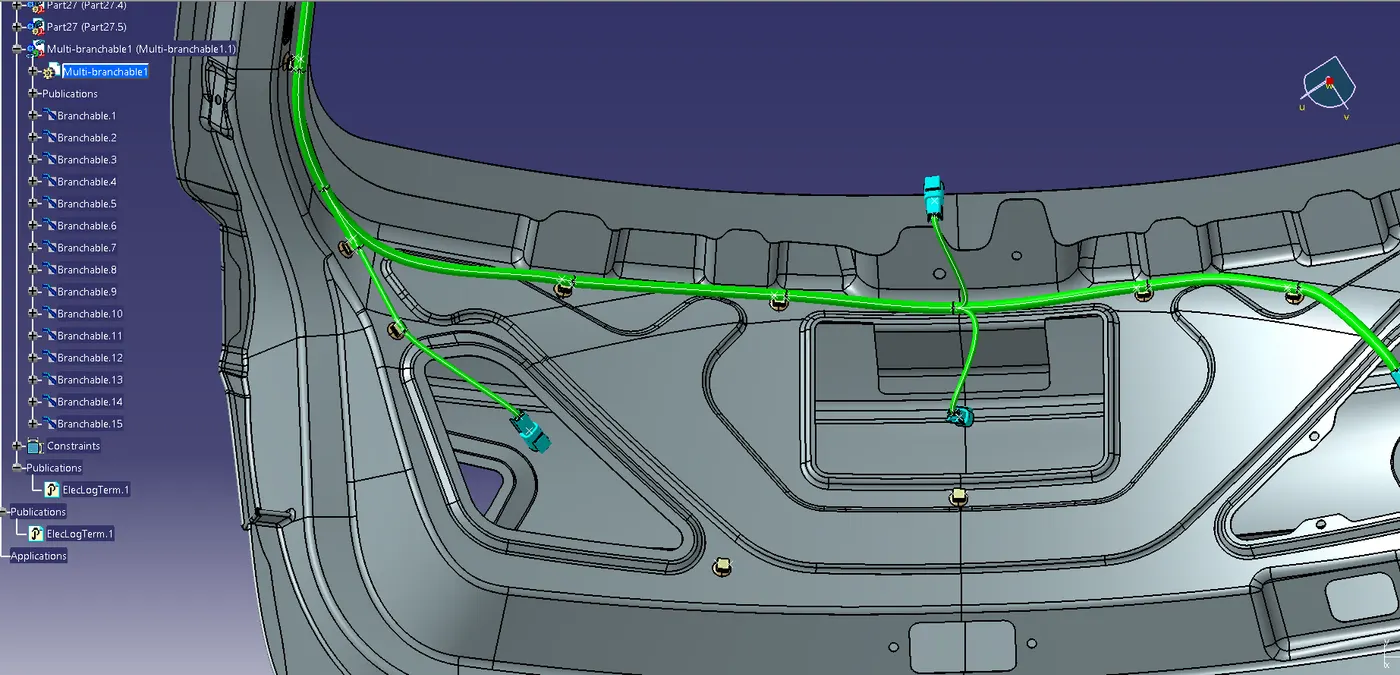

2. proepr bundle routing is provided without interference and support parts like fur tree clip are aso provided .

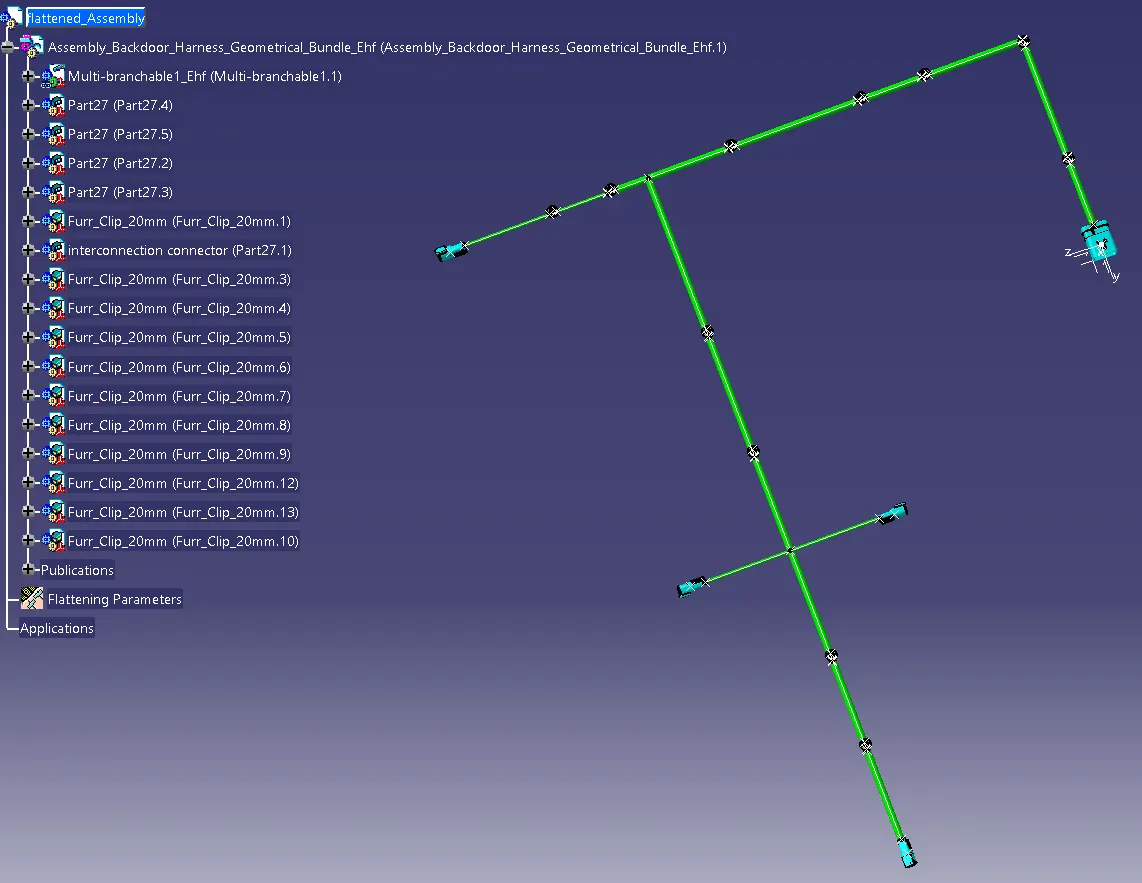

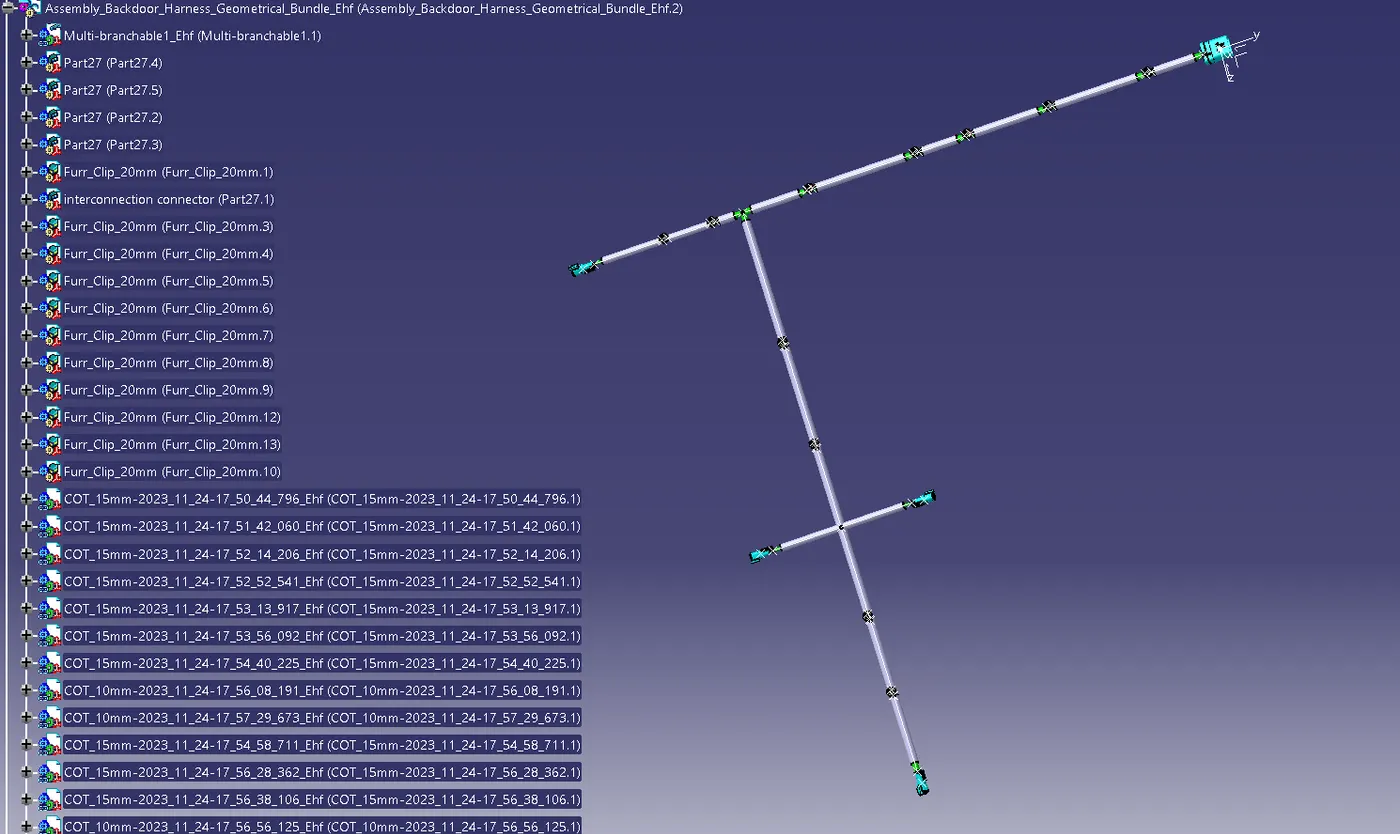

3. the final CATProduct assembly is flattened,i.e, electrical harness flattening is done using flattening workbench.

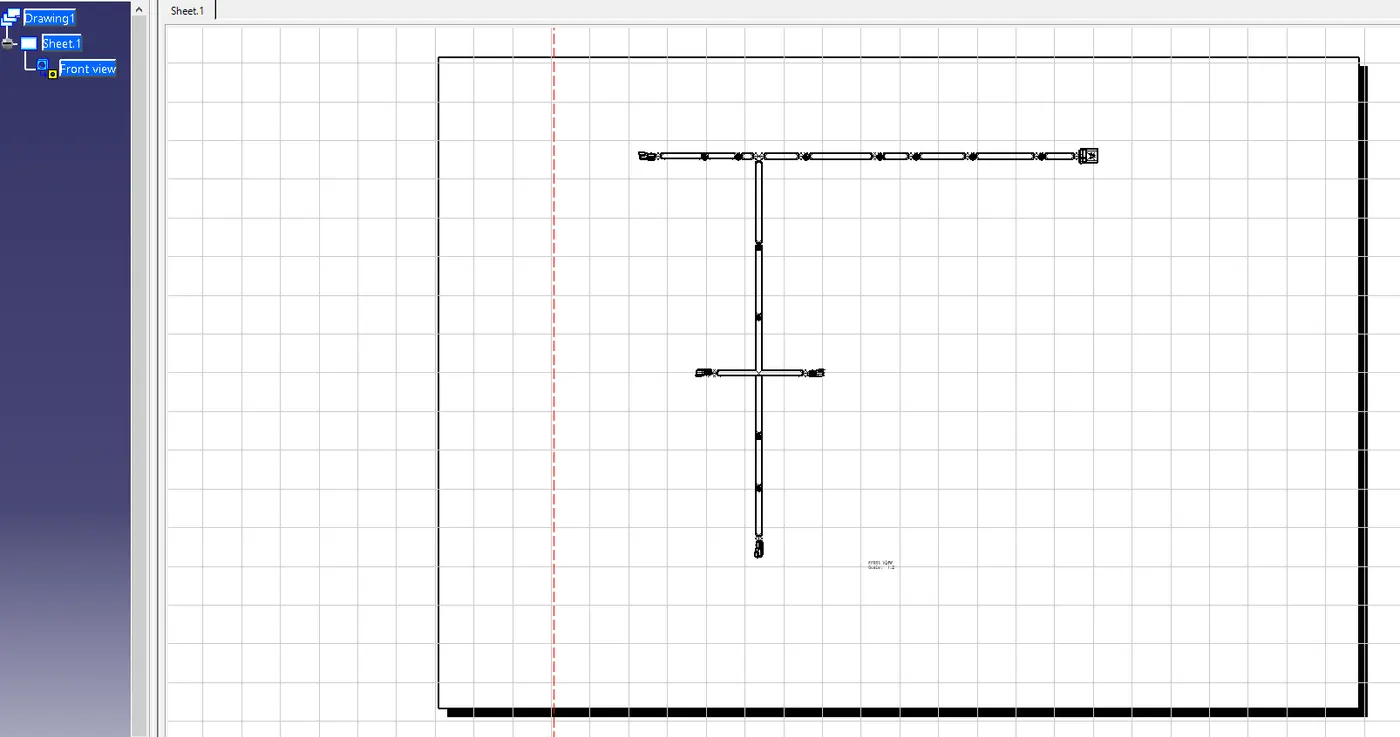

4. this flattened assembly is made into 2D drawing and files are attached using drafting workbench.

5. packaginf rules like keeping the distance between successive fur tree clips between 50 mm and 200 mm is also used.

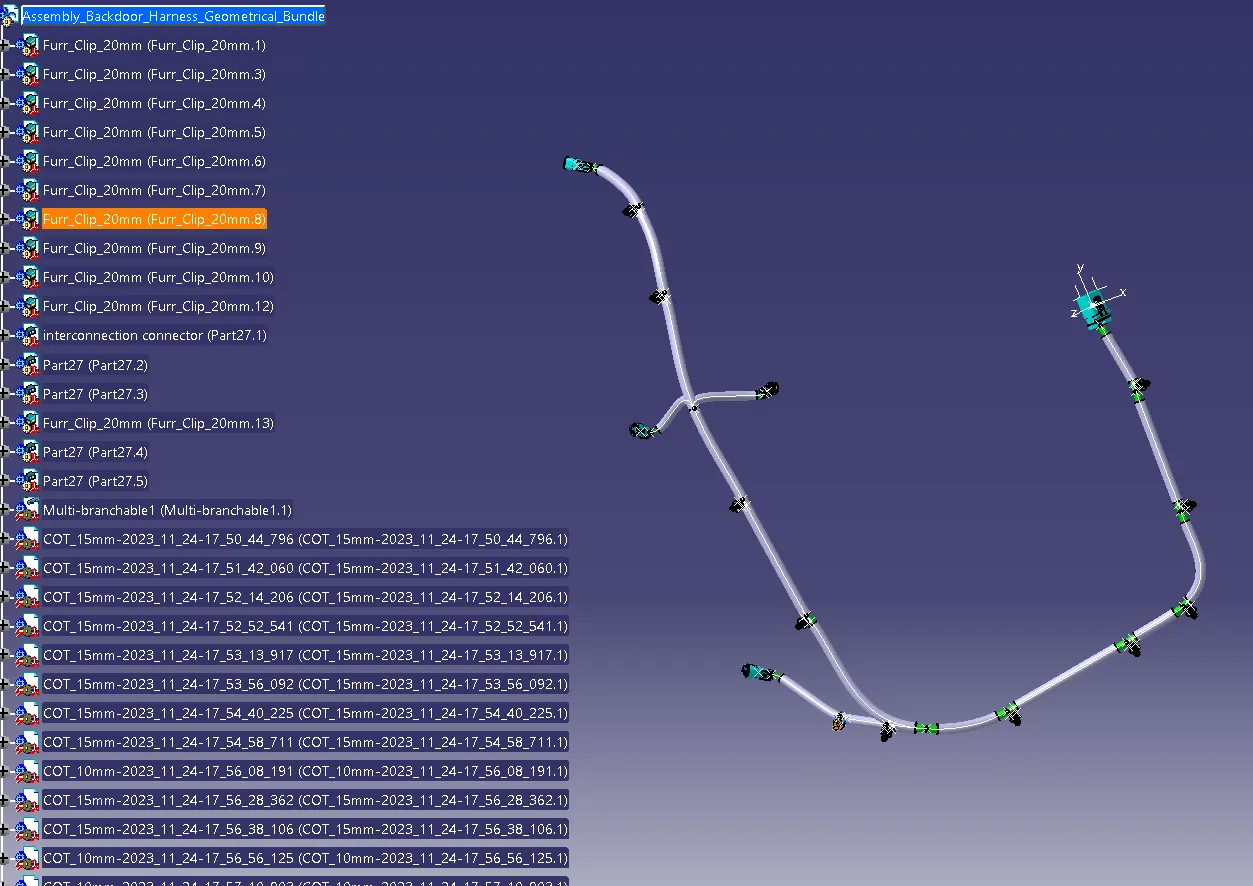

6. protection coverings are also applied.

7. Clearance, Clamping selection, Harness fixing requirements, Harness continuity all are checked as well.

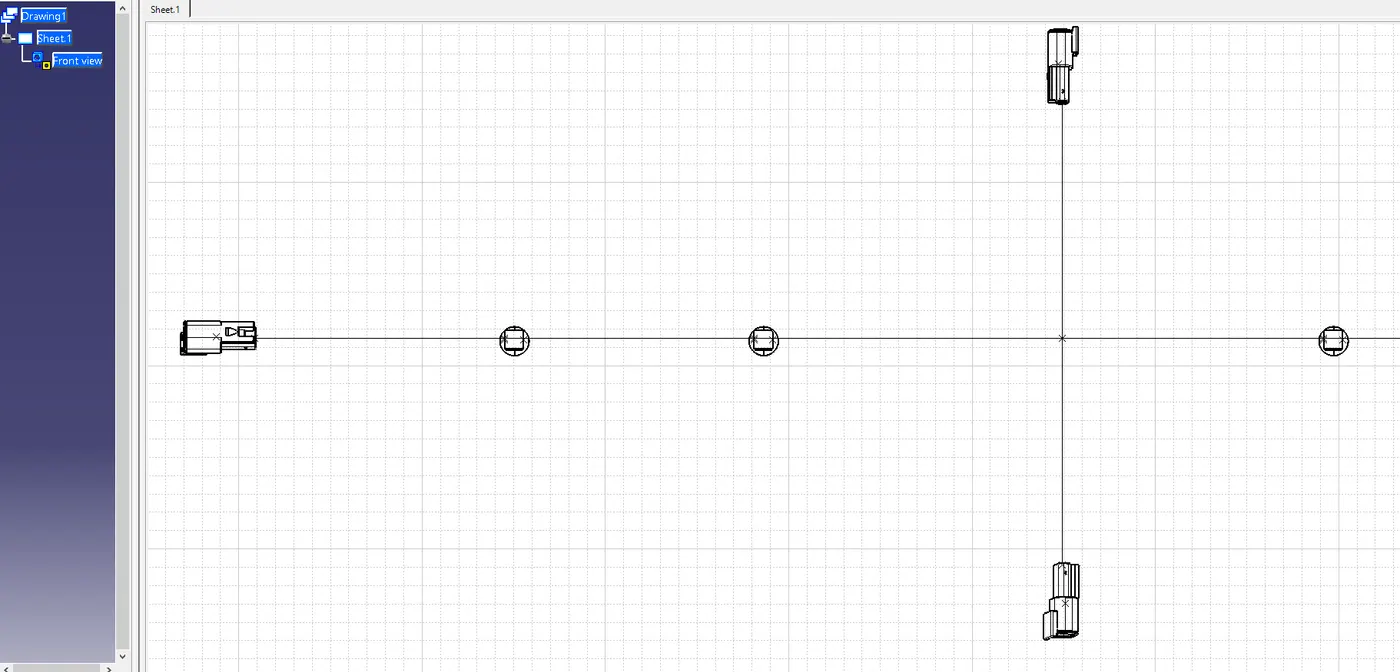

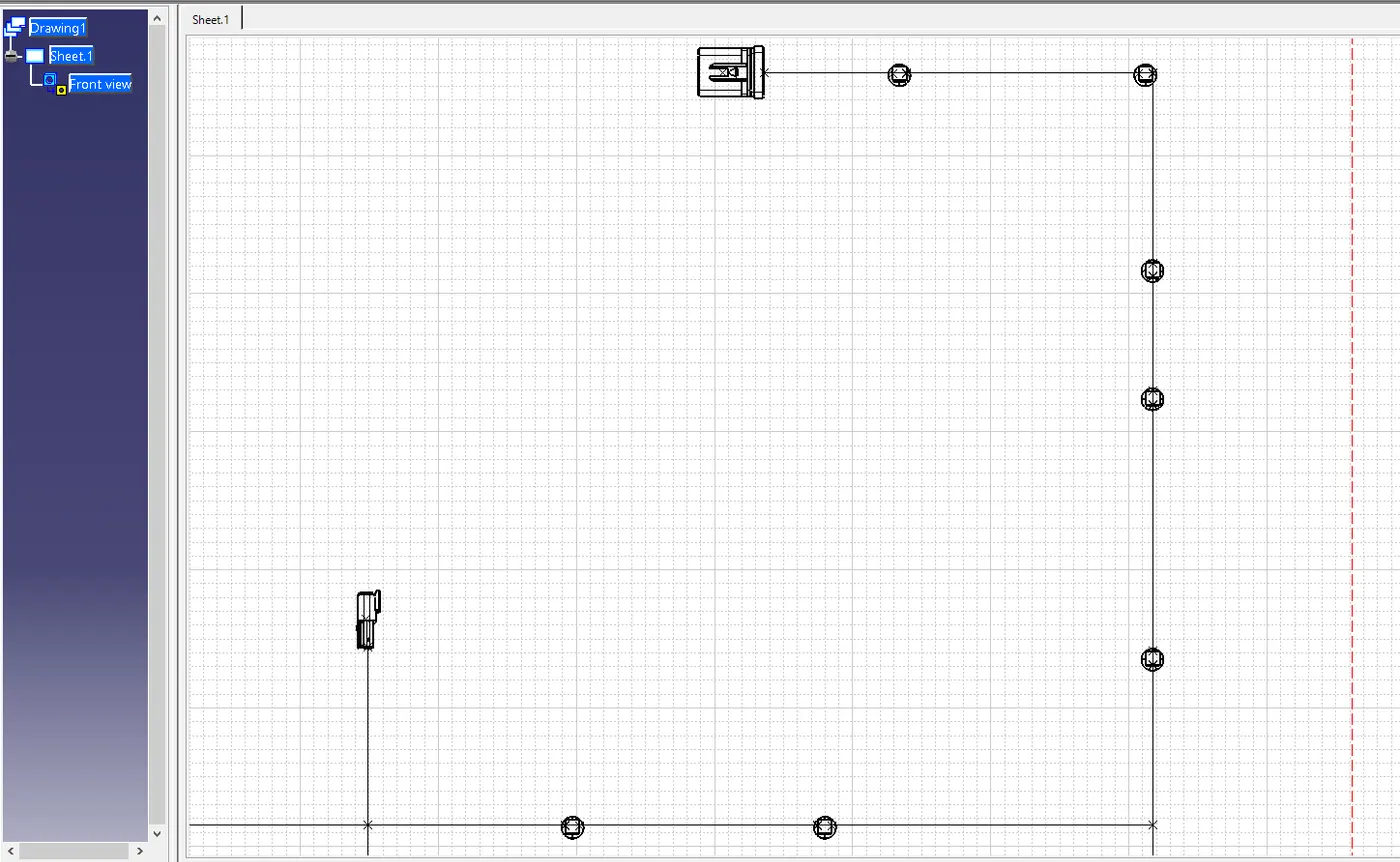

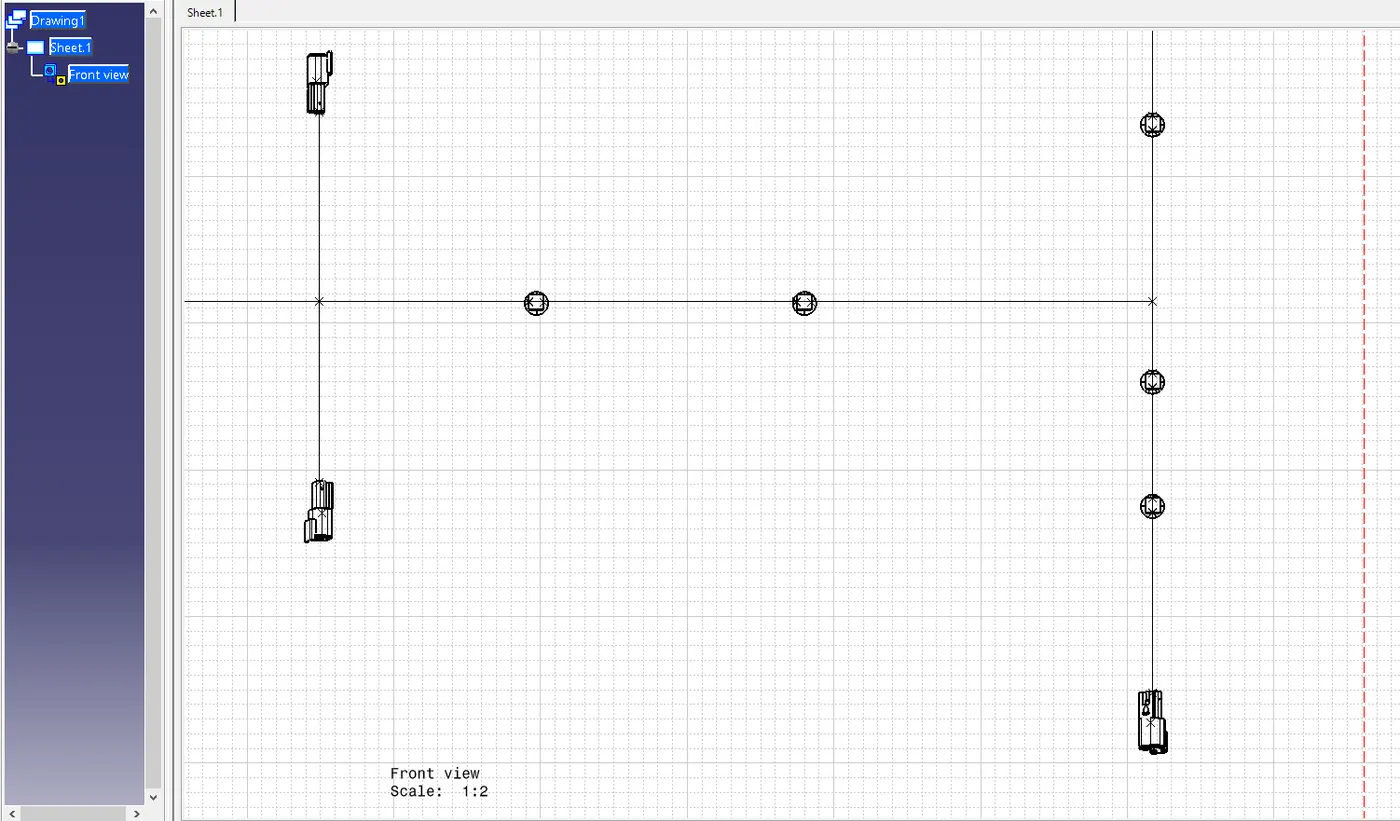

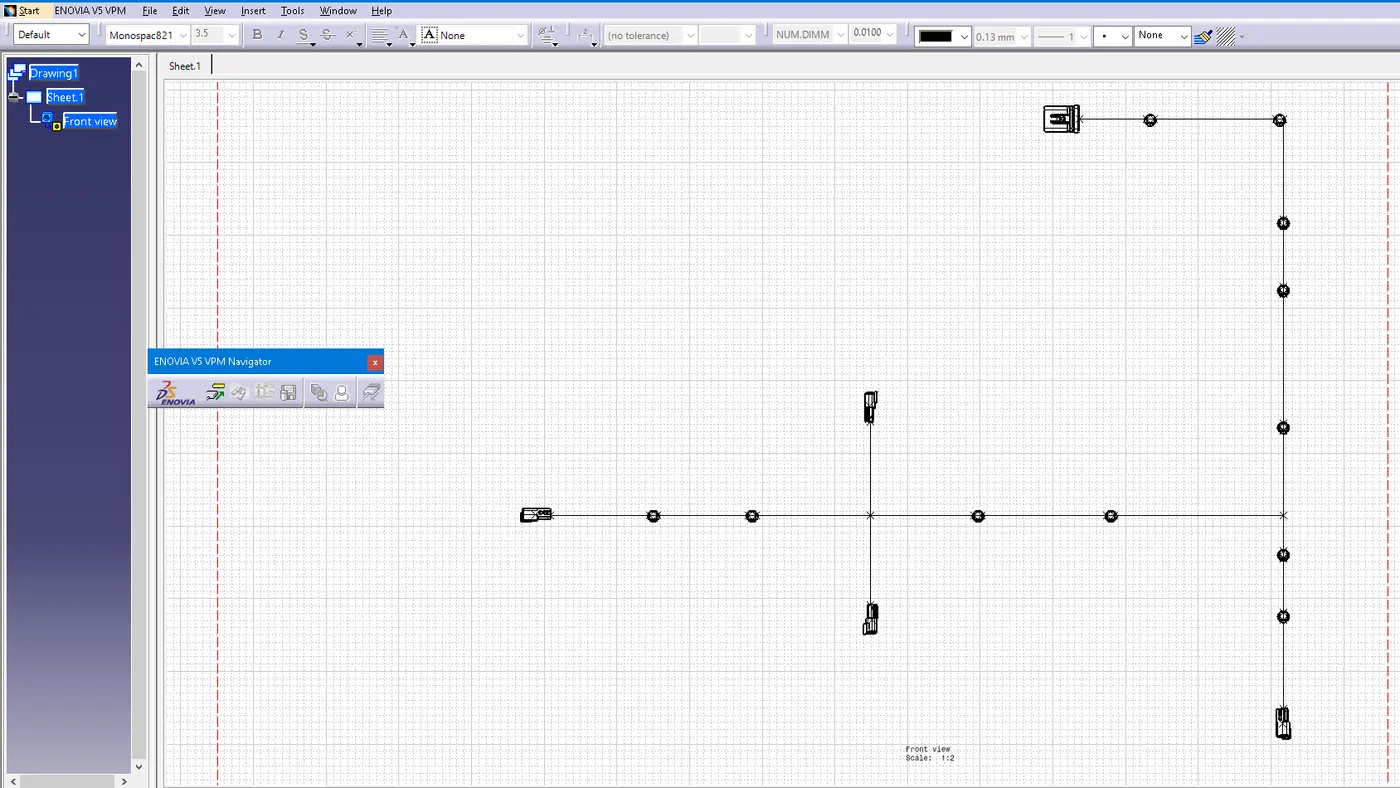

8. in the drawing file, COT tubes are shown as rectangles, connectors are drwan in their original view, harness is represented by a single line.
