Project 2

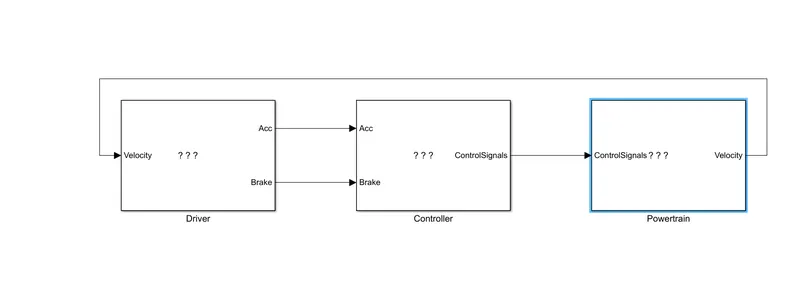

As usually we do for commen vehicle construction we have three subsysytem of driver ,controller and powerstrain

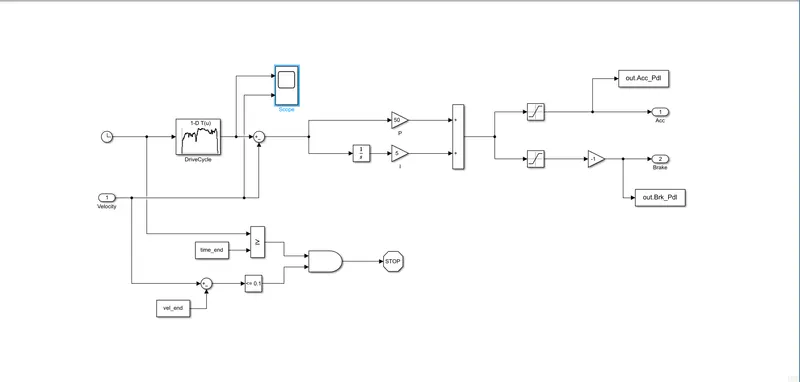

DRIVER SUBSYSTEM AS SAME AS COMMEN VEHICLE

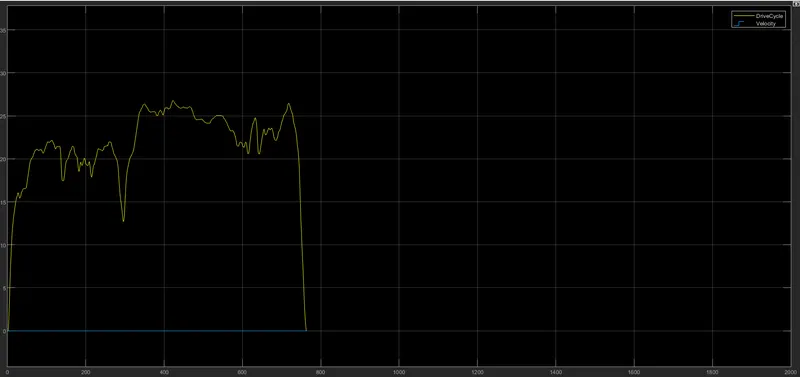

And The Input we get from scope is

there is several changes in the controller we had introduction acciditional subsystem for controlling the electric motor

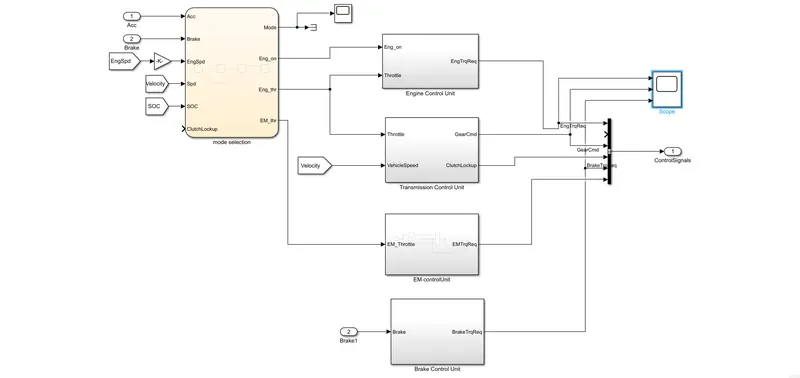

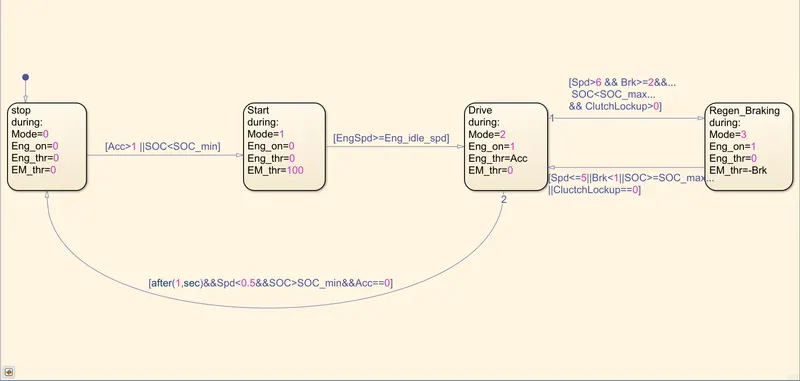

mode selecttion flow chart contains

Engine control unit

Transmission control unit

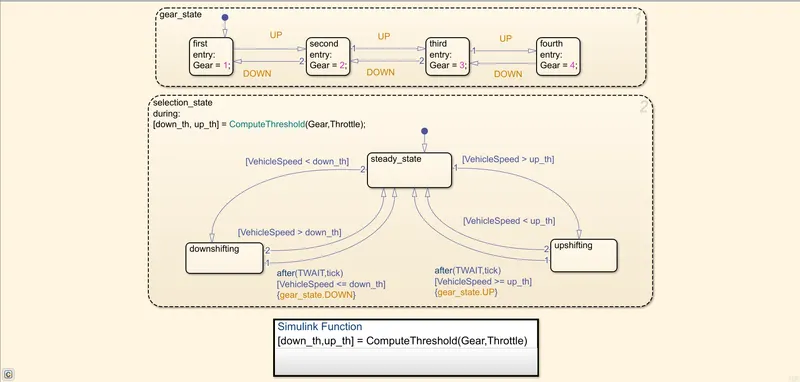

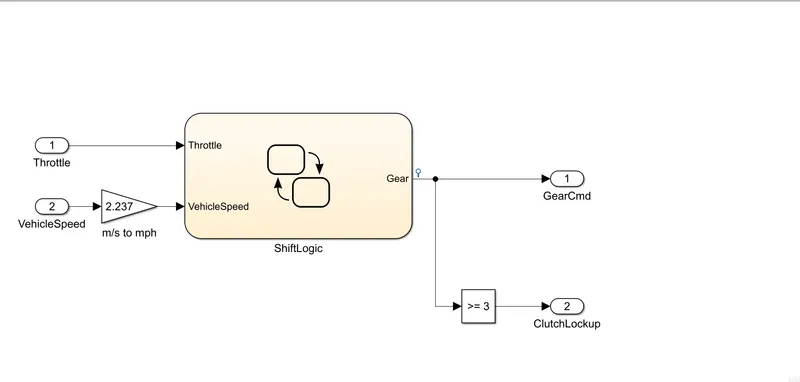

shift logic contains the gear shifting conditions

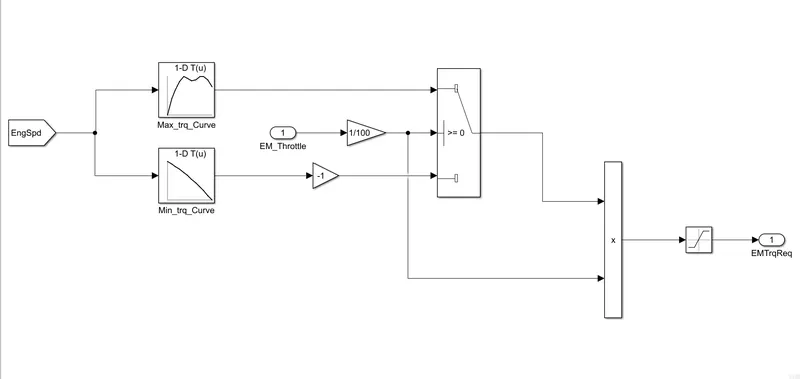

Electric motor controlunit

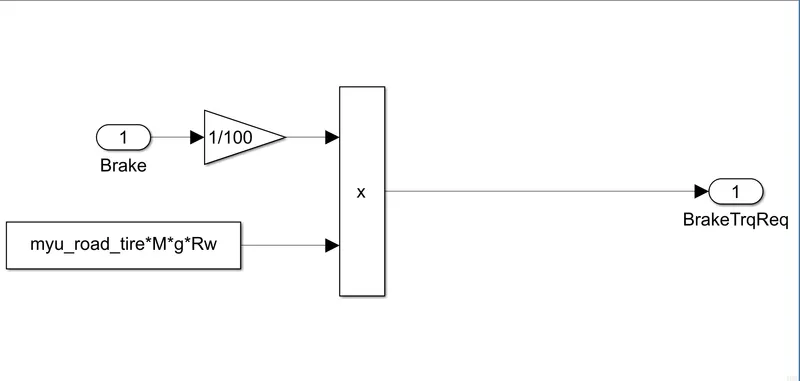

Brake control unit

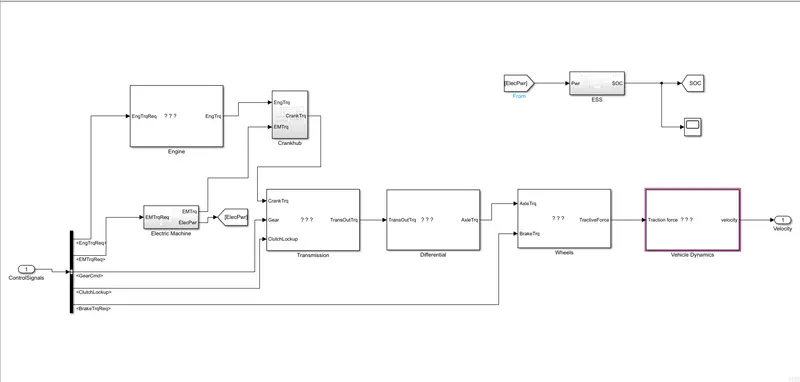

Then moving to powerstrain we had introduced the crank hub and electric machine in it

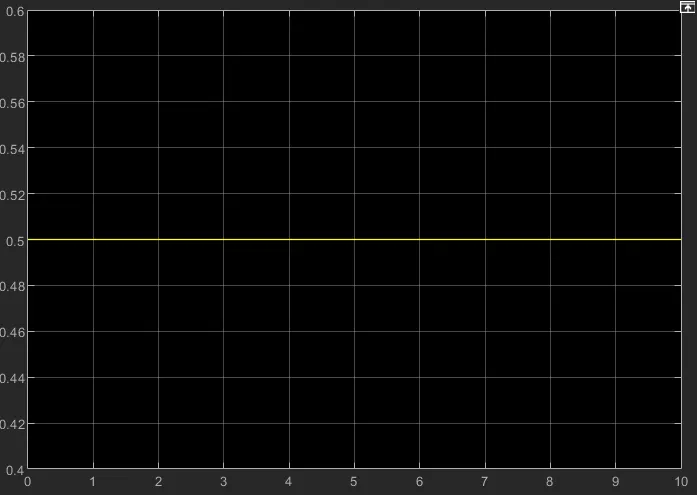

powerstrain output

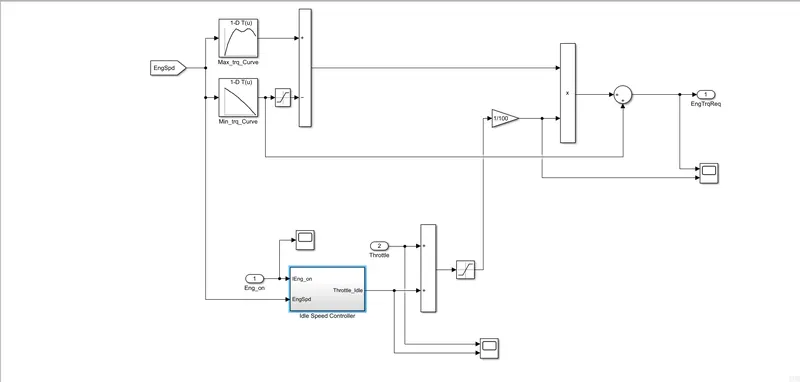

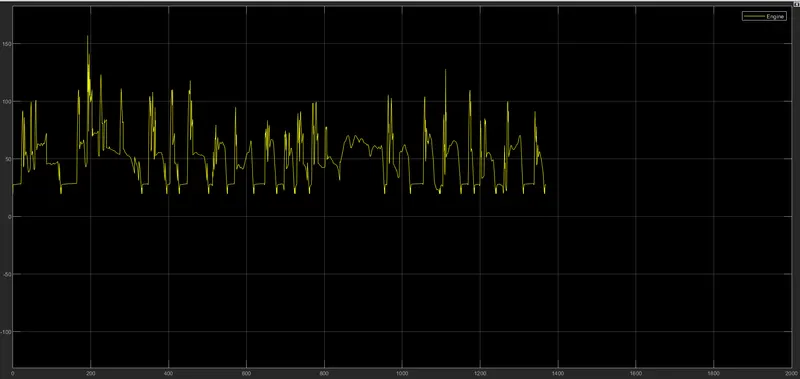

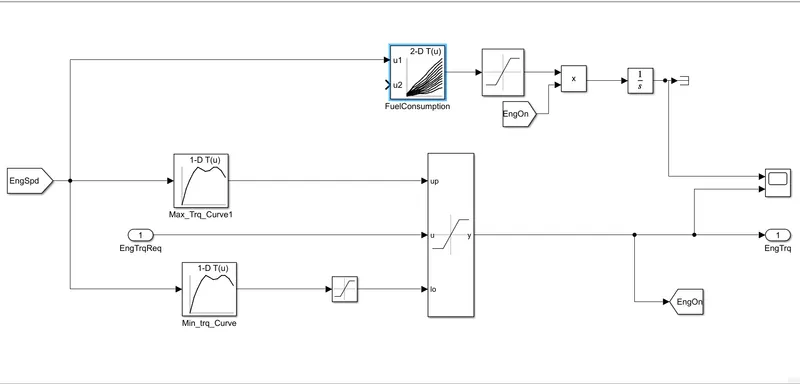

Engine subsystem contains

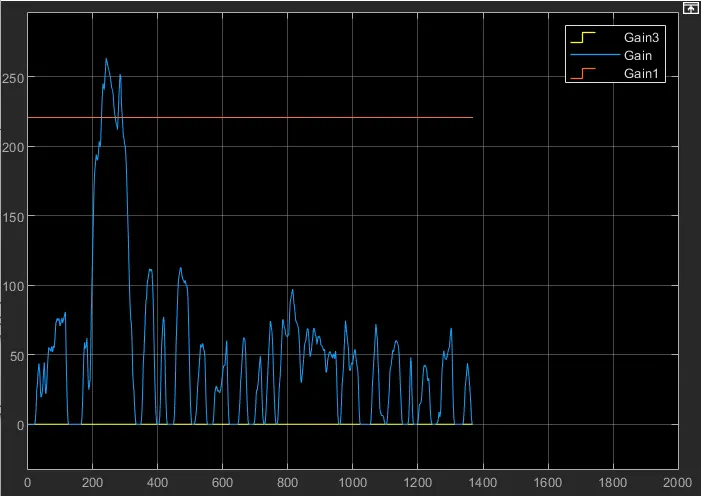

Engine output

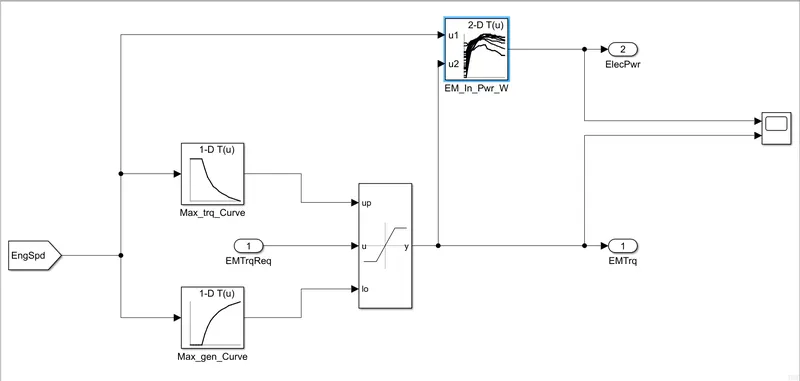

Electric machine subsystem

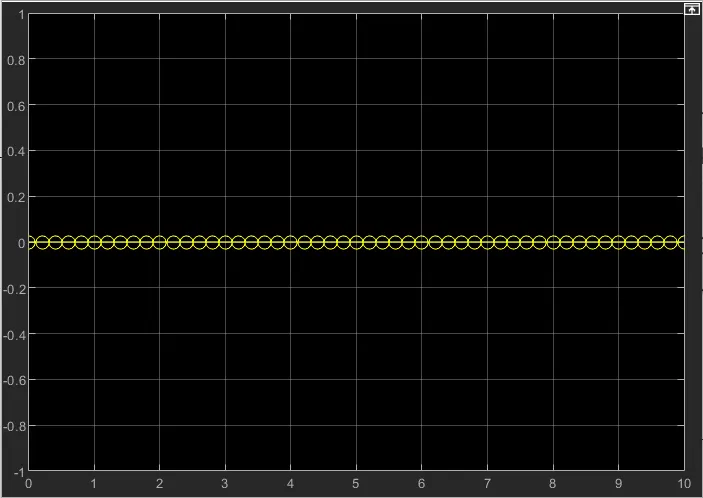

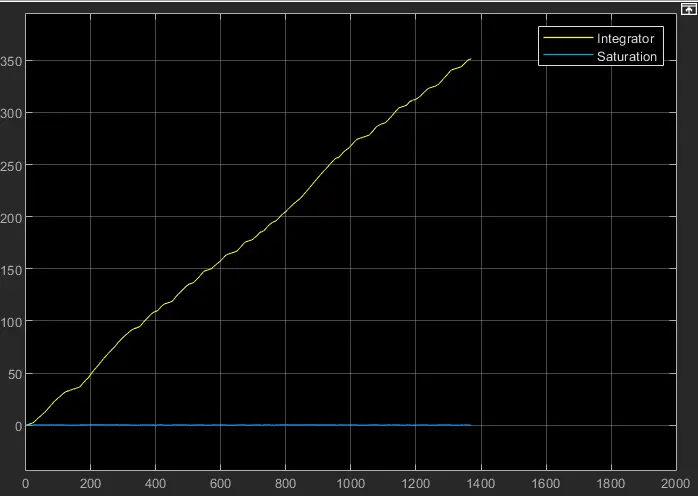

Electric output

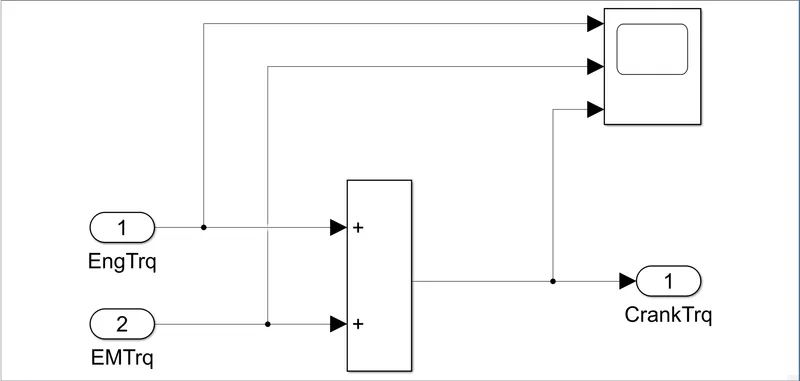

Crankhub

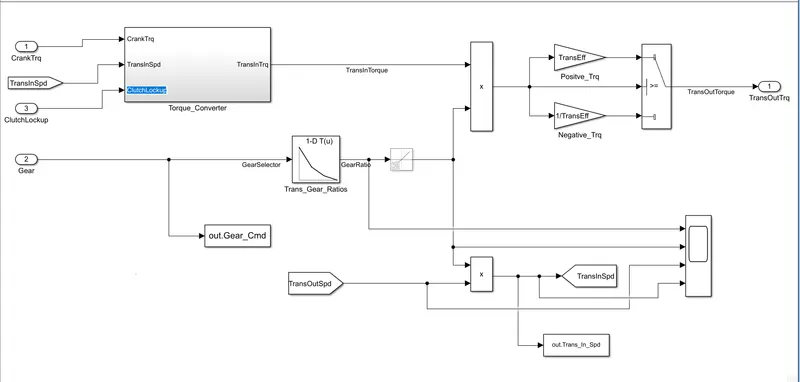

Transmission block contains

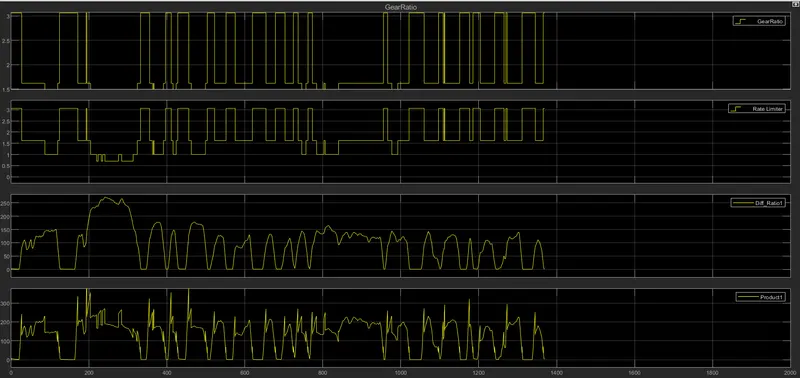

Transmission output is

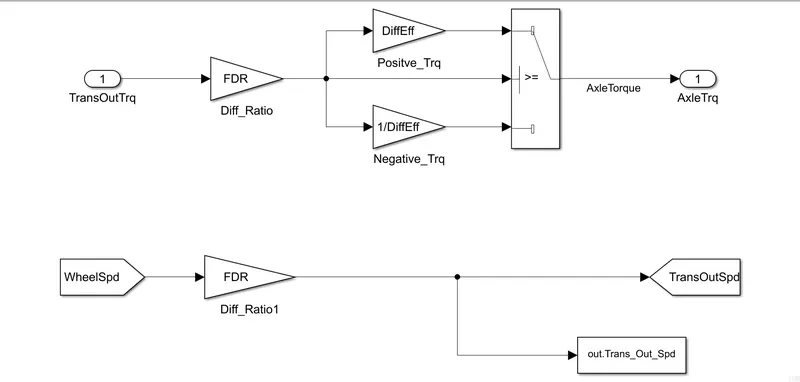

differential block contains

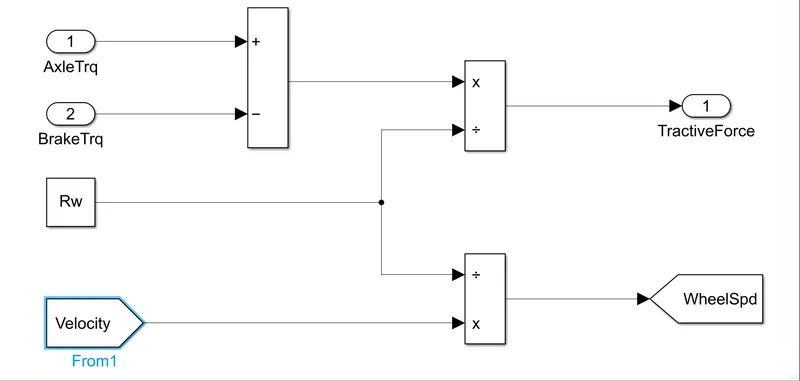

Wheels contains

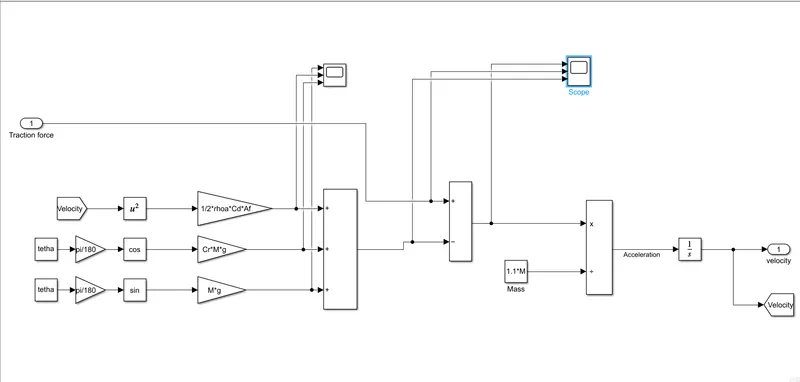

Vehicle dynamic blocks have

vehicle dynamic input is

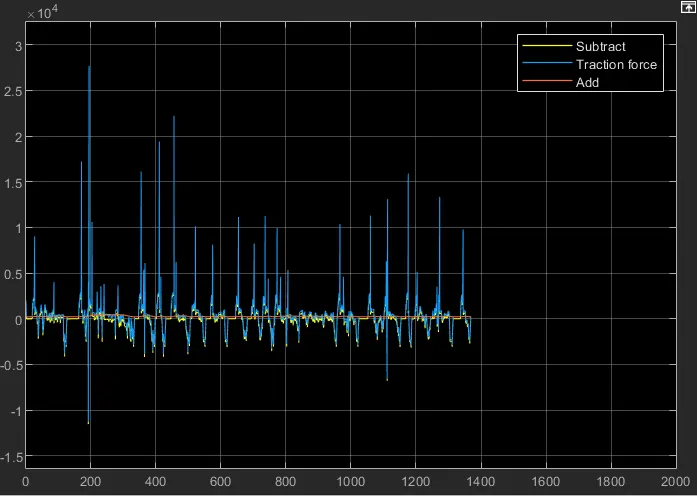

And output is

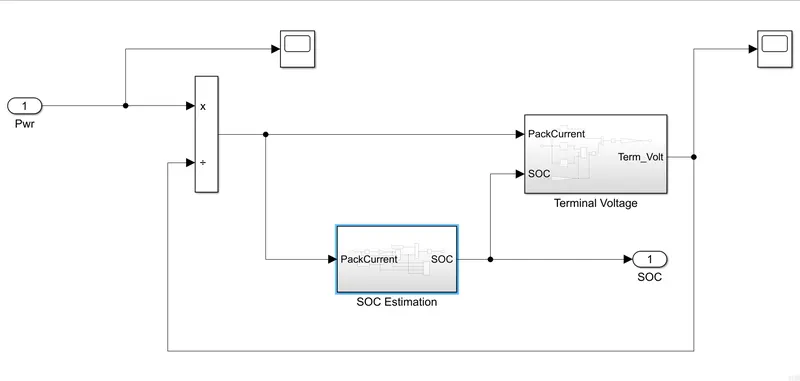

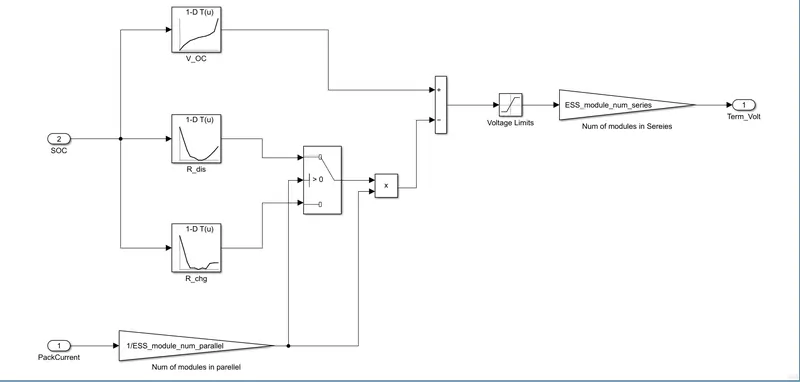

ESS block contains

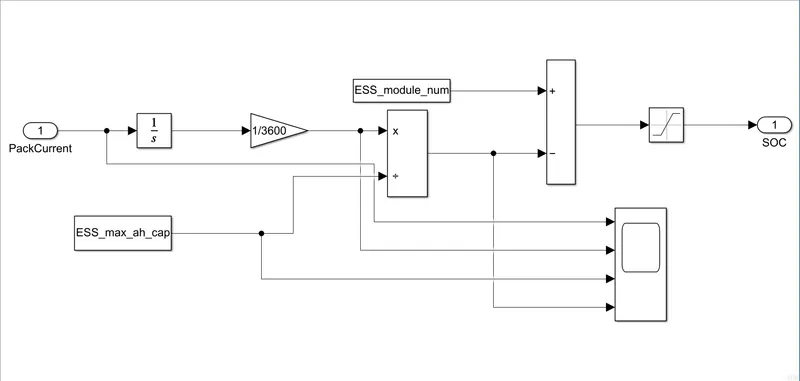

SOC estimation

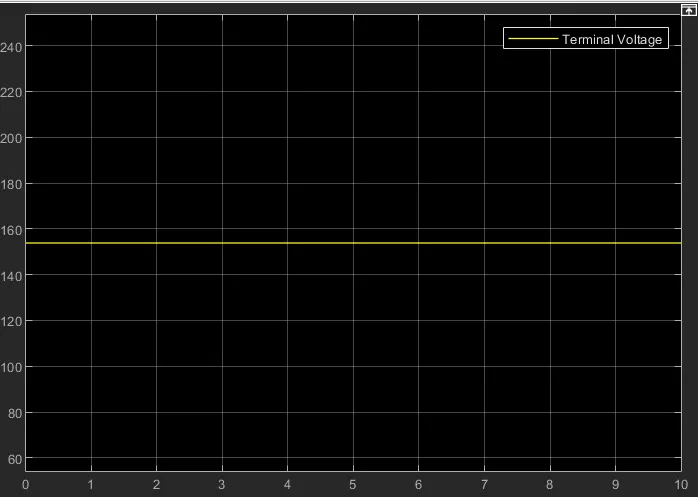

terminal voltage

inpout of ESS

and output is
