Project 2

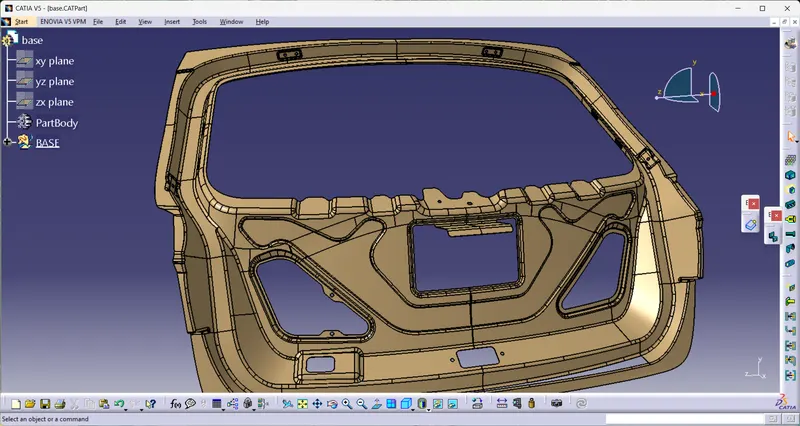

define the door as an electriacl body so that we can route the connectors

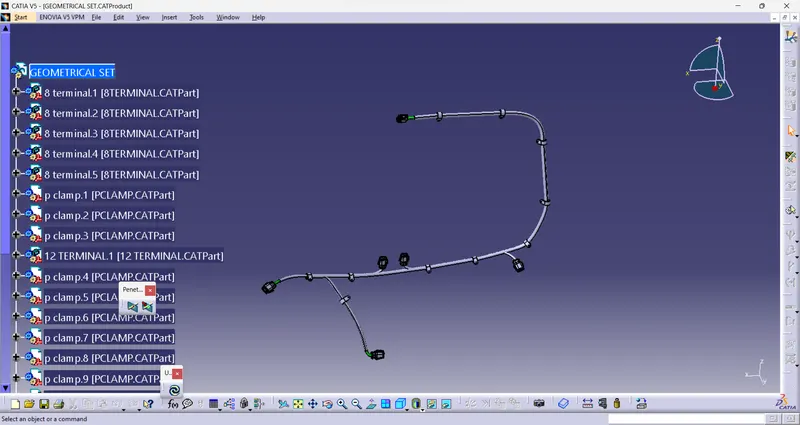

Geometric bundle:

prepare the geometrical bundle so that we can route

add the connectors to their locations

if there is no data about a connector add the dumy one

add the clips or clamps at the loctaions where ever required

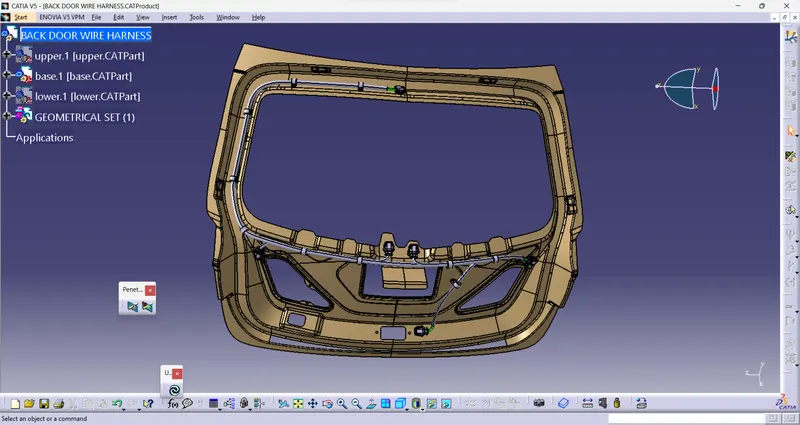

start routing using the bundle

 give the slack of 5% to avoid the wiringbundle to collide with the walls near the connectors and also at the sharp edges

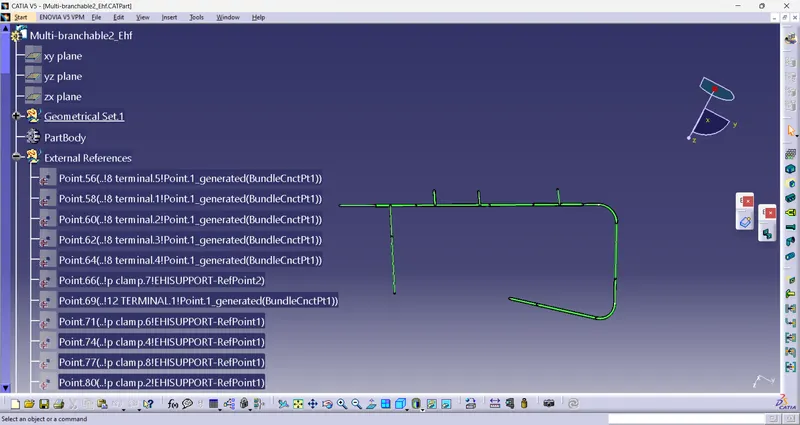

Multibranchable:

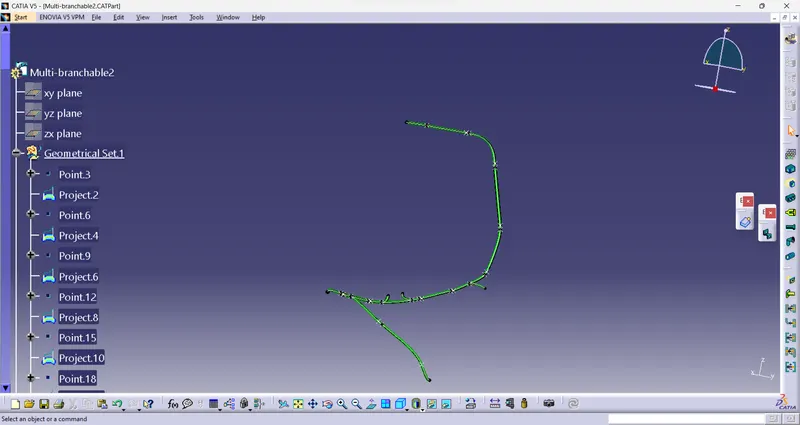

 Geometrical bundle :

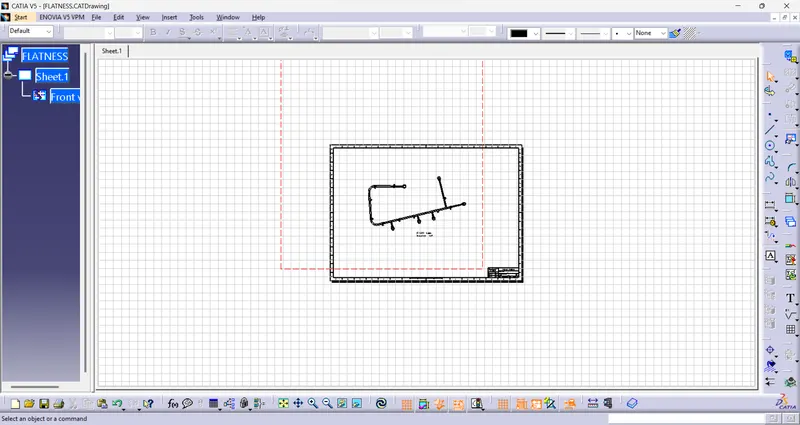

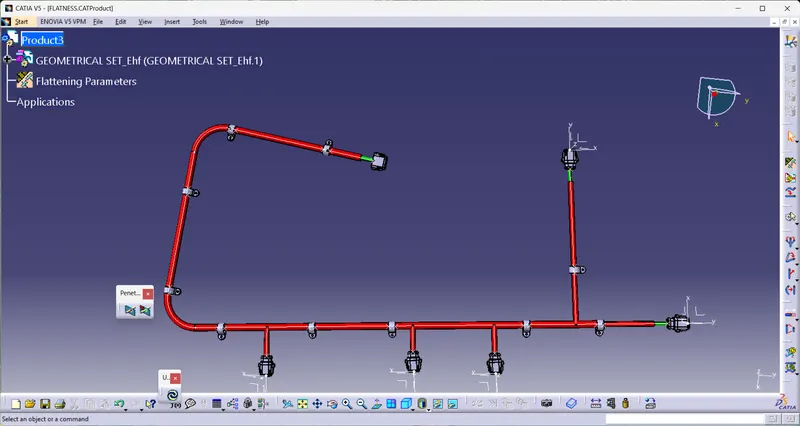

Harrness Flattening:

convert the harness into the fornt view tounderstand the geometry of the harness

this is drawn in the 2D  view to print the doc to verify and to give the pratical harnessing to know the locations of each connectors
