Project 2

Aim: Model of a membrane roof with cables. The modeling, form-finding and create the cutting patterns to the structure.

Procedure:

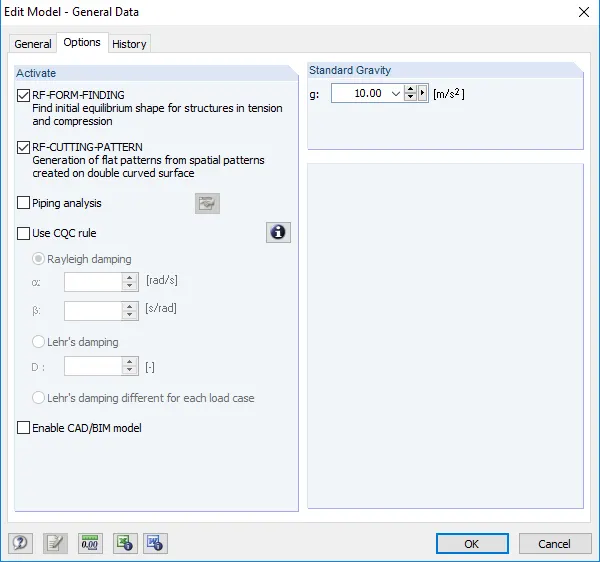

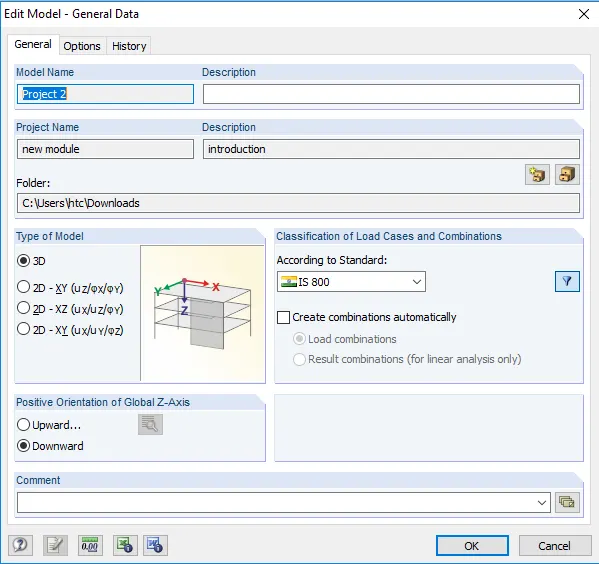

Create a new project and enablr form finding and cutting pattern options

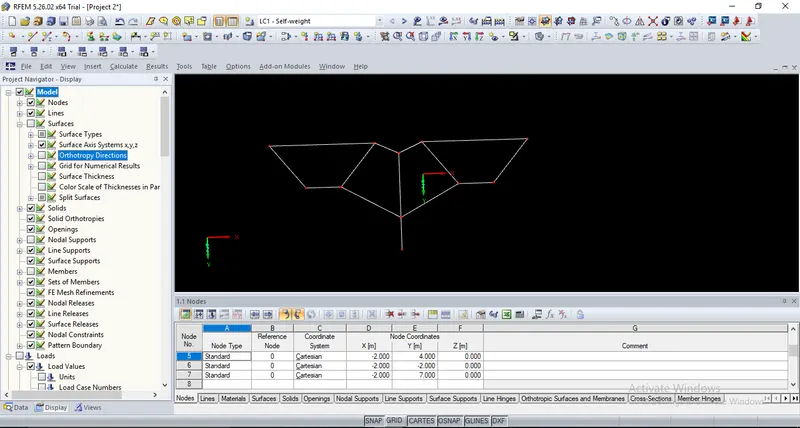

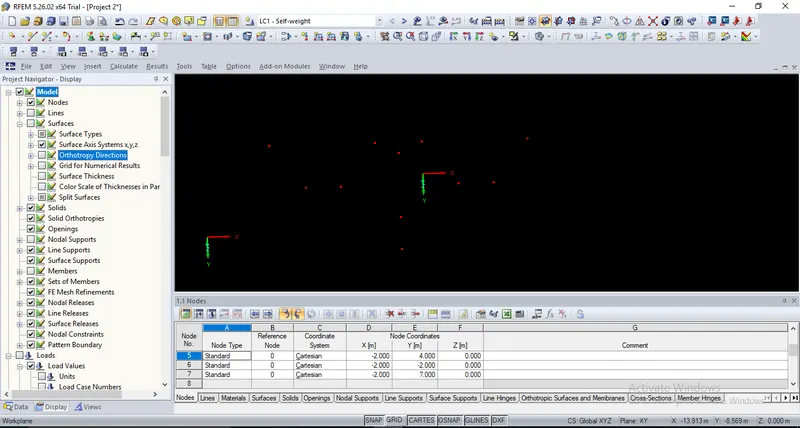

Create the nodes for the membrane structure

Connect the lines to the nodes

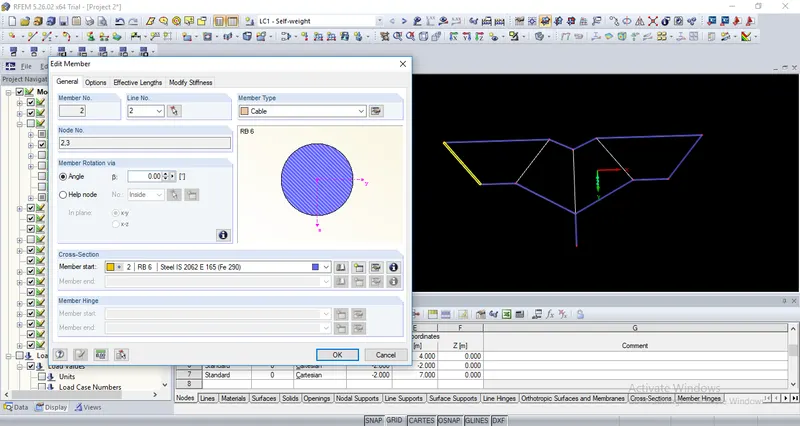

Assign the material as cable to the lines

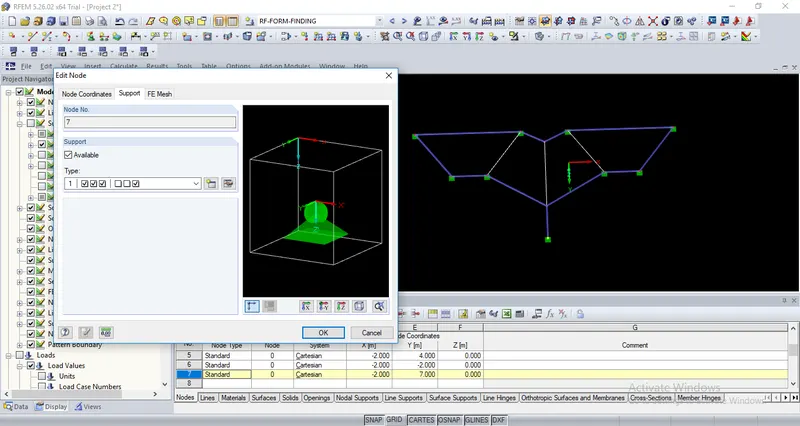

Select the nodes and assign hinge support

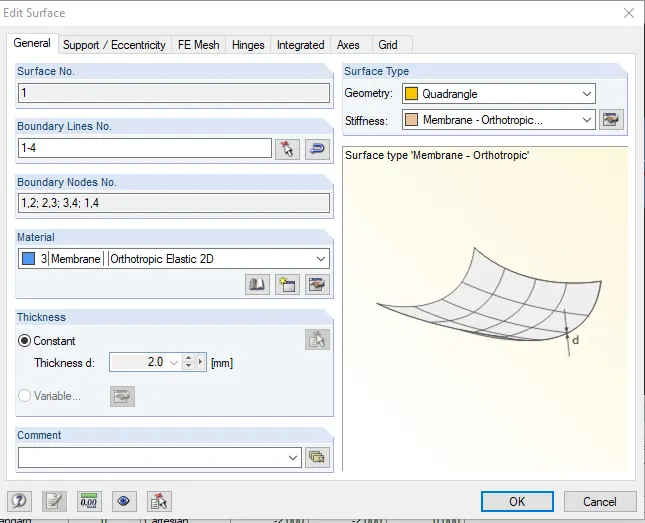

Assign the surfaces to the cable boundaries and create a new material for the membrane as orthoropic elastic 2D type

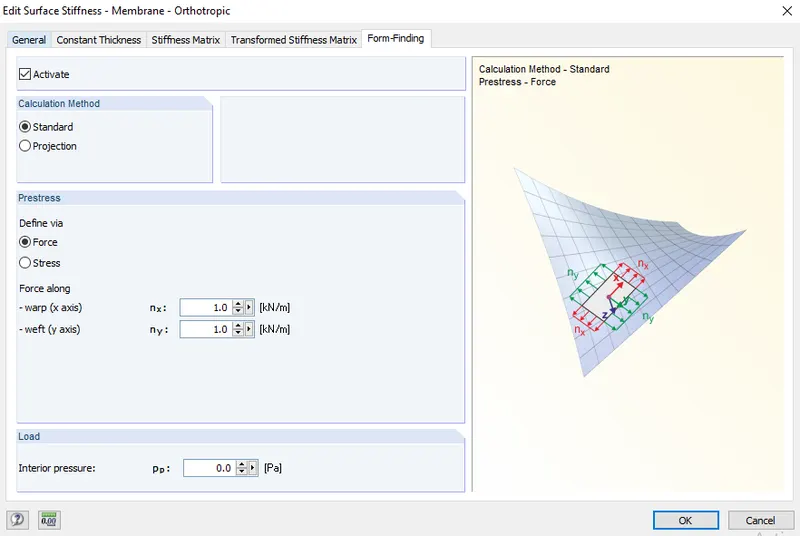

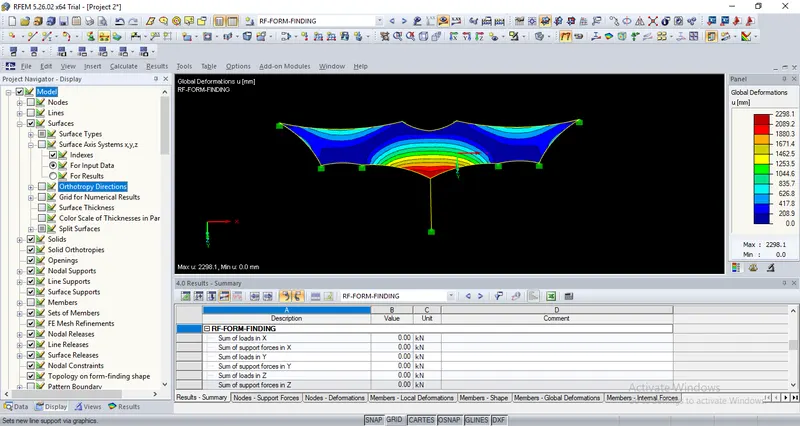

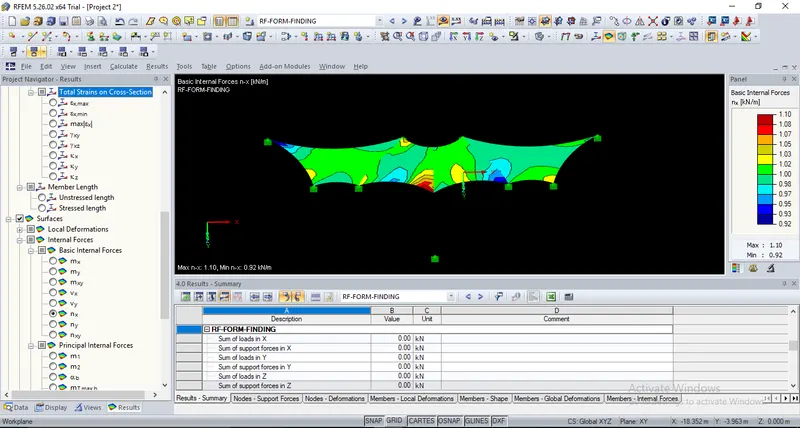

In the Form finding dialog give pre stress force of 1 KN/m

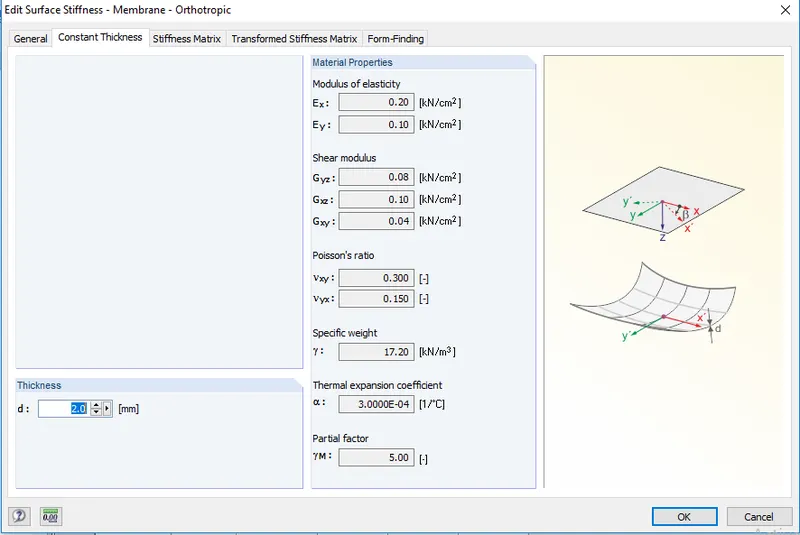

Material properties of the surface

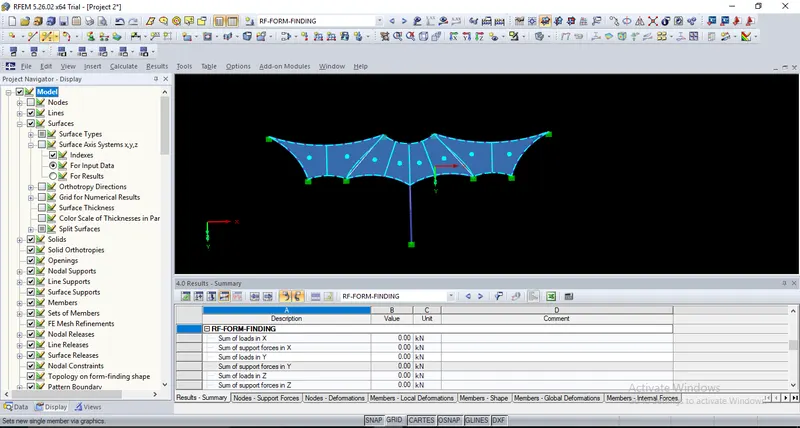

Go generate cutting pattern from cells option from tools and generate the cutting pattern

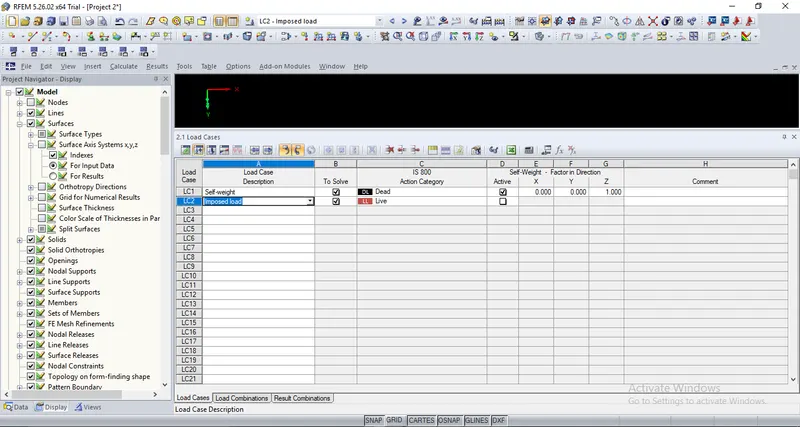

Generate loadcases as self weight and imposed load

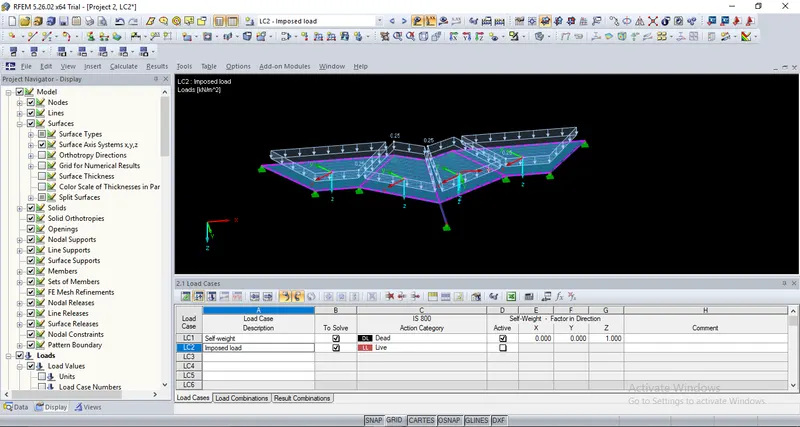

Apply lmposed load of 0.25 KN/m^2 on the membrane surface

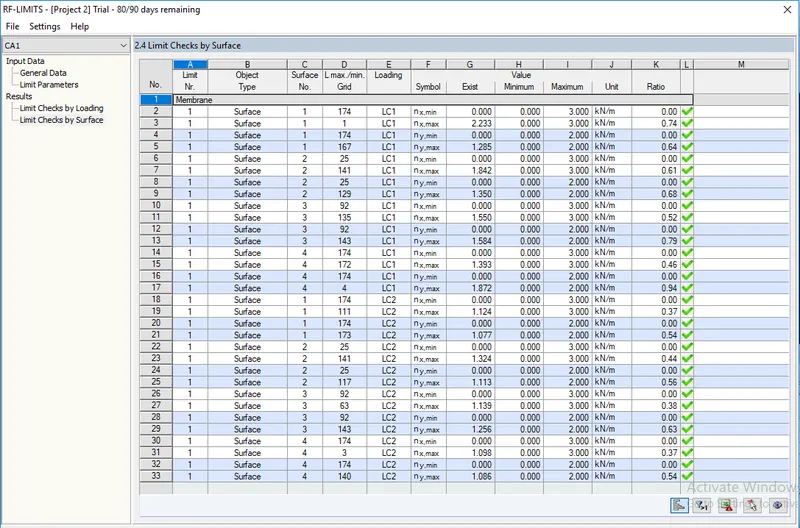

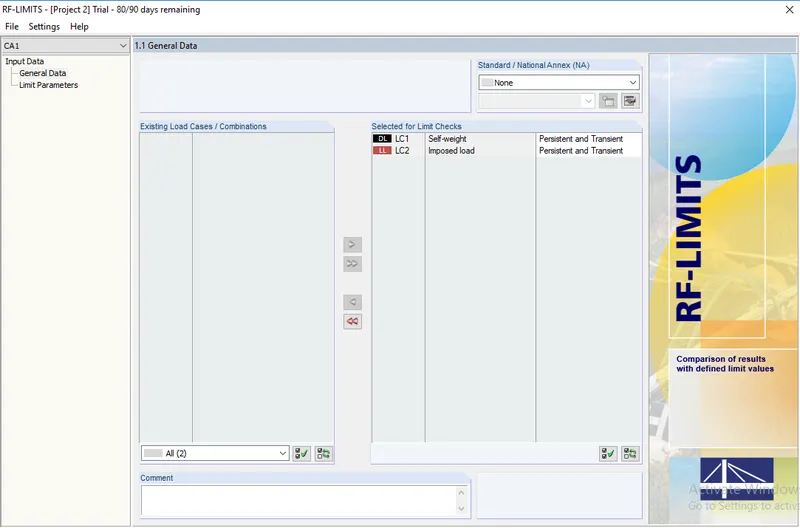

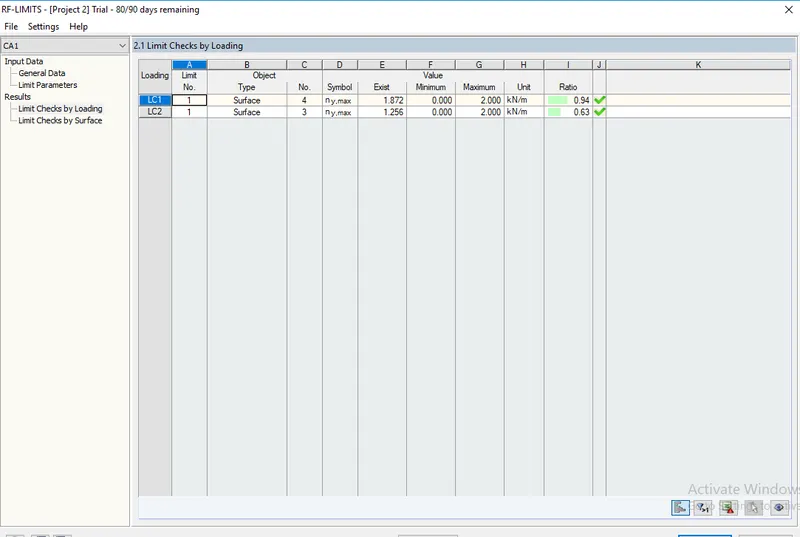

Go to RF-LIMITS module from data dop down list and choose the results combination from design limit check

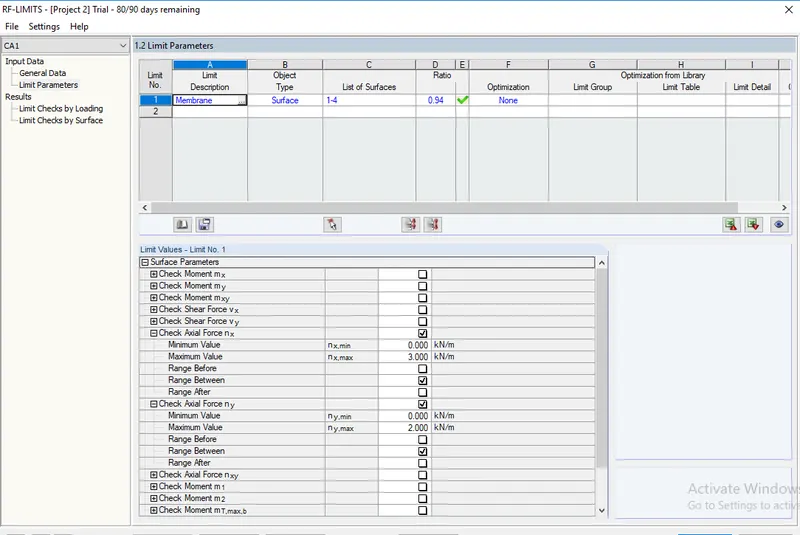

Provide axial force ranges for all the surfaces in both nx and ny directions

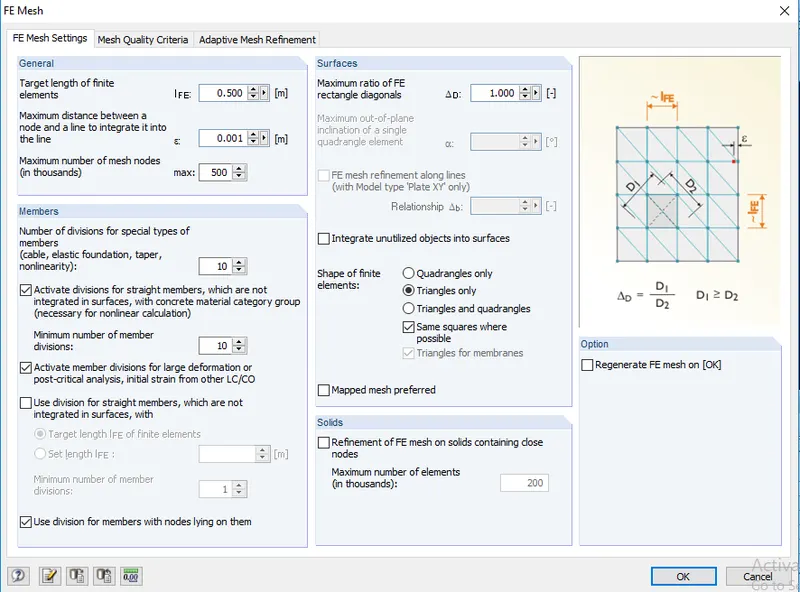

Generate the mesh with 1m triangle meshing

Results:

Deflection

Warp Axial force in membrane

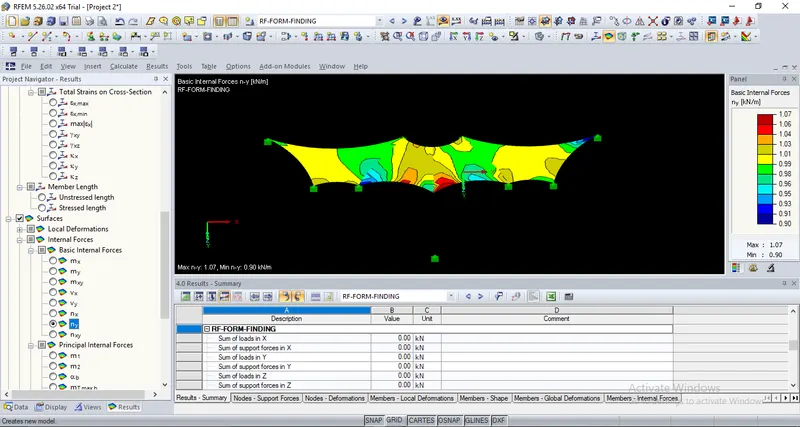

Weft Axial Force in Membrane

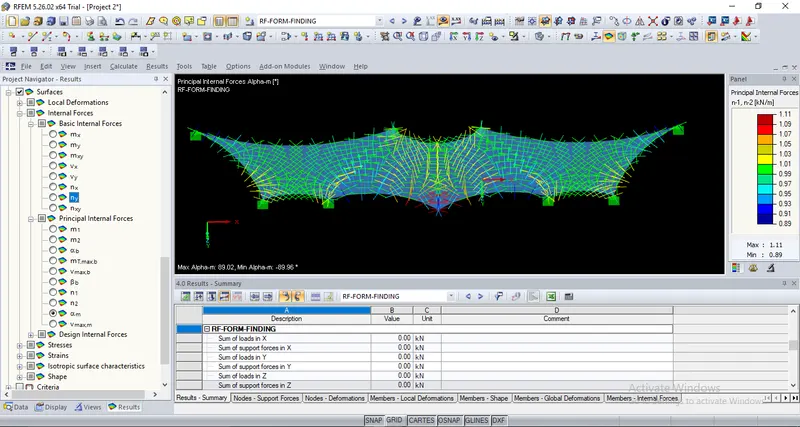

Principal Stresses

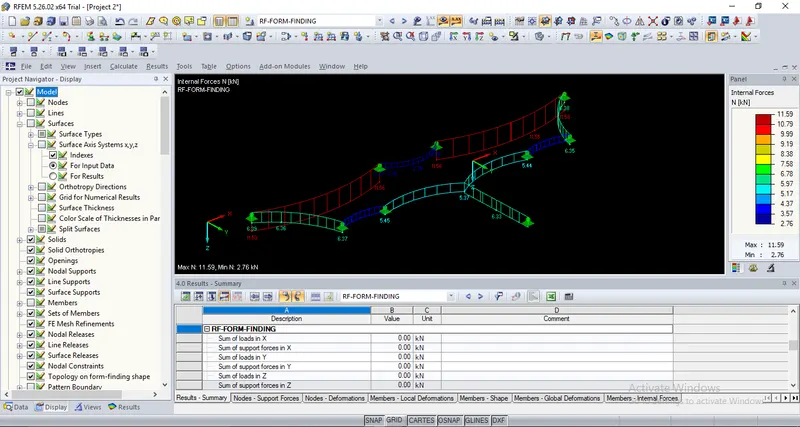

Cable Axial Force

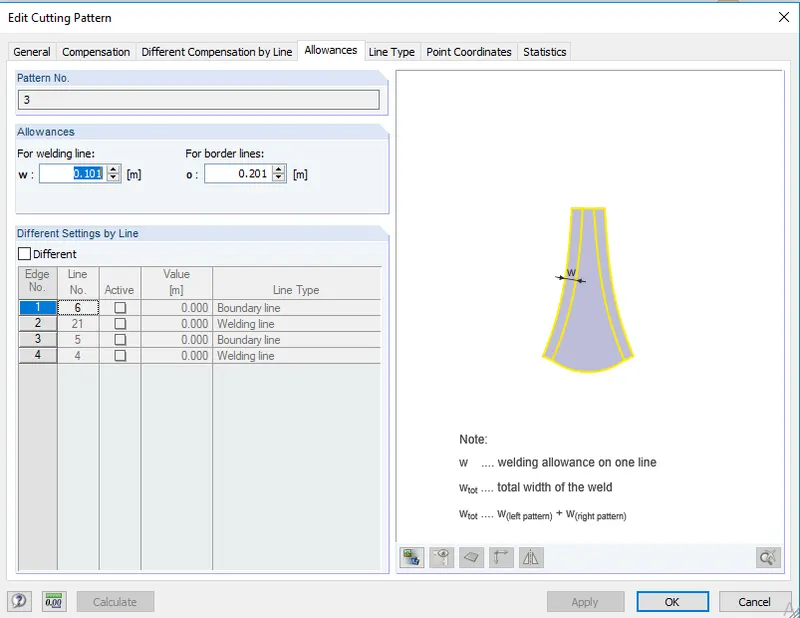

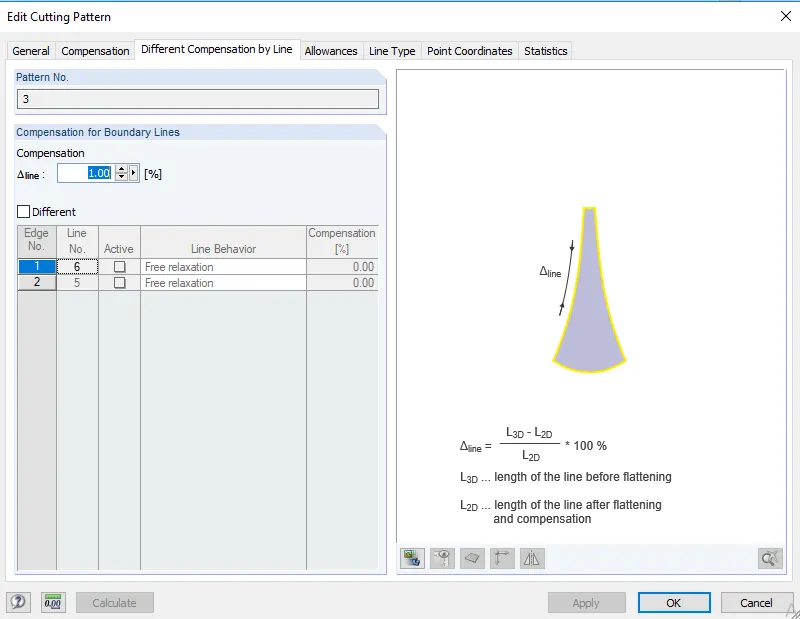

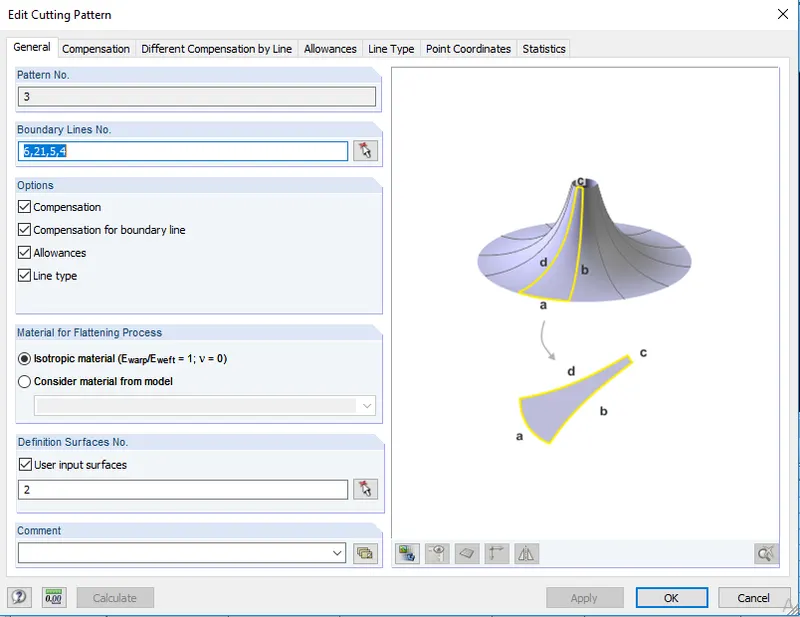

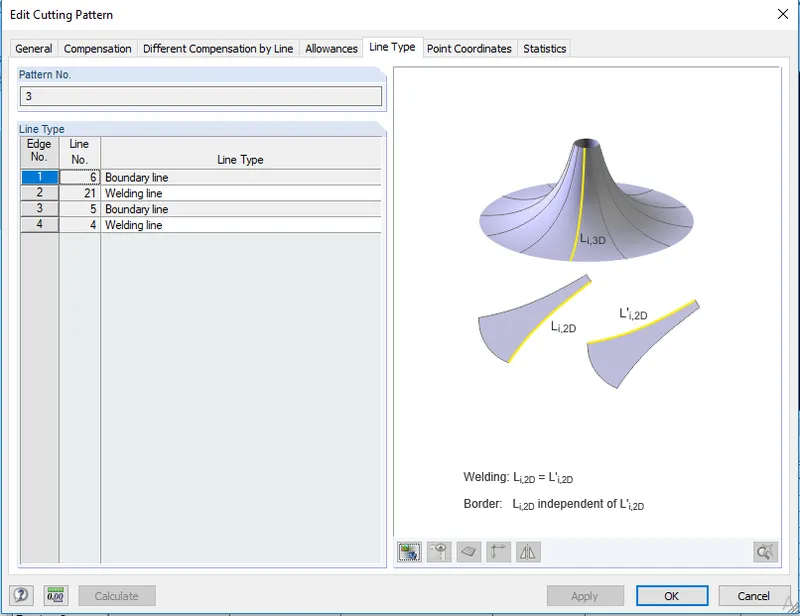

Tick the compensation,compensation for boundary line,allowances and line type

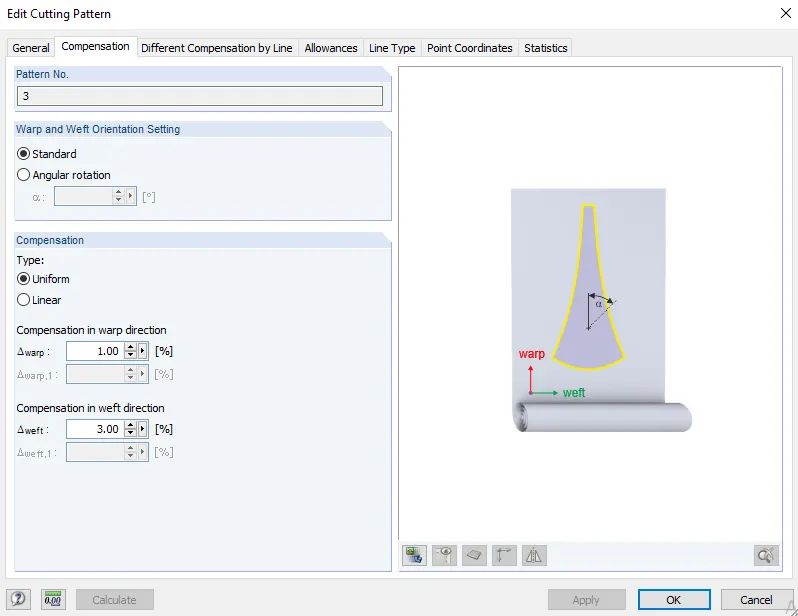

Provide 1% allowance in warp direction and 3% allowance in weft direction

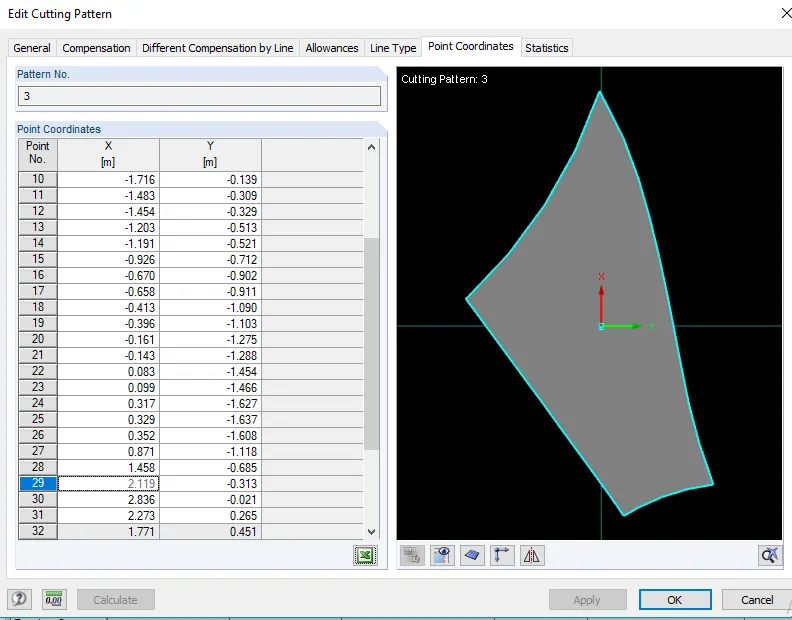

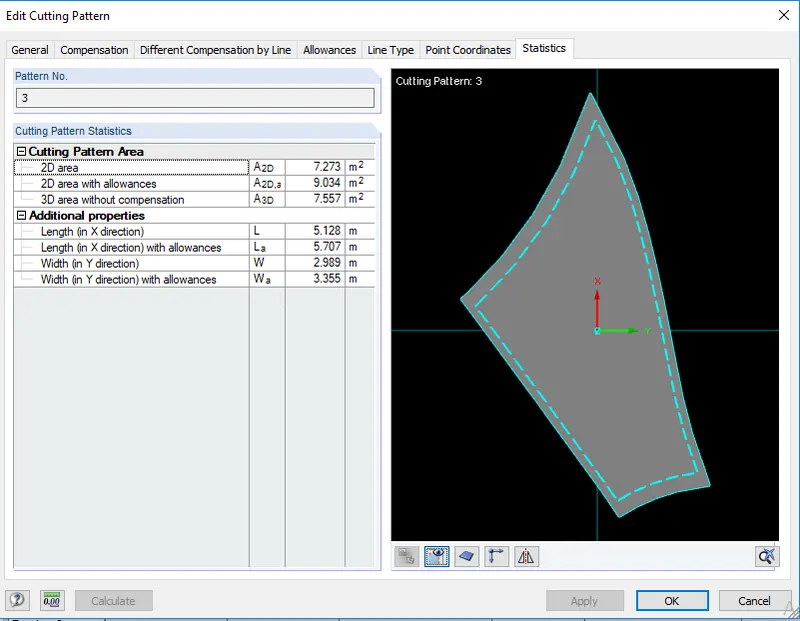

Check the cutting pattern for membrane
