Project

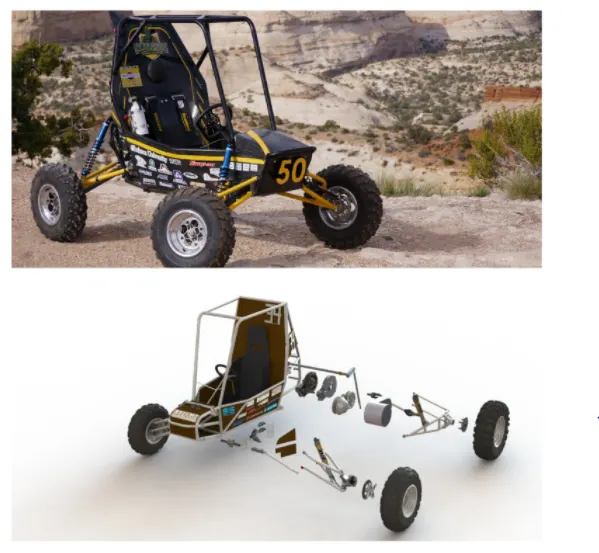

Carry out a system-level simulation of an all-terrain vehicle.

Download the model from the given link:

https://www.mathworks.com/matlabcentral/fileexchange/70576-baja-all-terrain-vehicle-atv-model

Prepare a technical report explaining the model properties & comments on the results.

There are two types of system-level simulation of an all-terrain vehicle.

For both models the concept is the same , and 90% of the components are the same for both the models.

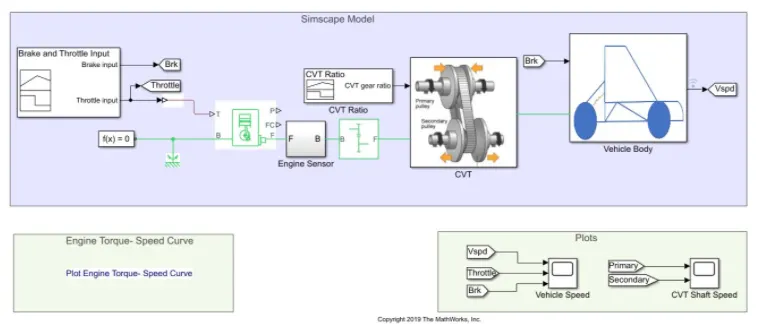

MODEL 1:

DESCRIPTION:

This model shows the simulation of an ATV vehicle with the input as constant from signal builder and the output of velocity and brake of the ATV vehicle with the rpm speed of the shaft.

With the signal building the signal for brake input and throttle for the engine is given to the generic engine . The generic engine block takes the input of throttle and rotation of the shaft accordingly.The shaft from the generic engine block is connected to the engine sensor which indicates the speed of the shaft , and parallely the shaft is connected to the simple gear . The simple gear reduces the speed of the shaft to a certain level and is connected to the CVT subsystem .

The CVT subsystem is used to change the speed with the help of pulley ,which is done by a variable gear ratio block and this gets the input from CVT gear ratio signal builder. And finally the shaft is connected to the vehicle body subsystem which consists of double -shoe brake and tires ,vehicle body block. This subsystem gets the brake input , which is connected to the double-shoe brake with the input the double-shoe brake , stops the tires and all details are given to the vehicle body block. The vehicle body block calculates the velocity of the vehicle and shows it in the scope.

The simulink blocks used in the model are

1. Signal builder
2. Generic engine
3. Simple gear
4. Ideal rotational motion sensor
5. Scope
6. Mechanical rotational reference
7. Variable gear ratio
8. Inertia
9. Vehicle body
10. Tire
11. Double - shoe brake

CVT SUBSYSTEM

1. Likewise the simple gear the CVT subsystem is used to change the speed of the shaft
2. The advantage here is we can change the speed in the wide range

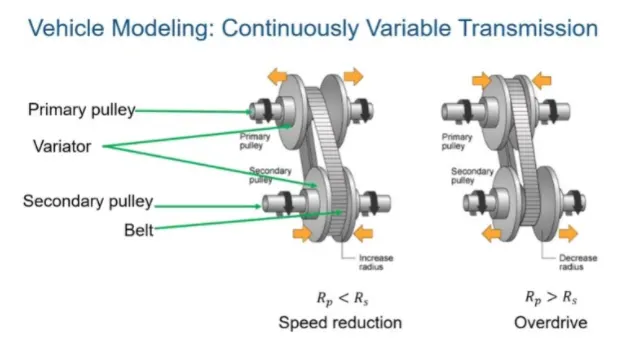

Working of variable speed adjustment in CVT

Here the primary pulley is variable and the secondary pulley is fixed . when the primary pulley is moves away it reduces the speed in the secondary shaft. when the primary pulley is moved inside it increases the speed in the secondary shaft.

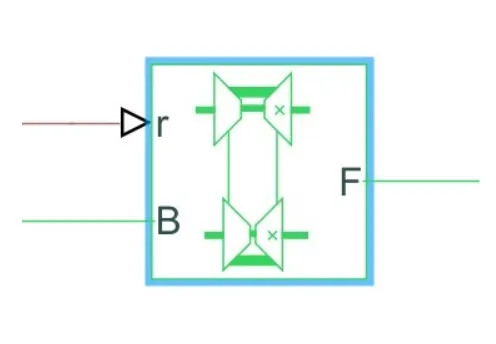

Variable ratio gear:

• The variable ratio gear block uses the CVT transmission.
• The block gets the input from the gear ratio signal builder and makes the follower runs according to base

The speed changes of the base and follower are measured using the ideal rotational sensor and the values are shown in the scope

And finally the shaft is connected to the vehicle body subsystem.

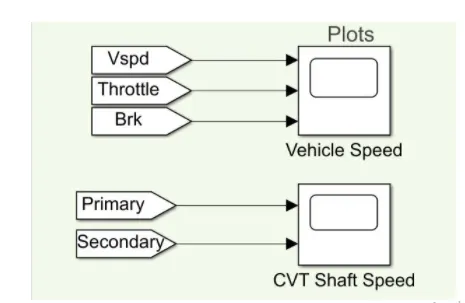

SCOPE

• This scope shows the input and output of the ATV vehicle.
• The first port shows the graph of the velocity.
• The second port shows the graph of the throttle input for the engine.
• The third port shows the graph of the brake input for the vehicle.
• The forth and firth port gives the rpm of primary and secondary shafts.
• Through this scope we can analyse the signal for the particular input ,also for particular time.

VEHICLE BODY SUBSYSTEM

The vehicle body block consists of vehicle body block , tire , Double - shoe brake

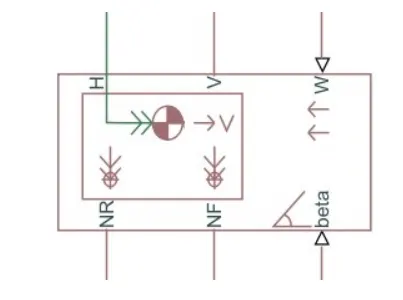

VEHICLE BODY BLOCK

• Using this block we can specify the vehicle mass , number of axle per wheel , distance of axle from the center , height of vehicle ,wind velocity, inclination of vehicle etc
• The constant values are given to the parameters
• Port(H) is connected to the mechanical translation part ,Port(v) gives the velocity of vehicle , Port(W) connected to the wind constant , Port(beta) is connected to the inclination of vehicle , Port(NF) is connected to the front tires and Port(NR) is connected to the rear tires

DOUBLE-SHOE BRAKE:

The break input from the signal builder is connected to the double-shoe brake with the gain of 1000.

The double -shoe brake other end is connected to the rotating shaft , when the input value is increased the barke reduces the speed of the shaft.

TIRE:

• This block represents the tire in the vehicle.
• We can specify the inertia , striffernees , damping etc
• Port(N) is connected to the physical signal input, Port(S) is gives the physical output, Port(H) is connected to the mechanical translational , Port(A) is connected to the mechanical rotational
• Magic formula represents the B-stiffness,C-shape,D-peak,E-curvature of the tire.

By using these all the bock the required system is created in simulink platform

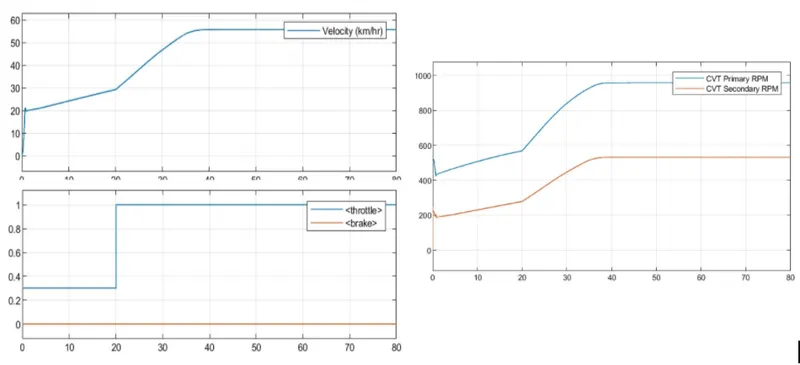

RESULT:

After performing various calculations the simulink model is submitted to give the accurate result.

Thus a technical report explaining the model properties & simulation results are given.

From the graph, the maximum speed 55km/hr is attained at full throttle = after 30 seconds

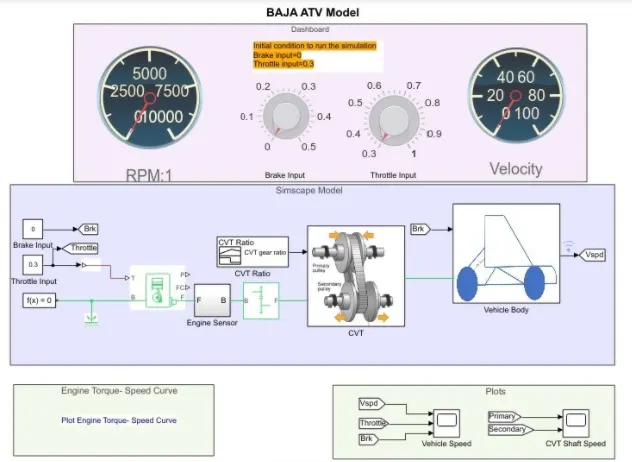

MODEL 2:

THE ONLY DIFFERENCE IN THE MODEL 2:

We can change the input parameters in the model 2 by using dashboard blocks but incase of model 1 it is the constant input from the signal builder.

We can visually understand the change in value for the output to the input in the model 2 using dashboard blocks but incase of model 1 it is the output that is only seen in the scope.

OTHER THAN THESE DIFFERENCES THE BOTH THE MODEL 1 AND THE MODEL 2 ARE SAME IN FUNCTION AND BLOCKS USED .
