Project 1- Traffic Jam Assistant Feature

Project:-1

/*

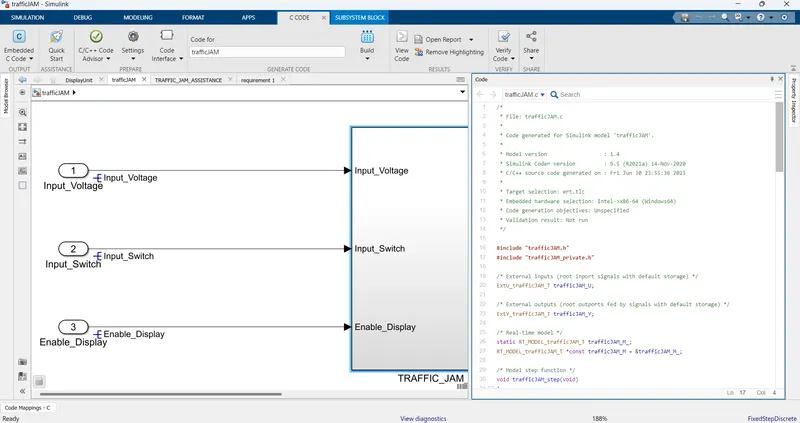

 * File: trafficJAM.c
 *
 * Code generated for Simulink model 'trafficJAM'.
 *
 * Model version                  : 1.4
 * Simulink Coder version         : 9.5 (R2021a) 14-Nov-2020
 * C/C++ source code generated on : Fri Jun 30 23:55:36 2023
 *
 * Target selection: ert.tlc
 * Embedded hardware selection: Intel->x86-64 (Windows64)
 * Code generation objectives: Unspecified
 * Validation result: Not run
 */

#include "trafficJAM.h"
#include "trafficJAM_private.h"

/* External inputs (root inport signals with default storage) */
ExtU_trafficJAM_T trafficJAM_U;

/* External outputs (root outports fed by signals with default storage) */
ExtY_trafficJAM_T trafficJAM_Y;

/* Real-time model */
static RT_MODEL_trafficJAM_T trafficJAM_M_;
RT_MODEL_trafficJAM_T *const trafficJAM_M = &trafficJAM_M_;

/* Model step function */
void trafficJAM_step(void)
{
  uint8_T tmp;

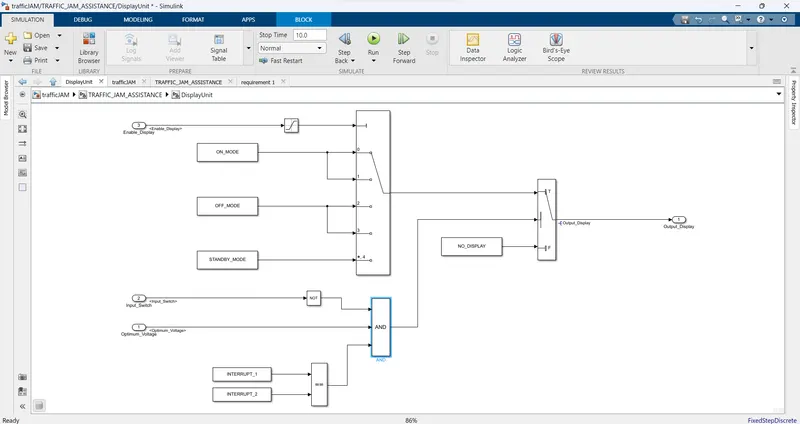

  /* Switch: '<S2>/Switch' incorporates:
   *  Constant: '<S3>/Constant'
   *  Constant: '<S3>/Constant1'
   *  Inport: '<Root>/Input_Switch'
   *  Inport: '<Root>/Input_Voltage'
   *  Logic: '<S2>/AND'
   *  Logic: '<S2>/NOT'

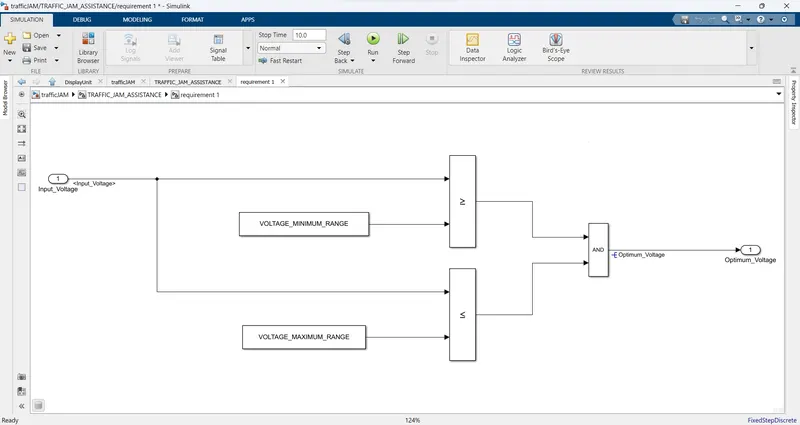

   *  Logic: '<S3>/Logical Operator'
   *  RelationalOperator: '<S3>/Relational Operator'
   *  RelationalOperator: '<S3>/Relational Operator1'
   */
  if ((!trafficJAM_U.Input_Switch) && ((trafficJAM_U.Input_Voltage >= 30) &&
       (trafficJAM_U.Input_Voltage <= 50)) &&
      trafficJAM_ConstB.RelationalOperator) {
    /* Saturate: '<S2>/Saturation' incorporates:
     *  Inport: '<Root>/Enable_Display'
     */
    if (trafficJAM_U.Enable_Display < 7) {
      tmp = trafficJAM_U.Enable_Display;
    } else {
      tmp = 7U;
    }

    /* End of Saturate: '<S2>/Saturation' */

    /* MultiPortSwitch: '<S2>/Multiport Switch' */
    switch (tmp) {
     case 0:
      /* Outport: '<Root>/Output_Display' incorporates:
       *  Constant: '<S2>/Constant'
       */
      trafficJAM_Y.Output_Display = 1U;
      break;

     case 1:
      /* Outport: '<Root>/Output_Display' incorporates:
       *  Constant: '<S2>/Constant'
       */
      trafficJAM_Y.Output_Display = 1U;
      break;

     case 2:
      /* Outport: '<Root>/Output_Display' incorporates:
       *  Constant: '<S2>/Constant1'
       */
      trafficJAM_Y.Output_Display = 2U;
      break;

     case 3:
      /* Outport: '<Root>/Output_Display' incorporates:
       *  Constant: '<S2>/Constant1'
       */
      trafficJAM_Y.Output_Display = 2U;
      break;

     default:
      /* Outport: '<Root>/Output_Display' incorporates:
       *  Constant: '<S2>/Constant2'
       */
      trafficJAM_Y.Output_Display = 3U;
      break;
    }

    /* End of MultiPortSwitch: '<S2>/Multiport Switch' */
  } else {
    /* Outport: '<Root>/Output_Display' incorporates:
     *  Constant: '<S2>/Constant3'
     */
    trafficJAM_Y.Output_Display = 0U;
  }

  /* End of Switch: '<S2>/Switch' */
}

/* Model initialize function */
void trafficJAM_initialize(void)
{
  /* (no initialization code required) */
}

/* Model terminate function */
void trafficJAM_terminate(void)
{
  /* (no terminate code required) */
}

/*
 * File trailer for generated code.
 *
 * [EOF]
 */
