Project 1- Traffic Jam Assistant Feature

Link : https://drive.google.com/drive/folders/1bAjLKK5C6iU7EnIKz7EVR1WQzwEGxv0D?usp=sharing

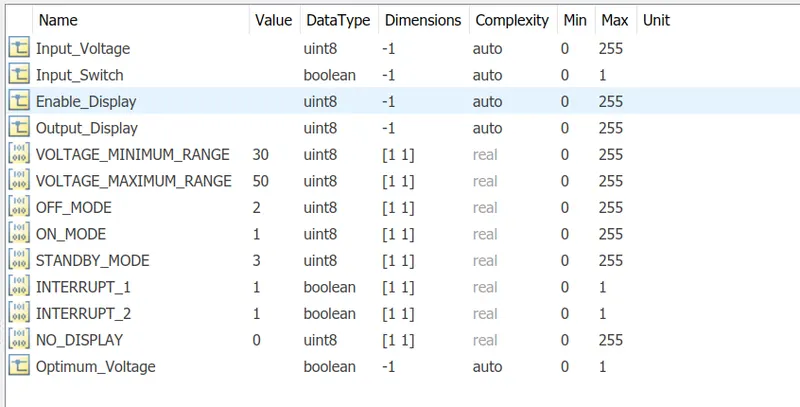

SLDD:

Requirement 1 :

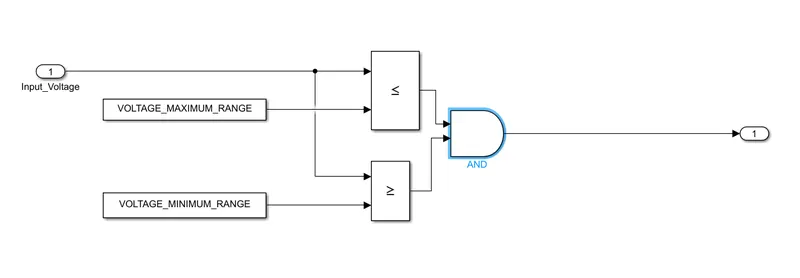

IInput Voltage must be greater than or equal to VOLTAGE_MINIMUM_RANGE & less than or equal to VOLTAGE_MAXIMUM_RANGE so the input voltage is compared to the Calibration Signal and if both the outputs are 1 then the optimum voltage will set to 1 or it will be 0.

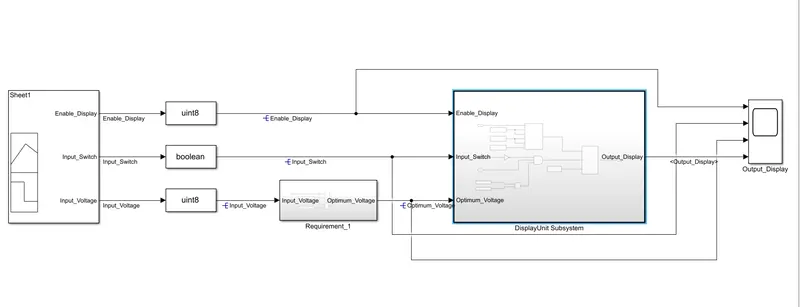

DisplayUnit Subsystem:

As per the requirement :

Enable Display will vary from 1 to 5.

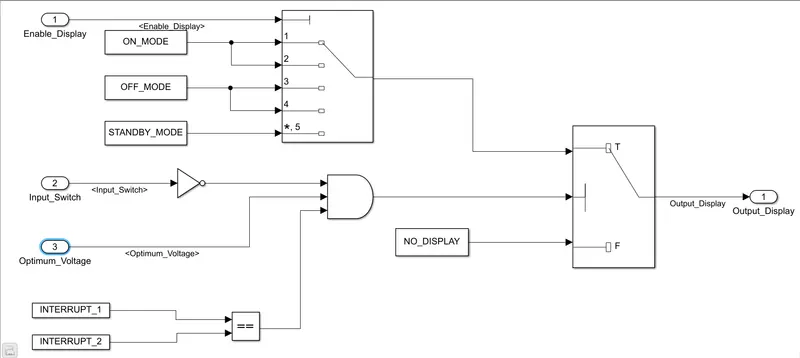

Now,as per the logic if Input Switch is 0 ,Optimum Voltage is 1 & INTERRUPT_1 and INTERRUPT_2 are equal then only the Output_Display will be decided on the basis of input of Enable_Display otherwise Output_Display will be 0 i.e. NO_DISPLAY.

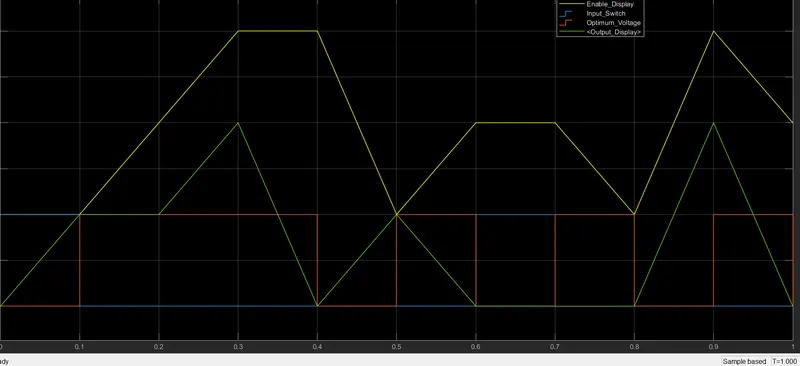

Output :

---------

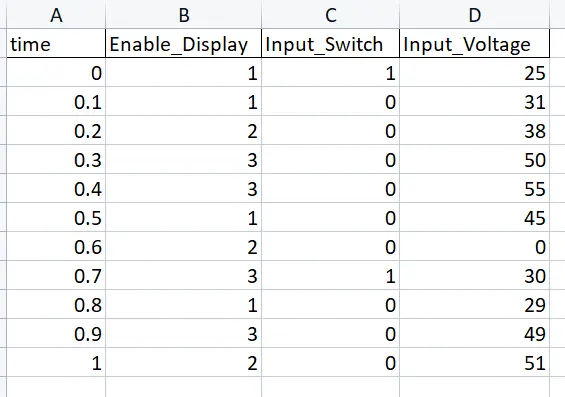

After every 0.1 sec ,output has been calculated.

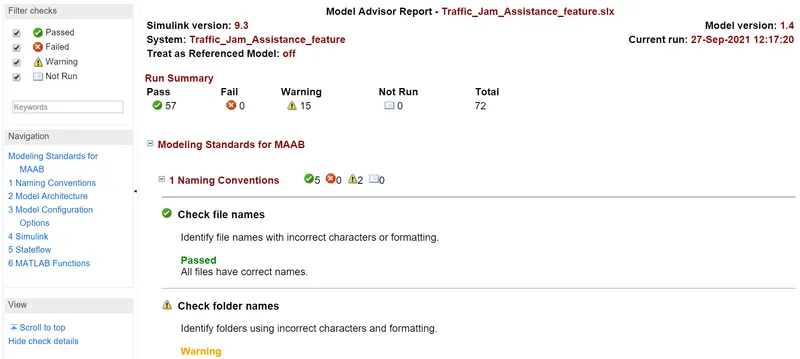

MA report :

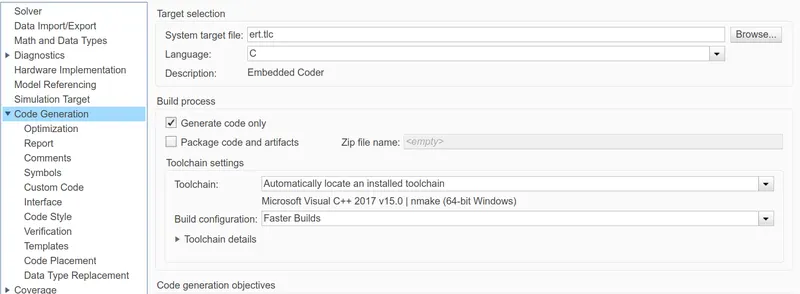

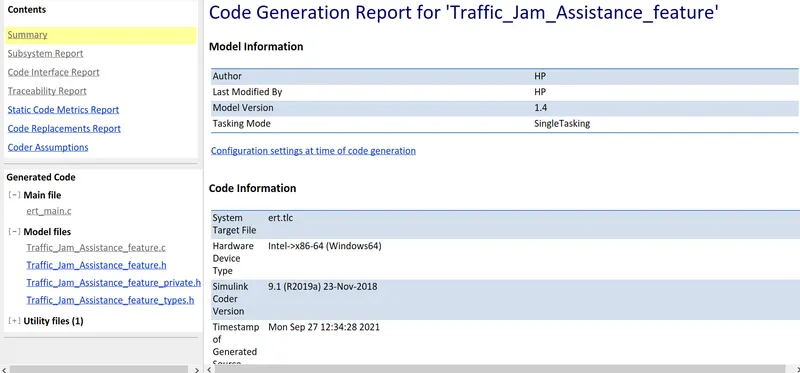

Code Generation :
