Project 1- Traffic Jam Assistant Feature
PROJECT -1
Traffic Jam Assistant Feature
- This project deals with the traffic jam assistant feature which is a ADAS feature and also one of the most important which a car needs in todays world as the traffic on the road in the todays world .
- In this project , following model has been created as per the requirements in a detailed format .
- So here are the steps for the complete code generation for this .
1) MODEL DEVELOPEMENT :

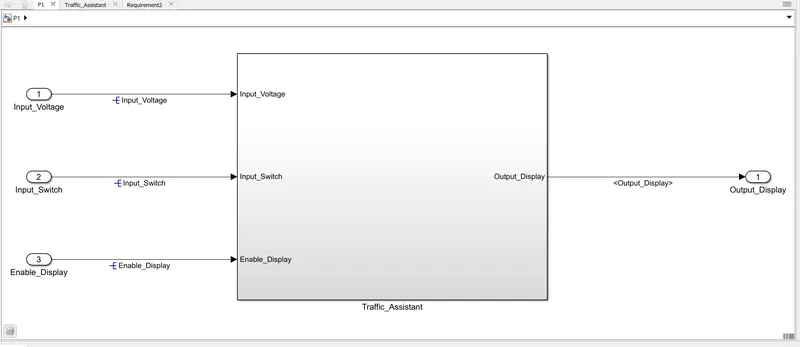

- These 3 images shows the complete logic behind the requierments .
- Now we will see each of them in details :

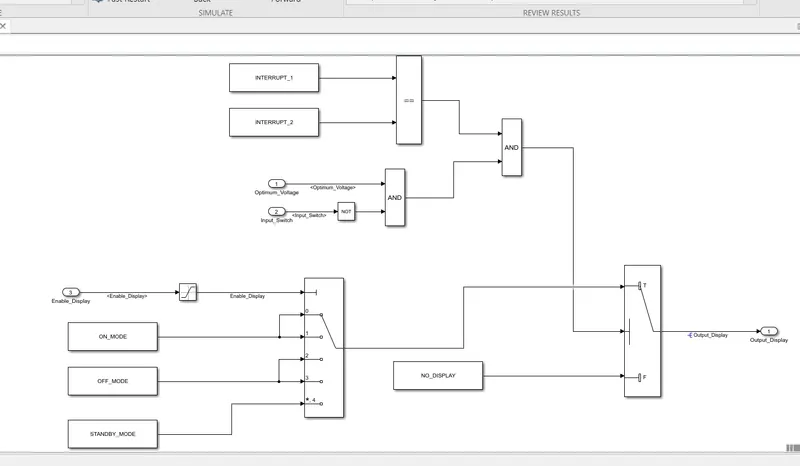

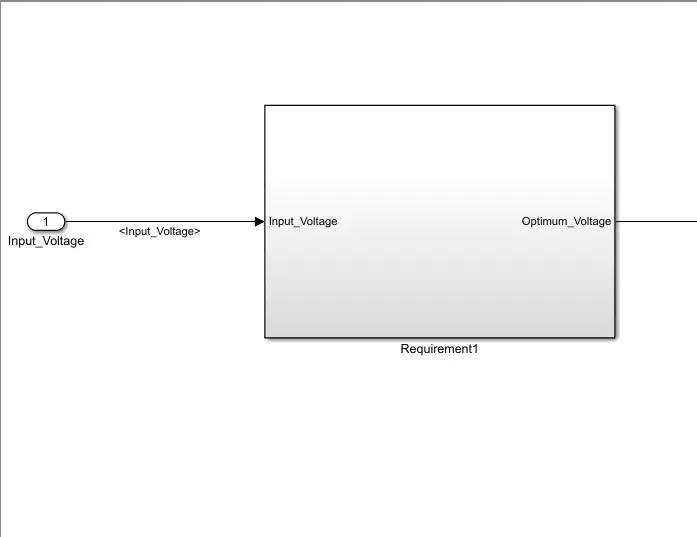

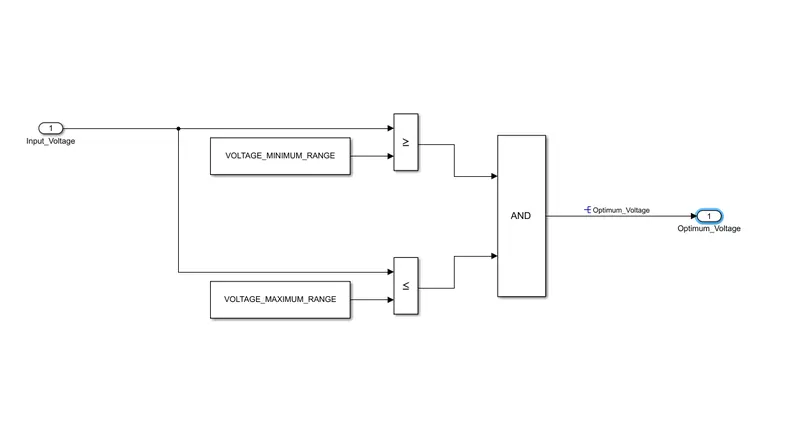

- This image is regarding the detailed logic of Requiermnt 1 :

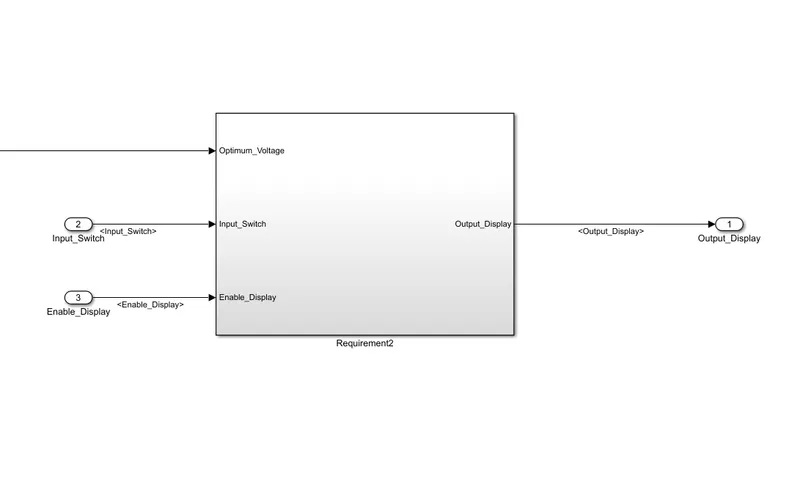

- This image is regarding the detailed logic of Requiermnt 2 :

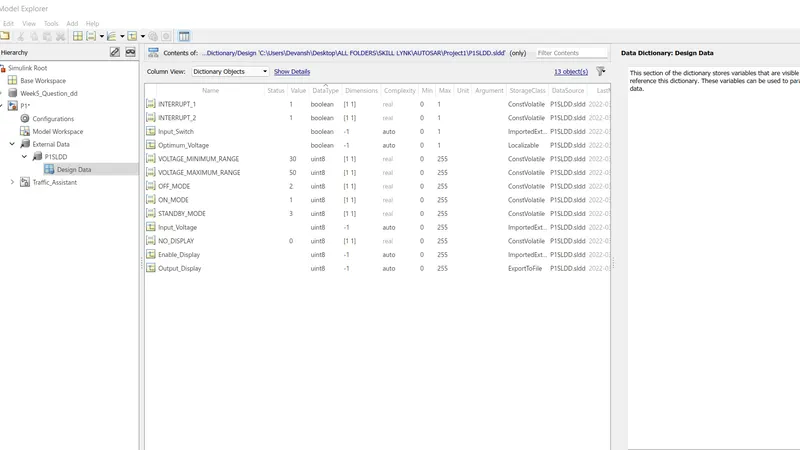

2 ) Now SLDD creation :
- After making of the logic , craete a SLDD file in which all the variables and the signals names are mentioend in detail . Not doing this will not run the simulation .
3) ENABLE SIGNALS :

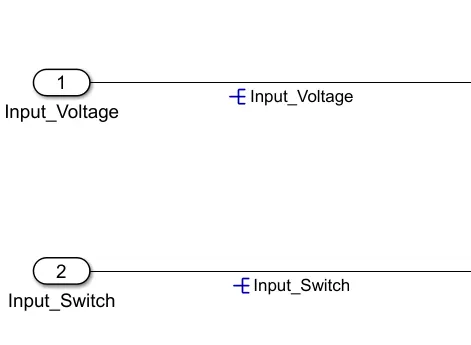

- This is done to ensure that the signal information mentioned in SLDD file is complied with the actual signal in the model for the perfect information flow .
5 ) REQUIRMENT TAGGING :
- This is done to understand the logic in words which is mentioned for the particular sub sytem .

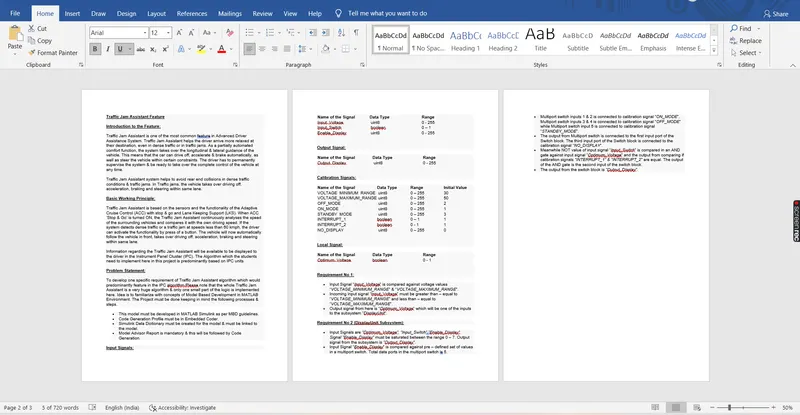

- For this we need to create the requiements in the word file and then we have to tag it with the model .

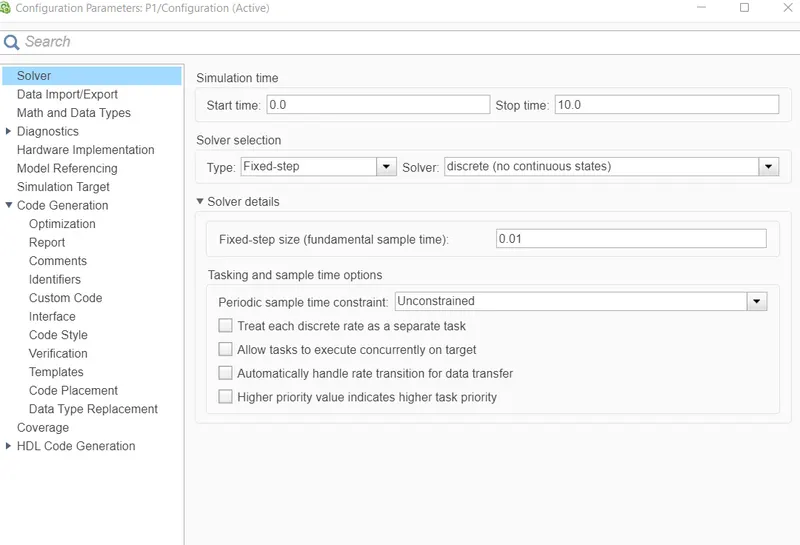

6 ) MODEL SETTINGS
- Do the model setting for the proper run of the advisory report and the code generation so that thre there are minimum warnings .

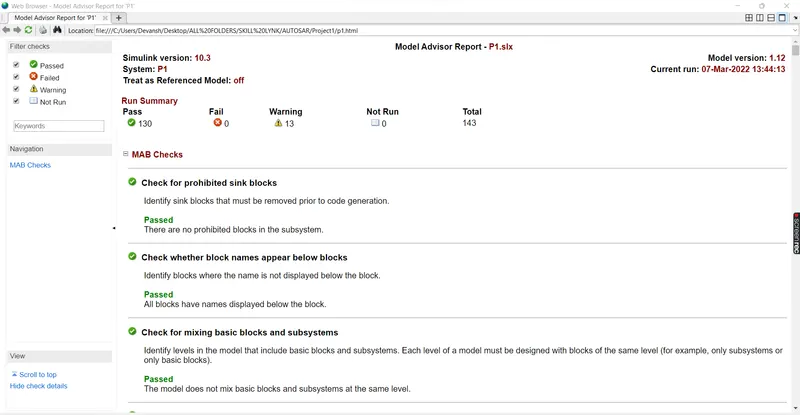

7 ) ADVISORY CHECK :

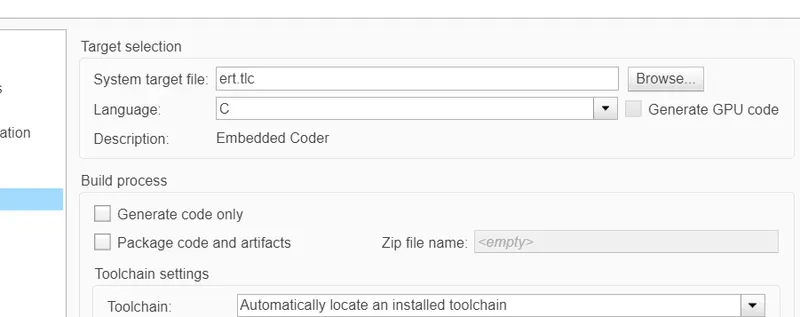

8) Final CODE GENERATION :
- This is done by ctrl+B

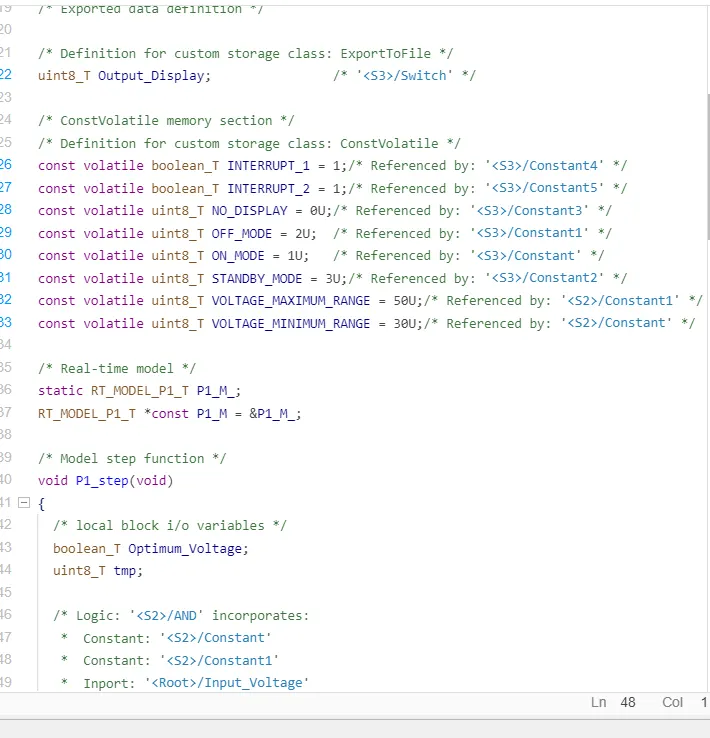

- This is just 1 image of the code .
- To see the entire code , I have made a folder for the codes in the ZIP file .
Please find below the ZIP file . The contents in the file are :
- Simulink model
- SLDD file
- Requirment DOC
- Advisory report
- Code file
