Project 1 (Mini Project on Vehicle Direction Detection

OBJECTIVE-1:

1. Tag the requirements to the simulink model; tagging requirement 1 & requirement 2 to their corresponding subsystems is fine.

2. Development of MATLAB Simulink model as per requirement.

Requirement Tagging:

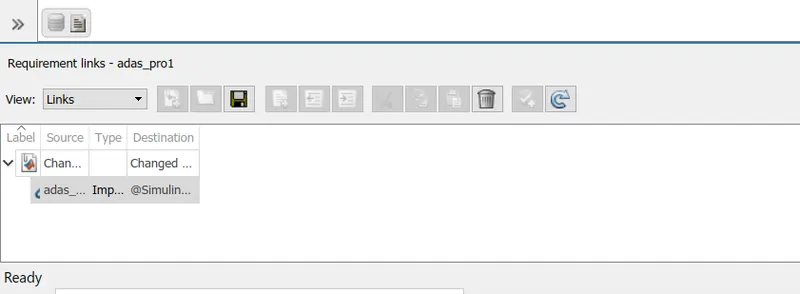

The requirement tagging has been attached. Then the requirement document is saved as the slmx file

It can be accessed through edit >requirement at this level.

MODEL CREATION:

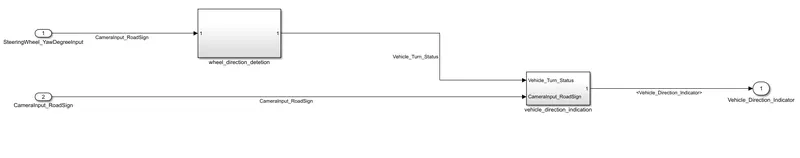

The model is created as per the requirement 1 and the requirement 2. Using the logical blocks ,relational blocks, in ,out blocks the model is reated.

To give the understanding the brief picture for the requirement is given below.

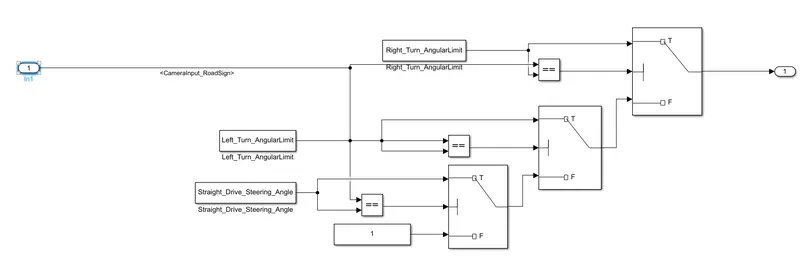

SUBSYSTEMS:-Requirement 1

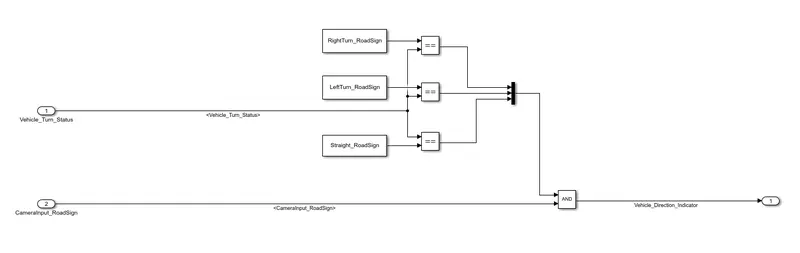

Requirement 2

SLDD CREATION:

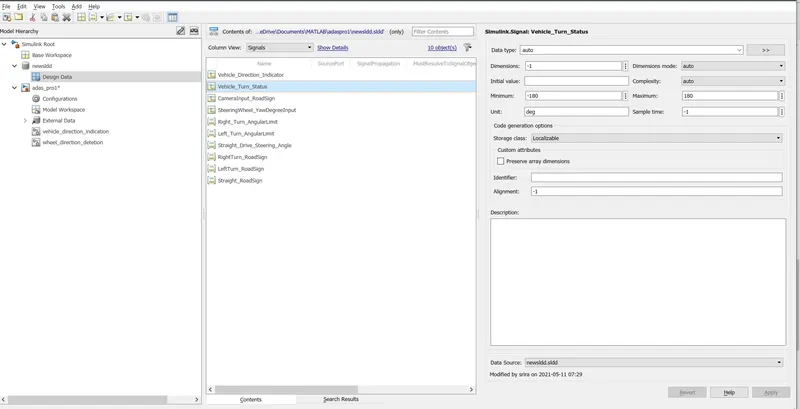

The signals are created in the file name called newsldd and linked with the slx file.

model file link:

RESULT:

Thus the model is created with the requirement and the simiulation is done after the attachment of sldd
