Project 1 - Meshing of Floor Panel

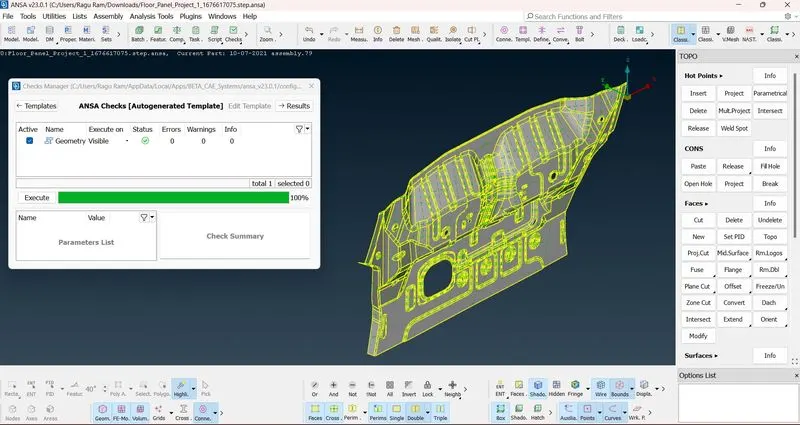

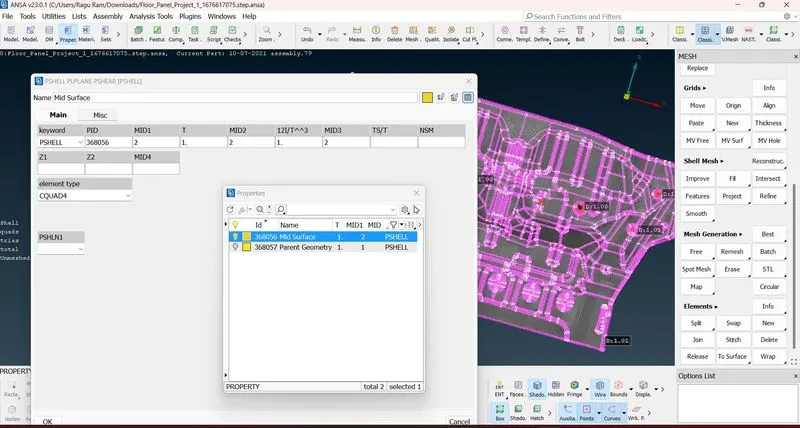

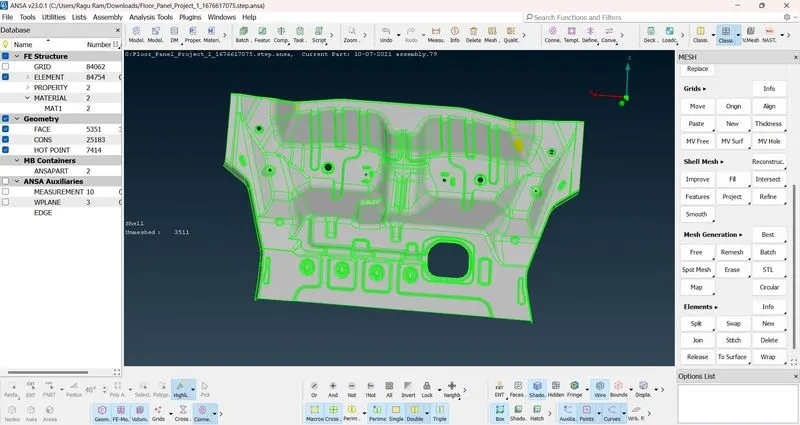

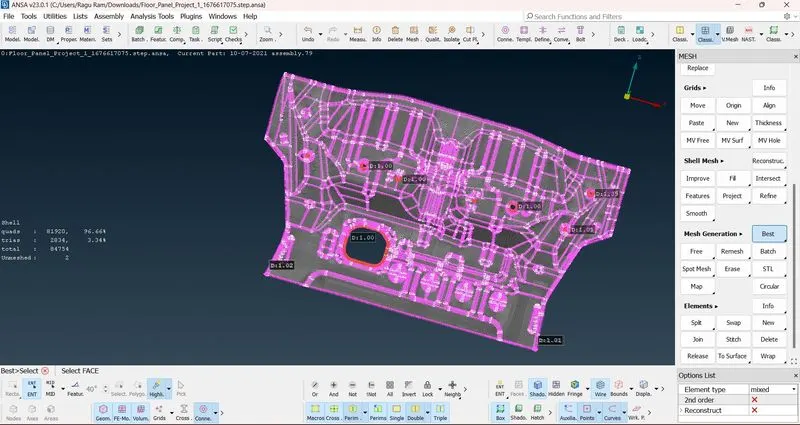

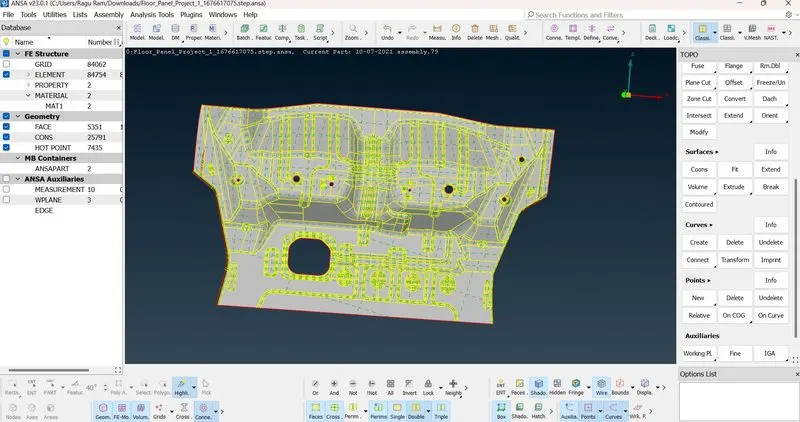

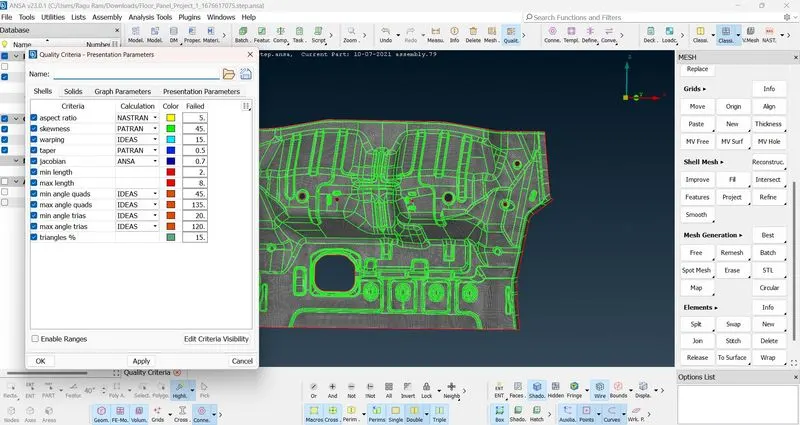

OBJECTIVE: To do the meshing and assign thickness for floor panel. CAD Model Image: PROCEDURE: First property have to check whether how many properties are there. Do orient for given Model. Topo>Faces>Orient. Do geometry check if any errors arise clear it by using Cons> Paste or Fill holes else Face>…
