Project 1 Mechanical design of battery pack

ABSTRACT: In this project, we are going to calculate the all parameters which are required for the build EV battery pack. We are going to use the Cell: ANR26650M1-B for our battery pack. In parameters, we will consider all electrical aspects like temperature, Depth of discharge, Operation current, Energy density, Work cycles, Battery capacity, State of Charge (SOC), State of Health (SOH), Ampere-hour (Ah) Capacity. We also calculate all geometrical considerations like size, weight, volume, area, etc. In the end, we consider some enclosures model for our battery pack.

OBJECTIVE:

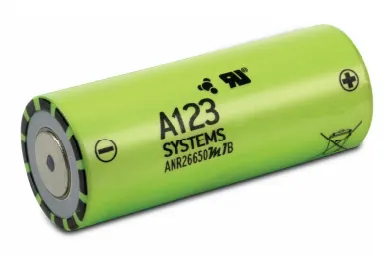

1) Collecting the data of Cell: ANR26650M1-B from Nanophosphate High Power LithiumIon Cell PDF.

2) Calculating all Electrical parameters for 18 kWh Battery Pack.

3) Calculating all Physical dimensions for Battery Pack.

4) Consider perfect enclosure for dimensions that we calculated for the Battery Pack.

METHODOLOGY:

1) To build the Battery pack for any Electric Vehicle, we have to calculate the first proportion of power then motor power, and depend on that we will model the battery pack so we know how much power we required which is 18kWh.

2) For the 18kWh battery Pack we have to calculate how many cells are parallel and how many cells are in series.

3) After calculation of series and parallel combination we have to calculate the proper Geometry and topology consideration for assembling batteries.

4) After Assembly we need to find a proper enclosure for the battery pack for thermal consideration and other physical damages.

THEORY:

The high voltage battery is one of the most important components of a battery electric vehicle (BEV). The battery parameters have a significant influence on other components and attributes of the vehicle, like:

• maximum traction motor torque
• maximum regeneration brake torque
• vehicle range
• vehicle total weight
• vehicle price

Pretty much all major aspects of a pure electric vehicle (EV) depend on the parameters of the high voltage battery.

For our electric vehicle battery design we are going to start from 4 core input parameters:

• chemistry
• voltage
• average energy consumption of the vehicle on a driving cycle
• vehicle range

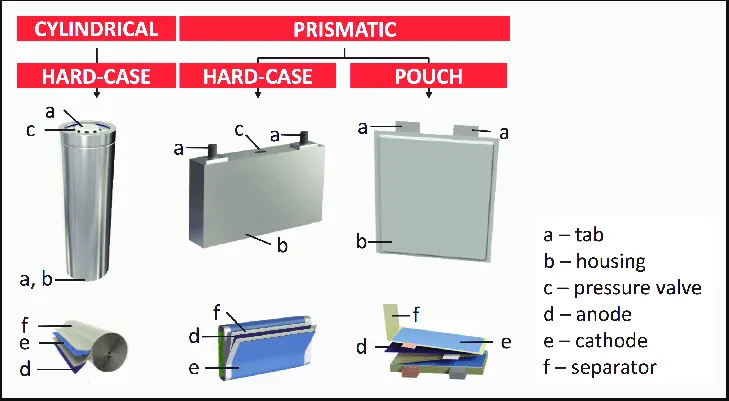

A battery consists of one or more electrochemical cells (battery cells) which are converting chemical energy into electrical energy (during discharging) and electrical energy into chemical energy (during charging).A battery cell consists of five major components: electrodes – anode and cathode, separators, terminals, electrolytes, and a case or enclosure. For automotive applications, there are different types of cells used Individual battery cells are grouped into a single mechanical and electrical unit called a battery module. The modules are electrically connected to form a battery pack.

The voltage level of the battery determines the maximum electrical power which can be delivered continuously. Power P [W] is the product between voltage U [V] and current I[A]. P= U*I

The higher the current, the bigger the diameter of the high voltage wires and the higher the thermal losses. For this reason, the current should be limited to a maximum, and the nominal power obtained by having a higher voltage. For our application, we are going to consider a nominal voltage of 400 V.

Battery pack architecture:

All high voltage battery packs are made up from battery cells arranged in strings and modules. A battery cell can be regarded as the smallest division of the voltage.

Individual battery cells may be grouped in parallel and/or series as modules. Further, battery modules can be connected in parallel and/or series to create a battery pack. Depending on the battery parameters, there may be several levels of modularity.

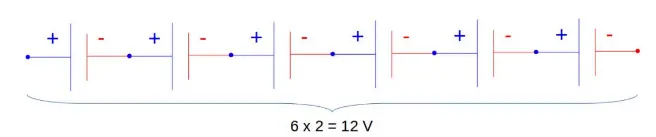

The total battery pack voltage is determined by the number of cells in series. For example, the total (string) voltage of 6 cells connected in series will be the sum of their individual voltage.

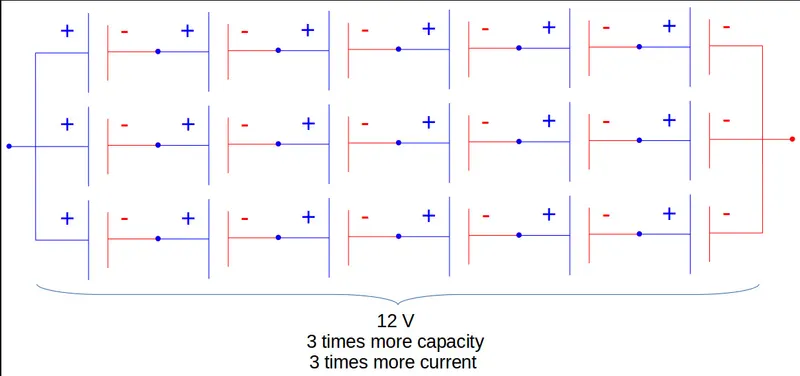

In order to increase the current capability the battery capacity, more strings have to be connected in parallel. For example, 3 strings connected in parallel will triple the capacity and current capability of the battery pack.

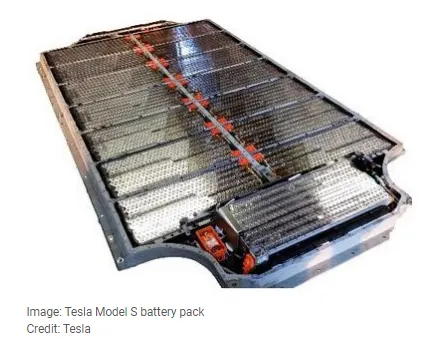

An example is the high voltage battery pack of Tesla Model S, which has:

• 74 cells in a parallel-group
• 6 groups in series for a module
• 16 modules in series
• 7104 cells in total

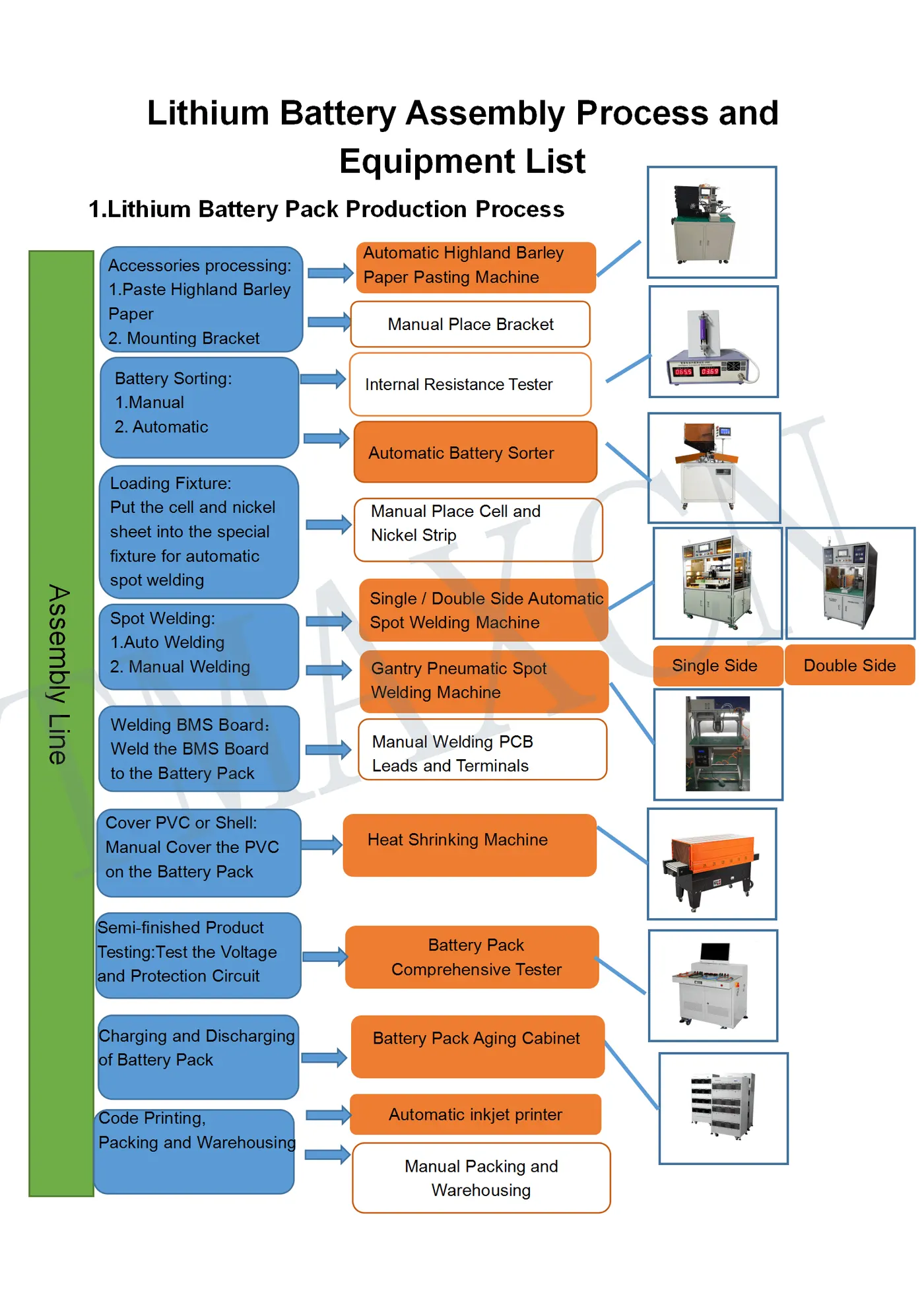

Battery pack production line:

PROCEDURE:

1) first we have to start with Cell calculation.

2) Then we will do Battery Pack assumptions.

3) After assumptions, we have to do Battery pack calculations.

4) from Cell Dimensions we calculate the surface required for a battery pack.

5) Depending upon the above calculations we build Battery Pack construction.

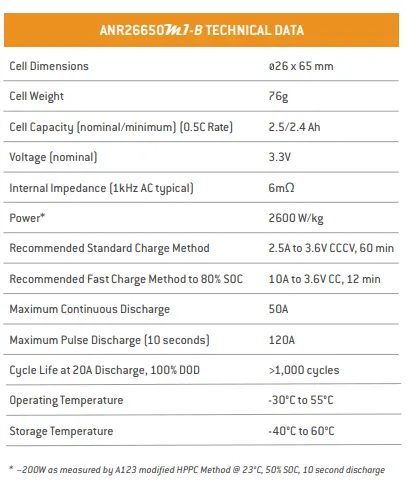

Followings are the all cell (Cell: ANR26650M1-B) parameters for battery pack:

From above all parameters we will calculate further parameters which are used for battery pack construction.

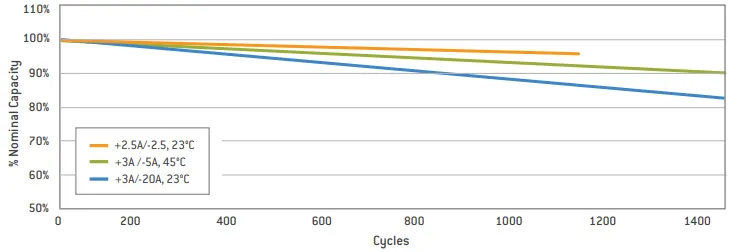

Cycle Life Performance, 100% DOD, Various Temperatures and Discharge Rates of cell:

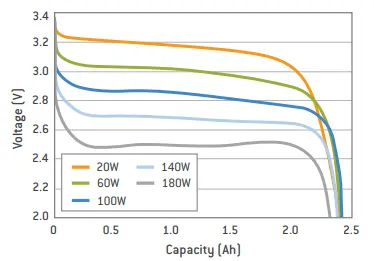

Constant Power Discharge Characteristics at 23°C of cell:

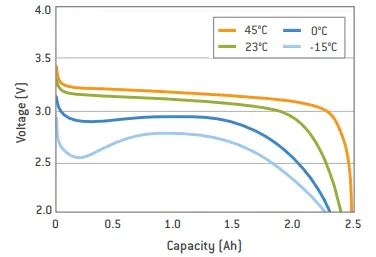

2.5C Constant Current Discharge at Various Temperatures:

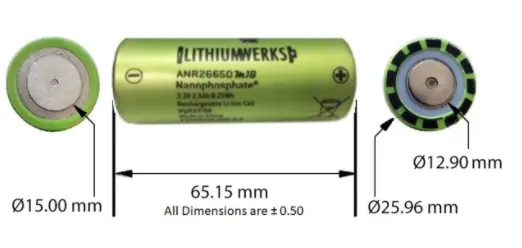

Cell dimensions:

Cell calculation:

1) Volume of the cell: For the calculation of the volume of the cell we use the formula of Volume of cylinder.

so the formula is: pi*r^2*h

From Datasheet of Cell, we have 'r' and 'h' values

r=0.013m and h=0.065m = Volume of the cell: pi*r^2*h

: 3.14*0.0136^2*0.065

:0.0000344929m^3.

The volume of the cell is 0.0000344929m^3.

Basically, the value of the volume of the cell is used to find out the total volume of the battery pack.

Cell Energy= Cell Capacity (Ah) × Cell Voltage (V)

= 2.5 × 3.3

= 8.25 Wh

Cell Energy is 8.25 Wh

The value of a single cell is used to calculate the total energy of the battery pack.

Single Cell Energy Density

Volumetric energy (Wh/m³) = Single Cell Energy / Volume of each cell

= 8.25 Wh / 0.0000344929m³

=2,39,179.6572 Wh/m³

Single Cell Energy Density is 2,39,179.6572 Wh/m³

Battery Pack Assumtions:

There are 50 cell are in series and 44 cells are in parallel, and as above maintioned we are going to use Cell: ANR26650M1-B this cells.

Battery pack calculation:

Now we calculated parallel and series combinations so we can now calculate total no of cells required

Total no of cells: Series cells * parallel cells

:50*44

:2200.

Total no of cells required are 2200.

So from series and parallel combination, we can calculate the voltage of battery pack and the current of the battery pack.

Voltage= no of cell in series* nominal voltage.

= 50*3.3

= 165V

The total value of voltage is 165V.

Current=No of parallel cells * cell capacity

= 44*2.5

=110Ah.

The total value of Current is 110Ah

So now we can calculate the how much mount of energy this combination have by product of voltage and current, and check the it will satisfied or not our requirement

Energy= Voltage * Current

= 165 * 110

= 18150WAh

The total value of Energy is 18150WAh.

So our calculation are satisfied requirement what we need.

now we have total no of cells and volume of single cell so we can calculate the total volume required for battery pack

Total volume = no of cells * Volume of single cell

= 2200 * 0.0000344929

=0.07588438m3�3

Total volume required for battery pack is 0.07588438m3�3

We also have single cell weight from that we can calculate the total weight of battery pack without other mechanical and electrical connections.

Weight = No of cells * weight of single cell.

= 2200 * 0.076

= 167.2kg

Weight of battery pack is 167.2kg

Energy density= volume * battery pack energy

= 0.07588438 * 18150

= 1,377.301497kWh/m^3

Energy density is 1,377.301497kWh/m^3

Now we have all parameters which we need to construct the battery pack in physically.

Assembly of the full battery pack with 50s/ 44P. The arrangement of the pack is as follow:

Then,

2112 cells will have 50S / 44P

Here I arrange the pack such that it will build a proper battery pack.

The detail technical specification of 2112 battery pack is as follow:

• Package: 50S / 44P
• Capacity: 110 Ah
• Voltage: 165 V
• Weight: 167.2kg (Only Cells)
• No of Cells: 2100
• Power: 18150Wh or 18.15 kWh

;

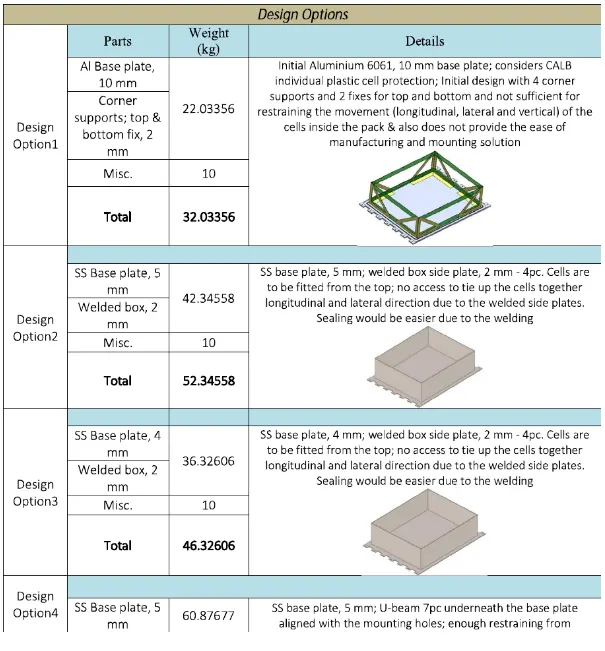

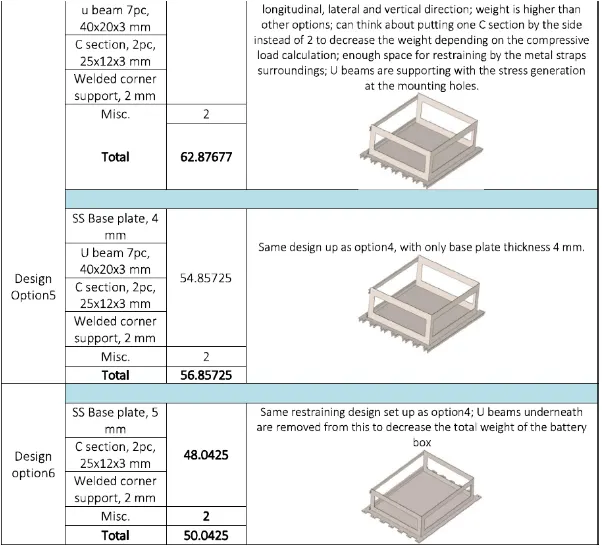

Cell holder designs:

RESULTS:

NO	Calculated Parameters	Values got
1	Cell Volume	0.0000344929m^2
2	Cell Energy	8.25Wh
3	Cell Density	239179.6572kWh/m^2
4	Pack assumptions	50s 44p
5	Total no of cells	2200
6	Voltage	165V
7	Capacity	110Ah
8	Energy	18150WAh
9	Total volume	0.07588m^2
10	Total Density	1377.30kWh/m^2
11	Weight	167.2kg
