Project 2

Summary:

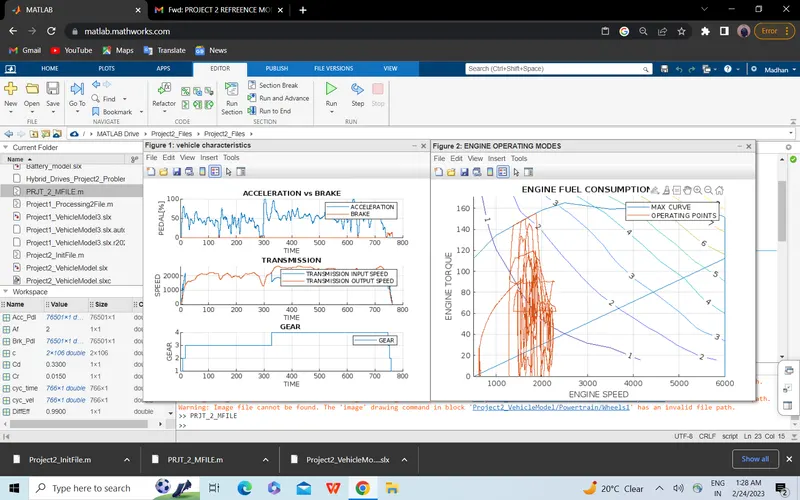

*Time trace for engine, Transmission input, Transmission output and wheelspeed with respect to time.

*Engine torque, Engine power, Fuel rate and Fuel consumption with respect to time.

*Accelerator and brake pedal, gear command and vehicle desired, actual speed, vehicle distance with respect to time.

*Engine operating points on the engine fuel map with respect to time.

*Motor speed, Torque, Motor input power with respect to time.

*Pack voltage, Current and State of charging with respect to time.

*The motor operating points on the motor input power map with respect to time.
